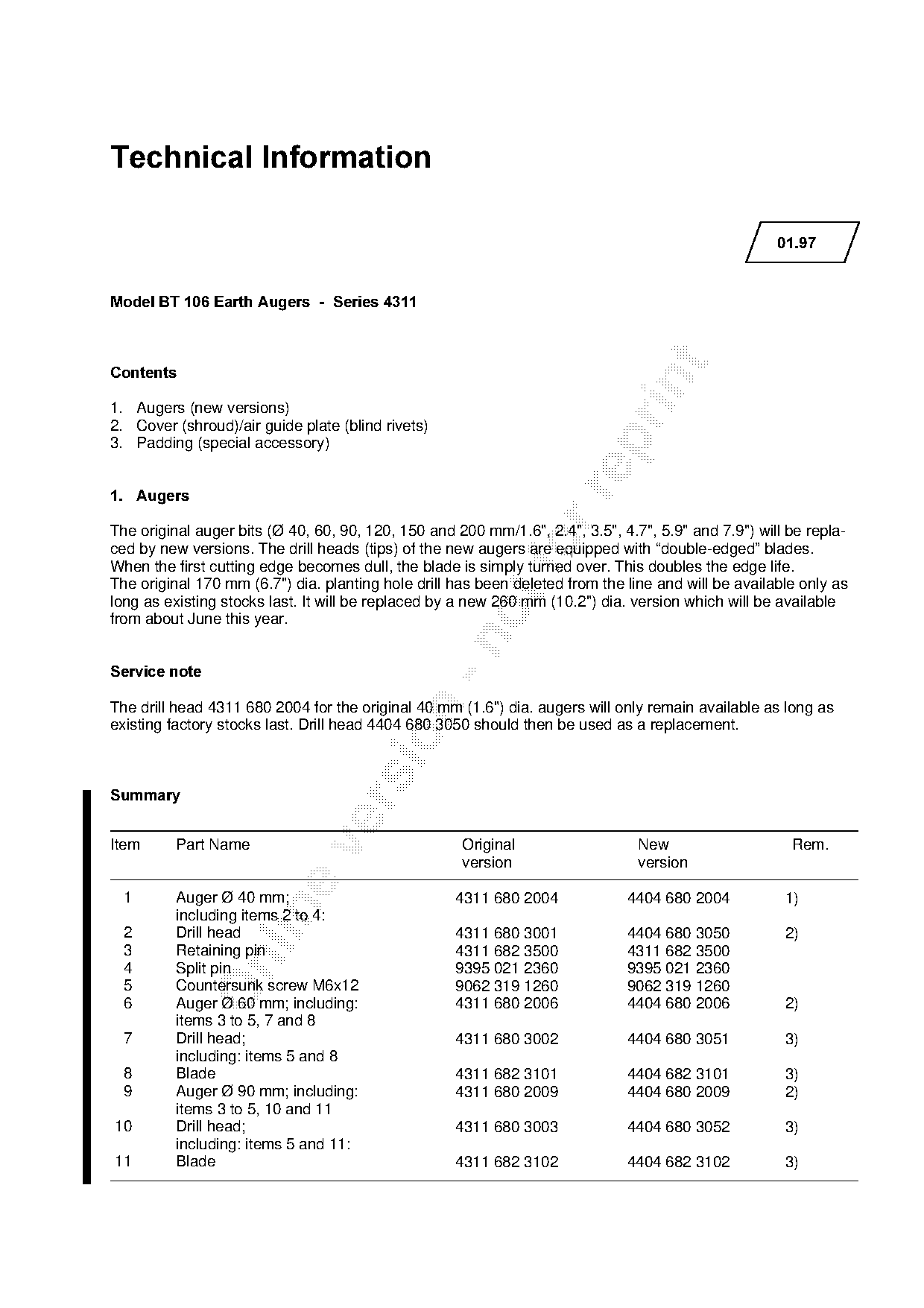

Model BT 106 Earth Augers - Series 4311
&RQWHQWV
1. Augers (new versions)
2. Cover (shroud)/air guide plate (blind rivets)
3. Padding (special accessory)
1.=Augers
The original auger bits (Ø 40, 60, 90, 120, 150 and 200 mm/1.6", 2.4", 3.5", 4.7", 5.9" and 7.9") will be repla-
ced by new versions. The drill heads (tips) of the new augers are equipped with “double-edged” blades.
When the first cutting edge becomes dull, the blade is simply turned over. This doubles the edge life.
The original 170 mm (6.7") dia. planting hole drill has been deleted from the line and will be available only as
long as existing stocks last. It will be replaced by a new 260 mm (10.2") dia. version which will be available
from about June this year.
Service note
The drill head 4311 680 2004 for the original 40 mm (1.6") dia. augers will only remain available as long as
existing factory stocks last. Drill head 4404 680 3050 should then be used as a replacement.
6XPPDU\
Item Part Name Original New Rem.
version version
1 Auger Ø 40 mm; 4311 680 2004 4404 680 2004 1)
including items 2 to 4:
2 Drill head 4311 680 3001 4404 680 3050 2)
3 Retaining pin 4311 682 3500 4311 682 3500
4 Split pin 9395 021 2360 9395 021 2360
5 Countersunk screw M6x12 9062 319 1260 9062 319 1260
6 Auger Ø 60 mm; including: 4311 680 2006 4404 680 2006 2)
items 3 to 5, 7 and 8
7 Drill head; 4311 680 3002 4404 680 3051 3)
including: items 5 and 8
8 Blade 4311 682 3101 4404 682 3101 3)
9 Auger Ø 90 mm; including: 4311 680 2009 4404 680 2009 2)
items 3 to 5, 10 and 11
10 Drill head; 4311 680 3003 4404 680 3052 3)
including: items 5 and 11:
11 Blade 4311 682 3102 4404 682 3102 3)
)Technical Information 01.97 - Page 2

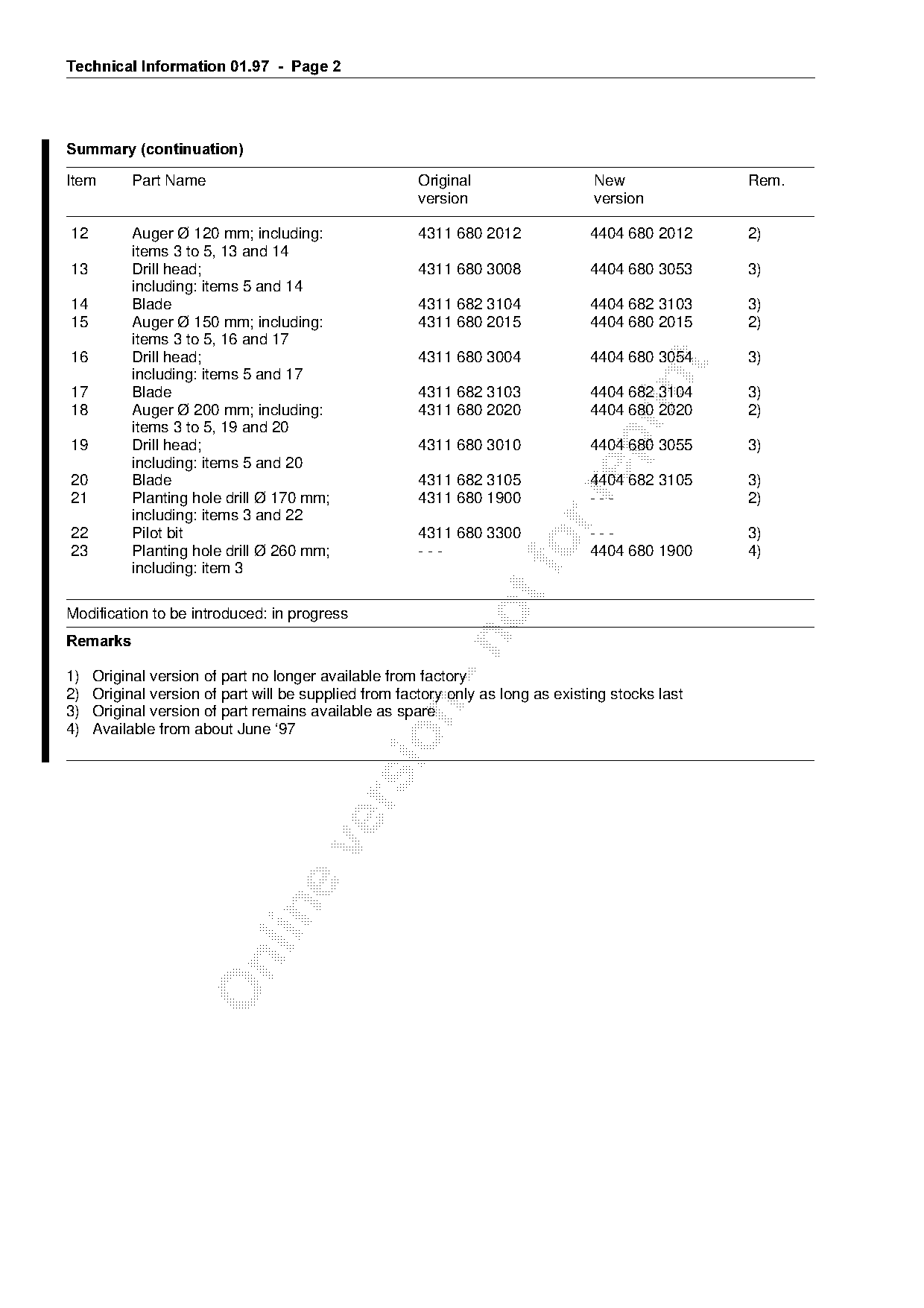

Summary =continuation
Item Part Name Original New Rem.
version version
12 Auger Ø 120 mm; including: 4311 680 2012 4404 680 2012 2)
items 3 to 5, 13 and 14
13 Drill head; 4311 680 3008 4404 680 3053 3)
including: items 5 and 14
14 Blade 4311 682 3104 4404 682 3103 3)
15 Auger Ø 150 mm; including: 4311 680 2015 4404 680 2015 2)
items 3 to 5, 16 and 17
16 Drill head; 4311 680 3004 4404 680 3054 3)
including: items 5 and 17
17 Blade 4311 682 3103 4404 682 3104 3)
18 Auger Ø 200 mm; including: 4311 680 2020 4404 680 2020 2)
items 3 to 5, 19 and 20
19 Drill head; 4311 680 3010 4404 680 3055 3)
including: items 5 and 20
20 Blade 4311 682 3105 4404 682 3105 3)
21 Planting hole drill Ø 170 mm; 4311 680 1900 --- 2)
including: items 3 and 22
22 Pilot bit 4311 680 3300 --- 3)
23 Planting hole drill Ø 260 mm;
including: item 3
--- fo 4404 680 1900 4)
Modification to be introduced: in progress
5HPDUNV
1) Original version of part no longer available from factory
2) Original version of part will be supplied from factory only as long as existing stocks last
3) Original version of part remains available as spare
4) Available from about June ‘97
)Technical Information 01.97 - Page 3

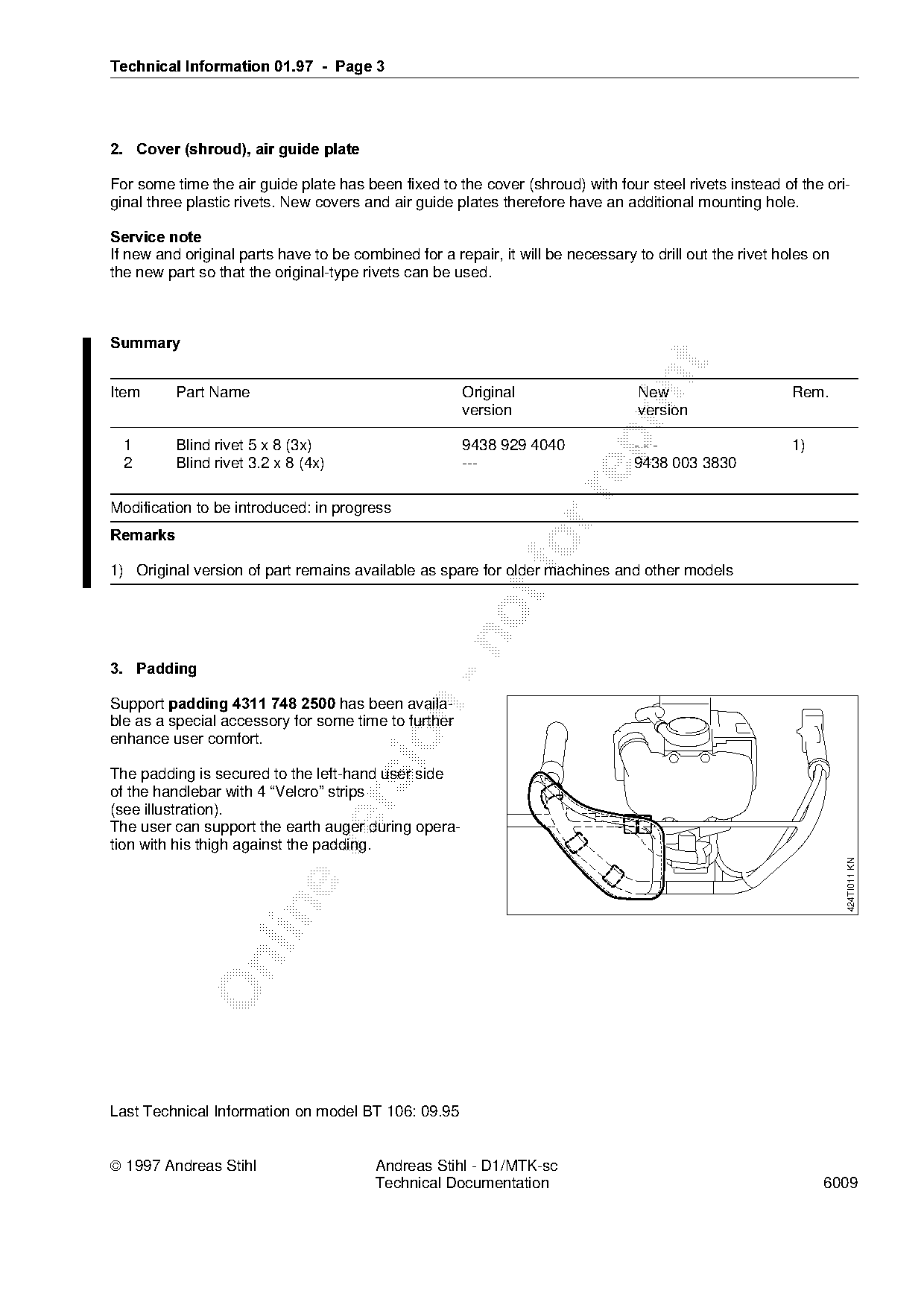

2.=Cover =shroud=, air guide plate
For some time the air guide plate has been fixed to the cover (shroud) with four steel rivets instead of the ori-
ginal three plastic rivets. New covers and air guide plates therefore have an additional mounting hole.
Service note
If new and original parts have to be combined for a repair, it will be necessary to drill out the rivet holes on
the new part so that the original-type rivets can be used.
6XPPDU\
Item Part Name Original New Rem.
version version
1 Blind rivet 5 x 8 (3x) 9438 929 4040 --- 1)
2 Blind rivet 3.2 x 8 (4x) --- 9438 003 3830
Modification to be introduced: in progress
5HPDUNV
1) Original version of part remains available as spare for older machines and other models
3.=Padding
Support padding 4311 748 2500 has been availa-
ble as a special accessory for some time to further
enhance user comfort.
The padding is secured to the left-hand user side
of the handlebar with 4 “Velcro” strips
(see illustration).
The user can support the earth auger during opera-
tion with his thigh against the padding.
424TI011 KN
Last Technical Information on model BT 106: 09.95
1997 Andreas Stihl Andreas Stihl - D1/MTK-sc
