Technical Information
05.97
Model 046 Chainsaws
Contents

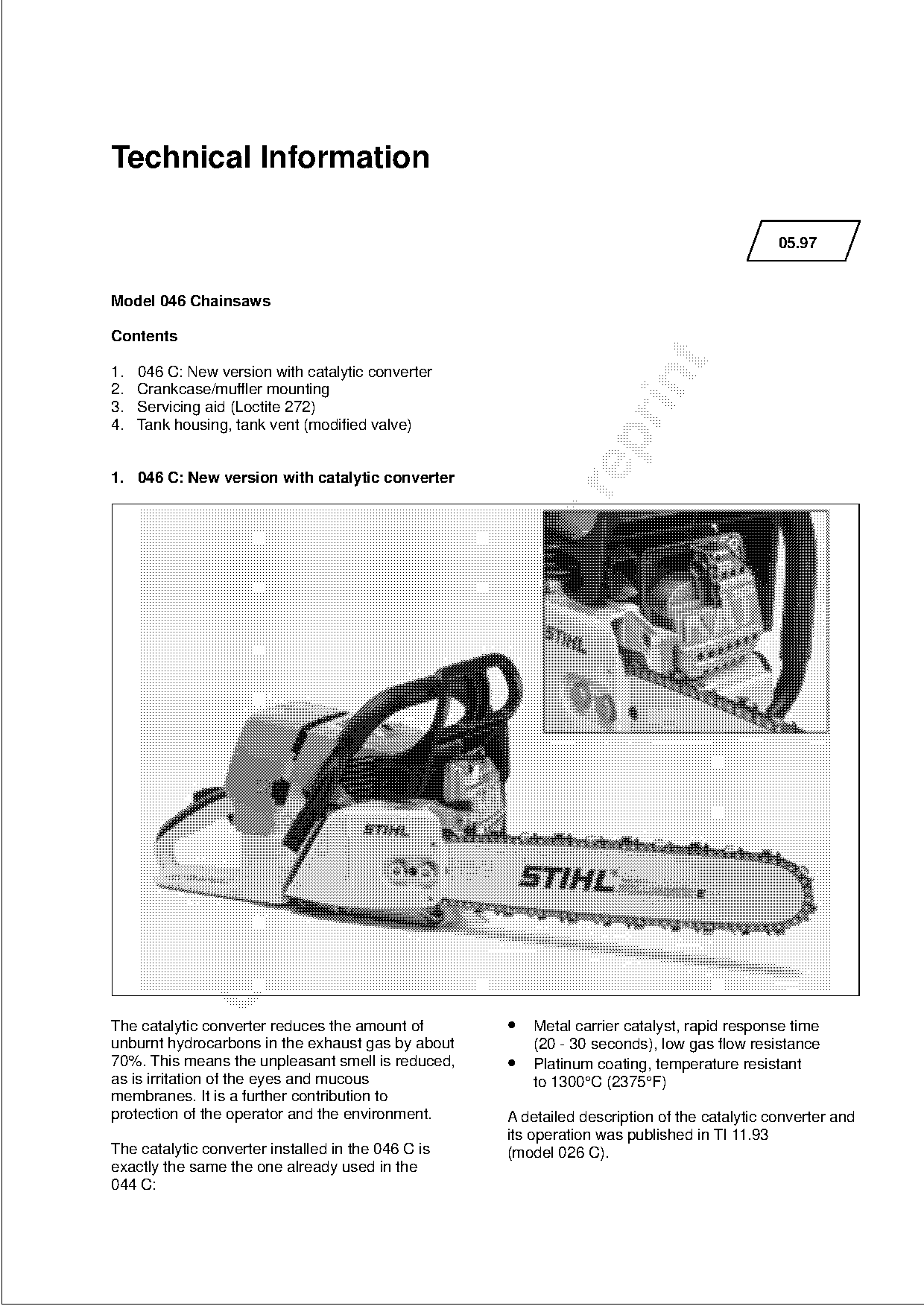

1. 046 C: New version with catalytic converter
2. Crankcase/muffler mounting
3. Servicing aid (Loctite 272)
4. Tank housing, tank vent (modified valve)
1. 046 C: New version with catalytic converter
The catalytic converter reduces the amount of • Metal carrier catalyst, rapid response time
unburnt hydrocarbons in the exhaust gas by about (20 - 30 seconds), low gas flow resistance
70%. This means the unpleasant smell is reduced, • Platinum coating, temperature resistant
as is irritation of the eyes and mucous to 1300°C (2375°F)
membranes. It is a further contribution to
protection of the operator and the environment. A detailed description of the catalytic converter and
its operation was published in TI 11.93
The catalytic converter installed in the 046 C is (model 026 C).
exactly the same the one already used in the
044 C: Page 2 of 4
Technical Information 05.97 - Page 2
With the exception of 026-specific data (speeds, engine power, etc.), this description also applies to
the 046 C.

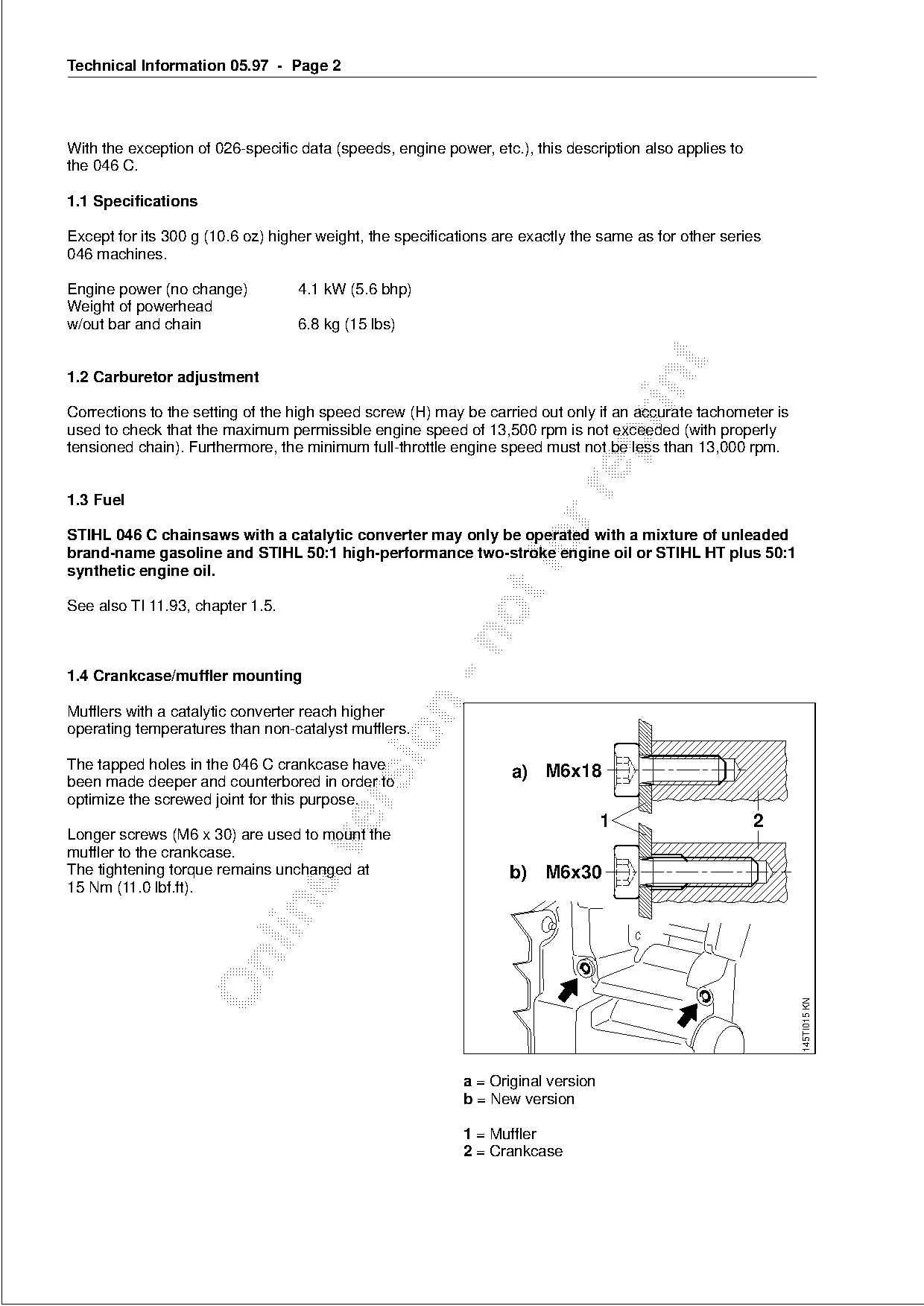

1.1 Specifications
Except for its 300 g (10.6 oz) higher weight, the specifications are exactly the same as for other series
046 machines.
Engine power (no change) 4.1 kW (5.6 bhp)
Weight of powerhead
w/out bar and chain 6.8 kg (15 lbs)
1.2 Carburetor adjustment
Corrections to the setting of the high speed screw (H) may be carried out only if an accurate tachometer is
used to check that the maximum permissible engine speed of 13,500 rpm is not exceeded (with properly
tensioned chain). Furthermore, the minimum full-throttle engine speed must not be less than 13,000 rpm.
1.3 Fuel
STIHL 046 C chainsaws with a catalytic converter may only be operated with a mixture of unleaded
brand-name gasoline and STIHL 50:1 high-performance two-stroke engine oil or STIHL HT plus 50:1
synthetic engine oil.
See also TI 11.93, chapter 1.5.
1.4 Crankcase/muffler mounting
Mufflers with a catalytic converter reach higher
operating temperatures than non-catalyst mufflers.
The tapped holes in the 046 C crankcase have
a) M6x18
been made deeper and counterbored in order to
optimize the screwed joint for this purpose.
1 2
Longer screws (M6 x 30) are used to mount the
muffler to the crankcase.
The tightening torque remains unchanged at b) M6x30
15 Nm (11.0 lbf.ft).
145TI015 KN
a = Original version
b = New version
1 = Muffler
2 = Crankcase Page 3 of 4
Technical Information 05.97 - Page 3

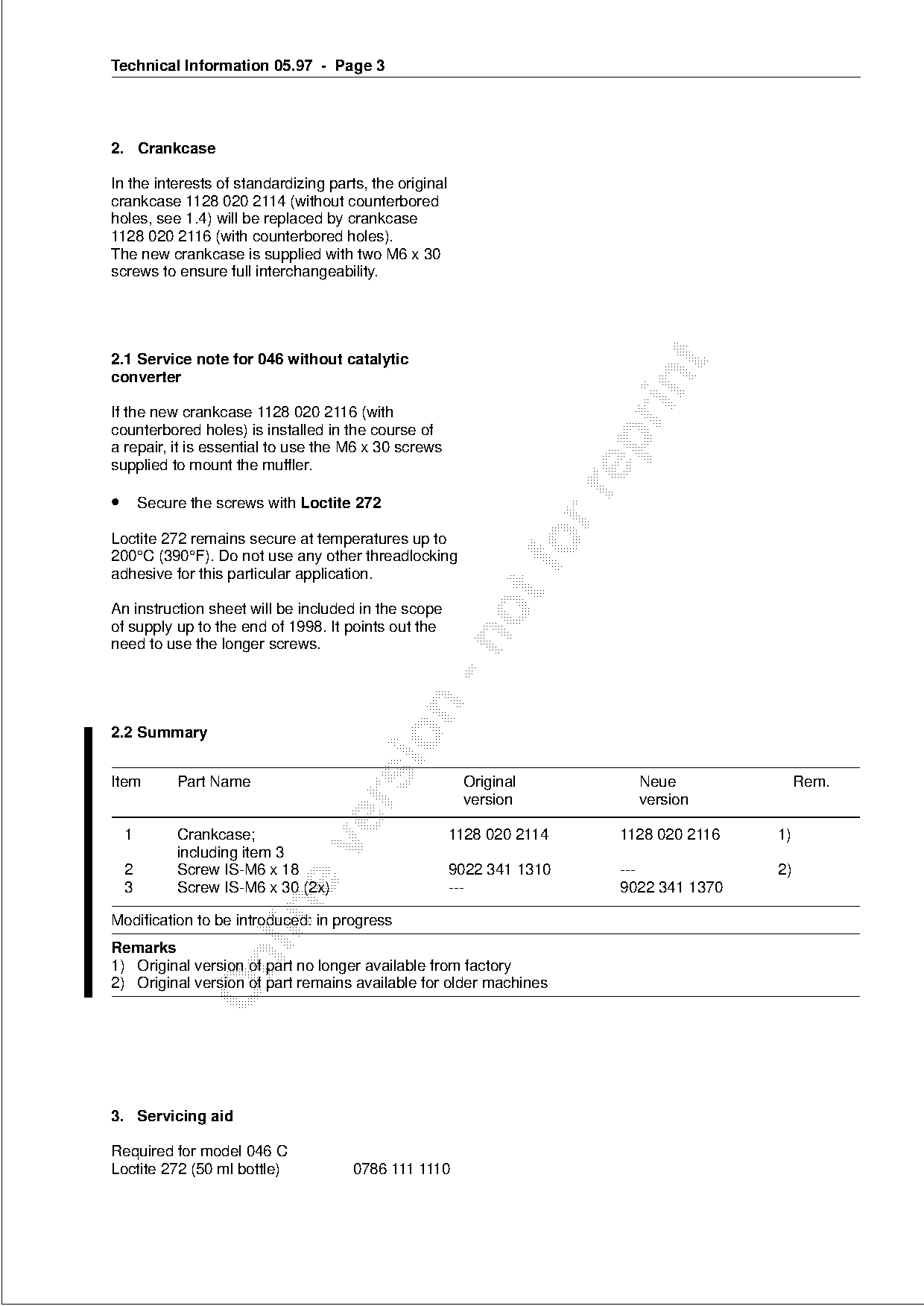

2. Crankcase
In the interests of standardizing parts, the original
crankcase 1128 020 2114 (without counterbored
holes, see 1.4) will be replaced by crankcase
1128 020 2116 (with counterbored holes).
The new crankcase is supplied with two M6 x 30
screws to ensure full interchangeability.
2.1 Service note for 046 without catalytic
converter
If the new crankcase 1128 020 2116 (with
counterbored holes) is installed in the course of
a repair, it is essential to use the M6 x 30 screws
supplied to mount the muffler.
• Secure the screws with Loctite 272
Loctite 272 remains secure at temperatures up to
200°C (390°F). Do not use any other threadlocking
adhesive for this particular application.
An instruction sheet will be included in the scope
of supply up to the end of 1998. It points out the
need to use the longer screws.
2.2 Summary
Item Part Name Original Neue Rem.
version version
1 Crankcase; 1128 020 2114 1128 020 2116 1)
including item 3
2 Screw IS-M6 x 18 9022 341 1310 --- 2)
3 Screw IS-M6 x 30 (2x) --- 9022 341 1370
Modification to be introduced: in progress
Remarks
1) Original version of part no longer available from factory
2) Original version of part remains available for older machines
3. Servicing aid
Required for model 046 C
Loctite 272 (50 ml bottle) 0786 111 1110 Page 4 of 4
Technical Information 05.97 - Page 4

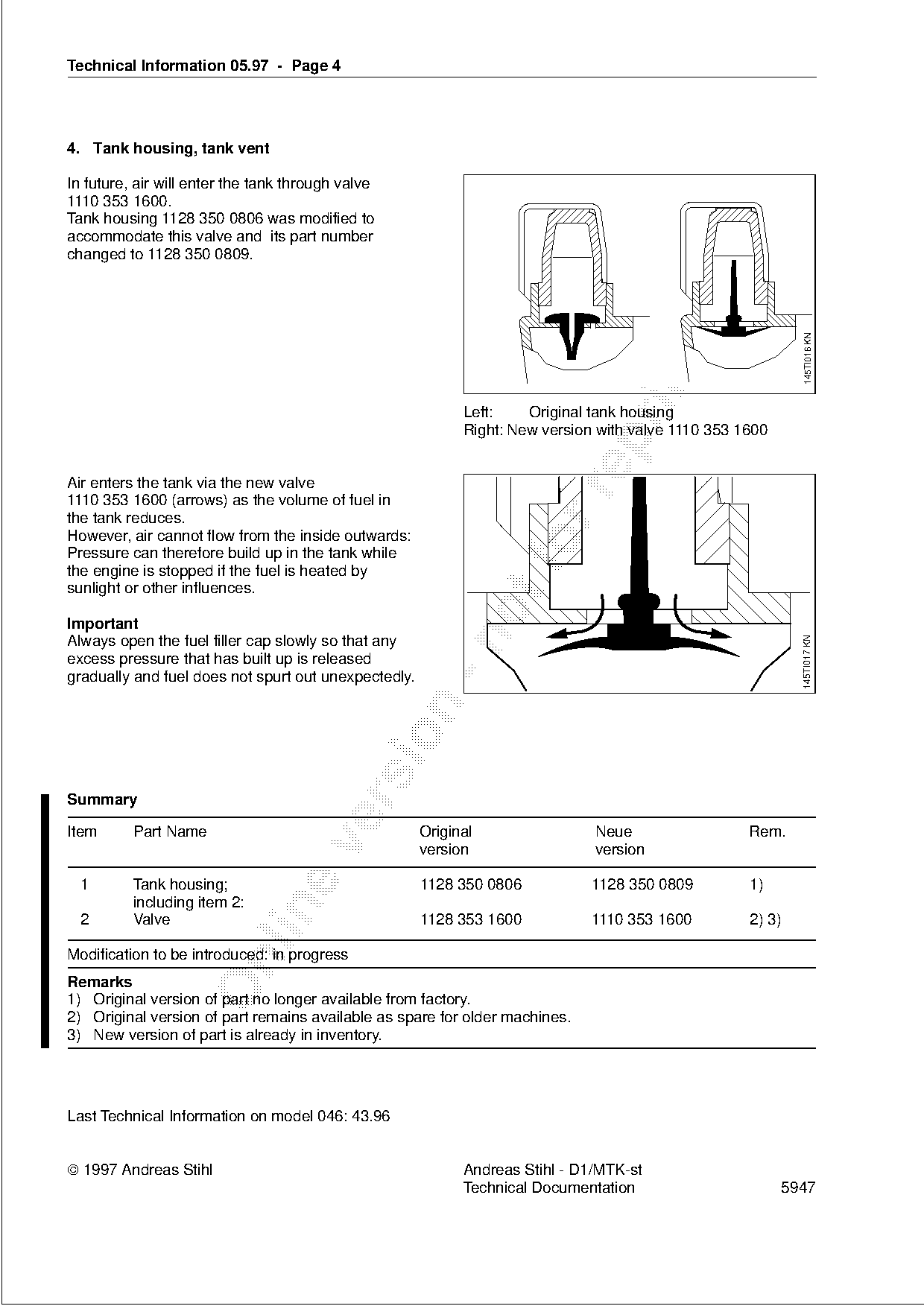

4. Tank housing, tank vent
In future, air will enter the tank through valve
1110 353 1600.
Tank housing 1128 350 0806 was modified to
accommodate this valve and its part number
changed to 1128 350 0809.
145TI016 KN
Left: Original tank housing
Right: New version with valve 1110 353 1600
Air enters the tank via the new valve
1110 353 1600 (arrows) as the volume of fuel in
the tank reduces.
However, air cannot flow from the inside outwards:
Pressure can therefore build up in the tank while
the engine is stopped if the fuel is heated by
sunlight or other influences.
Important
145TI017 KN
Always open the fuel filler cap slowly so that any
excess pressure that has built up is released
gradually and fuel does not spurt out unexpectedly.
Summary
Item Part Name Original Neue Rem.
version version
1 Tank housing; 1128 350 0806 1128 350 0809 1)
including item 2:
2 Valve 1128 353 1600 1110 353 1600 2) 3)
Modification to be introduced: in progress
Remarks
1) Original version of part no longer available from factory.
2) Original version of part remains available as spare for older machines.
3) New version of part is already in inventory.
