Technical Information · issue 6 of 1997
Carburetor C3A-S27A, C3A-S31A
Model 036, 036 QS Chainsaws - Series 1125
IssueTI 6/1997
Engine family 1125
Full text
Page 1 of 1

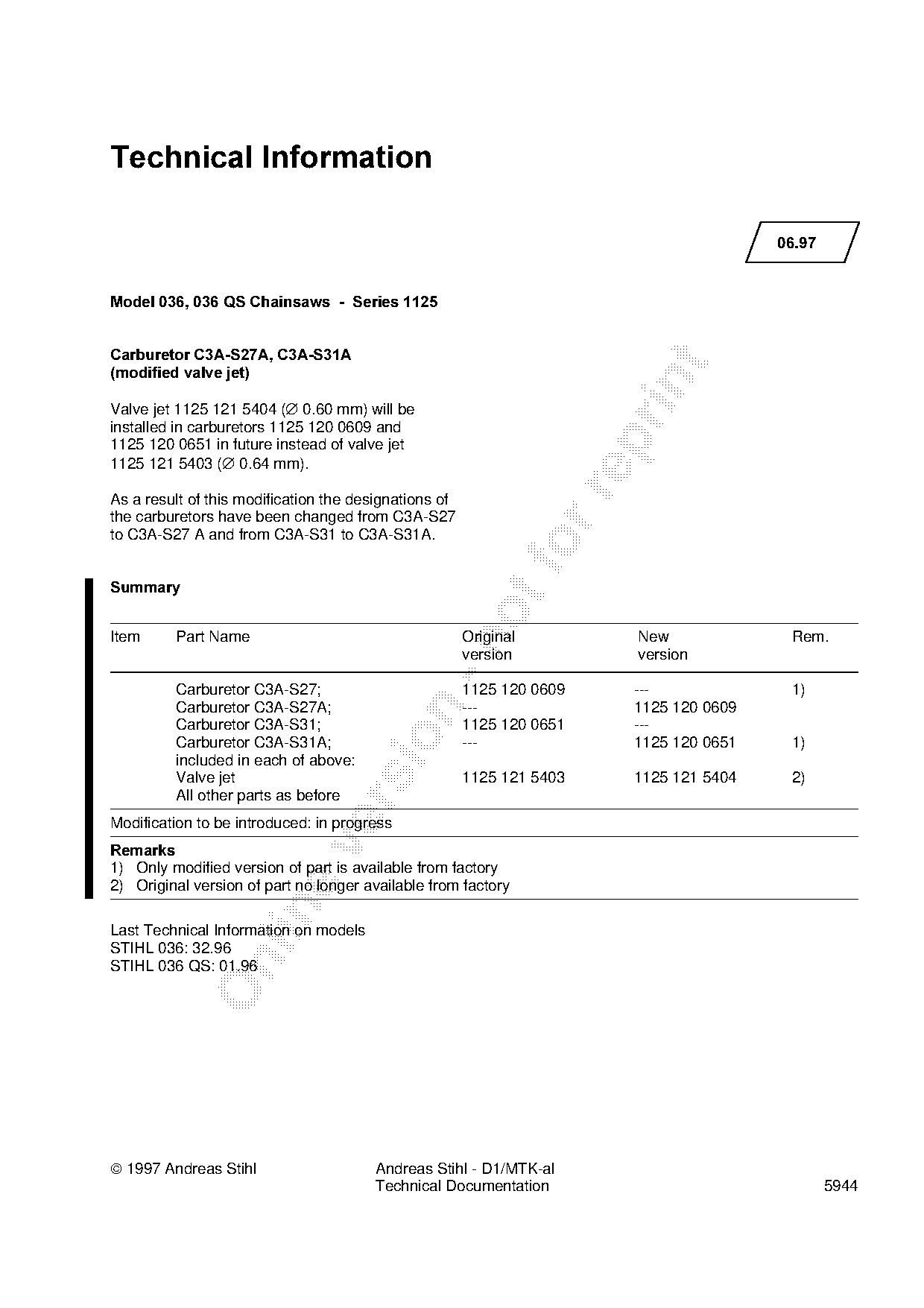

Technical Information
06.97
Model 036, 036 QS Chainsaws - Series 1125
Carburetor C3A-S27A, C3A-S31A
modified valve jet
Valve jet 1125 121 5404 (∅ 0.60 mm) will be
installed in carburetors 1125 120 0609 and
1125 120 0651 in future instead of valve jet
1125 121 5403 (∅ 0.64 mm).
As a result of this modification the designations of
the carburetors have been changed from C3A-S27
to C3A-S27 A and from C3A-S31 to C3A-S31A.
6XPPDU\
Item Part Name Original New Rem.
version version
Carburetor C3A-S27; 1125 120 0609 --- 1)
Carburetor C3A-S27A; --- 1125 120 0609
Carburetor C3A-S31; 1125 120 0651 ---
Carburetor C3A-S31A; --- 1125 120 0651 1)
included in each of above:
Valve jet 1125 121 5403 1125 121 5404 2)
All other parts as before
Modification to be introduced: in progress
5HPDUNV
1) Only modified version of part is available from factory
2) Original version of part no longer available from factory
Last Technical Information on models
STIHL 036: 32.96
STIHL 036 QS: 01.96
1997 Andreas Stihl Andreas Stihl - D1/MTK-al
