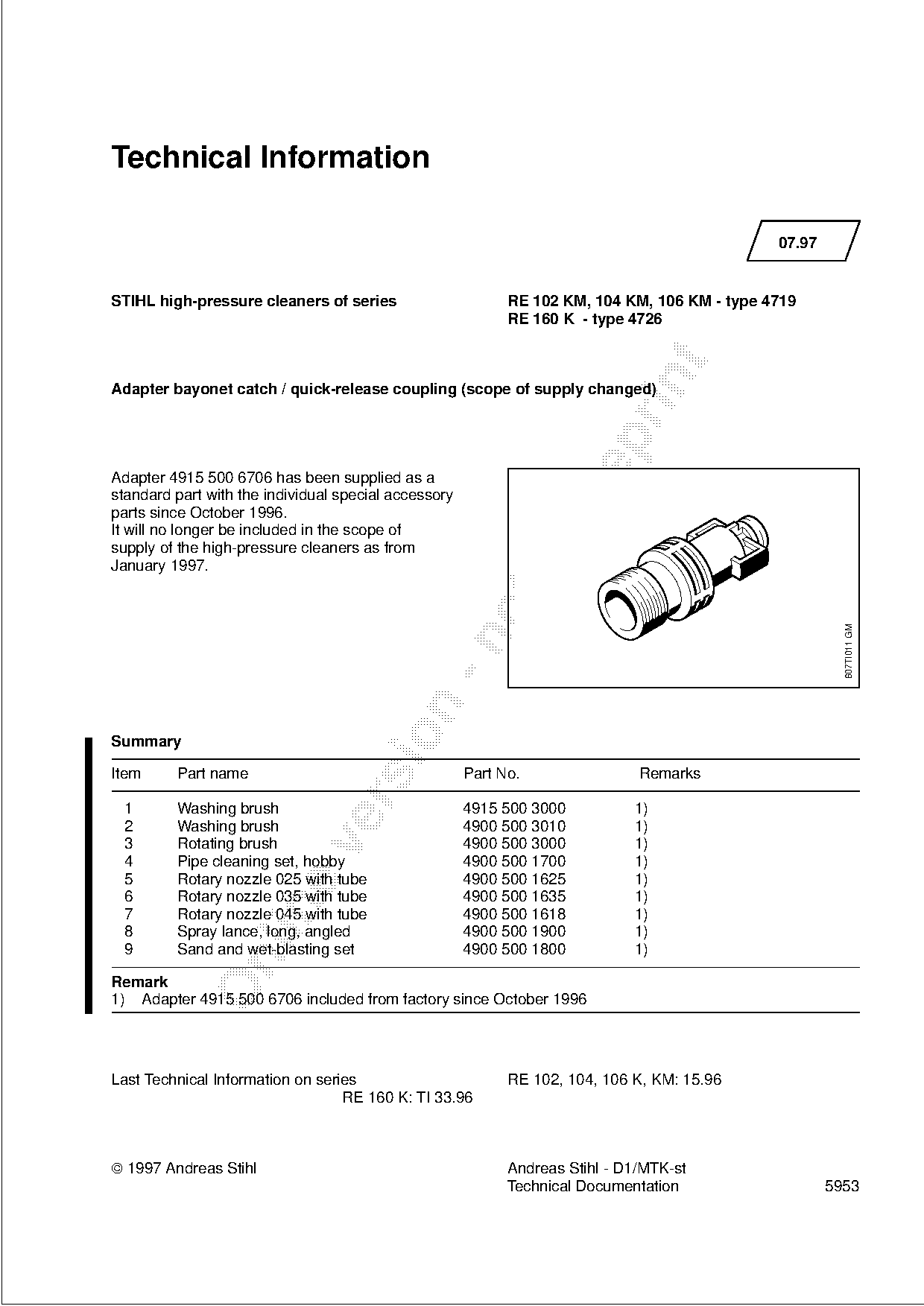

TI 7/1997 page 1
Text of page 1 — search, copy, screen readers
Technical Information

                                                                                              07.97

STIHL high-pressure cleaners of series                      RE 102 KM, 104 KM, 106 KM - type 4719
                                                            RE 160 K - type 4726

Adapter bayonet catch / quick-release coupling (scope of supply changed)

Adapter 4915 500 6706 has been supplied as a

standard part with the individual special accessory
parts since October 1996.
It will no longer be included in the scope of
supply of the high-pressure cleaners as from
January 1997.

                                                                                                        607TI011 GM

Summary

Item     Part name                                    Part No.                Remarks

 1       Washing brush                                4915 500 3000          1)
 2       Washing brush                                4900 500 3010          1)

 3       Rotating brush                               4900 500 3000          1)
 4       Pipe cleaning set, hobby                     4900 500 1700          1)
 5       Rotary nozzle 025 with tube                  4900 500 1625          1)
 6       Rotary nozzle 035 with tube                  4900 500 1635          1)

 7       Rotary nozzle 045 with tube                  4900 500 1618          1)
 8       Spray lance, long, angled                    4900 500 1900          1)
 9       Sand and wet-blasting set                    4900 500 1800          1)

Remark
1) Adapter 4915 500 6706 included from factory since October 1996
