Technical Information
08.97
Model 064, 066 Chainsaws - Series 1122
&RQWHQWV
1. Tank housing, tank vent (modified valve)
2. Air filter (fleece material)
3. Nameplate (plastic)
4. Chain sprocket cover/guard
5. Wiring harness/generator (plug connection)
6. Service note (installed position of
066 cylinder gasket)

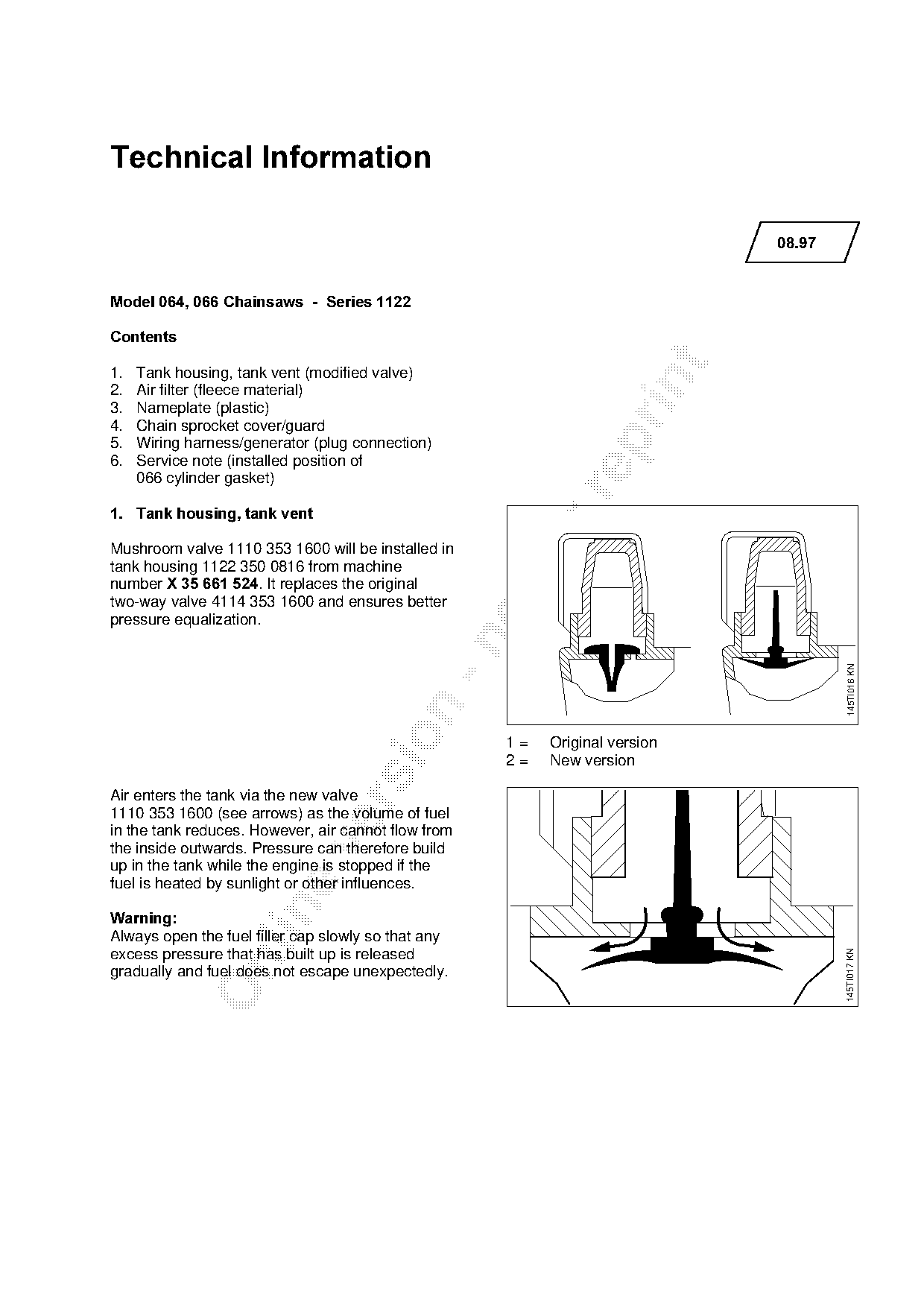

1.=Tank housing, tank vent
Mushroom valve 1110 353 1600 will be installed in
tank housing 1122 350 0816 from machine
number X 35 661 524K=ft replaces the original
two-way valve 4114 353 1600 and ensures better
pressure equalization.
145TI016 KN
1= Original version
2= New version
Air enters the tank via the new valve
1110 353 1600 (see arrows) as the volume of fuel
in the tank reduces. However, air cannot flow from
the inside outwards. Pressure can therefore build
up in the tank while the engine is stopped if the
fuel is heated by sunlight or other influences.
:DUQLQJ
Always open the fuel filler cap slowly so that any
145TI017 KN
excess pressure that has built up is released
gradually and fuel does not escape unexpectedly.
)Technical Information 08.97 - Page 2
6XPPDU\

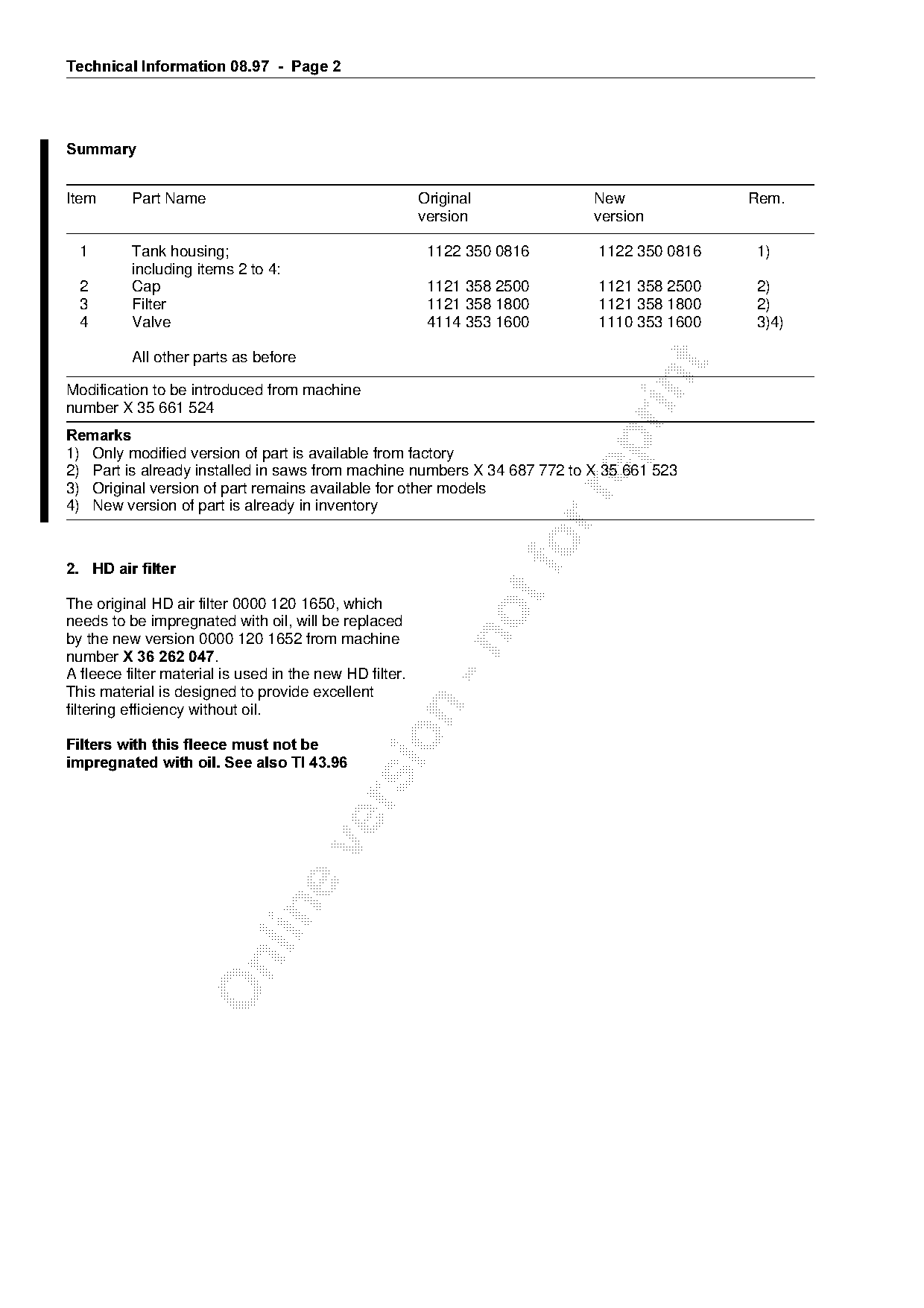

Item Part Name Original New Rem.
version version
1 Tank housing; 1122 350 0816 1122 350 0816 1)
including items 2 to 4:
2 Cap 1121 358 2500 1121 358 2500 2)
3 Filter 1121 358 1800 1121 358 1800 2)
4 Valve 4114 353 1600 1110 353 1600 3)4)
All other parts as before
Modification to be introduced from machine
number X 35 661 524
5HPDUNV
1) Only modified version of part is available from factory
2) Part is already installed in saws from machine numbers X 34 687 772 to X 35 661 523
3) Original version of part remains available for other models
4) New version of part is already in inventory
2.=HD air filter
The original HD air filter 0000 120 1650, which
needs to be impregnated with oil, will be replaced
by the new version 0000 120 1652 from machine
number X 36 262 047.
A fleece filter material is used in the new HD filter.
This material is designed to provide excellent
filtering efficiency without oil.
Filters with this fleece must not be
impregnated with oil. See also TI 43.96
)Technical Information 08.97 - Page 3

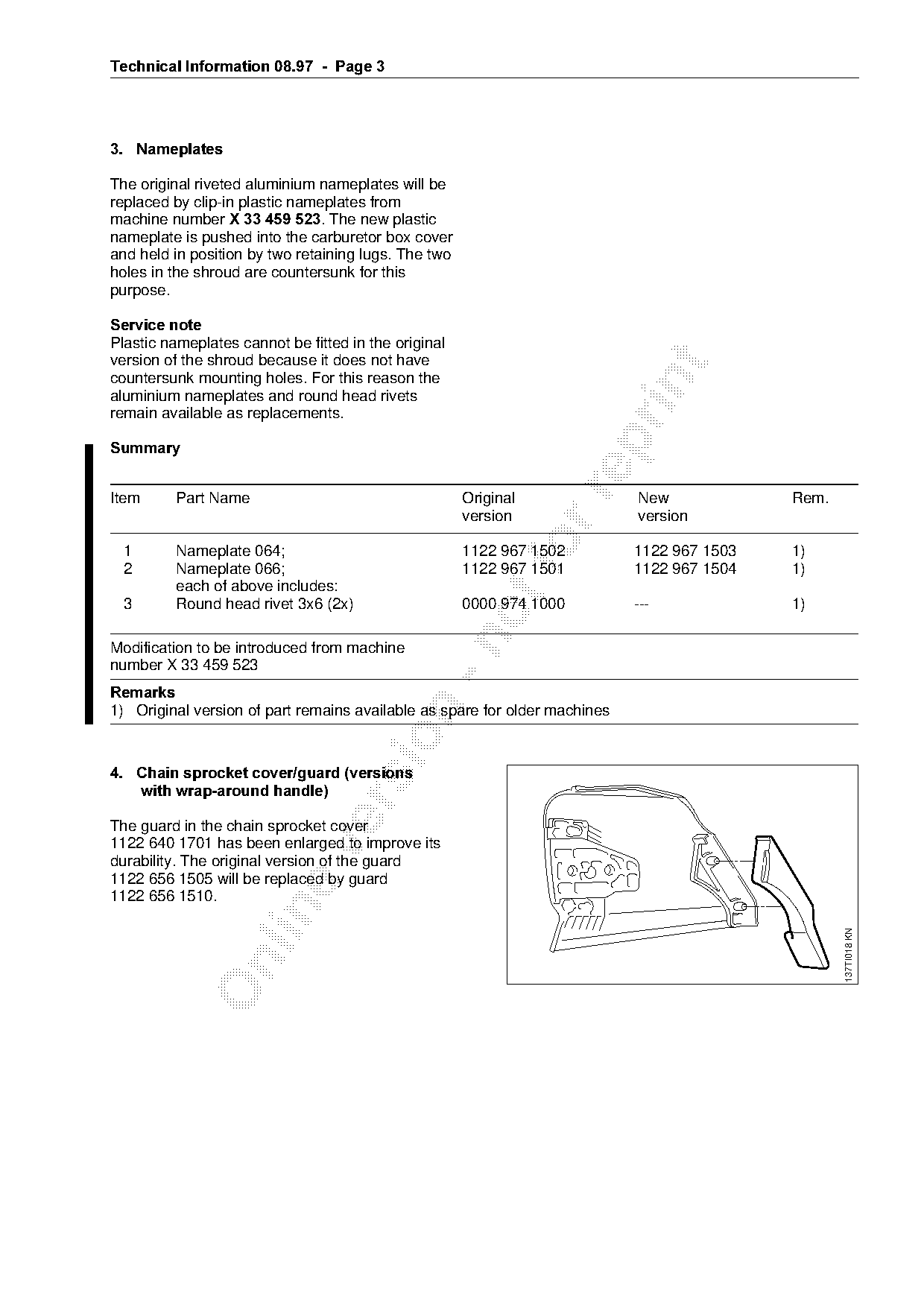

3.=Nameplates
The original riveted aluminium nameplates will be
replaced by clip-in plastic nameplates from
machine number X 33 459 523K=qhe new plastic
nameplate is pushed into the carburetor box cover
and held in position by two retaining lugs. The two
holes in the shroud are countersunk for this
purpose.
Service note
Plastic nameplates cannot be fitted in the original
version of the shroud because it does not have
countersunk mounting holes. For this reason the
aluminium nameplates and round head rivets
remain available as replacements.
6XPPDU\
Item Part Name Original New Rem.
version version
1
2
Nameplate 064;
Nameplate 066;
1122 967 1502
1122 967 1501
1122 967 1503
1122 967 1504
1)
1)
each of above includes:
3 Round head rivet 3x6 (2x) 0000 974 1000 --- 1)
Modification to be introduced from machine
number X 33 459 523
5HPDUNV
1) Original version of part remains available as spare for older machines
4.=Chain sprocket cover/guard =versions
=== with wrap-around handle
The guard in the chain sprocket cover
1122 640 1701 has been enlarged to improve its
durability. The original version of the guard
1122 656 1505 will be replaced by guard
1122 656 1510.
137TI018 KN
)Technical Information 08.97 - Page 4

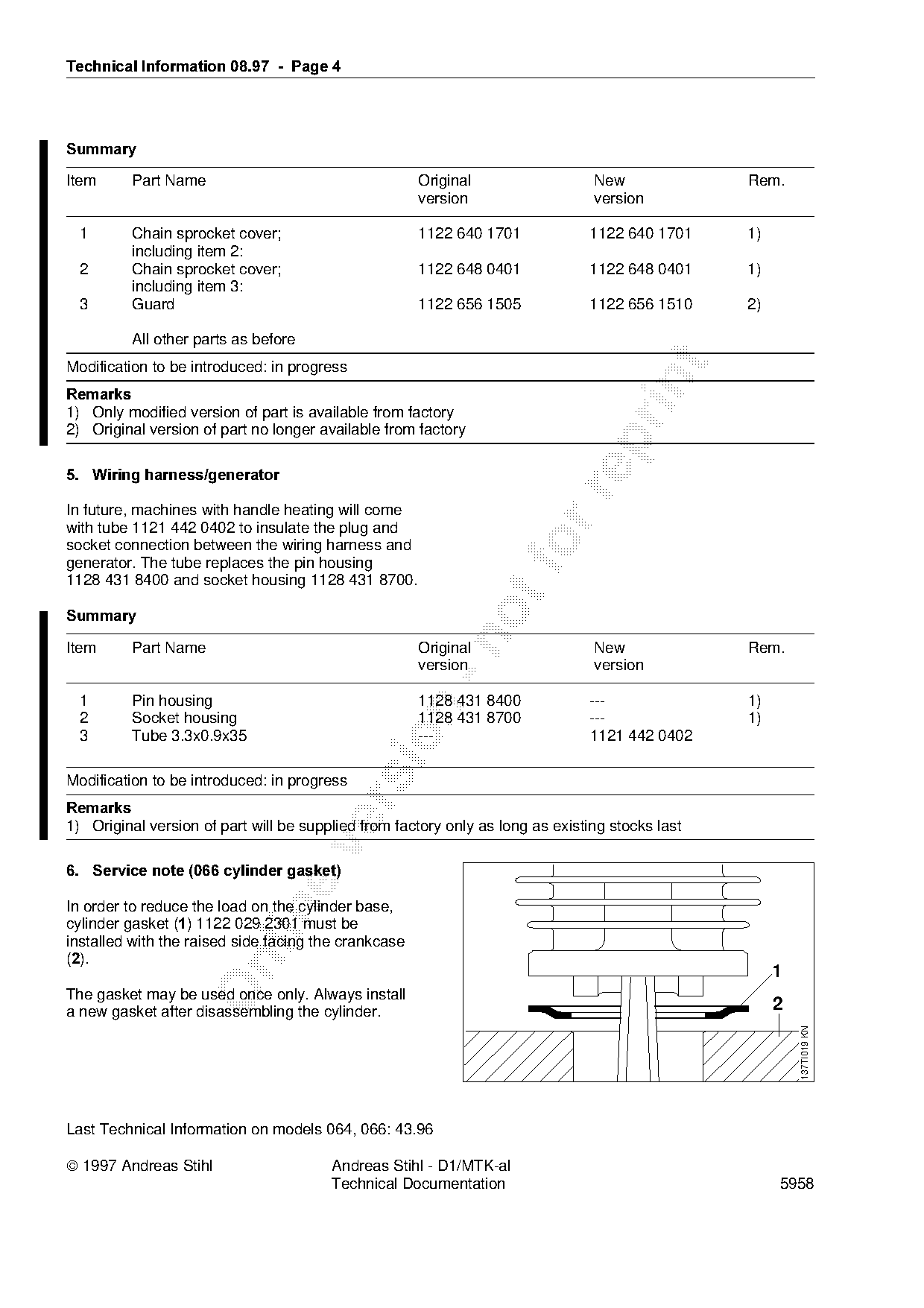

6XPPDU\
Item Part Name Original New Rem.
version version
1 Chain sprocket cover; 1122 640 1701 1122 640 1701 1)
including item 2:
2 Chain sprocket cover; 1122 648 0401 1122 648 0401 1)
including item 3:
3 Guard 1122 656 1505 1122 656 1510 2)
All other parts as before
Modification to be introduced: in progress
5HPDUNV
1) Only modified version of part is available from factory
2) Original version of part no longer available from factory
5.=Wiring harness/generator
In future, machines with handle heating will come
with tube 1121 442 0402 to insulate the plug and
socket connection between the wiring harness and
generator. The tube replaces the pin housing
1128 431 8400 and socket housing 1128 431 8700.
6XPPDU\
Item Part Name Original New Rem.
version version
1 Pin housing 1128 431 8400 --- 1)
2 Socket housing 1128 431 8700 --- 1)
3 Tube 3.3x0.9x35 --- 1121 442 0402
Modification to be introduced: in progress
5HPDUNV
1) Original version of part will be supplied from factory only as long as existing stocks last
6.=Service note =066 cylinder gasket
In order to reduce the load on the cylinder base,
cylinder gasket E1F=NNOO=MOV=OPMN=must be
installed with the raised side facing the crankcase
E2F.
1
The gasket may be used once only. Always install
a new gasket after disassembling the cylinder. 2
137TI019 KN
Last Technical Information on models 064, 066: 43.96
