Technical Information · issue 9 of 1997
Tank housing / tank vent; Carburetor box cover Car
Model 044, 046 Chainsaws - Series 1128
Part changes (3)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1128 350 0804 | 1128 350 0815 | The original tank housing 1128 350 0804 will be replaced by tank housing 1128 350 0815 with a new tank vent and additional lugs for holding the wiring in position. |
| 1128 140 1900 | 1128 140 1905 | The original carburetor box covers 1128 140 1900 and 1128 140 1901 (for machines with automatic choke) will be replaced by version 1128 140 1905. |
| 1128 431 8400 | 1121 442 0402 | Pin housing 1128 431 8400 and socket housing 1128 431 8700 have been replaced by tube 1121 442 0402 which is used to insulate the plug connection between the wiring harness and generator. |
Full text
Page 1 of 4
Text of page 1 — search, copy, screen readers

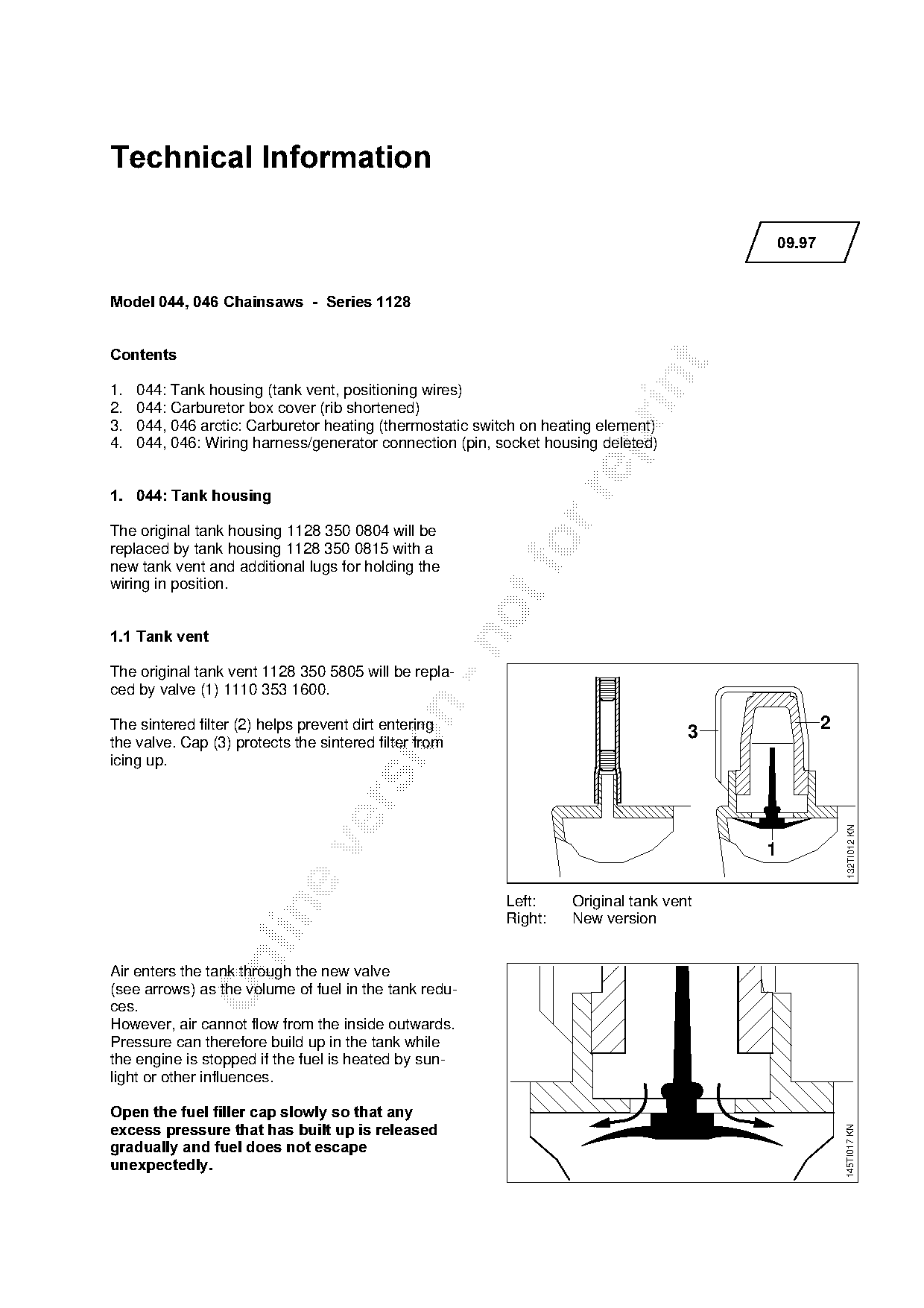

Technical Information
09.97
Model 044, 046 Chainsaws - Series 1128
&RQWHQWV
1. 044: Tank housing (tank vent, positioning wires)
2. 044: Carburetor box cover (rib shortened)
3. 044, 046 arctic: Carburetor heating (thermostatic switch on heating element)
4. 044, 046: Wiring harness/generator connection (pin, socket housing deleted)
1.=044: Tank housing
The original tank housing 1128 350 0804 will be
replaced by tank housing 1128 350 0815 with a
new tank vent and additional lugs for holding the
wiring in position.
1.1=Tank vent
The original tank vent 1128 350 5805 will be repla-
ced by valve (1) 1110 353 1600.
The sintered filter (2) helps prevent dirt entering
3 2
the valve. Cap (3) protects the sintered filter from
icing up.
132TI012 KN
Left: Original tank vent
Right: New version
Air enters the tank through the new valve
(see arrows) as the volume of fuel in the tank redu-
ces.
However, air cannot flow from the inside outwards.
Pressure can therefore build up in the tank while
the engine is stopped if the fuel is heated by sun-
light or other influences.
Open the fuel filler cap slowly so that any
excess pressure that has built up is released
145TI017 KN
gradually and fuel does not escape
unexpectedly. Page 2 of 4
Text of page 2 — search, copy, screen readers

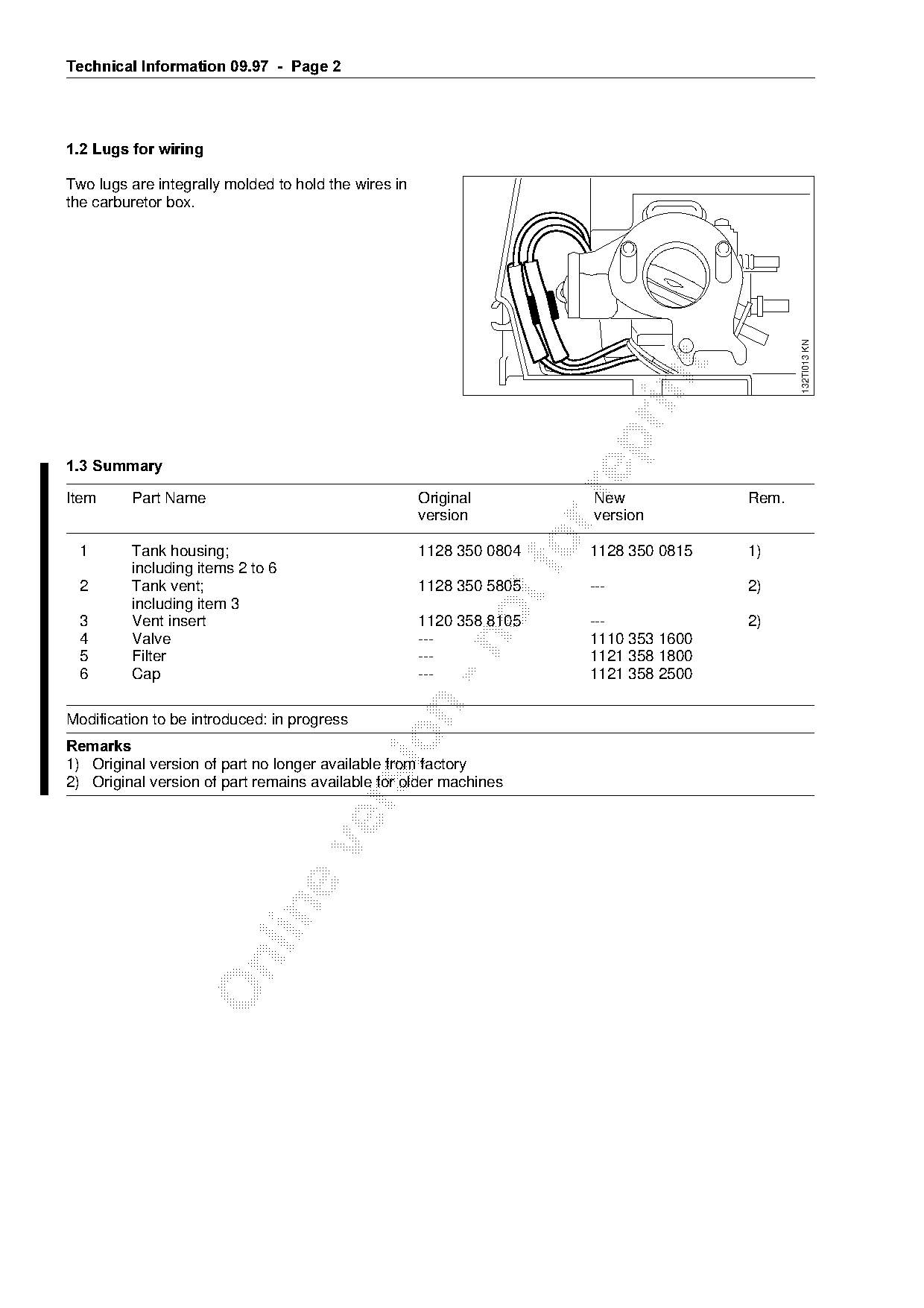

Technical Information 09.97 - Page 2
1.2=Lugs for wiring
Two lugs are integrally molded to hold the wires in
the carburetor box.
132TI013 KN
1.3=Summary
Item Part Name Original New Rem.
version version
1 Tank housing;
including items 2 to 6
1128 350 0804fo 1128 350 0815 1)
2 Tank vent; 1128 350 5805 --- 2)
including item 3
3 Vent insert 1120 358 8105 --- 2)
4 Valve --- 1110 353 1600
5 Filter --- 1121 358 1800
6 Cap --- 1121 358 2500
Modification to be introduced: in progress
5HPDUNV
1) Original version of part no longer available from factory
2) Original version of part remains available for older machines Page 3 of 4
Text of page 3 — search, copy, screen readers

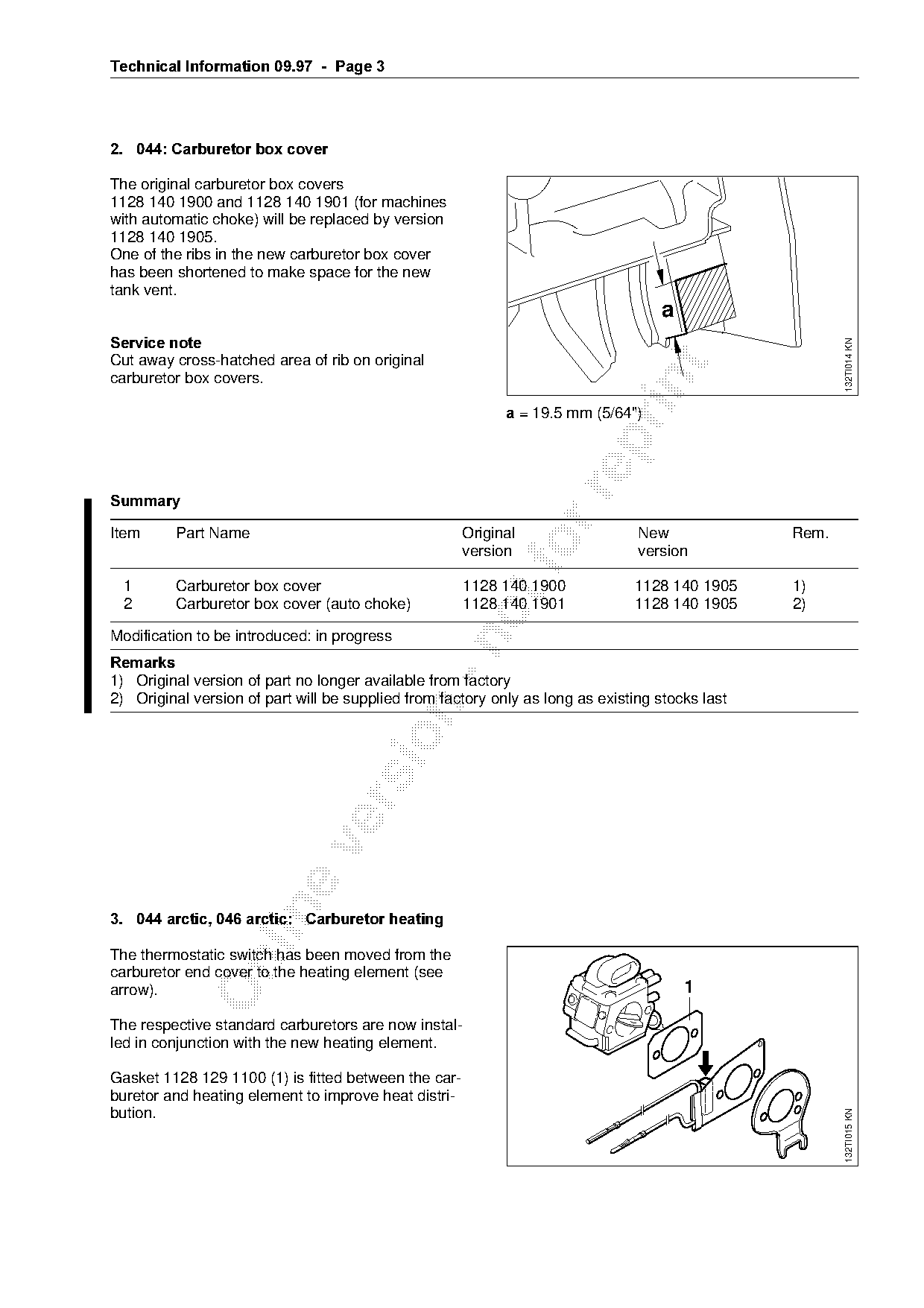

Technical Information 09.97 - Page 3
2.=044: Carburetor box cover
The original carburetor box covers
1128 140 1900 and 1128 140 1901 (for machines
with automatic choke) will be replaced by version
1128 140 1905.
One of the ribs in the new carburetor box cover
has been shortened to make space for the new
tank vent.
a
Service note
132TI014 KN
Cut away cross-hatched area of rib on original
carburetor box covers.
a Z=NVKR=mm (5/64")
6XPPDU\
Item Part Name Original New Rem.
versionfo version
1 Carburetor box cover 1128 140 1900 1128 140 1905 1)
2 Carburetor box cover (auto choke) 1128 140 1901 1128 140 1905 2)
Modification to be introduced: in progress
5HPDUNV
1) Original version of part no longer available from factory
2) Original version of part will be supplied from factory only as long as existing stocks last
3.=044 arctic, 046 arctic: Carburetor heating
The thermostatic switch has been moved from the
carburetor end cover to the heating element (see
arrow). 1
The respective standard carburetors are now instal-
led in conjunction with the new heating element.
Gasket 1128 129 1100 (1) is fitted between the car-
buretor and heating element to improve heat distri-
bution.
132TI015 KN Page 4 of 4
Text of page 4 — search, copy, screen readers

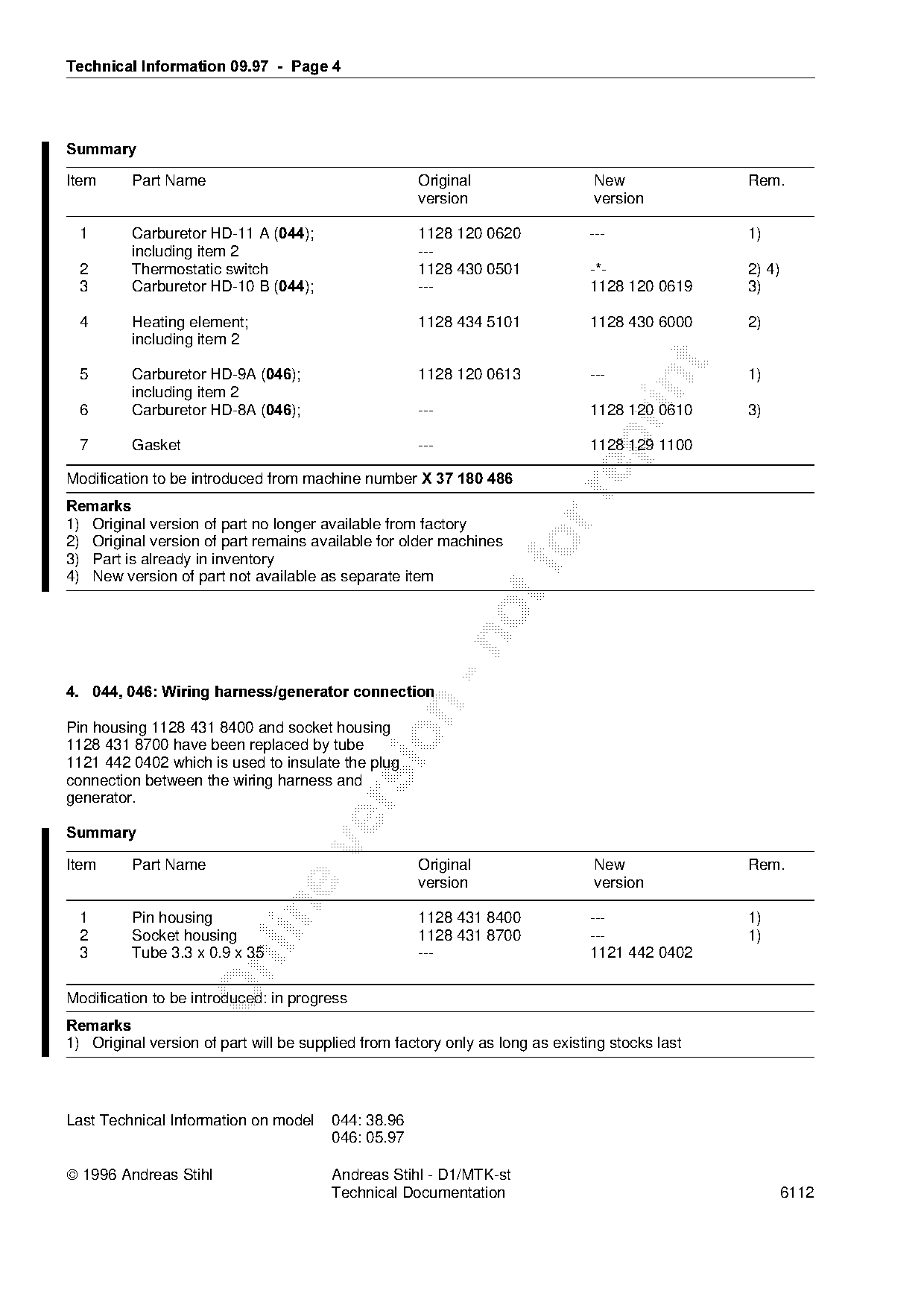

Technical Information 09.97 - Page 4
6XPPDU\
Item Part Name Original New Rem.
version version
1 Carburetor eaJNN=^=E044FX==================NNOU=NOM=MSOM=============JJJ===============NF
including item 2 ---
2 Thermostatic switch 1128 430 0501 -*- 2) 4)
3 Carburetor eaJNM=_=E044FX==================JJJ========================NNOU=NOM=MSNV====PF
4 Heating element; 1128 434 5101 1128 430 6000 2)
including item 2
5 Carburetor eaJV^=E046FX====================NNOU=NOM=MSNP==============JJJ==============NF
including item 2
6 Carburetor eaJU^=E046FX====================JJJ========================NNOU=NOM=MSNM====PF
7 Gasket --- 1128 129 1100
Modification to be introduced from machine number X 37 180 486
5HPDUNV
1) Original version of part no longer available from factory
2) Original version of part remains available for older machines
3) Part is already in inventory
4) New version of part not available as separate item
4.=044, 046: Wiring harness/generator connection
Pin housing 1128 431 8400 and socket housing
1128 431 8700 have been replaced by tube
1121 442 0402 which is used to insulate the plug
connection between the wiring harness and
generator.
6XPPDU\
Item Part Name Original New Rem.
version version
1 Pin housing 1128 431 8400 --- 1)
2 Socket housing 1128 431 8700 --- 1)
3 Tube 3.3 x 0.9 x 35 --- 1121 442 0402
Modification to be introduced: in progress
5HPDUNV
1) Original version of part will be supplied from factory only as long as existing stocks last
Last Technical Information on model 044: 38.96
046: 05.97
