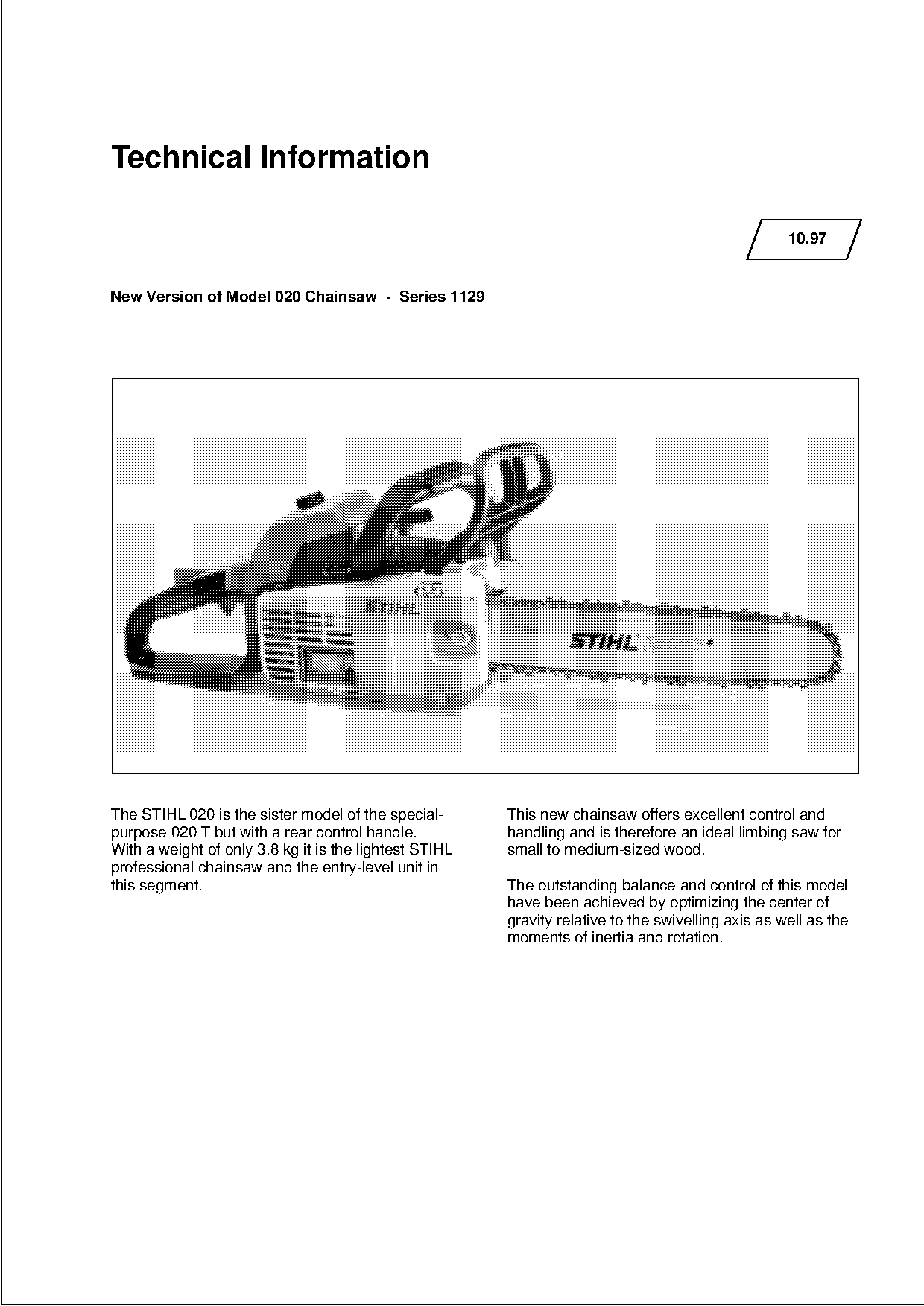

New Version of Model 020 Chainsaw

Model 020 chainsaws can be equipped with the

IssueTI 10/1997
Engine family 1129

Historical fitment & changes

Source-reviewed model notes. An exact-model IPL link is unavailable where stated; no similar model is substituted. Availability statements belong to the bulletin’s date.

Service note · 020

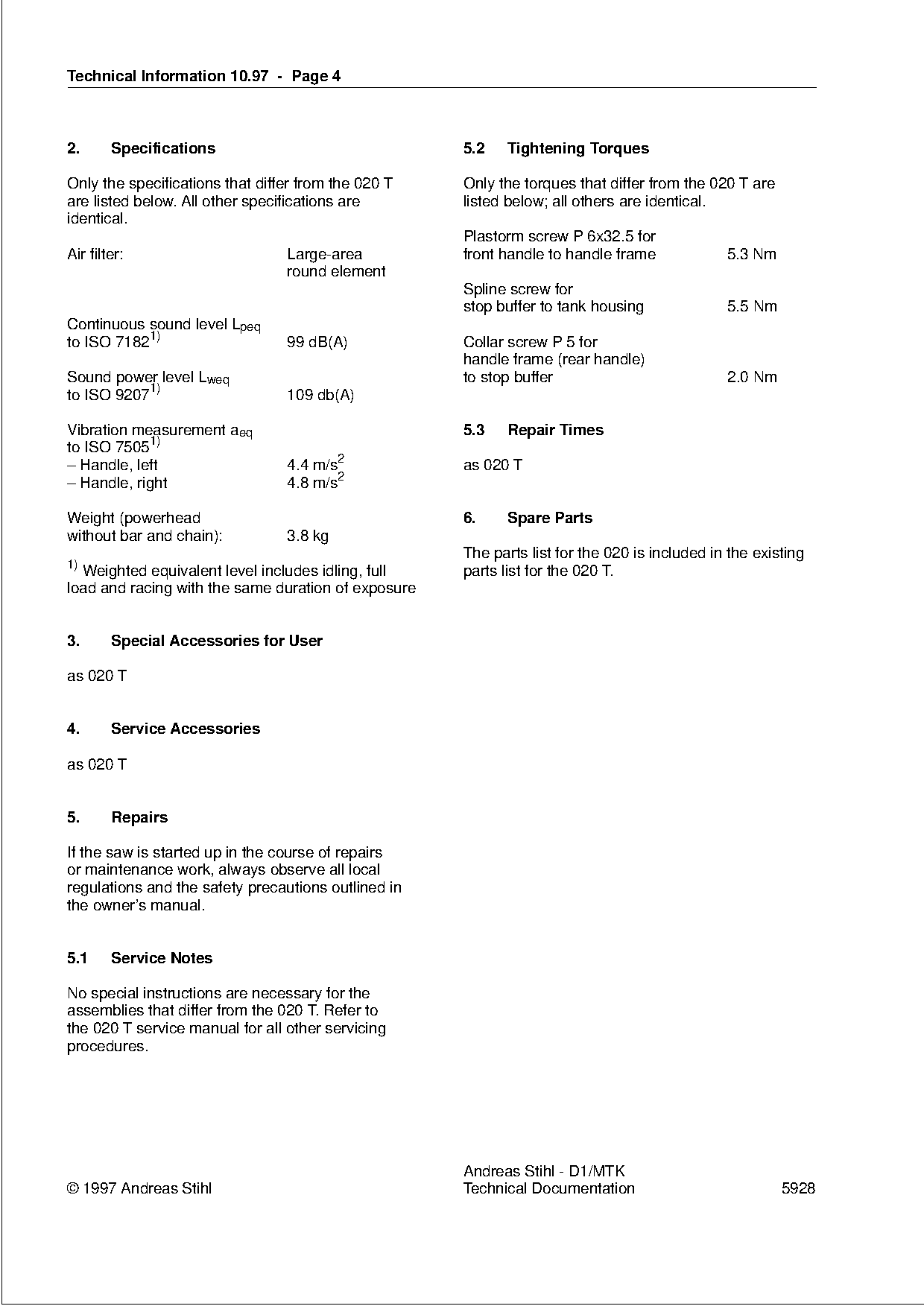

020: rear-handle identity and changed specifications

3.8 kg powerhead; rear control handle and distinct intake system, not a renamed 020 T.

No exact-model IPL link: Whole-model or source-dependency guidance; no single assembly or unprinted part number is inferred.

  • TI10/1997 introduces the rear-control-handle 020 as the sister model of the special-purpose 020 T. Page 1 illustrates the rear handle and describes a professional limbing saw for small to medium-sized wood. Its lightest/entry-level and balance/control statements are dated manufacturer positioning, not a current comparative test or quantified center-of-gravity measurement.

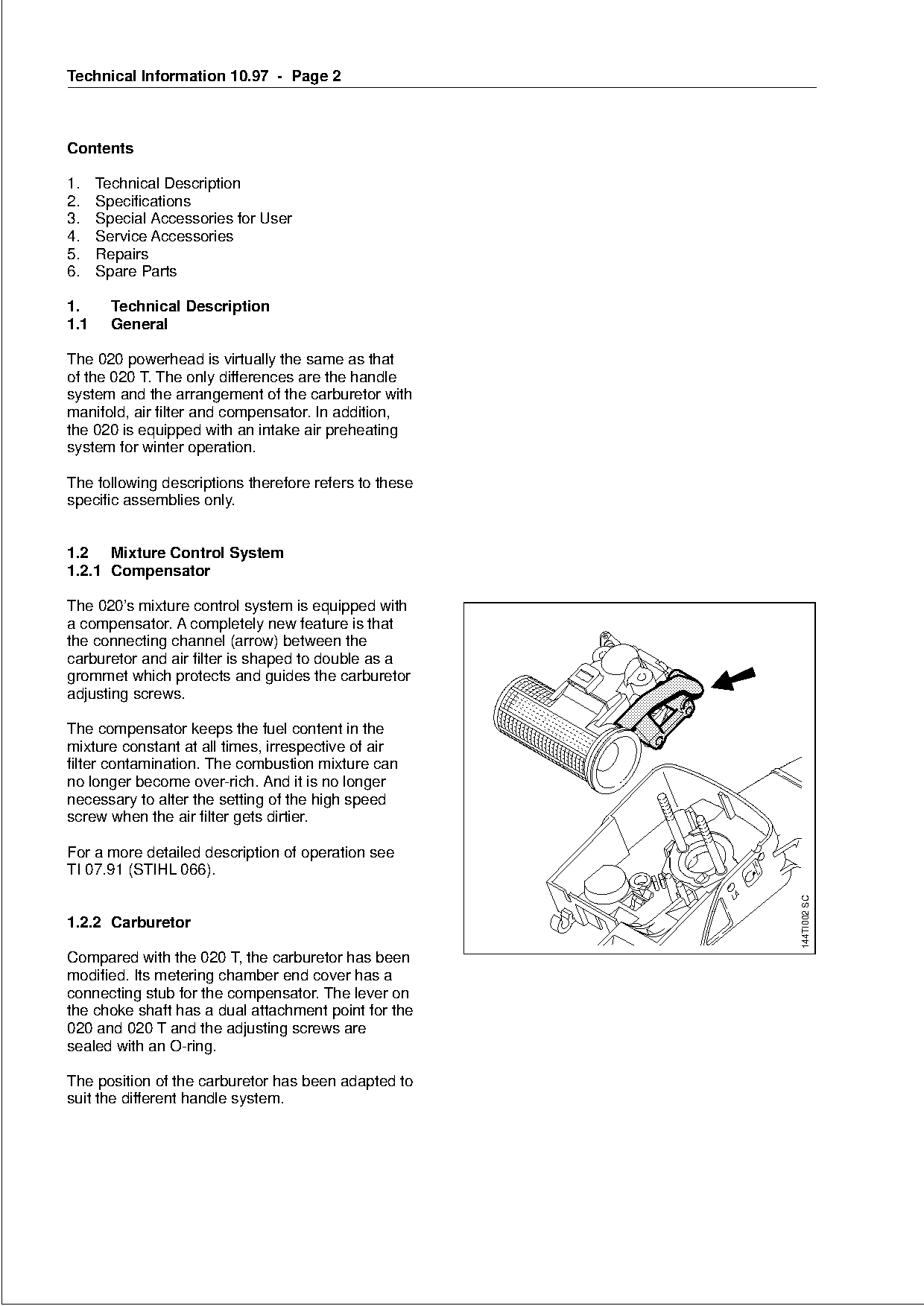

  • The powerhead is described as virtually the same as the 020 T, with differences in handle system and arrangement of carburetor, manifold, air filter and compensator, plus intake-air preheating. This comparison is NOT blanket component interchange or a conversion kit.
  • Changed specifications: large-area round air-filter element; continuous sound level Lpeq 99 dB(A), ISO 7182; sound power Lweq 109 dB(A), ISO 9207; vibration aeq ISO 7505, left handle 4.4 m/s² and right handle 4.8 m/s². The footnote specifies weighted equivalent levels with equal-duration idling, full-load and racing exposure. These are historical declared values, not a fresh measurement or modern test-standard equivalence.
  • Weight is 3.8 kg for the POWERHEAD WITHOUT BAR AND CHAIN. No dry/fuel state is specified here. Page 4 says other specifications are identical to 020 T, but does not enumerate them. The later 1999-copyright 020 T manual specifications are now separately reviewed below; they are not automatically the exact 1997 baseline.
  • Applies to the rear-handle 020 introduced in TI10/1997, series 1129; not the earlier 020 generation, 020 T or MS 200 by name similarity. No production serial cutoff, universal retrofit, tested interchange or current supply claim. No hardware operation was performed.

Source: TI 10/1997, p. 1 · TI 10/1997, p. 2 · TI 10/1997, p. 4 — 020: rear-handle identity and changed specifications.

No additional parts-table entry added.

Service note · 020

020 references: cutting attachments, accessories and service baseline

Available later references reviewed; exact 1997 editions and operator instructions remain documented gaps.

No exact-model IPL link: Whole-model or source-dependency guidance; no single assembly or unprinted part number is inferred.

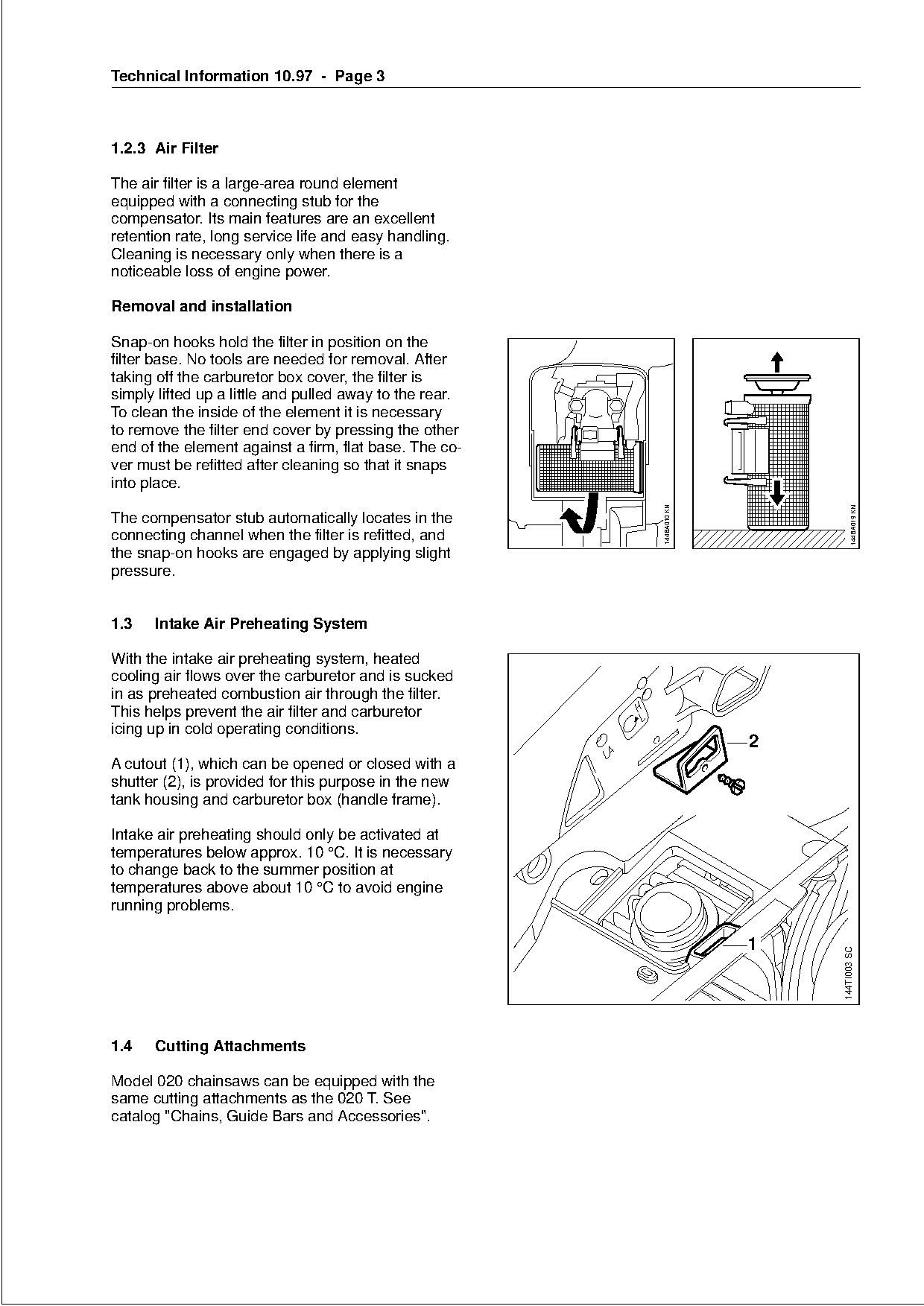

  • Section 1.4 says the 020 can use the same cutting attachments as 020 T and directs the reader to “Chains, Guide Bars and Accessories.” The TI itself supplies no bar length, mount, gauge, chain pitch, drive-link count or sprocket combination; do not infer a cross-product of options.
  • Sections 3 and 4 say user and service accessories are “as 020 T”; section 5.3 gives the same reference for repair times. Section 6 says the 020 parts list is included in the existing 020 T list. The retained combined IPL has exact rear-handle 020 sheets; this is not permission to bind to top-handle-only or earlier-generation 020 sheets.
  • If started during repair or maintenance, the TI requires local regulations and the owner’s-manual safety precautions. Section 5.1 says no special instructions are needed for assemblies differing from 020 T and refers all OTHER servicing procedures to the 020 T service manual. This is a reference boundary, not an operational procedure or hardware authorization.
  • The local anonymous file 00049-ra s 0003 30 is visibly titled “Service Manual 020 T Chain Saws” with copyright 1999. Its specification, cutting-attachment, accessory, torque, service-tool and servicing-aid sections, plus stand-mounting context, have now been reviewed separately as later 020 T references. This scoped review is not completion of the whole 58-page manual. They are NOT source gaps or proof of the exact 1997 edition. The rear-handle intake/handle differences remain exceptions; do not inherit the 020 T flocked-filter option or fuel-system adjustment blindly.
  • The 2012 exact 1129 special-tool list and 2011 catalog’s exact 020/020T bar/sprocket/chain rows are now separately reviewed. The 1123 flange-number conflict andMS020T/MS020 timetable naming ambiguity remain explicit. The authenticated local pools do not establish the original 1997 cutting catalog, exact 1997 service baseline/time schedule or rear-handle 020 operator manual; these are bounded source gaps, not pending available-source work. TI07/1991 detailed-compensator explanation also remains unavailable in the bounded pools.
  • Applies to the rear-handle 020 introduced in TI10/1997, series 1129; not the earlier 020 generation, 020 T or MS 200 by name similarity. No production serial cutoff, universal retrofit, tested interchange or current supply claim. No hardware operation was performed.

Source: TI 10/1997, p. 3 · TI 10/1997, p. 4 — 020 references: cutting attachments, accessories and service baseline.

No additional parts-table entry added.

Service note · 020 T

020 T later manual: bar, chain and sprocket options stay matched

3005 bar tail and historical pitch options; gauge and drive-link counts are not specified.

No exact-model IPL link: Whole-model later 020 T manual reference; no 1997 rear-handle 020 or earlier-generation 020 assembly is substituted.

  • TI10/1997 says 020 uses the same cutting attachments as 020 T and points to a separate catalog. This available later manual is explicitly 020 T, copyright 1999. These rows are admitted as LATER 020 T REFERENCE, not authenticated 1997 catalog contents or automatic approval for every rear-handle 020 configuration.
  • Section 1.4 lists Rollomatic bars, tail 3005, lengths 30 / 35 / 40 / 45 cm (12 / 14 / 16 / 18 in); Oilomatic 3/8-inch Picco-Micro chain and optional 1/4-inch Rapid-Micro. The metric equivalents are printed 3/8 inch (9.32 mm) and 1/4 inch (6.35 mm). The 9.32 mm entry conflicts with the arithmetic equivalent 9.525 mm; preserve the printed value as an unresolved source discrepancy, not a new chain standard or a silently corrected transcription.
  • Sprockets: 6-tooth spur for 3/8 Picco; optional 7-tooth for 3/8 Picco and 8-tooth for 1/4. Chain speed 18.6 m/s (61 ft/sec) at 10,000 rpm is explicitly WITH THE 6-TOOTH 3/8 P SPROCKET, not all options. No gauge, drive-link count or bar-specific combination table is given; do not treat the length/pitch/sprocket rows as a free cross-product.
  • Chain lubrication is a speed-controlled reciprocating oil pump, no oil feed at idle, with additional manual oil-flow adjustment. Adjustable oil feed 4.0–10.5 cm³/min (0.14–0.36 fl.oz/min) is specified at 10,000 rpm; oil-tank capacity 0.24 l (0.5 US pt). These are later 020 T declared specifications, not a tested output or an instruction to run an unattended saw.
  • Later 020 T manual reference, copyright 1999; not proof of the exact 1997 edition, current availability, universal 020 fitment or tested physical interchange. No hardware operation was performed.

TI dependency: TI 10/1997, p. 3 · TI 10/1997, p. 4 — 020 T later manual: bar, chain and sprocket options stay matched.

Later manual evidence: Service Manual 020 T Chain Saws (publication revision unestablished; ©1999), section 1.4 Cutting Attachment / 1.5 Special Accessories, PDF pages 1, 4

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · 020 T

020 T later manual: eight accessory identities, not a rear-handle kit

The flocked-filter listing must not overwrite the 020’s distinct round-filter system.

No exact-model IPL link: Whole-model later 020 T manual reference; no 1997 rear-handle 020 or earlier-generation 020 assembly is substituted.

  • The later 020 T manual section 1.5.1 lists five USER accessories and section 1.5.2 lists three SERVICE-SHOP kits. These are separate catalog choices, not the contents of one eight-piece kit or items automatically supplied with a saw. No kit contents, supersession pairs or dates are supplied.
  • The two optional sprockets remain different pitch/count combinations: 1129 640 2050 is 7-tooth 3/8 P; 1129 640 2051 is 8-tooth 1/4. Elastostart 1128 190 3400 is the printed item; no rope/handle subpart is inferred. Carburetor kit 1129 007 1060 is not automatically valid for every carburetor in a later combined IPL.
  • The flocked filter 1129 120 1606 belongs to this LATER 020 T manual list. TI10/1997 explicitly changes the rear-handle020 intake, compensator and round filter, despite its broad “as 020 T” accessory reference. No direct fitment of this 020 T filter to the 020 round-filter housing is established. Keep the specific system difference and dated reference separate; do not silently resolve this scope tension or replace the rear-handle filter number from a later IPL.
  • These numbers are transcribed from original manual page 4, not printed in TI10/1997. The manual introduction says later engineering changes are supplied by Technical Information and parts lists; neither a shared family name nor this later list supplies the missing exact 1997 accessory baseline.
  • Later 020 T manual reference, copyright 1999; not proof of the exact 1997 edition, current availability, universal 020 fitment or tested physical interchange. No hardware operation was performed.

TI dependency: TI 10/1997, p. 3 · TI 10/1997, p. 4 — 020 T later manual: eight accessory identities, not a rear-handle kit.

Later manual evidence: Service Manual 020 T Chain Saws (publication revision unestablished; ©1999), section 1.4 Cutting Attachment / 1.5 Special Accessories, PDF pages 1, 4

Part numbers (8)
  • 1129 900 5000 — STIHL repair kitFor user · 020 T; later1999copyright manual reference only
  • 1129 640 2050 — 7-tooth 3/8 P spur sprocketFor user · 020 T; later1999copyright manual reference only
  • 1129 640 2051 — 8-tooth 1/4 spur sprocketFor user · 020 T; later1999copyright manual reference only
  • 1128 190 3400 — ElastostartFor user · 020 T; later1999copyright manual reference only
  • 1129 120 1606 — Air filter, flockedFor user · 020 T; later1999copyright manual reference only
  • 1129 007 1060 — Carburetor parts kitFor service shop · 020 T; later1999copyright manual reference only
  • 1129 007 1050 — Gasket kitFor service shop · 020 T; later1999copyright manual reference only
  • 1129 007 1000 — Spur gear/tensioning screw kitFor service shop · 020 T; later1999copyright manual reference only

Service note · 020 T

020 T later manual: engine values and displaced table rows

Declared engine dimensions and speeds; the original page layout has shifted labels.

No exact-model IPL link: Later020T manual reference; no rear-handle020, earlier020 or MS200 assembly substituted.

  • Section1.1 declares a single-cylinder two-stroke engine with special impregnated cylinder bore:35.2 cm³ (2.15 cu.in), bore40 mm, stroke28 mm, compression7.41:1, power1.6 kW (2.2 bhp), maximum torque1.8 Nm (1.3 lbf.ft) at7,500 rpm. These are printed specifications, not measurements of an individual saw.
  • The ORIGINAL PAGE, not only extracted text, has displaced labels after the maximum-torque row. The ordered entries are interpreted as maximum permissible speed WITH BAR AND CHAIN14,000 rpm; mean idle2,800 rpm; crankshaft heavy-duty roller bearings and needle cages at small/big ends; piston pin9 mm; connecting rod49 mm. This mapping is an explicit sequence-and-unit interpretation of a defective table layout, not a silently repaired original or independently reproduced measurement.
  • The crankcase leakage-test entries give0.5 bar (7.25 psi) gauge pressure and0.5 bar vacuum magnitude. Vacuum is not positive pressure; these are separate directions. No dwell time, acceptable decay or complete test procedure is specified by this table; do not infer those from the number alone.
  • Later 020 T manual reference, copyright 1999; not proof of the exact 1997 edition, rear-handle 020 applicability, current specifications or tested physical interchange. No hardware operation was performed.

TI dependency: TI 10/1997, p. 4 — 020 T later manual: engine values and displaced table rows.

Later manual evidence: Service Manual 020 T Chain Saws (publication revision unestablished; ©1999), section 1.1 Engine, PDF pages 3

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · 020 T

020 T later manual: starter rope and clutch specifications

Rope reserve, clutch size and engagement speed remain separate specifications.

No exact-model IPL link: Later020T manual reference; no rear-handle020, earlier020 or MS200 assembly substituted.

  • Section1.1 continues the visibly displaced engine table. By ordered labels and units, the rewind starter is a pawl system; reserve pull on the rope rotor is MINIMUM ONE-HALF TURN; starter rope is3.0 mm diameter and800 mm (31.5 in) long. The reserve is not a total rewind-spring preload, and the rope dimensions are not an inferred replacement part number.
  • The next ordered entries identify a centrifugal clutch WITHOUT LININGS, diameter66 mm (2.60 in), engagement3,900 rpm. The original row alignment is defective, so this label/value reconstruction remains an explicit interpretation. It does not establish clutch interchange, a tolerance band or a current adjustment target.
  • Later 020 T manual reference, copyright 1999; not proof of the exact 1997 edition, rear-handle 020 applicability, current specifications or tested physical interchange. No hardware operation was performed.

TI dependency: TI 10/1997, p. 4 — 020 T later manual: starter rope and clutch specifications.

Later manual evidence: Service Manual 020 T Chain Saws (publication revision unestablished; ©1999), section 1.1 Engine: rewind starter and clutch, PDF pages 3

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · 020 T

020 T later manual: historical fuel and carburetor specifications

Approximate initial screw positions and oil-dependent mixture ratios are dated references.

No exact-model IPL link: Later020T manual reference; no rear-handle020, earlier020 or MS200 assembly substituted.

  • Section1.2 identifies a diaphragm carburetor without specifying a maker/type. Standard H and L screw settings are each BACK OFF APPROXIMATELY ONE TURN. These are not final tuned settings, not an instruction to force a seated needle, and not proof for a different carburetor revision. Carburetor leakage-test gauge pressure is0.4 bar (5.8 psi); no dwell or permissible decay is supplied here.
  • Fuel tank0.37 l (0.8 US pt). Printed minimum octane90 RON; USA/CAN minimum87 pump octane, unleaded. These distinct rating systems must not be collapsed into one number.
  • The historical mixture specification is regular brand-name gasoline and two-stroke engine oil:50:1 with STIHL two-stroke engine oil,25:1 with other brand-name two-stroke AIR-COOLED engine oils. Preserve both oil-qualified rows; no blanket modern oil recommendation or alternative engine application is inferred.
  • Filter wording is dual-ply synthetic fabric OR flocked wire-mesh element AND foam element. This later020T filter statement does not establish the rear-handle020 round-filter construction or treatment. The specific TI10/1997 intake differences remain controlling for that separate model.
  • Later 020 T manual reference, copyright 1999; not proof of the exact 1997 edition, rear-handle 020 applicability, current specifications or tested physical interchange. No hardware operation was performed.

TI dependency: TI 10/1997, p. 4 — 020 T later manual: historical fuel and carburetor specifications.

Later manual evidence: Service Manual 020 T Chain Saws (publication revision unestablished; ©1999), section 1.2 Fuel System, PDF pages 3

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · 020 T

020 T later manual: ignition gaps, timing and plug dimensions

Timing values retain their 8,000 rpm condition and suppressed-plug identities.

No exact-model IPL link: Later020T manual reference; no rear-handle020, earlier020 or MS200 assembly substituted.

  • Section1.3 specifies electronic magneto ignition, breakerless with integral trigger unit; module air gap0.25 mm (0.010 in). Ignition timing2.0–2.8 mm BEFORE TOP DEAD CENTRE and advance24.7–32.5° BEFORE TOP DEAD CENTRE are BOTH specified at8,000 rpm. No idle/static timing equivalence or adjustment method is inferred.
  • Suppressed spark plug Bosch WSR6F OR NGK BPMR7A; electrode gap0.5 mm (0.020 in); threadM14x1.25; thread length9.5 mm (0.37 in); printed heat-range value200. The table does not explain a cross-brand heat-range scale; do not read200 as an NGK grade or substitute a longer-reach plug.
  • These are later020T specifications. They do not establish an ignition-module part number, electronic speed limit, universal coil interchange or a verified live ignition test.
  • Later 020 T manual reference, copyright 1999; not proof of the exact 1997 edition, rear-handle 020 applicability, current specifications or tested physical interchange. No hardware operation was performed.

TI dependency: TI 10/1997, p. 4 — 020 T later manual: ignition gaps, timing and plug dimensions.

Later manual evidence: Service Manual 020 T Chain Saws (publication revision unestablished; ©1999), section 1.3 Ignition System, PDF pages 4

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · 020 T

020 T later manual: engine and cover joint torques

Component identity, thread and footnotes must travel with every torque value.

No exact-model IPL link: Later020T manual reference; no rear-handle020, earlier020 or MS200 assembly substituted.

  • Section1.6 exact-joint table, later020T only. Values below are printed Nm followed by lbf.ft; repeated thread sizes do not imply equal torque. Footnote numbers retain the original row membership.
  • IS-P4x14 — chain catcher: 1.7 Nm (1.25 lbf.ft); footnote 1.
  • IS-P4x14 — insert, chain brake: 3.2 Nm (2.4 lbf.ft); footnote 1.
  • IS-P4x14 — handle molding: 1.6 Nm (1.2 lbf.ft); footnote 1.
  • IS-DG4x15 — muffler: 4.0 Nm (3.0 lbf.ft); no numbered footnote.
  • IS-M5x12 — spiked bumper/crankcase: 7.0 Nm (5.2 lbf.ft); no numbered footnote.
  • IS-M5x20 — muffler to cylinder: 11.5 Nm (8.5 lbf.ft); footnote 2.
  • IS-DG4x15 — insert (not further named): 3.2 Nm (2.4 lbf.ft); no numbered footnote.
  • IS-M4x12 — oil pump: 3.5 Nm (2.6 lbf.ft); no numbered footnote.
  • IS-M5x12 — annular buffer/front handle: 6.0 Nm (4.4 lbf.ft); no numbered footnote.
  • IS-P6x19 — ring on housing: 7.0 Nm (5.2 lbf.ft); footnote 1.
  • IS-P5x20 — fan cover/tank housing: 4.0 Nm (3.0 lbf.ft); footnote 1.
  • IS-M4x16 — fan cover/crankcase: 4.0 Nm (3.0 lbf.ft); no numbered footnote.
  • IS-P4x10 — segment/fan cover: 3.2 Nm (2.4 lbf.ft); footnote 1.
  • IS-M4x12 — cover/chain tensioner: 2.4 Nm (1.8 lbf.ft); no numbered footnote.
  • IS-M4x12 — cover/oil pump: 3.0 Nm (2.2 lbf.ft); no numbered footnote.
  • IS-M4x16 — crankcase: 5.5 Nm (4.0 lbf.ft); no numbered footnote.
  • IS-M4x16 — tank housing: 5.3 Nm (3.9 lbf.ft); no numbered footnote.
  • IS-M4x20 — ignition module: 6.5 Nm (4.8 lbf.ft); footnote 2,3.
  • IS-M5x12 — bar mounting flange/crankcase: 7.0 Nm (5.2 lbf.ft); footnote 2.
  • IS-M5x16 — cylinder: 11.5 Nm (8.5 lbf.ft); no numbered footnote.
  • M5 nut — carburetor: 3.3 Nm (2.5 lbf.ft); no numbered footnote.
  • M8x1 collar nut — flywheel: 25.0 Nm (18.5 lbf.ft); no numbered footnote.
  • M8x1 L collar nut — clutch: 32.5 Nm (24.0 lbf.ft); no numbered footnote.
  • M14x1.25 — spark plug: 25.0 Nm (18.5 lbf.ft); no numbered footnote.
  • Footnote1 applies ONLY to the marked rows: torque MAY be reduced by APPROXIMATELY1 Nm (0.7 lbf.ft) when refitting in an EXISTING thread; it is not a universal subtraction or mandatory new target. Footnote2 requires adhesive0786 111 1101 (Loctite243). Footnote3 requires a washer under the screw head; only the ignition-module row carries3.
  • Plastoform screws serve polymer components; DG screws serve lightmetal components. The manual requires a torque wrench. For P/DG refitting, turn counterclockwise until the screw drops slightly into the EXISTING thread, then tighten clockwise to the specified torque; do not form a new thread. Adhesive-secured screws are easier to release after hot-air heating; the source explicitly cautions about polymer components. No heating temperature is supplied.
  • Do not replace the TI10/1997 REAR-HANDLE020 exceptions with this table: its front-handle P6x32.5 is5.3 Nm, stop-buffer/tank joint5.5 Nm, and P5 rear-handle/stop-buffer2.0 Nm. The later020T front-handle P6x21.5 at5.5 Nm is a DIFFERENT fastener/joint; its P5 annular-buffer/handle-housing row is4.0 Nm. No unprinted serial boundary or physical interchange is established.
  • Later 020 T manual reference, copyright 1999; not proof of the exact 1997 edition, rear-handle 020 applicability, current specifications or tested physical interchange. No hardware operation was performed.

TI dependency: TI 10/1997, p. 4 — 020 T later manual: engine and cover joint torques.

Later manual evidence: Service Manual 020 T Chain Saws (publication revision unestablished; ©1999), section 1.6 Tightening Torques, PDF pages 5

Part numbers (1)
  • 0786 111 1101 — Loctite243 threadlocking adhesive for footnote2 jointsService aid · 020 T; later1999copyright manual only

Service note · 020 T

020 T later manual: handle torques are not rear-handle 020 exceptions

Component identity, thread and footnotes must travel with every torque value.

No exact-model IPL link: Later020T manual reference; no rear-handle020, earlier020 or MS200 assembly substituted.

  • Section1.6 exact-joint table, later020T only. Values below are printed Nm followed by lbf.ft; repeated thread sizes do not imply equal torque. Footnote numbers retain the original row membership.
  • IS-P5 screw assembly — annular buffer/handle housing: 4.0 Nm (3.0 lbf.ft); footnote 1.
  • IS-M4x16 — annular buffer, front: 5.5 Nm (4.0 lbf.ft); no numbered footnote.
  • IS-P4x14 — annular buffer, rear: 1.7 Nm (1.25 lbf.ft); footnote 1.
  • IS-P6x21.5 screw — front handle/handle housing: 5.5 Nm (4.0 lbf.ft); footnote 1.
  • IS-P4x10 screw — control lever/switch shaft: 1.3 Nm (0.95 lbf.ft); footnote 1.
  • Footnote1 applies ONLY to the marked rows: torque MAY be reduced by APPROXIMATELY1 Nm (0.7 lbf.ft) when refitting in an EXISTING thread; it is not a universal subtraction or mandatory new target. Footnote2 requires adhesive0786 111 1101 (Loctite243). Footnote3 requires a washer under the screw head; only the ignition-module row carries3.
  • Plastoform screws serve polymer components; DG screws serve lightmetal components. The manual requires a torque wrench. For P/DG refitting, turn counterclockwise until the screw drops slightly into the EXISTING thread, then tighten clockwise to the specified torque; do not form a new thread. Adhesive-secured screws are easier to release after hot-air heating; the source explicitly cautions about polymer components. No heating temperature is supplied.
  • Do not replace the TI10/1997 REAR-HANDLE020 exceptions with this table: its front-handle P6x32.5 is5.3 Nm, stop-buffer/tank joint5.5 Nm, and P5 rear-handle/stop-buffer2.0 Nm. The later020T front-handle P6x21.5 at5.5 Nm is a DIFFERENT fastener/joint; its P5 annular-buffer/handle-housing row is4.0 Nm. No unprinted serial boundary or physical interchange is established.
  • Later 020 T manual reference, copyright 1999; not proof of the exact 1997 edition, rear-handle 020 applicability, current specifications or tested physical interchange. No hardware operation was performed.

TI dependency: TI 10/1997, p. 4 — 020 T later manual: handle torques are not rear-handle 020 exceptions.

Later manual evidence: Service Manual 020 T Chain Saws (publication revision unestablished; ©1999), section 1.6 Tightening Torques, PDF pages 5

Part numbers (1)
  • 0786 111 1101 — Loctite243 threadlocking adhesive for footnote2 jointsService aid · 020 T; later1999copyright manual only

Service note · 020 T

020 T later manual: ten servicing aids and exact lubricant locations

High-voltage grease, threadlocking grades and starter lubricants are not interchangeable.

No exact-model IPL link: Later020T manual reference; no rear-handle020, earlier020 or MS200 assembly substituted.

  • Section11.2 lists ten distinct aid rows, not one kit. Six have printed part numbers, retained below. Ignition lead HTR and electrician’s repair kit have blank application cells; do not invent kit contents or additional fitment.
  • The other four rows have NO printed part number: Loctite243 threadlocking adhesive for BAR MOUNTING STUD; standard commercial solvent-based degreasant WITHOUT chlorinated or halogenated hydrocarbons for cleaning CRANKSHAFT STUB; graphite grease for GUIDE PEG ON STARTER PAWL; Molykote grease for CHAIN-BRAKE SLIDING AND PIVOT POINTS. No exact Molykote product grade is specified.
  • Do not collapse Loctite270 (high-strength, shutter screws/sealing plug) and Loctite243 (bar stud). Section1.6 separately identifies0786 111 1101 as Loctite243 for its marked screw joints; the blank number cell in11.2 remains blank in this transcription, not silently filled.
  • Lubricating grease0781 120 1111 and multipurpose grease0781 120 1109 have DIFFERENT listed jobs; the latter packs the ignition module’s high-voltage output. Starter special lubricant0781 417 1315, graphite grease and Molykote likewise retain their separate locations. No quantity, service interval, modern substitute or supersession is inferred.
  • Later 020 T manual reference, copyright 1999; not proof of the exact 1997 edition, rear-handle 020 applicability, current specifications or tested physical interchange. No hardware operation was performed.

TI dependency: TI 10/1997, p. 4 — 020 T later manual: ten servicing aids and exact lubricant locations.

Later manual evidence: Service Manual 020 T Chain Saws (publication revision unestablished; ©1999), section 11.2 Servicing Aids, PDF pages 58

Part numbers (6)
  • 0781 120 1111 — Lubricating grease: oil seals, oil-pump drive, chain-sprocket bearing, chain tensioner, switch shaft/contact springService aid · 020 T; later1999copyright manual only
  • 0781 120 1109 — STIHL multipurpose grease,80g (2¾oz) tube: packing high-voltage output on ignition moduleService aid · 020 T; later1999copyright manual only
  • 0786 111 1109 — High-strength Loctite270: throttle/choke shutter screws and sealing plug in carburetorService aid · 020 T; later1999copyright manual only
  • 0781 417 1315 — STIHL special lubricant: rope-rotor bearing bore and rewind spring in rope rotorService aid · 020 T; later1999copyright manual only
  • 0000 930 2251 — Ignition lead HTR,10m (33ft); application cell blankService material · 020 T; later1999copyright manual only
  • 0000 007 1013 — Electrician’s repair kit; application cell blankService kit · 020 T; later1999copyright manual only

Service note · 020 T

020 T later manual: piston, crankcase and oil-seal tools

Exact tool identities from the later020T manual; no current availability or other-model fitment inferred.

No exact-model IPL link: Later020T model-specific tool list, not a saw-parts assembly or authenticated1997 edition.

  • Keep sleeve roles separate:1129 893 2400 installs oil seal AND roller bearing in crankcase;1129 893 4600 protects the oil seal on the IGNITION SIDE. The list does not give sleeve dimensions or approve the reverse operations.
  • Service tool AS5910 007 2205 is the crankcase-separating set; threaded sleeve5910 893 2407 is listed separately beneath it. Puller0000 890 4400 removes oil seals; jaws0000 890 3700 are separately listed. No universal substitute, puller setting or additional set contents are inferred.
  • Installing tool9 (5910 890 2209) is for HOOKLESS snap rings in the piston, not every circlip design. Locking strip0000 893 5903 is listed for blocking the crankshaft; this catalog identity alone is not an operating procedure.
  • The original11.1 table has38numbered positions and two additional torque-wrench alternatives:40part numbers, not a40-piece kit. All applications below are printed assignments; blank cells stay unknown. Printed row numbers are retained despite the nonnumeric page order.
  • Later 020 T manual reference, copyright 1999; no substitution for the exact1997 tool edition, current availability or verified physical interchange. No hardware operation was performed.

TI dependency: TI 10/1997, p. 4 — 020 T later manual: piston, crankcase and oil-seal tools.

Later manual evidence: Service Manual 020 T Chain Saws (publication revision unestablished; ©1999), section 11.1 Special Servicing Tools, PDF pages 57

Part numbers (11)
  • 0000 893 5903 — Row1: Locking strip for piston — blocking crankshaftService tool · 020 T; later1999copyright manual only
  • 1129 893 2400 — Row2: Press sleeve — installing oil seal and roller bearing in crankcaseService tool · 020 T; later1999copyright manual only
  • 1129 893 4600 — Row3: Assembly sleeve — protecting ignition-side oil sealService tool · 020 T; later1999copyright manual only
  • 1114 893 4700 — Row6: Assembly drift — fitting piston pinService tool · 020 T; later1999copyright manual only
  • 0000 893 2600 — Row7: Clamping strap — compressing piston ringsService tool · 020 T; later1999copyright manual only
  • 1108 893 4800 — Row8: Wooden assembly block — fitting pistonService tool · 020 T; later1999copyright manual only
  • 5910 890 2209 — Row20: Installing tool9 — fitting hookless piston snap ringsService tool · 020 T; later1999copyright manual only
  • 5910 007 2205 — Row22: Service tool AS set — separating crankcase halvesService tool · 020 T; later1999copyright manual only
  • 5910 893 2407 — Row23: Threaded sleeve — subordinate list entry; no separate application cellService tool · 020 T; later1999copyright manual only
  • 0000 890 4400 — Row36: Puller — removing oil sealsService tool · 020 T; later1999copyright manual only
  • 0000 890 3700 — Row37: Jaws — subordinate puller entry; no separate application cellService tool · 020 T; later1999copyright manual only

Service note · 020 T

020 T later manual: leakage-test tools and separate flange entries

Exact tool identities from the later020T manual; no current availability or other-model fitment inferred.

No exact-model IPL link: Later020T model-specific tool list, not a saw-parts assembly or authenticated1997 edition.

  • Carburetor/crankcase tester1106 850 2905 is listed for leakage tests of BOTH components; vacuum pump0000 850 3501 is for CRANKCASE leakage. The nipple and fuel-line rows are separately numbered with blank application cells. Their placement alone does not establish a complete hose assembly or test protocol.
  • Sealing plate0000 855 8106 seals the EXHAUST PORT for leakage testing. Test flange1128 850 4200 is a separate printed row17. Row13 flange1123 850 4200, row14 pin0000 963 1008 and row15 pan-head screws9043 319 8100 appear later on the page, BELOW row18 setting gauge. Preserve that unusual order and the blank application cells; do not collapse the two flange identities or assume their number is a typo.
  • No pressure/vacuum limit, dwell time, mounting stack or retrofit date follows from these tool numbers. The later2012 special-tool manual remains a separate actionable reference; it is not silently reconciled here.
  • The original11.1 table has38numbered positions and two additional torque-wrench alternatives:40part numbers, not a40-piece kit. All applications below are printed assignments; blank cells stay unknown. Printed row numbers are retained despite the nonnumeric page order.
  • Later 020 T manual reference, copyright 1999; no substitution for the exact1997 tool edition, current availability or verified physical interchange. No hardware operation was performed.

TI dependency: TI 10/1997, p. 4 — 020 T later manual: leakage-test tools and separate flange entries.

Later manual evidence: Service Manual 020 T Chain Saws (publication revision unestablished; ©1999), section 11.1 Special Servicing Tools, PDF pages 57

Part numbers (9)
  • 1106 850 2905 — Row9: Carburetor and crankcase tester — testing both for leaksService tool · 020 T; later1999copyright manual only
  • 0000 850 3501 — Row10: Vacuum pump — testing crankcase for leaksService tool · 020 T; later1999copyright manual only
  • 0000 855 9200 — Row11: Nipple — blank application cellService tool · 020 T; later1999copyright manual only
  • 1110 141 8600 — Row12: Fuel line — blank application cellService tool · 020 T; later1999copyright manual only
  • 0000 855 8106 — Row16: Sealing plate — sealing exhaust port for leakage testService tool · 020 T; later1999copyright manual only
  • 1128 850 4200 — Row17: Test flange — leakage testService tool · 020 T; later1999copyright manual only
  • 1123 850 4200 — Row13: Flange — blank application cell; listed below row18Service tool · 020 T; later1999copyright manual only
  • 0000 963 1008 — Row14: Pin — blank application cellService tool · 020 T; later1999copyright manual only
  • 9043 319 8100 — Row15: Pan-head screws — blank application cellService tool · 020 T; later1999copyright manual only

Service note · 020 T

020 T later manual: clutch, brake, ignition and bar-stud tools

Exact tool identities from the later020T manual; no current availability or other-model fitment inferred.

No exact-model IPL link: Later020T model-specific tool list, not a saw-parts assembly or authenticated1997 edition.

  • Hook5910 890 2800 DETACHES springs from clutch shoes; tube1117 890 0900 ATTACHES the brake spring. These are different jobs, not interchangeable spring tools.
  • Setting gauge1111 890 6400 sets the module-to-flywheel air gap; the0.25mm specification is in section1.3, not a dimension printed in this tool-list row. Puller1116 893 0800 removes the flywheel; stud pullerM8 (5910 893 0501) removes the BAR MOUNTING STUD.
  • Socket5910 893 5608 is13mm for crankshaft nuts at ignition end and clutch. The13mm is a socket size, not the nut thread diameter. This is a catalog application, not proof of tool engagement on a particular saw.
  • The original11.1 table has38numbered positions and two additional torque-wrench alternatives:40part numbers, not a40-piece kit. All applications below are printed assignments; blank cells stay unknown. Printed row numbers are retained despite the nonnumeric page order.
  • Later 020 T manual reference, copyright 1999; no substitution for the exact1997 tool edition, current availability or verified physical interchange. No hardware operation was performed.

TI dependency: TI 10/1997, p. 4 — 020 T later manual: clutch, brake, ignition and bar-stud tools.

Later manual evidence: Service Manual 020 T Chain Saws (publication revision unestablished; ©1999), section 11.1 Special Servicing Tools, PDF pages 57

Part numbers (6)
  • 5910 890 2800 — Row4: Assembly hook — detaching clutch-shoe springsService tool · 020 T; later1999copyright manual only
  • 1117 890 0900 — Row5: Assembly tube — attaching brake springService tool · 020 T; later1999copyright manual only
  • 1111 890 6400 — Row18: Setting gauge — air gap between ignition module and flywheelService tool · 020 T; later1999copyright manual only
  • 5910 893 0501 — Row19: Stud pullerM8 — removing bar mounting studService tool · 020 T; later1999copyright manual only
  • 1116 893 0800 — Row21: Puller — removing flywheelService tool · 020 T; later1999copyright manual only
  • 5910 893 5608 — Row25: Socket13mm — crankshaft nut, ignition end and clutchService tool · 020 T; later1999copyright manual only

Service note · 020 T

020 T later manual: torque wrenches, starter tools and assembly stand

Exact tool identities from the later020T manual; no current availability or other-model fitment inferred.

No exact-model IPL link: Later020T model-specific tool list, not a saw-parts assembly or authenticated1997 edition.

  • Row26 wrenches5910 890 0301 and5910 890 0302 cover0.5–18 Nm; row27 wrenches5910 890 0311 and5910 890 0312 cover6–80 Nm. Footnote1 (Plastoform/DG screws always use a torque wrench) is printed against0301/0311; footnote2 (optical/acoustic signal) against0302/0312. These are range/feature alternatives, not four sequential settings or a claim about torque accuracy.
  • Original descriptions distinguish T27x125 BIT0812 542 2104, T27x150 SCREWDRIVER5910 890 2302, T20x100 SCREWDRIVER5910 890 2301 and T20x125 SOCKET0812 542 2041. The5mm/4mm values in their applications refer to SCREWS, not the Torx designation or tool-shank diameter.
  • Assembly tool1116 893 4800 installs the rewind spring; installing tool0000 890 2201 flares the rope-guide bush; hook5910 893 8800 removes the pickup body. Q-SW8x200 T-handle5910 890 2420 is for carburetor nuts; crimping tool5910 890 8210 attaches electrical-wire connectors. No wire size or crimp specification is printed.
  • Assembly stand5910 850 3100 holds the saw for repairs. The introduction explicitly removes the sprocket cover and secures the saw using the GUIDE-BAR MOUNTING NUT, allowing the saw to swivel and leaving both hands free. No mounting torque, adapter number, fabricated fixture geometry or readiness to energize the saw is supplied by that photograph/prose.
  • The original11.1 table has38numbered positions and two additional torque-wrench alternatives:40part numbers, not a40-piece kit. All applications below are printed assignments; blank cells stay unknown. Printed row numbers are retained despite the nonnumeric page order.
  • Later 020 T manual reference, copyright 1999; no substitution for the exact1997 tool edition, current availability or verified physical interchange. No hardware operation was performed.

TI dependency: TI 10/1997, p. 4 — 020 T later manual: torque wrenches, starter tools and assembly stand.

Later manual evidence: Service Manual 020 T Chain Saws (publication revision unestablished; ©1999), section 11.1 Special Servicing Tools / introduction stand mounting, PDF pages 1, 57

Part numbers (14)
  • 0812 542 2104 — Row24: Screwdriver bitT27x125 — IS screws5mmService tool · 020 T; later1999copyright manual only
  • 5910 890 0301 — Row26a: Torque wrench0.5–18Nm — footnote1Service tool · 020 T; later1999copyright manual only
  • 5910 890 0302 — Row26b: Torque wrench0.5–18Nm — footnote2 optical/acoustic signalService tool · 020 T; later1999copyright manual only
  • 5910 890 0311 — Row27a: Torque wrench6–80Nm — footnote1Service tool · 020 T; later1999copyright manual only
  • 5910 890 0312 — Row27b: Torque wrench6–80Nm — footnote2 optical/acoustic signalService tool · 020 T; later1999copyright manual only
  • 1116 893 4800 — Row28: Assembly tool — installing rewind springService tool · 020 T; later1999copyright manual only
  • 0000 890 2201 — Row29: Installing tool — flaring rope-guide bushService tool · 020 T; later1999copyright manual only
  • 5910 893 8800 — Row30: Assembly hook — removing pickup bodyService tool · 020 T; later1999copyright manual only
  • 5910 890 2301 — Row31: ScrewdriverT20x100 — all IS-P screws4mmService tool · 020 T; later1999copyright manual only
  • 5910 890 2420 — Row32: T-handle screwdriverQ-SW8x200 — carburetor nutsService tool · 020 T; later1999copyright manual only
  • 5910 890 8210 — Row33: Crimping tool — electrical-wire connectorsService tool · 020 T; later1999copyright manual only
  • 5910 850 3100 — Row34: Assembly stand — holding saw for repairsService tool · 020 T; later1999copyright manual only
  • 5910 890 2302 — Row35: ScrewdriverT27x150 — all IS screws5mmService tool · 020 T; later1999copyright manual only
  • 0812 542 2041 — Row38: SocketT20x125 — tightening IS-P screws4mmService tool · 020 T; later1999copyright manual only

Service note · 020 / 020 T

020 and 020 T: 2012 leak-test tools and conflicting flange numbers

Exact series 1129 rows; earlier 020 and laterMS200 identities remain separate.

No exact-model IPL link: Series 1129 reference; earlier 1114 020 and MS200 sheets are not substituted.

  • The January 2012 Special Tools Manual page 19 explicitly heads this list “020 T, 020 (1129)”. Page 4 separately assigns the earlier 020 to 1114 and 020T/020 to 1129; MS200T/MS200 share 1129 but have their own model entry. No earlier 020 or successor fitment is inherited from the name or series alone.
  • All numbered items below are direct transcriptions of this exact model row. A row marked “no application printed” has no supplied application; no operation is inferred from its neighbor.
  • The 2012 table prints 1123 855 4200, while the later copyright 1999 020T manual prints 1123 850 4200. These are DIFFERENT printed numbers; no correction, supersession or interchange is established. The separate 1128 850 4200 flange appears in both references and must not be collapsed into either 1123 number.
  • The table lists two nipples and a 135 mm hose separately. Blank applications and testing-kit contents are not filled from proximity. No pressure, vacuum, dwell, assembly order or live-test authorization is supplied by this tool list.
  • Later January 2012 reference, not proof of the exact 1997 tool set, a production changeover, current supply or tested physical interchange. No hardware operation was performed.

TI dependency: TI 10/1997, p. 4 — 020 and 020 T: 2012 leak-test tools and conflicting flange numbers.

Later manual evidence: Special Tools Manual (2012-01), section Part2: entire 020 T, 020 (1129) list, grouped by subject, PDF pages 1, 4, 19

Part numbers (9)
  • 0000 850 1300 — Pump — checking engine and carburetor for leaksService tool · 020 T, 020 (1129); January 2012 reference
  • 0000 855 8106 — Sealing plate; no application printedService tool · 020 T, 020 (1129); January 2012 reference
  • 0000 855 9200 — Nipple; no application printedService tool · 020 T, 020 (1129); January 2012 reference
  • 0000 855 9201 — Nipple; no application printedService tool · 020 T, 020 (1129); January 2012 reference
  • 0000 890 1701 — Testing tool kit; no application printedService tool · 020 T, 020 (1129); January 2012 reference
  • 1110 141 8600 — Hose 135 mm / 5 5/16 in; no application printedService tool · 020 T, 020 (1129); January 2012 reference
  • 1123 855 4200 — Flange — leakage testService tool · 020 T, 020 (1129); January 2012 reference
  • 1128 850 4200 — Flange; no application printedService tool · 020 T, 020 (1129); January 2012 reference
  • 5910 850 2100 — Clamping plate; no application printedService tool · 020 T, 020 (1129); January 2012 reference

Service note · 020 / 020 T

020 and 020 T: 2012 piston, seal and crankcase tools

Exact series 1129 rows; earlier 020 and laterMS200 identities remain separate.

No exact-model IPL link: Series 1129 reference; earlier 1114 020 and MS200 sheets are not substituted.

  • The January 2012 Special Tools Manual page 19 explicitly heads this list “020 T, 020 (1129)”. Page 4 separately assigns the earlier 020 to 1114 and 020T/020 to 1129; MS200T/MS200 share 1129 but have their own model entry. No earlier 020 or successor fitment is inherited from the name or series alone.
  • All numbered items below are direct transcriptions of this exact model row. A row marked “no application printed” has no supplied application; no operation is inferred from its neighbor.
  • Press sleeve 1129 893 2400 has the explicit dual oil-seal/roller-bearing application; installing sleeve 1129 893 4600 explicitly protects the IGNITION-SIDE oil seal. The table does not give press depth, orientation or bearing clearance.
  • Service tool AS5910 007 2205 and hookless-ring installing tool 5910 890 2209 are the 2012 listed identities. Their difference from earlier-manual numbers is not an authenticated supersession chain. The printed “9” is retained as tool nomenclature, not silently assigned a dimension/unit.
  • Later January 2012 reference, not proof of the exact 1997 tool set, a production changeover, current supply or tested physical interchange. No hardware operation was performed.

TI dependency: TI 10/1997, p. 4 — 020 and 020 T: 2012 piston, seal and crankcase tools.

Later manual evidence: Special Tools Manual (2012-01), section Part2: entire 020 T, 020 (1129) list, grouped by subject, PDF pages 1, 4, 19

Part numbers (12)
  • 0000 890 2201 — Installing tool; no application printedService tool · 020 T, 020 (1129); January 2012 reference
  • 0000 890 3700 — Jaw — removing oil seal(s)Service tool · 020 T, 020 (1129); January 2012 reference
  • 0000 893 2600 — Clamping strap; no application printedService tool · 020 T, 020 (1129); January 2012 reference
  • 1108 893 4800 — Wooden assembly block; no application printedService tool · 020 T, 020 (1129); January 2012 reference
  • 1114 893 4700 — Assembly drift — removing/installing piston pinService tool · 020 T, 020 (1129); January 2012 reference
  • 1116 893 4800 — Installing tool; no application printedService tool · 020 T, 020 (1129); January 2012 reference
  • 1117 890 0900 — Assembly tube; no application printedService tool · 020 T, 020 (1129); January 2012 reference
  • 1124 893 7100 — Sleeve; no application printedService tool · 020 T, 020 (1129); January 2012 reference
  • 1129 893 2400 — Press sleeve — installing oil seal and roller bearing in crankcaseService tool · 020 T, 020 (1129); January 2012 reference
  • 1129 893 4600 — Installing sleeve — protecting oil seal, ignition sideService tool · 020 T, 020 (1129); January 2012 reference
  • 5910 007 2205 — Service tool AS — separating crankcase halvesService tool · 020 T, 020 (1129); January 2012 reference
  • 5910 890 2209 — Installing tool, 9 — installing hookless snap rings in pistonService tool · 020 T, 020 (1129); January 2012 reference

Service note · 020 / 020 T

020 and 020 T: 2012 ignition, locking and holding tools

Exact series 1129 rows; earlier 020 and laterMS200 identities remain separate.

No exact-model IPL link: Series 1129 reference; earlier 1114 020 and MS200 sheets are not substituted.

  • The January 2012 Special Tools Manual page 19 explicitly heads this list “020 T, 020 (1129)”. Page 4 separately assigns the earlier 020 to 1114 and 020T/020 to 1129; MS200T/MS200 share 1129 but have their own model entry. No earlier 020 or successor fitment is inherited from the name or series alone.
  • All numbered items below are direct transcriptions of this exact model row. A row marked “no application printed” has no supplied application; no operation is inferred from its neighbor.
  • EDT7 and EDT8 are distinct listed tachometers, not an asserted replacement for the earlier manual’s EDT5. No speed threshold, sensor connection or performance equivalence is supplied here.
  • Two assembly-hook identities, a setting gauge and a setting disk are separate rows. Their application cells are not supplied by neighboring rows. The M5 x 50 screw is listed without a mounting position or torque; do not invent one.
  • Later January 2012 reference, not proof of the exact 1997 tool set, a production changeover, current supply or tested physical interchange. No hardware operation was performed.

TI dependency: TI 10/1997, p. 4 — 020 and 020 T: 2012 ignition, locking and holding tools.

Later manual evidence: Special Tools Manual (2012-01), section Part2: entire 020 T, 020 (1129) list, grouped by subject, PDF pages 1, 4, 19

Part numbers (11)
  • 0000 893 5903 — Locking strip; no application printedService tool · 020 T, 020 (1129); January 2012 reference
  • 1111 890 6400 — Setting gauge; no application printedService tool · 020 T, 020 (1129); January 2012 reference
  • 5910 850 1008 — Tachometer EDT 7; no application printedService tool · 020 T, 020 (1129); January 2012 reference
  • 5910 850 1009 — Tachometer EDT 8; no application printedService tool · 020 T, 020 (1129); January 2012 reference
  • 5910 890 2800 — Assembly hook; no application printedService tool · 020 T, 020 (1129); January 2012 reference
  • 5910 890 3101 — Assembly stand — holding chainsaw for repairsService tool · 020 T, 020 (1129); January 2012 reference
  • 5910 893 0501 — Stud puller, M8; no application printedService tool · 020 T, 020 (1129); January 2012 reference
  • 5910 893 0801 — Puller — removing flywheelService tool · 020 T, 020 (1129); January 2012 reference
  • 5910 893 6600 — Setting disk; no application printedService tool · 020 T, 020 (1129); January 2012 reference
  • 5910 893 8800 — Assembly hook; no application printedService tool · 020 T, 020 (1129); January 2012 reference
  • 9043 319 8100 — Pan head screw M5 x 50; no application printedService tool · 020 T, 020 (1129); January 2012 reference

Service note · 020 / 020 T

020 and 020 T: 2012 drivers, sockets and torque-wrench ranges

Exact series 1129 rows; earlier 020 and laterMS200 identities remain separate.

No exact-model IPL link: Series 1129 reference; earlier 1114 020 and MS200 sheets are not substituted.

  • The January 2012 Special Tools Manual page 19 explicitly heads this list “020 T, 020 (1129)”. Page 4 separately assigns the earlier 020 to 1114 and 020T/020 to 1129; MS200T/MS200 share 1129 but have their own model entry. No earlier 020 or successor fitment is inherited from the name or series alone.
  • All numbered items below are direct transcriptions of this exact model row. A row marked “no application printed” has no supplied application; no operation is inferred from its neighbor.
  • Four torque wrenches retain their two ranges and optical/acoustic variants. A wrench range is NOT a component tightening torque. The T20 x 125 row explicitly requires final tightening with a torque wrench despite powered-driver use.
  • 5910 890 2302 and 5910 890 2400 are both printed T27 x 150 but remain distinct identities. No equivalence, obsolete status or substitution is inferred. The S19 x 12.5L socket retains the exact printed nomenclature, not an inferred extra measurement.
  • Later January 2012 reference, not proof of the exact 1997 tool set, a production changeover, current supply or tested physical interchange. No hardware operation was performed.

TI dependency: TI 10/1997, p. 4 — 020 and 020 T: 2012 drivers, sockets and torque-wrench ranges.

Later manual evidence: Special Tools Manual (2012-01), section Part2: entire 020 T, 020 (1129) list, grouped by subject, PDF pages 1, 4, 19

Part numbers (13)
  • 0812 542 2041 — Socket T20 x 125 — spline socket-head screws with electric/pneumatic screwdrivers; final tightening with torque wrenchService tool · 020 T, 020 (1129); January 2012 reference
  • 0812 542 2104 — Socket T27 x 125; no application printedService tool · 020 T, 020 (1129); January 2012 reference
  • 5910 890 0301 — Torque wrench — screwed joints 0.5 to 18 NmService tool · 020 T, 020 (1129); January 2012 reference
  • 5910 890 0302 — Torque wrench with optical/acoustic signal — screwed joints 0.5 to 18 NmService tool · 020 T, 020 (1129); January 2012 reference
  • 5910 890 0311 — Torque wrench — screwed joints 6 to 80 NmService tool · 020 T, 020 (1129); January 2012 reference
  • 5910 890 0312 — Torque wrench with optical/acoustic signal — screwed joints 6 to 80 NmService tool · 020 T, 020 (1129); January 2012 reference
  • 5910 890 2301 — Screwdriver T20; no application printedService tool · 020 T, 020 (1129); January 2012 reference
  • 5910 890 2302 — Screwdriver T27 x 150 — spline socket-head screwsService tool · 020 T, 020 (1129); January 2012 reference
  • 5910 890 2305 — Screwdriver — adjusting carburetorService tool · 020 T, 020 (1129); January 2012 reference
  • 5910 890 2400 — Screwdriver T27 x 150; no application printedService tool · 020 T, 020 (1129); January 2012 reference
  • 5910 890 2420 — Screwdriver Q-SW8 x 200; no application printedService tool · 020 T, 020 (1129); January 2012 reference
  • 5910 893 5608 — Socket 13 mm; no application printedService tool · 020 T, 020 (1129); January 2012 reference
  • 5910 893 5613 — Socket S19 x 12.5L — spark plugService tool · 020 T, 020 (1129); January 2012 reference

Service note · 020 / 020 T

020 repair times: ambiguous 2012 model headings

MS020T and MS020 are printed labels, not an authenticated 1997 model mapping.

No exact-model IPL link: Series 1129 reference; earlier 1114 020 and MS200 sheets are not substituted.

  • TI10/1997 section 5.3 delegates rear-handle 020 repair times to 020T. The later January 2012 timetable has been visually checked at the cover, contents and ALL six gasoline-chain-saw table pages (PDF13–18; printed 12–17). It is not an absent source.
  • PDF13/printed 12 groups “MS020T / MS200 / MS200T” in one column. PDF17/printed 16 labels a NON-CURRENT column “MS020”. Many other legacy-number headings likewise carry an MS prefix. Literal 020 text search missed these prefixed strings; search absence was not model absence.
  • These pages contain potentially relevant times but do not give a series 1129/1114 discriminator or explain the prefixed legacy-model labels. In particular the non-currentMS020 column is not proof for the 1997 rear-handle 020. The two columns disagree: crankcase replacement is 140 minutes under MS020T/MS200/MS200T but 120 minutes under non-currentMS020. Those are documentary column values, NOT accepted 020 repair estimates.
  • No silent normalization of MS020T to 020T or MS020 to either 020 generation, no choice between those columns and no authenticated 1997 time schedule is claimed. The naming/mapping limitation is retained; an exact historical timetable or authenticated alias mapping would be needed to transfer these times. Other models’ time rows are outside this TI10 dependency review.
  • Later January 2012 reference, not proof of the exact 1997 tool set, a production changeover, current supply or tested physical interchange. No hardware operation was performed.

TI dependency: TI 10/1997, p. 4 — 020 repair times: ambiguous 2012 model headings.

Later manual evidence: Repair Timetables Manual (2012-01), section Contents and gasoline-chain-saw table headers; conflicting MS020T/MS020 identities, PDF pages 1, 2, 13, 14, 15, 16, 17, 18

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · 020 / 020 T

020 and 020 T: later catalog Picco bars and exact drive-link counts

12/14/16-inch bars retain separate numbers, .050-inch gauge and 44/50/55 drive links.

No exact-model IPL link: Later catalog exact 020/020T reference; no earlier 1114 or MS successor assembly substituted.

  • The Bar & Chain Catalog cover identifies 12th edition, effective January 2011. Its printed 48–49/PDF29 group is 020, 020T, MS200, MS200T; the EARLIER020(1114)/020Super is separately tabulated on printed 46–47/PDF28. This note admits only the 020/020T dependency, not every model sharing a row.
  • The 3/8P rows all specify .050-inch gauge:12 in/44 drive links with RollomaticE3005 000 4805;14 in/50 with 3005 000 4809;16 in/55 with 3005 008 4813. All three print 9 bar-nose sprocket teeth. That 9 is NOT the engine drive-sprocket count.
  • The additional RollomaticE/ES column has 14 in 3005 000 7409 and 16 in 3005 000 7413, both 9 nose teeth, marked footnote 3 = ROLLOMATIC E LIGHT. No 12 inLight part is printed. All five listed bars are green-coded in the original table.
  • The blank additional bar cells are not alternative part numbers. Nominal length alone does not determine chain length; retain the printed drive-link count, pitch and gauge with each row. A shared model heading is not a statement that any drive sprocket combines with every bar.
  • Later January 2011 reference, not the original 1997 catalog, proof of every possible bar/chain/sprocket combination, current supply or tested physical interchange. No hardware operation was performed.

TI dependency: TI 10/1997, p. 3 · TI 10/1997, p. 4 — 020 and 020 T: later catalog Picco bars and exact drive-link counts.

Later manual evidence: Bar & Chain Catalog,12th Edition (2011-01), section Exact020/020T bar rows; printed48–49 with earlier-generation context46–47, PDF pages 1, 28, 29

Part numbers (5)
  • 3005 000 4805 — RollomaticE12 in, 3/8P,.050 in, 44 drive links, 9 nose teethGuide bar · 020, 020T; January 2011 catalog only
  • 3005 000 4809 — RollomaticE14 in, 3/8P,.050 in, 50 drive links, 9 nose teethGuide bar · 020, 020T; January 2011 catalog only
  • 3005 008 4813 — RollomaticE16 in, 3/8P,.050 in, 55 drive links, 9 nose teethGuide bar · 020, 020T; January 2011 catalog only
  • 3005 000 7409 — RollomaticE LIGHT14 in, 3/8P,.050 in, 50 drive links, 9 nose teeth; footnote 3Guide bar · 020, 020T; January 2011 catalog only
  • 3005 000 7413 — RollomaticE LIGHT16 in, 3/8P,.050 in, 55 drive links, 9 nose teeth; footnote 3Guide bar · 020, 020T; January 2011 catalog only

Service note · 020 / 020 T

020 and 020 T: later catalog six- and seven-tooth drive sprockets

Drive sprocket tooth counts are not guide-bar nose counts or a universal conversion claim.

No exact-model IPL link: Later catalog exact 020/020T reference; no earlier 1114 or MS successor assembly substituted.

  • The Bar & Chain Catalog cover identifies 12th edition, effective January 2011. Its printed 48–49/PDF29 group is 020, 020T, MS200, MS200T; the EARLIER020(1114)/020Super is separately tabulated on printed 46–47/PDF28. This note admits only the 020/020T dependency, not every model sharing a row.
  • The spur-sprocket pictogram column lists 1129 640 2000 with 6 teeth and 1129 640 2050 with 7 teeth, both 3/8P. They appear within the shared 020/020T group; their visual alignment beside 12 in and 14 in rows is not evidence that each is exclusive to that bar length.
  • The adjacent rim-sprocket kit and separate rim columns are BLANK for this group. Do not borrow 1123 kit/rim numbers from the next 023 row. No retrofit parts, serial boundary, drive-link adjustment or rim-conversion procedure is supplied for 020/020T.
  • The chain-selection chart elsewhere marks 51/56 drive-link alternatives with a TWO-PART condition:7-tooth sprocket AND quick chain tensioner. The existence of a 7-tooth sprocket here does not prove that the 020/020T has that tensioner or qualify it for those extra-link loops.
  • Later January 2011 reference, not the original 1997 catalog, proof of every possible bar/chain/sprocket combination, current supply or tested physical interchange. No hardware operation was performed.

TI dependency: TI 10/1997, p. 3 · TI 10/1997, p. 4 — 020 and 020 T: later catalog six- and seven-tooth drive sprockets.

Later manual evidence: Bar & Chain Catalog,12th Edition (2011-01), section Printed48–49 drive-sprocket columns and printed26–27 conditional chain lengths, PDF pages 1, 17, 28, 29

Part numbers (2)
  • 1129 640 2000 — 3/8P spur sprocket, 6 teethChain sprocket · 020, 020T; January 2011 catalog only
  • 1129 640 2050 — 3/8P spur sprocket, 7 teethChain sprocket · 020, 020T; January 2011 catalog only

Service note · 020 / 020 T

020 and 020 T: later catalog quarter-inch carving combinations

Carving bars require 13RMC or 13RMS; a green bar does not make the yellow chain low-kickback.

No exact-model IPL link: Later catalog exact 020/020T reference; no earlier 1114 or MS successor assembly substituted.

  • The Bar & Chain Catalog cover identifies 12th edition, effective January 2011. Its printed 48–49/PDF29 group is 020, 020T, MS200, MS200T; the EARLIER020(1114)/020Super is separately tabulated on printed 46–47/PDF28. This note admits only the 020/020T dependency, not every model sharing a row.
  • The separate 1/4 pitch,.050-inch rows give 10 in/56 drive links with Duromatic 3005 003 4203 and 12 in/64 drive links with 3005 003 4205. Footnote 1 limits these CARVING bars to 13RMC OR13RMS saw chain. Neither is a 3/8P option.
  • The same group lists 1129 007 1002 with 8 teeth in the spur-sprocket column at 1/4 pitch. The catalog does not enumerate package contents or a conversion procedure, so no complete conversion kit is inferred solely from 007 in the number.
  • The bars are green-coded, but the chain chart and chain-type pages code 13RMC/13RMS YELLOW. It states no recommended green low-kickback chain for 1/4 sprockets in this edition, warns of severe kickback and restricts yellow chains to users with extraordinary cutting needs, experience and specialized training. The catalog instead recommends 3/8Picco sprockets with 63PMC3 and green bars for these models.
  • The chain chart’s 1/4 model list namesMS200/MS200T but does NOT literally list 020/020T. The 020/020T carving assertion here rests on the explicit BAR table’s model row and footnote, not a silently widened chain-table heading. Its 13RMC56/64 and 13RMS56/64 designations match the printed 10/12 in carving counts; this is documentary agreement, not tested fitment.
  • Later January 2011 reference, not the original 1997 catalog, proof of every possible bar/chain/sprocket combination, current supply or tested physical interchange. No hardware operation was performed.

TI dependency: TI 10/1997, p. 3 · TI 10/1997, p. 4 — 020 and 020 T: later catalog quarter-inch carving combinations.

Later manual evidence: Bar & Chain Catalog,12th Edition (2011-01), section Printed48–49 carving rows/footnote1,20chain context and26–27 warnings, PDF pages 1, 4, 14, 17, 29

Part numbers (3)
  • 3005 003 4203 — Duromatic carving bar 10 in, 1/4 in pitch,.050 in gauge, 56 drive links; footnote 1Guide bar · 020, 020T; January 2011 catalog only
  • 3005 003 4205 — Duromatic carving bar 12 in, 1/4 in pitch,.050 in gauge, 64 drive links; footnote 1Guide bar · 020, 020T; January 2011 catalog only
  • 1129 007 1002 — 1/4 pitch, 8 teeth; contents unspecifiedChain sprocket · 020, 020T; January 2011 catalog only

Service note · 020 / 020 T

020 and 020 T: later catalog chain families and conditional lengths

Green/yellow labels, quick-tensioner conditions and generation ambiguity remain attached.

No exact-model IPL link: Later catalog exact 020/020T reference; no earlier 1114 or MS successor assembly substituted.

  • The Bar & Chain Catalog cover identifies 12th edition, effective January 2011. Its printed 48–49/PDF29 group is 020, 020T, MS200, MS200T; the EARLIER020(1114)/020Super is separately tabulated on printed 46–47/PDF28. This note admits only the 020/020T dependency, not every model sharing a row.
  • Printed 26–27/PDF17 explicitly includes 020 and 020T in a shared 3/8P,.050-inch group. Its 12/14/16 in rows respectively give 44/50/55 drive links for each of 63PMC3, 63PS3, 63PD3 and 63PMC. These are marketing designations, not complete 11-digit part numbers; no suffix is invented.
  • Thus the unstarred loops are 63PMC3 44/50/55, 63PS3 44/50/55, 63PD3 44/50/55 and 63PMC 44/50/55, with length matched in that order. The first three families are GREEN low-kickback chains;63PMC is YELLOW, not the same safety classification as 63PMC3. The chain-type context gives family prefixes 3636(PMC3), 3616(PS3), 3612(PD3), 3613(PMC), not complete loop order numbers.
  • Additional 14/16 in entries 51/56 carry double-asterisk for ALL four families: ONLY WITH7-TOOTH CHAIN SPROCKET AND QUICK CHAIN TENSIONER. Both conditions are required. No quick-tensioner fitment on 020/020T is established by this shared table. Do not promote 51/56 as unconditional replacements for 50/55.
  • The shared file column prints 5/32 in. PD3 is identified separately as CARBIDE-TIPPED on printed 20/PDF14; the shared number is not a complete sharpening method or proof a conventional round file sharpens its carbide cutters. This review does not invent a PD3 sharpening procedure.
  • The original note says 010, 015, 020 andE10 pre-date the 1986 computed-kickback-angle requirement. Because this catalog also has a separate EARLIER020(1114) row and a later 020/020T row, the unqualified 020 note has a generation ambiguity. It is NOT evidence that the 1997 rear-handle 020 or 020T was manufactured before 1986 or exempt from a modern requirement.
  • Green-chain classification is stated against ANSI B175.1-2000 tests on a SPECIFIED SAMPLE below 3.8 cu.in. The catalog explicitly says not all powerhead/bar combinations were tested or certified to its 45-degree computer-derived criterion. Yellow chains may cause severe kickback and require the stated experience/training; use of properly functioning kickback-reducing devices is retained. These are dated source statements, not current legal advice, a new certification or a guarantee of safety.
  • Later January 2011 reference, not the original 1997 catalog, proof of every possible bar/chain/sprocket combination, current supply or tested physical interchange. No hardware operation was performed.

TI dependency: TI 10/1997, p. 3 · TI 10/1997, p. 4 — 020 and 020 T: later catalog chain families and conditional lengths.

Later manual evidence: Bar & Chain Catalog,12th Edition (2011-01), section Printed26–27 complete shared020/020T chain rows/footnotes;18–20chain identity and1–3safety context, PDF pages 1, 3, 4, 13, 14, 17, 28, 29

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Full text

Page 1 of 4

TI 10/1997 page 1
Text of page 1 — search, copy, screen readers
Technical Information

                                                                                                    10.97

New Version of Model 020 Chainsaw - Series 1129

The STIHL 020 is the sister model of the special-       This new chainsaw offers excellent control and
purpose 020 T but with a rear control handle.           handling and is therefore an ideal limbing saw for

With a weight of only 3.8 kg it is the lightest STIHL   small to medium-sized wood.
professional chainsaw and the entry-level unit in
this segment.                                           The outstanding balance and control of this model
                                                        have been achieved by optimizing the center of

                                                        gravity relative to the swivelling axis as well as the
                                                        moments of inertia and rotation.

Page 2 of 4

TI 10/1997 page 2
Text of page 2 — search, copy, screen readers
Technical Information 10.97 - Page 2

Contents

1.    Technical Description
2.    Specifications
3.    Special Accessories for User
4.    Service Accessories
5.    Repairs
6.    Spare Parts

1.      Technical Description
1.1     General

The 020 powerhead is virtually the same as that

of the 020 T. The only differences are the handle

system and the arrangement of the carburetor with
manifold, air filter and compensator. In addition,
the 020 is equipped with an intake air preheating

system for winter operation.

The following descriptions therefore refers to these

specific assemblies only.

1.2 Mixture Control System
1.2.1 Compensator
The 020’s mixture control system is equipped with
a compensator. A completely new feature is that

the connecting channel (arrow) between the
carburetor and air filter is shaped to double as a
grommet which protects and guides the carburetor
adjusting screws.

The compensator keeps the fuel content in the

mixture constant at all times, irrespective of air
filter contamination. The combustion mixture can
no longer become over-rich. And it is no longer
necessary to alter the setting of the high speed

screw when the air filter gets dirtier.

For a more detailed description of operation see
TI 07.91 (STIHL 066).
                                                                         144TI002 SC

1.2.2 Carburetor

Compared with the 020 T, the carburetor has been

modified. Its metering chamber end cover has a
connecting stub for the compensator. The lever on
the choke shaft has a dual attachment point for the
020 and 020 T and the adjusting screws are
sealed with an O-ring.

The position of the carburetor has been adapted to
suit the different handle system.

Page 3 of 4

TI 10/1997 page 3
Text of page 3 — search, copy, screen readers
Technical Information 10.97 - Page 3

1.2.3 Air Filter

The air filter is a large-area round element
equipped with a connecting stub for the
compensator. Its main features are an excellent
retention rate, long service life and easy handling.
Cleaning is necessary only when there is a
noticeable loss of engine power.

Removal and installation

Snap-on hooks hold the filter in position on the
filter base. No tools are needed for removal. After

taking off the carburetor box cover, the filter is

simply lifted up a little and pulled away to the rear.
To clean the inside of the element it is necessary
to remove the filter end cover by pressing the other

end of the element against a firm, flat base. The co-
ver must be refitted after cleaning so that it snaps
into place.

                                                                    144BA010 KN

                                                                                             144BA019 KN
The compensator stub automatically locates in the
connecting channel when the filter is refitted, and
the snap-on hooks are engaged by applying slight
pressure.

1.3   Intake Air Preheating System

With the intake air preheating system, heated
cooling air flows over the carburetor and is sucked
in as preheated combustion air through the filter.

This helps prevent the air filter and carburetor
icing up in cold operating conditions.

                                                                                  2
A cutout (1), which can be opened or closed with a
shutter (2), is provided for this purpose in the new
tank housing and carburetor box (handle frame).

Intake air preheating should only be activated at

temperatures below approx. 10 °C. It is necessary
to change back to the summer position at
temperatures above about 10 °C to avoid engine
running problems.

                                                                                  1
                                                                                      144TI003 SC

1.4   Cutting Attachments

Model 020 chainsaws can be equipped with the
same cutting attachments as the 020 T. See
catalog "Chains, Guide Bars and Accessories".

Page 4 of 4

TI 10/1997 page 4
Text of page 4 — search, copy, screen readers
Technical Information 10.97 - Page 4

2.      Specifications                                   5.2   Tightening Torques

Only the specifications that differ from the 020 T       Only the torques that differ from the 020 T are
are listed below. All other specifications are           listed below; all others are identical.
identical.
                                                         Plastorm screw P 6x32.5 for
Air filter:                      Large-area              front handle to handle frame             5.3 Nm
                                 round element
                                                         Spline screw for
                                                         stop buffer to tank housing              5.5 Nm
Continuous sound level Lpeq
to ISO 71821)                    99 dB(A)                Collar screw P 5 for
                                                         handle frame (rear handle)

Sound power level Lweq                                   to stop buffer                           2.0 Nm

to ISO 92071)                    109 db(A)

Vibration measurement aeq                                5.3   Repair Times

to ISO 75051)
– Handle, left                   4.4 m/s2                as 020 T
– Handle, right                  4.8 m/s2

Weight (powerhead                                        6.    Spare Parts
without bar and chain):          3.8 kg
1)
  Weighted equivalent level includes idling, full
                                                         The parts list for the 020 is included in the existing
                                                         parts list for the 020 T.
load and racing with the same duration of exposure

3.      Special Accessories for User

as 020 T

4.      Service Accessories

as 020 T

5.      Repairs

If the saw is started up in the course of repairs
or maintenance work, always observe all local
regulations and the safety precautions outlined in
the owner’s manual.

5.1     Service Notes

No special instructions are necessary for the
assemblies that differ from the 020 T. Refer to
the 020 T service manual for all other servicing
procedures.

                                                         Andreas Stihl - D1/MTK
© 1997 Andreas Stihl                                     Technical Documentation                           5928

Most of these PDFs embed fonts with a shifted character map, so the text above was recovered rather than copied — read it as a faithful but imperfect transcription, and treat the page image above each block as the authority where the two disagree — the figures exist only there, because they are vector drawings that text extraction cannot keep.

Report a transcription error →
