Technical Information · issue 12 of 1997

New STIHL Rollomatic .404" Harvester Guide Bars wi

IssueTI 12/1997

Accessory changes & notes

Source-reviewed accessory relationships. These notes do not establish fitment to unnamed saw models. Availability statements belong to the bulletin’s date.

Service note · Accessory

Type 3080 harvester bars: 2.0 mm groove in 64 and 75 cm lengths

The thicker bars complement the existing 1.6 mm version; they do not replace every type 3080 bar.

  • The .404-inch Rollomatic harvester bar with a 2.0 mm (0.079 in) groove is offered as 3080 000 9923 at 64 cm (25 in) and 3080 000 9931 at 75 cm (30 in). Applicability is limited to harvesters accepting type 3080 bars. The cover illustration says ROLLOMATIC E HARVESTER; it does not identify a specific machine mount beyond type 3080.
  • This COMPLEMENTS the existing 1.6 mm (0.063 in) groove version. Rail width remains unchanged, while total bar thickness increases 0.4 mm (0.016 in) TO 6.2 mm (0.24 in). Groove width, rail width and total bar thickness are different quantities. The stated 22% increase in flexural stiffness is a vendor claim, not a new measurement or increase in every strength property.
  • The source pairs this guide bar with 40 RMH chain, type 3996, with 2.0 mm (0.079 in) drive-link gauge, describing a high-strength heavy-duty attachment for high-powered professional machines. Type 3996 is a family identifier, not a full chain loop order number; no drive-link count is invented.
  • All other features are said to be those of the original 1.6 mm type 3080 bar in TI42/1992. That exact TI is not in the verified 690-TI/766-resource-PDF corpus or document title/PDF-name query. Unreproduced original features remain a bounded SOURCE GAP, not inferred geometry or proof all repair parts interchange.
  • Historical accessory evidence only. No named harvester or chainsaw powerhead fitment, drive-link count, serial cutoff, current availability or tested physical interchange is established. No hardware operation was performed.

Source: TI 12/1997, p. 1 — Type 3080 harvester bars: 2.0 mm groove in 64 and 75 cm lengths.

Part numbers (2)
  • 3080 000 9923 — Rollomatic type 3080, .404 in, 2.0 mm groove, 64 cm/25 inAdditional bar version · TI12/1997 type 3080 .404-inch harvester bar with 2.0 mm groove only
  • 3080 000 9931 — Rollomatic type 3080, .404 in, 2.0 mm groove, 75 cm/30 inAdditional bar version · TI12/1997 type 3080 .404-inch harvester bar with 2.0 mm groove only

Service note · Accessory

Type 3080 harvester bars: matching adapter, nose sprocket and rivets

Use only the listed 2.0 mm-version repair parts; the 1.6 mm parts can impair running or strength.

  • Page 2 item 1 is adapter 0000 655 8802. Item 2 is .404-inch,12-tooth NOSE sprocket 3080 650 9901, including item 3 countersunk rivet 0000 974 0430, SIX pieces. The inclusion line covers the rivets, not the separately listed adapter; 12 teeth describes the nose, not a powerhead drive sprocket.
  • The adapter and countersunk rivets have been modified for the bar’s 0.4 mm (0.016 in) increase in overall thickness. The replacement nose sprocket is 2.0 mm (0.079 in) thick to match the groove. Figure 689TI027 marks a 6.3 mm adapter span; figure 689TI028 marks 2.0 mm sprocket thickness and an 8.7 mm rivet length. These are separate illustrated component dimensions, NOT alternative values for the 6.2 mm overall bar thickness. No tolerances or dimensions absent from the drawings are inferred.
  • The source says ONLY use the listed replacement parts for repairs. Parts intended for the 1.6 mm (0.063 in) groove version may cause RUNNING PROBLEMS for the adapter/nose sprocket or REDUCED STRENGTH for countersunk rivets. This is not an approval to mix widths, machine an old adapter or substitute shorter rivets.
  • Last TI04/1996 is bibliography, not an additional prerequisite or permission to override these exact new-version restrictions.
  • Historical accessory evidence only. No named harvester or chainsaw powerhead fitment, drive-link count, serial cutoff, current availability or tested physical interchange is established. No hardware operation was performed.

Source: TI 12/1997, p. 1 · TI 12/1997, p. 2 — Type 3080 harvester bars: matching adapter, nose sprocket and rivets.

Part numbers (3)
  • 0000 655 8802 — Modified adapter, item 12.0 mm-version repair part · TI12/1997 type 3080 .404-inch harvester bar with 2.0 mm groove only
  • 3080 650 9901 — Nose sprocket .404 in, 12T, 2.0 mm thick, item 2Assembly including six rivets · TI12/1997 type 3080 .404-inch harvester bar with 2.0 mm groove only
  • 0000 974 0430 — Countersunk rivet, item 3; six requiredIncluded in nose-sprocket assembly · TI12/1997 type 3080 .404-inch harvester bar with 2.0 mm groove only

Full text

Page 1 of 2

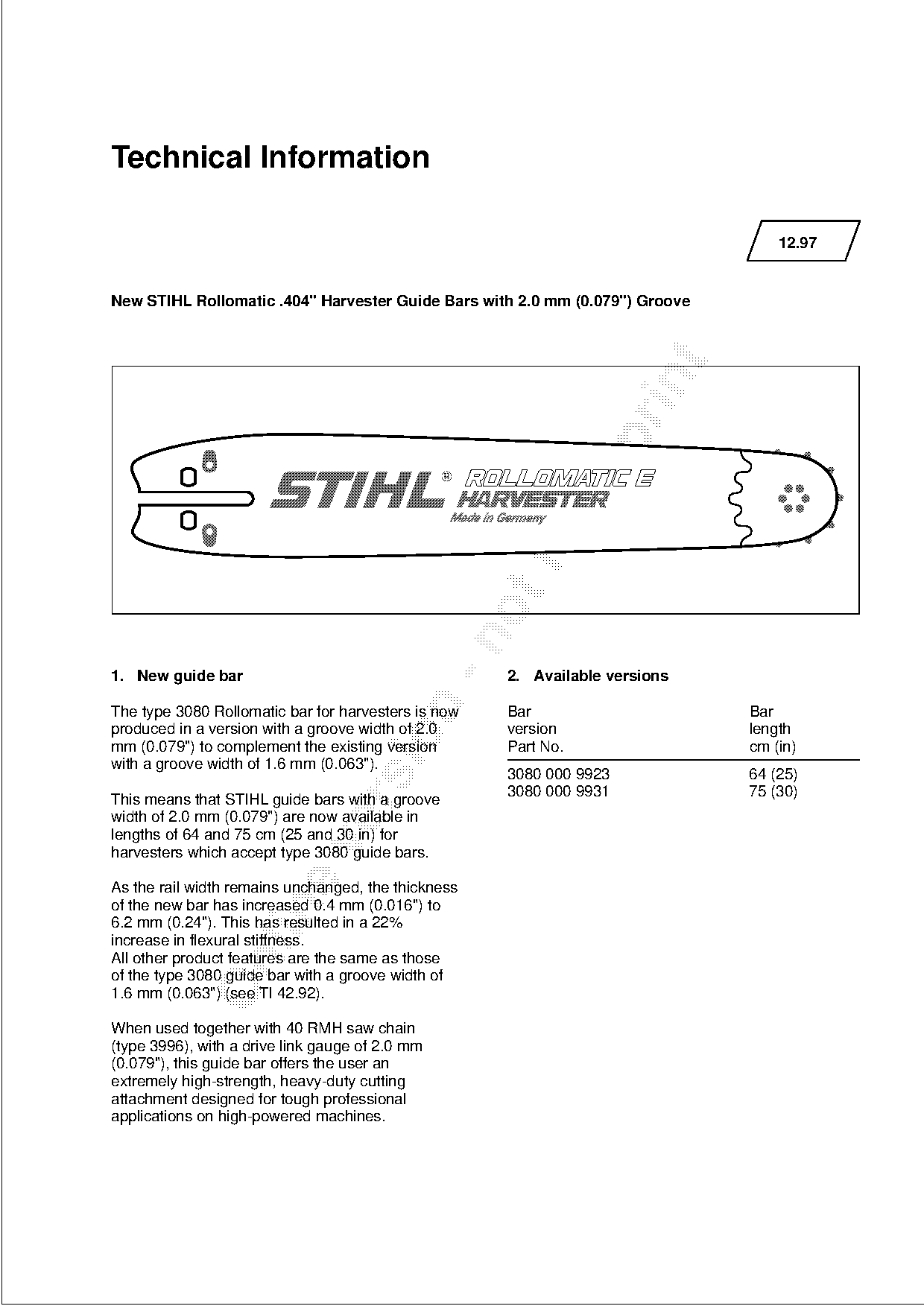

TI 12/1997 page 1
Text of page 1 — search, copy, screen readers
Technical Information

                                                                                  12.97

New STIHL Rollomatic .404" Harvester Guide Bars with 2.0 mm (0.079") Groove

1. New guide bar                                     2. Available versions

The type 3080 Rollomatic bar for harvesters is now   Bar                      Bar
produced in a version with a groove width of 2.0     version                  length

mm (0.079") to complement the existing version       Part No.                 cm (in)
with a groove width of 1.6 mm (0.063").
                                                     3080 000 9923            64 (25)
This means that STIHL guide bars with a groove       3080 000 9931            75 (30)

width of 2.0 mm (0.079") are now available in
lengths of 64 and 75 cm (25 and 30 in) for

harvesters which accept type 3080 guide bars.

As the rail width remains unchanged, the thickness
of the new bar has increased 0.4 mm (0.016") to

6.2 mm (0.24"). This has resulted in a 22%
increase in flexural stiffness.
All other product features are the same as those

of the type 3080 guide bar with a groove width of
1.6 mm (0.063") (see TI 42.92).

When used together with 40 RMH saw chain
(type 3996), with a drive link gauge of 2.0 mm
(0.079"), this guide bar offers the user an
extremely high-strength, heavy-duty cutting
attachment designed for tough professional
applications on high-powered machines.

Page 2 of 2

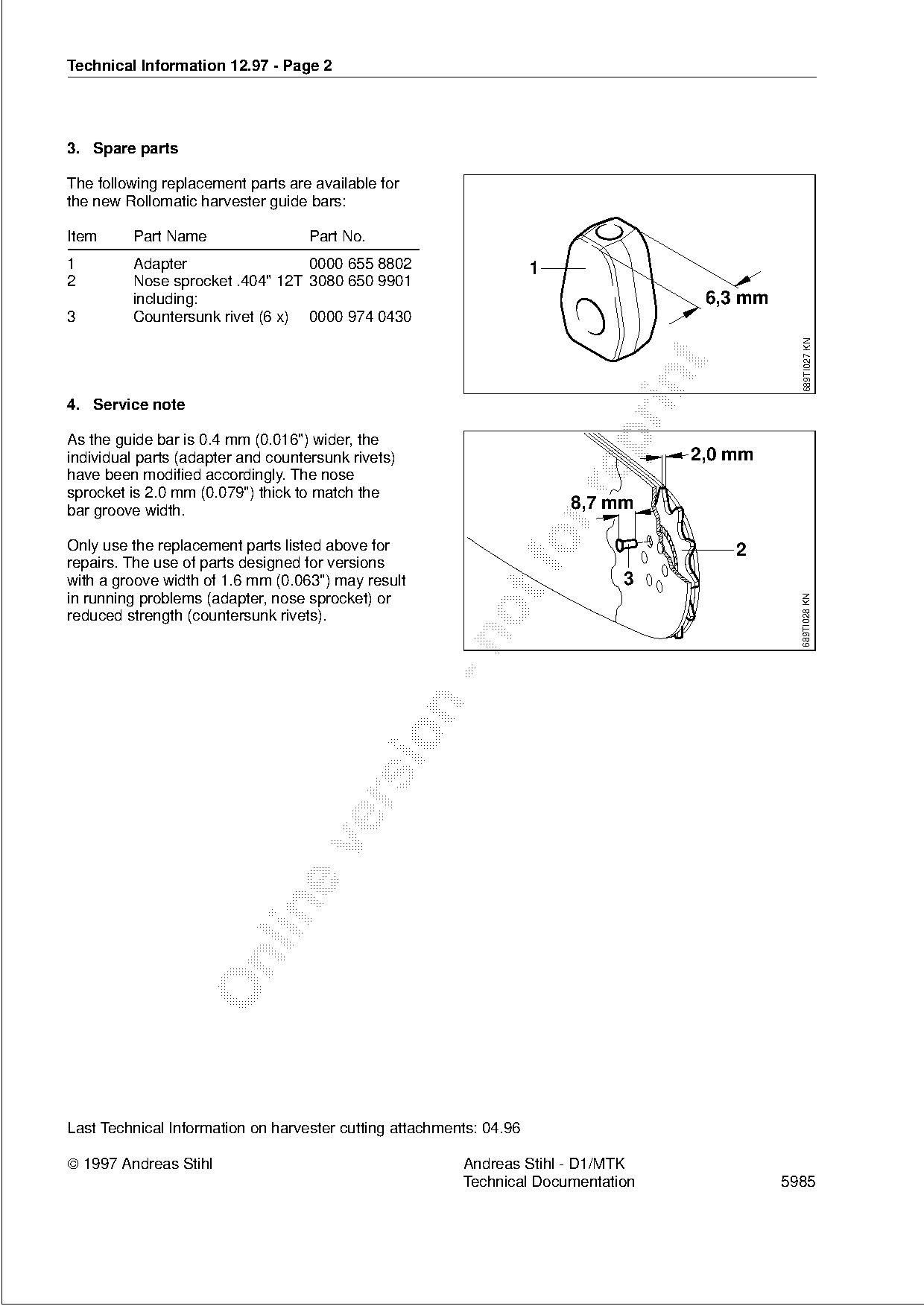

TI 12/1997 page 2
Text of page 2 — search, copy, screen readers
Technical Information 12.97 - Page 2

3. Spare parts

The following replacement parts are available for
the new Rollomatic harvester guide bars:

Item     Part Name                  Part No.
1        Adapter                 0000 655 8802                       1
2        Nose sprocket .404" 12T 3080 650 9901
         including:                                                                 6,3 mm
3        Countersunk rivet (6 x) 0000 974 0430

                                                                                                689TI027 KN
4. Service note

As the guide bar is 0.4 mm (0.016") wider, the
individual parts (adapter and countersunk rivets)                                  2,0 mm
have been modified accordingly. The nose

sprocket is 2.0 mm (0.079") thick to match the
bar groove width.                                                        8,7 mm

Only use the replacement parts listed above for
repairs. The use of parts designed for versions
                                                                 fo                    2
with a groove width of 1.6 mm (0.063") may result                             3
in running problems (adapter, nose sprocket) or

                                                                                               689TI028 KN
reduced strength (countersunk rivets).

Last Technical Information on harvester cutting attachments: 04.96

 1997 Andreas Stihl                                     Andreas Stihl - D1/MTK
                                                         Technical Documentation             5985
