Technical Information · issue 21 of 1997

Intake casing/cover; Carburetor WT 451

Model 019 T Chainsaws - 1132

IssueTI 21/1997
Serial references — see context below 36 566 423

Historical fitment & changes

Source-reviewed model notes. An exact-model IPL link is unavailable where stated; no similar model is substituted. Availability statements belong to the bulletin’s date.

Service note · 019 T

019 T C1Q-S37: all 35 components and exploded view

Source-numbered component list; not a C1Q-S46A parts substitution.

No exact-model IPL link: Retained 019 T carburetor sheets are C1Q-S46A and WT-451A, not C1Q-S37. Exact source-numbered roster remains searchable as a model-reference note without binding it to another carburetor.

X 36 566 423 — 019 T C1Q-S37 fixed-jet carburetor and associated fan-housing introduction only; not the separately in-progress section2/3 changes.

  • Complete C1Q-S37 1132 120 0602 includes ITEMS 1 THROUGH 35. Every numbered table row and matching exploded-view callout 170ET008 is retained here. Items32–35 depict pump piston, sealing ring, spring and strainer as a distinct group. The drawing is component identification, not a measured installation sequence.
  • Historical remark1 means PART IS ALREADY IN INVENTORY and applies only to items2,4–20,23,24,26,27,29,30. Unmarked rows are not automatically new inventions or guaranteed exclusive to this carburetor. Inventory status is not present-day availability.
  • Keep valve jet1 separate from fixed jet3; metering diaphragm10 and pump diaphragm14 separate; strainers13 and35 have different part numbers. Idle speed screw19 is LA, low speed screw25 is L; there is NO H screw. Choke shaft21 and throttle shaft28, their shutters22/31 and E-clips24/29 are separately identified.
  • Page2 carburetor number is split across columns as 1132 / 120 0602. The displaced 1132 120 3800 above the header is the complete intake-casing number identified on page4, not a substituted carburetor number. No rebuild kit grouping, torque, screw setting or reciprocal interchange is inferred. The retained C1Q-S46A sheet is not treated as this C1Q-S37 sheet.
  • Historical 1997-21 evidence for 019 T only; not later MS successors or unlisted variants. Source-era factory supply is not current stock. No reciprocal interchange or physical verification inferred. No hardware operation was performed.

Source: TI 21/1997, p. 1 · TI 21/1997, p. 2 · TI 21/1997, p. 3 — 019 T C1Q-S37: all 35 components and exploded view.

Part numbers (35)
  • 1132 121 5400 — Valve jet, C1Q-S37 item 1Listed without remark1 · 019 T; 019 T C1Q-S37: all 35 components and exploded view; stated configuration only
  • 4226 121 0700 — Plug, C1Q-S37 item 2Already in inventory (remark1) · 019 T; 019 T C1Q-S37: all 35 components and exploded view; stated configuration only
  • 1132 121 5600 — Fixed jet 0.47 mm, C1Q-S37 item 3Listed without remark1 · 019 T; 019 T C1Q-S37: all 35 components and exploded view; stated configuration only
  • 4116 121 5100 — Inlet needle, C1Q-S37 item 4Already in inventory (remark1) · 019 T; 019 T C1Q-S37: all 35 components and exploded view; stated configuration only
  • 1120 122 3004 — Spring, C1Q-S37 item 5Already in inventory (remark1) · 019 T; 019 T C1Q-S37: all 35 components and exploded view; stated configuration only
  • 1125 121 5000 — Inlet control lever, C1Q-S37 item 6Already in inventory (remark1) · 019 T; 019 T C1Q-S37: all 35 components and exploded view; stated configuration only
  • 1120 121 9200 — Spindle, C1Q-S37 item 7Already in inventory (remark1) · 019 T; 019 T C1Q-S37: all 35 components and exploded view; stated configuration only
  • 1120 122 6600 — Round head screw, C1Q-S37 item 8Already in inventory (remark1) · 019 T; 019 T C1Q-S37: all 35 components and exploded view; stated configuration only
  • 1123 129 0901 — Gasket, C1Q-S37 item 9Already in inventory (remark1) · 019 T; 019 T C1Q-S37: all 35 components and exploded view; stated configuration only
  • 1123 121 4700 — Metering diaphragm, C1Q-S37 item 10Already in inventory (remark1) · 019 T; 019 T C1Q-S37: all 35 components and exploded view; stated configuration only
  • 1123 121 0801 — End cover, C1Q-S37 item 11Already in inventory (remark1) · 019 T; 019 T C1Q-S37: all 35 components and exploded view; stated configuration only
  • 4132 122 6600 — Round head screw, C1Q-S37 item 12Already in inventory (remark1) · 019 T; 019 T C1Q-S37: all 35 components and exploded view; stated configuration only
  • 1123 121 7800 — Strainer, C1Q-S37 item 13Already in inventory (remark1) · 019 T; 019 T C1Q-S37: all 35 components and exploded view; stated configuration only
  • 1129 121 4800 — Pump diaphragm, C1Q-S37 item 14Already in inventory (remark1) · 019 T; 019 T C1Q-S37: all 35 components and exploded view; stated configuration only
  • 1123 129 0905 — Gasket, C1Q-S37 item 15Already in inventory (remark1) · 019 T; 019 T C1Q-S37: all 35 components and exploded view; stated configuration only
  • 1123 121 0800 — End cover, C1Q-S37 item 16Already in inventory (remark1) · 019 T; 019 T C1Q-S37: all 35 components and exploded view; stated configuration only
  • 1120 122 7800 — Oval head screw, C1Q-S37 item 17Already in inventory (remark1) · 019 T; 019 T C1Q-S37: all 35 components and exploded view; stated configuration only
  • 1125 122 4200 — Ball, C1Q-S37 item 18Already in inventory (remark1) · 019 T; 019 T C1Q-S37: all 35 components and exploded view; stated configuration only
  • 1123 122 6200 — Idle speed screw, C1Q-S37 item 19Already in inventory (remark1) · 019 T; 019 T C1Q-S37: all 35 components and exploded view; stated configuration only
  • 1123 122 3000 — Torsion spring, C1Q-S37 item 20Already in inventory (remark1) · 019 T; 019 T C1Q-S37: all 35 components and exploded view; stated configuration only
  • 1132 120 7201 — Choke shaft with lever, C1Q-S37 item 21Listed without remark1 · 019 T; 019 T C1Q-S37: all 35 components and exploded view; stated configuration only
  • 1132 121 2901 — Choke shutter, C1Q-S37 item 22Listed without remark1 · 019 T; 019 T C1Q-S37: all 35 components and exploded view; stated configuration only
  • 1125 122 7403 — Round head screw, C1Q-S37 item 23Already in inventory (remark1) · 019 T; 019 T C1Q-S37: all 35 components and exploded view; stated configuration only
  • 1125 122 9002 — E-clip, C1Q-S37 item 24Already in inventory (remark1) · 019 T; 019 T C1Q-S37: all 35 components and exploded view; stated configuration only
  • 1132 122 6801 — Low speed screw, C1Q-S37 item 25Listed without remark1 · 019 T; 019 T C1Q-S37: all 35 components and exploded view; stated configuration only
  • 1120 122 3005 — Spring, C1Q-S37 item 26Already in inventory (remark1) · 019 T; 019 T C1Q-S37: all 35 components and exploded view; stated configuration only
  • 1123 122 3200 — Torsion spring, C1Q-S37 item 27Already in inventory (remark1) · 019 T; 019 T C1Q-S37: all 35 components and exploded view; stated configuration only
  • 1132 120 7101 — Throttle shaft with lever, C1Q-S37 item 28Listed without remark1 · 019 T; 019 T C1Q-S37: all 35 components and exploded view; stated configuration only
  • 1125 122 9001 — E-clip, C1Q-S37 item 29Already in inventory (remark1) · 019 T; 019 T C1Q-S37: all 35 components and exploded view; stated configuration only
  • 1120 122 7400 — Round head screw, C1Q-S37 item 30Already in inventory (remark1) · 019 T; 019 T C1Q-S37: all 35 components and exploded view; stated configuration only
  • 1132 121 3300 — Throttle shutter, C1Q-S37 item 31Listed without remark1 · 019 T; 019 T C1Q-S37: all 35 components and exploded view; stated configuration only
  • 1132 121 5800 — Pump piston, C1Q-S37 item 32Listed without remark1 · 019 T; 019 T C1Q-S37: all 35 components and exploded view; stated configuration only
  • 1132 122 3600 — Sealing ring, C1Q-S37 item 33Listed without remark1 · 019 T; 019 T C1Q-S37: all 35 components and exploded view; stated configuration only
  • 1132 122 3001 — Spring, C1Q-S37 item 34Listed without remark1 · 019 T; 019 T C1Q-S37: all 35 components and exploded view; stated configuration only
  • 1132 121 7800 — Strainer, C1Q-S37 item 35Listed without remark1 · 019 T; 019 T C1Q-S37: all 35 components and exploded view; stated configuration only

Full text

Page 1 of 4

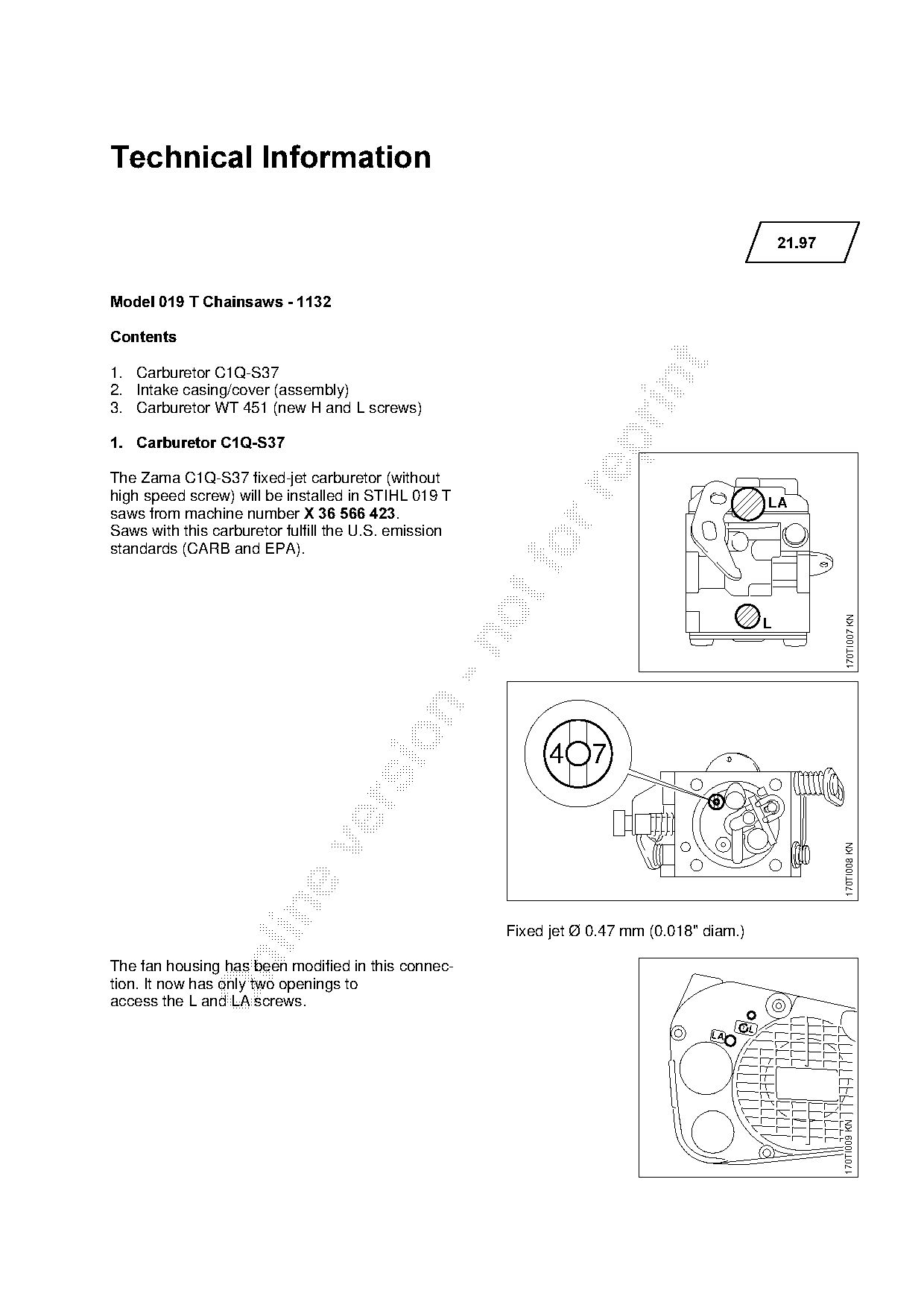

TI 21/1997 page 1
Text of page 1 — search, copy, screen readers
Technical Information

                                                                                                  21.97

Model 019 T Chainsaws - 1132

&RQWHQWV

1. Carburetor C1Q-S37

2. Intake casing/cover (assembly)
3. Carburetor WT 451 (new H and L screws)

1.=Carburetor C1Q-S37

The Zama C1Q-S37 fixed-jet carburetor (without

high speed screw) will be installed in STIHL 019 T                                            LA
saws from machine number X 36 566 423.
Saws with this carburetor fulfill the U.S. emission
standards (CARB and EPA).                              fo

                                                                                                           170TI007 KN

                                                            4 7

                                                                                                           170TI008 KN

                                                      Fixed jet Ø 0.47 mm (0.018" diam.)

The fan housing has been modified in this connec-
tion. It now has only two openings to
access the L and LA screws.
                                                                                        1 L
                                                                                   LA
                                                                                                          170TI009 KN

Page 2 of 4

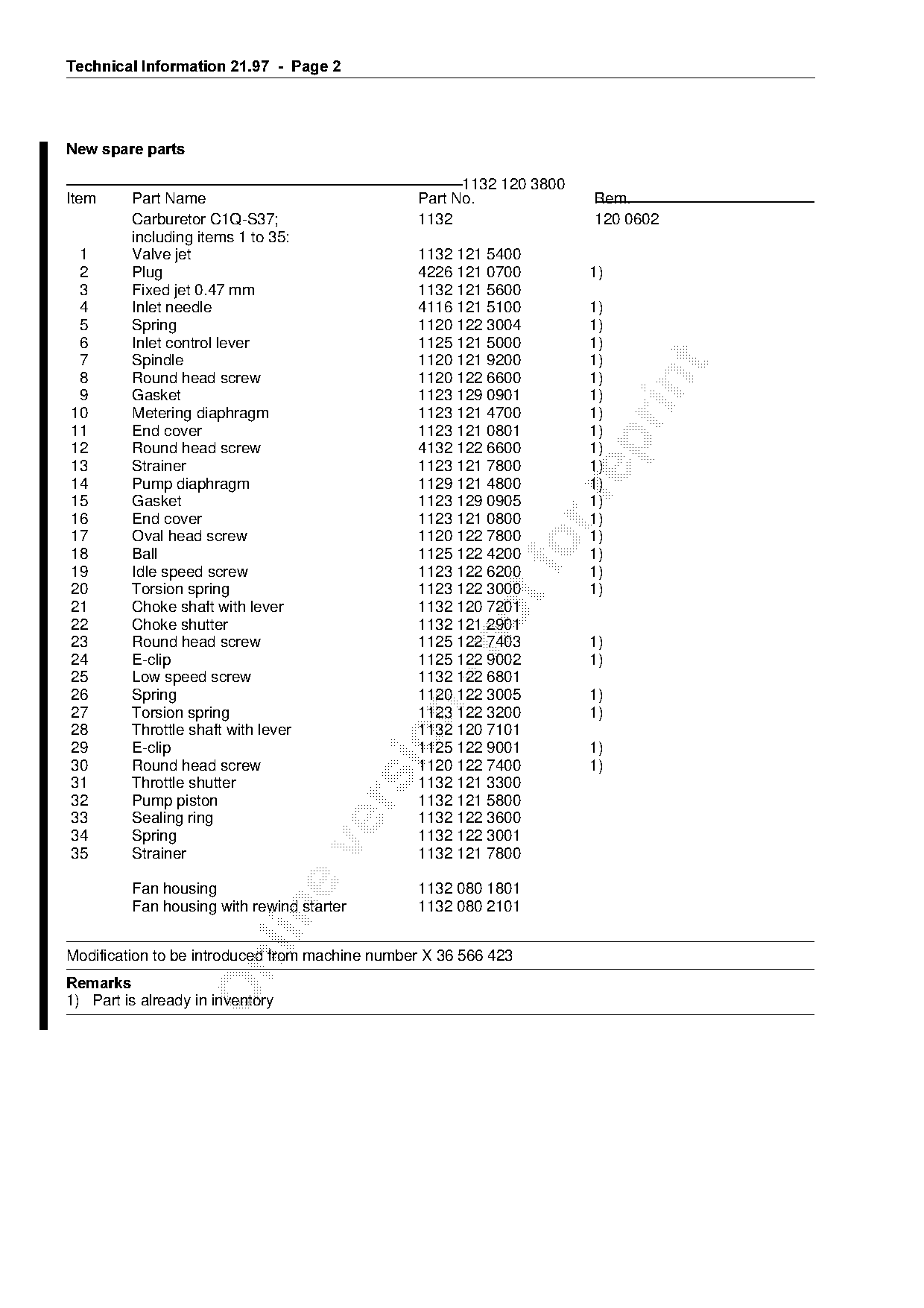

TI 21/1997 page 2
Text of page 2 — search, copy, screen readers
Technical Information 21.97  -  Page 2

New spare parts

                                                      1132 120 3800
Item     Part Name                              Part No.              Rem.
         Carburetor C1Q-S37;                    1132                  120 0602
         including items 1 to 35:
 1       Valve jet                              1132 121 5400
 2       Plug                                   4226 121 0700         1)
 3       Fixed jet 0.47 mm                      1132 121 5600
 4       Inlet needle                           4116 121 5100         1)
 5       Spring                                 1120 122 3004         1)
 6       Inlet control lever                    1125 121 5000         1)
 7       Spindle                                1120 121 9200         1)

 8       Round head screw                       1120 122 6600         1)

 9       Gasket                                 1123 129 0901         1)
10       Metering diaphragm                     1123 121 4700         1)
11       End cover                              1123 121 0801         1)

12       Round head screw                       4132 122 6600         1)
13       Strainer                               1123 121 7800         1)
14       Pump diaphragm                         1129 121 4800         1)

15       Gasket                                 1123 129 0905         1)
16       End cover                              1123 121 0800         1)
17       Oval head screw                        1120 122 7800         1)
18
19
         Ball
         Idle speed screw
                                                1125 122 4200
                                                1123 122 6200
                                                                 fo   1)
                                                                      1)
20       Torsion spring                         1123 122 3000         1)
21       Choke shaft with lever                 1132 120 7201
22       Choke shutter                          1132 121 2901

23       Round head screw                       1125 122 7403         1)
24       E-clip                                 1125 122 9002         1)
25       Low speed screw                        1132 122 6801
26       Spring                                 1120 122 3005         1)

27       Torsion spring                         1123 122 3200         1)
28       Throttle shaft with lever              1132 120 7101

29       E-clip                                 1125 122 9001         1)
30       Round head screw                       1120 122 7400         1)
31       Throttle shutter                       1132 121 3300
32       Pump piston                            1132 121 5800

33       Sealing ring                           1132 122 3600
34       Spring                                 1132 122 3001

35       Strainer                               1132 121 7800

         Fan housing                            1132 080 1801
         Fan housing with rewind starter        1132 080 2101

Modification to be introduced from machine number X 36 566 423

5HPDUNV
1) Part is already in inventory

Page 3 of 4

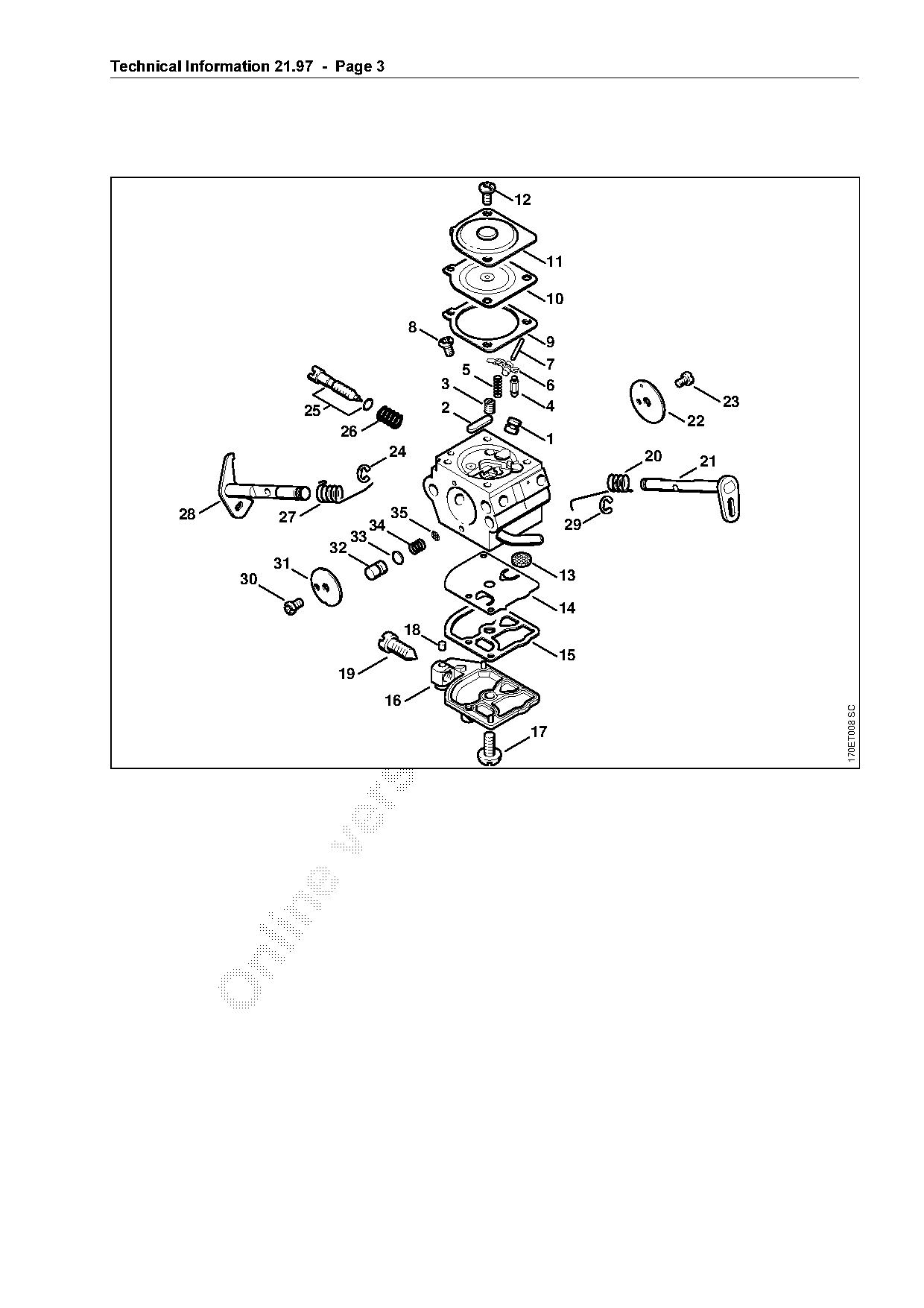

TI 21/1997 page 3
Text of page 3 — search, copy, screen readers
Technical Information 21.97  -  Page 3



                                                                       10
                                                     8
                                                                       9
                                                                       7


                                                         3             6
                                                         2             4                     23
                            25
                                                                                       22
                                  26                                   1

                                                24                                20    21

         28            27                       35
                                           34                               29
                                      33
                      31
                                 32                               fo       13
                 30
                                                                           14
                                                 18

                                                                           15
                                 19
                                            16

                                                                                                  170ET008 SC
                                                                   17

Page 4 of 4

TI 21/1997 page 4
Text of page 4 — search, copy, screen readers

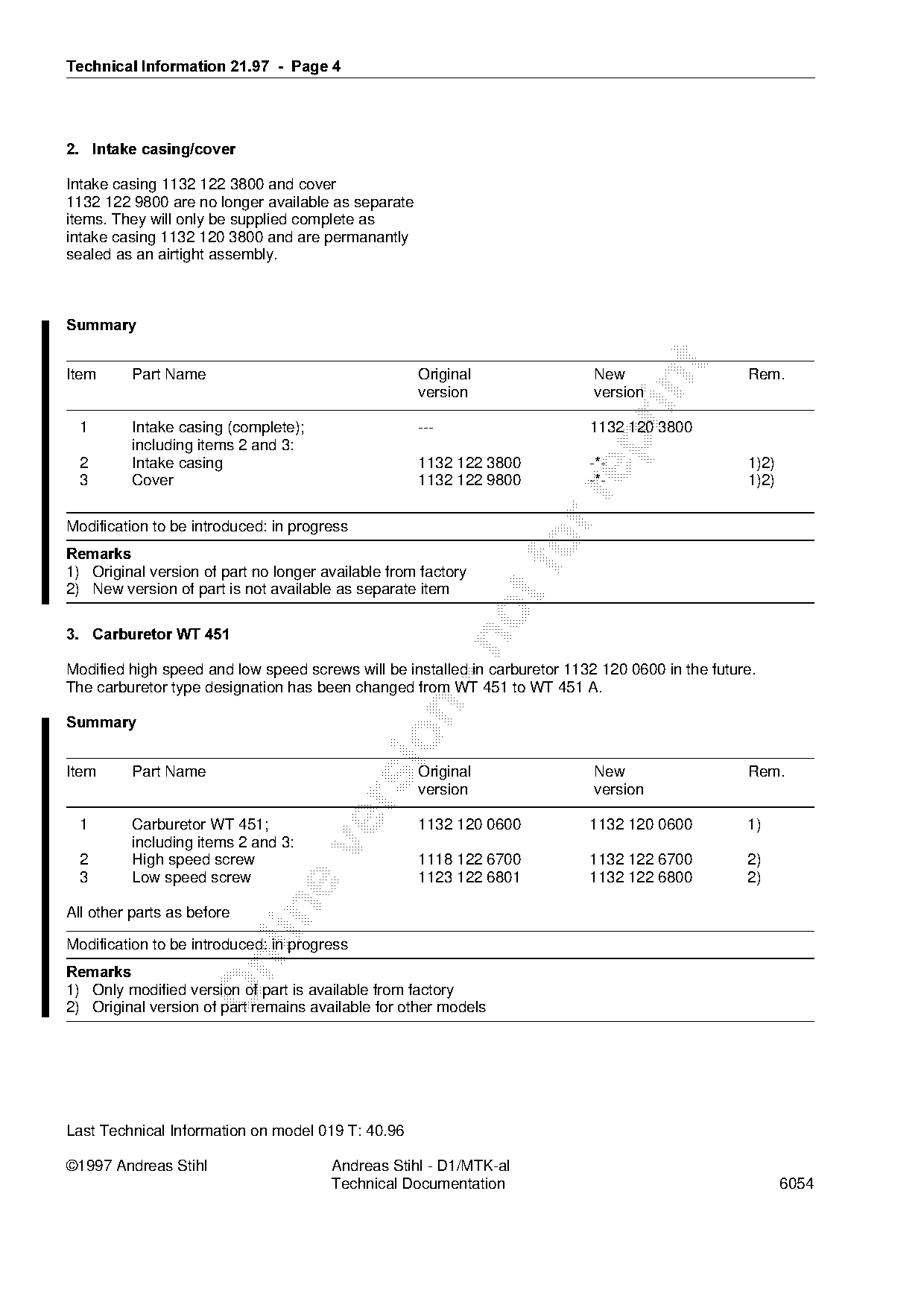

Technical Information 21.97  -  Page 4

2.=Intake casing/cover

Intake casing 1132 122 3800 and cover
1132 122 9800 are no longer available as separate
items. They will only be supplied complete as
intake casing 1132 120 3800 and are permanantly
sealed as an airtight assembly.

6XPPDU\

Item      Part Name                                 Original                 New                   Rem.

                                                    version                  version

  1       Intake casing (complete);                 ---                     1132 120 3800

          including items 2 and 3:
  2       Intake casing                             1132 122 3800           -*-                    1)2)
  3       Cover                                     1132 122 9800           -*-                    1)2)

Modification to be introduced: in progress
5HPDUNV
1) Original version of part no longer available from factory
2) New version of part is not available as separate item

3.=Carburetor WT 451

Modified high speed and low speed screws will be installed in carburetor 1132 120 0600 in the future.
The carburetor type designation has been changed from WT 451 to WT 451 A.

6XPPDU\

Item      Part Name                                 Original                 New                   Rem.
                                                    version                  version

  1       Carburetor WT 451;                        1132 120 0600           1132 120 0600          1)
          including items 2 and 3:

  2       High speed screw                          1118 122 6700           1132 122 6700          2)
  3       Low speed screw                           1123 122 6801           1132 122 6800          2)

All other parts as before

Modification to be introduced: in progress

5HPDUNV
1) Only modified version of part is available from factory
2) Original version of part remains available for other models

Last Technical Information on model 019 T: 40.96

©1997 Andreas Stihl                    Andreas Stihl - D1/MTK-al
                                       Technical Documentation                                            6054
