New full harness for extra comfort

IssueTI 22/1997

Accessory changes & notes

Source-reviewed accessory relationships. These notes do not establish fitment to unnamed saw models. Availability statements belong to the bulletin’s date.

Service note · Accessory

Full harness 4134 710 9000: design, release and care

Asymmetric load support, one-hand front release and washable materials; no model-wide fitment claim.

  • The source describes a new STIHL full harness for universal applications and professional comfort, ergonomics and quality. No specific machine models, load rating, serial cutoff or superseded harness number are given. Universal is source wording, NOT verified compatibility with every FS, BR or other machine.
  • The asymmetric design uses TWO SHOULDER STRAPS and an INTEGRAL HIP BELT, with the hip carrying load to reduce strain on shoulders and spine. The chest is free of straps; the source describes suitability for men and women and unrestricted movement. Drawing 002TI024 shows front and rear views, not a machine attachment or load test.
  • Thick padding is on shoulder straps, hip belt and hip pad. The source attributes long-period comfort to that padding and easy donning to the stable construction; sliding adjusters accommodate different wearers. These are historical design claims, not measured ergonomic or present-condition certification.
  • The FRONT QUICK-RELEASE BUCKLE can be opened with ONE HAND to throw off the harness in an emergency, as described. This is not fall-arrest or climbing equipment approval, and no release-force test or extra release sequence is supplied.
  • All materials are described as WASHABLE AT 30°C, color-fast and resistant to oil, gasoline and dampness. This does not establish solvent immersion, higher-temperature washing, detergent choice, drying procedure or current condition. Long wear life is a source claim, not a service-life limit.
  • Historical source evidence only; not current availability, verified physical interchange or an instruction to operate a connected machine. No hardware operation was performed.

Source: TI 22/1997, p. 1 · TI 22/1997, p. 2 — Full harness 4134 710 9000: design, release and care.

Part numbers (1)
  • 4134 710 9000 — Full harnessComplete accessory; includes items1–11 · Full harness 4134 710 9000 only

Service note · Accessory

Full harness: spare parts, strap lengths and bulk webbing

All eleven numbered items retained; hip pad includes items5 and8, not every fastener.

  • Full harness 4134 710 9000 includes ITEMS 1 TO 11. The exploded drawing 002TI025 identifies the shoulder adjuster, both buckle halves, hip pad, hook and mounting hardware. Repeated callout4 identifies buckle halves, not a table quantity of two complete buckles.
  • ITEM1 is strap 25 x 220 mm, TWO pieces, marked *. ITEM3 is strap 38 x 200 mm, marked **. ITEM5 is strap 38 x 80 mm, TWO pieces, also marked **. The stars refer to BULK WEBBING: 0000 930 2241 is 25 mm x 10 m; 0000 930 2242 is 38 mm x 5 m. Roll length is not fitted strap length; no individual pre-cut strap number, sewing, end-finishing or fabrication procedure is supplied.
  • ITEM2 is adjuster 4119 718 6300, TWO pieces. ITEM4 is buckle 4134 710 6400. ITEM6 is the distinct adjuster 4134 718 6300. Do not collapse the two adjuster numbers or infer extra quantities from diagram repetition.
  • ITEM7 hip pad 4134 740 2500 explicitly includes ITEMS 5 AND 8: the specified short straps and spring hook 4119 710 6906. Items9–11 are separately listed spline screw IS M4x16 9022 313 0680, washer A4.3 9307 021 0100 and locknut VM4 9214 320 0600. Their placement is shown, but they are NOT explicitly included in the hip-pad subassembly by that inclusion line. No tightening torque is given.
  • Last Technical Information on FS accessories 06.94 is bibliography, not a delegated fitting instruction. Copyright1997/document6161 gives no exact introduction date. No named machine or legacy harness is silently assigned these parts.
  • Historical source evidence only; not current availability, verified physical interchange or an instruction to operate a connected machine. No hardware operation was performed.

Source: TI 22/1997, p. 1 · TI 22/1997, p. 2 — Full harness: spare parts, strap lengths and bulk webbing.

Part numbers (11)
  • 4134 710 9000 — Full harnessIncludes items1–11 · Full harness 4134 710 9000 only
  • 0000 930 2241 — Webbing 25 mm x 10 mBulk stock for item1: two25 x220 mm straps · Full harness 4134 710 9000 only
  • 0000 930 2242 — Webbing 38 mm x 5 mBulk stock for item3 and item5; distinct fitted lengths · Full harness 4134 710 9000 only
  • 4119 718 6300 — Adjuster, item2; two piecesShoulder adjuster · Full harness 4134 710 9000 only
  • 4134 710 6400 — Buckle, item4Drawing shows both halves · Full harness 4134 710 9000 only
  • 4134 718 6300 — Adjuster, item6Distinct from item2 · Full harness 4134 710 9000 only
  • 4134 740 2500 — Hip pad, item7Includes items5 and8 only as stated · Full harness 4134 710 9000 only
  • 4119 710 6906 — Spring hook, item8Included in hip pad · Full harness 4134 710 9000 only
  • 9022 313 0680 — Spline screw IS M4x16, item9Listed hardware · Full harness 4134 710 9000 only
  • 9307 021 0100 — Washer A4.3, item10Listed hardware · Full harness 4134 710 9000 only
  • 9214 320 0600 — Locknut VM4, item11Listed hardware · Full harness 4134 710 9000 only

Full text

Page 1 of 2

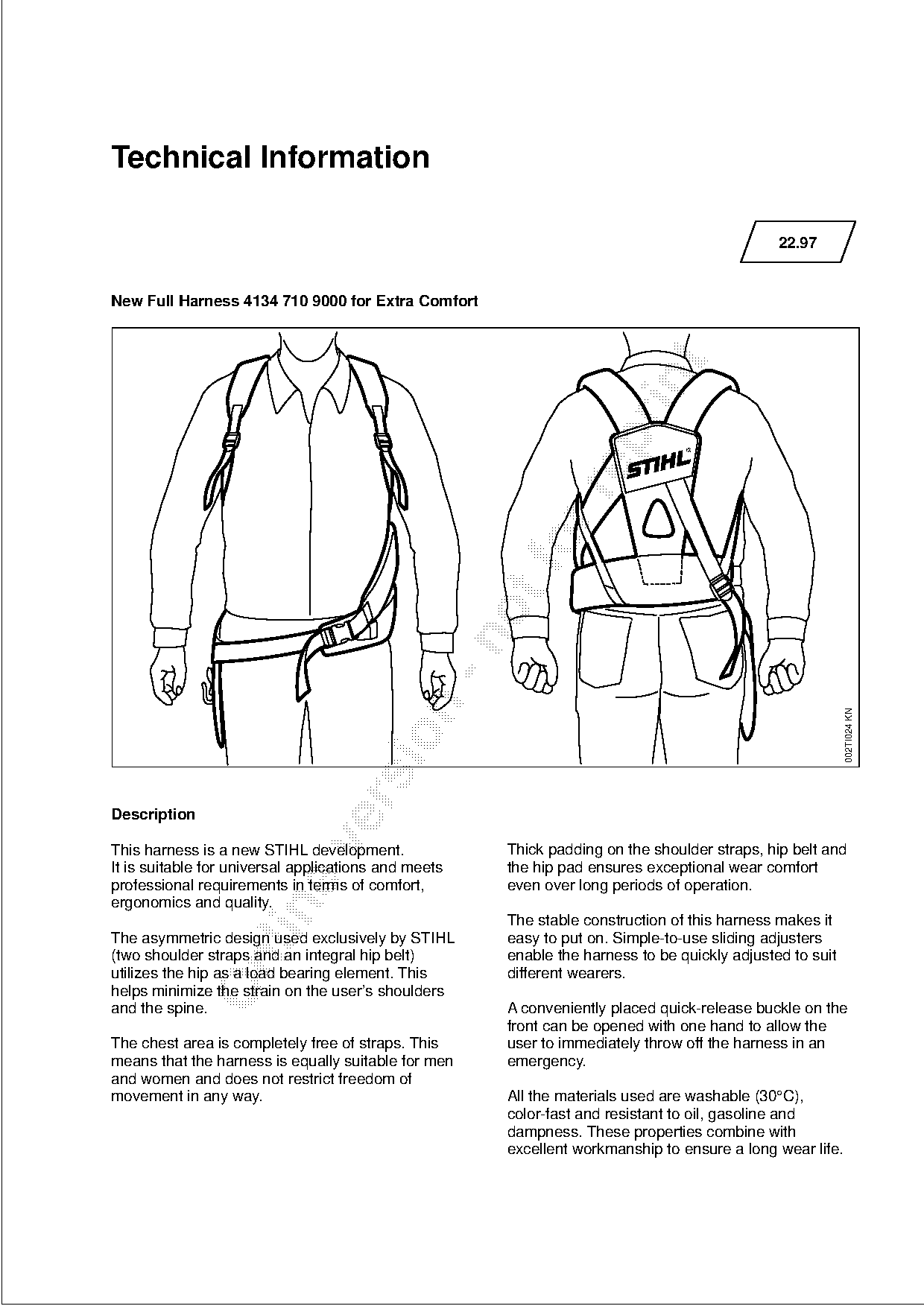

TI 22/1997 page 1
Text of page 1 — search, copy, screen readers
Technical Information

                                                                                              22.97

New Full Harness 4134 710 9000 for Extra Comfort

                                                                                                          002TI024 KN

Description

This harness is a new STIHL development.              Thick padding on the shoulder straps, hip belt and
It is suitable for universal applications and meets   the hip pad ensures exceptional wear comfort
professional requirements in terms of comfort,        even over long periods of operation.
ergonomics and quality.

                                                      The stable construction of this harness makes it
The asymmetric design used exclusively by STIHL       easy to put on. Simple-to-use sliding adjusters
(two shoulder straps and an integral hip belt)        enable the harness to be quickly adjusted to suit

utilizes the hip as a load bearing element. This      different wearers.
helps minimize the strain on the user’s shoulders
and the spine.                                        A conveniently placed quick-release buckle on the
                                                      front can be opened with one hand to allow the
The chest area is completely free of straps. This     user to immediately throw off the harness in an
means that the harness is equally suitable for men    emergency.
and women and does not restrict freedom of
movement in any way.                                  All the materials used are washable (30°C),
                                                      color-fast and resistant to oil, gasoline and
                                                      dampness. These properties combine with
                                                      excellent workmanship to ensure a long wear life.

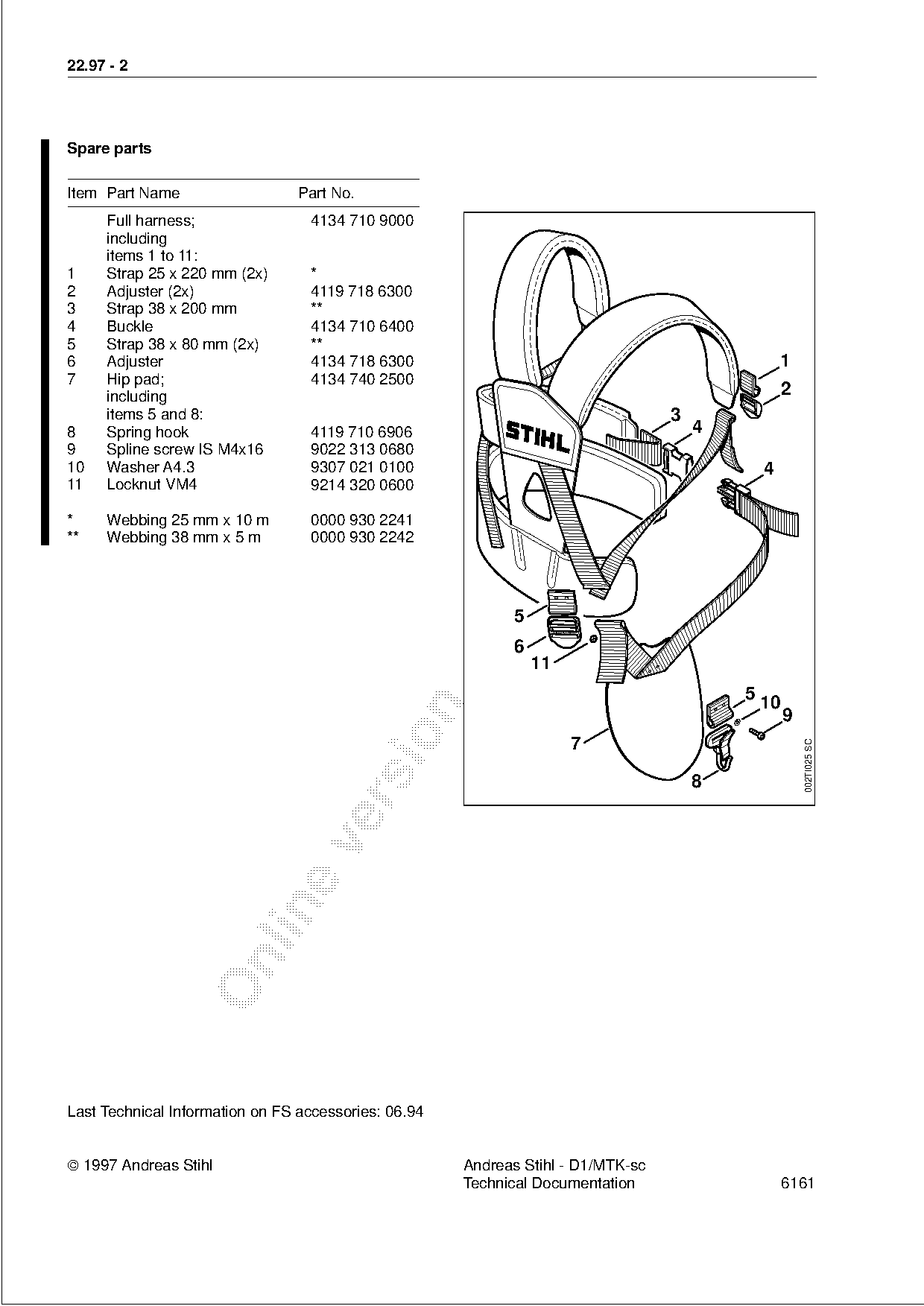

Page 2 of 2

TI 22/1997 page 2
Text of page 2 — search, copy, screen readers
22.97 - 2

Spare parts

Item Part Name                   Part No.
     Full harness;                4134 710 9000
     including
     items 1 to 11:
1    Strap 25 x 220 mm (2x)       *
2    Adjuster (2x)                4119 718 6300
3    Strap 38 x 200 mm            **
4    Buckle                       4134 710 6400
5    Strap 38 x 80 mm (2x)        **
6    Adjuster                     4134 718 6300                                                 1

7    Hip pad;                     4134 740 2500
     including                                                                                   2
     items 5 and 8:                                                               3
8    Spring hook                  4119 710 6906                                       4

9    Spline screw IS M4x16        9022 313 0680
10   Washer A4.3                  9307 021 0100                                             4
11   Locknut VM4                  9214 320 0600

*    Webbing 25 mm x 10 m         0000 930 2241
**   Webbing 38 mm x 5 m          0000 930 2242
                                                            5

                                                            6
                                                                11
                                                                                          5 10



                                                                                                     002TI025 SC
                                                                                      8

Last Technical Information on FS accessories: 06.94

 1997 Andreas Stihl                                  Andreas Stihl - D1/MTK-sc
                                                      Technical Documentation                    6161
