Technical Information · issue 24 of 1997

Fuel hose

Model BR/SR 320, 400 Blowers - Series 4203

IssueTI 24/1997

Historical fitment & changes

Source-reviewed model notes. An exact-model IPL link is unavailable where stated; no similar model is substituted. Availability statements belong to the bulletin’s date.

Service note · BR 320 / BR 400 / SR 320 / SR 400

BR/SR 320 and 400: abrasion-protected fuel hose

4203 350 2750 is a two-hose assembly; its components are not separately supplied.

No exact-model IPL link: Retained Series4203 sheets do not establish this historical 4203 350 2750 hose assembly or deleted 4203 007 1017 kit. Source-only model note; no later BR/SR340/420 tank sheet or unrelated backplate is substituted.

  • Cover explicitly names BR/SR 320, 400, Series4203: BR 320, BR 400, SR 320 and SR 400. Do not extend this to BR 320 L, BR/SR340/420 or other shared-series variants.
  • Fuel hose 4203 350 2750 will be supplied as a REPLACEMENT IN FUTURE, fitted inside a SECOND HOSE for abrasion protection. The summary lists the assembly as including ITEMS1 AND2; item1 is Hose, item2 is Hose 6x1x80. Both component rows have -*-, with remark1 NOT AVAILABLE AS SEPARATE ITEM. Do not invent component numbers, units absent from the row or a substitute loose-hose supply.
  • In drawing353TI011, 1 is the inner fuel hose and 2 the protective outer hose. These are NOT the service-sequence callouts where 2 denotes the tank and 4 the protective hose. The drawing shows the protected pickup-end arrangement, not a dimensional tank-routing plan.
  • The original column has dashes for the new hose assembly, not a numbered predecessor. Introduction is IN PROGRESS, with no serial threshold. The new hose assembly is not described as including the old kit’s grommet and gaskets.
  • Historical source evidence only; not current availability, verified physical interchange or an instruction to operate a connected machine. No hardware operation was performed.

Source: TI 24/1997, p. 1 · TI 24/1997, p. 3 — BR/SR 320 and 400: abrasion-protected fuel hose.

Part numbers (1)
  • 4203 350 2750 — Fuel hose assemblyIncludes inner hose and protective Hose6x1x80; neither separately supplied · BR 320, BR 400, SR 320, SR 400; TI24/1997 fuel-hose configuration only

Service note · BR 320 / BR 400 / SR 320 / SR 400

BR/SR 320 and 400: fuel-hose and protective-sleeve sequence

Oil at two specified stages; sleeve is seated onto the pickup body.

No exact-model IPL link: Retained Series4203 sheets do not establish this historical 4203 350 2750 hose assembly or deleted 4203 007 1017 kit. Source-only model note; no later BR/SR340/420 tank sheet or unrelated backplate is substituted.

  • The historical service sequence first coats FUEL HOSE1 WITH OIL and pushes it through the grommet into FUEL TANK2 (353TI013). A hook then pulls the hose out through the TANK FILLER NECK3 (353TI014). No special hook part number is specified.
  • Next slip PROTECTIVE HOSE4 over the fuel hose (353TI015), THEN fit PICKUP BODY5 (353TI016). Coat the FUEL HOSE ON THE PICKUP BODY NIPPLE WITH OIL, then push protective hose4 ONTO THE PICKUP BODY AS FAR AS IT WILL GO (353TI017). Preserve both lubrication stages and this order; the final arrow is not an instruction to stop the sleeve short of the pickup body.
  • The service drawings use local callouts1–5; they are not the summary table numbering. In particular service4 is protective hose and service5 is pickup body, whereas summary4 is grommet and summary5 is gasket. No numbered pickup body, oil grade, torque, tank-draining procedure or complete safe-work setup is established by these pages.
  • This is the source’s installation sequence for the stated fuel-hose configuration, not an authorization to service an energized machine, an independently reproduced repair, or a complete general fuel-system workshop procedure.
  • Historical source evidence only; not current availability, verified physical interchange or an instruction to operate a connected machine. No hardware operation was performed.

Source: TI 24/1997, p. 1 · TI 24/1997, p. 2 · TI 24/1997, p. 3 — BR/SR 320 and 400: fuel-hose and protective-sleeve sequence.

Part numbers (1)
  • 4203 350 2750 — Protected fuel hose assemblyHistorical service sequence only · BR 320, BR 400, SR 320, SR 400; TI24/1997 fuel-hose configuration only

Service note · BR 320 / BR 400 / SR 320 / SR 400

BR/SR 320 and 400: temporary hose kit deleted

Old kit and hose are stock-only; grommet and both gaskets remain unchanged.

No exact-model IPL link: Retained Series4203 sheets do not establish this historical 4203 350 2750 hose assembly or deleted 4203 007 1017 kit. Source-only model note; no later BR/SR340/420 tank sheet or unrelated backplate is substituted.

  • Page2 says fuel hose kit 4203 007 1017, announced in TI21.94 as available for a LIMITED PERIOD ONLY, is NO LONGER REQUIRED and DELETED FROM THE LINE. Page3 qualifies supply: remark2 on kit and original hose means supplied from factory ONLY AS LONG AS EXISTING STOCKS LAST. Deletion is not an assertion that all stock had already disappeared.
  • The old kit includes summary ITEMS3 TO6: an unnumbered hose3, grommet4 0000 989 0516, gasket5 4203 129 0501 and gasket6 4114 129 0501. The hose has -*-, not an orderable part number. All three numbered ancillary parts appear unchanged in BOTH original and new columns with remark3: UNCHANGED VERSION REMAINS AVAILABLE.
  • The new fuel-hose assembly includes only summary1 and2, not the deleted kit’s items3–6. No supersession from either gasket to the other, deletion of their separate supply or exact production cutoff is inferred. Modification introduction remains IN PROGRESS.
  • TI21.94 is cited for the earlier limited-period announcement; TI24 fully states the present kit disposition, so no older procedure is imported or needed to understand this change. Last TI11.97 is bibliography. Copyright1997/document6065 is footer context, not an exact introduction day.
  • Historical source evidence only; not current availability, verified physical interchange or an instruction to operate a connected machine. No hardware operation was performed.

Source: TI 24/1997, p. 2 · TI 24/1997, p. 3 — BR/SR 320 and 400: temporary hose kit deleted.

Part numbers (4)
  • 4203 007 1017 — Original fuel hose kitDeleted; existing factory stock only; includes items3–6 · BR 320, BR 400, SR 320, SR 400; TI24/1997 fuel-hose configuration only
  • 0000 989 0516 — Grommet, summary item4Unchanged separate supply · BR 320, BR 400, SR 320, SR 400; TI24/1997 fuel-hose configuration only
  • 4203 129 0501 — Gasket, summary item5Unchanged separate supply · BR 320, BR 400, SR 320, SR 400; TI24/1997 fuel-hose configuration only
  • 4114 129 0501 — Gasket, summary item6Unchanged separate supply · BR 320, BR 400, SR 320, SR 400; TI24/1997 fuel-hose configuration only

Full text

Page 1 of 3

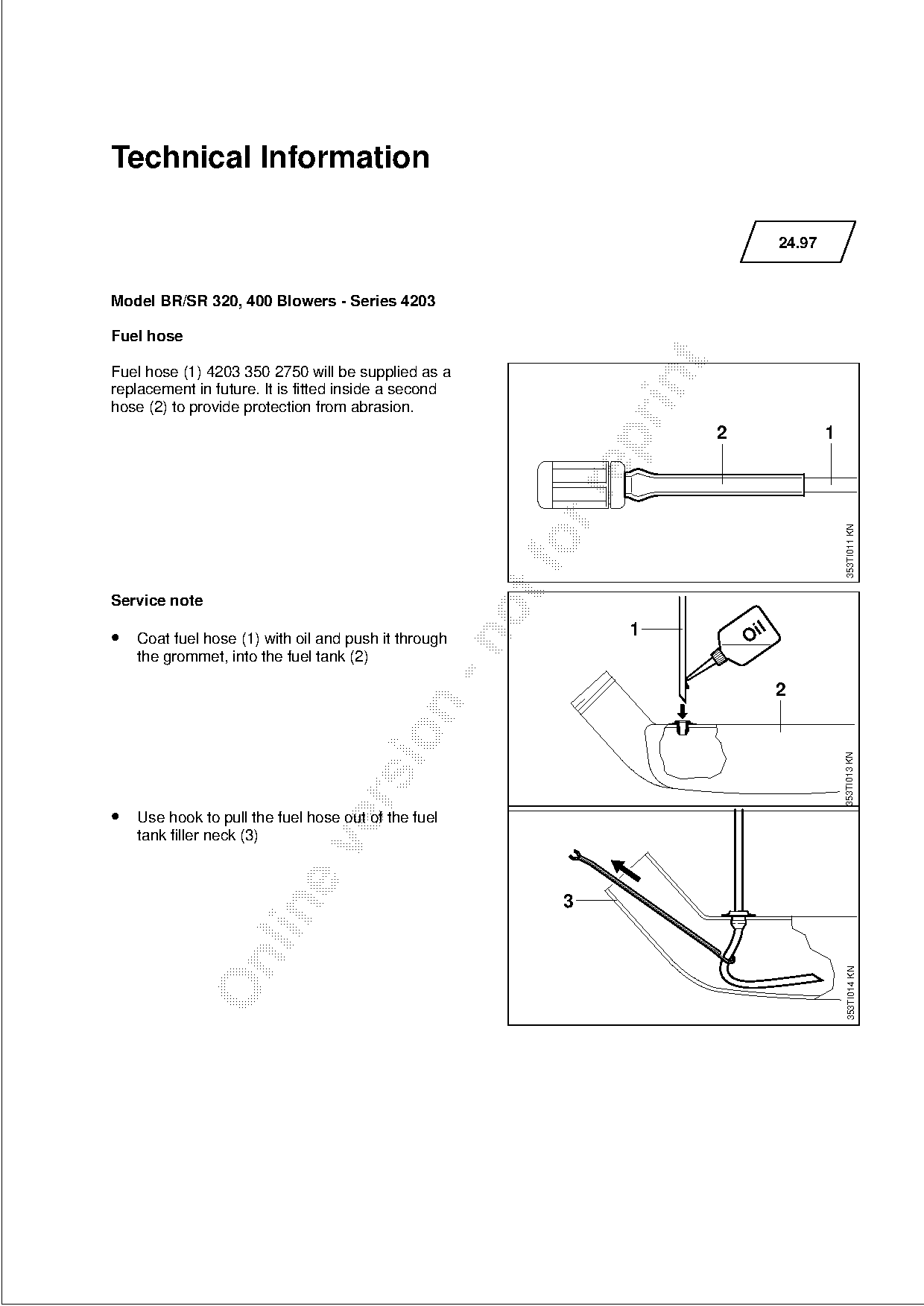

TI 24/1997 page 1
Text of page 1 — search, copy, screen readers
Technical Information

                                                                                 24.97

Model BR/SR 320, 400 Blowers - Series 4203

Fuel hose

Fuel hose (1) 4203 350 2750 will be supplied as a

replacement in future. It is fitted inside a second
hose (2) to provide protection from abrasion.
                                                                       2                 1

                                                                                             353TI011 KN
Service note
                                                                1            l
• Coat fuel hose (1) with oil and push it through                          Oi

   the grommet, into the fuel tank (2)


                                                                                             353TI013 KN

• Use hook to pull the fuel hose out of the fuel
   tank filler neck (3)


                                                                                              353TI014 KN

Page 2 of 3

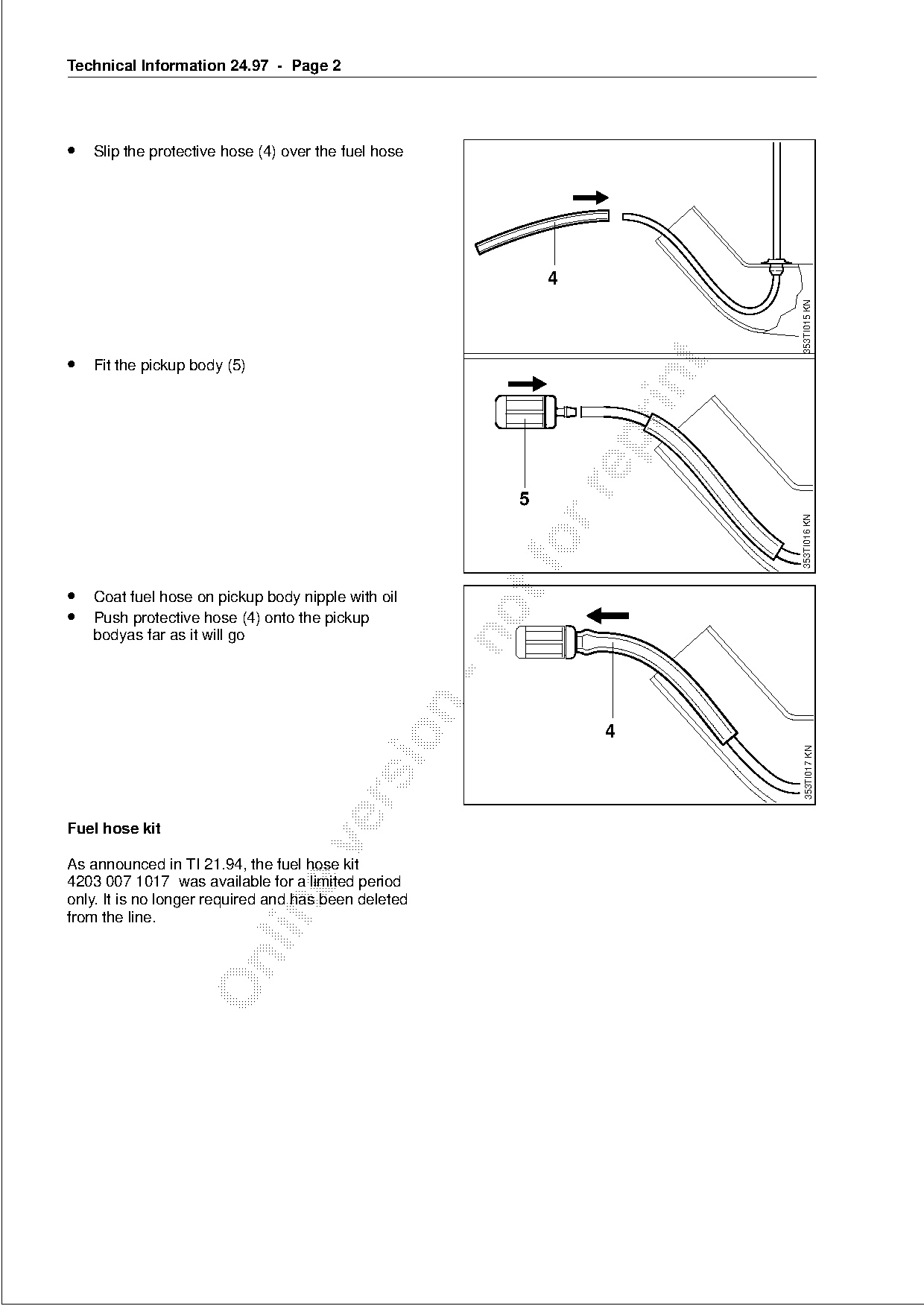

TI 24/1997 page 2
Text of page 2 — search, copy, screen readers
Technical Information 24.97 - Page 2

• Slip the protective hose (4) over the fuel hose


                                                                              353TI015 KN
• Fit the pickup body (5)


                                                                              353TI016 KN
• Coat fuel hose on pickup body nipple with oil
• Push protective hose (4) onto the pickup
   bodyas far as it will go


                                                                               353TI017 KN

Fuel hose kit

As announced in TI 21.94, the fuel hose kit
4203 007 1017 was available for a limited period
only. It is no longer required and has been deleted

from the line.

Page 3 of 3

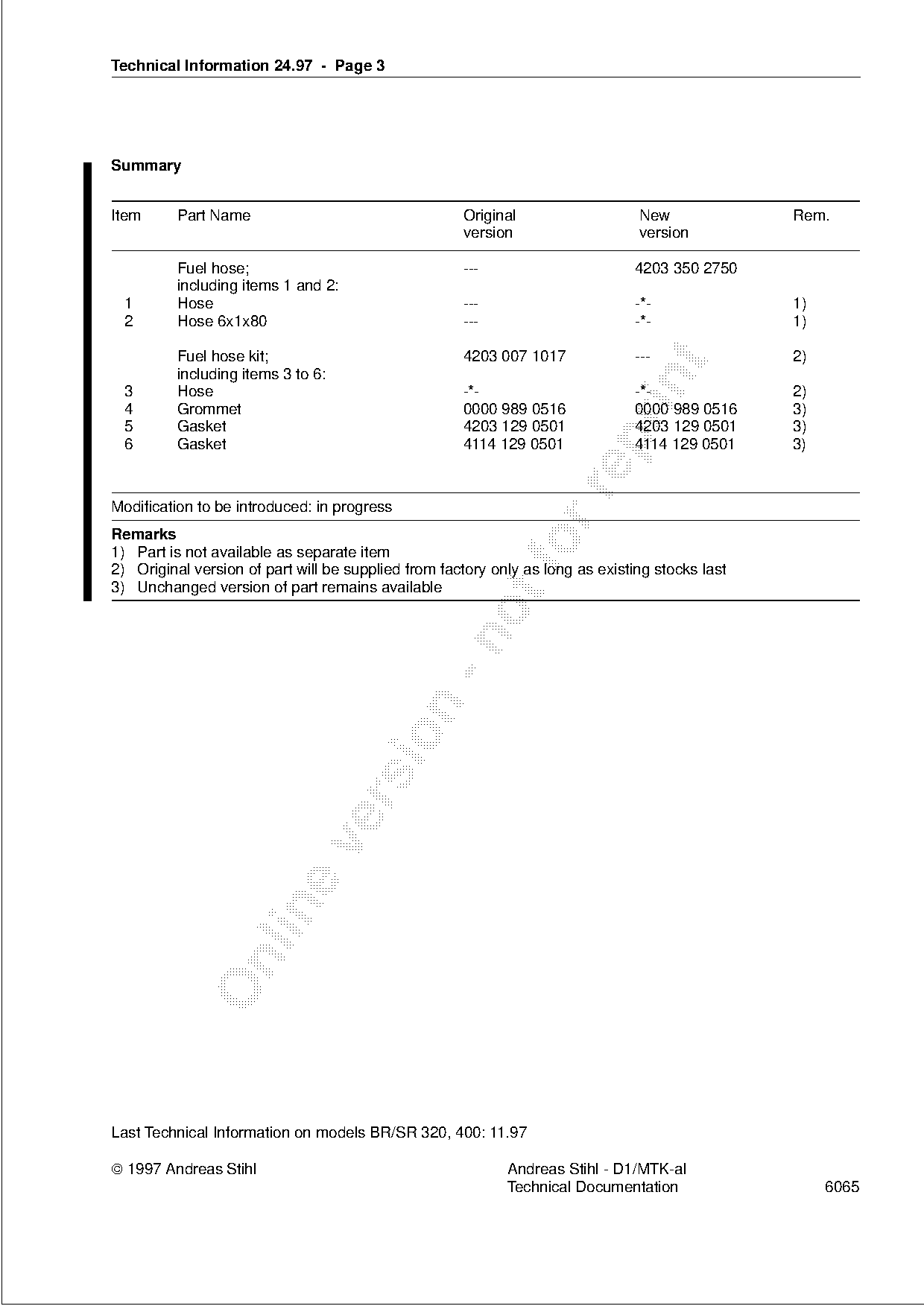

TI 24/1997 page 3
Text of page 3 — search, copy, screen readers
Technical Information 24.97 - Page 3

Summary

Item      Part Name                                  Original                   New              Rem.
                                                     version                    version

          Fuel hose;                                 ---                        4203 350 2750
          including items 1 and 2:
  1       Hose                                       ---                        -*-              1)
  2       Hose 6x1x80                                ---                        -*-              1)

          Fuel hose kit;                             4203 007 1017              ---              2)

          including items 3 to 6:

  3       Hose                                       -*-                        -*-              2)
  4       Grommet                                    0000 989 0516              0000 989 0516    3)
  5       Gasket                                     4203 129 0501              4203 129 0501    3)

  6       Gasket                                     4114 129 0501              4114 129 0501    3)

Modification to be introduced: in progress
Remarks
1) Part is not available as separate item                    fo
2) Original version of part will be supplied from factory only as long as existing stocks last
3) Unchanged version of part remains available

Last Technical Information on models BR/SR 320, 400: 11.97

 1997 Andreas Stihl                                        Andreas Stihl - D1/MTK-al
                                                            Technical Documentation                   6065
