Technical Information · issue 25 of 1997

3/8" Oilomatic Rapid-Micro chain: Optimized cuttin

IssueTI 25/1997

Accessory changes & notes

Source-reviewed accessory relationships. These notes do not establish fitment to unnamed saw models. Availability statements belong to the bulletin’s date.

Service note · Accessory

3/8-inch Rapid-Micro types 3989, 3990, 3991: X4 cutter revision

First optimized chains marked X4 on tie straps; the dimensional change is not visible to the naked eye.

  • TI25/1997 applies to 3/8-inch Oilomatic Rapid-Micro chain TYPES 3989, 3990 AND 3991. These are chain type identifiers, not complete orderable part numbers. No gauge, drive-link count, compatible saw, guide bar or sprocket roster is supplied; no model fitment is inferred.
  • The cutters were modified to improve cutting behavior. The three stated benefits are improved cutting performance THROUGHOUT THE CHAIN’S SERVICE LIFE, LESS SENSITIVITY TO SHARPENING ERRORS and MORE ACCURATE STRAIGHT-LINE CUTTING. These are historical source claims, not measured performance or permission to disregard correct sharpening.
  • The DIMENSIONAL CHANGE IS NOT VISIBLE TO THE NAKED EYE. Identification instead uses a code STAMPED ON THE TIE STRAPS. The FIRST optimized chains to be shipped will be coded X4. The original scan clearly prints “X4”; extracted text has ?X4?. This is not an engine serial cutoff, a decoded manufacturing date, a claim that every later optimized chain bears X4, or proof that every differently coded chain is the old design.
  • The complete illustration points to the tie-strap marking location, not the cutter edge. It provides no dimension, sharpening angle, file size or retrofit instruction. Last saw-chain TI39.96 and copyright1997/document6112 are bibliographic/footer context, not additional instructions or a precise introduction date.
  • Historical source evidence only; no physical performance test or interchange verification. No hardware operation was performed.

Source: TI 25/1997, p. 1 — Entire page: cutter behavior, tie-strap code and illustration, bibliography/footer.

No additional parts-table entry added.

Full text

Page 1 of 1

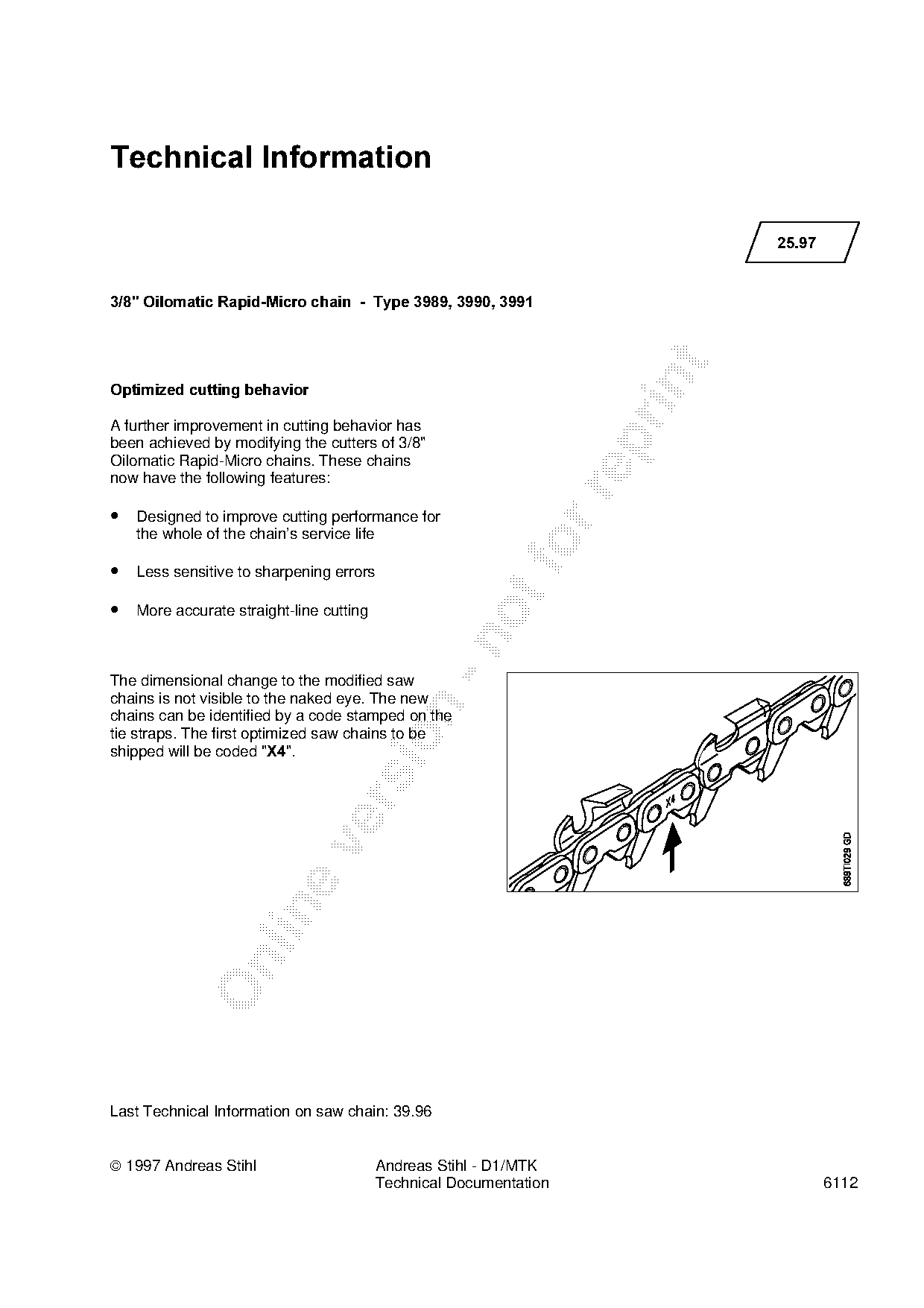

TI 25/1997 page 1
Text of page 1 — search, copy, screen readers
Technical Information

                                                                             25.97

3/8" Oilomatic Rapid-Micro chain  -  Type 3989, 3990, 3991

Optimized cutting behavior

A further improvement in cutting behavior has

been achieved by modifying the cutters of 3/8"
Oilomatic Rapid-Micro chains. These chains
now have the following features:

• Designed to improve cutting performance for
   the whole of the chain’s service life

• Less sensitive to sharpening errors
• More accurate straight-line cutting

The dimensional change to the modified saw
chains is not visible to the naked eye. The new

chains can be identified by a code stamped on the
tie straps. The first optimized saw chains to be

shipped will be coded ?X4?.

Last Technical Information on saw chain: 39.96

 1997 Andreas Stihl                       Andreas Stihl - D1/MTK
                                           Technical Documentation                   6112
