Technical Information · issue 28 of 1997
023 C, 025: Cylinder (023 C); Carburetor; Grommet;
Model 023 C, 025 Chainsaws - Series 1123
Part changes (1)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1123 123 7500 | 1123 123 7502 | The original grommet 1123 123 7500 will be replaced by grommet 1123 123 7502. |
Historical fitment & changes
Source-reviewed model notes. An exact-model IPL link is unavailable where stated; no similar model is substituted. Availability statements belong to the bulletin’s date.
Service note · 023 C
023 C U.S.: cylinder without decompression valve
1123 020 1214 has no decompression hole; the original cylinder and valve remain available for older machines.
No exact-model IPL link: Retained engine sheet is titled023,023 L with shared 021/023/025 used_by, not exact 023 C. Shared cylinder numbers retained as cross-reference only; exact U.S. 023 C variant remains source-only.
in progress — TI 28/1997 introduction status; no numeric serial cutoff or exact date supplied.
- Section 1 explicitly deletes the decompression valve ONLY ON THE U.S. VERSION OF MODEL 023 C. This is not a 025 cylinder change or permission to transfer the change to 023 L,021 or every 023 market.
- Cylinder with piston 1123 020 1214 WITHOUT DECOMPRESSION HOLE is available for repair purposes. Original cylinder with piston 1123 020 1216 remains available for older machines. Summary item 1 includes item 2 decompression valve 1123 020 9400; remark 1 applies separately to BOTH original cylinder and valve. Summary item 3 carries remark 2, ALREADY IN INVENTORY.
- The source supplies no bore, separate piston number, installation torque, plugged-hole conversion or reciprocal interchange procedure. The new cylinder does not inherit the original assembly’s decompression valve.
- Modification introduction is printed as IN PROGRESS. Inventory and factory-supply statements describe 1997, not current stock. No numeric serial cutoff or verified physical interchange is implied. No hardware operation was performed.
Source: TI 28/1997, p. 1 · TI 28/1997, p. 3 — Section 1 and complete summary items 1–3 / remarks 1–2.
Part numbers (3)
- 1123 020 1216 — Original cylinder with piston, including summary item 2 valveOriginal; remains available for older machines · Exact TI 28/1997 configuration and restrictions only
- 1123 020 9400 — Decompression valveDeleted from U.S. 023 C revision, not globally deleted · Exact TI 28/1997 configuration and restrictions only
- 1123 020 1214 — Cylinder with piston, without decompression holeRepair replacement already in inventory · Exact TI 28/1997 configuration and restrictions only
Service note · 023 C / 025
023 C WT 286 to WT 498; 025 WT 215 to WT 283 A
Exact model-specific carburetor replacements use fixed and part-load jets.
No exact-model IPL link: Retained 1123 catalog has shared 021/023/025 sheets and later WT-286A, WT-498A and WT-283C suffixes; no exact 023 C WT 286/WT 498 or 025 WT 283A configuration sheet established. Source-only note; neither later suffixes nor 023 L/021/MS successors silently substituted.
in progress — TI 28/1997 introduction status; no numeric serial cutoff or exact date supplied.
- The original scans give023 C: WT 286 /1123 120 0615 TO WT 498 /1123 120 0616;025: WT 215 /1123 120 0605 TO WT 283 A /1123 120 0610. These are separate model assignments, not four interchangeable carburetors. Page1 extracted tq= strings are corrupt; the scan and page 3 summary agree on the exact suffixes.
- Both new carburetors have a FIXED JET AND PART-LOAD JET. Summary item 5 WT 498 explicitly INCLUDES ITEMS 9 AND 10, O-ring 4124 122 3600 and washer 1111 121 8605. The WT 283 A row does not print that inclusion; shared sealing guidance does not create an unprinted package-content claim. Both new carburetors carry remark 2: already in inventory. Original carburetor rows have no supply remark; do not declare them deleted or stock-only.
- The introduction says these modifications meet the new CARB and EPA regulations and refers to TI 27.97. That TI is not established in the retained sources or bounded resource inventory. This is a HISTORICAL SOURCE CLAIM, not independently verified legal compliance or a current emissions requirement. TI 13.97 is bibliography, not an additional procedure.
- Modification introduction is printed as IN PROGRESS. Inventory and factory-supply statements describe 1997, not current stock. No numeric serial cutoff or verified physical interchange is implied. No hardware operation was performed.
Source: TI 28/1997, p. 1 · TI 28/1997, p. 3 — Sections2 and5: original/new matrix, summary items 4–7 and9–10, regulatory introduction and footer.
Part numbers (4)
- 1123 120 0615 — 023 C carburetor WT 286Original · Exact TI 28/1997 configuration and restrictions only
- 1123 120 0616 — 023 C carburetor WT 498; including summary items 9,10New; already in inventory · Exact TI 28/1997 configuration and restrictions only
- 1123 120 0605 — 025 carburetor WT 215Original · Exact TI 28/1997 configuration and restrictions only
- 1123 120 0610 — 025 carburetor WT 283 ANew; already in inventory · Exact TI 28/1997 configuration and restrictions only
Service note · 023 C / 025
023 C / 025: removable fixed jet versus press-fit part-load jet
Full-load fixed jet replaces H adjustment; part-load jet must not be removed.
No exact-model IPL link: Retained 1123 catalog has shared 021/023/025 sheets and later WT-286A, WT-498A and WT-283C suffixes; no exact 023 C WT 286/WT 498 or 025 WT 283A configuration sheet established. Source-only note; neither later suffixes nor 023 L/021/MS successors silently substituted.
in progress — TI 28/1997 introduction status; no numeric serial cutoff or exact date supplied.
- This guidance is limited to the NEW WT 498 AND WT 283 A carburetors introduced here. The FIXED JET REPLACES THE H SCREW and supplies the full-load mixture. The source states MAXIMUM ENGINE RPM IS PRESET by this jet and CANNOT BE ALTERED. No numeric maximum speed, jet diameter or jet part number is supplied; later catalog jet sizes must not be backfilled.
- The fixed jet is SCREWED INTO THE BOTTOM OF THE METERING CHAMBER and is removed and installed FOR CLEANING. This is not permission to drill, resize or tune it.
- At a given throttle opening the PART-LOAD JET adds a defined amount of fuel to the air flowing through the carburetor. It is PRESS-FITTED IN THE CARBURETOR BODY AND CANNOT BE REMOVED; the source permits cleaning with compressed air but gives no air-pressure setting.
- Drawing 135TI003 labels1 as PART-LOAD JET and2 as FIXED JET. These are local drawing callouts, not page 3 summary items 1 and2 (cylinder and valve). No full cleaning or adjustment procedure is reconstructed from the illustration.
- Modification introduction is printed as IN PROGRESS. Inventory and factory-supply statements describe 1997, not current stock. No numeric serial cutoff or verified physical interchange is implied. No hardware operation was performed.
Source: TI 28/1997, p. 1 · TI 28/1997, p. 2 — Sections2.1–2.2 and drawing 135TI003; exact new carburetor context.
No additional parts-table entry added.
Service note · 023 C / 025
023 C / 025: L-screw O-ring, washer and L = 1 setting
O-ring and washer prevent secondary air; complete idle adjustment is delegated to the owner manual.
No exact-model IPL link: Retained 1123 catalog has shared 021/023/025 sheets and later WT-286A, WT-498A and WT-283C suffixes; no exact 023 C WT 286/WT 498 or 025 WT 283A configuration sheet established. Source-only note; neither later suffixes nor 023 L/021/MS successors silently substituted.
in progress — TI 28/1997 introduction status; no numeric serial cutoff or exact date supplied.
- Section 2.3 seals the LOW SPEED SCREW AGAINST THE CARBURETOR BODY using O-ring 4124 122 3600 and washer 1111 121 8605, preventing SECONDARY AIR through the tapped bore. Drawing 135TI004 shows BODY → O-RING → WASHER → SPRING → L SCREW, read outward from the body. No spring/screw part number, seal dimensions or torque is supplied here.
- Local drawing 1/2 are the O-ring/washer; page 3 summary numbers are 9/10. WT 498 item 5 includes both. Do not confuse these labels with the jet illustration’s1/2 or infer the same printed package inclusion for WT 283 A.
- Section 2.4 says IDLE SPEED AND LOW SPEED screws are adjusted in the normal way described in the owner’s manual, with printed STANDARD SETTING L = 1. The bulletin does not provide the complete sequence, seating direction/force, numeric idle RPM or operating checks. The exact applicable owner manual is not established in the bounded source pools; the number is not a standalone tuning instruction. Available 021/023/025 workshop material, later MS210/230/250 service manual and general Carburetors manual are not silently substituted.
- The L setting does not introduce an H screw or override the fixed-jet maximum-speed limitation. Diagram seal order is visually observed; physical assembly was not tested.
- Modification introduction is printed as IN PROGRESS. Inventory and factory-supply statements describe 1997, not current stock. No numeric serial cutoff or verified physical interchange is implied. No hardware operation was performed.
Source: TI 28/1997, p. 2 · TI 28/1997, p. 3 — Sections2.3–2.4, drawing 135TI004 and summary items 5,9,10.
Part numbers (2)
- 4124 122 3600 — O-ring; local drawing1, summary9Low-speed screw seal · Exact TI 28/1997 configuration and restrictions only
- 1111 121 8605 — Washer; local drawing2, summary10Low-speed screw sealing arrangement · Exact TI 28/1997 configuration and restrictions only
Full text

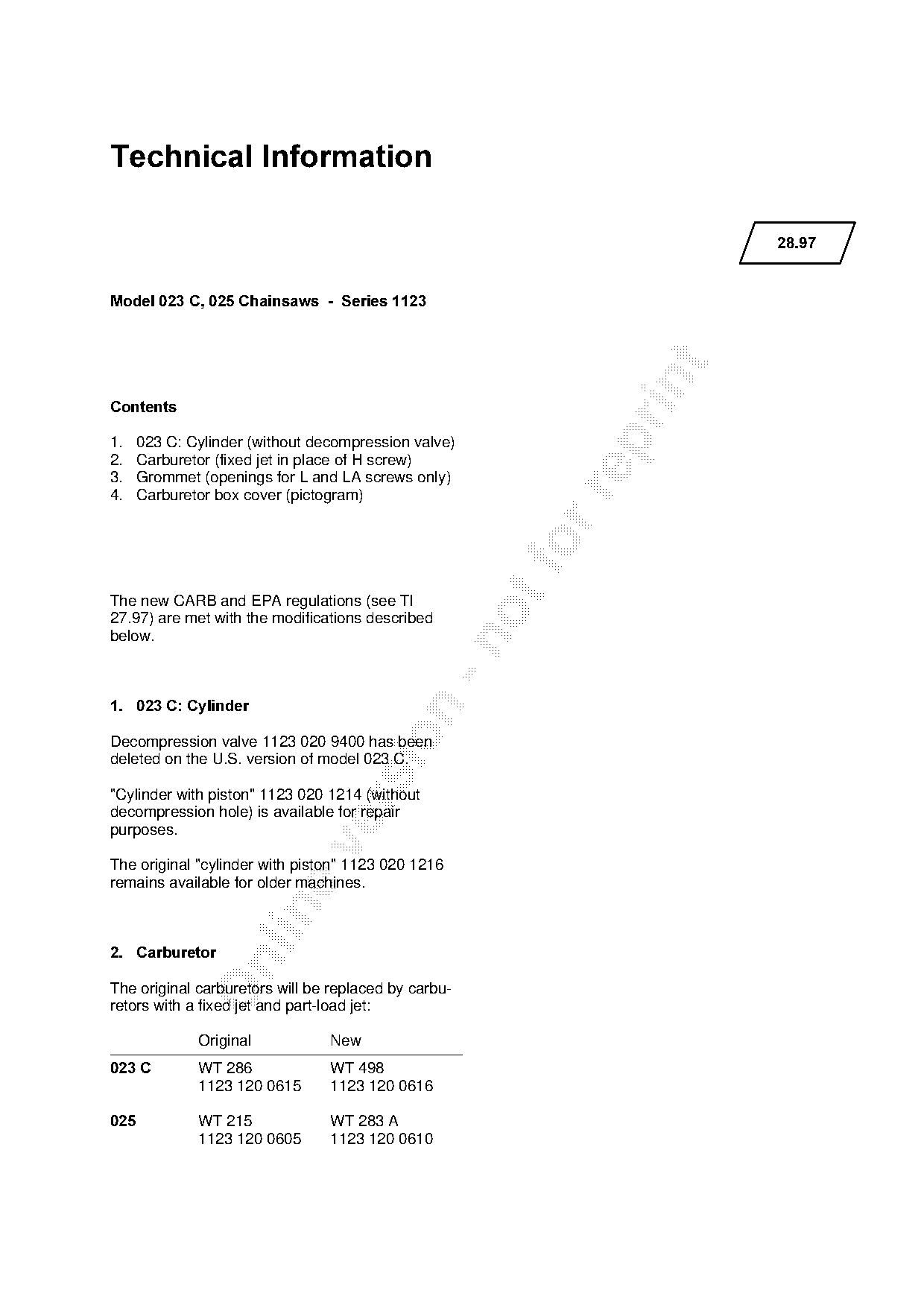

Page 1 of 3
Text of page 1 — search, copy, screen readers
Technical Information
28.97
Model 023 C, 025 Chainsaws - Series 1123
&RQWHQWV
1. 023 C: Cylinder (without decompression valve)
2. Carburetor (fixed jet in place of H screw)
3. Grommet (openings for L and LA screws only)
4. Carburetor box cover (pictogram)
The new CARB and EPA regulations (see TI
27.97) are met with the modifications described
below.
1.=023 C: Cylinder
Decompression valve 1123 020 9400 has been
deleted on the U.S. version of model 023 C.
"Cylinder with piston" 1123 020 1214 (without
decompression hole) is available for repair
purposes.
The original "cylinder with piston" 1123 020 1216
remains available for older machines.
2.=Carburetor
The original carburetors will be replaced by carbu-
retors with a fixed jet and part-load jet:
Original New
023 C=========tq=OUS=============tq=QVU
1123 120 0615 1123 120 0616
025===========tq=ONR=============tq=OUP=^

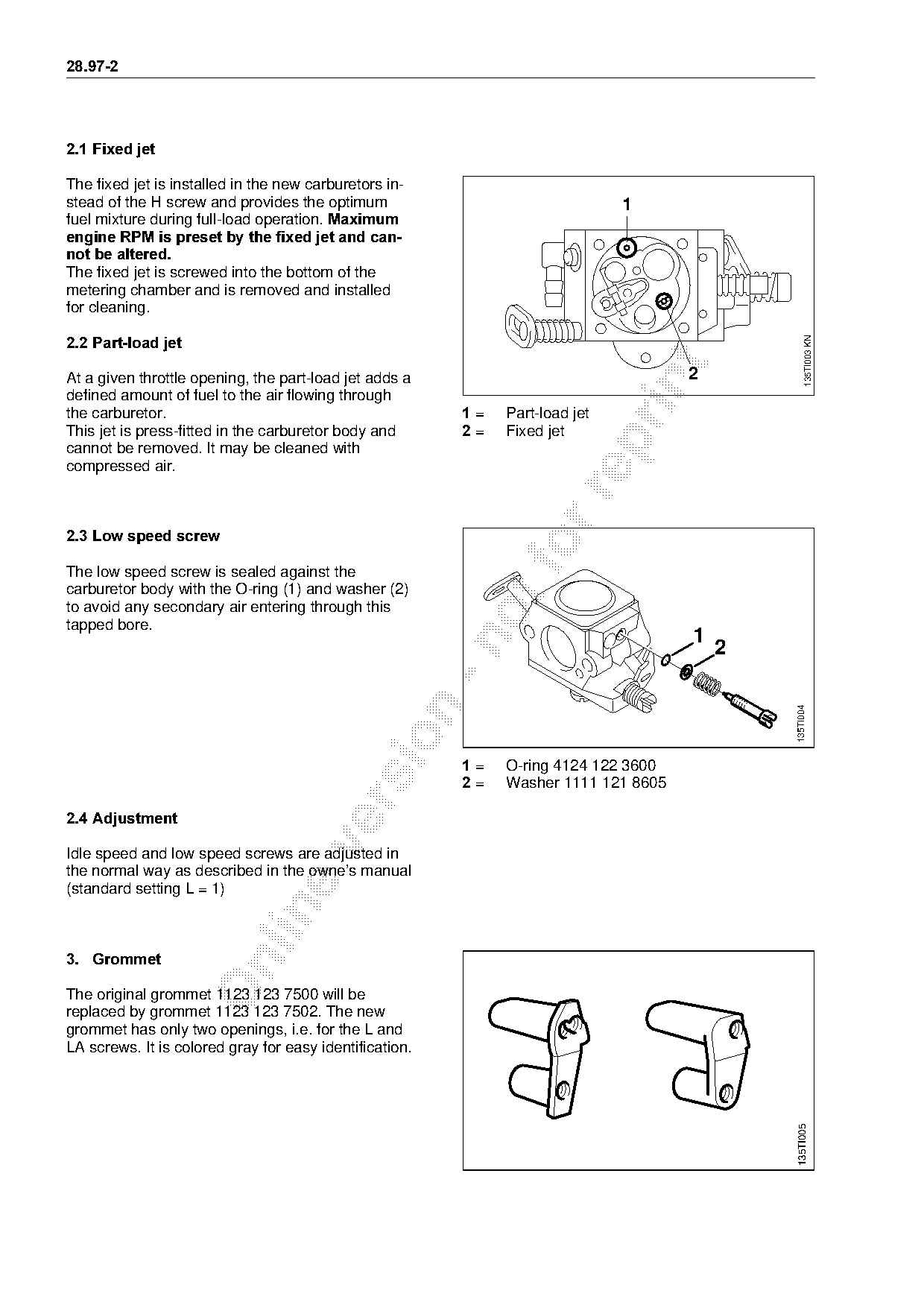

1123 120 0605 1123 120 0610 Page 2 of 3
Text of page 2 — search, copy, screen readers
28.97-2
2.1=Fixed jet
The fixed jet is installed in the new carburetors in-
stead of the H screw and provides the optimum 1
fuel mixture during full-load operation. 0D[LPXP
engine RPM is preset by the fixed jet and can-
not be altered.
The fixed jet is screwed into the bottom of the
metering chamber and is removed and installed
for cleaning.
2.2=Part-load jet
135TI003 KN
At a given throttle opening, the part-load jet adds a 2
defined amount of fuel to the air flowing through
the carburetorK=============================================1Z===m~rt-load jet
This jet is press-fitted in the carburetor body and 2Z===cixed jet
cannot be removed. It may be cleaned with
compressed air.
2.3=Low speed screw
The low speed screw is sealed against the
carburetor body with the O-ring (1) and washer (2)
to avoid any secondary air entering through this
tapped bore.
1
135TI004
1Z===lJring 4124 122 3600
2Z===t~sher 1111 121 8605
2.4=Adjustment
Idle speed and low speed screws are adjusted in
the normal way as described in the owne’s manual
(standard setting L = 1)
3.=Grommet
The original grommet 1123 123 7500 will be
replaced by grommet 1123 123 7502. The new
grommet has only two openings, i.e. for the L and
LA screws. It is colored gray for easy identification.

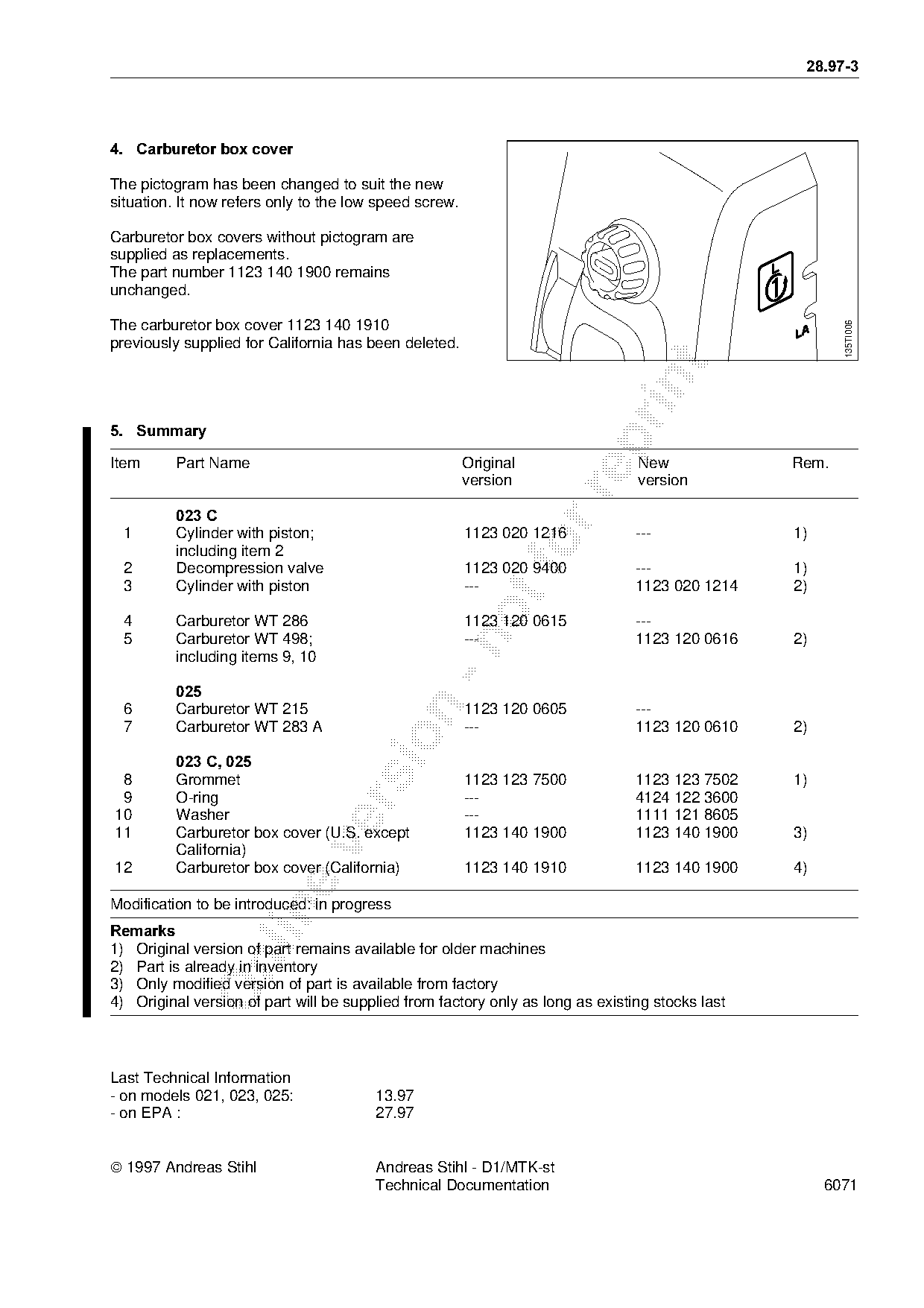

135TI005 Page 3 of 3
Text of page 3 — search, copy, screen readers
28.97-3
4.=Carburetor box cover
The pictogram has been changed to suit the new
situation. It now refers only to the low speed screw.
Carburetor box covers without pictogram are
supplied as replacements.
The part number 1123 140 1900 remains
unchanged.
The carburetor box cover 1123 140 1910
135TI006
previously supplied for California has been deleted.
5.=Summary
Item Part Name Original New Rem.
version version
023 C
1 Cylinder with piston; 1123 020 1216 --- 1)
2
including item 2
Decompression valve
1123 020 9400 --- 1)
3 Cylinder with piston --- 1123 020 1214 2)
4 Carburetor WT 286 1123 120 0615 ---
5 Carburetor WT 498; --- 1123 120 0616 2)
including items 9, 10
025
6 Carburetor WT 215 1123 120 0605 ---
7 Carburetor WT 283 A --- 1123 120 0610 2)
023 C, 025
8 Grommet 1123 123 7500 1123 123 7502 1)
9 O-ring --- 4124 122 3600
10 Washer --- 1111 121 8605
11 Carburetor box cover (U.S. except 1123 140 1900 1123 140 1900 3)
California)
12 Carburetor box cover (California) 1123 140 1910 1123 140 1900 4)
Modification to be introduced: in progress
5HPDUNV
1) Original version of part remains available for older machines
2) Part is already in inventory
3) Only modified version of part is available from factory
4) Original version of part will be supplied from factory only as long as existing stocks last
Last Technical Information
- on models 021, 023, 025: 13.97
- on EPA : 27.97
1997 Andreas Stihl Andreas Stihl - D1/MTK-st
