Technical Information · issue 29 of 1997

AV system (AV housing, annular buffers)

Model FS 360, FS 420 Clearing Saws - Series 4116

Full text

Page 1 of 1

Technical Information

                                                                                                     29.97

Model FS 360, FS 420 Clearing Saws - Series 4116

AV system (AV housing, annular buffers)

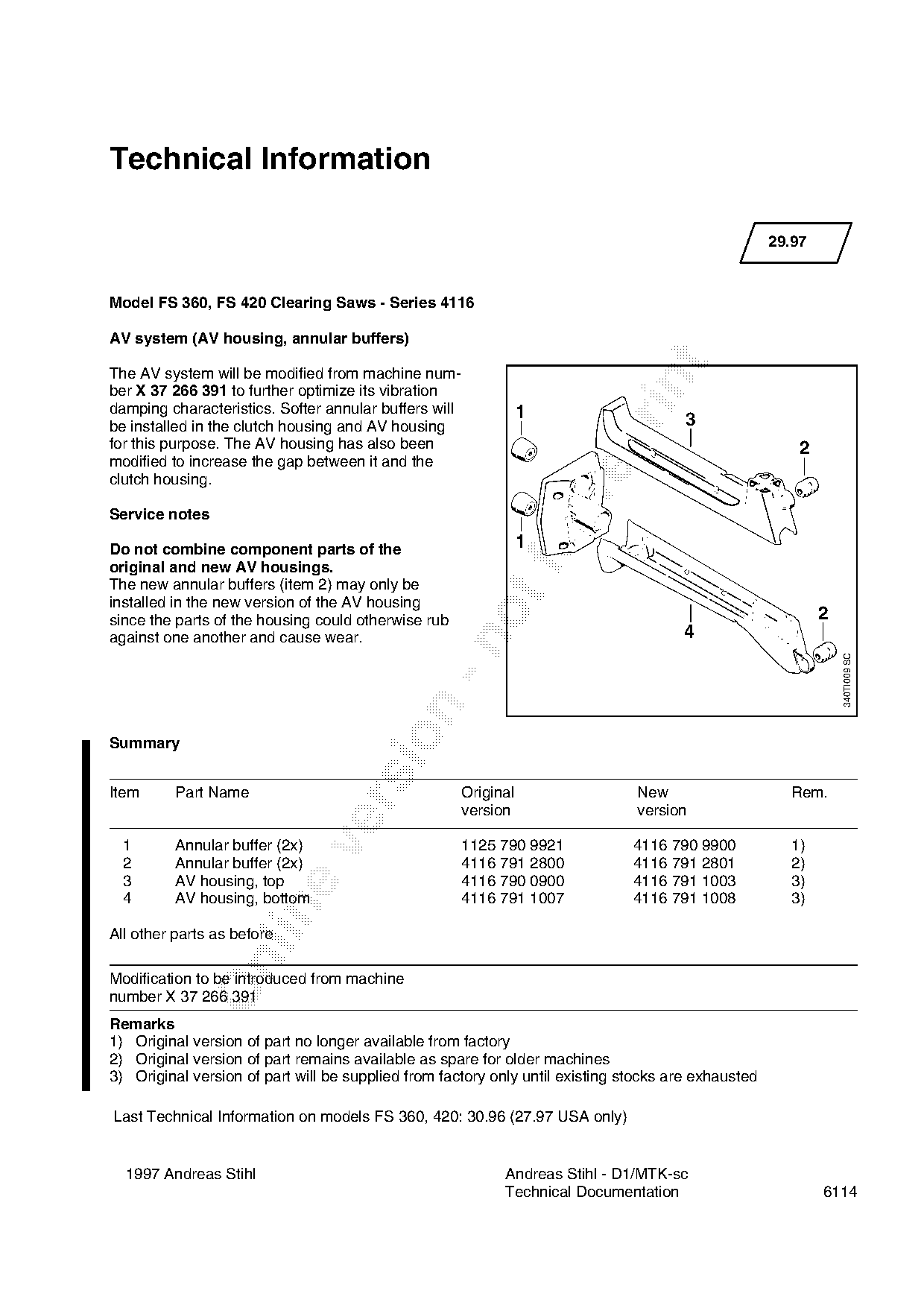

The AV system will be modified from machine num-

ber X 37 266 391 to further optimize its vibration
damping characteristics. Softer annular buffers will              1
be installed in the clutch housing and AV housing                                      3

for this purpose. The AV housing has also been                                                           2
modified to increase the gap between it and the
clutch housing.

Service notes

Do not combine component parts of the
original and new AV housings.
                                                                  1

The new annular buffers (item 2) may only be
installed in the new version of the AV housing
since the parts of the housing could otherwise rub                                                           2
against one another and cause wear.                                                   4

                                                                                                                 340TI009 SC

Summary

Item      Part Name                                    Original                New                     Rem.

                                                       version                 version

  1       Annular buffer (2x)                          1125 790 9921           4116 790 9900           1)
  2       Annular buffer (2x)                          4116 791 2800           4116 791 2801           2)
  3       AV housing, top                              4116 790 0900           4116 791 1003           3)
  4       AV housing, bottom                           4116 791 1007           4116 791 1008           3)

All other parts as before

Modification to be introduced from machine
number X 37 266 391
Remarks
1) Original version of part no longer available from factory
2) Original version of part remains available as spare for older machines
3) Original version of part will be supplied from factory only until existing stocks are exhausted

Last Technical Information on models FS 360, 420: 30.96 (27.97 USA only)
