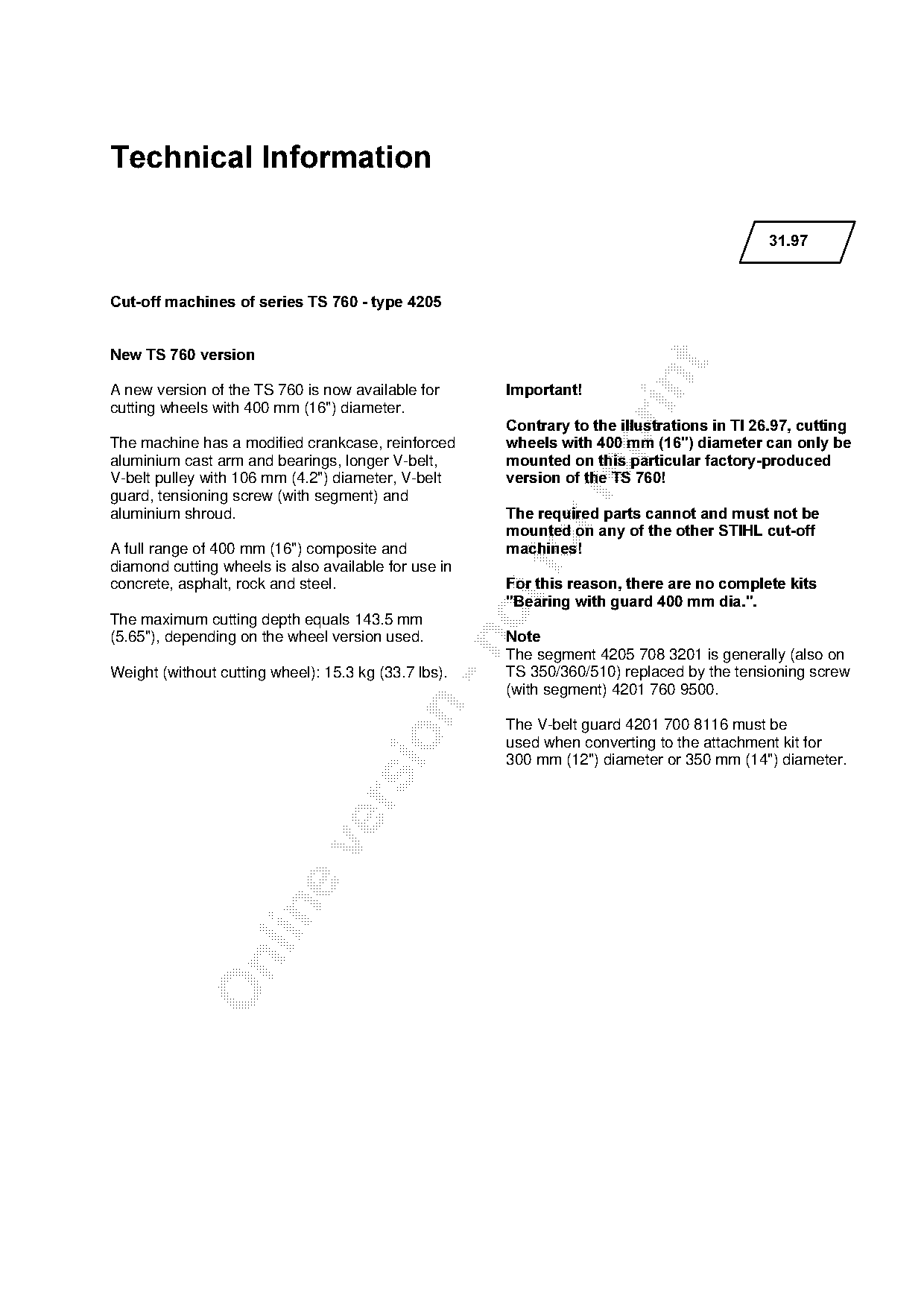

Page 1 of 2
Technical Information
31.97
Cut-off machines of series TS 760 - type 4205
New TS 760 version
A new version of the TS 760 is now available for Important!
cutting wheels with 400 mm (16") diameter.
======================================================Contrary to the illustrations in TI 26.97, cutting
The machine has a modified crankcase, reinforced wheels with 400 mm =16"= diameter can only be
~luminium=c~st=~rm=~nd=be~ringsI=longer=sJbeltI=======mounted on this particular factory-produced
sJbelt=pulley=with=NMS=mm=EQKO?F=di~meterI=sJbelt=====version of the TS 760!
guard, tensioning screw (with segment) and
~luminium=shroudK=====================================The required parts cannot and must not be
======================================================mounted on any of the other STIHL cut-off
A full range of 400 mm (16") composite and
diamond cutting wheels is also available for use in
machines!
concreteI=~sph~ltI=rock=~nd=steelK====================For this reason, there are no complete kits
======================================================"Bearing with guard 400 mm dia.".
The maximum cutting depth equals 143.5 mm
(5.65"), depending on the wheel version used. 1RWH
The segment 4205 708 3201 is generally (also on
Weight (without cutting wheel): 15.3 kg (33.7 lbs). TS 350/360/510) replaced by the tensioning screw
(with segment) 4201 760 9500.
The V-belt guard 4201 700 8116 must be
used when converting to the attachment kit for
300 mm (12") diameter or 350 mm (14") diameter.

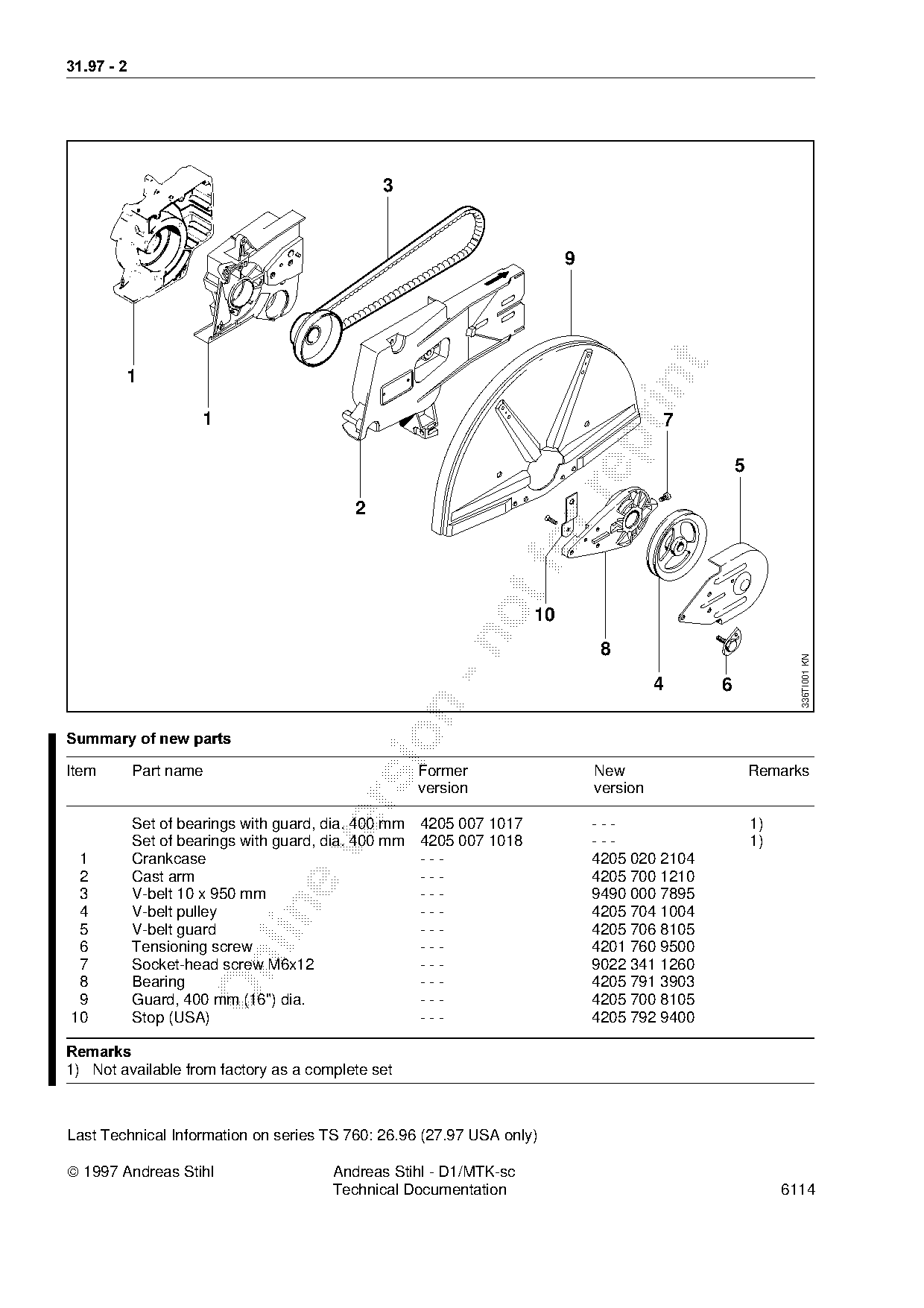

)31.97 - 2
1 7
336TI001 KN
4 6
Summary of new parts
Item Part name Former New Remarks
version version
Set of bearings with guard, dia. 400 mm 4205 007 1017 --- 1)
Set of bearings with guard, dia. 400 mm 4205 007 1018 --- 1)
1 Crankcase --- 4205 020 2104
2 Cast arm --- 4205 700 1210
3 V-belt 10 x 950 mm --- 9490 000 7895
4 V-belt pulley --- 4205 704 1004
5 V-belt guard --- 4205 706 8105
6 Tensioning screw --- 4201 760 9500
7 Socket-head screw M6x12 --- 9022 341 1260
8 Bearing --- 4205 791 3903
9 Guard, 400 mm (16") dia. --- 4205 700 8105
10 Stop (USA) --- 4205 792 9400
5HPDUNV
1) Not available from factory as a complete set
Last Technical Information on series TS 760: 26.96 (27.97 USA only)
1997 Andreas Stihl Andreas Stihl - D1/MTK-sc
Technical Documentation 6114 Page 2 of 2
