Technical Information · issue 33 of 1997

Carburetor 034: C3A-S38; Carburetor 036: 036 QS; C

Model 034, 036, 036 QS Chainsaws - Series 1125

IssueTI 33/1997
Engine family 1125
Serial references — see context below 37 391 588

Historical fitment & changes

Source-reviewed model notes. An exact-model IPL link is unavailable where stated; no similar model is substituted. Availability statements belong to the bulletin’s date.

Service note · 036 / 036 QS

036 / 036 QS: same-number C3A-S31 A to B change

1125 120 0651 keeps its number while the valve jet shrinks to0.58 mm.

No exact-model IPL link: Exact named models retained, but current036/036QS carburetor sheets show S31E/0613 rather than this S31 A/B0651 configuration.

X 37 391 588 — Printed for036 only; no036 QS or034 cutoff stated.

  • Carburetor1125 120 0651 changes from C3A-S31 A with0.6 mm (0.024 in.) valve jet to C3A-S31 B with0.58 mm (0.023 in.) jet; part number remains unchanged. New jet is1125 121 5405, previous1125 121 5404. Old jet remains a spare (remark2); only modified carburetor supplied by factory (remark3).
  • Introduction line explicitly reads FROM MACHINE NUMBER X 37 391 588 FOR036. The section/table also names036 QS, but no QS-specific serial cutoff is stated. Do not extend this036 cutoff to034,036 QS or the page2 throttle trigger.
  • Later036 and036 QS sheets show C3A-S31E1125 120 0613 with0.58 mm jet1125 121 5408, not the exact A/B0651 configuration or5405 jet. Keep this as a source-only model note; no E/B equivalence or bore-only interchange inferred. The034 screw changes on the same page are not automatically transferred to036/036 QS. No adjustment settings or conversion recipe supplied.
  • Historical source guidance and factory supply, not current availability or verified physical interchange. No hardware operation was performed.

Source: TI 33/1997, p. 1 — Section1.2,036/036QS table and model-qualified serial/supply remarks.

Part numbers (3)
  • 1125 120 0651 — Carburetor C3A-S31 A / BUnchanged number; modified-only supply · Only the exact model/configuration and restrictions of 1997-33
  • 1125 121 5404 — Original valve jet0.60 mmRemains spare · Only the exact model/configuration and restrictions of 1997-33
  • 1125 121 5405 — New valve jet0.58 mmItem3 · Only the exact model/configuration and restrictions of 1997-33

Full text

Page 1 of 2

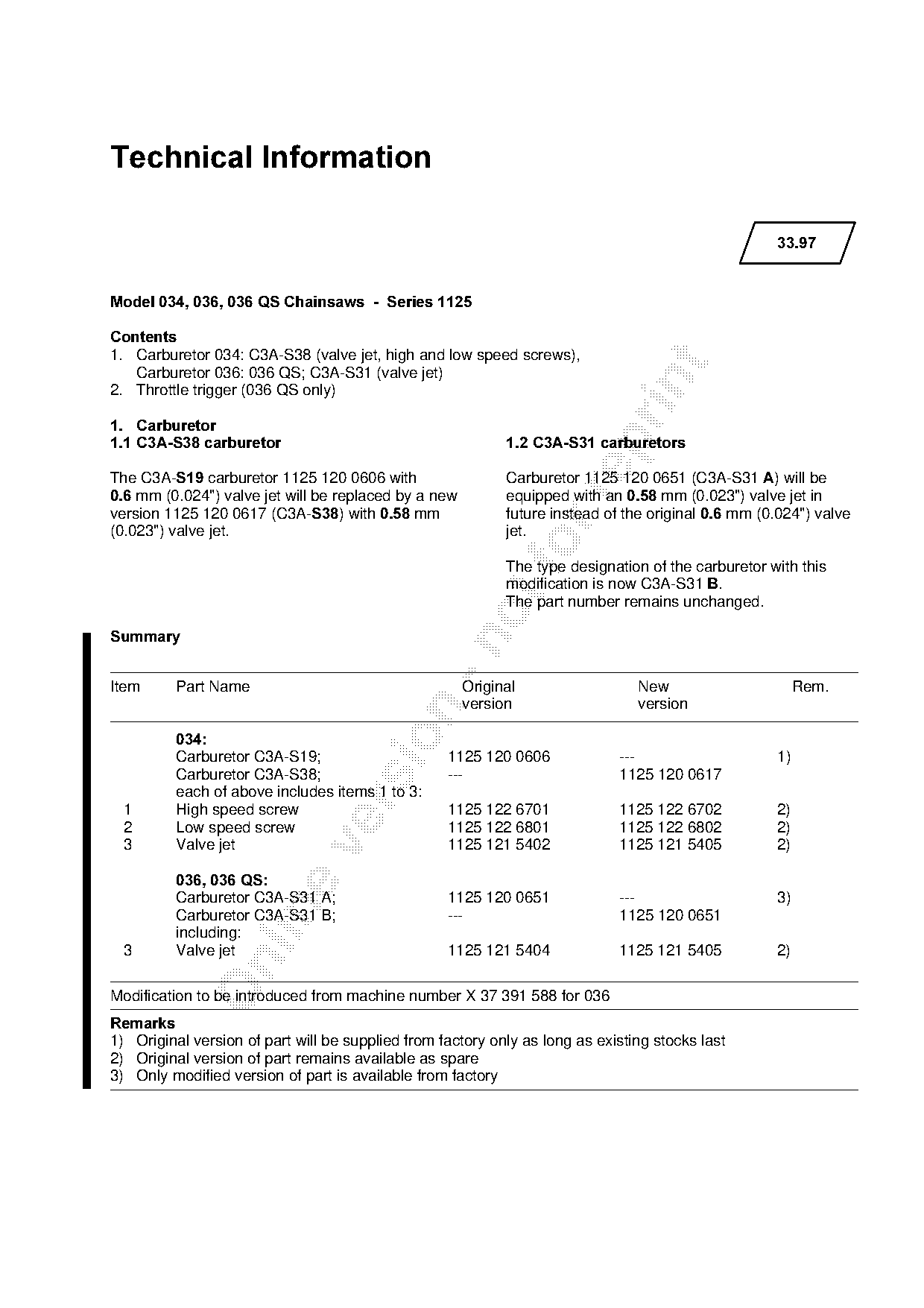

TI 33/1997 page 1
Text of page 1 — search, copy, screen readers
Technical Information

                                                                                                    33.97

Model 034, 036, 036 QS Chainsaws  -  Series 1125

&RQWHQWV
1. Carburetor 034: C3A-S38 (valve jet, high and low speed screws),

   Carburetor 036: 036 QS; C3A-S31 (valve jet)

2. Throttle trigger (036 QS only)

1.=Carburetor

1.1=C3A-S38 carburetor======================================1.2=C3A-S31 carburetors

The `P^JS19=carburetor 1125 120 0606 with                   Carburetor 1125 120 0651 (C3A-S31 $) will be
0.6=mm (0.024") valve jet will be replaced by a new         equipped with an 0.58=mm (0.023") valve jet in

version NNOR=NOM=MSNT=E`P^JS38F=with 0.58=mm                future instead of the original 0.6=mm (0.024") valve
(0.023") valve jet.                                         jet.
                                                            The type designation of the carburetor with this
                                                            modification is now C3A-S31 %.
                                                            The part number remains unchanged.

6XPPDU\

Item      Part Name                                   Original                  New                      Rem.
                                                      version                   version

          034

          Carburetor C3A-S19;                      1125 120 0606             ---                    1)
          Carburetor C3A-S38;                      ---                       1125 120 0617
          each of above includes items 1 to 3:

  1       High speed screw                         1125 122 6701             1125 122 6702          2)
  2       Low speed screw                          1125 122 6801             1125 122 6802          2)
  3       Valve jet                                1125 121 5402             1125 121 5405          2)

          036, 036 QS
          Carburetor C3A-S31 A;                    1125 120 0651             ---                    3)

          Carburetor C3A-S31 B;                    ---                       1125 120 0651
          including:
  3       Valve jet                                1125 121 5404             1125 121 5405          2)

Modification to be introduced from machine number X 37 391 588 for 036
5HPDUNV
1) Original version of part will be supplied from factory only as long as existing stocks last
2) Original version of part remains available as spare
3) Only modified version of part is available from factory

Page 2 of 2

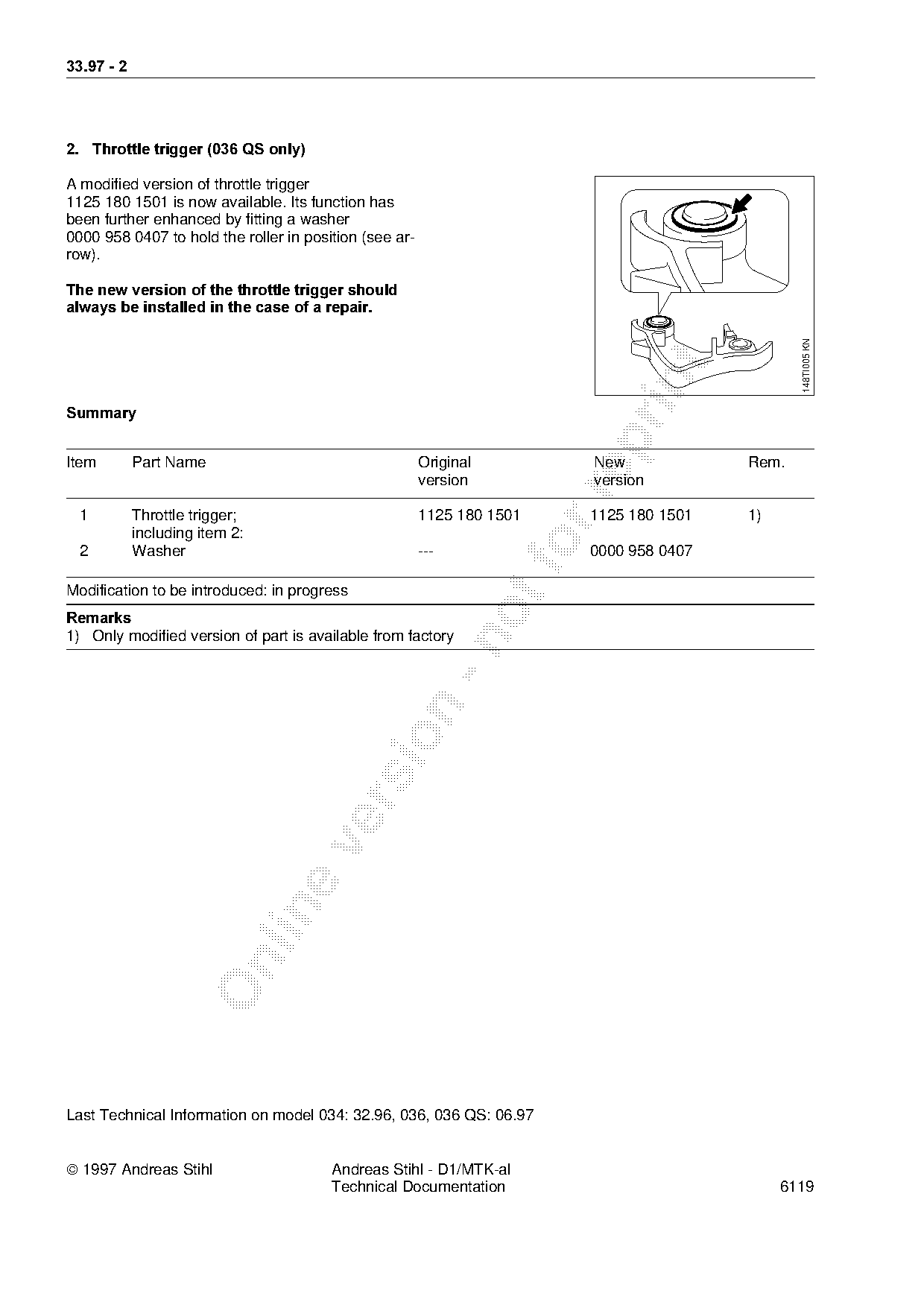

TI 33/1997 page 2
Text of page 2 — search, copy, screen readers
33.97 - 2

2.=Throttle trigger =036 QS only

A modified version of throttle trigger
1125 180 1501 is now available. Its function has
been further enhanced by fitting a washer
0000 958 0407 to hold the roller in position (see ar-
row).

The new version of the throttle trigger should
always be installed in the case of a repair.

                                                                                                148TI005 KN
6XPPDU\

Item        Part Name                                   Original         New             Rem.
                                                        version          version

  1         Throttle trigger;                           1125 180 1501    1125 180 1501   1)
            including item 2:
  2         Washer                                      ---         fo   0000 958 0407

Modification to be introduced: in progress
5HPDUNV
1) Only modified version of part is available from factory

Last Technical Information on model 034: 32.96, 036, 036 QS: 06.97

 1997 Andreas Stihl                    Andreas Stihl - D1/MTK-al
                                        Technical Documentation                               6119
