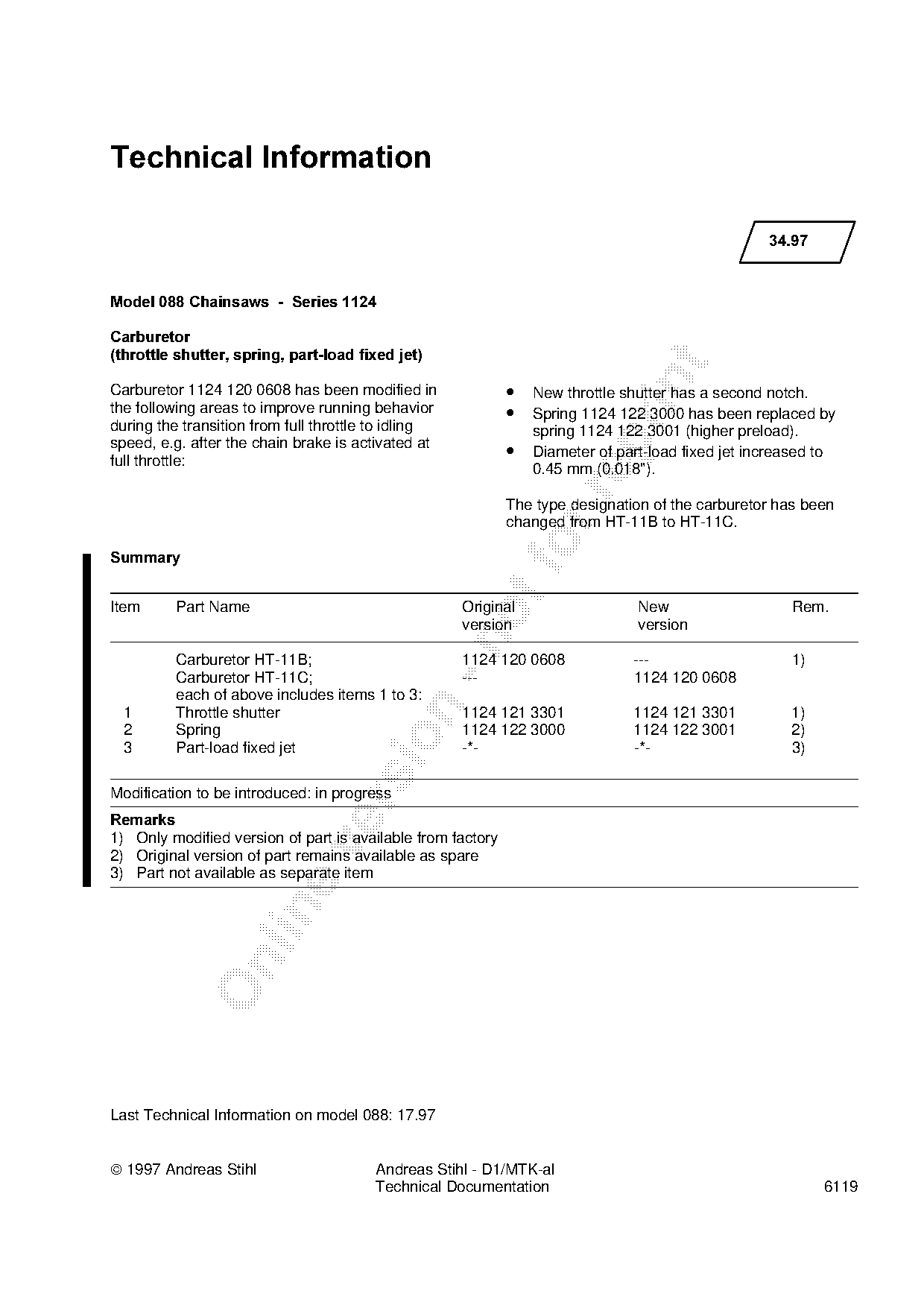

Technical Information

                                                                                                   34.97

Model 088 Chainsaws  -  Series 1124

Carburetor
throttle shutter, spring, part-load fixed jet

Carburetor 1124 120 0608 has been modified in                • New throttle shutter has a second notch.
the following areas to improve running behavior              • Spring 1124 122 3000 has been replaced by
during the transition from full throttle to idling              spring 1124 122 3001 (higher preload).

speed, e.g. after the chain brake is activated at
full throttle:
                                                             • Diameter of part-load fixed jet increased to
                                                                0.45 mm (0.018").

                                                             The type designation of the carburetor has been
                                                             changed from HT-11B to HT-11C.

6XPPDU\                                                       fo
Item      Part Name                                  Original                   New                   Rem.
                                                     version                    version

          Carburetor HT-11B;                         1124 120 0608             ---                    1)
          Carburetor HT-11C;                         ---                       1124 120 0608
          each of above includes items 1 to 3:

  1       Throttle shutter                           1124 121 3301             1124 121 3301          1)
  2       Spring                                     1124 122 3000             1124 122 3001          2)

  3       Part-load fixed jet                        -*-                       -*-                    3)

Modification to be introduced: in progress

5HPDUNV
1) Only modified version of part is available from factory

2) Original version of part remains available as spare
3) Part not available as separate item

Last Technical Information on model 088: 17.97

 1997 Andreas Stihl                    Andreas Stihl - D1/MTK-al
                                        Technical Documentation                                               6119
