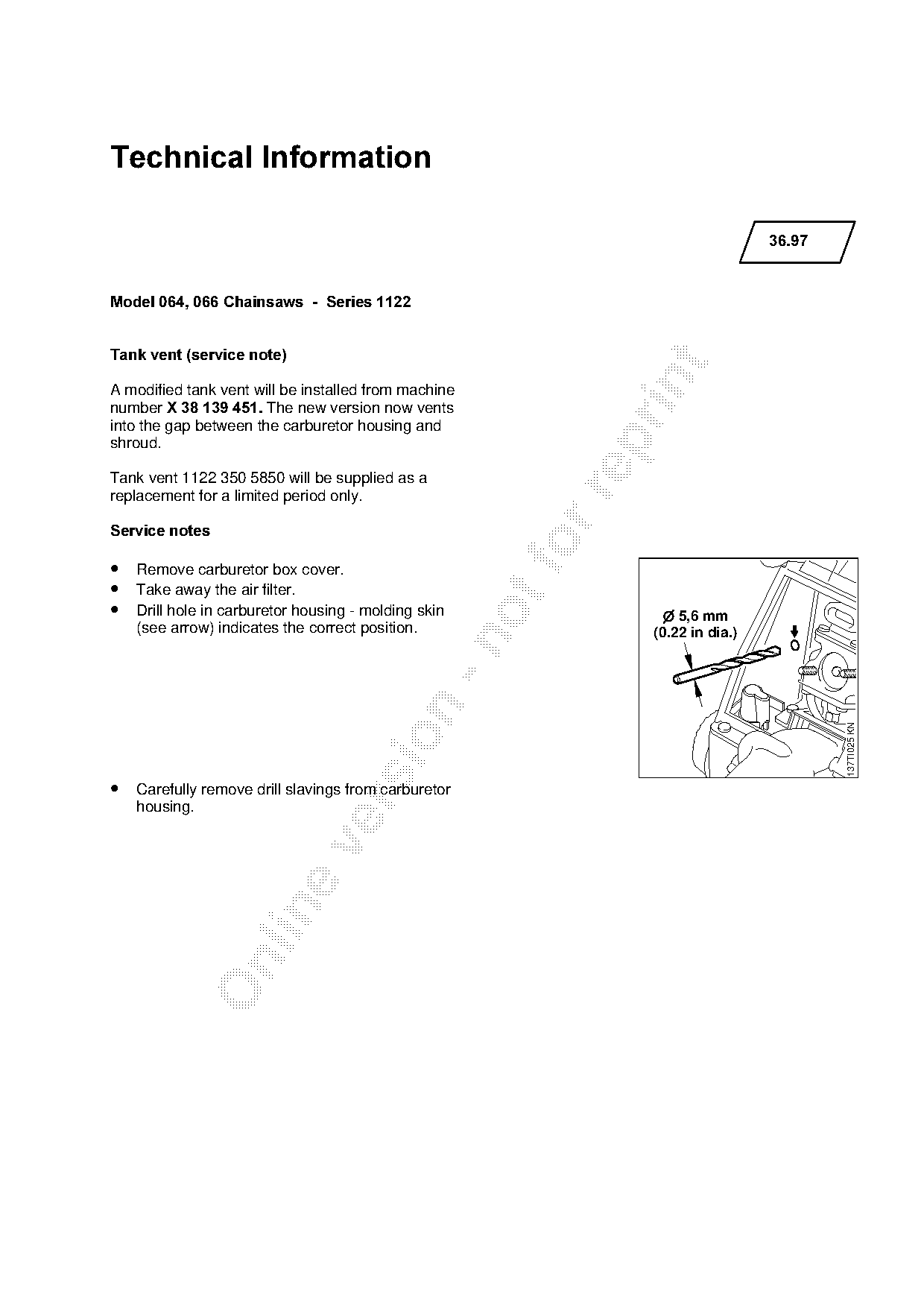

Technical Information
36.97
Model 064, 066 Chainsaws - Series 1122
Tank vent =service note
A modified tank vent will be installed from machine
number X 38 139 451. qhe new version now vents
into the gap between the carburetor housing and
shroud.
Tank vent 1122 350 5850 will be supplied as a
replacement for a limited period only.
Service notes
• Remove carburetor box cover.
• Take away the air filter.
• Drill hole in carburetor housing - molding skin 5,6 mm
(see arrow) indicates the correct position. (0.22 in dia.)
137TI025 KN
• Carefully remove drill slavings from carburetor
housing.
)36.97 - 2

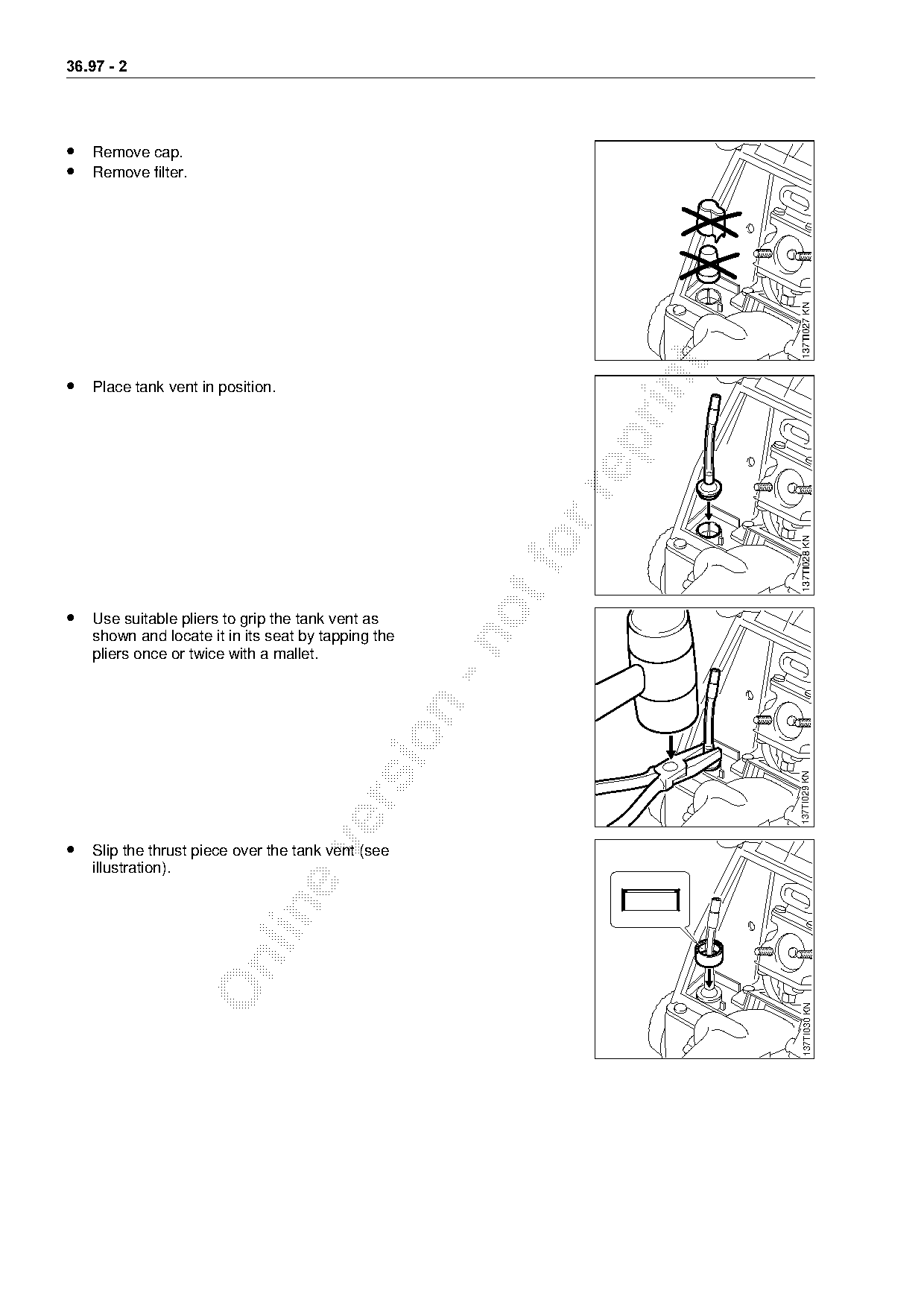

• Remove cap.
• Remove filter.
137TI027 KN
• Place tank vent in position.
137TI028 KN
• Use suitable pliers to grip the tank vent as
shown and locate it in its seat by tapping the
pliers once or twice with a mallet.
137TI029 KN
• Slip the thrust piece over the tank vent (see
illustration).
137TI030 KN
)36.97 - 3

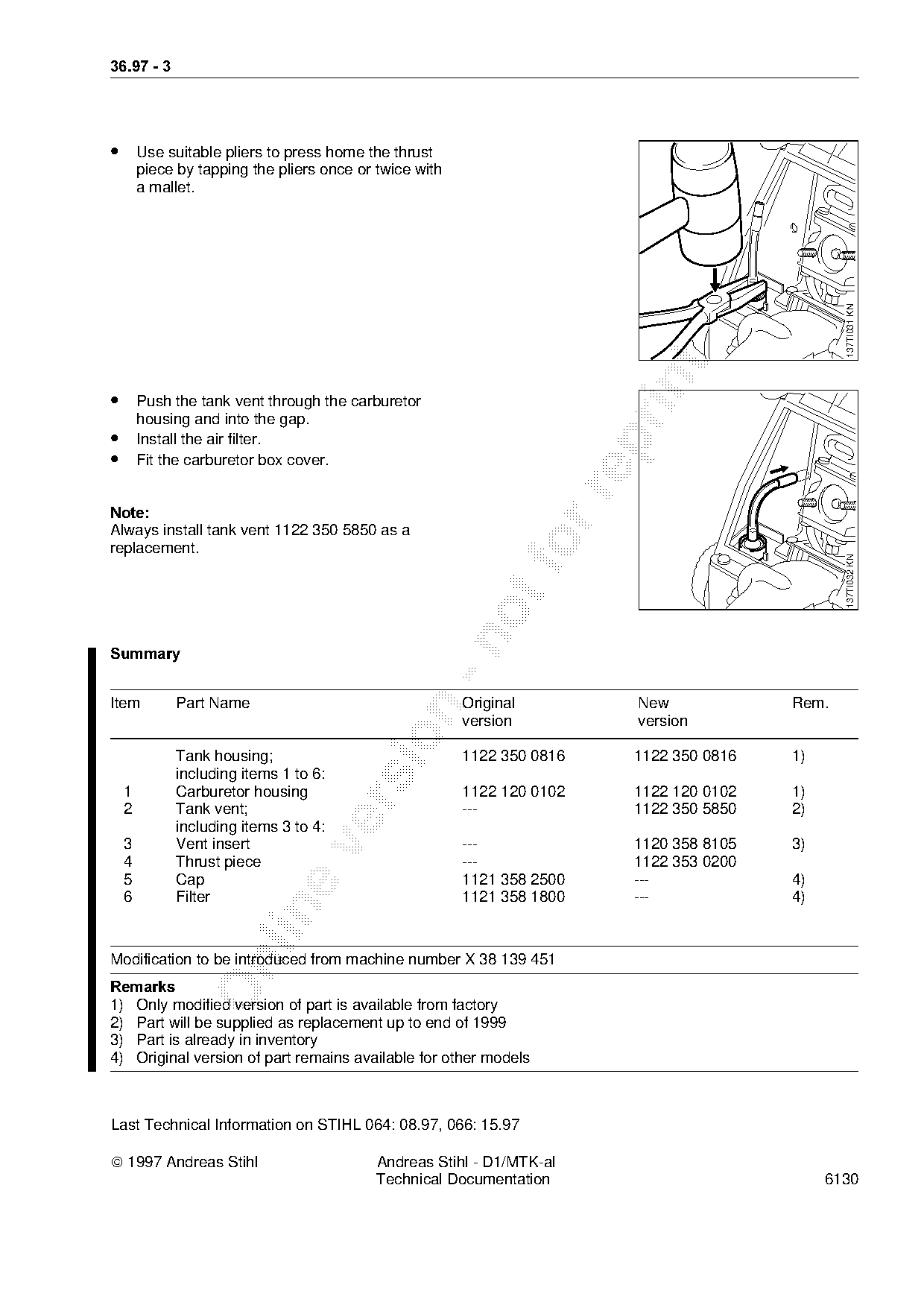

• Use suitable pliers to press home the thrust
piece by tapping the pliers once or twice with
a mallet.
137TI031 KN
• Push the tank vent through the carburetor
housing and into the gap.
• Install the air filter.
• Fit the carburetor box cover.
1RWH
Always install tank vent 1122 350 5850 as a
replacement. fo
137TI032 KN
6XPPDU\
Item Part Name Original New Rem.
version version
Tank housing; 1122 350 0816 1122 350 0816 1)
including items 1 to 6:
1 Carburetor housing 1122 120 0102 1122 120 0102 1)
2 Tank vent; --- 1122 350 5850 2)
including items 3 to 4:
3 Vent insert --- 1120 358 8105 3)
4 Thrust piece --- 1122 353 0200
5 Cap 1121 358 2500 --- 4)
6 Filter 1121 358 1800 --- 4)
Modification to be introduced from machine number X 38 139 451
5HPDUNV
1) Only modified version of part is available from factory
2) Part will be supplied as replacement up to end of 1999
3) Part is already in inventory
4) Original version of part remains available for other models
Last Technical Information on STIHL 064: 08.97, 066: 15.97
1997 Andreas Stihl Andreas Stihl - D1/MTK-al
Technical Documentation 6130 Page 2 of 3
