Technical Information · issue 40 of 1997
Carburetor; filter cover; grommet
Model 088 Chainsaws - Series 1124
Part changes (2)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1124 120 0608 | 1124 120 0650 | The original carburetor 1124 120 0608 (HT- 11D) will be replaced by carburetor 1124 120 0650 (HT-12A). |
| 1124 123 7500 | 1124 123 7501 | The original grommet 1124 123 7500 will be replaced by grommet 1124 123 7501. |
Historical fitment & changes
Source-reviewed model notes. An exact-model IPL link is unavailable where stated; no similar model is substituted. Availability statements belong to the bulletin’s date.
Service note · 088
088: HT-12A replaces HT-11D with a required matching grommet
Keep carburetor package contents and old-component availability separate.
No exact-model IPL link: The retained 088 IPL identifies HT-12E / 1124 120 0609, not HT-12A / 1124 120 0650. Shared component numbers do not establish suffix equivalence. Exact HT-12A guidance remains source-only; no transfer to HT-12E, 084 or MS 880.
Later reviewed guidance: 088 HT-12B: unchanged carburetor number, revised L basic setting
in progress — Introduction in progress; no numeric machine-number boundary supplied.
- Section 1 replaces HT-11D 1124 120 0608 with HT-12A 1124 120 0650. The new carburetor has limiter caps on BOTH H and L screws. Grommet 1124 123 7501 is INCLUDED TO ENSURE INTERCHANGEABILITY WITH OLDER MACHINES; this is a package-dependent replacement, not permission to omit the grommet or convert individual old screws.
- The summary separates HT-11D INCLUDING ITEMS 1 TO 3 from HT-12A INCLUDING ITEMS 4 TO 7. Item 6 explicitly specifies TWO limiter caps. The old sleeve is not listed in the new package; no unprinted new sleeve, spring number, additional component conversion or complete BOM is invented.
- Remark 1 applies to the original COMPLETE HT-11D: NO LONGER AVAILABLE FROM FACTORY. Remark 2 applies separately to old H screw, L screw and sleeve: REMAIN AVAILABLE AS SPARES. Dashes do not mean those old service parts became unavailable or that new screws alone retrofit the original carburetor.
- The later 088 IPL lists HT-12E / 1124 120 0609 while retaining several old/new component numbers. This does not prove HT-12A/HT-12E identity or supersession; no later order number or suffix is silently substituted.
- Introduction is IN PROGRESS; no numeric serial cutoff is printed. Historical 088 / TI40/1997 evidence only, not a current stock claim or verified physical interchange. No hardware operation was performed.
Source: TI 40/1997, p. 1 · TI 40/1997, p. 5 — Section1 replacement and all carburetor summary rows, package ranges and remarks1/2.
Part numbers (9)
- 1124 120 0608 — HT-11D carburetor; includes summary items 1–3Original no longer available from factory · 088 TI40/1997 configuration, subject to the conditions in this note
- 1124 120 0650 — HT-12A carburetor; includes summary items 4–7Replacement package · 088 TI40/1997 configuration, subject to the conditions in this note
- 1124 122 6702 — HT-11D high-speed screw; item 1Original remains available as spare · 088 TI40/1997 configuration, subject to the conditions in this note
- 1124 122 6802 — HT-11D low-speed screw; item 2Original remains available as spare · 088 TI40/1997 configuration, subject to the conditions in this note
- 1124 122 5400 — HT-11D sleeve; item 3Original remains available as spare · 088 TI40/1997 configuration, subject to the conditions in this note
- 1124 122 6703 — HT-12A high-speed screw; item 4New component · 088 TI40/1997 configuration, subject to the conditions in this note
- 1124 122 6803 — HT-12A low-speed screw; item 5New component · 088 TI40/1997 configuration, subject to the conditions in this note
- 1124 121 2700 — HT-12A limiter cap; item 6, quantity 2New component · 088 TI40/1997 configuration, subject to the conditions in this note
- 1124 123 7501 — HT-12A grommet; item 7Included to ensure interchangeability with older machines · 088 TI40/1997 configuration, subject to the conditions in this note
Service note · 088
088 HT-12A: 210-degree limiter caps are single-use after removal
Knurled screw heads retain caps; two molded lugs limit adjustment.
No exact-model IPL link: The retained 088 IPL identifies HT-12E / 1124 120 0609, not HT-12A / 1124 120 0650. Shared component numbers do not establish suffix equivalence. Exact HT-12A guidance remains source-only; no transfer to HT-12E, 084 or MS 880.
Later reviewed guidance: 088 HT-12B: L cap slot horizontal, H cap slot vertical · 088 HT-12B: user adjustment is 180 degrees, not the earlier 210
in progress — Introduction in progress; no numeric machine-number boundary supplied.
- Construction drawing 171TI009 KN identifies LOW-SPEED SCREW (1), HIGH-SPEED SCREW (2), LIMITER CAPS (3) and SPRINGS (4). These are drawing callouts, NOT summary item numbers. No spring order number or spring substitution is supplied.
- Caps push onto the adjusting-screw heads and are held by KNURLING. TWO INTEGRALLY MOLDED LUGS limit movement to 210 DEGREES; the arrowed stop drawing and separate H/L view show the geometry. This is angular adjustment travel, not a screw-opening preset, torque or two full turns.
- Section 1.3 requires service-shop removal to replace adjusting screws or clean the carburetor. SUITABLE PLIERS pull the caps off H AND L, as illustrated. CAPS REMOVED ONCE MUST NOT BE USED AGAIN: FIT NEW CAPS. No left-hand puller, lug cutting, cap reuse or unrestricted owner bypass is authorized by this source.
- Introduction is IN PROGRESS; no numeric serial cutoff is printed. Historical 088 / TI40/1997 evidence only, not a current stock claim or verified physical interchange. No hardware operation was performed.
Source: TI 40/1997, p. 1 · TI 40/1997, p. 2 · TI 40/1997, p. 5 — Section1.1 construction, section1.2 function, section1.3 removal, all page2 drawings and summary item6.
Part numbers (1)
- 1124 121 2700 — Limiter cap; two per HT-12AReplace after removal · 088 TI40/1997 configuration, subject to the conditions in this note
Service note · 088
088 HT-12A: H-rich and L-lean stops differ during post-service setup
H opens 1 turn; L opens 7/8 before new caps; idle is checked at 2,500 rpm.
No exact-model IPL link: The retained 088 IPL identifies HT-12E / 1124 120 0609, not HT-12A / 1124 120 0650. Shared component numbers do not establish suffix equivalence. Exact HT-12A guidance remains source-only; no transfer to HT-12E, 084 or MS 880.
Later reviewed guidance: 088 HT-12B: unchanged carburetor number, revised L basic setting · 088 HT-12B: L cap slot horizontal, H cap slot vertical · 088 HT-12B: LA 2,700 rpm precedes the L quarter-turn
in progress — Introduction in progress; no numeric machine-number boundary supplied.
- The sequence is specifically ADJUSTMENT AFTER REPAIR / SERVICING, not the normal user adjustment or a preset for HT-12E. Preparations: CHECK AIR FILTER and clean/replace as necessary; CHECK SPARK ARRESTING SCREEN and clean/replace as necessary; CHECK CHAIN TENSION.
- BASIC SETTING starts with screws AGAINST THEIR SEATS: H OPEN 1 FULL TURN; L OPEN 7/8 TURN. The scan resolves the damaged extracted L line. No seating force, maximum-speed setting or additional H adjustment is supplied.
- Always fit NEW limiter caps; removed caps must not be reused. Fit the H cap AGAINST THE RICH STOP and the L cap AGAINST THE LEAN STOP, following the arrows in 171TI017 KN. Push caps onto the screws UNTIL FLUSH WITH THE STOP. The two orientations are intentionally different; do not transpose them or infer a clock-face angle from another carburetor.
- THEN open L ONE QUARTER TURN COUNTERCLOCKWISE. Use IDLE SPEED SCREW LA to set 2,500 RPM; this MUST BE CHECKED WITH A TACHOMETER. LA is not L. Preserve the sequence rather than collapsing the 7/8 basic setting and later quarter-turn into a replacement preset.
- CHECK RUNNING BEHAVIOR: open throttle several times and check smooth acceleration; engine must run smoothly at idle. The TI gives no numeric full-load maximum RPM or complete carburetor overhaul/safety procedure. This note documents the printed sequence, not an unattended operating instruction.
- Introduction is IN PROGRESS; no numeric serial cutoff is printed. Historical 088 / TI40/1997 evidence only, not a current stock claim or verified physical interchange. No hardware operation was performed.
Source: TI 40/1997, p. 3 — Complete sections1.3.1.1–1.3.1.5 and all three page3 setting drawings.
No additional parts-table entry added.
Service note · 088
088: factory emissions label, bounded user adjustment and 50:1 evidence
TI27/1997 remains a named dependency for delegated emissions details.
No exact-model IPL link: The retained 088 IPL identifies HT-12E / 1124 120 0609, not HT-12A / 1124 120 0650. Shared component numbers do not establish suffix equivalence. Exact HT-12A guidance remains source-only; no transfer to HT-12E, 084 or MS 880.
Later reviewed guidance: 088 HT-12B: user adjustment is 180 degrees, not the earlier 210
in progress — Introduction in progress; no numeric machine-number boundary supplied.
- The introduction attributes EPA compliance to these modifications and says the FACTORY applies the illustrated adhesive label TO ALL MACHINES INCORPORATING THE LATEST CHANGES. The example states U.S. EPA PHASE 1 for ULGE engines and refers to the owner manual for maintenance specifications and adjustment. Its family/type/displacement/manufacture fields are a template; do not invent a completed engine identity, full label order number or retrofit labeling requirement.
- Section 1.4 allows the user a 210-DEGREE adjustment range to LEAN THE MIXTURE IF NECESSARY AT HIGH ALTITUDES. It says enriching BEYOND THE LIMITS SPECIFIED BY THE EPA IS NOT NECESSARY. This is not permission to remove the caps, bypass stops or apply the service-shop sequence as ordinary user adjustment.
- The TI says these user instructions are EXACTLY THE SAME as the owner-manual chapter Adjusting Carburetor. The reproduced instructions are reviewed here; the unprovided full owner manual is not claimed reviewed or used to invent additional settings.
- Section 1.5 says EPA approval was obtained with FUEL/OIL 50:1 and NO EMISSION MEASUREMENTS ARE AVAILABLE FOR OTHER MIX RATIOS. This historical evidence statement neither proves other ratios comply nor establishes a universal prohibition or current legal conclusion.
- The introduction and sections 1.5/1.6 delegate EPA and FEDERAL EMISSION CONTROL SYSTEMS / UTILITY ENGINES details to TI27/1997. That bulletin is absent from the retained690 and not established in the bounded mapped resource inventory; delegated content remains a named source gap. The footer cites TI34.97 as last 088 TI; it is bibliographic, not an extension of its shaft/spacer assertions.
- Introduction is IN PROGRESS; no numeric serial cutoff is printed. Historical 088 / TI40/1997 evidence only, not a current stock claim or verified physical interchange. No hardware operation was performed.
Source: TI 40/1997, p. 1 · TI 40/1997, p. 4 · TI 40/1997, p. 5 — Introduction and label000TI013 KN; complete sections1.4–1.6 and footer.
No additional parts-table entry added.
Full text
Page 1 of 5
Text of page 1 — search, copy, screen readers

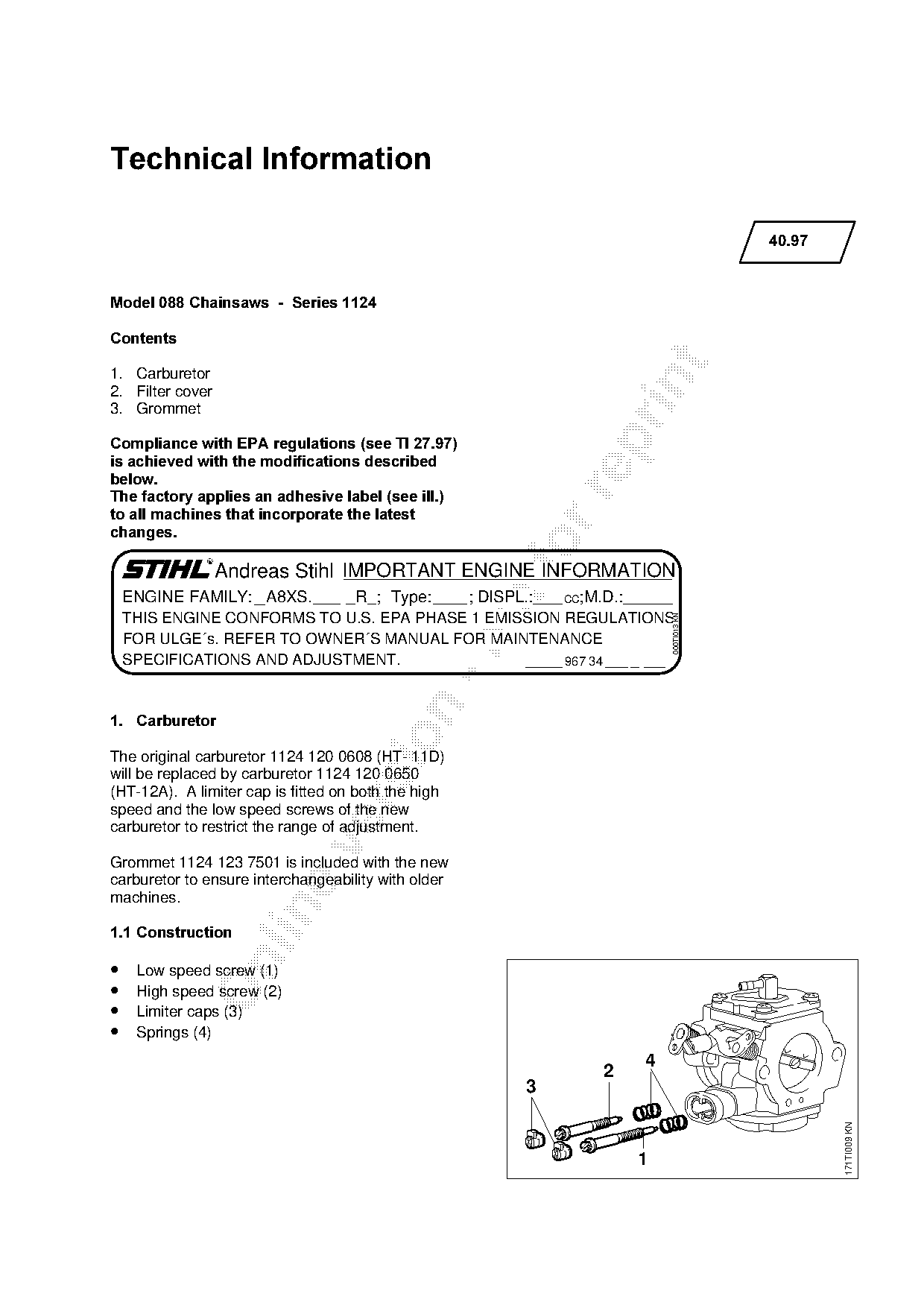

Technical Information
40.97
Model 088 Chainsaws - Series 1124
&RQWHQWV
1. Carburetor
2. Filter cover
3. Grommet
Compliance with EPA regulations =see TI 27.97
is achieved with the modifications described
below.
The factory applies an adhesive label =see ill.
to all machines that incorporate the latest
changes.
Andreas Stihl IMPORTANT ENGINE INFORMATION
ENGINE FAMILY: A8XS. R ; Type: ; DISPL.: CC;M.D.:
THIS ENGINE CONFORMS TO U.S. EPA PHASE 1 EMISSION REGULATIONS
000TI013 KN
FOR ULGE´s. REFER TO OWNER´S MANUAL FOR MAINTENANCE
SPECIFICATIONS AND ADJUSTMENT. 967 34
1.=Carburetor
The original carburetor 1124 120 0608 (HT- 11D)
will be replaced by carburetor 1124 120 0650
(HT-12A). A limiter cap is fitted on both the high
speed and the low speed screws of the new
carburetor to restrict the range of adjustment.
Grommet 1124 123 7501 is included with the new
carburetor to ensure interchangeability with older
machines.
1.1=Construction
• Low speed screw (1)
• High speed screw (2)
• Limiter caps (3)
• Springs (4)
4
2
3
171TI009 KN
1 Page 2 of 5

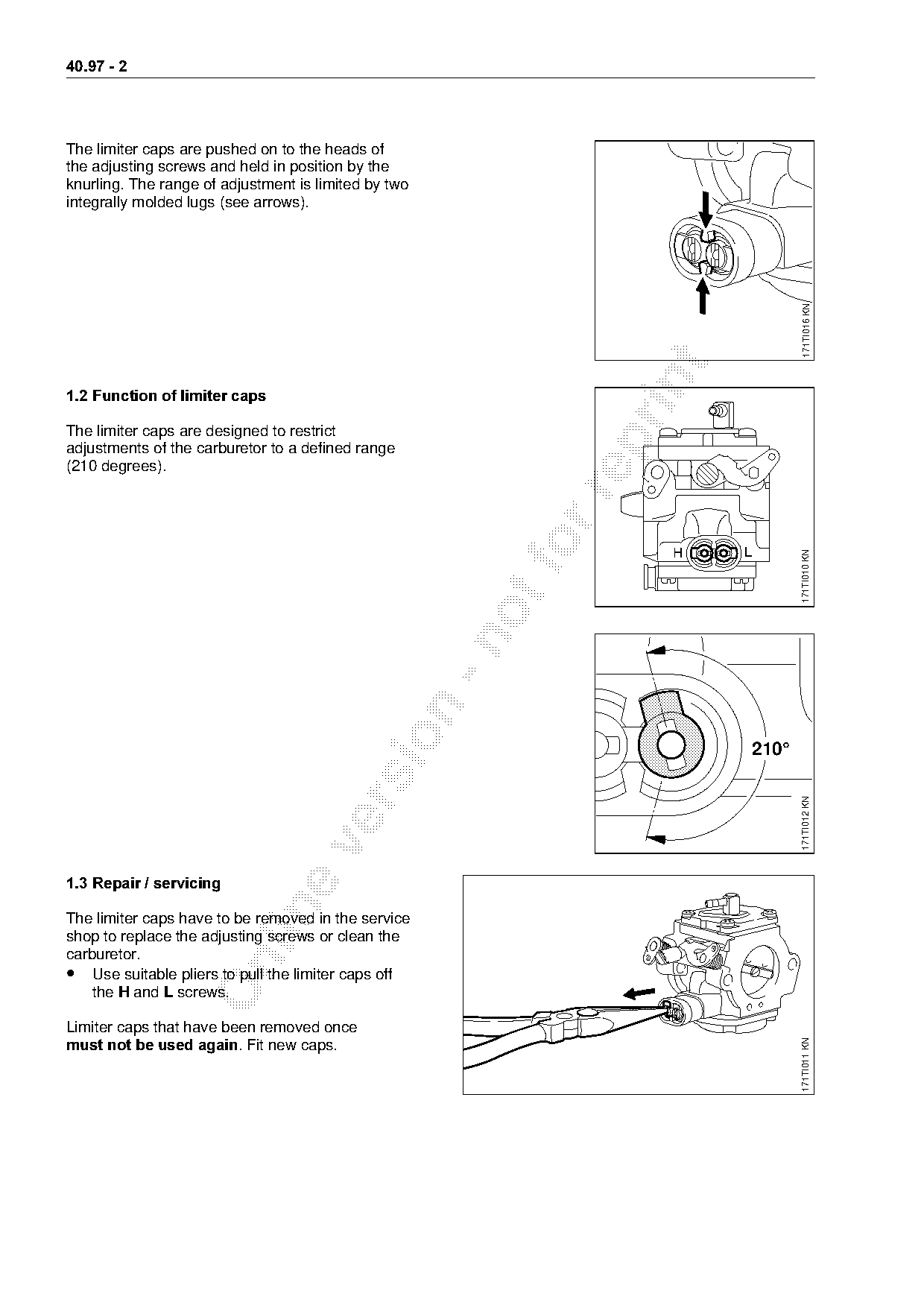

Text of page 2 — search, copy, screen readers
40.97 - 2
The limiter caps are pushed on to the heads of
the adjusting screws and held in position by the
knurling. The range of adjustment is limited by two
integrally molded lugs (see arrows).
171TI016 KN
1.2=Function of limiter caps
The limiter caps are designed to restrict
adjustments of the carburetor to a defined range
(210 degrees).
fo H L
171TI010 KN
210°
171TI012 KN
1.3=Repair / servicing
The limiter caps have to be removed in the service
shop to replace the adjusting screws or clean the
carburetor.
• Use suitable pliers to pull the limiter caps off
the + and / screws.
Limiter caps that have been removed once
must not be used againK=cit=new=c~psK
171TI011 KN Page 3 of 5

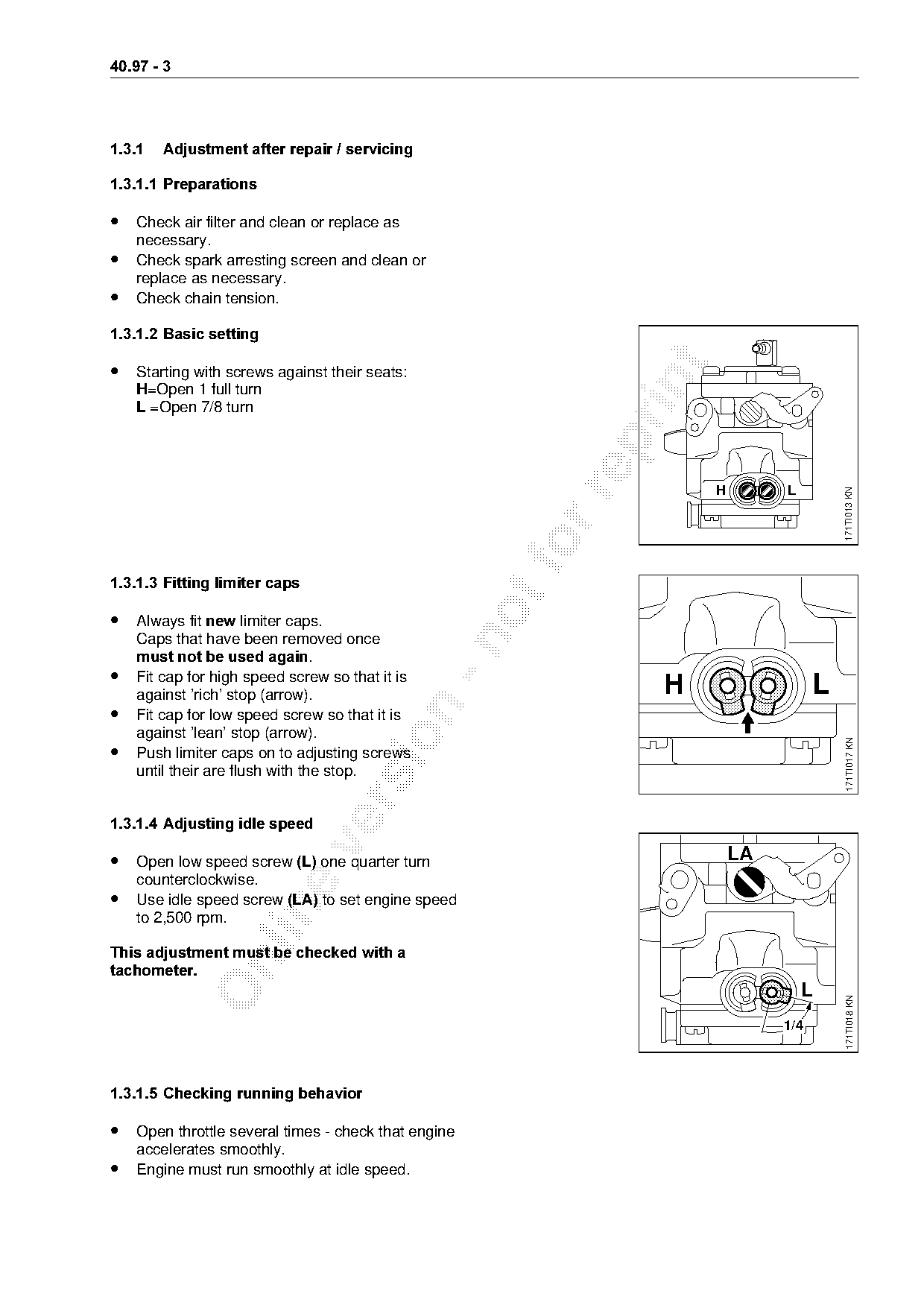

Text of page 3 — search, copy, screen readers
40.97 - 3
1.3.1===Adjustment after repair / servicing
1.3.1.1=Preparations
• Check air filter and clean or replace as
necessary.
• Check spark arresting screen and clean or
replace as necessary.
• Check chain tension.
1.3.1.2=Basic setting
• Starting with screws against their seats:
+=Open 1 full turn
L Zlpen 7/8 turn
H L
171TI013 KN
1.3.1.3=Fitting limiter caps
• Always fit QHZ limiter caps.
Caps that have been removed once
====must not be used againK
• Fit cap for high speed screw so that it is
against ’rich’ stop (arrow). H L
•
Fit cap for low speed screw so that it is
against ’lean’ stop (arrow).
171TI017 KN
• Push limiter caps on to adjusting screws
until their are flush with the stop.
1.3.1.4=Adjusting idle speed
• Open low speed screw / one quarter turn LA
counterclockwise.
• Use idle speed screw /$ to set engine speed
to 2,500 rpm.
This adjustment must be checked with a
tachometer.
171TI018 KN
1/4
1.3.1.5=Checking running behavior
• Open throttle several times - check that engine
accelerates smoothly.
• Engine must run smoothly at idle speed. Page 4 of 5
Text of page 4 — search, copy, screen readers
40.97 - 4
1.4=Instructions for user
The user can adjust the carburetor screw within a
range of 210 degrees.
This enables the mixture to made leaner, if
necessary, for operation at high altitudes.
210°
It is not necessary to enrich the mixture
beyond the limits specified by the EPA.
171TI012 KN
These instructions are exactly the same as those
in the owner’s manual
(chapter "Adjusting Carburetor").
1.5=Fuel =mix ratio
EPA approval was obtained with a fuel/oil mix ratio
of 50:1.
No emission measurements are available for other
mix ratios.
See also TI 27.97
1.6=Federal Emission Control Systems
Utility Engines
See TI 27.97
2.=Filter cover
Replacement filter cover 1124 141 0510 will be
supplied without the carburetor adjustment symbol
in future.
3.=Grommet
Modification of the grommet is necessary in
connection with the new carburetor introduced
above. The original grommet 1124 123 7500 will
be replaced by grommet 1124 123 7501. The new
version of the grommet will be supplied with
carburetor 1124 120 0650 in future. Page 5 of 5

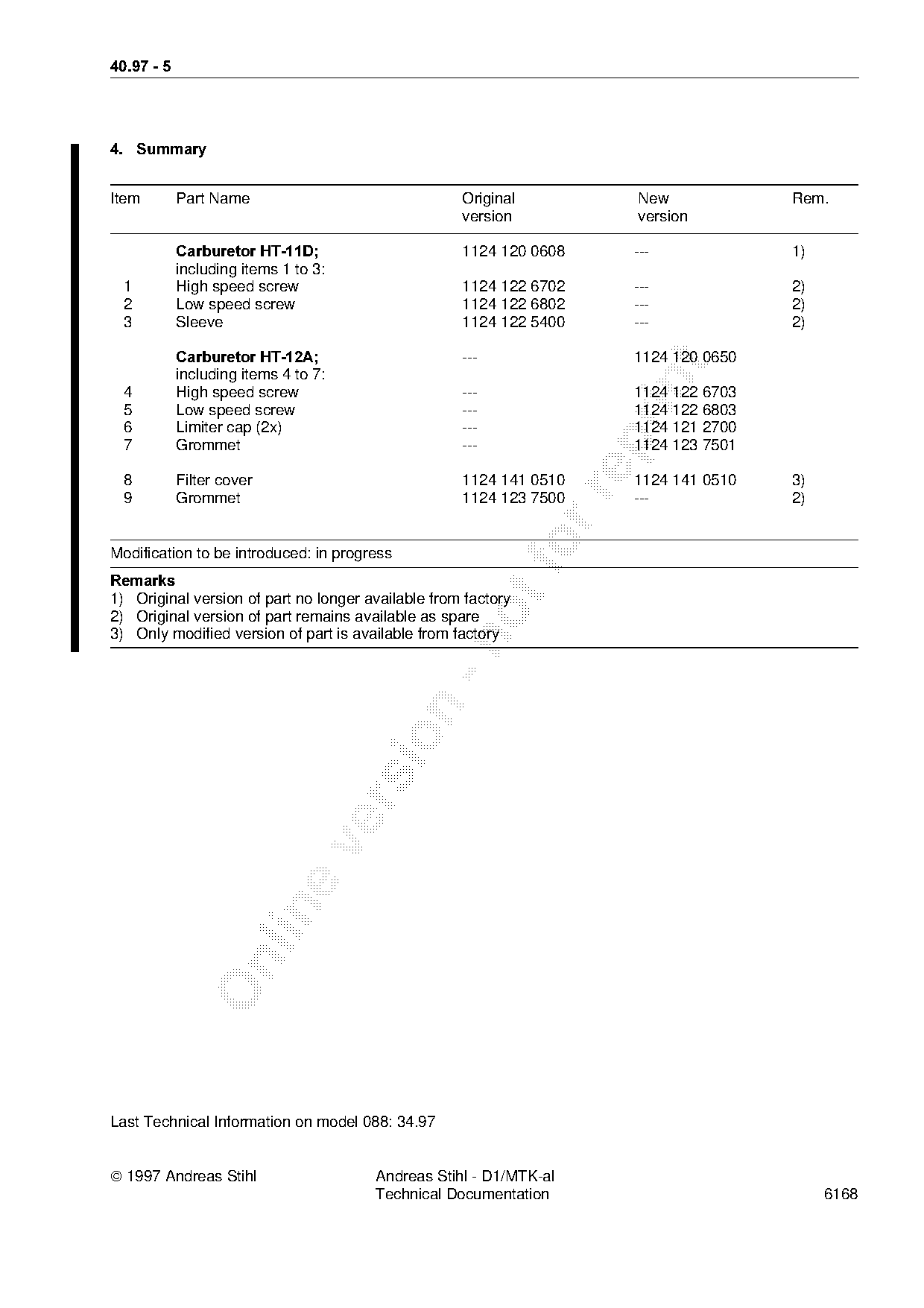

Text of page 5 — search, copy, screen readers
40.97 - 5
4.=Summary
Item Part Name Original New Rem.
version version
============Carburetor HT-11D;======================NNOQ=NOM=MSMU====JJJ=============NF
including items 1 to 3:
1 High speed screw 1124 122 6702 --- 2)
2 Low speed screw 1124 122 6802 --- 2)
3 Sleeve 1124 122 5400 --- 2)
============Carburetor HT-12A;======================JJJ==============NNOQ=NOM=MSRM
including items 4 to 7:
4 High speed screw --- 1124 122 6703
5 Low speed screw --- 1124 122 6803
6 Limiter cap (2x) --- 1124 121 2700
7 Grommet --- 1124 123 7501
8 Filter cover 1124 141 0510 1124 141 0510 3)
9 Grommet 1124 123 7500 --- 2)
Modification to be introduced: in progress fo
5HPDUNV
1) Original version of part no longer available from factory
2) Original version of part remains available as spare
3) Only modified version of part is available from factory
Last Technical Information on model 088: 34.97
1997 Andreas Stihl Andreas Stihl - D1/MTK-al
Technical Documentation 6168 Most of these PDFs embed fonts with a shifted character map, so the text above was recovered rather than copied — read it as a faithful but imperfect transcription, and treat the page image above each block as the authority where the two disagree — the figures exist only there, because they are vector drawings that text extraction cannot keep.
