Technical Information · issue 42 of 1997

New Brushcutters/Clearing Saws

IssueTI 42/1997

Historical fitment & changes

Source-reviewed model notes. An exact-model IPL link is unavailable where stated; no similar model is substituted. Availability statements belong to the bulletin’s date.

Service note · FS 120 / FS 200 / FS 350 / FS 400 / FS 450

FS120/200/350/400/450: introduction and predecessor boundaries

Series4134 and4128 remain distinct; successor status is not parts interchange.

No exact-model IPL link: Whole-machine introduction/specification or original C1Q-S34A/C1Q-S36B evidence; no exact assembly-level equivalence to later catalog configurations is established. Source-only reference does not substitute later carburetor suffixes or extend to FS250/300/480.

  • Cover identifies FS120, FS200 and FS350 as SERIES4134; FS400 and FS450 as SERIES4128. Pictures are captioned FS120 R, FS200, FS350 and FS450 K; pictures do not establish every approved cutting-tool combination.
  • Semi-professional FS120 and FS200 succeed FS88 and FS108 respectively. FS120 is newly developed:1.3 kW/1.8 bhp versus FS88 0.9 kW/1.2 bhp; FS200 1.6 kW/2.2 bhp versus FS108 1.1 kW/1.5 bhp.
  • Professional FS350/400/450 replace the GROUP FS160/180/220/280; the source gives no one-to-one pairing. FS350 engine is described as basically the same as FS120/200, NOT identical displacement or interchangeable parts. Recommended applications remain those of the replaced models.
  • Introduction claims improved comfort, economy, optimized AV, soft non-slip controls, easy start and electronic speed limiting. New comfortable full harness is OPTIONAL, not standard equipment. The compensator/longlife-filter world-first wording is a historical manufacturer claim, not independently verified priority.
  • Historical TI42/1997 configurations only, not all later versions sharing a model name. No hardware operation was performed. No part interchange or numeric serial cutoff is established.

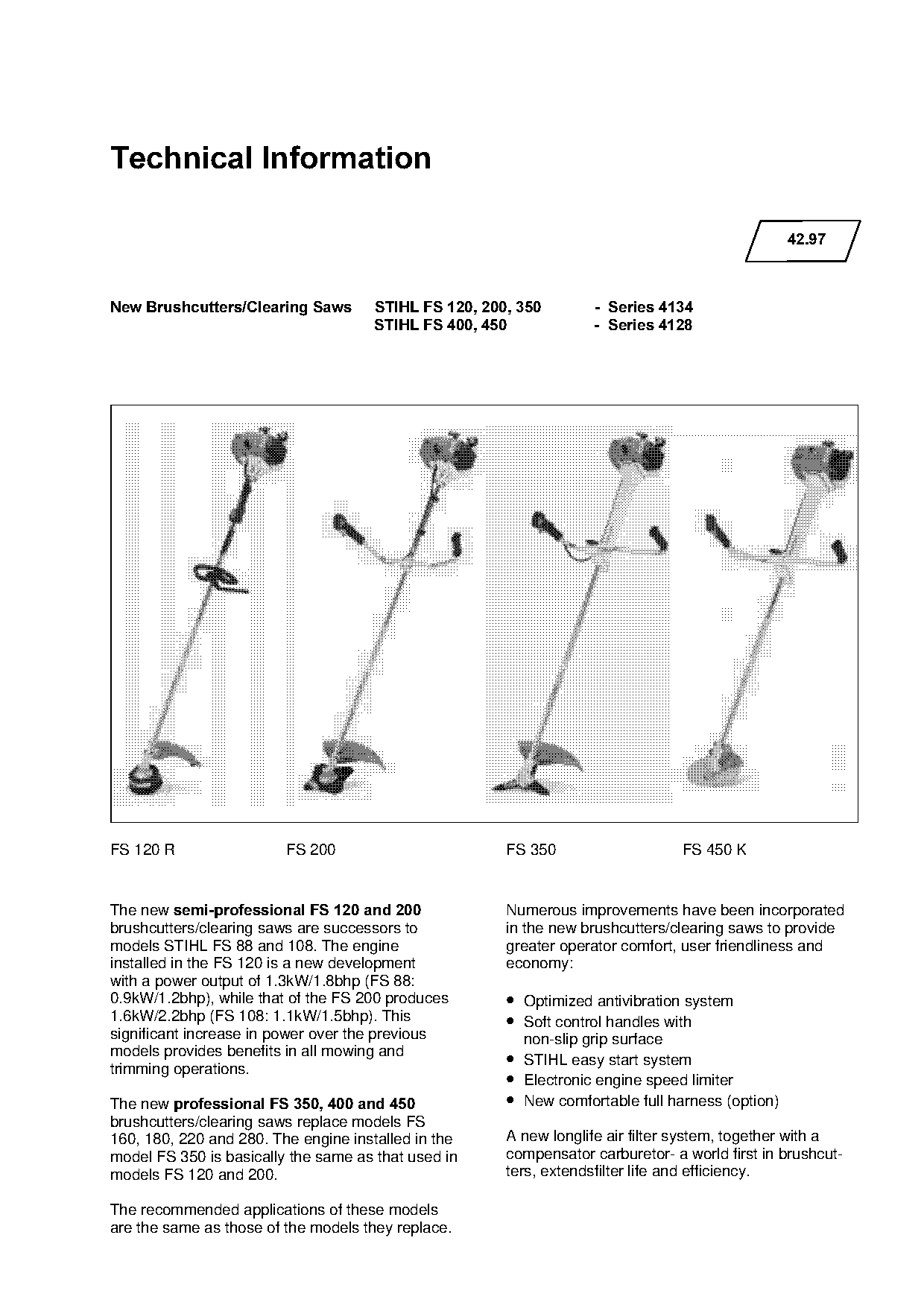

Source: TI 42/1997, p. 1 — Complete cover introduction, photos/captions and feature list.

No additional parts-table entry added.

Service note · FS 120 / FS 200 / FS 350 / FS 400 / FS 450

FS350/400/450: handle adjustment and four-point AV limits

Tool-free rotating bike handles and up-to60% vibration claim are model-limited.

No exact-model IPL link: Whole-machine introduction/specification or original C1Q-S34A/C1Q-S36B evidence; no exact assembly-level equivalence to later catalog configurations is established. Source-only reference does not substitute later carburetor suffixes or extend to FS250/300/480.

  • All named new models have a multifunction handle with soft non-slip grip. Drawing250TI008 KN depicts the control handles but gives no replacement numbers or wiring.
  • ONLY FS350/400/450 are listed for special bike handles for mowing and sawing, tool-free bike-handle adjustment, and swinging the handle parallel to the drive shaft for transport. No permission to interchange mowing/sawing handles or use unapproved cutting tools follows.
  • The newly developed FOUR-POINT AV system is explicitly FS350/400/450. Reduction UP TO60% is the manufacturer comparison claim, not an absolute vibration value, guaranteed improvement or independent measurement. FS120/200 are not assigned this four-point specification.
  • Historical TI42/1997 configurations only, not all later versions sharing a model name. No hardware operation was performed. No part interchange or numeric serial cutoff is established.

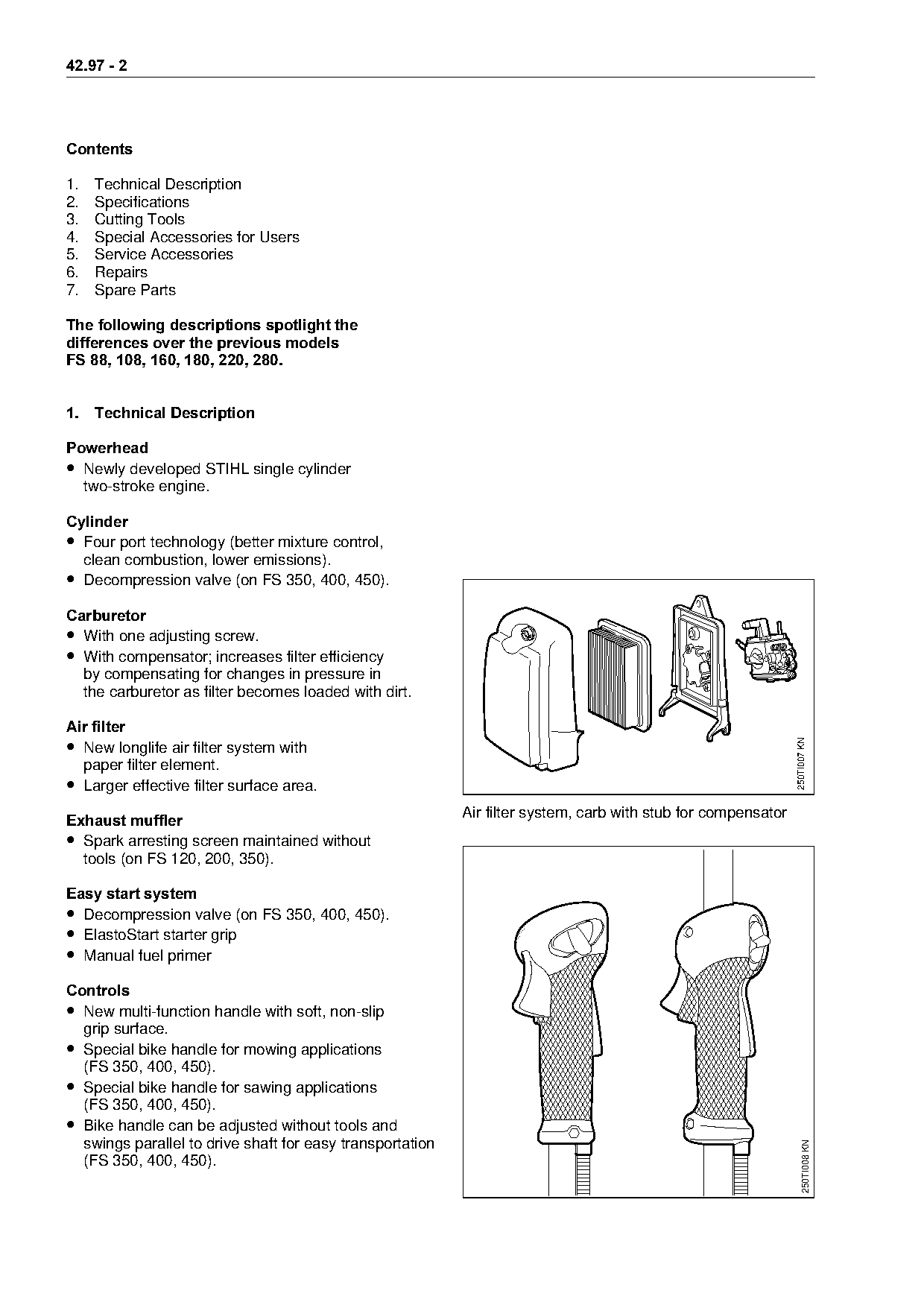

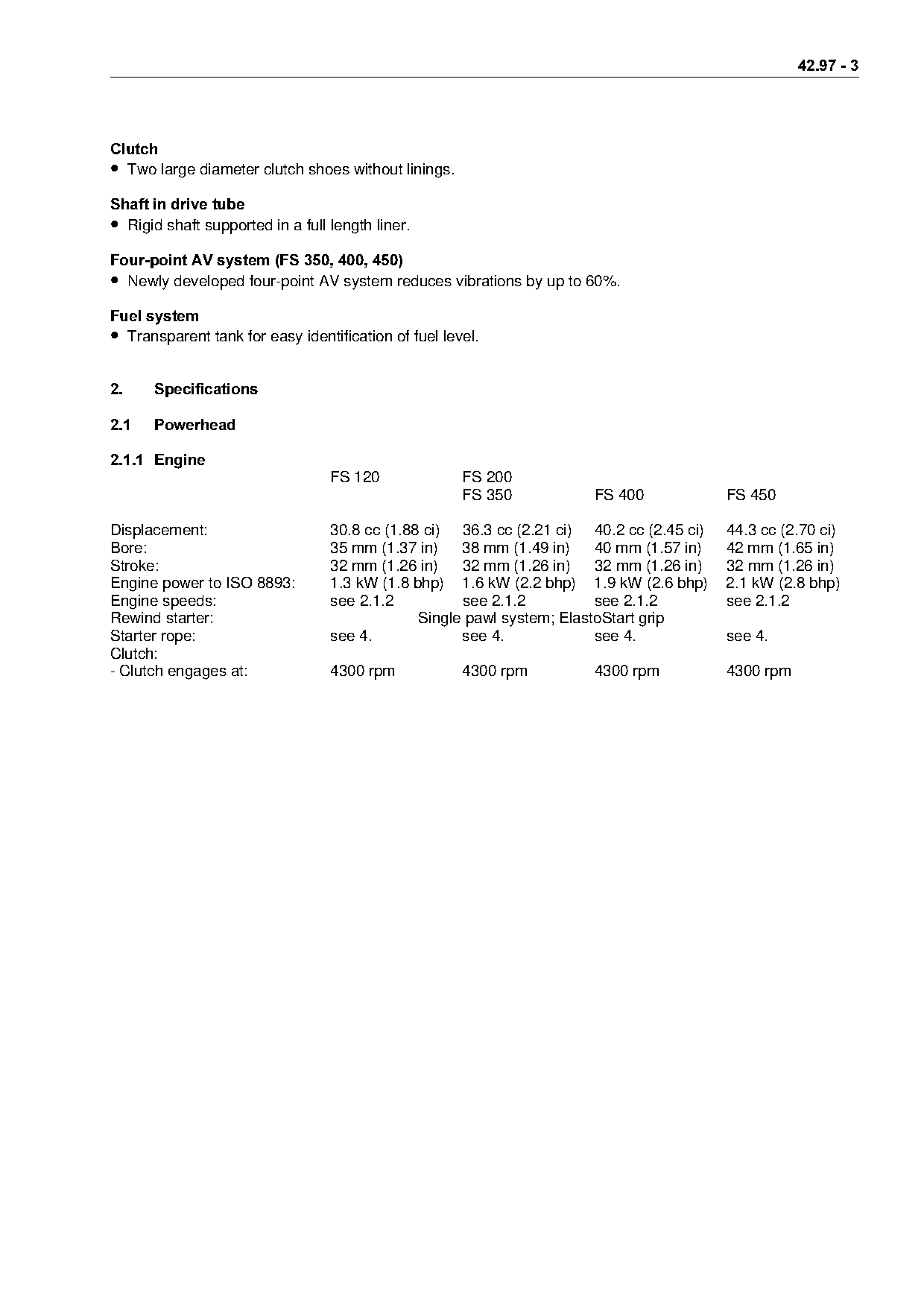

Source: TI 42/1997, p. 2 · TI 42/1997, p. 3 — Section1 controls and250TI008 KN; page3 four-point AV.

No additional parts-table entry added.

Service note · FS 120 / FS 200 / FS 350 / FS 400 / FS 450

FS120/200 bike handle:8,930 rpm output rating, not18,930

Original scan separates engine limiter speed from handle-dependent output speed.

No exact-model IPL link: Whole-machine introduction/specification or original C1Q-S34A/C1Q-S36B evidence; no exact assembly-level equivalence to later catalog configurations is established. Source-only reference does not substitute later carburetor suffixes or extend to FS250/300/480.

  • Section2.1.2 specifies ALL-POSITION DIAPHRAGM CARBURETOR with integral fuel pump, Zama C1Q-S34A/C1Q-S36B, ONE adjusting screw. L standard setting NONE; H standard setting NONE; idle2,800 rpm. It does not map each carburetor suffix to an individual model. Detailed LD adjustment in section6.1.1 remains for the repair review, not a fabricated H/L preset.
  • Electronic cut-off range WITHOUT CUTTING TOOL is11,700–13,300 rpm. It is engine limiting data, NOT the cutting-tool/output-shaft rating or instructions to conduct an unattended no-load test.
  • MAXIMUM RATED OUTPUT-SHAFT SPEED at cutting-tool mounting: FS120/200 BIKE HANDLE8,930 rpm; FS120/200 LOOP HANDLE10,000 rpm; FS350/400/45010,000 rpm. ORIGINAL PAGE4 CLEARLY PRINTS8,930. Extracted body18,930 is a transcription error; body retained unchanged for provenance.
  • Gear ratio: FS120/200 bike handle1.4; FS120/200 loop handle1.235; FS350/400/4501.235. No opposite-direction ratio, replacement gear number or cross-handle interchange is inferred. Cutting-tool approvals/handle restrictions are recorded in the reviewed section3 notes; the speed/ratio table alone does not approve a tool.
  • Later catalog C1Q-S34H, C1Q-S36G and other suffixes are not silently substituted for source C1Q-S34A/C1Q-S36B.
  • Historical TI42/1997 configurations only, not all later versions sharing a model name. No hardware operation was performed. No part interchange or numeric serial cutoff is established.

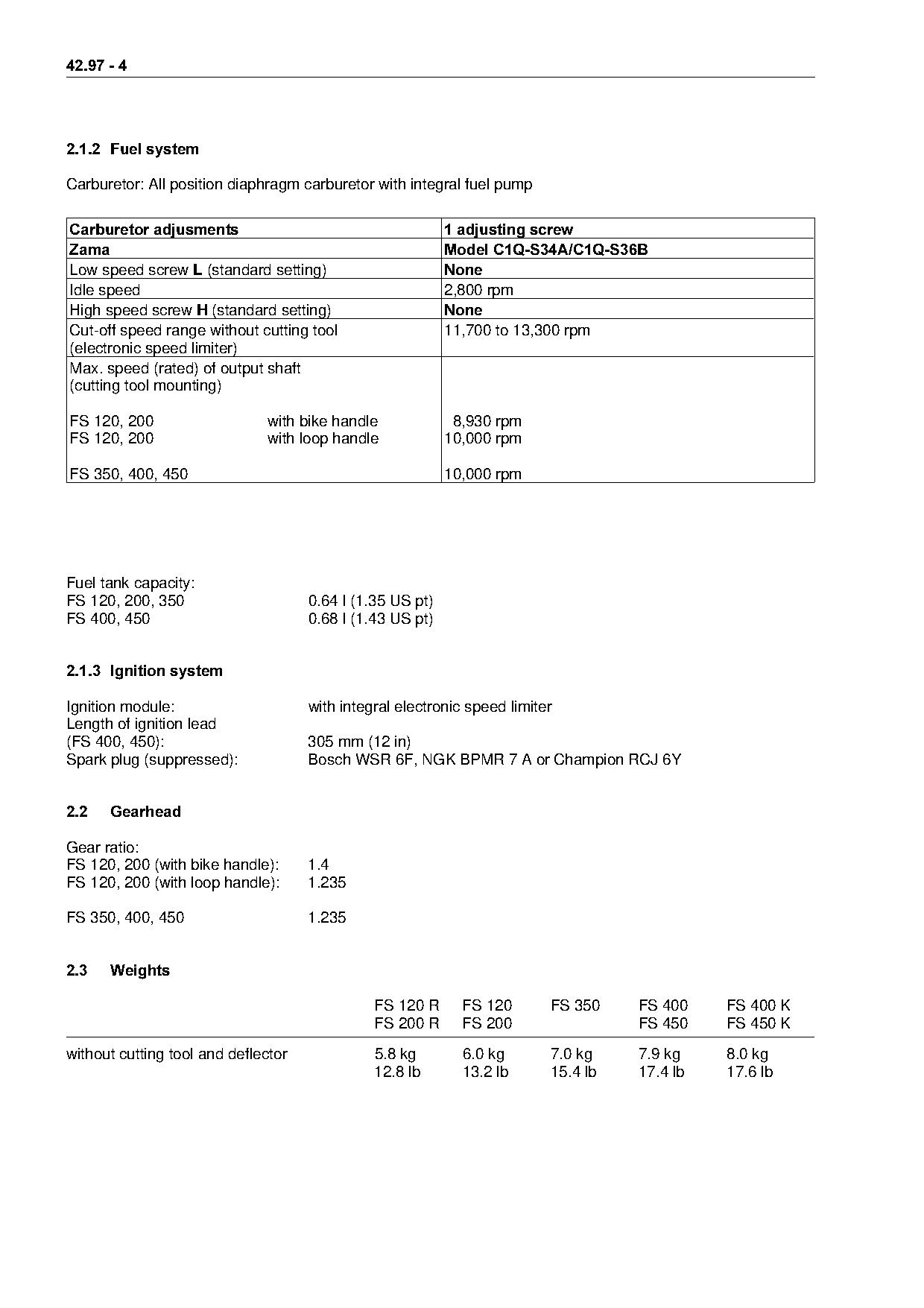

Source: TI 42/1997, p. 4 — Section2.1.2 full carburetor/speed table and section2.2 gear ratios.

No additional parts-table entry added.

Service note · FS 120 R / FS 200 R / FS 120 / FS 200 / FS 350 / FS 400 / FS 450 / FS 400 K / FS 450 K

FS120R through FS450K: weights exclude tool and deflector

Keep R, standard and K columns separate.

No exact-model IPL link: Whole-machine introduction/specification or original C1Q-S34A/C1Q-S36B evidence; no exact assembly-level equivalence to later catalog configurations is established. Source-only reference does not substitute later carburetor suffixes or extend to FS250/300/480.

  • Section2.3 weights are WITHOUT CUTTING TOOL AND DEFLECTOR; source does not say dry, empty tank or ready-to-work weight.
  • FS120 R/FS200 R:5.8 kg (12.8 lb). FS120/FS200:6.0 kg (13.2 lb). FS350:7.0 kg (15.4 lb). FS400/FS450:7.9 kg (17.4 lb). FS400 K/FS450 K:8.0 kg (17.6 lb). Do not assign the K value to standard versions or infer a K shaft length from weight alone.
  • Historical TI42/1997 configurations only, not all later versions sharing a model name. No hardware operation was performed. No part interchange or numeric serial cutoff is established.

Source: TI 42/1997, p. 4 — Section2.3 complete five-column weight table.

No additional parts-table entry added.

Service note · FS 120 / FS 200

FS120/200: five approved cutting heads

1997 order numbers and illustration positions remain distinct from larger-model heads.

No exact-model IPL link: Source identifies machine/tool combinations, not an exact current IPL assembly or a universal accessory retrofit. Preserve the stated handle, model and tool restrictions; shared sheets do not extend this evidence to FS250/300/480.

  • Section3 approves Supercut20-2 (figure1), Autocut25-2 (3), Autocut30-2 (4), Polymatic30-2 (7) and Polycut20-3 (9) for FS120/200. Part-number prefix alone is not compatibility evidence.
  • The shared drawing for positions4,5,6 does NOT make Autocut30-2,40-2 and40-4 interchangeable. Drawings7/8 are likewise separate Polymatic sizes. This list supplies no deflector order number or mounting-adapter substitution. Line choices are separately listed in section4.1.
  • Historical TI42/1997 configurations and listed combinations only; not blanket approval for later variants, present stock or verified physical interchange. No hardware operation was performed.

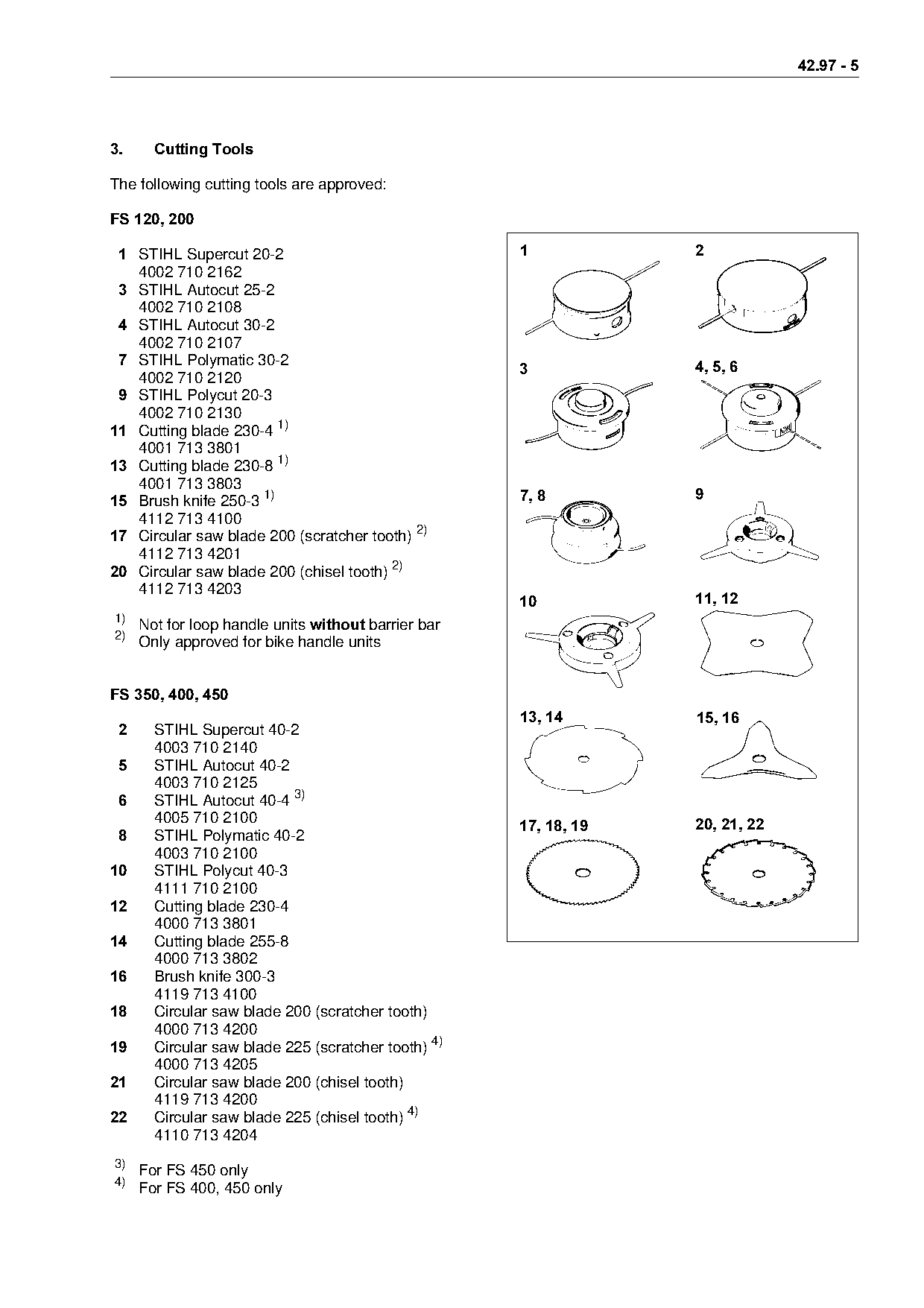

Source: TI 42/1997, p. 5 — Section3 complete FS120/200 nylon-head rows and figures1,3,4,7,9.

Part numbers (5)
  • 4002 710 2162 — Supercut20-2; figure1Historical approved tool or listed accessory · FS120/200 only in this approval list
  • 4002 710 2108 — Autocut25-2; figure3Historical approved tool or listed accessory · FS120/200 only in this approval list
  • 4002 710 2107 — Autocut30-2; figure4Historical approved tool or listed accessory · FS120/200 only in this approval list
  • 4002 710 2120 — Polymatic30-2; figure7Historical approved tool or listed accessory · FS120/200 only in this approval list
  • 4002 710 2130 — Polycut20-3; figure9Historical approved tool or listed accessory · FS120/200 only in this approval list

Service note · FS 120 / FS 200

FS120/200 metal blades: loop handles require a barrier bar

Footnote1 excludes loop-handle units without the barrier bar.

No exact-model IPL link: Source identifies machine/tool combinations, not an exact current IPL assembly or a universal accessory retrofit. Preserve the stated handle, model and tool restrictions; shared sheets do not extend this evidence to FS250/300/480.

  • Cutting blade230-4 (figure11), cutting blade230-8 (13) and brush knife250-3 (15) all carry footnote1: NOT FOR LOOP HANDLE UNITS WITHOUT BARRIER BAR. This conditional exclusion is not an unrestricted approval for every loop handle.
  • The larger-model230-4 number4000 713 3801 is different from FS120/200 number4001 713 3801. Shared figures11/12 and13/14 do not prove identical bores or interchange. No barrier-bar or operating-deflector part number is specified here.
  • Historical TI42/1997 configurations and listed combinations only; not blanket approval for later variants, present stock or verified physical interchange. No hardware operation was performed.

Source: TI 42/1997, p. 5 — Section3 FS120/200 metal-blade rows, footnote1 and figures11,13,15.

Part numbers (3)
  • 4001 713 3801 — Cutting blade230-4; figure11Historical approved tool or listed accessory · FS120/200; NOT loop handle without barrier bar
  • 4001 713 3803 — Cutting blade230-8; figure13Historical approved tool or listed accessory · FS120/200; NOT loop handle without barrier bar
  • 4112 713 4100 — Brush knife250-3; figure15Historical approved tool or listed accessory · FS120/200; NOT loop handle without barrier bar

Service note · FS 120 / FS 200

FS120/200 circular saws: bike handles only

A barrier bar does not waive the separate bike-handle restriction.

No exact-model IPL link: Source identifies machine/tool combinations, not an exact current IPL assembly or a universal accessory retrofit. Preserve the stated handle, model and tool restrictions; shared sheets do not extend this evidence to FS250/300/480.

  • Circular saw blade200 scratcher tooth (figure17) and200 chisel tooth (20) both carry footnote2: ONLY APPROVED FOR BIKE HANDLE UNITS. Do not transfer the less restrictive footnote1 from cutting/brush blades to these circular saws.
  • No225 mm circular saw is listed for FS120/200. Figure groups17/18/19 and20/21/22 are visual families, not approval of every depicted blade on every listed model.
  • Historical TI42/1997 configurations and listed combinations only; not blanket approval for later variants, present stock or verified physical interchange. No hardware operation was performed.

Source: TI 42/1997, p. 5 — Section3 FS120/200 saw rows, footnote2 and figures17,20.

Part numbers (2)
  • 4112 713 4201 — Circular saw blade200, scratcher tooth; figure17Historical approved tool or listed accessory · FS120/200 BIKE HANDLE ONLY
  • 4112 713 4203 — Circular saw blade200, chisel tooth; figure20Historical approved tool or listed accessory · FS120/200 BIKE HANDLE ONLY

Service note · FS 350 / FS 400 / FS 450

FS350/400/450: four shared approved cutting heads

Autocut40-4 has a separate FS450-only restriction.

No exact-model IPL link: Source identifies machine/tool combinations, not an exact current IPL assembly or a universal accessory retrofit. Preserve the stated handle, model and tool restrictions; shared sheets do not extend this evidence to FS250/300/480.

  • Common listed heads are Supercut40-2 (figure2), Autocut40-2 (5), Polymatic40-2 (8) and Polycut40-3 (10). The neighboring Autocut40-4 row is NOT approval for FS350/400; it is restricted separately by footnote3.
  • Supercut40-2 figure2 and Polycut40-3 figure10 remain distinct from smaller-model figures1/9. Shared drawings do not establish mounting interchange. See section4.1 for head-specific line diameter/color; not all40-series heads take the same line.
  • Historical TI42/1997 configurations and listed combinations only; not blanket approval for later variants, present stock or verified physical interchange. No hardware operation was performed.

Source: TI 42/1997, p. 5 — Section3 FS350/400/450 common cutting heads and figures2,5,8,10.

Part numbers (4)
  • 4003 710 2140 — Supercut40-2; figure2Historical approved tool or listed accessory · FS350/400/450 in this approval list
  • 4003 710 2125 — Autocut40-2; figure5Historical approved tool or listed accessory · FS350/400/450 in this approval list
  • 4003 710 2100 — Polymatic40-2; figure8Historical approved tool or listed accessory · FS350/400/450 in this approval list
  • 4111 710 2100 — Polycut40-3; figure10Historical approved tool or listed accessory · FS350/400/450 in this approval list

Service note · FS 450

Autocut40-4 4005 710 2100: FS450 only

The original scan resolves the encoded extracted order number.

No exact-model IPL link: Source identifies machine/tool combinations, not an exact current IPL assembly or a universal accessory retrofit. Preserve the stated handle, model and tool restrictions; shared sheets do not extend this evidence to FS250/300/480.

  • Autocut40-4 (figure6) carries footnote3: FOR FS450 ONLY. Being printed beneath the FS350/400/450 group header does not approve it for FS350 or FS400.
  • Original page5 clearly prints4005 710 2100; encoded extraction QMMR TNM ONMM is not an alternative order number. Canonical extracted source remains unchanged. Shared drawing4/5/6 is not a common-part assertion.
  • Historical TI42/1997 configurations and listed combinations only; not blanket approval for later variants, present stock or verified physical interchange. No hardware operation was performed.

Source: TI 42/1997, p. 5 — Section3 Autocut40-4 row, footnote3 and figure6; scan-confirmed number.

Part numbers (1)
  • 4005 710 2100 — Autocut40-4; figure6Historical approved tool or listed accessory · FS450 ONLY; footnote3

Service note · FS 350 / FS 400 / FS 450

FS350/400/450: metal blades and200 mm circular saws

Listed dimensions and tooth forms are not inferred from shared illustrations.

No exact-model IPL link: Source identifies machine/tool combinations, not an exact current IPL assembly or a universal accessory retrofit. Preserve the stated handle, model and tool restrictions; shared sheets do not extend this evidence to FS250/300/480.

  • Common approved metal tools: cutting blade230-4 (figure12), cutting blade255-8 (14), brush knife300-3 (16), circular saw200 scratcher tooth (18) and200 chisel tooth (21). No larger-model row here carries the small-model footnotes1/2; do not invent a loop-handle conversion from their absence.
  • The adjacent225 mm circular saw rows are separately restricted to FS400/450. A shared silhouette does not substitute230-8 for255-8,250-3 for300-3 or smaller-model saw order numbers.
  • Historical TI42/1997 configurations and listed combinations only; not blanket approval for later variants, present stock or verified physical interchange. No hardware operation was performed.

Source: TI 42/1997, p. 5 — Section3 FS350/400/450 metal-tool rows and figures12,14,16,18,21.

Part numbers (5)
  • 4000 713 3801 — Cutting blade230-4; figure12Historical approved tool or listed accessory · FS350/400/450; listed tool size and tooth form only
  • 4000 713 3802 — Cutting blade255-8; figure14Historical approved tool or listed accessory · FS350/400/450; listed tool size and tooth form only
  • 4119 713 4100 — Brush knife300-3; figure16Historical approved tool or listed accessory · FS350/400/450; listed tool size and tooth form only
  • 4000 713 4200 — Circular saw200 scratcher tooth; figure18Historical approved tool or listed accessory · FS350/400/450; listed tool size and tooth form only
  • 4119 713 4200 — Circular saw200 chisel tooth; figure21Historical approved tool or listed accessory · FS350/400/450; listed tool size and tooth form only

Service note · FS 400 / FS 450

225 mm circular saws: FS400/450 only

Footnote4 excludes FS350 despite the common group header.

No exact-model IPL link: Source identifies machine/tool combinations, not an exact current IPL assembly or a universal accessory retrofit. Preserve the stated handle, model and tool restrictions; shared sheets do not extend this evidence to FS250/300/480.

  • Both circular saw225 scratcher tooth (figure19) and225 chisel tooth (22) carry footnote4: FOR FS400,450 ONLY. They are not listed as approved for FS350 or FS120/200.
  • The200 mm and225 mm blades sharing a tooth-form illustration remain different size/order-number entries. No arbor dimensions, adapter kit or generic enlargement is established.
  • Historical TI42/1997 configurations and listed combinations only; not blanket approval for later variants, present stock or verified physical interchange. No hardware operation was performed.

Source: TI 42/1997, p. 5 — Section3 225 mm rows, footnote4 and figures19,22.

Part numbers (2)
  • 4000 713 4205 — Circular saw225 scratcher tooth; figure19Historical approved tool or listed accessory · FS400/450 ONLY; footnote4
  • 4110 713 4204 — Circular saw225 chisel tooth; figure22Historical approved tool or listed accessory · FS400/450 ONLY; footnote4

Service note · FS 120 / FS 200 / FS 350 / FS 400 / FS 450

Metal-tool transport guards: three different coverage statements

Transport protection is not an operating deflector or tool approval.

No exact-model IPL link: Source identifies machine/tool combinations, not an exact current IPL assembly or a universal accessory retrofit. Preserve the stated handle, model and tool restrictions; shared sheets do not extend this evidence to FS250/300/480.

  • Section4 lists4116 790 3900 FOR ALL METAL CUTTING TOOLS. Keep this broad historical wording alongside, not in place of, the two narrower entries.
  • 4119 790 3906: cutting blades230-4 and255-8, plus circular saw225 in scratcher AND chisel tooth.4119 790 3901: circular saw200 AND225 in scratcher AND chisel tooth. Overlapping225 coverage is retained; the source gives no supersession chain or preference.
  • These are TRANSPORT GUARDS. They do not authorize running with a transport guard, replace an operating deflector, override section3 machine/handle limits, or approve every tool on every model.
  • Historical TI42/1997 configurations and listed combinations only; not blanket approval for later variants, present stock or verified physical interchange. No hardware operation was performed.

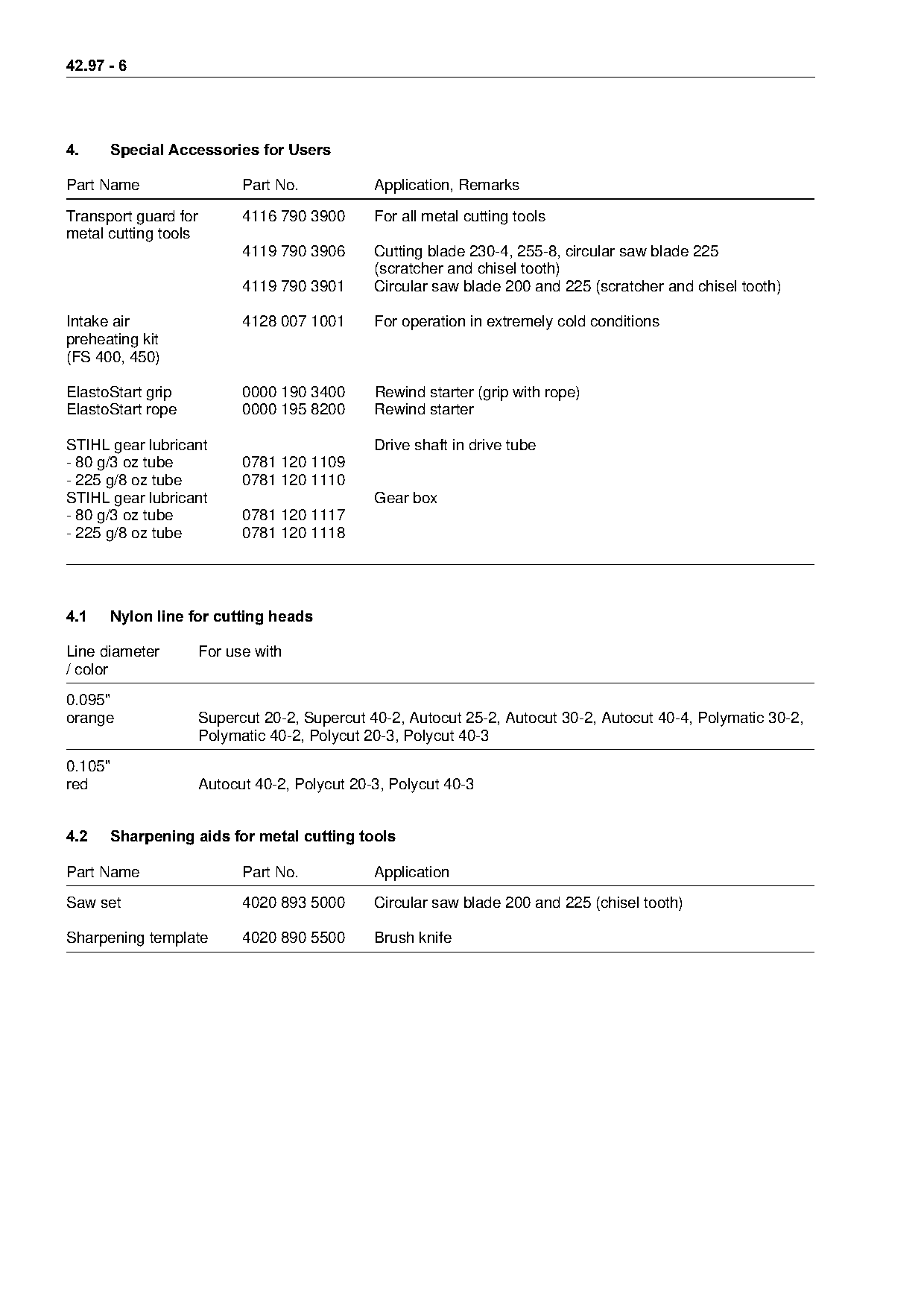

Source: TI 42/1997, p. 6 — Section4 all three transport-guard rows and complete remarks.

Part numbers (3)
  • 4116 790 3900 — Transport guard for metal cutting toolsHistorical approved tool or listed accessory · Source: all metal cutting tools
  • 4119 790 3906 — Transport guardHistorical approved tool or listed accessory · 230-4,255-8;225 circular saw scratcher/chisel
  • 4119 790 3901 — Transport guardHistorical approved tool or listed accessory · 200/225 circular saw scratcher/chisel

Service note · FS 400 / FS 450

FS400/450 intake preheating: extreme-cold accessory

4128 007 1001 is not listed for FS120/200/350.

No exact-model IPL link: Source identifies machine/tool combinations, not an exact current IPL assembly or a universal accessory retrofit. Preserve the stated handle, model and tool restrictions; shared sheets do not extend this evidence to FS250/300/480.

  • Section4 specifies INTAKE AIR PREHEATING KIT4128 007 1001 for FS400,450 and operation in EXTREMELY COLD CONDITIONS. No temperature threshold, kit contents, installation steps or all-season use is given.
  • This is intake-air preheating, not evidence of electrically heated handles or a universal cold-weather retrofit. No exact current IPL assembly equivalence has been established.
  • Historical TI42/1997 configurations and listed combinations only; not blanket approval for later variants, present stock or verified physical interchange. No hardware operation was performed.

Source: TI 42/1997, p. 6 — Section4 intake-air preheating kit row and model restriction.

Part numbers (1)
  • 4128 007 1001 — Intake air preheating kitHistorical approved tool or listed accessory · FS400/450; extremely cold conditions

Service note · FS 120 / FS 200 / FS 350 / FS 400 / FS 450

Drive-shaft and gearbox lubricants: keep the order numbers separate

Both are labeled STIHL gear lubricant, but their applications differ.

No exact-model IPL link: Source identifies machine/tool combinations, not an exact current IPL assembly or a universal accessory retrofit. Preserve the stated handle, model and tool restrictions; shared sheets do not extend this evidence to FS250/300/480.

  • For DRIVE SHAFT IN DRIVE TUBE:80 g/3 oz tube0781 120 1109;225 g/8 oz tube0781 120 1110. For GEAR BOX:80 g/3 oz tube0781 120 1117;225 g/8 oz tube0781 120 1118.
  • Identical printed product-name wording is not proof of identical formulation or interchange. Tube masses are package sizes, not fill quantities. No grease interval, dose, torque or mixing permission is supplied in this table.
  • Historical TI42/1997 configurations and listed combinations only; not blanket approval for later variants, present stock or verified physical interchange. No hardware operation was performed.

Source: TI 42/1997, p. 6 — Section4 both lubricant groups, all four package sizes and application columns.

Part numbers (4)
  • 0781 120 1109 — STIHL gear lubricant80 g/3 ozHistorical approved tool or listed accessory · Drive shaft in drive tube
  • 0781 120 1110 — STIHL gear lubricant225 g/8 ozHistorical approved tool or listed accessory · Drive shaft in drive tube
  • 0781 120 1117 — STIHL gear lubricant80 g/3 ozHistorical approved tool or listed accessory · Gear box
  • 0781 120 1118 — STIHL gear lubricant225 g/8 ozHistorical approved tool or listed accessory · Gear box

Service note · FS 120 / FS 200 / FS 350 / FS 400 / FS 450

Cutting-head line:0.095 inch orange versus0.105 inch red

Polycut20-3/40-3 appear in both rows; Autocut40-2 does not.

No exact-model IPL link: Source identifies machine/tool combinations, not an exact current IPL assembly or a universal accessory retrofit. Preserve the stated handle, model and tool restrictions; shared sheets do not extend this evidence to FS250/300/480.

  • Section4.1 ORANGE0.095 inch line: Supercut20-2, Supercut40-2, Autocut25-2, Autocut30-2, Autocut40-4, Polymatic30-2, Polymatic40-2, Polycut20-3 and Polycut40-3.
  • RED0.105 inch line: Autocut40-2, Polycut20-3 and Polycut40-3. Both Polycut heads appear in BOTH diameter rows. Autocut40-4 is in the orange row, unlike Autocut40-2 in the red row.
  • The table gives no line order numbers, spool capacities or operating line lengths. Head-specific line selection does not extend machine approval: Autocut40-4 remains FS450-only under section3.
  • Historical TI42/1997 configurations and listed combinations only; not blanket approval for later variants, present stock or verified physical interchange. No hardware operation was performed.

Source: TI 42/1997, p. 5 · TI 42/1997, p. 6 — Section4.1 complete two-row diameter/color and cutting-head matrix.

No additional parts-table entry added.

Service note · FS 120 / FS 200 / FS 350 / FS 400 / FS 450

Saw set and brush-knife template: different tools and applications

The saw-set entry is limited to chisel-tooth circular saws.

No exact-model IPL link: Source identifies machine/tool combinations, not an exact current IPL assembly or a universal accessory retrofit. Preserve the stated handle, model and tool restrictions; shared sheets do not extend this evidence to FS250/300/480.

  • Section4.2 SAW SET4020 893 5000 is for circular saw blades200 AND225, CHISEL TOOTH. Scratcher tooth is not included in that application entry.
  • SHARPENING TEMPLATE4020 890 5500 is for BRUSH KNIFE. It is not the installing-tool drilling template delegated to section5.1.1/page11. No tooth-set amount, sharpening angle or file size is supplied here. Section3 machine/tool restrictions still apply.
  • Historical TI42/1997 configurations and listed combinations only; not blanket approval for later variants, present stock or verified physical interchange. No hardware operation was performed.

Source: TI 42/1997, p. 6 — Section4.2 complete sharpening-aid rows and applications.

Part numbers (2)
  • 4020 893 5000 — Saw setHistorical approved tool or listed accessory · 200/225 circular saw blades, CHISEL TOOTH
  • 4020 890 5500 — Sharpening templateHistorical approved tool or listed accessory · Brush knife

Service note · FS 120 / FS 200 / FS 350 / FS 400 / FS 450

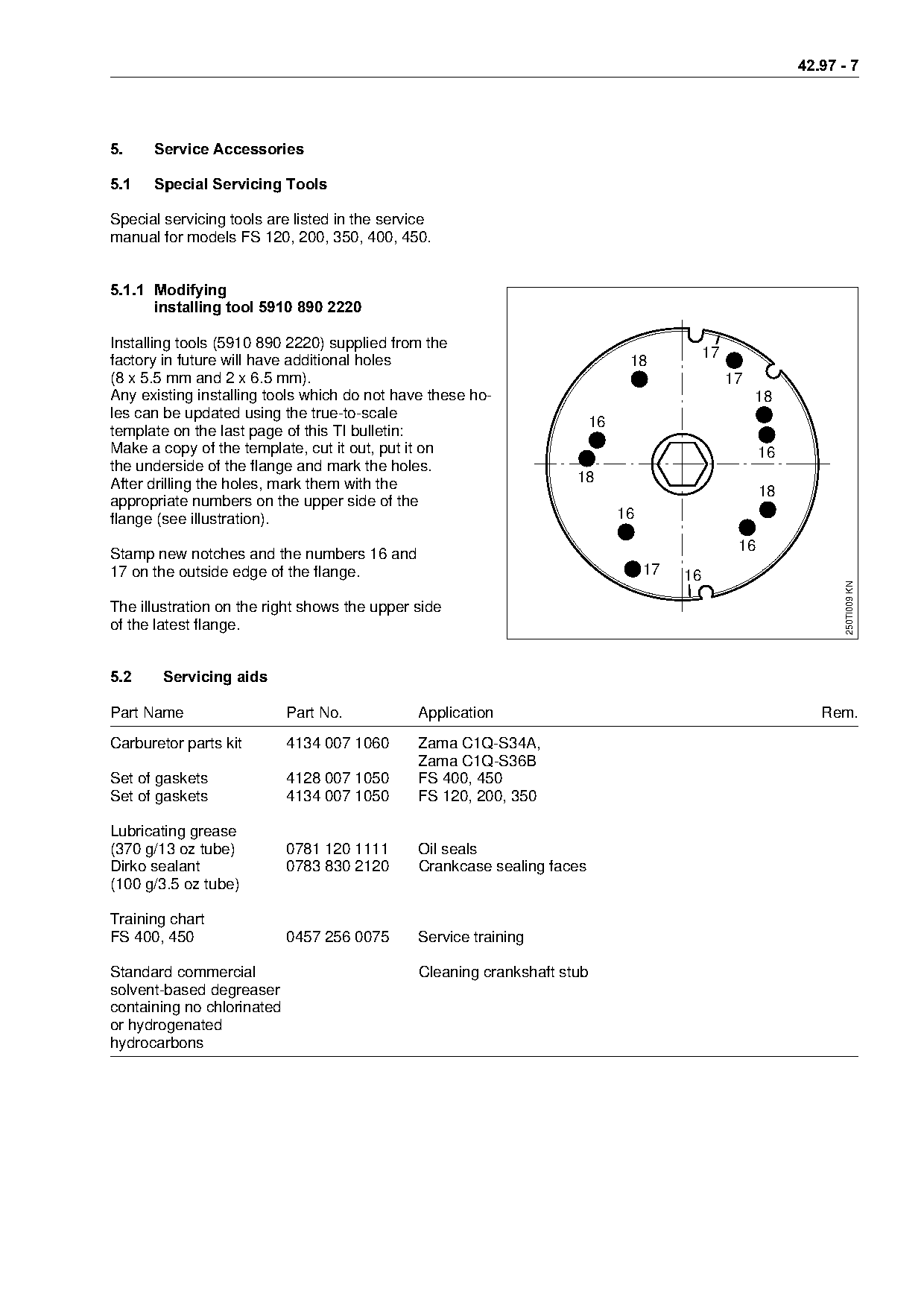

Installing tool 5910 890 2220: underside template and upper-side markings

Eight 5.5 mm and two 6.5 mm additional holes; use the correct face.

No exact-model IPL link: Source identifies historical model-level service guidance, not an exact current IPL assembly. No later model or unlisted application is inferred.

  • Section 5.1.1 says future factory-supplied tools 5910 890 2220 have 10 additional holes: 8 × 5.5 mm and 2 × 6.5 mm. Existing tools lacking these holes can be updated using the true-to-scale template on page 11.

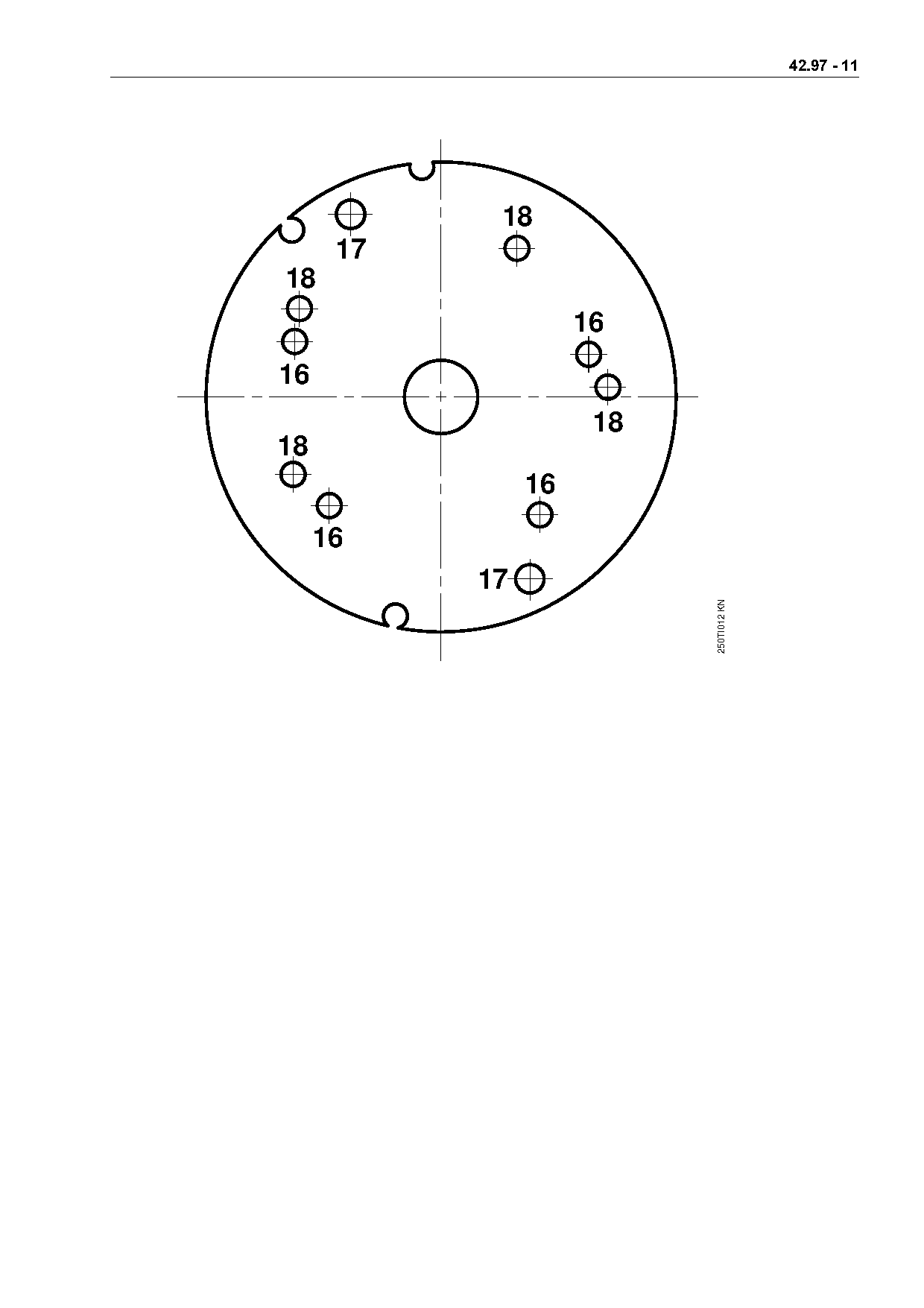

  • Source sequence: copy and cut out the template, place it on the UNDERSIDE of the flange and mark the holes. After drilling, mark the appropriate numbers on the UPPER side. Stamp new notches and numbers 16 and 17 on the outside edge.
  • Page 7 figure 250TI009 KN shows the UPPER side of the latest flange; page 11 figure 250TI012 KN is the paired underside template. The ten hole positions carry four 16 labels, two 17 labels and four 18 labels. The separate rim 16/17 markings are not additional holes. Keep the mirrored face orientation; do not use the top view as the underside drilling pattern.
  • The source calls its original template true-to-scale, but displayed/exported image size has not been calibrated as a physical drilling template. No center coordinates, flange diameter or hole-number-to-machine mapping are supplied here. This is not proof of a manufactured/validated modified tool.
  • TI42/1997 historical configurations only. No hardware operation was performed. These notes do not establish current stock, later-model compatibility or a complete standalone repair procedure.

Source: TI 42/1997, p. 7 · TI 42/1997, p. 11 — Section5.1.1 complete modification instructions and upper-side figure250TI009 KN; complete page11 template250TI012 KN.

Part numbers (1)
  • 5910 890 2220 — Installing tool; flange modificationHistorical servicing tool or aid · Existing tool without specified holes; TI42 section5.1.1

Service note · FS 120 / FS 200 / FS 350 / FS 400 / FS 450

FS servicing kits: exact carburetors and two gasket groups

4134 007 1060 is listed for C1Q-S34A and C1Q-S36B.

No exact-model IPL link: Historical source-model guidance only. Current IPL carburetor suffixes differ from C1Q-S34A/S36B; no later suffix, FS250/300/480 or universal tool/kit compatibility is inferred.

  • Section 5.2 lists carburetor parts kit 4134 007 1060 for Zama C1Q-S34A AND C1Q-S36B. The suffixes are part of the applicability statement; later C1Q-S34H or C1Q-S36G catalog sheets are not equivalent evidence.
  • Gasket set 4128 007 1050 applies to FS400/450; gasket set 4134 007 1050 applies to FS120/200/350. The table gives neither set contents nor permission to substitute one set for the other. Shared current series do not add FS250/300/480.
  • TI42/1997 historical configurations only. No hardware operation was performed. These notes do not establish current stock, later-model compatibility or a complete standalone repair procedure.

Source: TI 42/1997, p. 7 — Section5.2 carburetor parts kit and both gasket-set rows.

Part numbers (3)
  • 4134 007 1060 — Carburetor parts kitHistorical servicing tool or aid · Zama C1Q-S34A, C1Q-S36B
  • 4128 007 1050 — Set of gasketsHistorical servicing tool or aid · FS400/450
  • 4134 007 1050 — Set of gasketsHistorical servicing tool or aid · FS120/200/350

Service note · FS 120 / FS 200 / FS 350 / FS 400 / FS 450

FS oil-seal grease, crankcase sealant and stub cleaning

Keep oil seals, sealing faces and crankshaft-stub preparation distinct.

No exact-model IPL link: Source identifies historical model-level service guidance, not an exact current IPL assembly. No later model or unlisted application is inferred.

  • Section 5.2 lubricating grease 0781 120 1111: 370 g/13 oz tube, application OIL SEALS. Dirko sealant 0783 830 2120: 100 g/3.5 oz tube, application CRANKCASE SEALING FACES. Package sizes are not application quantities; this table gives no curing time or bead thickness.
  • For CLEANING CRANKSHAFT STUB the scan specifies standard commercial solvent-based degreaser containing NO CHLORINATED OR HYDROGENATED HYDROCARBONS. Preserve the printed hydrogenated wording, rather than silently replacing it with a different chemistry term. No order number is listed for the degreaser.
  • The oil-seal grease is not the drive-shaft/gearbox lubricant from section 4. Cleaning instructions do not establish a particular solvent brand, rubber/plastic compatibility or a general immersion-cleaning method.
  • TI42/1997 historical configurations only. No hardware operation was performed. These notes do not establish current stock, later-model compatibility or a complete standalone repair procedure.

Source: TI 42/1997, p. 7 — Section5.2 complete grease, sealant and solvent-based degreaser rows.

Part numbers (2)
  • 0781 120 1111 — Lubricating grease; 370 g/13 ozHistorical servicing tool or aid · Oil seals
  • 0783 830 2120 — Dirko sealant; 100 g/3.5 ozHistorical servicing tool or aid · Crankcase sealing faces

Service note · FS 400 / FS 450

FS400/450 training chart 0457 256 0075

A service-training aid, not the model service manual.

No exact-model IPL link: Source identifies historical model-level service guidance, not an exact current IPL assembly. No later model or unlisted application is inferred.

  • Section 5.2 lists training chart FS400,450, order 0457 256 0075, application SERVICE TRAINING. The row does not list FS120/200/350 or identify it as a repair manual.
  • Chart contents are not reproduced in this bulletin; the item listing establishes its historical application, not approval of any unprovided chart procedure.
  • TI42/1997 historical configurations only. No hardware operation was performed. These notes do not establish current stock, later-model compatibility or a complete standalone repair procedure.

Source: TI 42/1997, p. 7 — Section5.2 complete training-chart row.

Part numbers (1)
  • 0457 256 0075 — FS400/450 training chartHistorical servicing tool or aid · Service training

Service note · FS 120 / FS 200 / FS 350 / FS 400 / FS 450

FS repair documents: model manual and separate handbooks

The model manual is not said to contain every repair chapter.

No exact-model IPL link: Source identifies historical model-level service guidance, not an exact current IPL assembly. No later model or unlisted application is inferred.

  • Section 5.1 directs the special-servicing-tool list to the service manual for FS120/200/350/400/450. Section 6 states that a service manual is available for servicing and repair procedures.
  • The bulletin explicitly says that manual does NOT include Servicing the Carburetor, Troubleshooting, or repairs involving standard procedures; those are in SEPARATE HANDBOOKS. No handbook edition, order number or detailed procedure is provided here.
  • If a unit is started during repair or maintenance, section 6 requires strict observance of local/national safety regulations and the precautions in the OWNER’S MANUAL. The TI is not a substitute for those precautions.
  • This note preserves document-scope statements only, not a claim that referenced manuals were imported or their omitted procedures reviewed. The numeric torque and full tool-list dependencies remain pending exact-edition assessment.
  • TI42/1997 historical configurations only. No hardware operation was performed. These notes do not establish current stock, later-model compatibility or a complete standalone repair procedure.

Source: TI 42/1997, p. 7 · TI 42/1997, p. 8 — Section5.1 complete special-tool reference and section6 complete repair introduction and safety/document boundaries.

No additional parts-table entry added.

Service note · FS 120 / FS 200 / FS 350 / FS 400 / FS 450

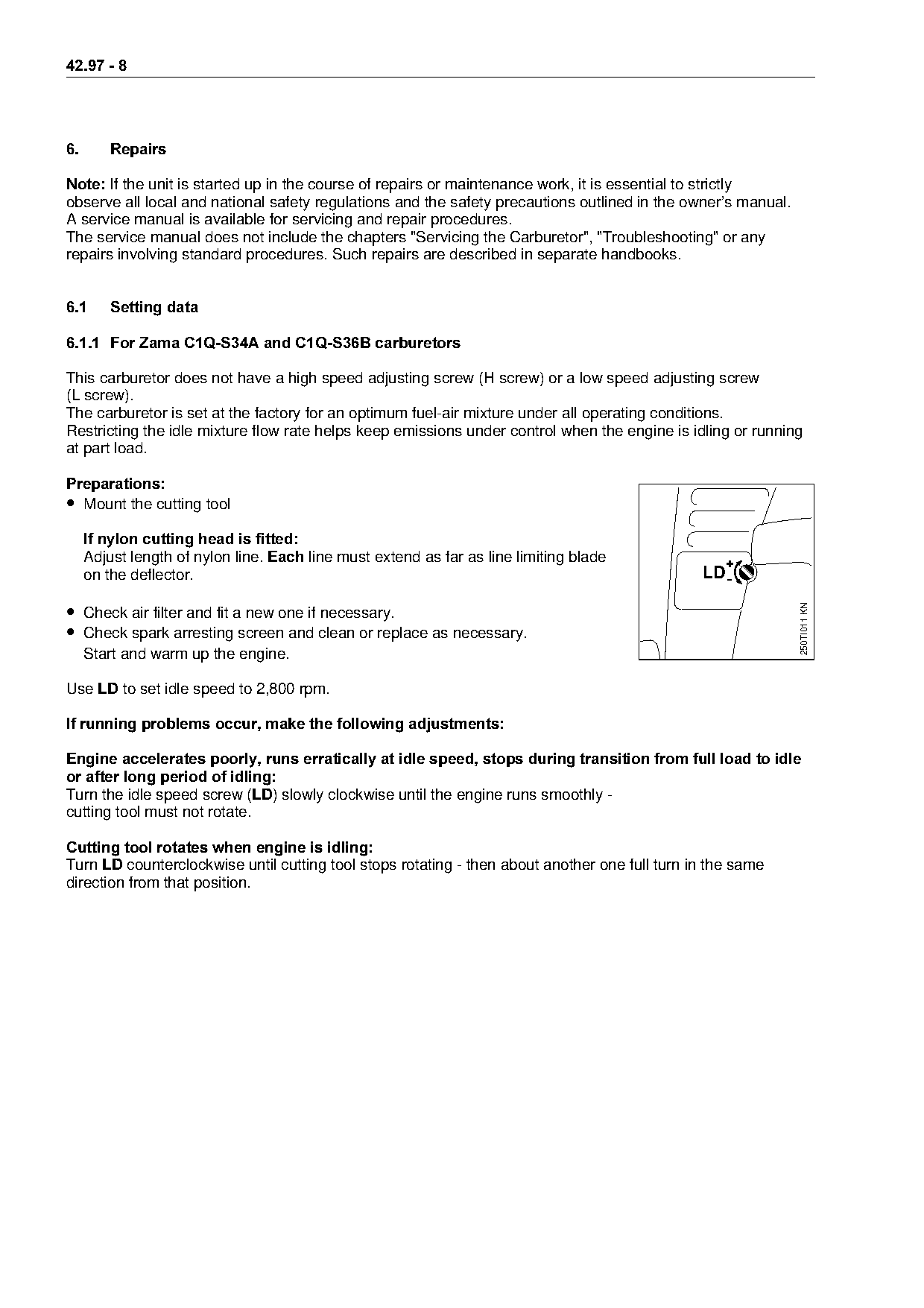

C1Q-S34A/S36B: fixed mixture and LD idle preparation

No H or L screw; historical warm idle setting 2,800 rpm.

No exact-model IPL link: Historical source-model guidance only. Current IPL carburetor suffixes differ from C1Q-S34A/S36B; no later suffix, FS250/300/480 or universal tool/kit compatibility is inferred.

  • Section 6.1.1 applies specifically to Zama C1Q-S34A and C1Q-S36B. It states there is NO high-speed H adjusting screw and NO low-speed L adjusting screw. Factory mixture and restricted idle-mixture flow are described as emissions measures for idle/part load; this is not a current emissions certification.
  • Preparation: mount the approved cutting tool. With a nylon head, EACH line must reach the line-limiting blade on the deflector. Check the air filter and replace if necessary; check the spark-arresting screen and clean or replace as necessary. Start and warm the engine, then use LD to set idle speed 2,800 rpm.
  • Figure 250TI011 KN identifies LD with its plus/minus marking. LD is the idle-speed control here, not an invented L mixture screw. Section 3 tool/model/handle approvals and section 6 safety prerequisites remain applicable; do not perform this adjustment without the cutting tool or on a later suffix solely because the model name matches.
  • TI42/1997 historical configurations only. No hardware operation was performed. These notes do not establish current stock, later-model compatibility or a complete standalone repair procedure.

Source: TI 42/1997, p. 8 — Section6.1.1 exact carburetor heading, factory-mixture explanation, every preparation and250TI011 KN.

No additional parts-table entry added.

Service note · FS 120 / FS 200 / FS 350 / FS 400 / FS 450

C1Q-S34A/S36B: LD symptom adjustments and stationary-tool rule

Clockwise for the listed running problems; counterclockwise for tool rotation.

No exact-model IPL link: Historical source-model guidance only. Current IPL carburetor suffixes differ from C1Q-S34A/S36B; no later suffix, FS250/300/480 or universal tool/kit compatibility is inferred.

  • For poor acceleration, erratic idle, stopping during the transition from full load to idle, or stopping after a long idle: the source says turn LD slowly CLOCKWISE until the engine runs smoothly. The CUTTING TOOL MUST NOT ROTATE.
  • If the cutting tool rotates at idle: turn LD COUNTERCLOCKWISE until the tool stops, THEN about ONE FULL TURN farther in the SAME counterclockwise direction from that stop-rotation position. This is not a one-turn setting from a seated screw.
  • These branches follow the complete tool/filter/screen/warm-up preparation and 2,800 rpm idle setting in section 6.1.1. They do not describe an H/L mixture adjustment, authorize running a rotating tool at idle, or supply a complete diagnosis when the symptom cannot be corrected.
  • TI42/1997 historical configurations only. No hardware operation was performed. These notes do not establish current stock, later-model compatibility or a complete standalone repair procedure.

Source: TI 42/1997, p. 8 — Section6.1.1 complete two running-problem branches after preparation and warm idle setting.

No additional parts-table entry added.

Service note · FS 120 / FS 200 / FS 350 / FS 400 / FS 450

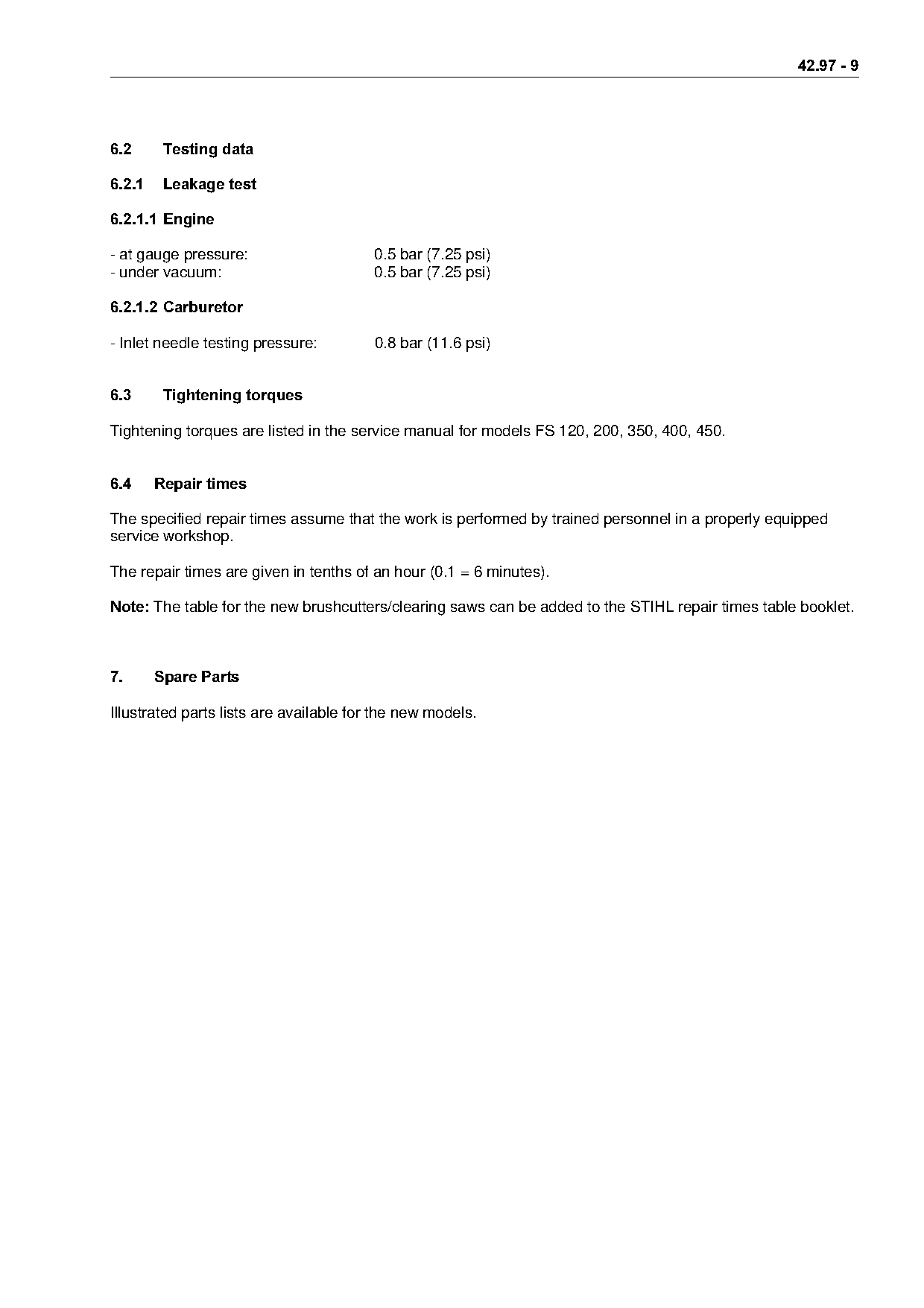

FS leakage tests: engine pressure/vacuum versus carburetor inlet

Engine 0.5 bar; inlet-needle test 0.8 bar. These are different tests.

No exact-model IPL link: Source identifies historical model-level service guidance, not an exact current IPL assembly. No later model or unlisted application is inferred.

  • Section 6.2.1.1 lists engine leakage testing at GAUGE PRESSURE 0.5 bar (7.25 psi), and UNDER VACUUM 0.5 bar (7.25 psi). The vacuum entry is a magnitude below ambient, not positive pressure or 0.5 bar absolute.
  • Section 6.2.1.2 lists CARBURETOR INLET NEEDLE testing pressure 0.8 bar (11.6 psi). Do not use that value as the engine pressure-test specification.
  • This TI gives no hold duration, acceptable pressure drop, sealing setup, instrument connection or full test sequence. The numerical data alone are not a complete test procedure or proof of a passed engine/carburetor test.
  • TI42/1997 historical configurations only. No hardware operation was performed. These notes do not establish current stock, later-model compatibility or a complete standalone repair procedure.

Source: TI 42/1997, p. 9 — Section6.2 complete engine gauge-pressure/vacuum and carburetor inlet-needle testing data.

No additional parts-table entry added.

Service note · FS 120 / FS 200 / FS 350 / FS 400 / FS 450

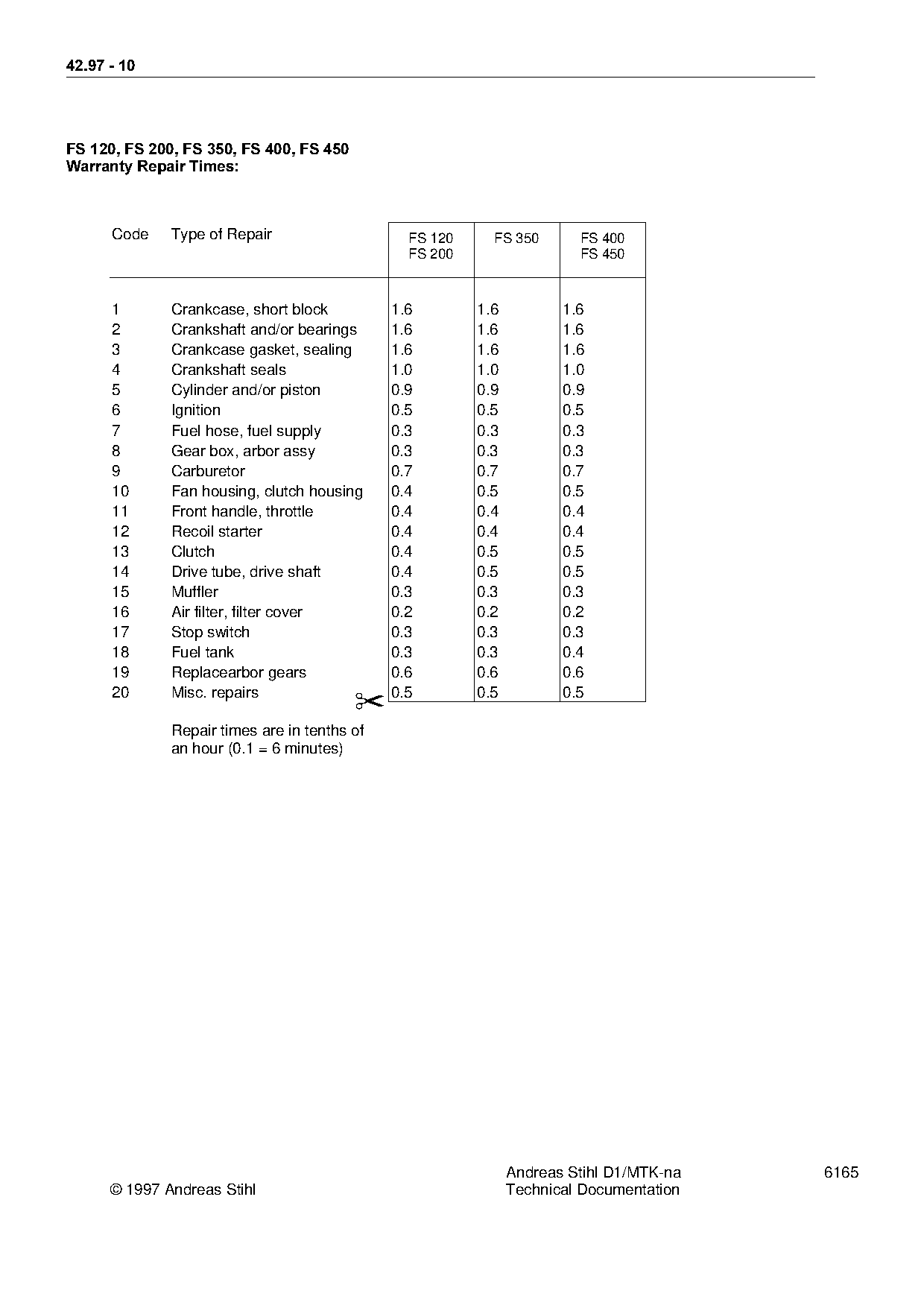

FS warranty repair times: sixteen shared allowances

Historical workshop allowances in decimal hours, not measured repair durations.

No exact-model IPL link: Source identifies historical model-level service guidance, not an exact current IPL assembly. No later model or unlisted application is inferred.

  • Sections 6.4 and the page 10 warranty table assume TRAINED PERSONNEL in a PROPERLY EQUIPPED SERVICE WORKSHOP. Units are tenths of an hour: 0.1 hour = 6 minutes. For example 1.6 means 1.6 hours, not 1.6 minutes. The table may be added to the historical STIHL repair-times booklet; no present warranty entitlement or labor charge is established.
  • All three columns (FS120/200; FS350; FS400/450) share: code 1 crankcase/short block 1.6 h; 2 crankshaft and/or bearings 1.6 h; 3 crankcase gasket/sealing 1.6 h; 4 crankshaft seals 1.0 h; 5 cylinder and/or piston 0.9 h.
  • Shared: code 6 ignition 0.5 h; 7 fuel hose/fuel supply 0.3 h; 8 gear box/arbor assembly 0.3 h; 9 carburetor 0.7 h; 11 front handle/throttle 0.4 h; 12 recoil starter 0.4 h.
  • Shared: code 15 muffler 0.3 h; 16 air filter/filter cover 0.2 h; 17 stop switch 0.3 h; 19 replace arbor gears 0.6 h; 20 miscellaneous repairs 0.5 h. Codes 10, 13, 14, 18 differ by model group and are recorded in the companion note. These allowances are not additive instructions or part-compatibility claims.
  • TI42/1997 historical configurations only. No hardware operation was performed. These notes do not establish current stock, later-model compatibility or a complete standalone repair procedure.

Source: TI 42/1997, p. 9 · TI 42/1997, p. 10 — Section6.4 repair-time assumptions/units and page10 warranty table: all16 equal-valued rows, column headings and footer.

No additional parts-table entry added.

Service note · FS 120 / FS 200 / FS 350 / FS 400 / FS 450

FS warranty allowances: four model-dependent rows

Fuel-tank time differs from the fan/clutch/drive-shaft grouping.

No exact-model IPL link: Source identifies historical model-level service guidance, not an exact current IPL assembly. No later model or unlisted application is inferred.

  • Page 10 column order is FS120/FS200, FS350, then FS400/FS450. Code 10 FAN HOUSING/CLUTCH HOUSING: 0.4 /0.5 /0.5 hours. Code 13 CLUTCH: 0.4 /0.5 /0.5 hours. Code 14 DRIVE TUBE/DRIVE SHAFT: 0.4 /0.5 /0.5 hours.
  • Code 18 FUEL TANK: 0.3 /0.3 /0.4 hours in the same column order. FS350 follows FS120/200 for the tank, NOT the larger-model 0.4-hour allowance. Preserve that separate grouping.
  • These historical WARRANTY REPAIR TIMES assume trained personnel and a properly equipped service workshop.0.1 hour = 6 minutes; 0.3 h= 18 min, 0.4 h= 24 min, 0.5 h= 30 min by conversion. They are not guaranteed completion times, a modern labor quote, or evidence that parts interchange across columns.
  • All 20 table rows are accounted for with the 16 shared rows in the companion note. Copyright 1997 and document footer 6165 identify this historical table; the cut-out mark is not an extra repair row.
  • TI42/1997 historical configurations only. No hardware operation was performed. These notes do not establish current stock, later-model compatibility or a complete standalone repair procedure.

Source: TI 42/1997, p. 9 · TI 42/1997, p. 10 — Section6.4 conditions and complete page10 variable rows10,13,14,18; all model columns, units and document footer.

No additional parts-table entry added.

Service note · FS 120 / FS 200 / FS 350 / FS 400 / FS 450

FS tightening torques: use the matching service manual

TI42 supplies no numeric torque table; a later manual is not a verified 1997 substitute.

No exact-model IPL link: Source identifies historical model-level service guidance, not an exact current IPL assembly. No later model or unlisted application is inferred.

  • Page 9 section 6.3 delegates tightening torques to the service manual for FS120, FS200, FS350, FS400 and FS450. Page 7 section 5.1 delegates the special servicing-tool list to that same model group. The TI does not identify a manual order number, publication date or revision.
  • The available PDF named FS250 actually covers FS120/200/300/350/400/450 and FR350/450. Its cover is dated 2003-04; its contents page bears copyright 2011. Printed pages 5–6 contain torque tables, and pages 59–60 contain the special-tool list and model-specific remarks. These chapters were inspected, not inferred from the contents alone.
  • The 1997-referenced edition and equivalence of its torque/tool tables remain UNVERIFIED. Do not backdate the later numeric values or extend TI42 applicability to FS250, FS300 or FR models. The later manual remains a separately identified source for the service-manual phase, not an absent PDF.
  • Bounded local search checked readable first-two-page text for all 41 PDFs in the owner service-manual directory. The only other target-model cover match was KombiTools 2013-08, an attachment/gearbox manual, not the referenced 1997 powerhead manual. This is not a claim of global source absence.
  • TI42/1997 historical configurations only. No hardware operation was performed. No later manual torque or tool-list value is silently attributed to this TI.

Source: TI 42/1997, p. 7 · TI 42/1997, p. 9 — Page7 section5.1 and page9 section6.3 complete manual references; later-edition dependency assessment.

No additional parts-table entry added.

Service note · FS 120 / FS 200 / FS 350 / FS 400 / FS 450

FS spare parts: historical IPL availability is not interchangeability

Separate the TI’s 1997 availability statement from the retained 2012 catalog.

No exact-model IPL link: Source identifies historical model-level service guidance, not an exact current IPL assembly. No later model or unlisted application is inferred.

  • Page 9 section 7 says illustrated parts lists are available for the new models. It gives no IPL order number, edition, replacement-part roster or serial cutoff. The statement is historical availability, not evidence of current stock.
  • Retained SCS 01-2012 USA catalog data places FS120/200 and FS350 in series 4134, and FS400/450 in series 4128. Those catalog groups also include models outside this TI. A shared series or drawing does not establish physical interchangeability or expand the TI model list.
  • The 2012 IPLs provide local navigation/reference material, not proof that an exact 1997 IPL edition has been recovered. No new part number, supersession, assembly binding or serial boundary is inferred from this availability sentence.
  • TI42/1997 historical configurations only. No hardware operation was performed. No later manual torque or tool-list value is silently attributed to this TI.

Source: TI 42/1997, p. 9 — Page9 complete section7 Spare Parts and historical-versus-retained-IPL boundary.

No additional parts-table entry added.

Service note · FS 120 / FS 200 / FS 350 / FS 400 / FS 450

FS servicing aids: preserve the TI and later-manual differences

The same grease number does not make conflicting package labels equivalent.

No exact-model IPL link: Source identifies historical model-level service guidance, not an exact current IPL assembly. No later model or unlisted application is inferred.

  • TI42 page 7 calls the crankshaft-stub cleaner a solvent-based degreaser containing no chlorinated or HYDROGENATED hydrocarbons. The later manual printed page 61 instead says no chlorinated or HALOGENATED hydrocarbons. Both original pages were visually checked; the historical TI wording is not silently corrected.
  • For grease 0781 120 1111, the TI prints a 370 g/13 oz tube. The later manual prints 225 g/0.79 oz, an internally inconsistent mass conversion. Preserve these source labels as a conflict; do not infer a replacement package, dose, formulation change or corrected ounce value.
  • The manual cover date 2003-04 and contents copyright 2011 are both retained. They do not establish a single 1997 edition. The later manual also contains additional tools and model-specific remarks; its tool list is not represented as the list available when TI42 was issued.
  • TI42/1997 historical configurations only. No hardware operation was performed. No later manual torque or tool-list value is silently attributed to this TI.

Source: TI 42/1997, p. 7 — Page7 complete servicing-aid labels compared with later manual printed page61; conflicts retained.

No additional parts-table entry added.

Full text

Page 1 of 11

TI 42/1997 page 1
Text of page 1 — search, copy, screen readers
Technical Information

                                                                                                 42.97

New Brushcutters/Clearing Saws========STIHL FS 120, 200, 350========-  Series 4134
                                      STIHL FS 400, 450=============-  Series 4128

FS 120 R                 FS 200                        FS 350                    FS 450 K

The new semi-professional FS 120 and 200

                                                       Numerous improvements have been incorporated
brushcutters/clearing saws are successors to           in the new brushcutters/clearing saws to provide
models STIHL FS 88 and 108. The engine                 greater operator comfort, user friendliness and

installed in the FS 120 is a new development           economy:
with a power output of 1.3kW/1.8bhp (FS 88:
0.9kW/1.2bhp), while that of the FS 200 produces       • Optimized antivibration system
1.6kW/2.2bhp (FS 108: 1.1kW/1.5bhp). This              • Soft control handles with
significant increase in power over the previous          non-slip grip surface
models provides benefits in all mowing and
trimming operations.
                                                       • STIHL easy start system
                                                       • Electronic engine speed limiter
The new professional FS 350, 400 and 450===============• New comfortable full harness (option)
brushcutters/clearing saws replace models FS
160, 180, 220 and 280. The engine installed in the     A new longlife air filter system, together with a
model FS 350 is basically the same as that used in     compensator carburetor- a world first in brushcut-
models FS 120 and 200.                                 ters, extendsfilter life and efficiency.

The recommended applications of these models
are the same as those of the models they replace.

Page 2 of 11

TI 42/1997 page 2
Text of page 2 — search, copy, screen readers
42.97 - 2

&RQWHQWV

1.    Technical Description
2.    Specifications
3.    Cutting Tools
4.    Special Accessories for Users
5.    Service Accessories
6.    Repairs
7.    Spare Parts

The following descriptions spotlight the
differences over the previous models
FS 88, 108, 160, 180, 220, 280.

1.====Technical Description

3RZHUKHDG
• Newly developed STIHL single cylinder
  two-stroke engine.

&\OLQGHU
• Four port technology (better mixture control,                   fo
  clean combustion, lower emissions).
• Decompression valve (on FS 350, 400, 450).
&DUEXUHWRU
• With one adjusting screw.

• With compensator; increases filter efficiency
  by compensating for changes in pressure in
  the carburetor as filter becomes loaded with dirt.

Air filter

• New longlife air filter system with

                                                                                                               250TI007 KN
  paper filter element.
• Larger effective filter surface area.

                                                           Air filter system, carb with stub for compensator
Exhaust muffler
• Spark arresting screen maintained without

  tools (on FS 120, 200, 350).

Easy start system
• Decompression valve (on FS 350, 400, 450).

• ElastoStart starter grip
• Manual fuel primer

&RQWUROV
• New multi-function handle with soft, non-slip
     grip surface.
• Special bike handle for mowing applications
     (FS 350, 400, 450).
• Special bike handle for sawing applications
  (FS 350, 400, 450).
• Bike handle can be adjusted without tools and
  swings parallel to drive shaft for easy transportation
                                                                                                                     250TI008 KN

  (FS 350, 400, 450).

Page 3 of 11

TI 42/1997 page 3
Text of page 3 — search, copy, screen readers
                                                                                                     42.97 - 3

&OXWFK
• Two large diameter clutch shoes without linings.
Shaft in drive tube
• Rigid shaft supported in a full length liner.
Four-point AV system =FS 350, 400, 450
• Newly developed four-point AV system reduces vibrations by up to 60%.
Fuel system
• Transparent tank for easy identification of fuel level.

2.====Specifications

2.1===Powerhead

2.1.1=Engine
                                  FS 120              FS 200

                                                      FS 350           FS 400             FS 450

Displacement:                     30.8 cc (1.88 ci) 36.3 cc (2.21 ci) 40.2 cc (2.45 ci)   44.3 cc (2.70 ci)
Bore:
Stroke:
                                  35 mm (1.37 in)
                                  32 mm (1.26 in)
                                                     38 mm (1.49 in)
                                                     32 mm (1.26 in)
                                                                        40 mm (1.57 in)
                                                                        32 mm (1.26 in)
                                                                                          42 mm (1.65 in)
                                                                                          32 mm (1.26 in)
Engine power to ISO 8893:         1.3 kW (1.8 bhp) 1.6 kW (2.2 bhp) 1.9 kW (2.6 bhp)      2.1 kW (2.8 bhp)
Engine speeds:                    see 2.1.2          see 2.1.2          see 2.1.2         see 2.1.2
Rewind starter:                                Single pawl system; ElastoStart grip
Starter rope:                     see 4.             see 4.             see 4.            see 4.

Clutch:
- Clutch engages at:              4300 rpm            4300 rpm         4300 rpm           4300 rpm

Page 4 of 11

TI 42/1997 page 4
Text of page 4 — search, copy, screen readers
42.97 - 4

2.1.2=Fuel system

Carburetor: All position diaphragm carburetor with integral fuel pump

Carburetor adjusments======================================1 adjusting screw
Zama=======================================================Model C1Q-S34A/C1Q-S36B
Low speed screw / (standard setting)                       1RQH
Idle speed                                                 2,800 rpm
High speed screw + (standard setting)                      1RQH
Cut-off speed range without cutting tool                   11,700 to 13,300 rpm
(electronic speed limiter)

Max. speed (rated) of output shaft

(cutting tool mounting)

FS 120, 200                   with bike handle             18,930 rpm
FS 120, 200                   with loop handle             10,000 rpm

FS 350, 400, 450                                           10,000 rpm

Fuel tank capacity:
FS 120, 200, 350                     0.64 l (1.35 US pt)
FS 400, 450                          0.68 l (1.43 US pt)

2.1.3=Ignition system

Ignition module:                     with integral electronic speed limiter

Length of ignition lead

(FS 400, 450):                       305 mm (12 in)
Spark plug (suppressed):             Bosch WSR 6F, NGK BPMR 7 A or Champion RCJ 6Y

2.2===Gearhead

Gear ratio:
FS 120, 200 (with bike handle):      1.4
FS 120, 200 (with loop handle):      1.235

FS 350, 400, 450                     1.235

2.3===Weights

                                               FS 120 R      FS 120       FS 350    FS 400    FS 400 K
                                               FS 200 R      FS 200                 FS 450    FS 450 K

without cutting tool and deflector             5.8 kg        6.0 kg       7.0 kg    7.9 kg    8.0 kg
                                               12.8 lb       13.2 lb      15.4 lb   17.4 lb   17.6 lb

Page 5 of 11

TI 42/1997 page 5
Text of page 5 — search, copy, screen readers
                                                                                             42.97 - 5

3.======Cutting Tools

The following cutting tools are approved:

FS 120, 200

  1=pqfei=pupercut OMJO================================1========================2
    4002 710 2162
  3=pqfei=^utocut 25-2

                                                                                                 681FK001
                                                                     681FK003
    4002 710 2108
  4=pqfei=^utocut 30-2
    4002 710 2107
  7=pqfei=molymatic PMJO========================================================4, 5, 6
                                                       3

    4002 710 2120

  9=pqfei=molycut 20-3
    4002 710 2130
11=`utting blade 230-4 1)

    4001 713 3801
13=`utting blade 230-8 1)
    4001 713 3803
                                                       7, 8

15=_rush knife 250-3 1)
    4112 713 4100
17=`ircular saw blade 200 (scratcher tooth) 2)
    4112 713 4201
20=`ircular saw blade 200 (chisel tooth) 2)
    4112 713 4203
                                                                                11, 12
                                                       10
1)
      Not for loop handle units without b~rrier bar
2)

      Only approved for bike handle units

FS 350, 400, 450

                                                       13, 14===================15, 16
  2=====pqfei=pupercut 40-2

        4003 710 2140
  5=====pqfei=^utocut 40-2
        4003 710 2125
  6=====pqfei=^utocut 40-4 3)

        QMMR=TNM=ONMM==================================17, 18, 19===============20, 21, 22
  8=====pqfei=molymatic 40-2

        4003 710 2100
10======pqfei=molycut 40-3
        4111 710 2100
12======`utting blade 230-4

        4000 713 3801
14======`utting blade 255-8
        4000 713 3802

16======_rush knife 300-3
        4119 713 4100
18======`ircular saw blade 200 (scratcher tooth)
        4000 713 4200
19======`ircular saw blade 225 (scratcher tooth) 4)
        4000 713 4205
21======`ircular saw blade 200 (chisel tooth)
        4119 713 4200
22======`ircular saw blade 225 (chisel tooth) 4)
        4110 713 4204
3)
      For FS 450 only
4)
      For FS 400, 450 only

Page 6 of 11

TI 42/1997 page 6
Text of page 6 — search, copy, screen readers
42.97 - 6

4.====Special Accessories for Users

Part Name                   Part No.           Application, Remarks

Transport guard for         4116 790 3900      For all metal cutting tools
metal cutting tools
                            4119 790 3906      Cutting blade 230-4, 255-8, circular saw blade 225
                                               (scratcher and chisel tooth)
                            4119 790 3901      Circular saw blade 200 and 225 (scratcher and chisel tooth)

Intake air                  4128 007 1001      For operation in extremely cold conditions
preheating kit
(FS 400, 450)

ElastoStart grip            0000 190 3400      Rewind starter (grip with rope)
ElastoStart rope            0000 195 8200      Rewind starter

STIHL gear lubricant                           Drive shaft in drive tube
- 80 g/3 oz tube            0781 120 1109
- 225 g/8 oz tube           0781 120 1110

STIHL gear lubricant                           Gear box
- 80 g/3 oz tube            0781 120 1117
- 225 g/8 oz tube           0781 120 1118
4.1===Nylon line for cutting heads

Line diameter         For use with
/ color

0.095"

orange                Supercut 20-2, Supercut 40-2, Autocut 25-2, Autocut 30-2, Autocut 40-4, Polymatic 30-2,
                      Polymatic 40-2, Polycut 20-3, Polycut 40-3

0.105"
red                   Autocut 40-2, Polycut 20-3, Polycut 40-3

4.2===Sharpening aids for metal cutting tools

Part Name                   Part No.           Application

Saw set                     4020 893 5000      Circular saw blade 200 and 225 (chisel tooth)

Sharpening template         4020 890 5500      Brush knife

Page 7 of 11

TI 42/1997 page 7
Text of page 7 — search, copy, screen readers
                                                                                                              42.97 - 7

5.====Service Accessories

5.1===Special Servicing Tools

Special servicing tools are listed in the service
manual for models FS 120, 200, 350, 400, 450.

5.1.1=Modifying
      installing tool 5910 890 2220

Installing tools (5910 890 2220) supplied from the
factory in future will have additional holes                                                  17
                                                                                18

(8 x 5.5 mm and 2 x 6.5 mm).                                                                       17

Any existing installing tools which do not have these ho-                                               18
les can be updated using the true-to-scale
                                                                          16
template on the last page of this TI bulletin:

Make a copy of the template, cut it out, put it on                                                       16
the underside of the flange and mark the holes.
After drilling the holes, mark them with the                         18
                                                                                                         18

appropriate numbers on the upper side of the
flange (see illustration).                                                     16

Stamp new notches and the numbers 16 and
17 on the outside edge of the flange.
                                                            fo                      17   16
                                                                                                    16

                                                                                                                     250TI009 KN
The illustration on the right shows the upper side
of the latest flange.

5.2=====Servicing aids

Part Name                   Part No.          Application                                                        Rem.

Carburetor parts kit        4134 007 1060     Zama C1Q-S34A,
                                              Zama C1Q-S36B
Set of gaskets              4128 007 1050     FS 400, 450
Set of gaskets              4134 007 1050     FS 120, 200, 350

Lubricating grease

(370 g/13 oz tube)          0781 120 1111     Oil seals
Dirko sealant               0783 830 2120     Crankcase sealing faces
(100 g/3.5 oz tube)

Training chart
FS 400, 450                 0457 256 0075     Service training

Standard commercial                            Cleaning crankshaft stub
solvent-based degreaser
containing no chlorinated
or hydrogenated
hydrocarbons

Page 8 of 11

TI 42/1997 page 8
Text of page 8 — search, copy, screen readers
42.97 - 8

6.=======Repairs

Note:=ff the unit is started up in the course of repairs or maintenance work, it is essential to strictly
observe all local and national safety regulations and the safety precautions outlined in the owner’s manual.
A service manual is available for servicing and repair procedures.
The service manual does not include the chapters "Servicing the Carburetor", "Troubleshooting" or any
repairs involving standard procedures. Such repairs are described in separate handbooks.

6.1======Setting data

6.1.1=For Zama C1Q-S34A and C1Q-S36B carburetors

This carburetor does not have a high speed adjusting screw (H screw) or a low speed adjusting screw

(L screw).
The carburetor is set at the factory for an optimum fuel-air mixture under all operating conditions.
Restricting the idle mixture flow rate helps keep emissions under control when the engine is idling or running

at part load.

3UHSDUDWLRQV

• Mount the cutting tool
=====If nylon cutting head is fitted

     on the deflector.
     Adjust length of nylon lineK=Each line must extend as far as line limiting blade
                                                                                               LD -
                                                                                                   +
• Check air filter and fit a new one if necessary.

                                                                                                               250TI011 KN
• Check spark arresting screen and clean or replace as necessary.

     Start and warm up the engine.

Use /' to set idle speed to 2,800 rpm.

If running problems occur, make the following adjustments

Engine accelerates poorly, runs erratically at idle speed, stops during transition from full load to idle
or after long period of idling
Turn the idle speed screw (/') slowly clockwise until the engine runs smoothly -

cutting tool must not rotate.

Cutting tool rotates when engine is idling

Turn LD=counterclockwise until cutting tool stops rotating - then about another one full turn in the same
direction from that position.

Page 9 of 11

TI 42/1997 page 9
Text of page 9 — search, copy, screen readers
                                                                                                   42.97 -

6.2======Testing data

6.2.1====Leakage test

6.2.1.1=Engine

- at gauge pressure:                     0.5 bar (7.25 psi)
- under vacuum:                          0.5 bar (7.25 psi)

6.2.1.2=Carburetor

- Inlet needle testing pressure:         0.8 bar (11.6 psi)

6.3======Tightening torques

Tightening torques are listed in the service manual for models FS 120, 200, 350, 400, 450.

6.4=====Repair times

The specified repair times assume that the work is performed by trained personnel in a properly equipped
service workshop.
The repair times are given in tenths of an hour (0.1 = 6 minutes).
Note:=qhe table for the new brushcutters/clearing saws can be added to the STIHL repair times table booklet.

7.======Spare Parts

Illustrated parts lists are available for the new models.

Page 10 of 11

TI 42/1997 page 10
Text of page 10 — search, copy, screen readers
42.97 - 10

FS 120, FS 200, FS 350, FS 400, FS 450
Warranty Repair Times

      Code    Type of Repair                    FS 120     FS 350       FS 400
                                                FS 200                  FS 450

      1       Crankcase, short block          1.6        1.6          1.6
      2       Crankshaft and/or bearings      1.6        1.6          1.6
      3       Crankcase gasket, sealing       1.6        1.6          1.6

      4       Crankshaft seals                1.0        1.0          1.0

      5       Cylinder and/or piston          0.9        0.9          0.9
      6       Ignition                        0.5        0.5          0.5
      7       Fuel hose, fuel supply          0.3        0.3          0.3

      8       Gear box, arbor assy            0.3        0.3          0.3
      9       Carburetor                      0.7        0.7          0.7
      10      Fan housing, clutch housing     0.4        0.5          0.5

      11      Front handle, throttle          0.4        0.4          0.4
      12      Recoil starter                  0.4        0.4          0.4
      13
      14
              Clutch
              Drive tube, drive shaft
                                              0.4
                                              0.4
                                                         0.5
                                                         0.5
                                                                fo    0.5
                                                                      0.5
      15      Muffler                         0.3        0.3          0.3
      16      Air filter, filter cover        0.2        0.2          0.2
      17      Stop switch                     0.3        0.3          0.3

      18      Fuel tank                       0.3        0.3          0.4
      19      Replacearbor gears              0.6        0.6          0.6
      20      Misc. repairs
                                         ✂    0.5        0.5          0.5

              Repair times are in tenths of

              an hour (0.1 = 6 minutes)

                                                               Andreas Stihl D1/MTK-na   6165
      © 1997 Andreas Stihl                                     Technical Documentation

                                                     18
                                                            16
     lin                                                              18

                                           16
                                                                           17

                                      17
                                                                                18

                            ot                  16



                        250TI012 KN
                                                                                     42.97 - 11

Page 11 of 11

TI 42/1997 page 11

Most of these PDFs embed fonts with a shifted character map, so the text above was recovered rather than copied — read it as a faithful but imperfect transcription, and treat the page image above each block as the authority where the two disagree — the figures exist only there, because they are vector drawings that text extraction cannot keep.

Report a transcription error →
