Technical Information · issue 1 of 1998
064; 066: Carburetor; Air Filter (filter cover, fi
Model 066 Chainsaws - Series 1122
Part changes (5)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1122 120 0616 | 1122 120 0621 | Carburetors 1122 120 0616 and 1122 120 0614 for older machines will be replaced by the new carburetor 1122 120 0621. |
| 1122 120 0614 | 1122 120 0621 | 066: WJ-65 (1122 120 0616) replaced by WJ-67 (1122 120 0621) 066 M: WJ-51 (1122 120 0614) replaced by WJ-67 (1122 120 0621) Refer to the Summary for the parts affected by this change. |
| 1122 080 1808 | 1122 080 1816 | Fan housing 1122 080 1808 will be replaced by fan housing 1122 080 1816 from machine number X 39 176 186. |
| 1122 084 8206 | 1122 084 8207 | Cover plate 1122 084 8206 (special accessory for winter operation) will be replaced by the new version 1122 084 8207. |
| 1122 180 0905 | 1122 182 0902 | The original version 1122 180 0905 will be replaced by the new version 1122 182 0902. |
Full text
Page 1 of 6

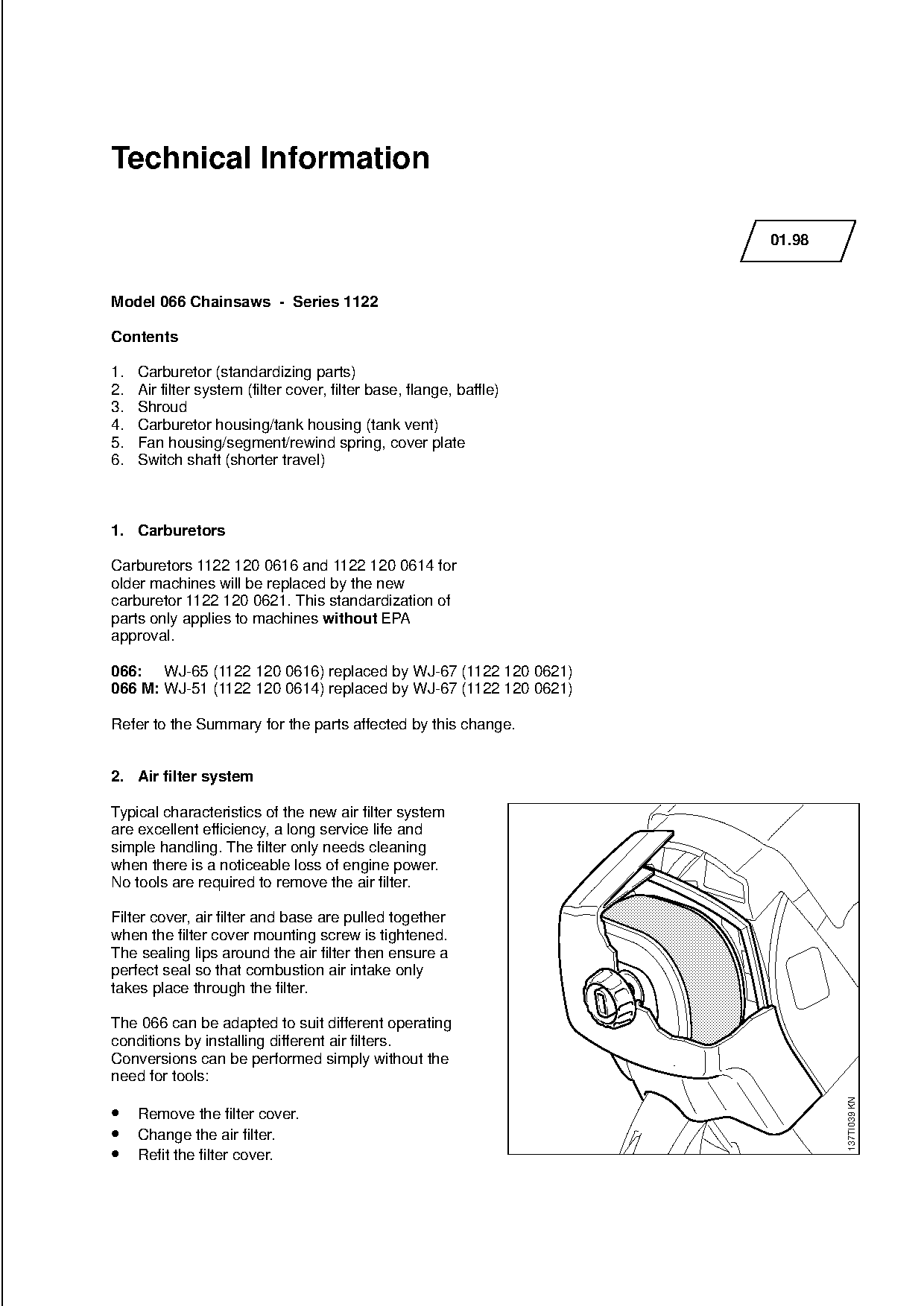

Technical Information
01.98
Model 066 Chainsaws - Series 1122
Contents
1. Carburetor (standardizing parts)
2. Air filter system (filter cover, filter base, flange, baffle)
3. Shroud
4. Carburetor housing/tank housing (tank vent)
5. Fan housing/segment/rewind spring, cover plate
6. Switch shaft (shorter travel)
1. Carburetors
Carburetors 1122 120 0616 and 1122 120 0614 for
older machines will be replaced by the new
carburetor 1122 120 0621. This standardization of
parts only applies to machines without EPA
approval.
066: WJ-65 (1122 120 0616) replaced by WJ-67 (1122 120 0621)
066 M: WJ-51 (1122 120 0614) replaced by WJ-67 (1122 120 0621)
Refer to the Summary for the parts affected by this change.
2. Air filter system
Typical characteristics of the new air filter system
are excellent efficiency, a long service life and
simple handling. The filter only needs cleaning
when there is a noticeable loss of engine power.
No tools are required to remove the air filter.
Filter cover, air filter and base are pulled together
when the filter cover mounting screw is tightened.
The sealing lips around the air filter then ensure a
perfect seal so that combustion air intake only
takes place through the filter.
The 066 can be adapted to suit different operating
conditions by installing different air filters.
Conversions can be performed simply without the
need for tools:
137TI039 KN
• Remove the filter cover.
• Change the air filter.
• Refit the filter cover.
)MNKVU=J=O

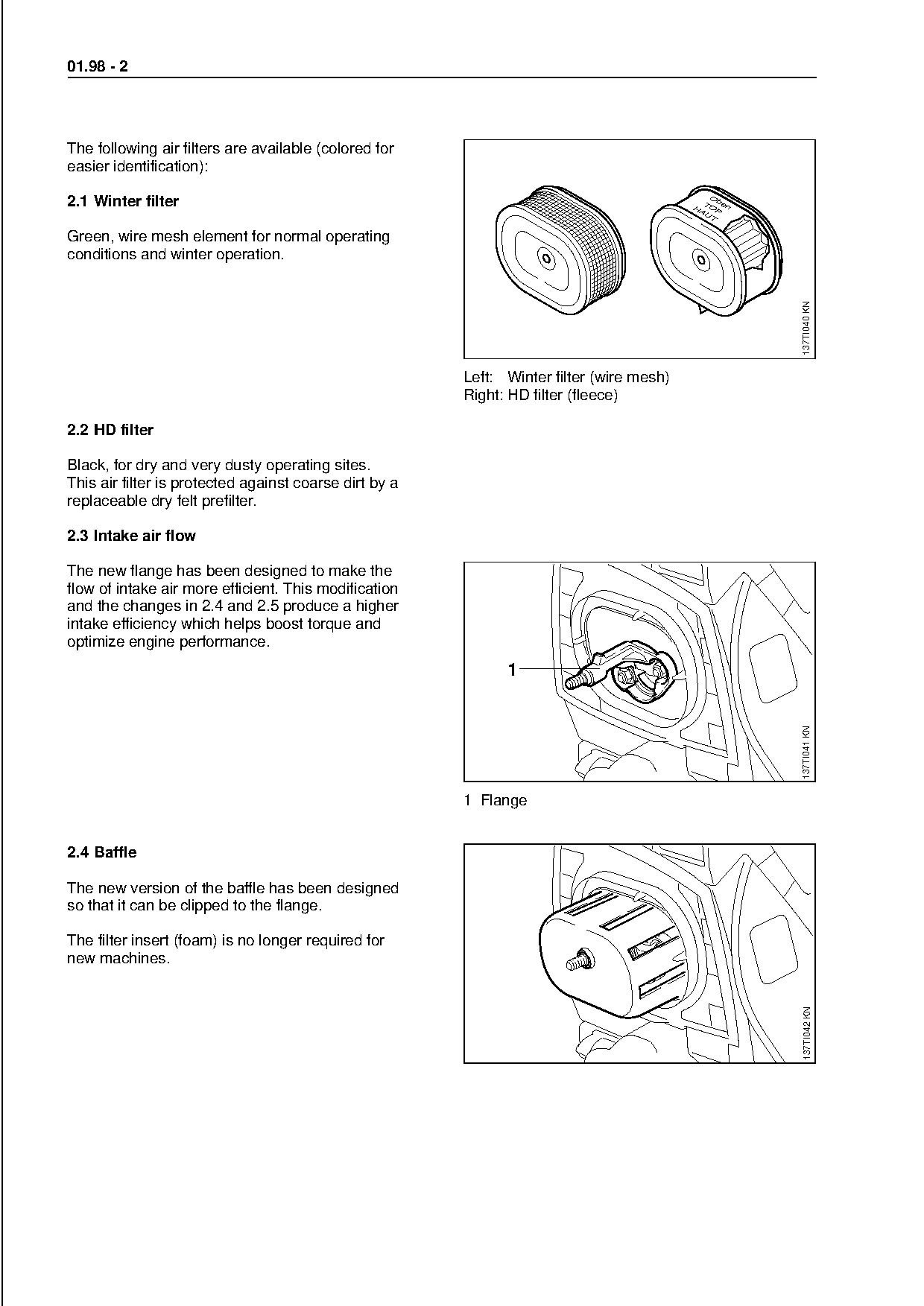

The following air filters are available (colored for
easier identification):
2.1 Winter filter T be
HA OP n
UT
Green, wire mesh element for normal operating
conditions and winter operation.
137TI040 KN
Left: Winter filter (wire mesh)
Right: HD filter (fleece)
2.2 HD filter
Black, for dry and very dusty operating sites.
This air filter is protected against coarse dirt by a
replaceable dry felt prefilter.
2.3 Intake air flow
The new flange has been designed to make the
flow of intake air more efficient. This modification
and the changes in 2.4 and 2.5 produce a higher
intake efficiency which helps boost torque and
optimize engine performance.
1
137TI041 KN
1 Flange
2.4 Baffle
The new version of the baffle has been designed
so that it can be clipped to the flange.
The filter insert (foam) is no longer required for
new machines.
137TI042 KN
)MNKVU=J=P

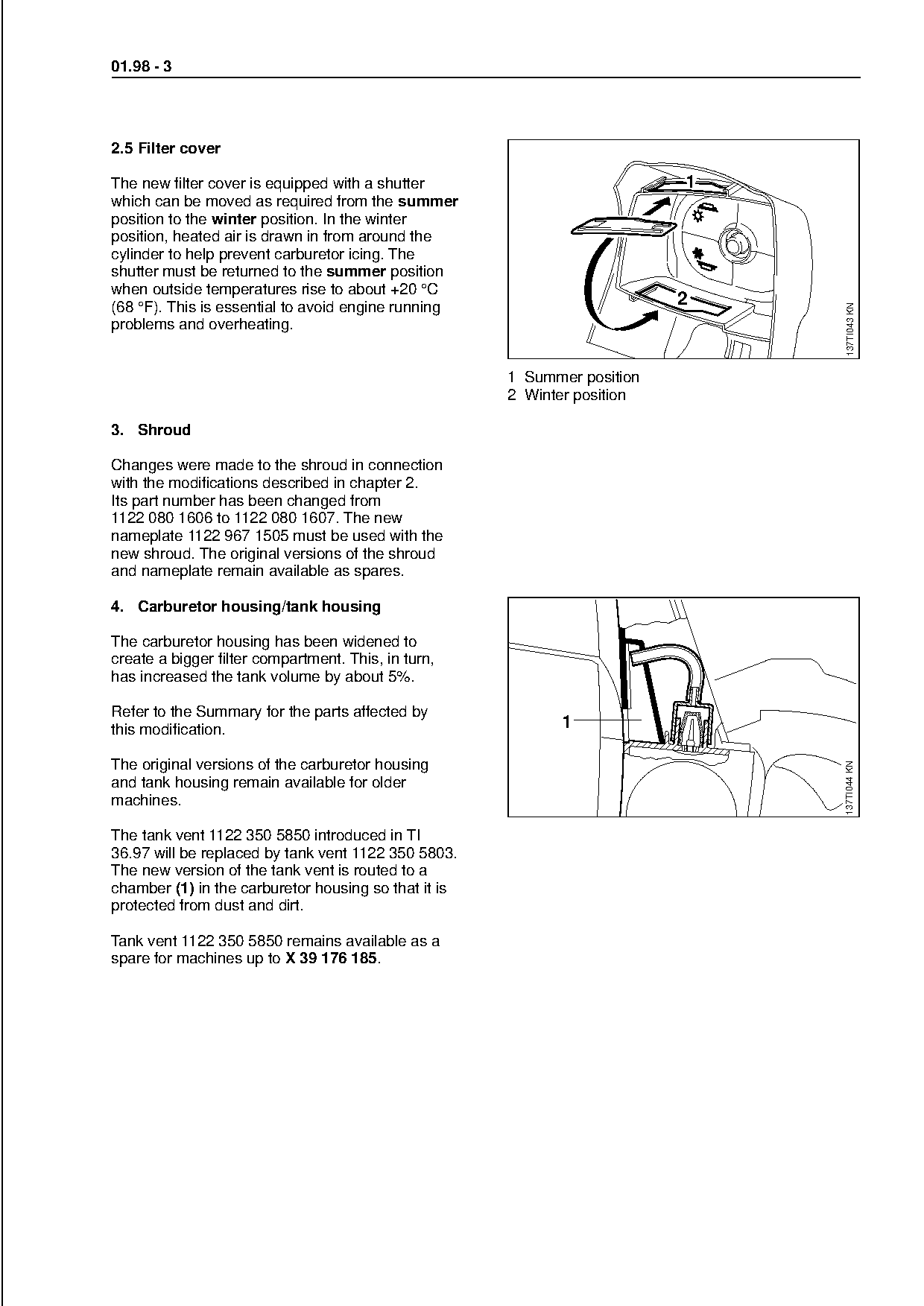

2.5 Filter cover
The new filter cover is equipped with a shutter 1
which can be moved as required from the summer
position to the winter position. In the winter
position, heated air is drawn in from around the
cylinder to help prevent carburetor icing. The
shutter must be returned to the summer position
when outside temperatures rise to about +20 °C
(68 °F). This is essential to avoid engine running 2
137TI043 KN
problems and overheating.
1 Summer position
2 Winter position
3. Shroud
Changes were made to the shroud in connection
with the modifications described in chapter 2.
Its part number has been changed from
1122 080 1606 to 1122 080 1607. The new
nameplate 1122 967 1505 must be used with the
new shroud. The original versions of the shroud
and nameplate remain available as spares.
4. Carburetor housing/tank housing
The carburetor housing has been widened to
create a bigger filter compartment. This, in turn,
has increased the tank volume by about 5%.
Refer to the Summary for the parts affected by
this modification. 1
The original versions of the carburetor housing
137TI044 KN
and tank housing remain available for older
machines.
The tank vent 1122 350 5850 introduced in TI
36.97 will be replaced by tank vent 1122 350 5803.
The new version of the tank vent is routed to a
chamber (1) in the carburetor housing so that it is
protected from dust and dirt.
Tank vent 1122 350 5850 remains available as a
spare for machines up to X 39 176 185.
)MNKVU=J=Q

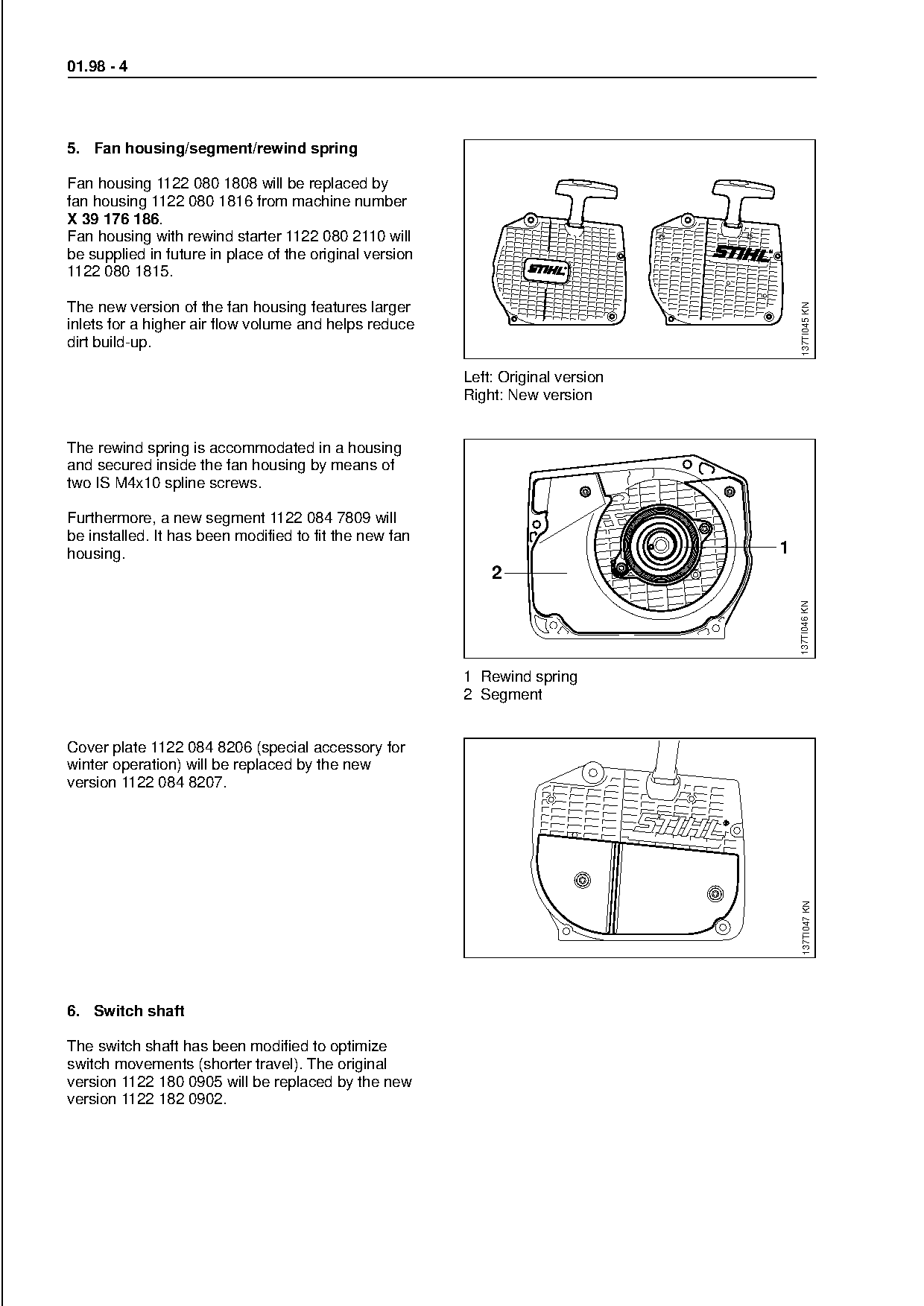

5. Fan housing/segment/rewind spring
Fan housing 1122 080 1808 will be replaced by
fan housing 1122 080 1816 from machine number
X 39 176 186.
Fan housing with rewind starter 1122 080 2110 will
be supplied in future in place of the original version
1122 080 1815.
The new version of the fan housing features larger
137TI045 KN
inlets for a higher air flow volume and helps reduce
dirt build-up.
Left: Original version
Right: New version
The rewind spring is accommodated in a housing
and secured inside the fan housing by means of
two IS M4x10 spline screws.
Furthermore, a new segment 1122 084 7809 will
be installed. It has been modified to fit the new fan
housing.
2
fo 1
137TI046 KN
1 Rewind spring
2 Segment
Cover plate 1122 084 8206 (special accessory for
winter operation) will be replaced by the new
version 1122 084 8207.
137TI047 KN
6. Switch shaft
The switch shaft has been modified to optimize
switch movements (shorter travel). The original
version 1122 180 0905 will be replaced by the new
version 1122 182 0902.
)MNKVU=J=R

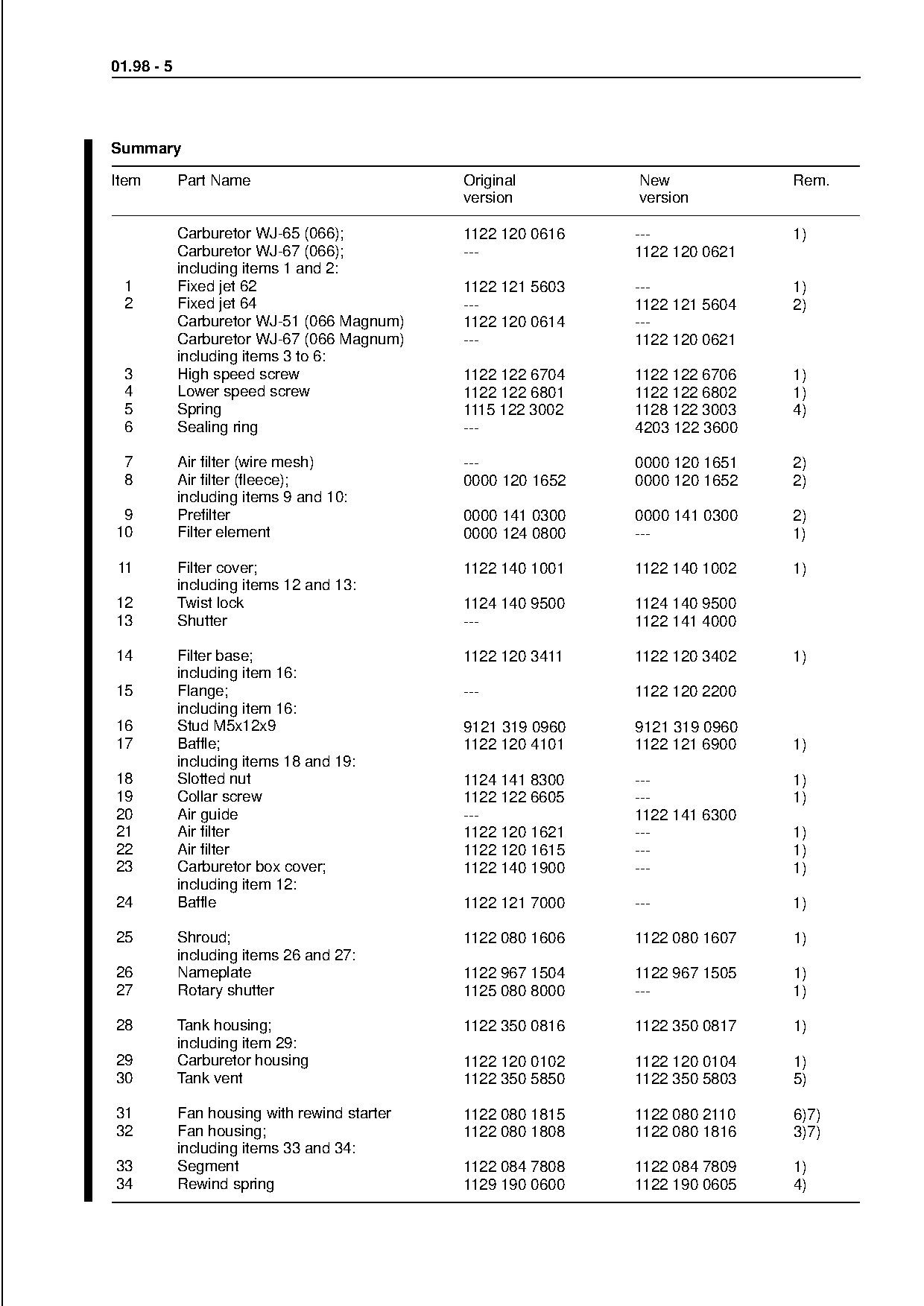

Summary
Item Part Name Original New Rem.
version version
Carburetor WJ-65 (066); 1122 120 0616 --- 1)
Carburetor WJ-67 (066); --- 1122 120 0621
including items 1 and 2:
1 Fixed jet 62 1122 121 5603 --- 1)
2 Fixed jet 64 --- 1122 121 5604 2)
Carburetor WJ-51 (066 Magnum) 1122 120 0614 ---
Carburetor WJ-67 (066 Magnum) --- 1122 120 0621
including items 3 to 6:
3 High speed screw 1122 122 6704 1122 122 6706 1)
4 Lower speed screw 1122 122 6801 1122 122 6802 1)
5 Spring 1115 122 3002 1128 122 3003 4)
6 Sealing ring --- 4203 122 3600
7 Air filter (wire mesh) --- 0000 120 1651 2)
8 Air filter (fleece); 0000 120 1652 0000 120 1652 2)
including items 9 and 10:
9 Prefilter 0000 141 0300 0000 141 0300 2)
10 Filter element 0000 124 0800 --- 1)
11 Filter cover;
1122 140 1001 1122 140 1002 1)
including items 12 and 13:
12 Twist lock 1124 140 9500 1124 140 9500
13 Shutter --- 1122 141 4000
14 Filter base; 1122 120 3411 1122 120 3402 1)
including item 16:
15 Flange; --- 1122 120 2200
including item 16:
16 Stud M5x12x9 9121 319 0960 9121 319 0960
17 Baffle; 1122 120 4101 1122 121 6900 1)
including items 18 and 19:
18 Slotted nut 1124 141 8300 --- 1)
19 Collar screw 1122 122 6605 --- 1)
20 Air guide --- 1122 141 6300
21 Air filter 1122 120 1621 --- 1)
22 Air filter 1122 120 1615 --- 1)
23 Carburetor box cover; 1122 140 1900 --- 1)
including item 12:
24 Baffle 1122 121 7000 --- 1)
25 Shroud; 1122 080 1606 1122 080 1607 1)
including items 26 and 27:
26 Nameplate 1122 967 1504 1122 967 1505 1)
27 Rotary shutter 1125 080 8000 --- 1)
28 Tank housing; 1122 350 0816 1122 350 0817 1)
including item 29:
29 Carburetor housing 1122 120 0102 1122 120 0104 1)
30 Tank vent 1122 350 5850 1122 350 5803 5)
31 Fan housing with rewind starter 1122 080 1815 1122 080 2110 6)7)
32 Fan housing; 1122 080 1808 1122 080 1816 3)7)
including items 33 and 34:
33 Segment 1122 084 7808 1122 084 7809 1)
34 Rewind spring 1129 190 0600 1122 190 0605 4)
)MNKVU=J=S

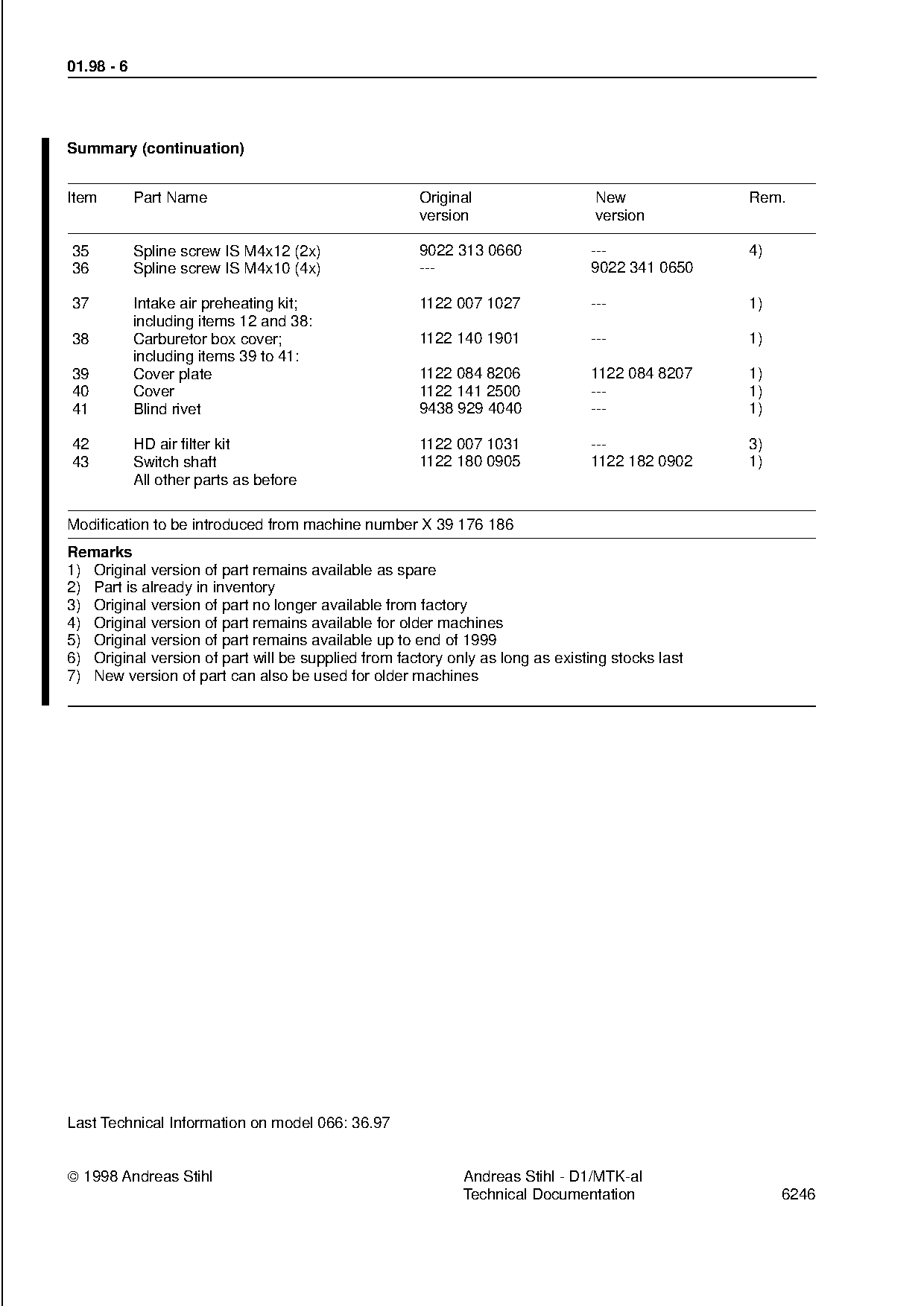

Summary (continuation)
Item Part Name Original New Rem.
version version
35 Spline screw IS M4x12 (2x) 9022 313 0660 --- 4)
36 Spline screw IS M4x10 (4x) --- 9022 341 0650
37 Intake air preheating kit; 1122 007 1027 --- 1)
including items 12 and 38:
38 Carburetor box cover; 1122 140 1901 --- 1)
including items 39 to 41:
39 Cover plate 1122 084 8206 1122 084 8207 1)
40 Cover 1122 141 2500 --- 1)
41 Blind rivet 9438 929 4040 --- 1)
42 HD air filter kit 1122 007 1031 --- 3)
43 Switch shaft 1122 180 0905 1122 182 0902 1)
All other parts as before
Modification to be introduced from machine number X 39 176 186
Remarks
1) Original version of part remains available as spare
2) Part is already in inventory
3) Original version of part no longer available from factory
4) Original version of part remains available for older machines
5) Original version of part remains available up to end of 1999
6) Original version of part will be supplied from factory only as long as existing stocks last
7) New version of part can also be used for older machines
Last Technical Information on model 066: 36.97
1998 Andreas Stihl Andreas Stihl - D1/MTK-al
Technical Documentation 6246 Page 2 of 6
Page 3 of 6
Page 4 of 6
Page 5 of 6
Page 6 of 6
