Technical Information · issue 4 of 1998
Carburetor; starter mechanism; tank housing; choke
IssueTI 4/1998
From serial 38 430 817, 38 434 327
Part changes (1)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 4223 120 0600 | 4223 120 0650 | Carburetor HS 279 B HS 274 HS 279 The original carburetor 4223 120 0600 (type HS 274) is replaced by version 4223 120 0650 (type HS 279 B). |
Full text

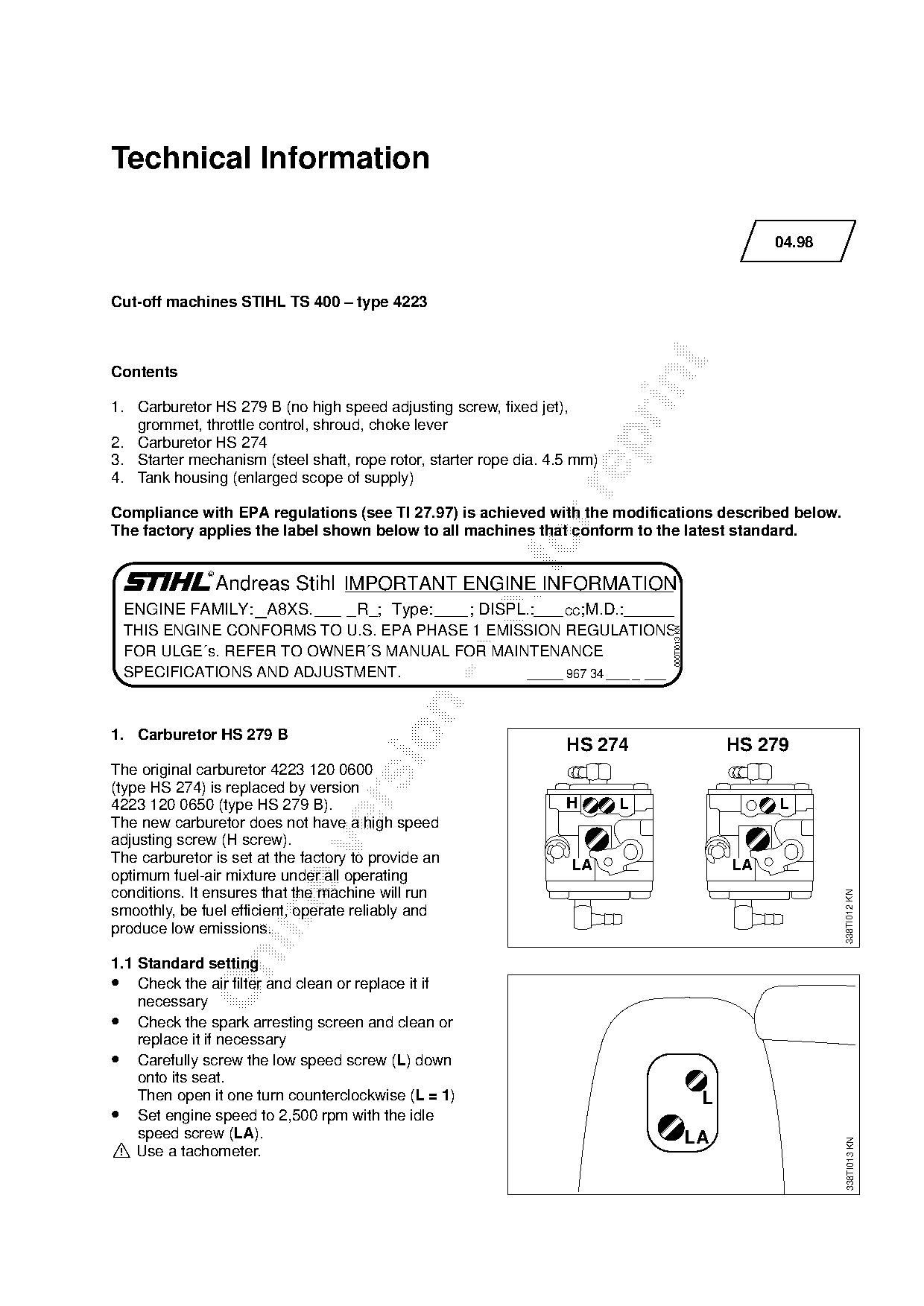

Page 1 of 4
Technical Information
04.98
Cut-off machines STIHL TS 400 – type 4223
Contents
1. Carburetor HS 279 B (no high speed adjusting screw, fixed jet),
grommet, throttle control, shroud, choke lever
2. Carburetor HS 274
3. Starter mechanism (steel shaft, rope rotor, starter rope dia. 4.5 mm)
4. Tank housing (enlarged scope of supply)
Compliance with EPA regulations (see TI 27.97) is achieved with the modifications described below.
The factory applies the label shown below to all machines that conform to the latest standard.
Andreas Stihl IMPORTANT ENGINE INFORMATION
ENGINE FAMILY: A8XS. R ; Type: ; DISPL.: CC;M.D.:
THIS ENGINE CONFORMS TO U.S. EPA PHASE 1 EMISSION REGULATIONS
000TI013 KN
FOR ULGE´s. REFER TO OWNER´S MANUAL FOR MAINTENANCE
SPECIFICATIONS AND ADJUSTMENT. 967 34
1. Carburetor HS 279 B
HS 274 HS 279
The original carburetor 4223 120 0600
(type HS 274) is replaced by version
4223 120 0650 (type HS 279 B). H L L
The new carburetor does not have a high speed
adjusting screw (H screw).
The carburetor is set at the factory to provide an LA LA
optimum fuel-air mixture under all operating
conditions. It ensures that the machine will run
338TI012 KN
smoothly, be fuel efficient, operate reliably and
produce low emissions.
1.1 Standard setting
• Check the air filter and clean or replace it if
necessary
• Check the spark arresting screen and clean or
replace it if necessary
• Carefully screw the low speed screw (L) down
onto its seat.
Then open it one turn counterclockwise (L = 1) L
• Set engine speed to 2,500 rpm with the idle
speed screw (LA). LA
338TI013 KN
! Use a tachometer.
)MQKVU=J=O

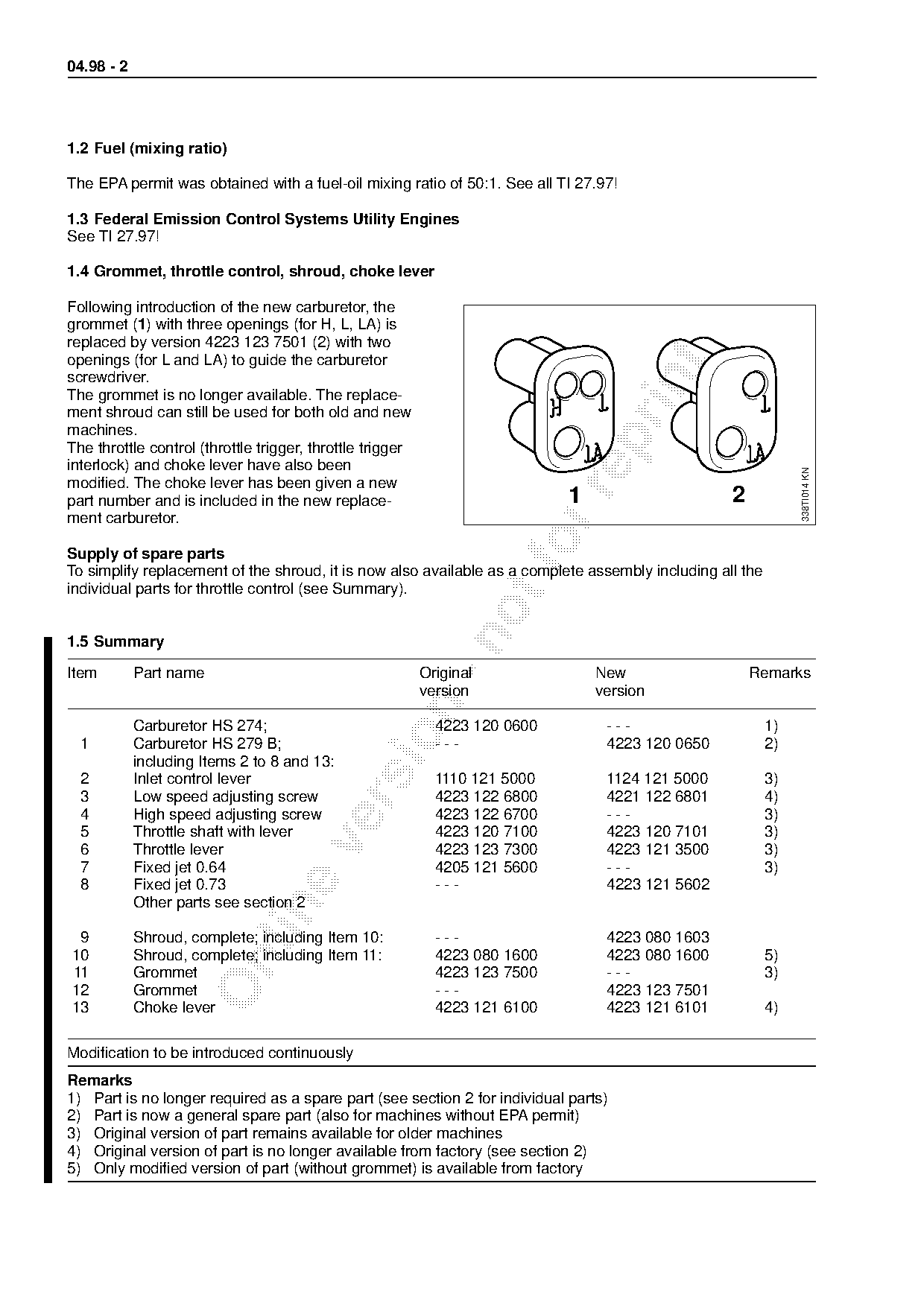

1.2 Fuel (mixing ratio)
The EPA permit was obtained with a fuel-oil mixing ratio of 50:1. See all TI 27.97!
1.3 Federal Emission Control Systems Utility Engines
See TI 27.97!
1.4 Grommet, throttle control, shroud, choke lever
Following introduction of the new carburetor, the
grommet (1) with three openings (for H, L, LA) is
replaced by version 4223 123 7501 (2) with two
openings (for L and LA) to guide the carburetor
screwdriver.
The grommet is no longer available. The replace-
ment shroud can still be used for both old and new
machines.
The throttle control (throttle trigger, throttle trigger
interlock) and choke lever have also been
338TI014 KN
modified. The choke lever has been given a new
part number and is included in the new replace- 1 2
ment carburetor.
Supply of spare parts fo
To simplify replacement of the shroud, it is now also available as a complete assembly including all the
individual parts for throttle control (see Summary).
1.5 Summary
Item Part name Original New Remarks
version version
Carburetor HS 274; 4223 120 0600 --- 1)
1 Carburetor HS 279 B; --- 4223 120 0650 2)
including Items 2 to 8 and 13:
2 Inlet control lever 1110 121 5000 1124 121 5000 3)
3 Low speed adjusting screw 4223 122 6800 4221 122 6801 4)
4 High speed adjusting screw 4223 122 6700 --- 3)
5 Throttle shaft with lever 4223 120 7100 4223 120 7101 3)
6 Throttle lever 4223 123 7300 4223 121 3500 3)
7 Fixed jet 0.64 4205 121 5600 --- 3)
8 Fixed jet 0.73 --- 4223 121 5602
Other parts see section 2
9 Shroud, complete; including Item 10: --- 4223 080 1603
10 Shroud, complete; including Item 11: 4223 080 1600 4223 080 1600 5)
11 Grommet 4223 123 7500 --- 3)
12 Grommet --- 4223 123 7501
13 Choke lever 4223 121 6100 4223 121 6101 4)
Modification to be introduced continuously
Remarks
1) Part is no longer required as a spare part (see section 2 for individual parts)
2) Part is now a general spare part (also for machines without EPA permit)
3) Original version of part remains available for older machines
4) Original version of part is no longer available from factory (see section 2)
5) Only modified version of part (without grommet) is available from factory
)MQKVU=J=P

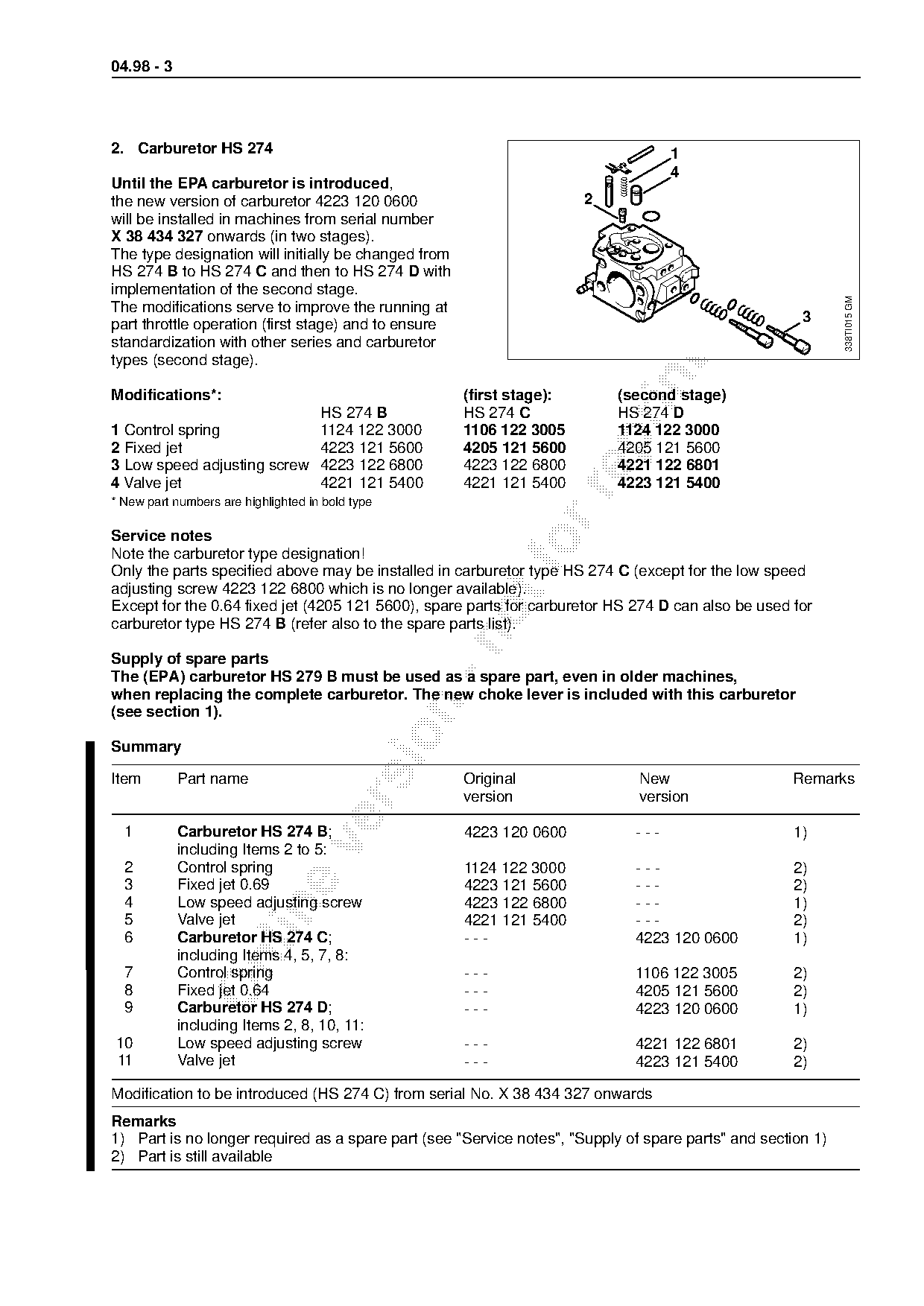

2. Carburetor HS 274 1
4
Until the EPA carburetor is introduced,
the new version of carburetor 4223 120 0600 2
will be installed in machines from serial number
X 38 434 327 onwards (in two stages).
The type designation will initially be changed from
HS 274 B to HS 274 C and then to HS 274 D with
implementation of the second stage.
338TI015 GM
The modifications serve to improve the running at
3
part throttle operation (first stage) and to ensure
standardization with other series and carburetor
types (second stage).
Modifications*: (first stage): (second stage)
HS 274 B HS 274 C HS 274 D
1 Control spring 1124 122 3000 1106 122 3005 1124 122 3000
2 Fixed jet 4223 121 5600 4205 121 5600 4205 121 5600
3 Low speed adjusting screw 4223 122 6800 4223 122 6800 4221 122 6801
4 Valve jet 4221 121 5400 4221 121 5400 4223 121 5400
* New part numbers are highlighted in bold type
Service notes
Note the carburetor type designation! fo
Only the parts specified above may be installed in carburetor type HS 274 C (except for the low speed
adjusting screw 4223 122 6800 which is no longer available).
Except for the 0.64 fixed jet (4205 121 5600), spare parts for carburetor HS 274 D can also be used for
carburetor type HS 274 B (refer also to the spare parts list).
Supply of spare parts
The (EPA) carburetor HS 279 B must be used as a spare part, even in older machines,
when replacing the complete carburetor. The new choke lever is included with this carburetor
(see section 1).
Summary
Item Part name Original New Remarks
version version
1 Carburetor HS 274 B; 4223 120 0600 --- 1)
including Items 2 to 5:
2 Control spring 1124 122 3000 --- 2)
3 Fixed jet 0.69 4223 121 5600 --- 2)
4 Low speed adjusting screw 4223 122 6800 --- 1)
5 Valve jet 4221 121 5400 --- 2)
6 Carburetor HS 274 C; --- 4223 120 0600 1)
including Items 4, 5, 7, 8:
7 Control spring --- 1106 122 3005 2)
8 Fixed jet 0.64 --- 4205 121 5600 2)
9 Carburetor HS 274 D; --- 4223 120 0600 1)
including Items 2, 8, 10, 11:
10 Low speed adjusting screw --- 4221 122 6801 2)
11 Valve jet --- 4223 121 5400 2)
Modification to be introduced (HS 274 C) from serial No. X 38 434 327 onwards
Remarks
1) Part is no longer required as a spare part (see "Service notes", "Supply of spare parts" and section 1)
2) Part is still available
)MQKVU=J=Q

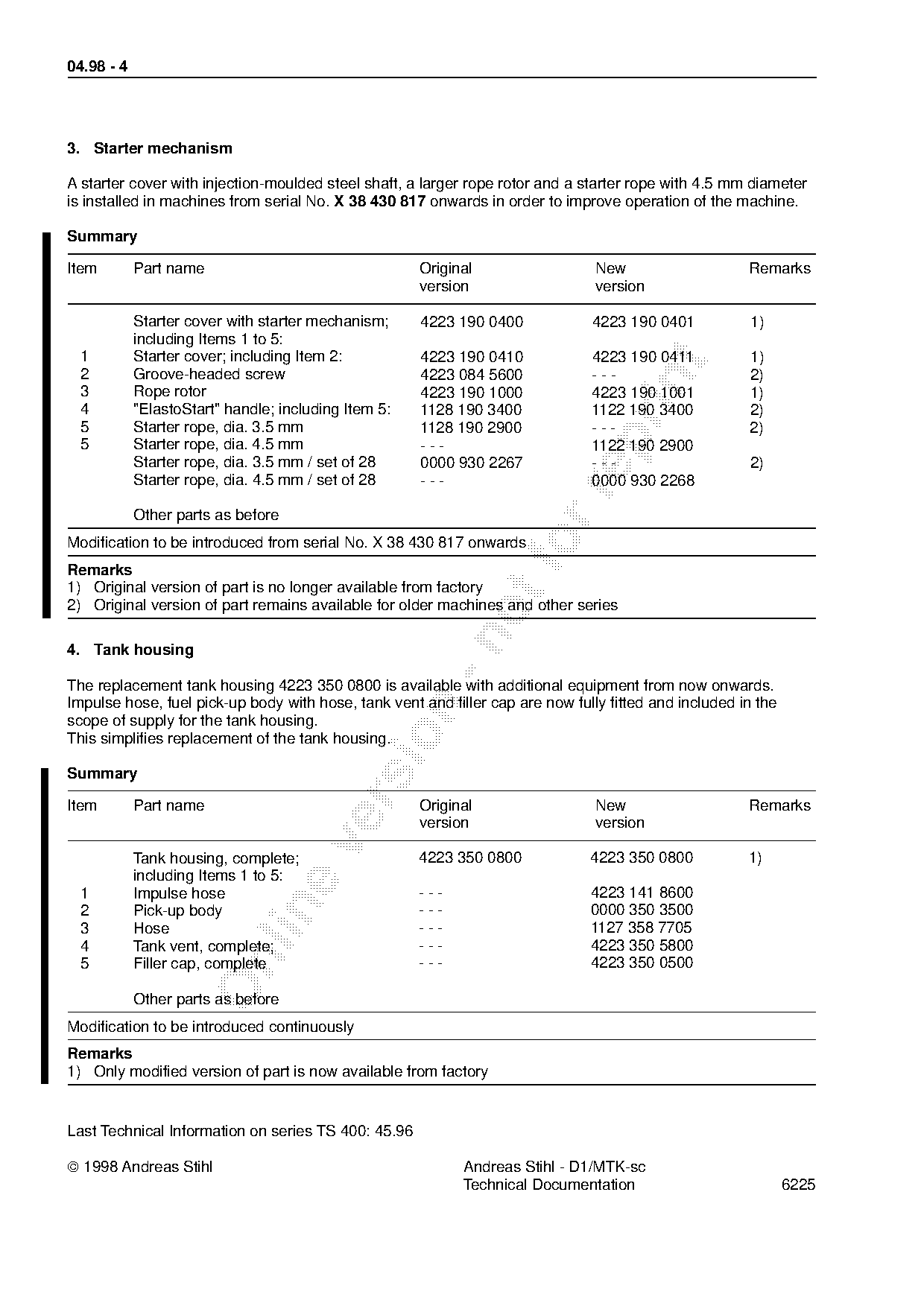

3. Starter mechanism
A starter cover with injection-moulded steel shaft, a larger rope rotor and a starter rope with 4.5 mm diameter
is installed in machines from serial No. X 38 430 817 onwards in order to improve operation of the machine.
Summary
Item Part name Original New Remarks
version version
Starter cover with starter mechanism; 4223 190 0400 4223 190 0401 1)
including Items 1 to 5:
1 Starter cover; including Item 2: 4223 190 0410 4223 190 0411 1)
2 Groove-headed screw 4223 084 5600 --- 2)
3 Rope rotor 4223 190 1000 4223 190 1001 1)
4 "ElastoStart" handle; including Item 5: 1128 190 3400 1122 190 3400 2)
5 Starter rope, dia. 3.5 mm 1128 190 2900 --- 2)
5 Starter rope, dia. 4.5 mm --- 1122 190 2900
Starter rope, dia. 3.5 mm / set of 28 0000 930 2267 --- 2)
Starter rope, dia. 4.5 mm / set of 28 --- 0000 930 2268
Other parts as before
Modification to be introduced from serial No. X 38 430 817 onwards
Remarks
1) Original version of part is no longer available from factory
2) Original version of part remains available for older machines and other series
4. Tank housing
The replacement tank housing 4223 350 0800 is available with additional equipment from now onwards.
Impulse hose, fuel pick-up body with hose, tank vent and filler cap are now fully fitted and included in the
scope of supply for the tank housing.
This simplifies replacement of the tank housing.
Summary
Item Part name Original New Remarks
version version
Tank housing, complete; 4223 350 0800 4223 350 0800 1)
including Items 1 to 5:
1 Impulse hose --- 4223 141 8600
2 Pick-up body --- 0000 350 3500
3 Hose --- 1127 358 7705
4 Tank vent, complete; --- 4223 350 5800
5 Filler cap, complete --- 4223 350 0500
Other parts as before
Modification to be introduced continuously
Remarks
1) Only modified version of part is now available from factory
Last Technical Information on series TS 400: 45.96
1998 Andreas Stihl Andreas Stihl - D1/MTK-sc
Technical Documentation 6225 Page 2 of 4
Page 3 of 4
Page 4 of 4
