Technical Information · issue 6 of 1998
TS 460: Carburetor; Rewind Starter (steel post)
IssueTI 6/1998
Part changes (1)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 4221 120 0602 | 4221 120 0651 | 2 HS 276 B (4221 120 0602) 1 is replaced by the new version HS 275 A (4221 120 0651). |
Full text

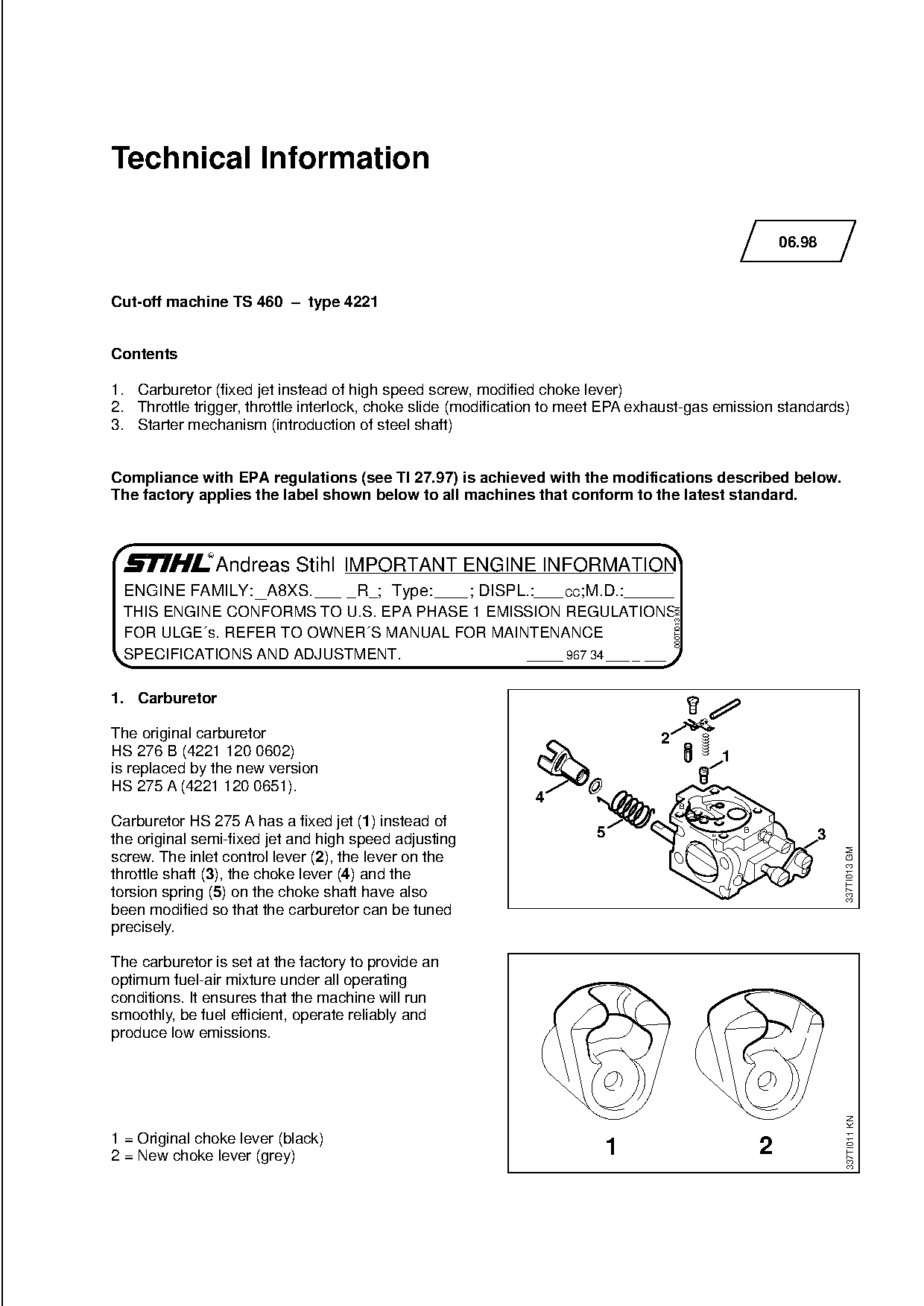

Page 1 of 3
Technical Information
06.98
Cut-off machine TS 460 – type 4221
Contents
1. Carburetor (fixed jet instead of high speed screw, modified choke lever)
2. Throttle trigger, throttle interlock, choke slide (modification to meet EPA exhaust-gas emission standards)
3. Starter mechanism (introduction of steel shaft)
Compliance with EPA regulations (see TI 27.97) is achieved with the modifications described below.
The factory applies the label shown below to all machines that conform to the latest standard.
Andreas Stihl IMPORTANT ENGINE INFORMATION
ENGINE FAMILY: A8XS. R ; Type: ; DISPL.: CC;M.D.:
THIS ENGINE CONFORMS TO U.S. EPA PHASE 1 EMISSION REGULATIONS
000TI013 KN
FOR ULGE´s. REFER TO OWNER´S MANUAL FOR MAINTENANCE
SPECIFICATIONS AND ADJUSTMENT. 967 34
1. Carburetor
The original carburetor
2
HS 276 B (4221 120 0602) 1
is replaced by the new version
HS 275 A (4221 120 0651).
4
Carburetor HS 275 A has a fixed jet (1) instead of
the original semi-fixed jet and high speed adjusting 5 3
337TI013 GM
screw. The inlet control lever (2), the lever on the
throttle shaft (3), the choke lever (4) and the
torsion spring (5) on the choke shaft have also
been modified so that the carburetor can be tuned
precisely.
The carburetor is set at the factory to provide an
optimum fuel-air mixture under all operating
conditions. It ensures that the machine will run
smoothly, be fuel efficient, operate reliably and
produce low emissions.
337TI011 KN
1 = Original choke lever (black)
2 = New choke lever (grey) 1 2
)MSKVU=J=O

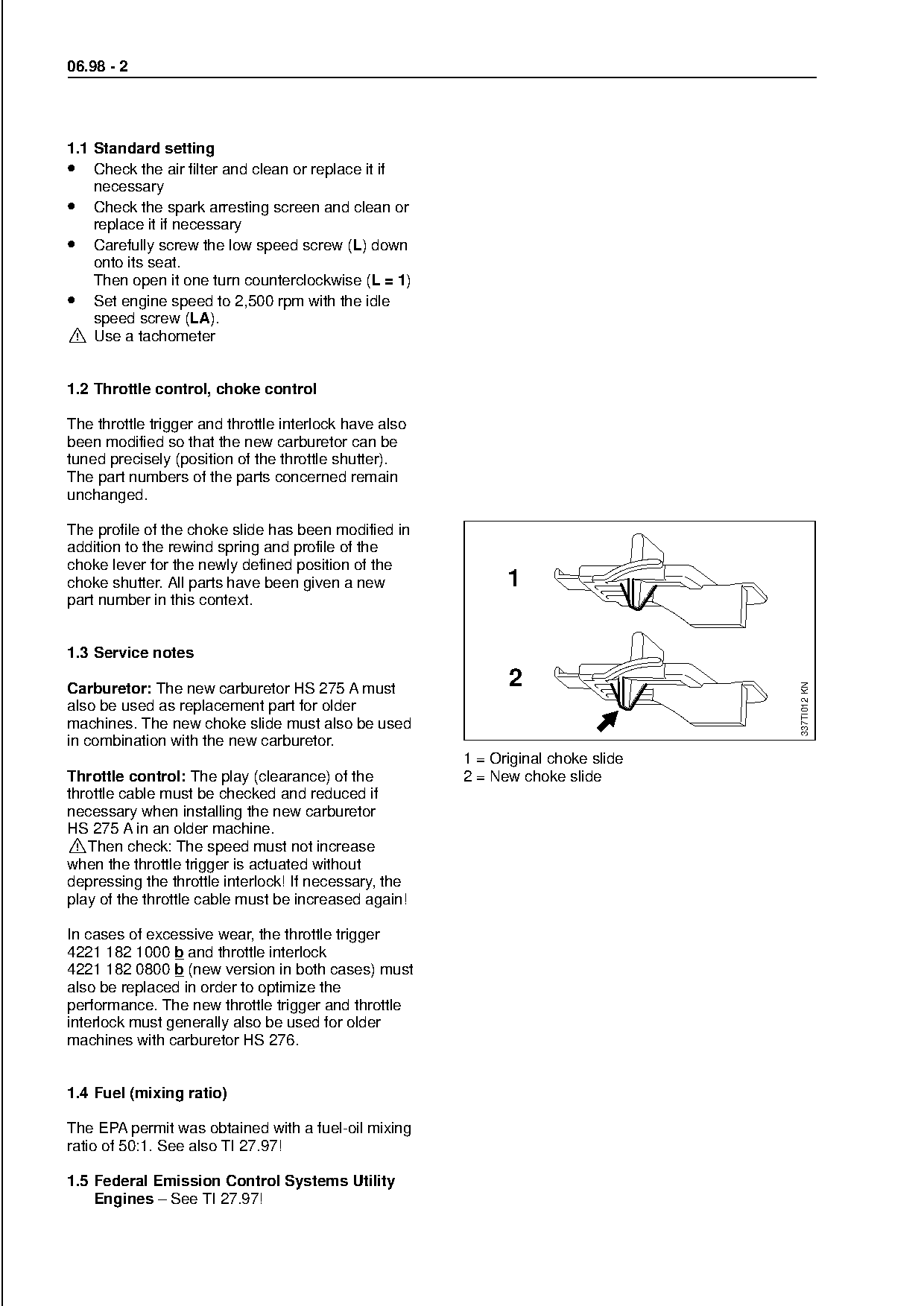

1.1 Standard setting
• Check the air filter and clean or replace it if
necessary
• Check the spark arresting screen and clean or
replace it if necessary
• Carefully screw the low speed screw (L) down
onto its seat.
Then open it one turn counterclockwise (L = 1)
• Set engine speed to 2,500 rpm with the idle
speed screw (LA).
! Use a tachometer
1.2 Throttle control, choke control
The throttle trigger and throttle interlock have also
been modified so that the new carburetor can be
tuned precisely (position of the throttle shutter).
The part numbers of the parts concerned remain
unchanged.
The profile of the choke slide has been modified in
addition to the rewind spring and profile of the
choke lever for the newly defined position of the
choke shutter. All parts have been given a new 1
part number in this context.
1.3 Service notes
2
337TI012 KN
Carburetor: The new carburetor HS 275 A must
also be used as replacement part for older
machines. The new choke slide must also be used
in combination with the new carburetor.
1 = Original choke slide
Throttle control: The play (clearance) of the 2 = New choke slide
throttle cable must be checked and reduced if
necessary when installing the new carburetor
HS 275 A in an older machine.
!Then check: The speed must not increase
when the throttle trigger is actuated without
depressing the throttle interlock! If necessary, the
play of the throttle cable must be increased again!
In cases of excessive wear, the throttle trigger
4221 182 1000 b and throttle interlock
4221 182 0800 b (new version in both cases) must
also be replaced in order to optimize the
performance. The new throttle trigger and throttle
interlock must generally also be used for older
machines with carburetor HS 276.
1.4 Fuel (mixing ratio)
The EPA permit was obtained with a fuel-oil mixing
ratio of 50:1. See also TI 27.97!
1.5 Federal Emission Control Systems Utility
Engines – See TI 27.97!
)MSKVU=J=P

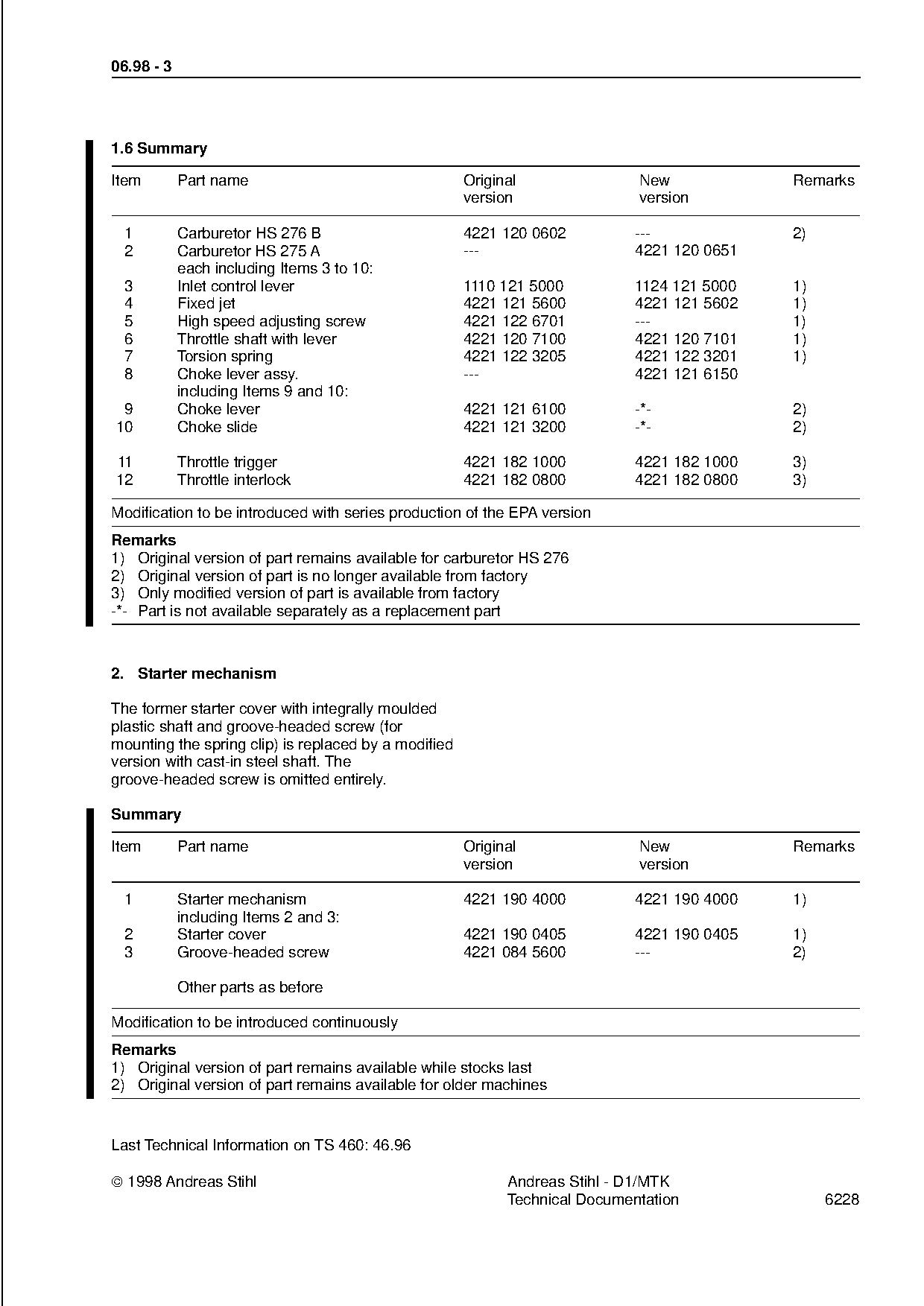

1.6 Summary
Item Part name Original New Remarks
version version
1 Carburetor HS 276 B 4221 120 0602 --- 2)
2 Carburetor HS 275 A --- 4221 120 0651
each including Items 3 to 10:
3 Inlet control lever 1110 121 5000 1124 121 5000 1)
4 Fixed jet 4221 121 5600 4221 121 5602 1)
5 High speed adjusting screw 4221 122 6701 --- 1)
6 Throttle shaft with lever 4221 120 7100 4221 120 7101 1)
7 Torsion spring 4221 122 3205 4221 122 3201 1)
8 Choke lever assy. --- 4221 121 6150
including Items 9 and 10:
9 Choke lever 4221 121 6100 -*- 2)
10 Choke slide 4221 121 3200 -*- 2)
11 Throttle trigger 4221 182 1000 4221 182 1000 3)
12 Throttle interlock 4221 182 0800 4221 182 0800 3)
Modification to be introduced with series production of the EPA version
Remarks
1) Original version of part remains available for carburetor HS 276
2) Original version of part is no longer available from factory
3) Only modified version of part is available from factory
-*- Part is not available separately as a replacement part
2. Starter mechanism
The former starter cover with integrally moulded
plastic shaft and groove-headed screw (for
mounting the spring clip) is replaced by a modified
version with cast-in steel shaft. The
groove-headed screw is omitted entirely.
Summary
Item Part name Original New Remarks
version version
1 Starter mechanism 4221 190 4000 4221 190 4000 1)
including Items 2 and 3:
2 Starter cover 4221 190 0405 4221 190 0405 1)
3 Groove-headed screw 4221 084 5600 --- 2)
Other parts as before
Modification to be introduced continuously
Remarks
1) Original version of part remains available while stocks last
2) Original version of part remains available for older machines
Last Technical Information on TS 460: 46.96
1998 Andreas Stihl Andreas Stihl - D1/MTK
Technical Documentation 6228 Page 2 of 3
