Technical Information · issue 8 of 1998

021, 023, 025: Carburetors

Model 021, 023, 025 Chainsaws - Series 1123

IssueTI 8/1998
Engine family 1123
Serial references — see context below 37 731 266

Historical fitment & changes

Source-reviewed model notes. An exact-model IPL link is unavailable where stated; no similar model is substituted. Availability statements belong to the bulletin’s date.

Conditional replacement · 023 C

023 C: WT 498 A retains the 0616 number

0.55 mm repair permission explicitly includes WT 286, WT 498 and WT 498 A.

No exact-model IPL link: The shared 021/023/025 IPL includes WT-498A but has no exact 023 C model binding. Keep this variant-specific note on its source page; do not silently substitute base 023 or an MS successor.

X 37 731 266 — Production introduction of the model-specific smaller fixed jets and carburetor designations; not a model identity range or a lower limit on repair eligibility.

  • Historical TI08/1998: smaller fixed-jet orifices allow for the fleece air filter introduced in TI38/1996. Production modification is printed FROM machine number X 37 731 266; retain the X prefix and do not turn it into a model-identification range. The service permissions apply IN CASE OF A REPAIR and are not restricted to post-cutoff machines. Factory availability is historical, not current stock. No successor-model scope or verified physical interchange is inferred. No hardware operation was performed.
  • 023 C production changes from WT 498, fixed jet 0.57 mm, to WT 498 A, fixed jet 0.55 mm. Summary items 7 AND 8 both use 1123 120 0616. Original item 7 includes item 4 jet 1123 121 5610; modified item 8 includes item 6 jet 1123 121 5625. The unchanged assembly number does not establish which calibration is installed.
  • Fixed jet 1123 121 5625, DIAMETER 0.55 mm, MAY BE INSTALLED in WT 286, WT 498 AND WT 498 A on 023 C IN CASE OF A REPAIR. WT 286 is explicitly printed in this permission even though TI28/1997 describes its replacement by the fixed-jet/part-load-jet WT 498. Retain this cross-source design tension; do not silently omit WT 286, invent a drilling/conversion method or claim a verified physical retrofit.
  • TI28/1997 supplies the earlier 023 C carburetor replacement context; its separate CARB/EPA dependency on missing TI27/1997 remains documented in that earlier review. TI08 provides the entire jet repair statement locally and does not delegate an emissions procedure. It does not silently repair the earlier source gap or extend a U.S.-cylinder restriction to every statement here.
  • The old 0.57 mm jet 1123 121 5610 is DELETED WITHOUT REPLACEMENT; summary item4 carries remark1, original no longer available. WT 498 item7 instead carries remark2: ONLY MODIFIED VERSION AVAILABLE FROM FACTORY. Preserve those distinct supply statements and the explicit 0.55 mm repair option.
  • The common-parts identity sentence lists WT 283 A, WT 503 and WT 283 B ONLY, not WT 498 or WT 498 A. The later shared IPL lists WT-498A under 1123 120 0616 and 0.55 jet 1123 121 5625, but lacks exact 023 C model binding. No base-023 or later-model applicability is inferred. Footer TI28.97, copyright1998 and documentation6213 are bibliography, not additional cutoffs.

Source: TI 8/1998, p. 1 · TI 8/1998, p. 2 — 023 C matrix and full service note, summary items4,6,7,8 and both remarks/footer.

Referenced bulletin evidence: TI 28/1997, p. 1 · TI 28/1997, p. 2 · TI 28/1997, p. 3 — Earlier WT286/WT498 design and replacement context; TI27 gap remains.

Part numbers (3)
  • 1123 120 0616 — WT 498 to WT 498 A; same number, different jet inclusionOnly modified version available from factory · 023 C; exact carburetor version and repair restrictions in this note
  • 1123 121 5610 — Fixed jet 0.57 mm; original item4Deleted without replacement · 023 C; exact carburetor version and repair restrictions in this note
  • 1123 121 5625 — Fixed jet 0.55 mm; new item6Permitted repair jet for 023 C WT 286 / WT 498 / WT 498 A · 023 C; exact carburetor version and repair restrictions in this note

Full text

Page 1 of 2

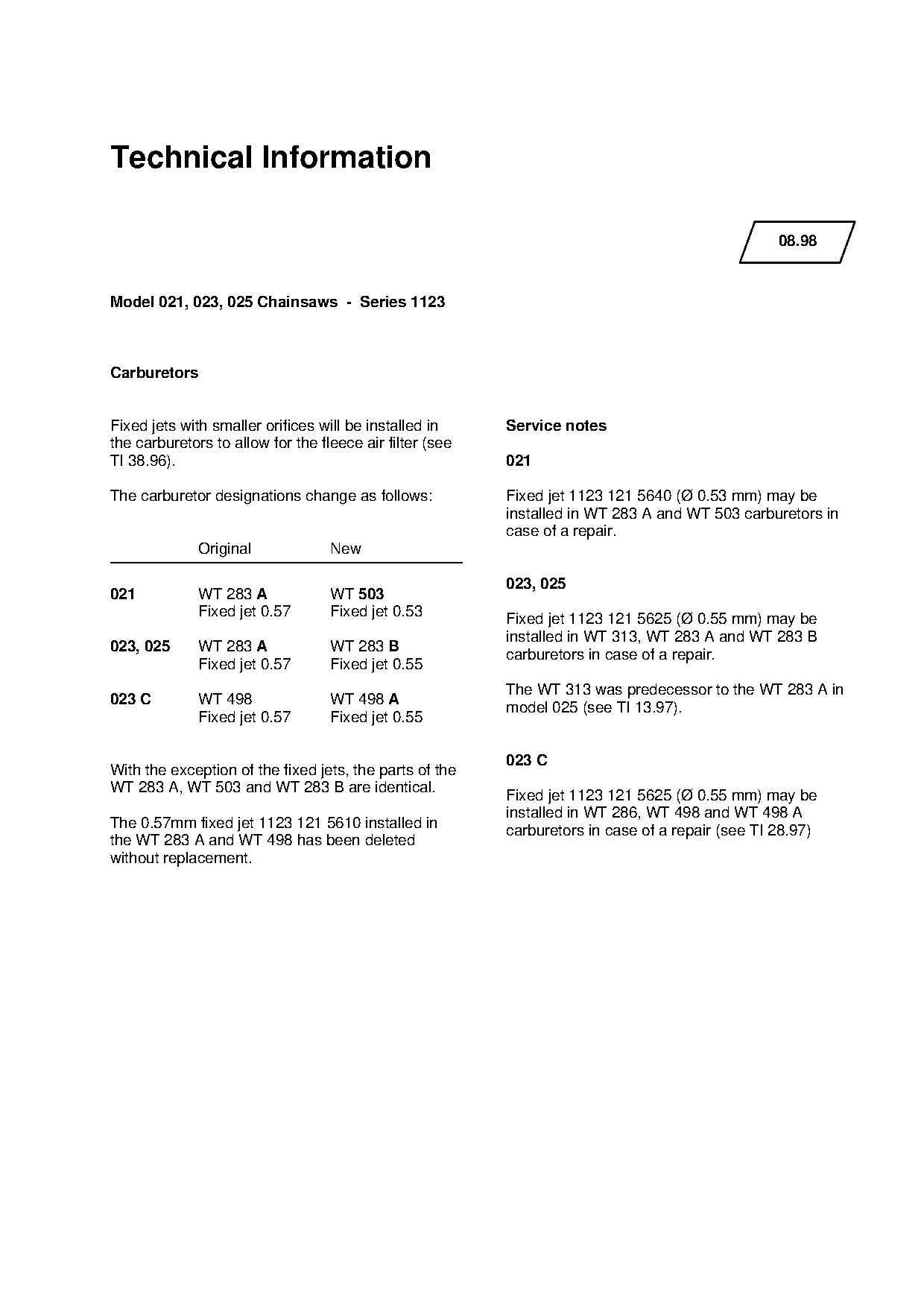

TI 8/1998 page 1
Text of page 1 — search, copy, screen readers
Technical Information

                                                                                                  08.98

Model 021, 023, 025 Chainsaws - Series 1123

Carburetors

Fixed jets with smaller orifices will be installed in     Service notes

the carburetors to allow for the fleece air filter (see
TI 38.96).                                                021

The carburetor designations change as follows:            Fixed jet 1123 121 5640 (Ø 0.53 mm) may be
                                                          installed in WT 283 A and WT 503 carburetors in
                                                          case of a repair.
              Original             New                     fo
                                                          023, 025
021           WT 283 A             WT 503
              Fixed jet 0.57       Fixed jet 0.53         Fixed jet 1123 121 5625 (Ø 0.55 mm) may be
                                                          installed in WT 313, WT 283 A and WT 283 B

023, 025      WT 283 A             WT 283 B
                                                          carburetors in case of a repair.
              Fixed jet 0.57       Fixed jet 0.55
                                                          The WT 313 was predecessor to the WT 283 A in
023 C         WT 498               WT 498 A               model 025 (see TI 13.97).

              Fixed jet 0.57       Fixed jet 0.55

                                                          023 C
With the exception of the fixed jets, the parts of the
WT 283 A, WT 503 and WT 283 B are identical.
                                                          Fixed jet 1123 121 5625 (Ø 0.55 mm) may be

                                                          installed in WT 286, WT 498 and WT 498 A
The 0.57mm fixed jet 1123 121 5610 installed in
                                                          carburetors in case of a repair (see TI 28.97)
the WT 283 A and WT 498 has been deleted

without replacement.

Page 2 of 2

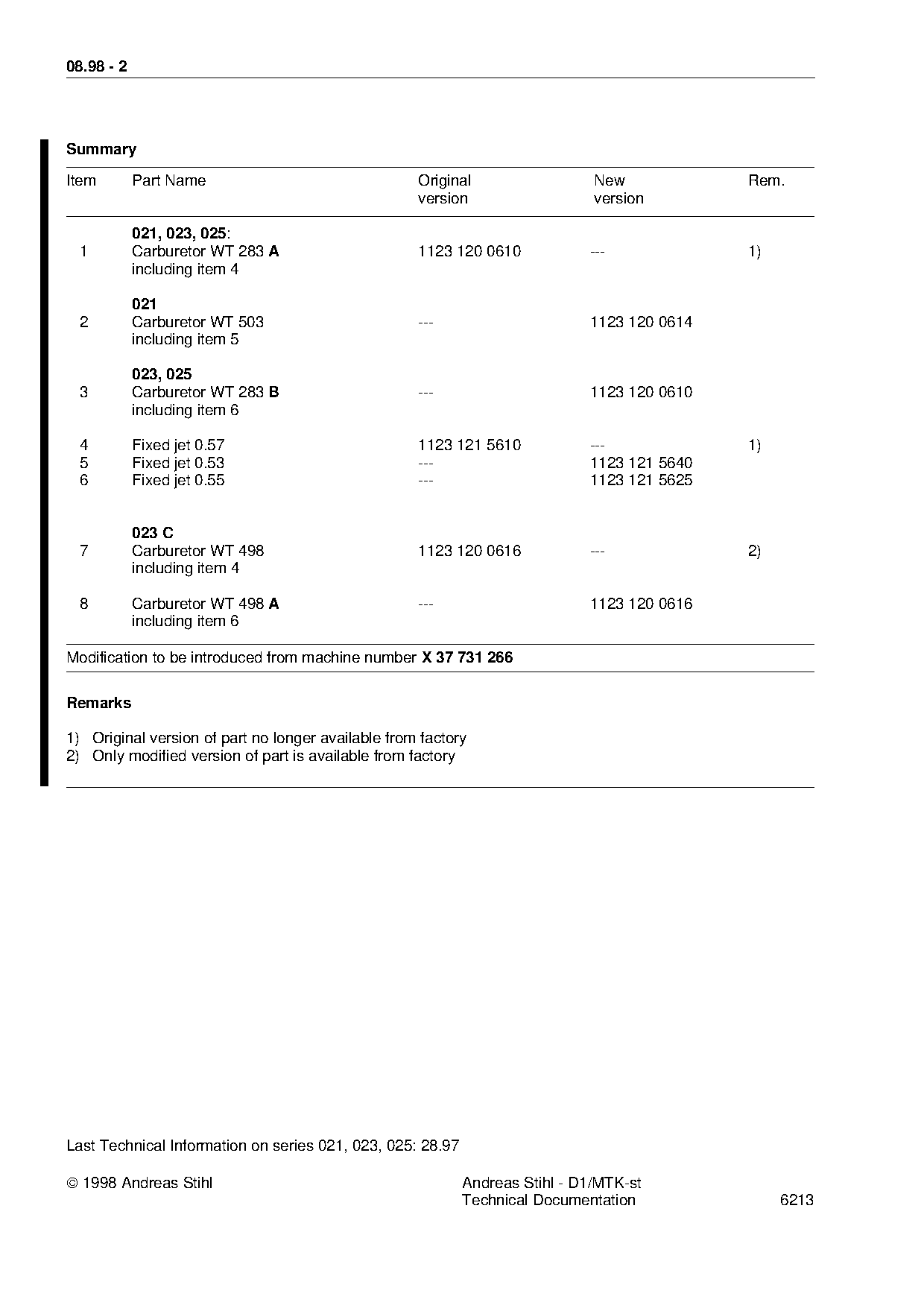

TI 8/1998 page 2
Text of page 2 — search, copy, screen readers
08.98 - 2

Summary

Item        Part Name                               Original                  New            Rem.
                                                    version                   version

            021, 023, 025:
  1         Carburetor WT 283 A                     1123 120 0610            ---             1)
            including item 4

            021
  2         Carburetor WT 503                       ---                      1123 120 0614
            including item 5

            023, 025

  3         Carburetor WT 283 B                     ---                      1123 120 0610
            including item 6

  4         Fixed jet 0.57                          1123 121 5610            ---             1)
  5         Fixed jet 0.53                          ---                      1123 121 5640
  6         Fixed jet 0.55                          ---                      1123 121 5625

            023 C
  7         Carburetor WT 498
            including item 4
                                                    1123 120 0616  fo        ---             2)
  8         Carburetor WT 498 A                     ---                      1123 120 0616
            including item 6

Modification to be introduced from machine number X 37 731 266

Remarks

1) Original version of part no longer available from factory
2) Only modified version of part is available from factory

Last Technical Information on series 021, 023, 025: 28.97

 1998 Andreas Stihl                                        Andreas Stihl - D1/MTK-st
                                                            Technical Documentation               6213
