Technical Information · issue 9 of 1998
Vacuum Attachment (housing, suction tube, elbow);
Model BE 55 Electric Blower - Series 4804
Part changes (2)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 4804 007 1000 | 4804 007 1002 | The original vacuum attachment 4804 007 1000 will be replaced by the version 4804 007 1002. |
| 4804 708 6900 | 4804 700 6900 | The original elbow 4804 708 6900 will be replaced by elbow 4804 700 6900. |
Historical fitment & changes
Source-reviewed model notes. An exact-model IPL link is unavailable where stated; no similar model is substituted. Availability statements belong to the bulletin’s date.
Conditional replacement · BE 55
BE 55: revised vacuum attachment and housing-lug exception
Same-number suction tube changes; remove the illustrated lug only for the stated early-shipment mismatch.
No exact-model IPL link: The retained shared vacuum IPL lists 4807-series attachment, tube and elbow, not the 4804-series parts in TI09. Keep this BE 55 vacuum note source-linked rather than treating the shared product heading or common clamp as proof of an exact attachment binding.
- Vacuum attachment 4804 007 1000 is replaced by 4804 007 1002. Summary item 1 includes suction tube item 2 and elbow item 3. The modified suction tube and an additional lug on the RIGHT-HAND housing half assure correct user assembly. Figure 358TI004 KN shows the tube coupling and arrows to the housing feature; no housing order number, dimensions or machining depth are supplied.
- A NUMBER OF MACHINES were shipped BEFORE the modified suction tubes were available. IN THIS CASE the TI says to use a SUITABLE TOOL to REMOVE THE LUG identified by the arrow in figure 358TI006 KN. This is a conditional early-shipment mismatch instruction, not a general instruction to remove every lug, guard or interlock. The source does not identify a tool number or a serial range for the affected shipments.
- Suction tube 4804 708 3500 retains the SAME order number in original and new columns. The number alone cannot identify the physical revision. Vacuum introduction is IN PROGRESS, without an exact serial cutoff; do not borrow the blower-tube cutoff from section 2.
- Vacuum summary remark 1 applies to original attachment 1000: NO LONGER AVAILABLE FROM FACTORY. Remark 2 permits the new attachment, suction tube and elbow on OLDER MACHINES. Remark 3 applies to suction tube 3500: ONLY MODIFIED VERSION AVAILABLE FROM FACTORY. Keep these distinct from the old elbow stock-exhaustion rule.
- The retained SCS 01-2012 shared vacuum IPL instead lists attachment 4807 007 1000, suction tube 4807 760 3501 and elbow 4807 708 6900. Those are not substitutions established by this TI; the shared BE 55/BGE 60 heading does not resolve the source-to-catalog difference. The original BE 55 housing sheet is not an exact vacuum-attachment inventory.
- Historical TI09/1998, BE 55 electric blower, series 4804 ONLY. The shared BE 55/BGE 60 catalog grouping does not extend these statements to BGE 60. Factory availability is historical, not current stock. Source-stated interchange is not a reproduced physical fit test. No hardware operation was performed.
Source: TI 9/1998, p. 1 · TI 9/1998, p. 2 — Section 1 attachment/suction/housing prose, both lug drawings and conditional service note; vacuum summary rows 1–2 and remarks 1–3.
Part numbers (3)
- 4804 007 1000 — Original vacuum attachment; includes items 2–3Original no longer factory available · BE 55; exact configuration and restrictions in this note
- 4804 007 1002 — Modified vacuum attachment; includes items 2–3New; usable on older machines · BE 55; exact configuration and restrictions in this note
- 4804 708 3500 — Suction tube; unchanged number for revised geometryOnly modified version factory available; usable on older machines · BE 55; exact configuration and restrictions in this note
Conditional replacement · BE 55
BE 55: marked vacuum elbow and included clamp
6900 changes from 708 to 700; old stock and source-stated interchange remain explicit.
No exact-model IPL link: The retained shared vacuum IPL lists 4807-series attachment, tube and elbow, not the 4804-series parts in TI09. Keep this BE 55 vacuum note source-linked rather than treating the shared product heading or common clamp as proof of an exact attachment binding.
- The vacuum elbow changes from 4804 708 6900 to 4804 700 6900 in connection with the blower-tube modification in section 2. Housing and elbow now have MARKINGS for correct assembly and alignment. Figure 358TI005 KN depicts the mating parts, alignment marks and insertion arrow; no angular measurement or tightening torque is specified.
- The adjacent elbow prose says ORIGINAL AND NEW PARTS ARE FULLY INTERCHANGEABLE. Retain this source-stated elbow-change claim and the explicit older-machine permission, without extending it to every vacuum component or cancelling the separate suction-tube/lug mismatch exception.
- Vacuum summary item 3 elbow includes item 4 clamp 4227 700 7102; the clamp in turn includes item 5 screw 4227 701 5000. Their original columns show dashes. Do not infer a separate old clamp or screw number, or that every earlier assembly necessarily lacked all fastening hardware.
- Vacuum remark 2 allows the new elbow on OLDER MACHINES. Remark 4 says original elbow 4804 708 6900 is factory-supplied ONLY AS LONG AS EXISTING STOCKS LAST. This differs from the old attachment being already unavailable and the same-number suction tube being modified-only.
- The vacuum summary says introduction IN PROGRESS. Association with section 2 does not assign the printed blower-tube serial cutoff to this elbow. The shared later vacuum IPL has elbow 4807 708 6900 and the same clamp/screw numbers; common fasteners do not prove the4807 elbow substitutes for either4804 elbow.
- Historical TI09/1998, BE 55 electric blower, series 4804 ONLY. The shared BE 55/BGE 60 catalog grouping does not extend these statements to BGE 60. Factory availability is historical, not current stock. Source-stated interchange is not a reproduced physical fit test. No hardware operation was performed.
Source: TI 9/1998, p. 1 · TI 9/1998, p. 2 — Section 1 elbow paragraph and alignment drawing; vacuum summary rows 3–5 and remarks 2,4.
Part numbers (4)
- 4804 708 6900 — Original elbowFactory supply only while existing stocks last · BE 55; exact configuration and restrictions in this note
- 4804 700 6900 — Modified marked elbow; includes clamp item 4New; older-machine use and source-stated interchange · BE 55; exact configuration and restrictions in this note
- 4227 700 7102 — Clamp; includes screw item 5New elbow inclusion · BE 55; exact configuration and restrictions in this note
- 4227 701 5000 — ScrewIncluded in clamp · BE 55; exact configuration and restrictions in this note
Full text
Page 1 of 2
Text of page 1 — search, copy, screen readers

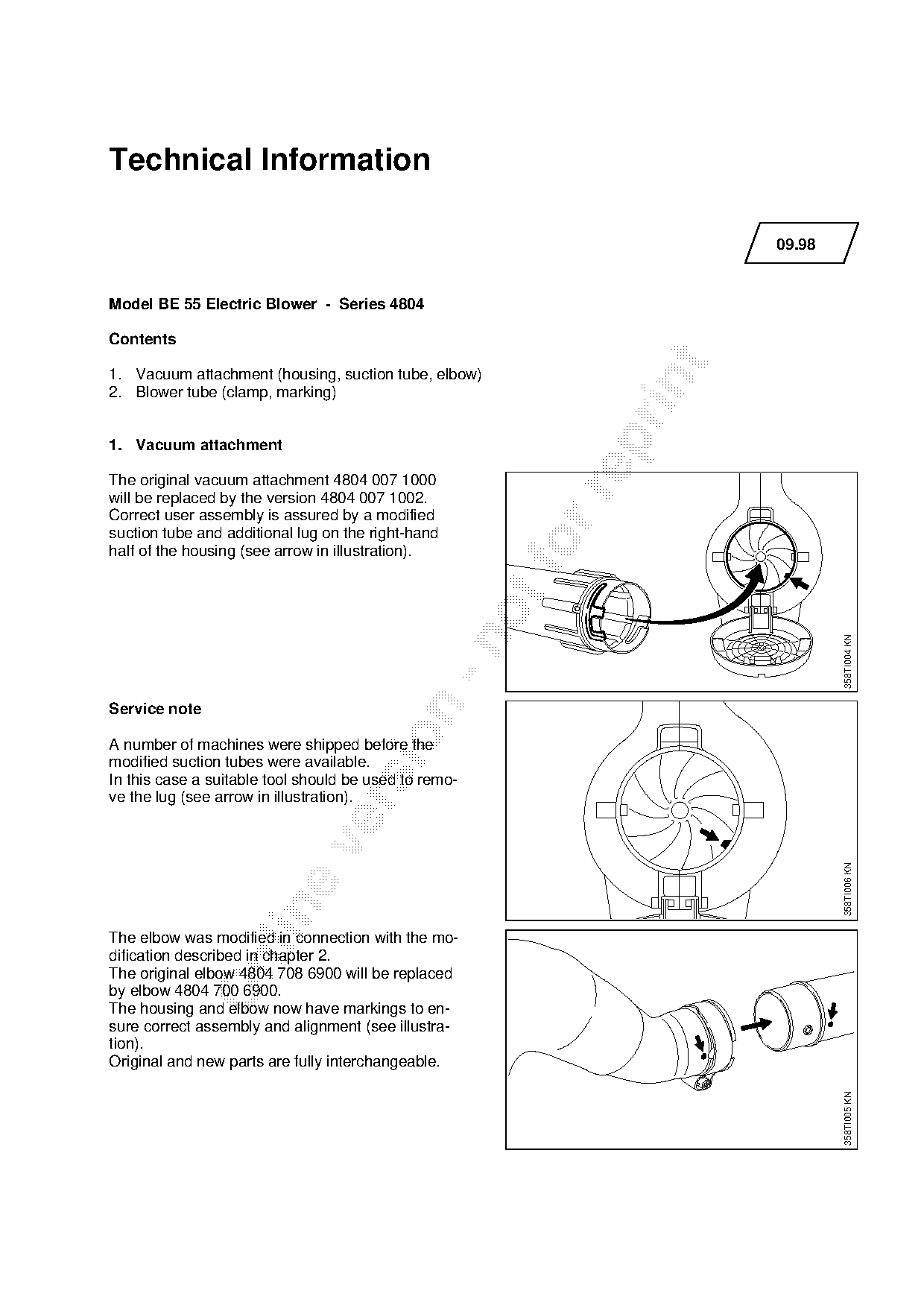

Technical Information
09.98
Model BE 55 Electric Blower - Series 4804
Contents
1. Vacuum attachment (housing, suction tube, elbow)
2. Blower tube (clamp, marking)
1. Vacuum attachment
The original vacuum attachment 4804 007 1000
will be replaced by the version 4804 007 1002.
Correct user assembly is assured by a modified
suction tube and additional lug on the right-hand
half of the housing (see arrow in illustration). fo
358TI004 KN
Service note
A number of machines were shipped before the
modified suction tubes were available.
In this case a suitable tool should be used to remo-
ve the lug (see arrow in illustration).
358TI006 KN
The elbow was modified in connection with the mo-
dification described in chapter 2.
The original elbow 4804 708 6900 will be replaced
by elbow 4804 700 6900.
The housing and elbow now have markings to en-
sure correct assembly and alignment (see illustra-
tion).
Original and new parts are fully interchangeable.
358TI005 KN Page 2 of 2
Text of page 2 — search, copy, screen readers

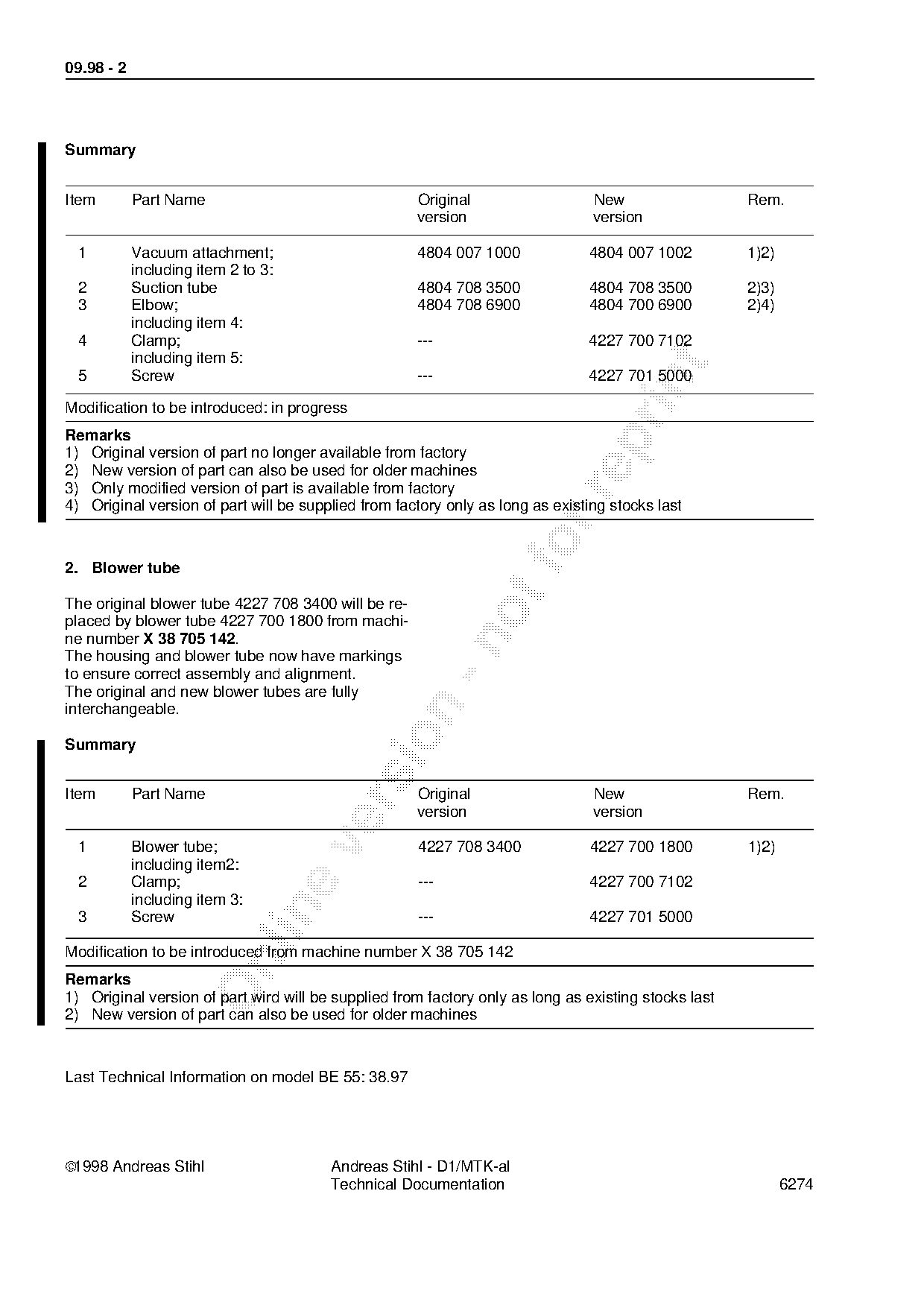

09.98 - 2
Summary
Item Part Name Original New Rem.
version version
1 Vacuum attachment; 4804 007 1000 4804 007 1002 1)2)
including item 2 to 3:
2 Suction tube 4804 708 3500 4804 708 3500 2)3)
3 Elbow; 4804 708 6900 4804 700 6900 2)4)
including item 4:
4 Clamp; --- 4227 700 7102
including item 5:
5 Screw --- 4227 701 5000
Modification to be introduced: in progress
Remarks
1) Original version of part no longer available from factory
2) New version of part can also be used for older machines
3) Only modified version of part is available from factory
4) Original version of part will be supplied from factory only as long as existing stocks last
2. Blower tube
The original blower tube 4227 708 3400 will be re-
placed by blower tube 4227 700 1800 from machi-
ne number X 38 705 142.
The housing and blower tube now have markings
to ensure correct assembly and alignment.
The original and new blower tubes are fully
interchangeable.
Summary
Item Part Name Original New Rem.
version version
1 Blower tube; 4227 708 3400 4227 700 1800 1)2)
including item2:
2 Clamp; --- 4227 700 7102
including item 3:
3 Screw --- 4227 701 5000
Modification to be introduced from machine number X 38 705 142
Remarks
1) Original version of part wird will be supplied from factory only as long as existing stocks last
2) New version of part can also be used for older machines
Last Technical Information on model BE 55: 38.97
ã1998 Andreas Stihl Andreas Stihl - D1/MTK-al
