Technical Information · issue 10 of 1998
Vacuum Attachment (housing, suction tube, elbow);
Model BG 75 Blower - Series 4227
IssueTI 10/1998
From serial 38 705 142
Part changes (1)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 4227 708 6900 | 4227 700 6900 | The original elbow 4227 708 6900 will be replaced by elbow 4227 700 6900. |
Full text
Page 1 of 2

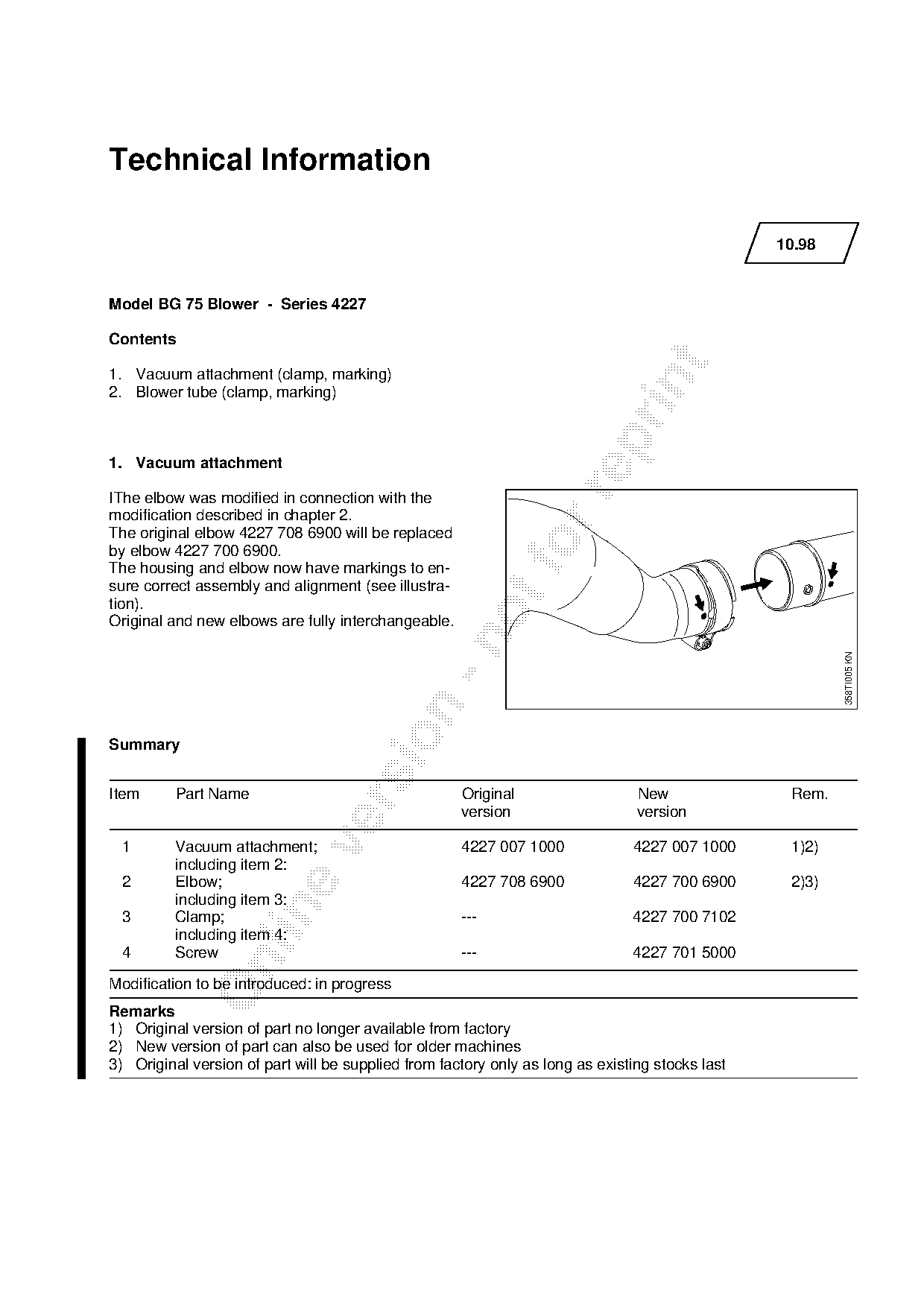

Technical Information
10.98
Model BG 75 Blower - Series 4227
Contents
1. Vacuum attachment (clamp, marking)
2. Blower tube (clamp, marking)
1. Vacuum attachment
IThe elbow was modified in connection with the
modification described in chapter 2.
The original elbow 4227 708 6900 will be replaced
by elbow 4227 700 6900.
The housing and elbow now have markings to en-
sure correct assembly and alignment (see illustra-
tion).
Original and new elbows are fully interchangeable.
358TI005 KN
Summary
Item Part Name Original New Rem.
version version
1 Vacuum attachment; 4227 007 1000 4227 007 1000 1)2)
including item 2:
2 Elbow; 4227 708 6900 4227 700 6900 2)3)
including item 3:
3 Clamp; --- 4227 700 7102
including item 4:
4 Screw --- 4227 701 5000
Modification to be introduced: in progress
Remarks
1) Original version of part no longer available from factory
2) New version of part can also be used for older machines
3) Original version of part will be supplied from factory only as long as existing stocks last
)NMKVU=J=O

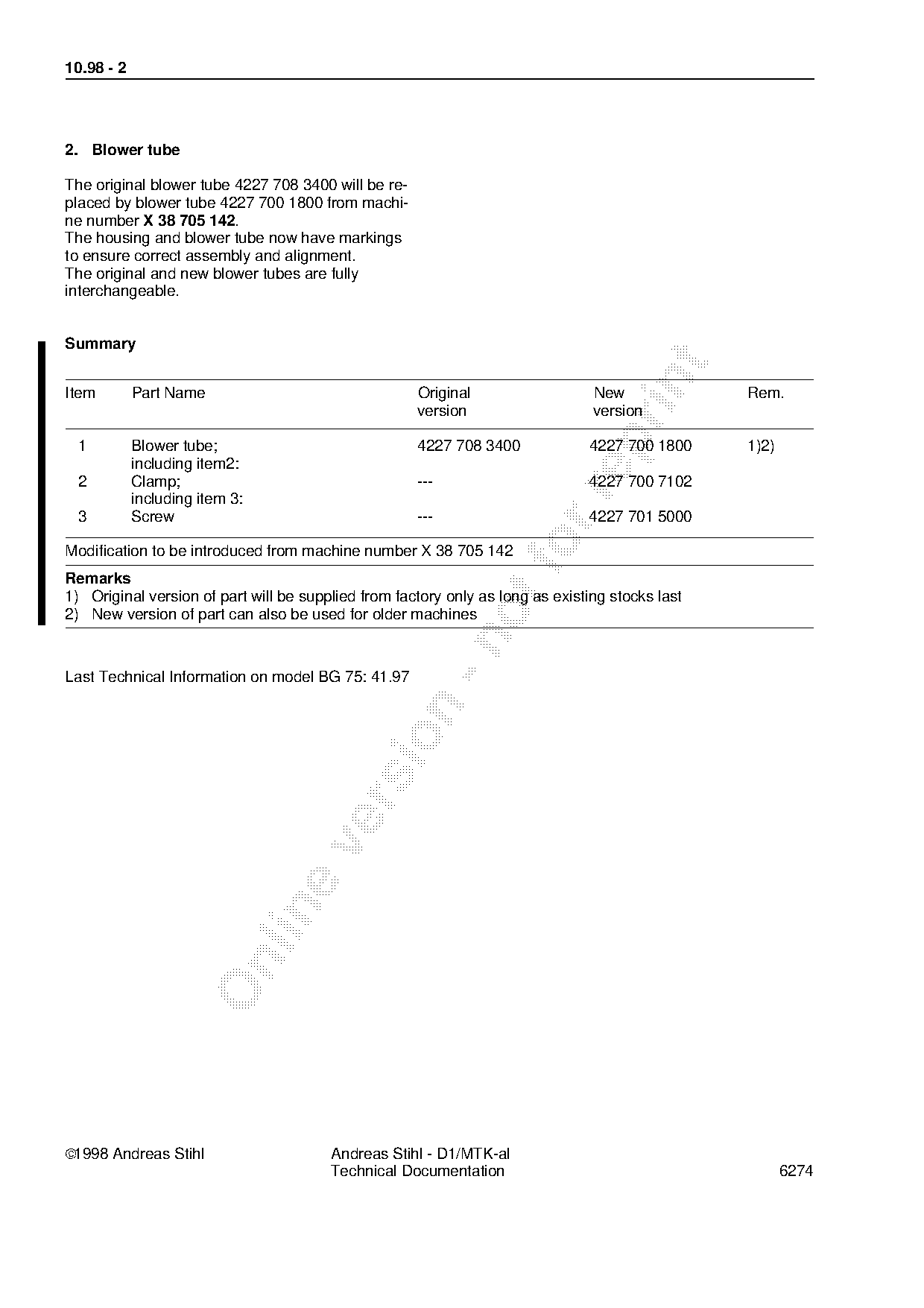

2. Blower tube
The original blower tube 4227 708 3400 will be re-
placed by blower tube 4227 700 1800 from machi-
ne number X 38 705 142.
The housing and blower tube now have markings
to ensure correct assembly and alignment.
The original and new blower tubes are fully
interchangeable.
Summary
Item Part Name Original New Rem.
version version
1 Blower tube; 4227 708 3400 4227 700 1800 1)2)
including item2:
2 Clamp; --- 4227 700 7102
including item 3:
3 Screw --- 4227 701 5000
Modification to be introduced from machine number X 38 705 142 fo
Remarks
1) Original version of part will be supplied from factory only as long as existing stocks last
2) New version of part can also be used for older machines
Last Technical Information on model BG 75: 41.97
ã1998 Andreas Stihl Andreas Stihl - D1/MTK-al
Technical Documentation 6274 Page 2 of 2
