Technical Information · issue 12 of 1998
017: Engine Housing; Oil Tank (vent valve); Repair
Model 017 Chainsaws - Series 1130
Part changes (1)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 9395 021 0760 | 0747 313 6810 | Split pin 9395 021 0760 will be replaced by valve 0747 313 6810 in order to further improve the function of the oil tank vent. |
Full text

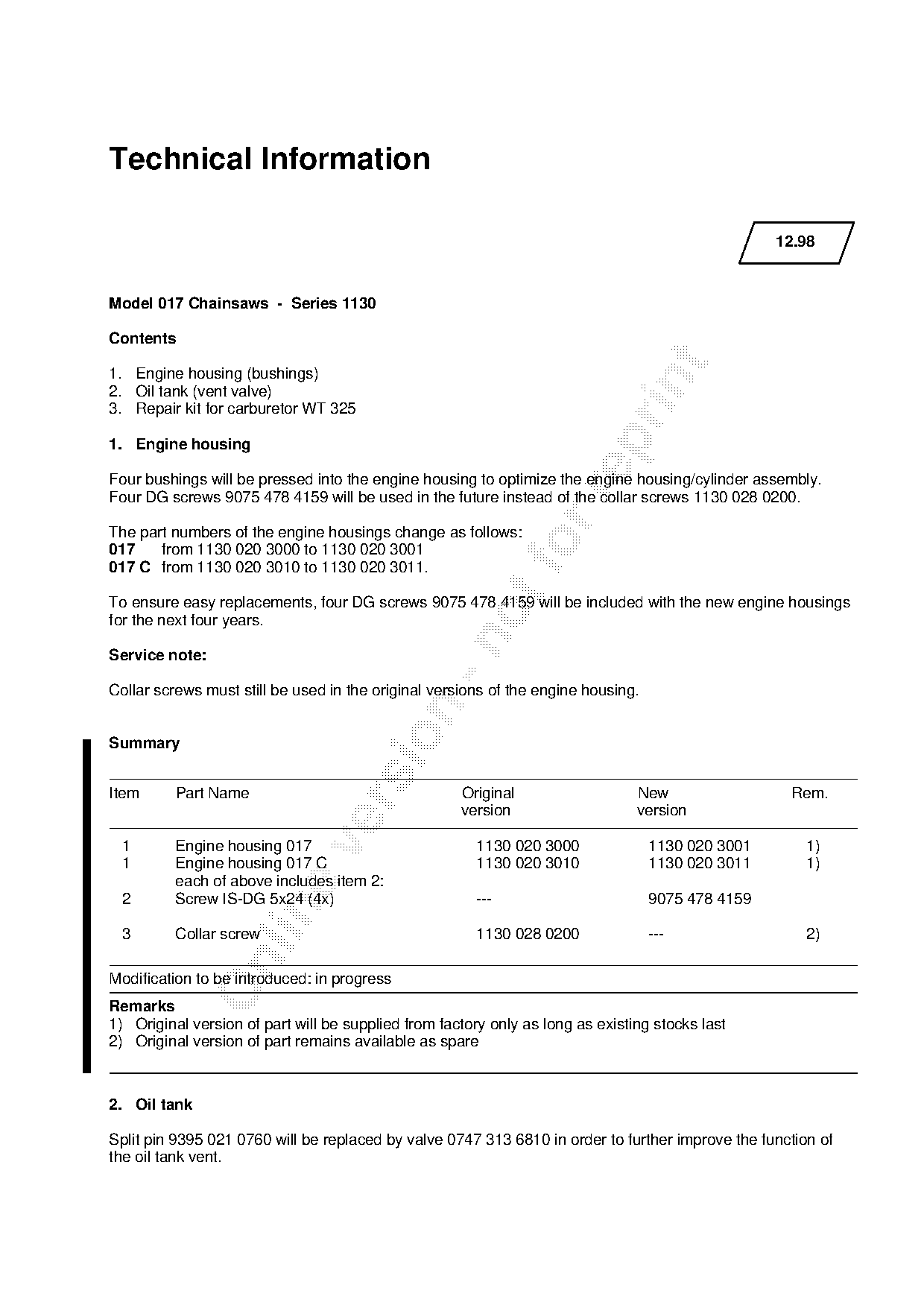

Page 1 of 2
Technical Information
12.98
Model 017 Chainsaws - Series 1130
Contents
1. Engine housing (bushings)
2. Oil tank (vent valve)
3. Repair kit for carburetor WT 325
1. Engine housing
Four bushings will be pressed into the engine housing to optimize the engine housing/cylinder assembly.
Four DG screws 9075 478 4159 will be used in the future instead of the collar screws 1130 028 0200.
The part numbers of the engine housings change as follows:
017 from 1130 020 3000 to 1130 020 3001
017 C from 1130 020 3010 to 1130 020 3011.
To ensure easy replacements, four DG screws 9075 478 4159 will be included with the new engine housings
for the next four years.
Service note:
Collar screws must still be used in the original versions of the engine housing.
Summary
Item Part Name Original New Rem.
version version
1 Engine housing 017 1130 020 3000 1130 020 3001 1)
1 Engine housing 017 C 1130 020 3010 1130 020 3011 1)
each of above includes item 2:
2 Screw IS-DG 5x24 (4x) --- 9075 478 4159
3 Collar screw 1130 028 0200 --- 2)
Modification to be introduced: in progress
Remarks
1) Original version of part will be supplied from factory only as long as existing stocks last
2) Original version of part remains available as spare
2. Oil tank
Split pin 9395 021 0760 will be replaced by valve 0747 313 6810 in order to further improve the function of
the oil tank vent.
)NOKVU=J=O

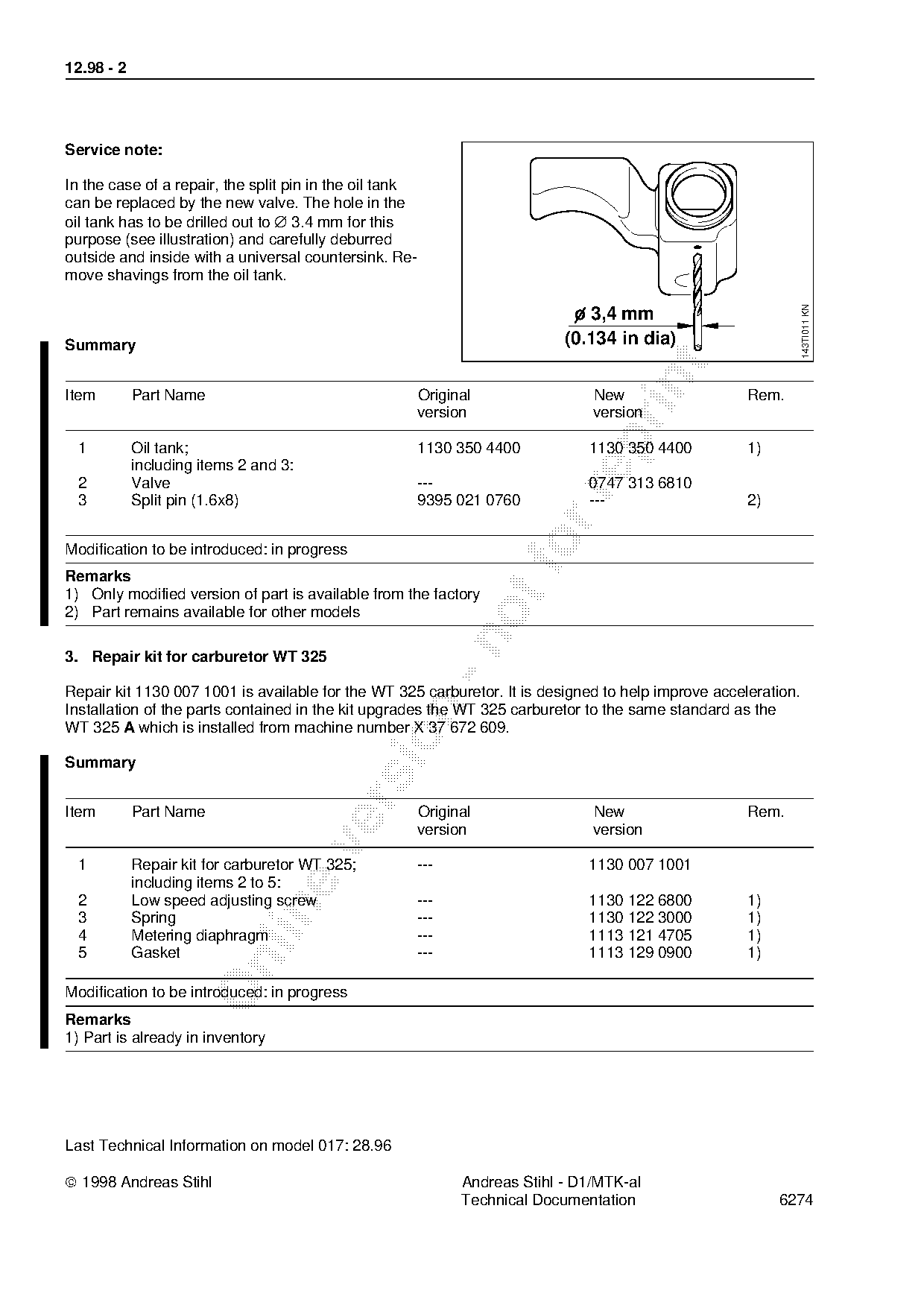

Service note:
In the case of a repair, the split pin in the oil tank
can be replaced by the new valve. The hole in the
oil tank has to be drilled out to ∅ 3.4 mm for this
purpose (see illustration) and carefully deburred
outside and inside with a universal countersink. Re-
move shavings from the oil tank.
143TI011 KN
o 3,4 mm
Summary (0.134 in dia)
Item Part Name Original New Rem.
version version
1 Oil tank; 1130 350 4400 1130 350 4400 1)
including items 2 and 3:
2 Valve --- 0747 313 6810
3 Split pin (1.6x8) 9395 021 0760 --- 2)
Modification to be introduced: in progress
Remarks
1) Only modified version of part is available from the factory
2) Part remains available for other models
3. Repair kit for carburetor WT 325
Repair kit 1130 007 1001 is available for the WT 325 carburetor. It is designed to help improve acceleration.
Installation of the parts contained in the kit upgrades the WT 325 carburetor to the same standard as the
WT 325 A which is installed from machine number X 37 672 609.
Summary
Item Part Name Original New Rem.
version version
1 Repair kit for carburetor WT 325; --- 1130 007 1001
including items 2 to 5:
2 Low speed adjusting screw --- 1130 122 6800 1)
3 Spring --- 1130 122 3000 1)
4 Metering diaphragm --- 1113 121 4705 1)
5 Gasket --- 1113 129 0900 1)
Modification to be introduced: in progress
Remarks
1) Part is already in inventory
Last Technical Information on model 017: 28.96
ã 1998 Andreas Stihl Andreas Stihl - D1/MTK-al
Technical Documentation 6274 Page 2 of 2
