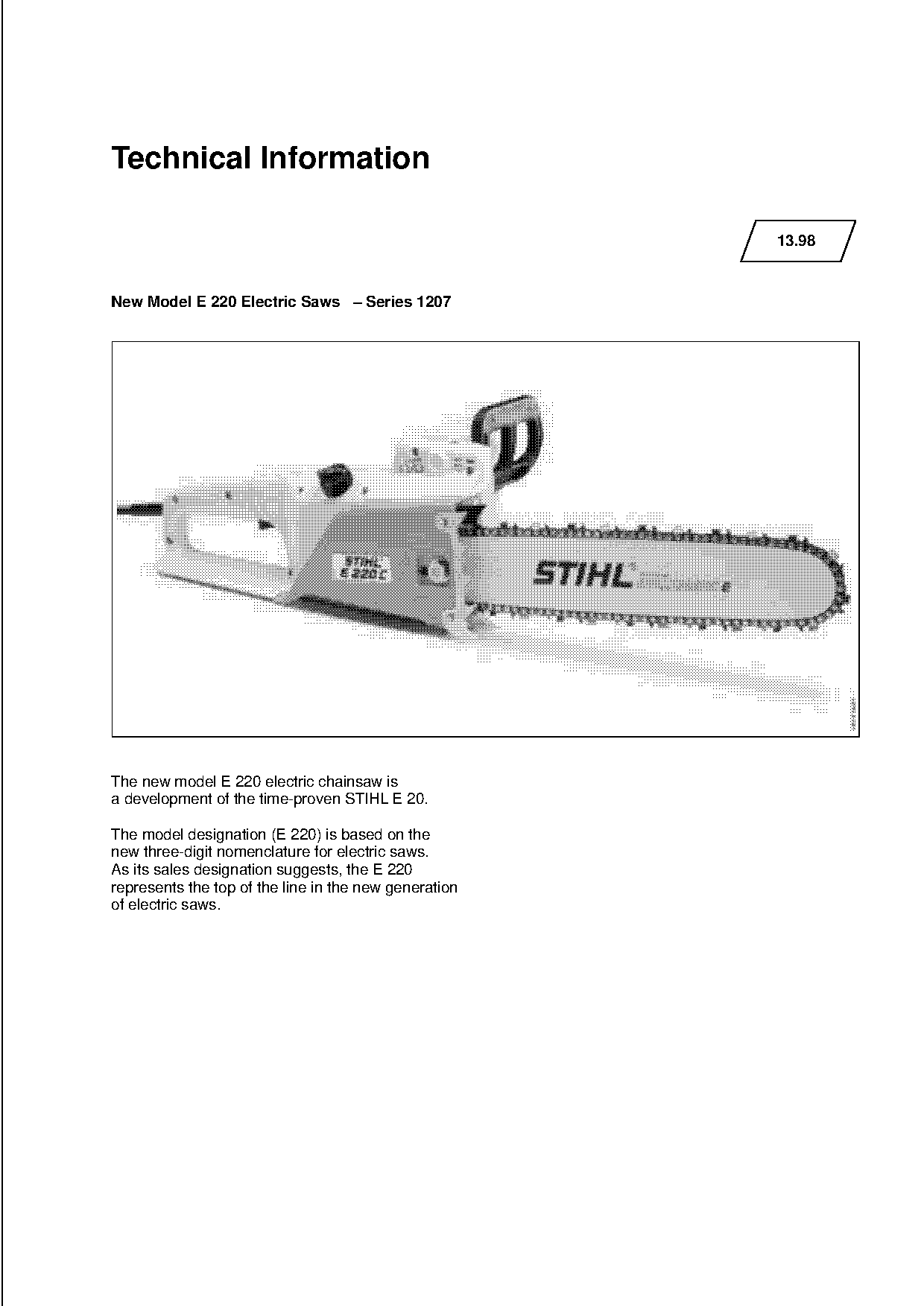

New Model E 220 Electric Saws – Series 1207
The new model E 220 electric chainsaw is
a development of the time-proven STIHL E 20.
The model designation (E 220) is based on the
new three-digit nomenclature for electric saws.
As its sales designation suggests, the E 220
represents the top of the line in the new generation
of electric saws.
)NPKVU=J=O

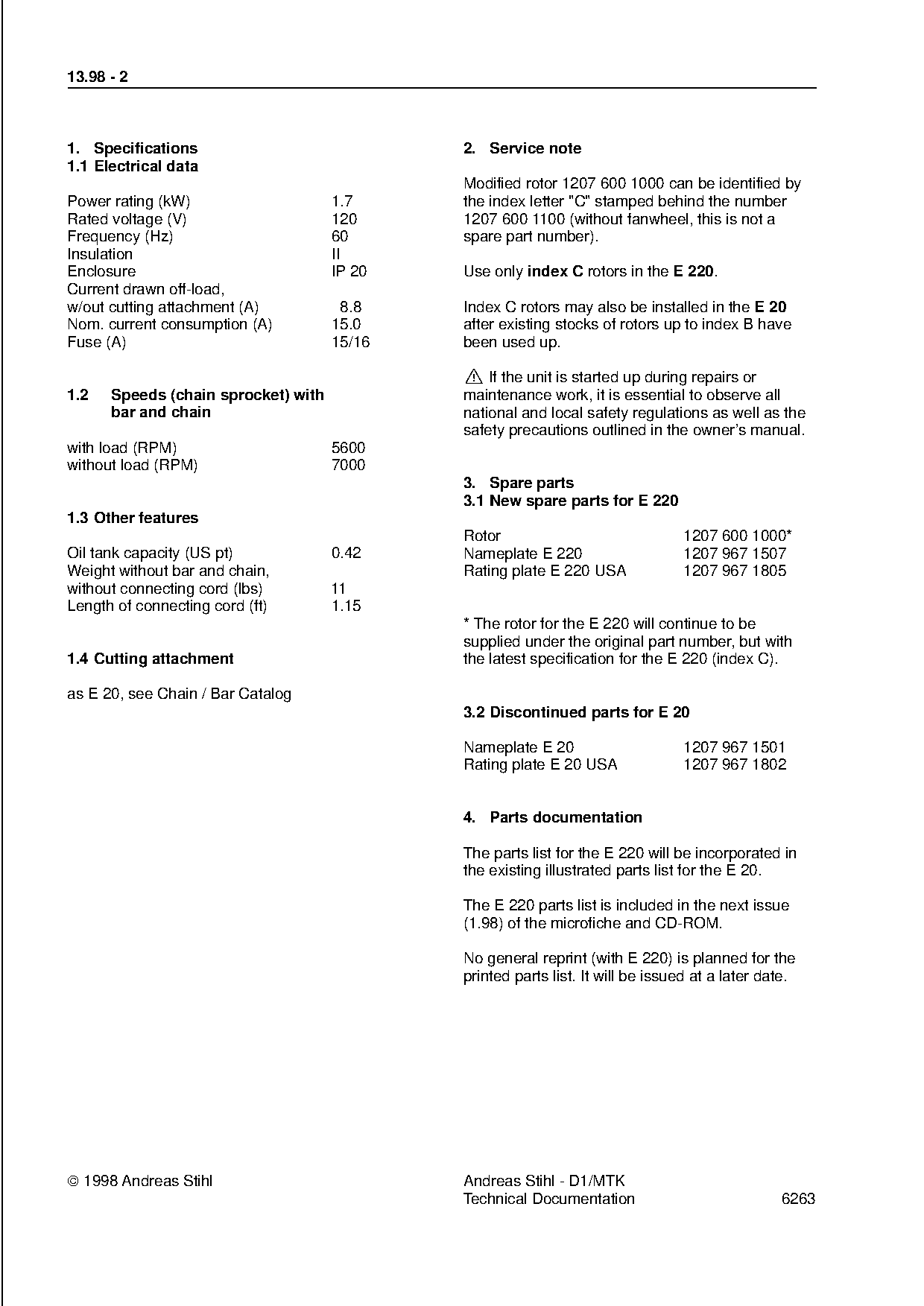

1. Specifications 2. Service note
1.1 Electrical data
Modified rotor 1207 600 1000 can be identified by
Power rating (kW) 1.7 the index letter "C" stamped behind the number
Rated voltage (V) 120 1207 600 1100 (without fanwheel, this is not a
Frequency (Hz) 60 spare part number).
Insulation II
Enclosure IP 20 Use only index C rotors in the E 220.
Current drawn off-load,
w/out cutting attachment (A) 8.8 Index C rotors may also be installed in the E 20
Nom. current consumption (A) 15.0 after existing stocks of rotors up to index B have
Fuse (A) 15/16 been used up.
! If the unit is started up during repairs or
1.2 Speeds (chain sprocket) with maintenance work, it is essential to observe all
bar and chain national and local safety regulations as well as the
safety precautions outlined in the owner’s manual.
with load (RPM) 5600
without load (RPM) 7000
3. Spare parts
3.1 New spare parts for E 220
1.3 Other features
Rotor 1207 600 1000*
Oil tank capacity (US pt)
Weight without bar and chain,
0.42 fo
Nameplate E 220
Rating plate E 220 USA
1207 967 1507
1207 967 1805
without connecting cord (lbs) 11
Length of connecting cord (ft) 1.15
* The rotor for the E 220 will continue to be
supplied under the original part number, but with
1.4 Cutting attachment the latest specification for the E 220 (index C).
as E 20, see Chain / Bar Catalog
3.2 Discontinued parts for E 20
Nameplate E 20 1207 967 1501
Rating plate E 20 USA 1207 967 1802
4. Parts documentation
The parts list for the E 220 will be incorporated in
the existing illustrated parts list for the E 20.
The E 220 parts list is included in the next issue
(1.98) of the microfiche and CD-ROM.
No general reprint (with E 220) is planned for the
printed parts list. It will be issued at a later date.
