029, 039: Filler Caps
Model 029, 039 Chainsaws - Series 1127
IssueTI 15/1998
Engine family 1127
Full text
Page 1 of 2
Technical Information
15.98
Model 029, 039 Chainsaws - Series 1127
Filler caps, engine housing
Model 029 and 039 chainsaws from machine
number 1 40 158 284 will come standard with
newly developed filler caps.
The engine housing has been modified in this
connection in the area of the filler openings and
has been given a new part number.
Note: This modification will be introduced at a later
date on machine versions with a spark arresting
screen in the muffler.
Advantages of new filler caps:
• Can be opened and closed without tools
• Hinged handle for quick and simple
operation
• Smooth surface without ribs or recesses
stays clean
• Low profile - do not snag on branches
• Snap into "closed" position
• Identical caps for fuel and oil tanks
139TI023 KN

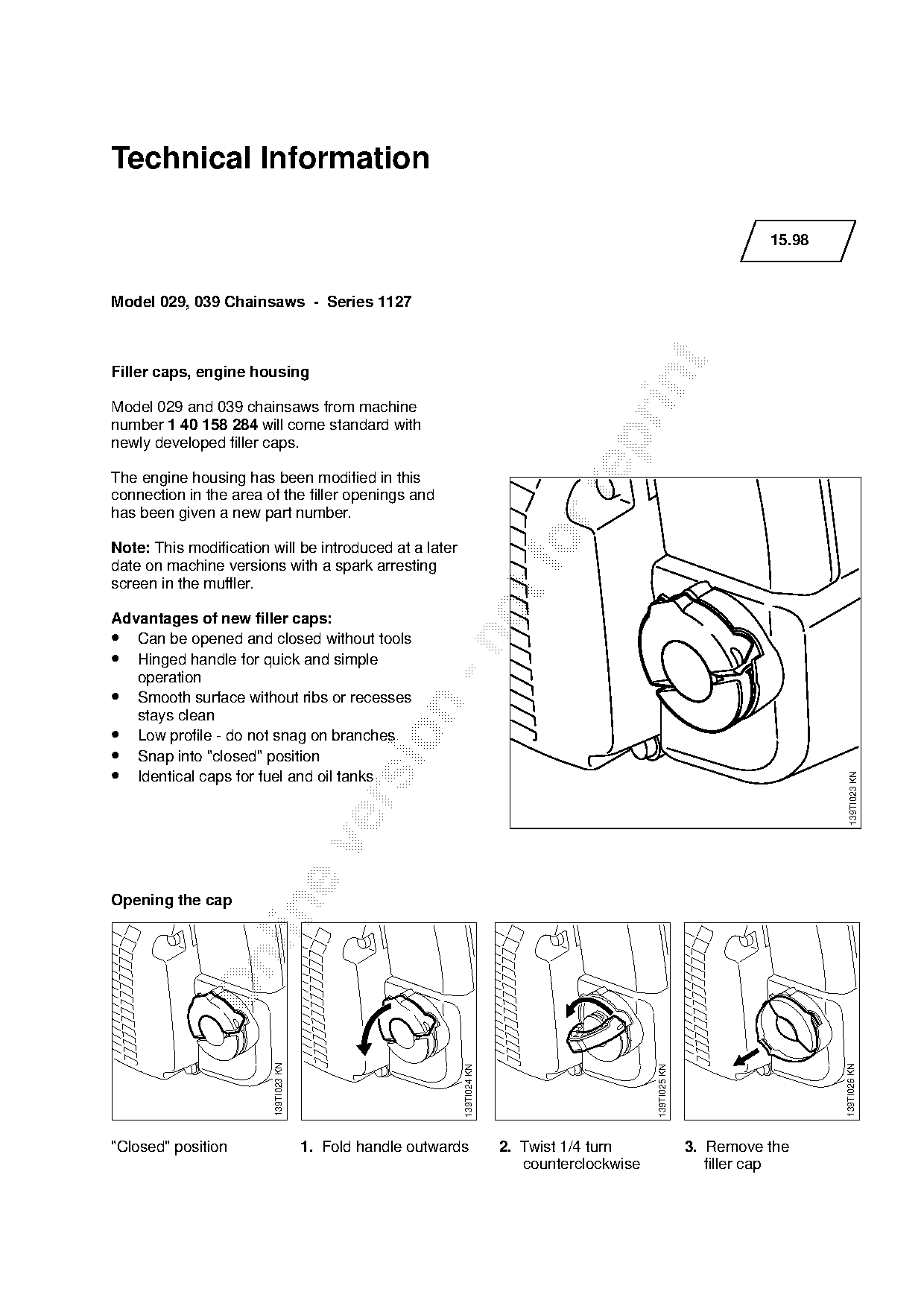

Opening the cap
139TI023 KN
139TI026 KN
139TI025 KN
139TI024 KN
"Closed" position 1. Fold handle outwards 2. Twist 1/4 turn 3. Remove the
counterclockwise filler cap
)NRKVU=J=O

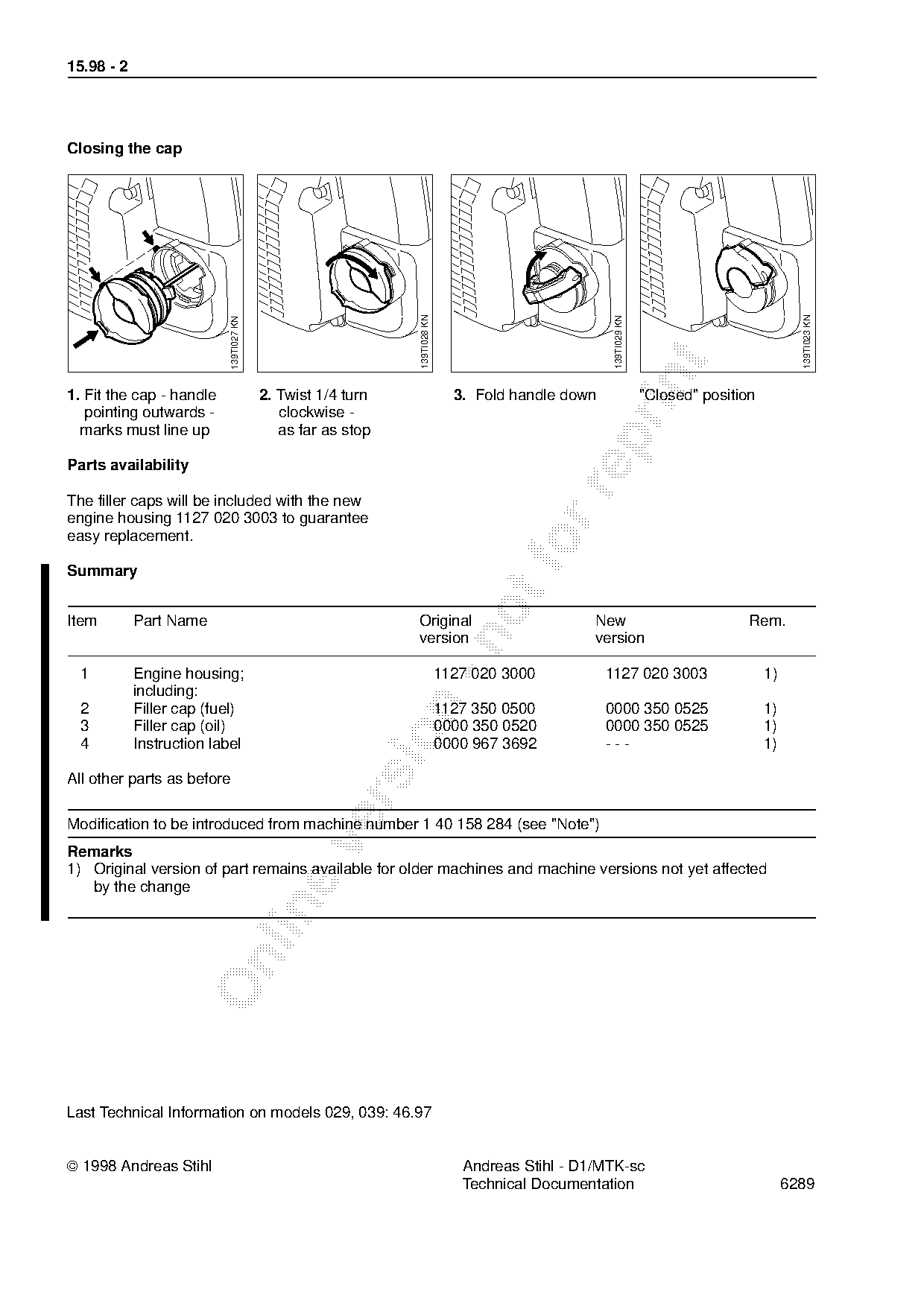

Closing the cap
139TI028 KN
139TI023 KN
139TI029 KN
139TI027 KN
1. Fit the cap - handle 2. Twist 1/4 turn 3. Fold handle down "Closed" position
pointing outwards - clockwise -
marks must line up as far as stop
Parts availability
The filler caps will be included with the new
engine housing 1127 020 3003 to guarantee
easy replacement.
Summary
Item Part Name Original New Rem.
version version
1 Engine housing; 1127 020 3000 1127 020 3003 1)
including:
2 Filler cap (fuel) 1127 350 0500 0000 350 0525 1)
3 Filler cap (oil) 0000 350 0520 0000 350 0525 1)
4 Instruction label 0000 967 3692 --- 1)
All other parts as before
Modification to be introduced from machine number 1 40 158 284 (see "Note")
Remarks
1) Original version of part remains available for older machines and machine versions not yet affected
by the change
Last Technical Information on models 029, 039: 46.97
1998 Andreas Stihl Andreas Stihl - D1/MTK-sc
Technical Documentation 6289 Page 2 of 2
