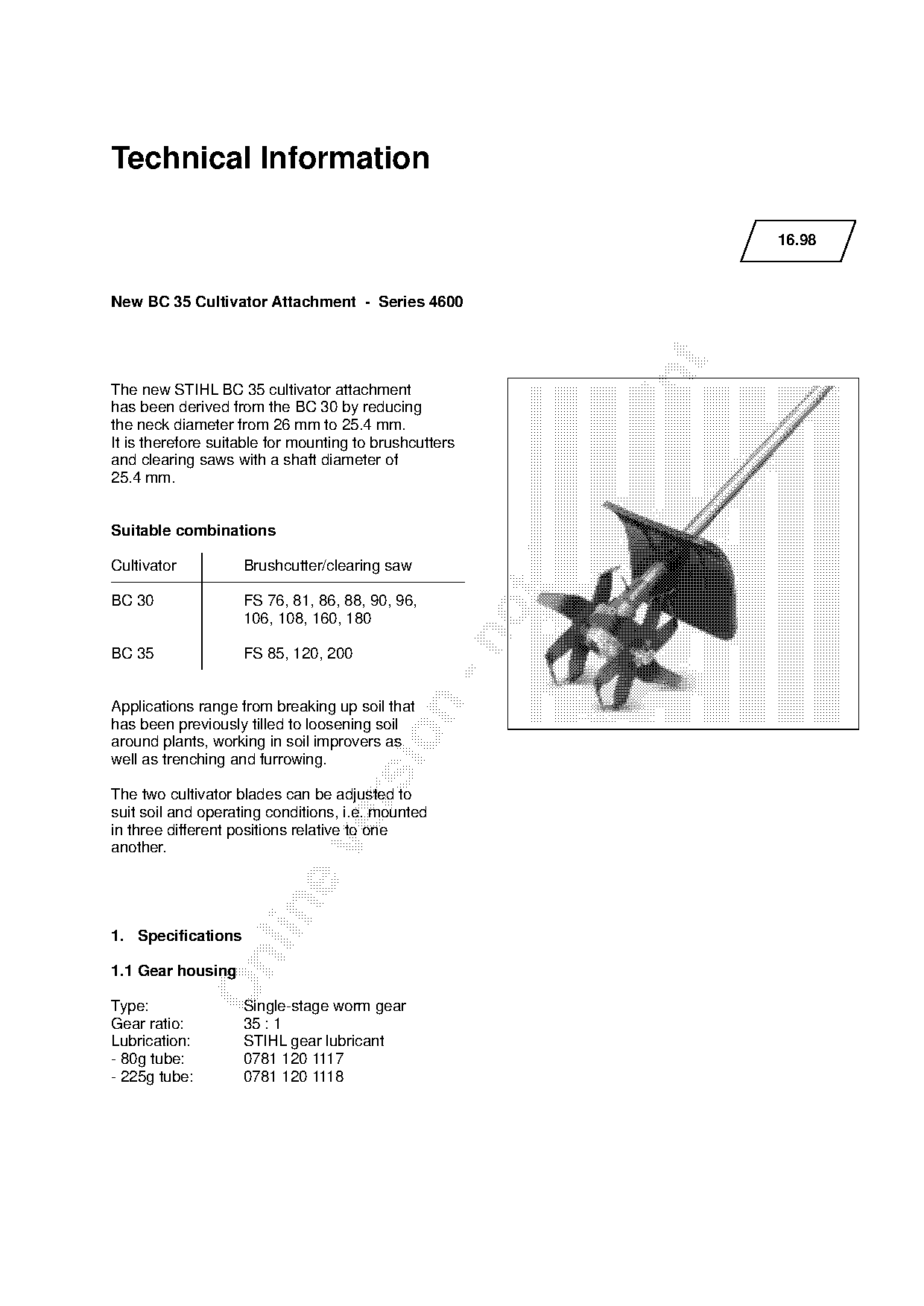

New BC 35 Cultivator Attachment - Series 4600
The new STIHL BC 35 cultivator attachment
has been derived from the BC 30 by reducing
the neck diameter from 26 mm to 25.4 mm.
It is therefore suitable for mounting to brushcutters
and clearing saws with a shaft diameter of
25.4 mm.
Suitable combinations
Cultivator Brushcutter/clearing saw
BC 30 FS 76, 81, 86, 88, 90, 96,
106, 108, 160, 180
BC 35 FS 85, 120, 200
Applications range from breaking up soil that
has been previously tilled to loosening soil
around plants, working in soil improvers as
well as trenching and furrowing.
The two cultivator blades can be adjusted to
suit soil and operating conditions, i.e. mounted
in three different positions relative to one
another.
1. Specifications
1.1 Gear housing
Type: Single-stage worm gear
Gear ratio: 35 : 1
Lubrication: STIHL gear lubricant
- 80g tube: 0781 120 1117
- 225g tube: 0781 120 1118
)NSKVU=J=O

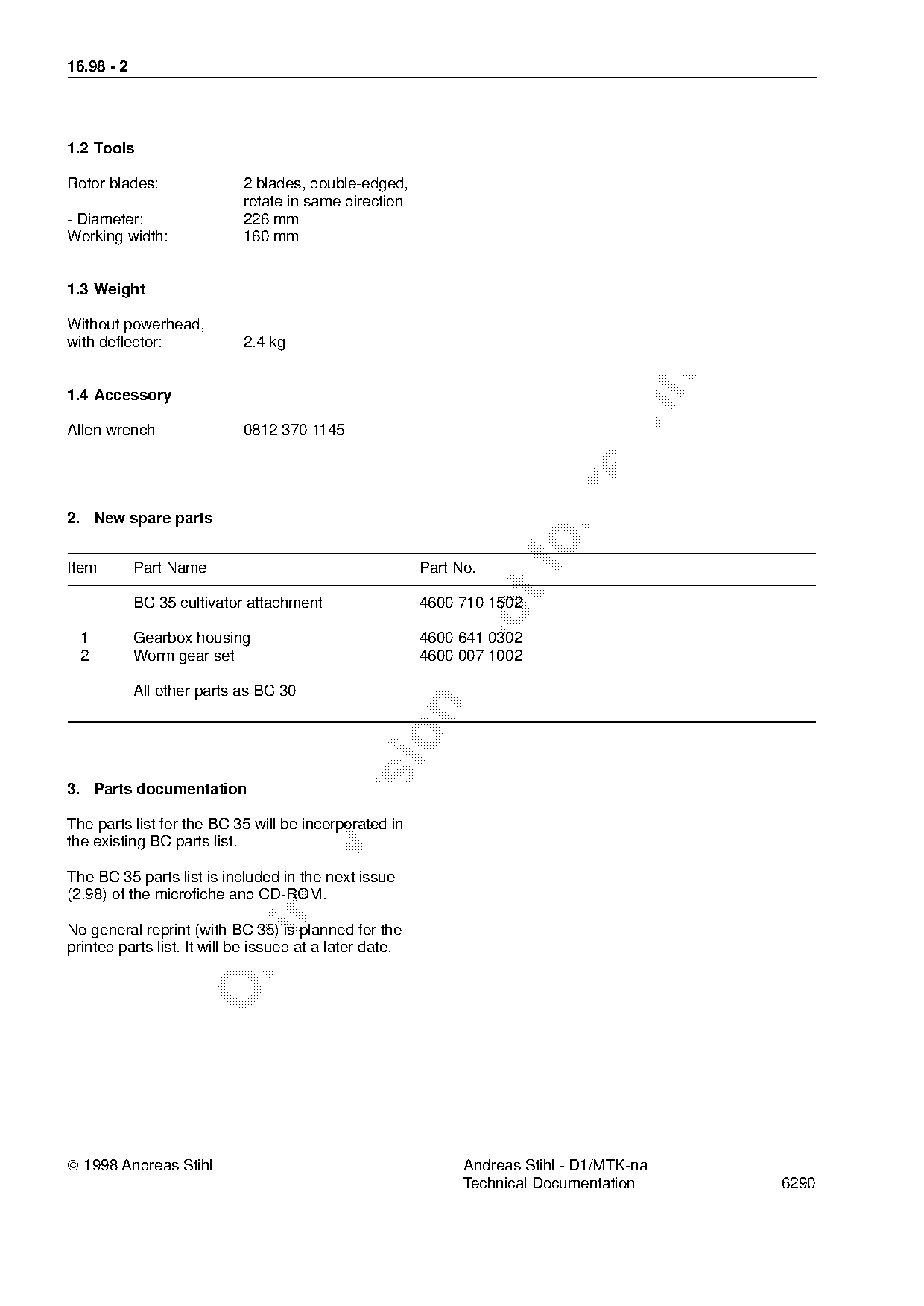

1.2 Tools
Rotor blades: 2 blades, double-edged,
rotate in same direction
- Diameter: 226 mm
Working width: 160 mm
1.3 Weight
Without powerhead,
with deflector: 2.4 kg
1.4 Accessory
Allen wrench 0812 370 1145
2. New spare parts
Item Part Name Part No.
BC 35 cultivator attachment 4600 710 1502
1 Gearbox housing 4600 641 0302
2 Worm gear set 4600 007 1002
All other parts as BC 30
3. Parts documentation
The parts list for the BC 35 will be incorporated in
the existing BC parts list.
The BC 35 parts list is included in the next issue
(2.98) of the microfiche and CD-ROM.
No general reprint (with BC 35) is planned for the
printed parts list. It will be issued at a later date.
