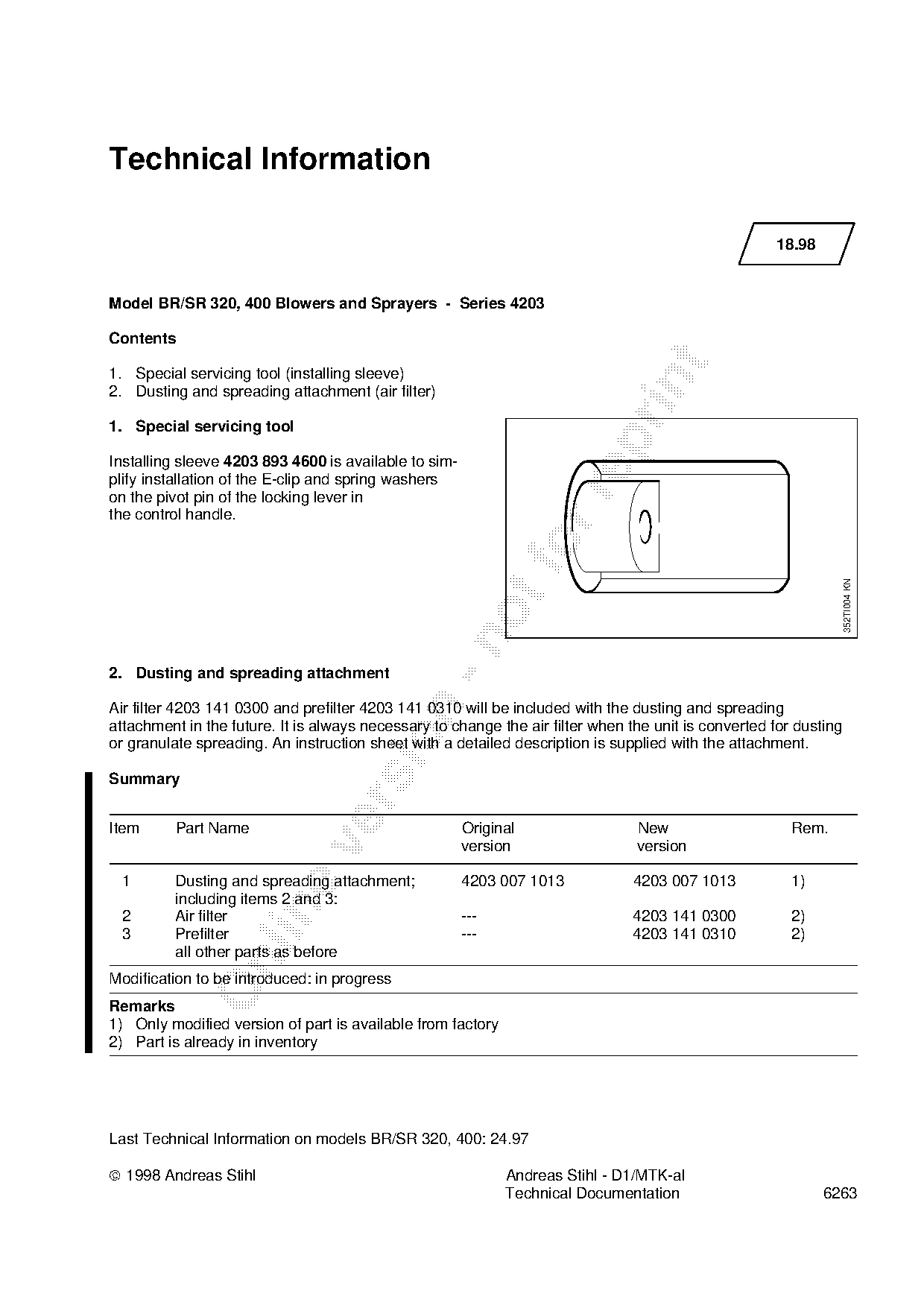

Technical Information
18.98
Model BR/SR 320, 400 Blowers and Sprayers - Series 4203
Contents
1. Special servicing tool (installing sleeve)
2. Dusting and spreading attachment (air filter)
1. Special servicing tool
Installing sleeve 4203 893 4600 is available to sim-
plify installation of the E-clip and spring washers
on the pivot pin of the locking lever in
the control handle.
352TI004 KN
2. Dusting and spreading attachment
Air filter 4203 141 0300 and prefilter 4203 141 0310 will be included with the dusting and spreading
attachment in the future. It is always necessary to change the air filter when the unit is converted for dusting
or granulate spreading. An instruction sheet with a detailed description is supplied with the attachment.
Summary
Item Part Name Original New Rem.
version version
1 Dusting and spreading attachment; 4203 007 1013 4203 007 1013 1)
including items 2 and 3:
2 Air filter --- 4203 141 0300 2)
3 Prefilter --- 4203 141 0310 2)
all other parts as before
Modification to be introduced: in progress
Remarks
1) Only modified version of part is available from factory
2) Part is already in inventory
Last Technical Information on models BR/SR 320, 400: 24.97
ã 1998 Andreas Stihl Andreas Stihl - D1/MTK-al
