Technical Information
19.98
Brushcutters/Clearing Saws STIHL FS 120, 200, 350 - Series 4134
STIHL FS 450 - Series 4128

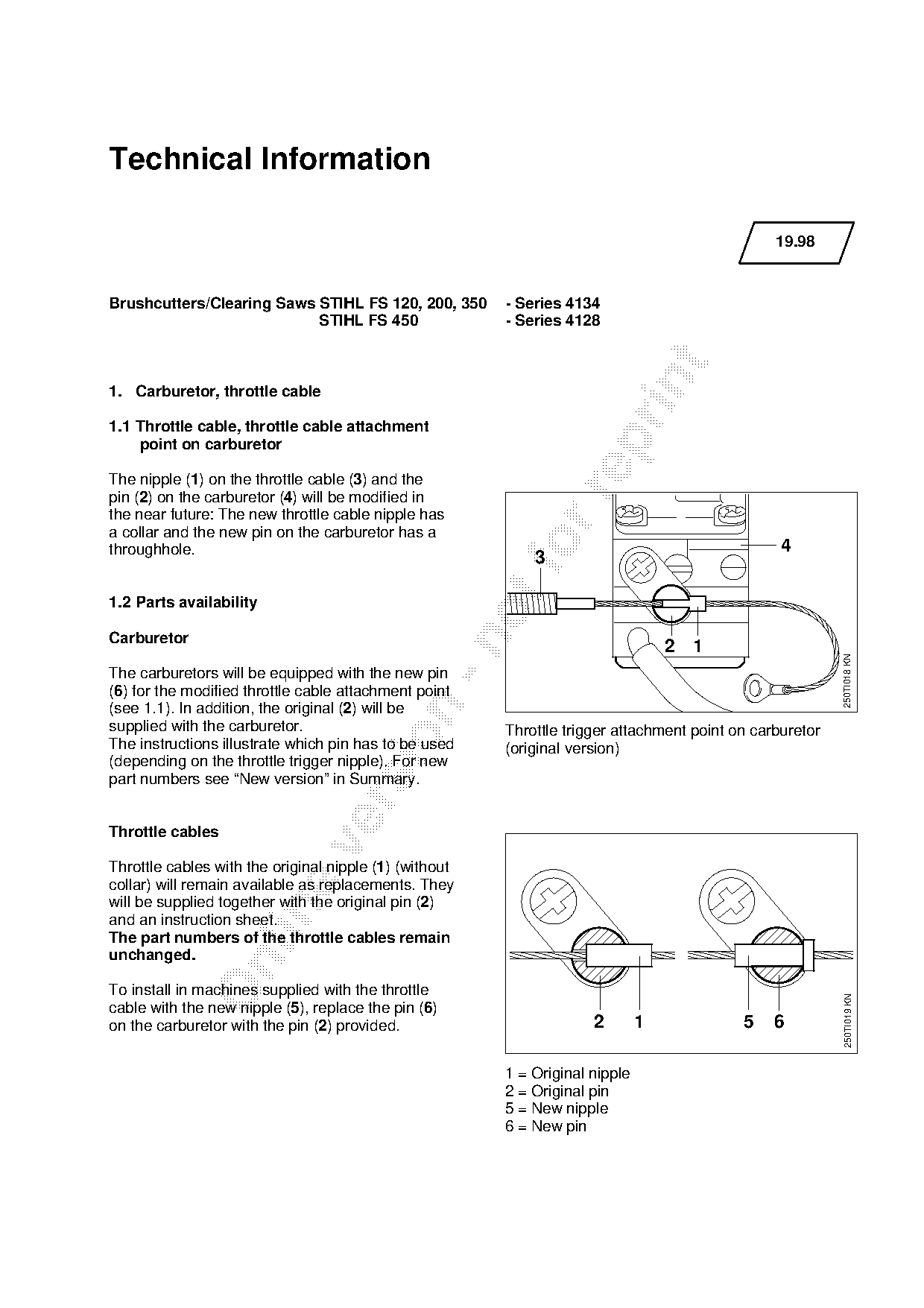

1. Carburetor, throttle cable
1.1 Throttle cable, throttle cable attachment
point on carburetor
The nipple (1) on the throttle cable (3) and the
pin (2) on the carburetor (4) will be modified in
the near future: The new throttle cable nipple has
a collar and the new pin on the carburetor has a
throughhole. fo 3
4
1.2 Parts availability
Carburetor
2 1
250TI018 KN
The carburetors will be equipped with the new pin
(6) for the modified throttle cable attachment point
(see 1.1). In addition, the original (2) will be
supplied with the carburetor. Throttle trigger attachment point on carburetor
The instructions illustrate which pin has to be used (original version)
(depending on the throttle trigger nipple). For new
part numbers see “New version” in Summary.
Throttle cables
Throttle cables with the original nipple (1) (without
collar) will remain available as replacements. They
will be supplied together with the original pin (2)
and an instruction sheet.
The part numbers of the throttle cables remain
unchanged.
To install in machines supplied with the throttle
250TI019 KN
cable with the new nipple (5), replace the pin (6)
on the carburetor with the pin (2) provided. 2 1 5 6
1 = Original nipple
2 = Original pin
5 = New nipple
6 = New pin
)NVKVU=J=O
1.3 Service note
When servicing machines with the original throttle
cable attachment point, make sure that the throttle
cable nipple is properly seated in the pin on the
carburetor.
Adjust the throttle cable exactly as described in
the service manual.
When correctly adjusted, the nipple must not jump
out of the pin when the throttle trigger is suddenly
released from the fully open position.

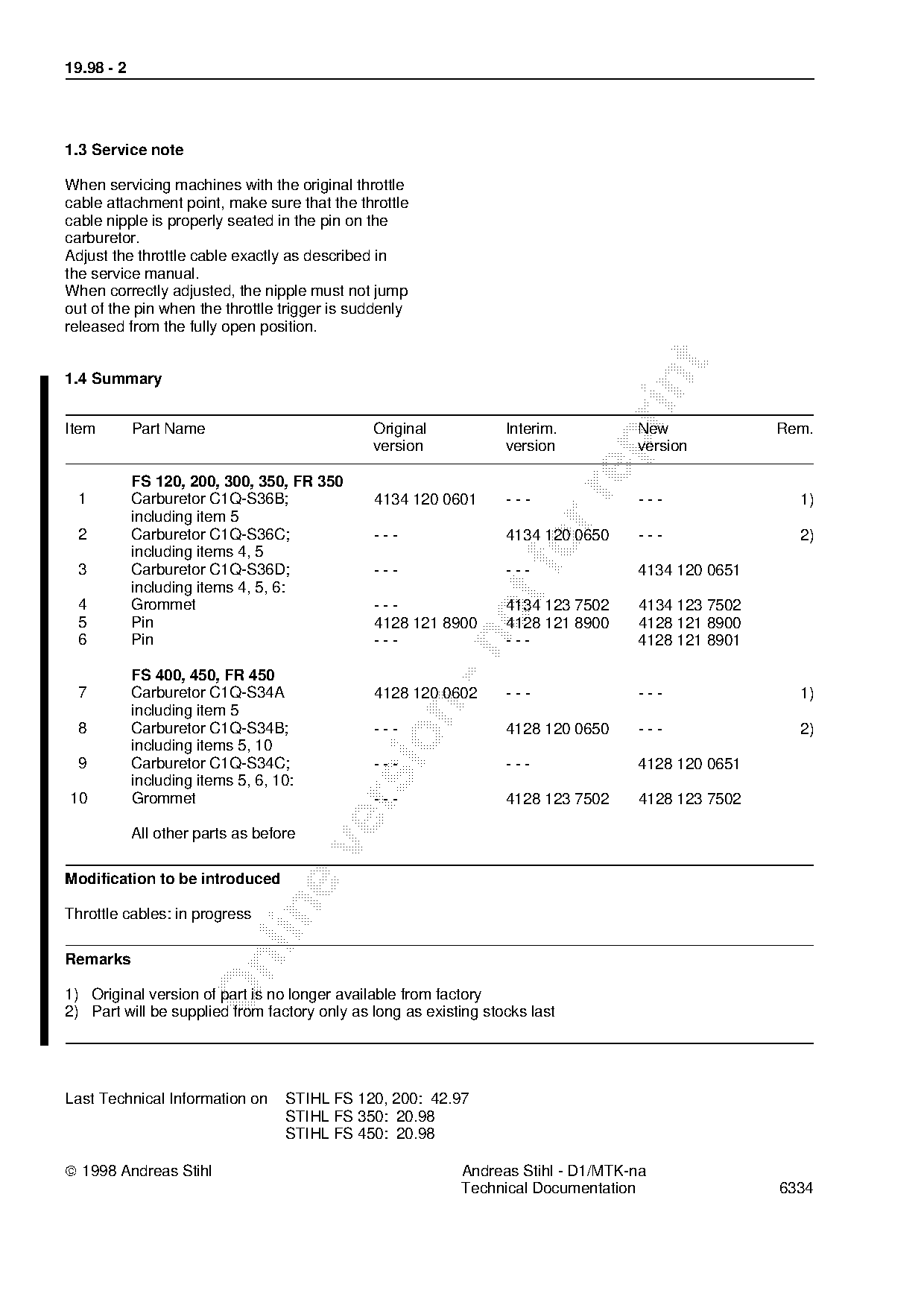

1.4 Summary
Item Part Name Original Interim. New Rem.
version version version
FS 120, 200, 300, 350, FR 350
1 Carburetor C1Q-S36B; 4134 120 0601 --- --- 1)
including item 5
2 Carburetor C1Q-S36C; --- 4134 120 0650 --- 2)
3
including items 4, 5
Carburetor C1Q-S36D; ---
--- 4134 120 0651
including items 4, 5, 6:
4 Grommet --- 4134 123 7502 4134 123 7502
5 Pin 4128 121 8900 4128 121 8900 4128 121 8900
6 Pin
--- --- 4128 121 8901
FS 400, 450, FR 450
7 Carburetor C1Q-S34A 4128 120 0602 --- --- 1)
including item 5
8 Carburetor C1Q-S34B; --- 4128 120 0650 --- 2)
including items 5, 10
9 Carburetor C1Q-S34C; --- --- 4128 120 0651
including items 5, 6, 10:
10 Grommet --- 4128 123 7502 4128 123 7502
All other parts as before
Modification to be introduced
Throttle cables: in progress
Remarks
1) Original version of part is no longer available from factory
2) Part will be supplied from factory only as long as existing stocks last
Last Technical Information on STIHL FS 120, 200: 42.97
STIHL FS 350: 20.98
STIHL FS 450: 20.98
ã 1998 Andreas Stihl Andreas Stihl - D1/MTK-na
Technical Documentation 6334 Page 2 of 2
