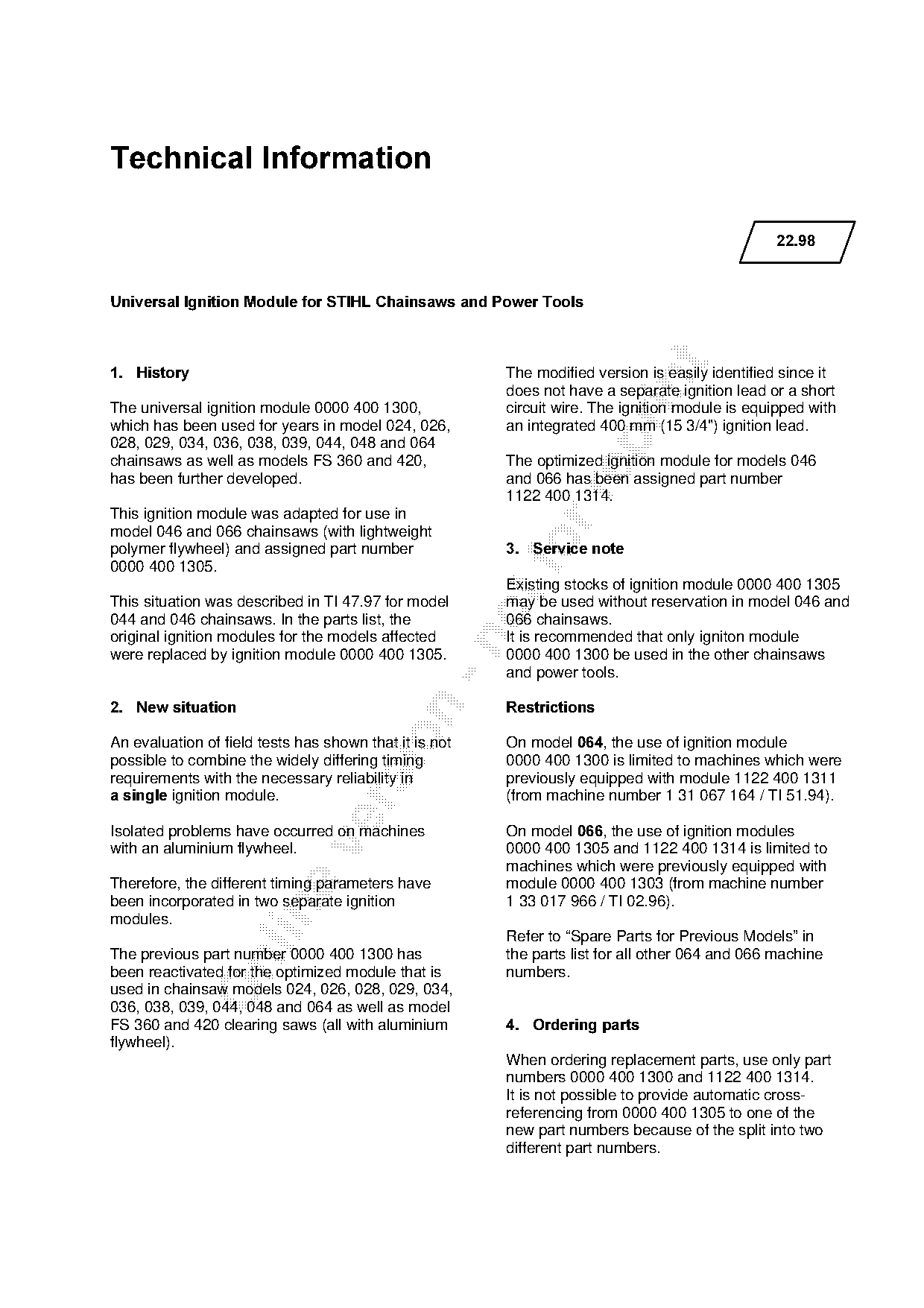

Technical Information
22.98
Universal Ignition Module for STIHL Chainsaws and Power Tools
1.=History==============================================qhe modified version is easily identified since it
does not have a separate ignition lead or a short
The universal ignition module 0000 400 1300, circuit wire. The ignition module is equipped with
which has been used for years in model 024, 026, an integrated 400 mm (15 3/4") ignition lead.
028, 029, 034, 036, 038, 039, 044, 048 and 064
chainsaws as well as models FS 360 and 420, The optimized ignition module for models 046
has been further developed. and 066 has been assigned part number
1122 400 1314.
This ignition module was adapted for use in
model 046 and 066 chainsaws (with lightweight
polymer flywheel) and assigned part number
0000 400 1305.
3.=Service note
Existing stocks of ignition module 0000 400 1305
This situation was described in TI 47.97 for model may be used without reservation in model 046 and
044 and 046 chainsaws. In the parts list, the 066 chainsaws.
original ignition modules for the models affected It is recommended that only igniton module
were replaced by ignition module 0000 400 1305. 0000 400 1300 be used in the other chainsaws
and power tools.
2.=New situation========================================Restrictions
An evaluation of field tests has shown that it is not On model 064I=the use of ignition module
possible to combine the widely differing timing 0000 400 1300 is limited to machines which were
requirements with the necessary reliability in previously equipped with module 1122 400 1311
a single=ignition module. (from machine number 1 31 067 164 / TI 51.94).
Isolated problems have occurred on machines On model 066I=the use of ignition modules
with an aluminium flywheel. 0000 400 1305 and 1122 400 1314 is limited to
machines which were previously equipped with
Therefore, the different timing parameters have module 0000 400 1303 (from machine number
been incorporated in two separate ignition 1 33 017 966 / TI 02.96).
modules.
Refer to “Spare Parts for Previous Models” in
The previous part number 0000 400 1300 has the parts list for all other 064 and 066 machine
been reactivated for the optimized module that is numbers.
used in chainsaw models 024, 026, 028, 029, 034,
036, 038, 039, 044, 048 and 064 as well as model
FS 360 and 420 clearing saws (all with aluminium 4.=Ordering parts
flywheel).
When ordering replacement parts, use only part
numbers 0000 400 1300 and 1122 400 1314.
It is not possible to provide automatic cross-
referencing from 0000 400 1305 to one of the
new part numbers because of the split into two
different part numbers.

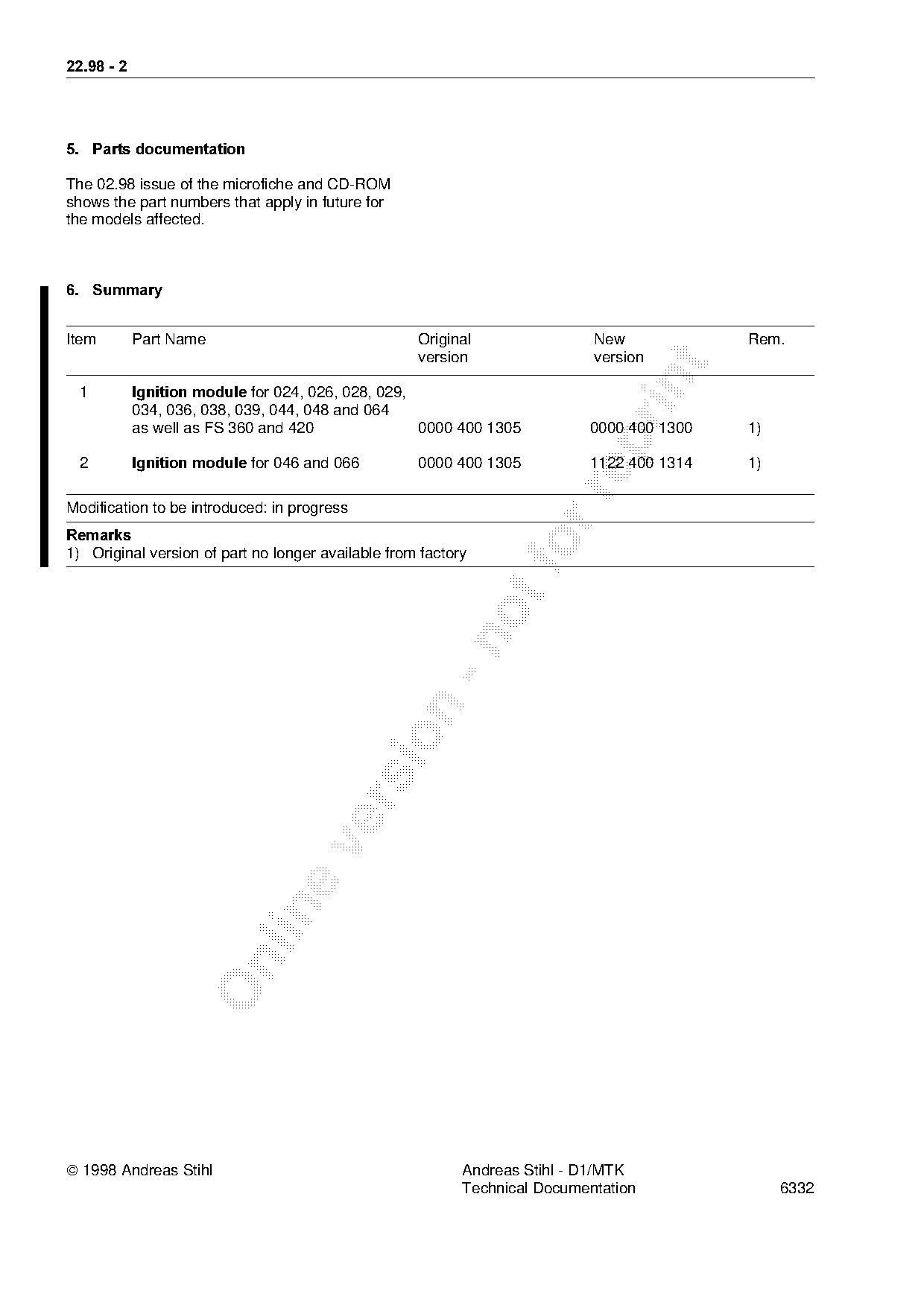

)22.98 - 2
5.=Parts documentation
The 02.98 issue of the microfiche and CD-ROM
shows the part numbers that apply in future for
the models affected.
6.=Summary
Item Part Name Original New Rem.
version version
N=========Ignition module for 024, 026, 028, 029,
034, 036, 038, 039, 044, 048 and 064
as well as FS 360 and 420 0000 400 1305 0000 400 1300 1)
O=========Ignition module for 046 and 066 0000 400 1305 1122 400 1314 1)
Modification to be introduced: in progress
5HPDUNV
1) Original version of part no longer available from factory fo
1998 Andreas Stihl Andreas Stihl - D1/MTK
Technical Documentation 6332 Page 2 of 2
