Technical Information · issue 29 of 1998

Chainsaws in General: Fixed Jets (special accessor

IssueTI 29/1998

Historical service guidance

General historical servicing reference, not an exact-model repair procedure or proof of compatibility. Follow the model-specific manual and preserve the source date and limits.

Service note · General servicing

High-altitude jets: selection, semi-fixed fuel supply and press-fit cautions

TI29/1998 distinguishes adjustable semi-fixed and fixed-jet designs; installation depth remains a handbook dependency.

  • Use ONLY the type designation stamped on the carburetor body, not the saw model or carburetor part number alone. Each row below retains its exact printed suffix; later suffixes and MS successor models are not admitted by a shared number or sheet.
  • These are OPTIONAL smaller-bore high-altitude jets, not standard jets or unconditional replacements. For adjustable carburetors WITH a semi-fixed jet, TI29/1998 permits leaner adjustment down to H = 0 if necessary; the smaller-bore option is for very high altitude when that range is insufficient. This is not a universal H setting for other designs and no numeric altitude threshold is supplied.
  • Do NOT use the smaller-bore high-altitude jets at lower altitudes: an overly lean mixture can cause engine damage. Replacement is for trained personnel; press-fit positioning depends on the separate Carburetors handbook. No complete installation procedure, regulatory approval or physical interchange test is claimed. No hardware operation was performed.
  • A semi-fixed jet ensures a MINIMUM fuel supply: it can be a separate screw-fitted or press-fitted jet, or an additional bore in the valve jet. Engine power decreases with altitude; mixture correction compensates altitude-related enrichment, not a promise to recover sea-level power.
  • Figure 001TI001 KN is an ADJUSTABLE carburetor, example HD 19 A: 1 = valve jet, 2 = screw-fitted SEMI-FIXED jet. Figure 001TI002 KN is a fixed-jet carburetor, example WT 360: 1 = valve jet, 2 = screw-fitted FIXED jet. The examples do not make every listed jet screw-fitted or adjustable.
  • All four press-fit cautions: use a pin punch of the RIGHT DIAMETER; position jet SQUARELY in the bore and press home (correct position is referred to the Carburetors handbook); do not damage the END FACE; recommendation: DO NOT REUSE jets pressed out. The bulletin supplies no punch diameter, insertion depth, pressing force or complete adjustment procedure. The separately referenced handbook positioning instructions remain an unresolved source dependency.

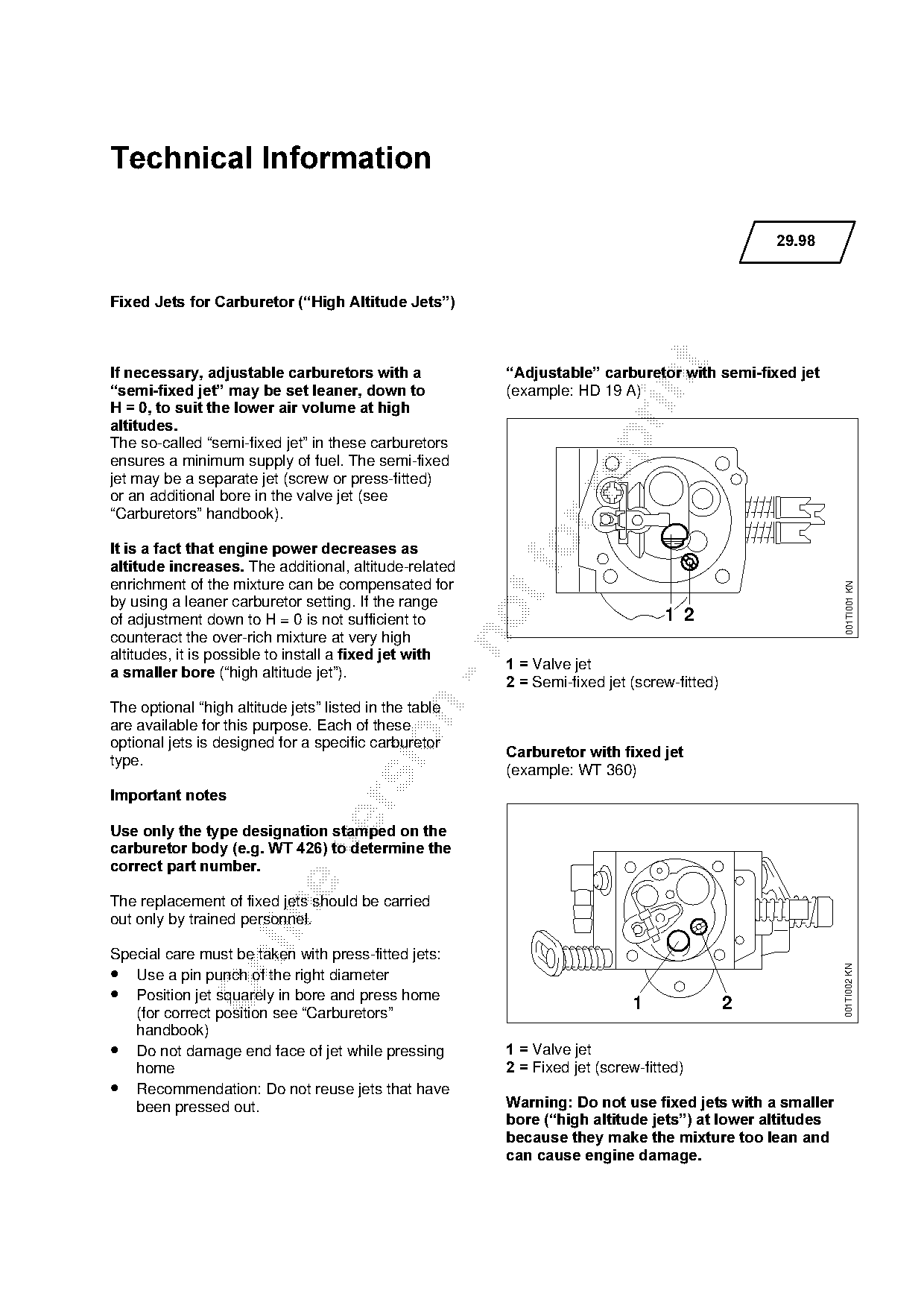

Source: TI 29/1998, p. 1 — Page 1 complete text, both figures/callouts and all four press-fit bullets.

No additional parts-table entry added.

Historical fitment · 021 / 023 / 025 / 023 C

021 / 023 / 025 / 023 C: WT-283 B, WT-498 A and WT-503 jets

Optional high-altitude jets selected by stamped carburetor type; exact table associations and restrictions retained.

No exact-model IPL link: The retained 1123 Q sheet names WT-283C and WT-503A under the same assembly numbers; the TI names B and no suffix respectively. Its WT-498A row is on a sheet labeled only 021, 023, 025, not exact 023 C. Keep source-only exact-row bindings; do not widen to all models on that sheet or replace the later IPL jet rows.

  • Use ONLY the type designation stamped on the carburetor body, not the saw model or carburetor part number alone. Each row below retains its exact printed suffix; later suffixes and MS successor models are not admitted by a shared number or sheet.
  • These are OPTIONAL smaller-bore high-altitude jets, not standard jets or unconditional replacements. For adjustable carburetors WITH a semi-fixed jet, TI29/1998 permits leaner adjustment down to H = 0 if necessary; the smaller-bore option is for very high altitude when that range is insufficient. This is not a universal H setting for other designs and no numeric altitude threshold is supplied.
  • Do NOT use the smaller-bore high-altitude jets at lower altitudes: an overly lean mixture can cause engine damage. Replacement is for trained personnel; press-fit positioning depends on the separate Carburetors handbook. No complete installation procedure, regulatory approval or physical interchange test is claimed. No hardware operation was performed.
  • WT 283 B: carburetor 1123 120 0610; optional fixed jet 1129 121 5600, bore 0.50 mm; source model 023, 025. No USA-only asterisk is printed on this row.
  • WT 498 A: carburetor 1123 120 0616; optional fixed jet 1129 121 5600, bore 0.50 mm; source model 023 C. No USA-only asterisk is printed on this row.
  • WT 503: carburetor 1123 120 0614; optional fixed jet 1123 121 5630, bore 0.48 mm; source model 021. No USA-only asterisk is printed on this row.
  • The retained 1123 Q sheet names WT-283C and WT-503A under the same assembly numbers; the TI names B and no suffix respectively. Its WT-498A row is on a sheet labeled only 021, 023, 025, not exact 023 C. Keep source-only exact-row bindings; do not widen to all models on that sheet or replace the later IPL jet rows.

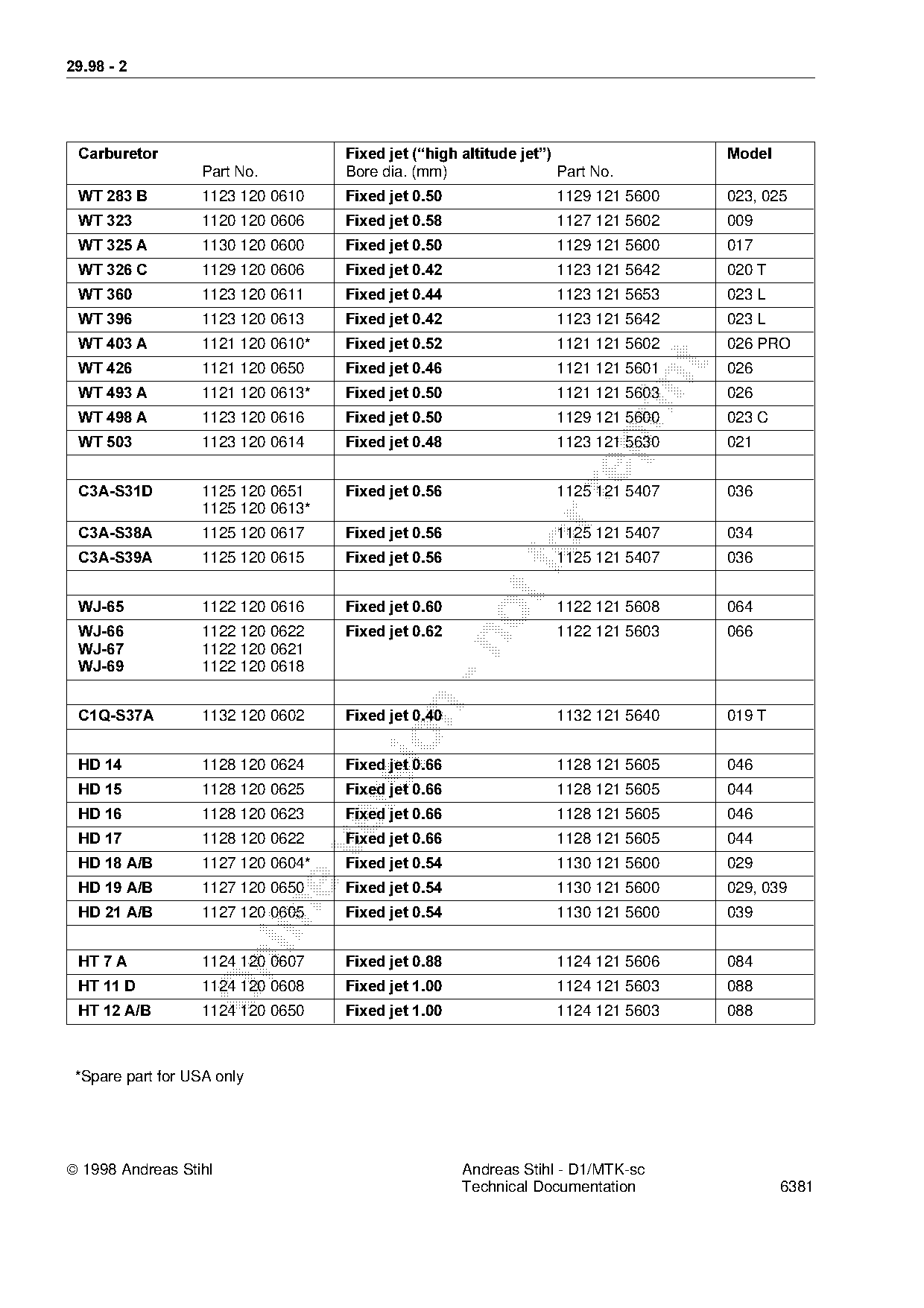

Source: TI 29/1998, p. 1 · TI 29/1998, p. 2 — Page 1 complete guidance and page 2 WT 283 B, WT 498 A, WT 503 table rows.

Part numbers (6)
  • 1123 120 0610 — Carburetor WT 283 BSource type association · 023, 025; stamped WT 283 B only
  • 1129 121 5600 — High-altitude fixed jet, 0.50 mmOptional, not standard · WT 283 B; 023, 025; high-altitude conditions only
  • 1123 120 0616 — Carburetor WT 498 ASource type association · 023 C; stamped WT 498 A only
  • 1129 121 5600 — High-altitude fixed jet, 0.50 mmOptional, not standard · WT 498 A; 023 C; high-altitude conditions only
  • 1123 120 0614 — Carburetor WT 503Source type association · 021; stamped WT 503 only
  • 1123 121 5630 — High-altitude fixed jet, 0.48 mmOptional, not standard · WT 503; 021; high-altitude conditions only

Historical fitment · 020 T

020 T: optional 0.42 mm jet for WT-326 C

Optional high-altitude jets selected by stamped carburetor type; exact table associations and restrictions retained.

No exact-model IPL link: Both retained 1114/1129 WT-326 sheets name WT-326D at the same carburetor number. The printed C-to-D relationship is unestablished; retain exact source-model/type lookup without claiming later-suffix fitment.

  • Use ONLY the type designation stamped on the carburetor body, not the saw model or carburetor part number alone. Each row below retains its exact printed suffix; later suffixes and MS successor models are not admitted by a shared number or sheet.
  • These are OPTIONAL smaller-bore high-altitude jets, not standard jets or unconditional replacements. For adjustable carburetors WITH a semi-fixed jet, TI29/1998 permits leaner adjustment down to H = 0 if necessary; the smaller-bore option is for very high altitude when that range is insufficient. This is not a universal H setting for other designs and no numeric altitude threshold is supplied.
  • Do NOT use the smaller-bore high-altitude jets at lower altitudes: an overly lean mixture can cause engine damage. Replacement is for trained personnel; press-fit positioning depends on the separate Carburetors handbook. No complete installation procedure, regulatory approval or physical interchange test is claimed. No hardware operation was performed.
  • WT 326 C: carburetor 1129 120 0606; optional fixed jet 1123 121 5642, bore 0.42 mm; source model 020 T. No USA-only asterisk is printed on this row.
  • Both retained 1114/1129 WT-326 sheets name WT-326D at the same carburetor number. The printed C-to-D relationship is unestablished; retain exact source-model/type lookup without claiming later-suffix fitment.

Source: TI 29/1998, p. 1 · TI 29/1998, p. 2 — Page 1 complete guidance and page 2 WT 326 C table rows.

Part numbers (2)
  • 1129 120 0606 — Carburetor WT 326 CSource type association · 020 T; stamped WT 326 C only
  • 1123 121 5642 — High-altitude fixed jet, 0.42 mmOptional, not standard · WT 326 C; 020 T; high-altitude conditions only

Historical fitment · 023 L

023 L: separate WT-360 and WT-396 high-altitude jets

Optional high-altitude jets selected by stamped carburetor type; exact table associations and restrictions retained.

No exact-model IPL link: Retained 1123 R sheet title specifically says 023 L and includes both exact type/jet pairs, but used_by labels only 021, 023, 025. Preserve exact 023 L source lookup without rewriting canonical labels or widening to every shared-sheet model. The distinct 0.44 and 0.42 mm choices must not be merged.

  • Use ONLY the type designation stamped on the carburetor body, not the saw model or carburetor part number alone. Each row below retains its exact printed suffix; later suffixes and MS successor models are not admitted by a shared number or sheet.
  • These are OPTIONAL smaller-bore high-altitude jets, not standard jets or unconditional replacements. For adjustable carburetors WITH a semi-fixed jet, TI29/1998 permits leaner adjustment down to H = 0 if necessary; the smaller-bore option is for very high altitude when that range is insufficient. This is not a universal H setting for other designs and no numeric altitude threshold is supplied.
  • Do NOT use the smaller-bore high-altitude jets at lower altitudes: an overly lean mixture can cause engine damage. Replacement is for trained personnel; press-fit positioning depends on the separate Carburetors handbook. No complete installation procedure, regulatory approval or physical interchange test is claimed. No hardware operation was performed.
  • WT 360: carburetor 1123 120 0611; optional fixed jet 1123 121 5653, bore 0.44 mm; source model 023 L. No USA-only asterisk is printed on this row.
  • WT 396: carburetor 1123 120 0613; optional fixed jet 1123 121 5642, bore 0.42 mm; source model 023 L. No USA-only asterisk is printed on this row.
  • Retained 1123 R sheet title specifically says 023 L and includes both exact type/jet pairs, but used_by labels only 021, 023, 025. Preserve exact 023 L source lookup without rewriting canonical labels or widening to every shared-sheet model. The distinct 0.44 and 0.42 mm choices must not be merged.

Source: TI 29/1998, p. 1 · TI 29/1998, p. 2 — Page 1 complete guidance and page 2 WT 360, WT 396 table rows.

Part numbers (4)
  • 1123 120 0611 — Carburetor WT 360Source type association · 023 L; stamped WT 360 only
  • 1123 121 5653 — High-altitude fixed jet, 0.44 mmOptional, not standard · WT 360; 023 L; high-altitude conditions only
  • 1123 120 0613 — Carburetor WT 396Source type association · 023 L; stamped WT 396 only
  • 1123 121 5642 — High-altitude fixed jet, 0.42 mmOptional, not standard · WT 396; 023 L; high-altitude conditions only

Historical fitment · 026 / 026 PRO

026 / 026 PRO: WT-403 A, WT-426 and WT-493 A jets

Optional high-altitude jets selected by stamped carburetor type; exact table associations and restrictions retained.

No exact-model IPL link: The TI prints WT-426 assembly 1121 120 0650; retained 026 L instead names WT-426 at 1121 120 0611. Keep both numbers with their provenance; do not silently correct the TI. Retained WT-403B is a later suffix at the same number; the sheet does not label exact 026 PRO. Source-only grouped lookup keeps each model/type/USA restriction attached to its own row; no assertion that all three carburetors fit both models.

  • Use ONLY the type designation stamped on the carburetor body, not the saw model or carburetor part number alone. Each row below retains its exact printed suffix; later suffixes and MS successor models are not admitted by a shared number or sheet.
  • These are OPTIONAL smaller-bore high-altitude jets, not standard jets or unconditional replacements. For adjustable carburetors WITH a semi-fixed jet, TI29/1998 permits leaner adjustment down to H = 0 if necessary; the smaller-bore option is for very high altitude when that range is insufficient. This is not a universal H setting for other designs and no numeric altitude threshold is supplied.
  • Do NOT use the smaller-bore high-altitude jets at lower altitudes: an overly lean mixture can cause engine damage. Replacement is for trained personnel; press-fit positioning depends on the separate Carburetors handbook. No complete installation procedure, regulatory approval or physical interchange test is claimed. No hardware operation was performed.
  • WT 403 A: carburetor 1121 120 0610; optional fixed jet 1121 121 5602, bore 0.52 mm; source model 026 PRO. The asterisk on THIS carburetor number means spare part for USA only; it is not a blanket mark on every jet or model.
  • WT 426: carburetor 1121 120 0650; optional fixed jet 1121 121 5601, bore 0.46 mm; source model 026. No USA-only asterisk is printed on this row.
  • WT 493 A: carburetor 1121 120 0613; optional fixed jet 1121 121 5603, bore 0.50 mm; source model 026. The asterisk on THIS carburetor number means spare part for USA only; it is not a blanket mark on every jet or model.
  • The TI prints WT-426 assembly 1121 120 0650; retained 026 L instead names WT-426 at 1121 120 0611. Keep both numbers with their provenance; do not silently correct the TI. Retained WT-403B is a later suffix at the same number; the sheet does not label exact 026 PRO. Source-only grouped lookup keeps each model/type/USA restriction attached to its own row; no assertion that all three carburetors fit both models.

Source: TI 29/1998, p. 1 · TI 29/1998, p. 2 — Page 1 complete guidance and page 2 WT 403 A, WT 426, WT 493 A table rows.

Part numbers (6)
  • 1121 120 0610 — Carburetor WT 403 ASource type association; USA-only spare part · 026 PRO; stamped WT 403 A only
  • 1121 121 5602 — High-altitude fixed jet, 0.52 mmOptional, not standard · WT 403 A; 026 PRO; high-altitude conditions only
  • 1121 120 0650 — Carburetor WT 426Source type association · 026; stamped WT 426 only
  • 1121 121 5601 — High-altitude fixed jet, 0.46 mmOptional, not standard · WT 426; 026; high-altitude conditions only
  • 1121 120 0613 — Carburetor WT 493 ASource type association; USA-only spare part · 026; stamped WT 493 A only
  • 1121 121 5603 — High-altitude fixed jet, 0.50 mmOptional, not standard · WT 493 A; 026; high-altitude conditions only

Historical fitment · 034 / 036

034 / 036: 0.56 mm jets for C3A-S31D, S38A and S39A

Optional high-altitude jets selected by stamped carburetor type; exact table associations and restrictions retained.

No exact-model IPL link: The S31D merged row lists TWO carburetor numbers; only 1125 120 0613 bears the USA-only asterisk. The retained 1125 sheets use S31E, S38B and S39B at reused numbers. These later suffixes and the 036 QS/MS360 variants are not proven by this source; retain exact source-only row associations.

  • Use ONLY the type designation stamped on the carburetor body, not the saw model or carburetor part number alone. Each row below retains its exact printed suffix; later suffixes and MS successor models are not admitted by a shared number or sheet.
  • These are OPTIONAL smaller-bore high-altitude jets, not standard jets or unconditional replacements. For adjustable carburetors WITH a semi-fixed jet, TI29/1998 permits leaner adjustment down to H = 0 if necessary; the smaller-bore option is for very high altitude when that range is insufficient. This is not a universal H setting for other designs and no numeric altitude threshold is supplied.
  • Do NOT use the smaller-bore high-altitude jets at lower altitudes: an overly lean mixture can cause engine damage. Replacement is for trained personnel; press-fit positioning depends on the separate Carburetors handbook. No complete installation procedure, regulatory approval or physical interchange test is claimed. No hardware operation was performed.
  • C3A-S31D: carburetor 1125 120 0651; optional fixed jet 1125 121 5407, bore 0.56 mm; source model 036. No USA-only asterisk is printed on this row.
  • C3A-S31D: carburetor 1125 120 0613; optional fixed jet 1125 121 5407, bore 0.56 mm; source model 036. The asterisk on THIS carburetor number means spare part for USA only; it is not a blanket mark on every jet or model.
  • C3A-S38A: carburetor 1125 120 0617; optional fixed jet 1125 121 5407, bore 0.56 mm; source model 034. No USA-only asterisk is printed on this row.
  • C3A-S39A: carburetor 1125 120 0615; optional fixed jet 1125 121 5407, bore 0.56 mm; source model 036. No USA-only asterisk is printed on this row.
  • The S31D merged row lists TWO carburetor numbers; only 1125 120 0613 bears the USA-only asterisk. The retained 1125 sheets use S31E, S38B and S39B at reused numbers. These later suffixes and the 036 QS/MS360 variants are not proven by this source; retain exact source-only row associations.

Source: TI 29/1998, p. 1 · TI 29/1998, p. 2 — Page 1 complete guidance and page 2 C3A-S31D, C3A-S38A, C3A-S39A table rows.

Part numbers (8)
  • 1125 120 0651 — Carburetor C3A-S31DSource type association · 036; stamped C3A-S31D only
  • 1125 121 5407 — High-altitude fixed jet, 0.56 mmOptional, not standard · C3A-S31D; 036; high-altitude conditions only
  • 1125 120 0613 — Carburetor C3A-S31DSource type association; USA-only spare part · 036; stamped C3A-S31D only
  • 1125 121 5407 — High-altitude fixed jet, 0.56 mmOptional, not standard · C3A-S31D; 036; high-altitude conditions only
  • 1125 120 0617 — Carburetor C3A-S38ASource type association · 034; stamped C3A-S38A only
  • 1125 121 5407 — High-altitude fixed jet, 0.56 mmOptional, not standard · C3A-S38A; 034; high-altitude conditions only
  • 1125 120 0615 — Carburetor C3A-S39ASource type association · 036; stamped C3A-S39A only
  • 1125 121 5407 — High-altitude fixed jet, 0.56 mmOptional, not standard · C3A-S39A; 036; high-altitude conditions only

Historical fitment · 064 / 066

064 / 066: WJ-65, WJ-66, WJ-67 and WJ-69 jets

Optional high-altitude jets selected by stamped carburetor type; exact table associations and restrictions retained.

No exact-model IPL link: Retained 1122 sheets name WJ-65A, WJ-67A and WJ-69B at reused numbers. No suffix transition or MS640/650/660 coverage is inferred; exact unsuffixed source rows remain source-only.

  • Use ONLY the type designation stamped on the carburetor body, not the saw model or carburetor part number alone. Each row below retains its exact printed suffix; later suffixes and MS successor models are not admitted by a shared number or sheet.
  • These are OPTIONAL smaller-bore high-altitude jets, not standard jets or unconditional replacements. For adjustable carburetors WITH a semi-fixed jet, TI29/1998 permits leaner adjustment down to H = 0 if necessary; the smaller-bore option is for very high altitude when that range is insufficient. This is not a universal H setting for other designs and no numeric altitude threshold is supplied.
  • Do NOT use the smaller-bore high-altitude jets at lower altitudes: an overly lean mixture can cause engine damage. Replacement is for trained personnel; press-fit positioning depends on the separate Carburetors handbook. No complete installation procedure, regulatory approval or physical interchange test is claimed. No hardware operation was performed.
  • WJ-65: carburetor 1122 120 0616; optional fixed jet 1122 121 5608, bore 0.60 mm; source model 064. No USA-only asterisk is printed on this row.
  • WJ-66: carburetor 1122 120 0622; optional fixed jet 1122 121 5603, bore 0.62 mm; source model 066. No USA-only asterisk is printed on this row.
  • WJ-67: carburetor 1122 120 0621; optional fixed jet 1122 121 5603, bore 0.62 mm; source model 066. No USA-only asterisk is printed on this row.
  • WJ-69: carburetor 1122 120 0618; optional fixed jet 1122 121 5603, bore 0.62 mm; source model 066. No USA-only asterisk is printed on this row.
  • The ORIGINAL table merges the 0.62 mm / 1122 121 5603 / 066 cells across WJ-66, WJ-67 AND WJ-69. The blank extracted continuations are not missing jet values. WJ-65 is a separate 064 / 0.60 mm row.
  • Retained 1122 sheets name WJ-65A, WJ-67A and WJ-69B at reused numbers. No suffix transition or MS640/650/660 coverage is inferred; exact unsuffixed source rows remain source-only.

Source: TI 29/1998, p. 1 · TI 29/1998, p. 2 — Page 1 complete guidance and page 2 WJ-65, WJ-66, WJ-67, WJ-69 table rows.

Part numbers (8)
  • 1122 120 0616 — Carburetor WJ-65Source type association · 064; stamped WJ-65 only
  • 1122 121 5608 — High-altitude fixed jet, 0.60 mmOptional, not standard · WJ-65; 064; high-altitude conditions only
  • 1122 120 0622 — Carburetor WJ-66Source type association · 066; stamped WJ-66 only
  • 1122 121 5603 — High-altitude fixed jet, 0.62 mmOptional, not standard · WJ-66; 066; high-altitude conditions only
  • 1122 120 0621 — Carburetor WJ-67Source type association · 066; stamped WJ-67 only
  • 1122 121 5603 — High-altitude fixed jet, 0.62 mmOptional, not standard · WJ-67; 066; high-altitude conditions only
  • 1122 120 0618 — Carburetor WJ-69Source type association · 066; stamped WJ-69 only
  • 1122 121 5603 — High-altitude fixed jet, 0.62 mmOptional, not standard · WJ-69; 066; high-altitude conditions only

Historical fitment · 019 T

019 T: optional 0.40 mm jet for C1Q-S37A

Optional high-altitude jets selected by stamped carburetor type; exact table associations and restrictions retained.

No exact-model IPL link: The retained 019 T fuel-system sheet identifies C1Q-S46A and WT-451A, not this exact C1Q-S37A assembly. Preserve source-only lookup without treating those different types as substitutes.

  • Use ONLY the type designation stamped on the carburetor body, not the saw model or carburetor part number alone. Each row below retains its exact printed suffix; later suffixes and MS successor models are not admitted by a shared number or sheet.
  • These are OPTIONAL smaller-bore high-altitude jets, not standard jets or unconditional replacements. For adjustable carburetors WITH a semi-fixed jet, TI29/1998 permits leaner adjustment down to H = 0 if necessary; the smaller-bore option is for very high altitude when that range is insufficient. This is not a universal H setting for other designs and no numeric altitude threshold is supplied.
  • Do NOT use the smaller-bore high-altitude jets at lower altitudes: an overly lean mixture can cause engine damage. Replacement is for trained personnel; press-fit positioning depends on the separate Carburetors handbook. No complete installation procedure, regulatory approval or physical interchange test is claimed. No hardware operation was performed.
  • C1Q-S37A: carburetor 1132 120 0602; optional fixed jet 1132 121 5640, bore 0.40 mm; source model 019 T. No USA-only asterisk is printed on this row.
  • The retained 019 T fuel-system sheet identifies C1Q-S46A and WT-451A, not this exact C1Q-S37A assembly. Preserve source-only lookup without treating those different types as substitutes.

Source: TI 29/1998, p. 1 · TI 29/1998, p. 2 — Page 1 complete guidance and page 2 C1Q-S37A table rows.

Part numbers (2)
  • 1132 120 0602 — Carburetor C1Q-S37ASource type association · 019 T; stamped C1Q-S37A only
  • 1132 121 5640 — High-altitude fixed jet, 0.40 mmOptional, not standard · C1Q-S37A; 019 T; high-altitude conditions only

Historical fitment · 029 / 039

029 / 039: HD-18 A/B, HD-19 A/B and HD-21 A/B jets

Optional high-altitude jets selected by stamped carburetor type; exact table associations and restrictions retained.

No exact-model IPL link: Retained 1127 sheets name HD18C, HD19C and HD21C at reused numbers. The TI applies to printed A/B only, not C or MS290/310/390. Source-only exact-row associations avoid asserting any suffix interchange.

  • Use ONLY the type designation stamped on the carburetor body, not the saw model or carburetor part number alone. Each row below retains its exact printed suffix; later suffixes and MS successor models are not admitted by a shared number or sheet.
  • These are OPTIONAL smaller-bore high-altitude jets, not standard jets or unconditional replacements. For adjustable carburetors WITH a semi-fixed jet, TI29/1998 permits leaner adjustment down to H = 0 if necessary; the smaller-bore option is for very high altitude when that range is insufficient. This is not a universal H setting for other designs and no numeric altitude threshold is supplied.
  • Do NOT use the smaller-bore high-altitude jets at lower altitudes: an overly lean mixture can cause engine damage. Replacement is for trained personnel; press-fit positioning depends on the separate Carburetors handbook. No complete installation procedure, regulatory approval or physical interchange test is claimed. No hardware operation was performed.
  • HD 18 A/B: carburetor 1127 120 0604; optional fixed jet 1130 121 5600, bore 0.54 mm; source model 029. The asterisk on THIS carburetor number means spare part for USA only; it is not a blanket mark on every jet or model.
  • HD 19 A/B: carburetor 1127 120 0650; optional fixed jet 1130 121 5600, bore 0.54 mm; source model 029, 039. No USA-only asterisk is printed on this row.
  • HD 21 A/B: carburetor 1127 120 0605; optional fixed jet 1130 121 5600, bore 0.54 mm; source model 039. No USA-only asterisk is printed on this row.
  • Only the HD18 carburetor number bears a USA-only asterisk in THIS table. HD21 has none here; the later retained combined HD18C/HD21C sheet title says ONLY USA. Retain that source distinction, not a global territorial conclusion.
  • Retained 1127 sheets name HD18C, HD19C and HD21C at reused numbers. The TI applies to printed A/B only, not C or MS290/310/390. Source-only exact-row associations avoid asserting any suffix interchange.

Source: TI 29/1998, p. 1 · TI 29/1998, p. 2 — Page 1 complete guidance and page 2 HD 18 A/B, HD 19 A/B, HD 21 A/B table rows.

Part numbers (6)
  • 1127 120 0604 — Carburetor HD 18 A/BSource type association; USA-only spare part · 029; stamped HD 18 A/B only
  • 1130 121 5600 — High-altitude fixed jet, 0.54 mmOptional, not standard · HD 18 A/B; 029; high-altitude conditions only
  • 1127 120 0650 — Carburetor HD 19 A/BSource type association · 029, 039; stamped HD 19 A/B only
  • 1130 121 5600 — High-altitude fixed jet, 0.54 mmOptional, not standard · HD 19 A/B; 029, 039; high-altitude conditions only
  • 1127 120 0605 — Carburetor HD 21 A/BSource type association · 039; stamped HD 21 A/B only
  • 1130 121 5600 — High-altitude fixed jet, 0.54 mmOptional, not standard · HD 21 A/B; 039; high-altitude conditions only

Historical fitment · 088

088: optional 1.00 mm jets for HT-11 D and HT-12 A/B

Optional high-altitude jets selected by stamped carburetor type; exact table associations and restrictions retained.

No exact-model IPL link: No retained exact 088 HT-11D/HT-12A/B assembly binding was found in the catalog. Keep the printed numbers and suffixes as source-only model references; the shared 1124 series does not bind these to 084.

  • Use ONLY the type designation stamped on the carburetor body, not the saw model or carburetor part number alone. Each row below retains its exact printed suffix; later suffixes and MS successor models are not admitted by a shared number or sheet.
  • These are OPTIONAL smaller-bore high-altitude jets, not standard jets or unconditional replacements. For adjustable carburetors WITH a semi-fixed jet, TI29/1998 permits leaner adjustment down to H = 0 if necessary; the smaller-bore option is for very high altitude when that range is insufficient. This is not a universal H setting for other designs and no numeric altitude threshold is supplied.
  • Do NOT use the smaller-bore high-altitude jets at lower altitudes: an overly lean mixture can cause engine damage. Replacement is for trained personnel; press-fit positioning depends on the separate Carburetors handbook. No complete installation procedure, regulatory approval or physical interchange test is claimed. No hardware operation was performed.
  • HT 11 D: carburetor 1124 120 0608; optional fixed jet 1124 121 5603, bore 1.00 mm; source model 088. No USA-only asterisk is printed on this row.
  • HT 12 A/B: carburetor 1124 120 0650; optional fixed jet 1124 121 5603, bore 1.00 mm; source model 088. No USA-only asterisk is printed on this row.
  • No retained exact 088 HT-11D/HT-12A/B assembly binding was found in the catalog. Keep the printed numbers and suffixes as source-only model references; the shared 1124 series does not bind these to 084.

Source: TI 29/1998, p. 1 · TI 29/1998, p. 2 — Page 1 complete guidance and page 2 HT 11 D, HT 12 A/B table rows.

Part numbers (4)
  • 1124 120 0608 — Carburetor HT 11 DSource type association · 088; stamped HT 11 D only
  • 1124 121 5603 — High-altitude fixed jet, 1.00 mmOptional, not standard · HT 11 D; 088; high-altitude conditions only
  • 1124 120 0650 — Carburetor HT 12 A/BSource type association · 088; stamped HT 12 A/B only
  • 1124 121 5603 — High-altitude fixed jet, 1.00 mmOptional, not standard · HT 12 A/B; 088; high-altitude conditions only

Full text

Page 1 of 2

TI 29/1998 page 1
Text of page 1 — search, copy, screen readers
Technical Information

                                                                                                29.98

Fixed Jets for Carburetor =³High Altitude Jets´

If necessary, adjustable carburetors with a==============³Adjustable´ carburetor with semi-fixed jet

³semi-fixed jet´ may be set leaner, down to =============Eex~mpleW=ea=NV=^F
H = 0, to suit the lower air volume at high
altitudes.

The so-called “semi-fixed jet” in these carburetors
ensures a minimum supply of fuel. The semi-fixed
jet may be a separate jet (screw or press-fitted)

or an additional bore in the valve jet (see
“Carburetors” handbook).

It is a fact that engine power decreases as
altitude increases.=qhe additional, altitude-related
enrichment of the mixture can be compensated for

                                                                                                           001TI001 KN
by using a leaner carburetor setting. If the range
of adjustment down to H = 0 is not sufficient to                                 1 2
counteract the over-rich mixture at very high

~ltitudesI=it=is=possible=to=inst~ll=~=fixed jet with
                                                         1 =s~lve jet
a smaller bore=E“high altitude jet”).
                                                         2 =pemi-fixed jet (screw-fitted)
The optional “high altitude jets” listed in the table

are available for this purpose. Each of these

optional jets is designed for a specific carburetor
=========================================================Carburetor with fixed jet
type.
                                                         (example: WT 360)
Important notes

Use only the type designation stamped on the
carburetor body =e.g. WT 426= to determine the

correct part number.

The replacement of fixed jets should be carried

out only by trained personnel.

Special care must be taken with press-fitted jets:

• Use a pin punch of the right diameter
                                                                                                          001TI002 KN

• Position jet squarely in bore and press home                              1               2
   (for correct position see “Carburetors”
   handbook)
• Do not damage end face of jet while pressing           1 =s~lve jet
   home                                                  2 =cixed jet (screw-fitted)
• Recommendation: Do not reuse jets that have
===been=pressed=outK=====================================Warning: Do not use fixed jets with a smaller
                                                         bore =³high altitude jets´  at lower altitudes
=========================================================because they make the mixture too lean and
                                                         can cause engine damage.

Page 2 of 2

TI 29/1998 page 2
Text of page 2 — search, copy, screen readers
29.98 - 2

=Carburetor========================Fixed jet =³high altitude jet´===================Model
                   Part No.        Bore dia. (mm)                 Part No.
 WT 283 B==========NNOP=NOM=MSNM===Fixed jet 0.50================NNOV=NON=RSMM======MOPI=MOR
 WT 323============NNOM=NOM=MSMS===Fixed jet 0.58================NNOT=NON=RSMO======MMV
 WT 325 A==========NNPM=NOM=MSMM===Fixed jet 0.50================NNOV=NON=RSMM======MNT
 WT 326 C==========NNOV=NOM=MSMS===Fixed jet 0.42================NNOP=NON=RSQO======MOM=q
 WT 360============NNOP=NOM=MSNN===Fixed jet 0.44================NNOP=NON=RSRP======MOP=i
 WT 396============NNOP=NOM=MSNP===Fixed jet 0.42================NNOP=NON=RSQO======MOP=i
 WT 403 A==========NNON=NOM=MSNM===Fixed jet 0.52================NNON=NON=RSMO======MOS=mol
 WT 426============================Fixed jet 0.46

                   1121 120 0650                                 1121 121 5601      026

 WT 493 A==========NNON=NOM=MSNP===Fixed jet 0.50================NNON=NON=RSMP======MOS
 WT 498 A==========NNOP=NOM=MSNS===Fixed jet 0.50================NNOV=NON=RSMM======MOP=`
 WT 503============================Fixed jet 0.48

                   1123 120 0614                                 1123 121 5630      021

 C3A-S31D==========NNOR=NOM=MSRN===Fixed jet 0.56================NNOR=NON=RQMT======MPS

                   1125 120 0613
 C3A-S38A==========NNOR=NOM=MSNT===Fixed jet 0.56================NNOR=NON=RQMT======MPQ
 C3A-S39A==========NNOR=NOM=MSNR===Fixed jet 0.56==========fo    1125 121 5407      036
 WJ-65=============NNOO=NOM=MSNS===Fixed jet 0.60================NNOO=NON=RSMU======MSQ
 WJ-66=============NNOO=NOM=MSOO===Fixed jet 0.62================NNOO=NON=RSMP======MSS

 WJ-67=============NNOO=NOM=MSON
 WJ-69=============NNOO=NOM=MSNU

 C1Q-S37A==========NNPO=NOM=MSMO===Fixed jet 0.40================NNPO=NON=RSQM======MNV=q

 HD 14=============NNOU=NOM=MSOQ===Fixed jet 0.66================NNOU=NON=RSMR======MQS
 HD 15=============NNOU=NOM=MSOR===Fixed jet 0.66================NNOU=NON=RSMR======MQQ

 HD 16=============NNOU=NOM=MSOP===Fixed jet 0.66================NNOU=NON=RSMR======MQS
 HD 17=============NNOU=NOM=MSOO===Fixed jet 0.66================NNOU=NON=RSMR======MQQ

 HD 18 A/B=========NNOT=NOM=MSMQ===Fixed jet 0.54================NNPM=NON=RSMM======MOV
 HD 19 A/B=========NNOT=NOM=MSRM===Fixed jet 0.54================NNPM=NON=RSMM======MOVI=MPV

 HD 21 A/B=========NNOT=NOM=MSMR===Fixed jet 0.54================NNPM=NON=RSMM======MPV

 HT 7 A============NNOQ=NOM=MSMT===Fixed jet 0.88================NNOQ=NON=RSMS======MUQ

 HT 11 D===========NNOQ=NOM=MSMU===Fixed jet 1.00================NNOQ=NON=RSMP======MUU
 HT 12 A/B=========NNOQ=NOM=MSRM===Fixed jet 1.00================NNOQ=NON=RSMP======MUU

  Spare part for USA only

 1998 Andreas Stihl                                Andreas Stihl - D1/MTK-sc
                                                    Technical Documentation                 6381

Most of these PDFs embed fonts with a shifted character map, so the text above was recovered rather than copied — read it as a faithful but imperfect transcription, and treat the page image above each block as the authority where the two disagree — the figures exist only there, because they are vector drawings that text extraction cannot keep.

Report a transcription error →
