Technical Information · issue 30 of 1998
Muffler; Shroud
IssueTI 30/1998
Full text
Page 1 of 2

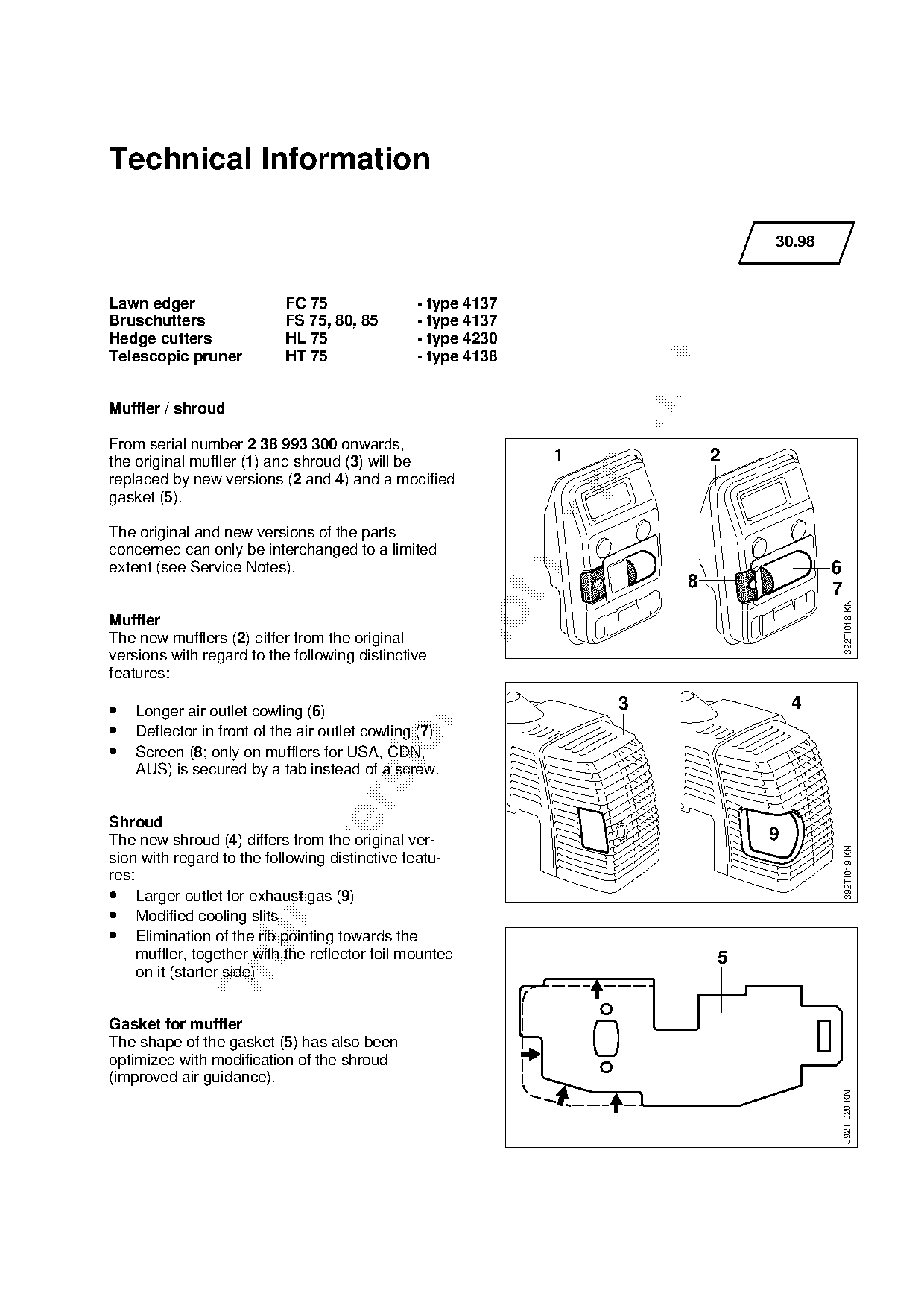

Technical Information
30.98
Lawn edger FC 75 - type 4137
Bruschutters FS 75, 80, 85 - type 4137
Hedge cutters HL 75 - type 4230
Telescopic pruner HT 75 - type 4138
Muffler / shroud
From serial number 2 38 993 300 onwards,
the original muffler (1) and shroud (3) will be 1 2
replaced by new versions (2 and 4) and a modified
gasket (5).
The original and new versions of the parts
concerned can only be interchanged to a limited
extent (see Service Notes).
fo 6
8 7
392TI018 KN
Muffler
The new mufflers (2) differ from the original
versions with regard to the following distinctive
features:
• Longer air outlet cowling (6) 3 4
• Deflector in front of the air outlet cowling (7)
• Screen (8; only on mufflers for USA, CDN,
AUS) is secured by a tab instead of a screw.
Shroud
The new shroud (4) differs from the original ver- 9
392TI019 KN
sion with regard to the following distinctive featu-
res:
• Larger outlet for exhaust gas (9)
• Modified cooling slits
• Elimination of the rib pointing towards the
muffler, together with the reflector foil mounted 5
on it (starter side)
Gasket for muffler
The shape of the gasket (5) has also been
optimized with modification of the shroud
(improved air guidance).
392TI020 KN
)PMKVU=J=O

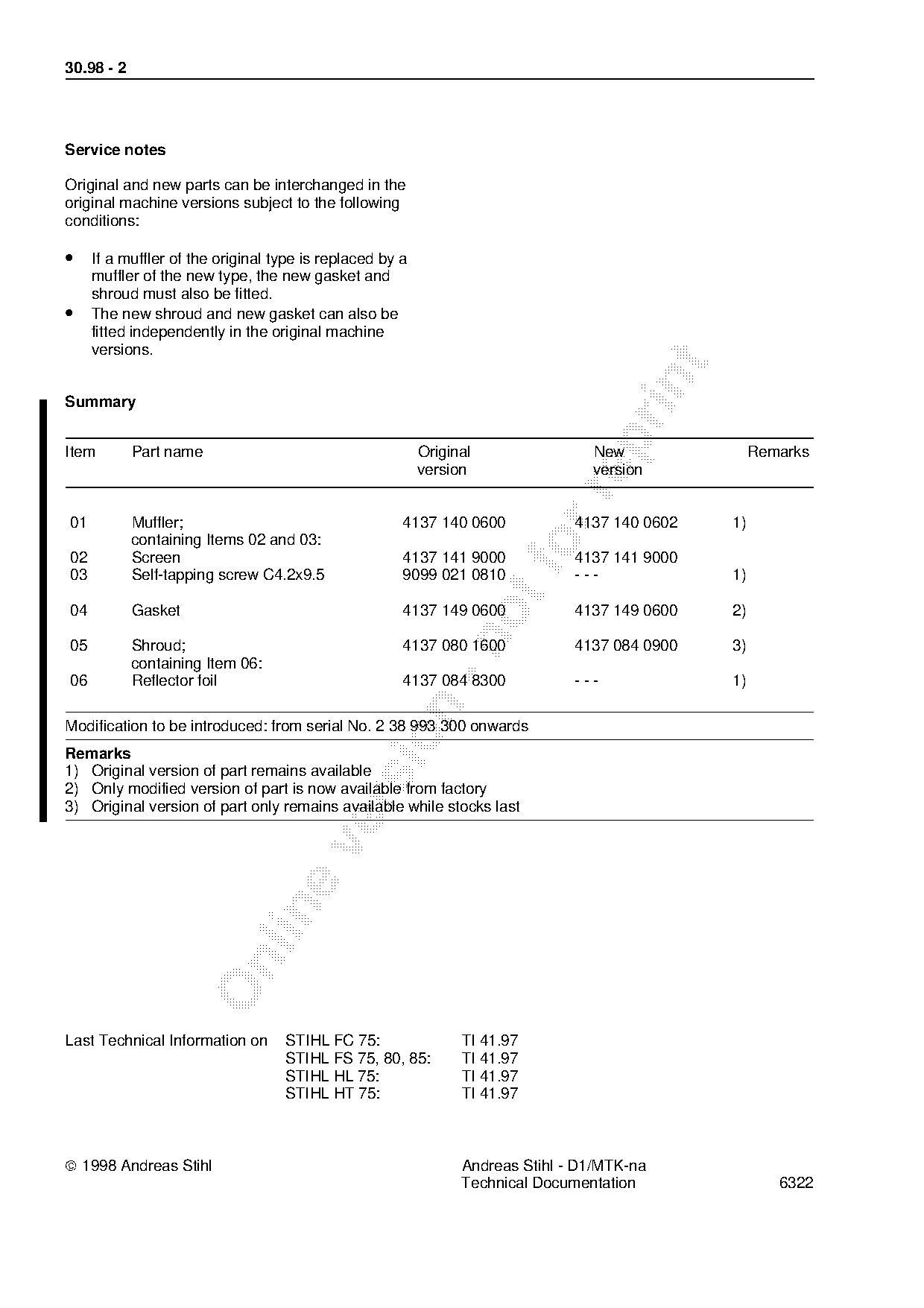

Service notes
Original and new parts can be interchanged in the
original machine versions subject to the following
conditions:
• If a muffler of the original type is replaced by a
muffler of the new type, the new gasket and
shroud must also be fitted.
• The new shroud and new gasket can also be
fitted independently in the original machine
versions.
Summary
Item Part name Original New Remarks
version version
01 Muffler; 4137 140 0600 4137 140 0602 1)
containing Items 02 and 03:
02
03
Screen
Self-tapping screw C4.2x9.5
4137 141 9000
9099 021 0810
fo 4137 141 9000
--- 1)
04 Gasket 4137 149 0600 4137 149 0600 2)
05 Shroud; 4137 080 1600 4137 084 0900 3)
containing Item 06:
06 Reflector foil 4137 084 8300 --- 1)
Modification to be introduced: from serial No. 2 38 993 300 onwards
Remarks
1) Original version of part remains available
2) Only modified version of part is now available from factory
3) Original version of part only remains available while stocks last
Last Technical Information on STIHL FC 75: TI 41.97
STIHL FS 75, 80, 85: TI 41.97
STIHL HL 75: TI 41.97
STIHL HT 75: TI 41.97
ã 1998 Andreas Stihl Andreas Stihl - D1/MTK-na
Technical Documentation 6322 Page 2 of 2
