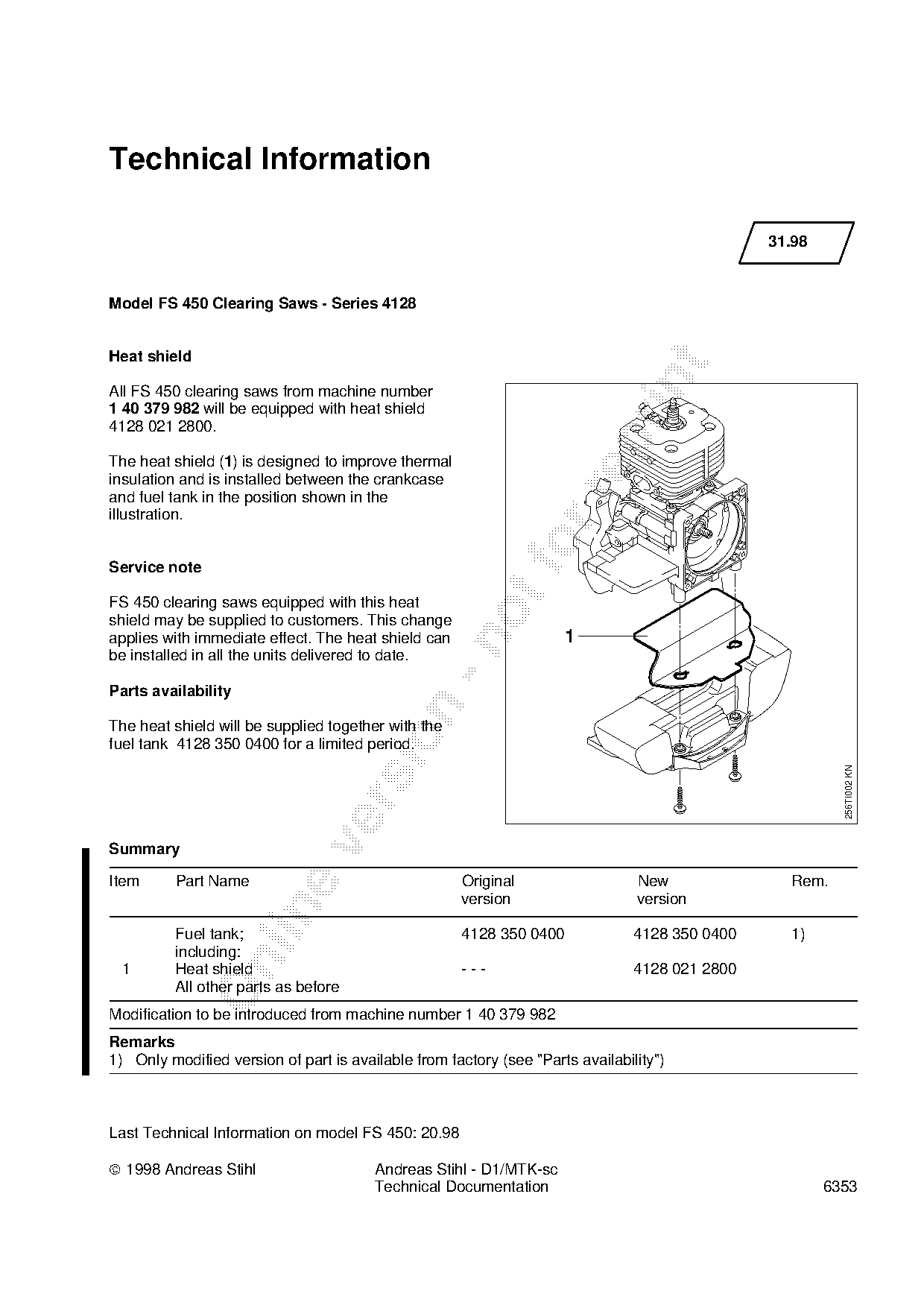

Technical Information
31.98
Model FS 450 Clearing Saws - Series 4128
Heat shield
All FS 450 clearing saws from machine number
1 40 379 982 will be equipped with heat shield
4128 021 2800.
The heat shield (1) is designed to improve thermal
insulation and is installed between the crankcase
and fuel tank in the position shown in the
illustration.
Service note
FS 450 clearing saws equipped with this heat
shield may be supplied to customers. This change
applies with immediate effect. The heat shield can 1
be installed in all the units delivered to date.
Parts availability
The heat shield will be supplied together with the
fuel tank 4128 350 0400 for a limited period.
256TI002 KN
Summary
Item Part Name Original New Rem.
version version
Fuel tank; 4128 350 0400 4128 350 0400 1)
including:
1 Heat shield --- 4128 021 2800
All other parts as before
Modification to be introduced from machine number 1 40 379 982
Remarks
1) Only modified version of part is available from factory (see "Parts availability")
Last Technical Information on model FS 450: 20.98
ã 1998 Andreas Stihl Andreas Stihl - D1/MTK-sc
