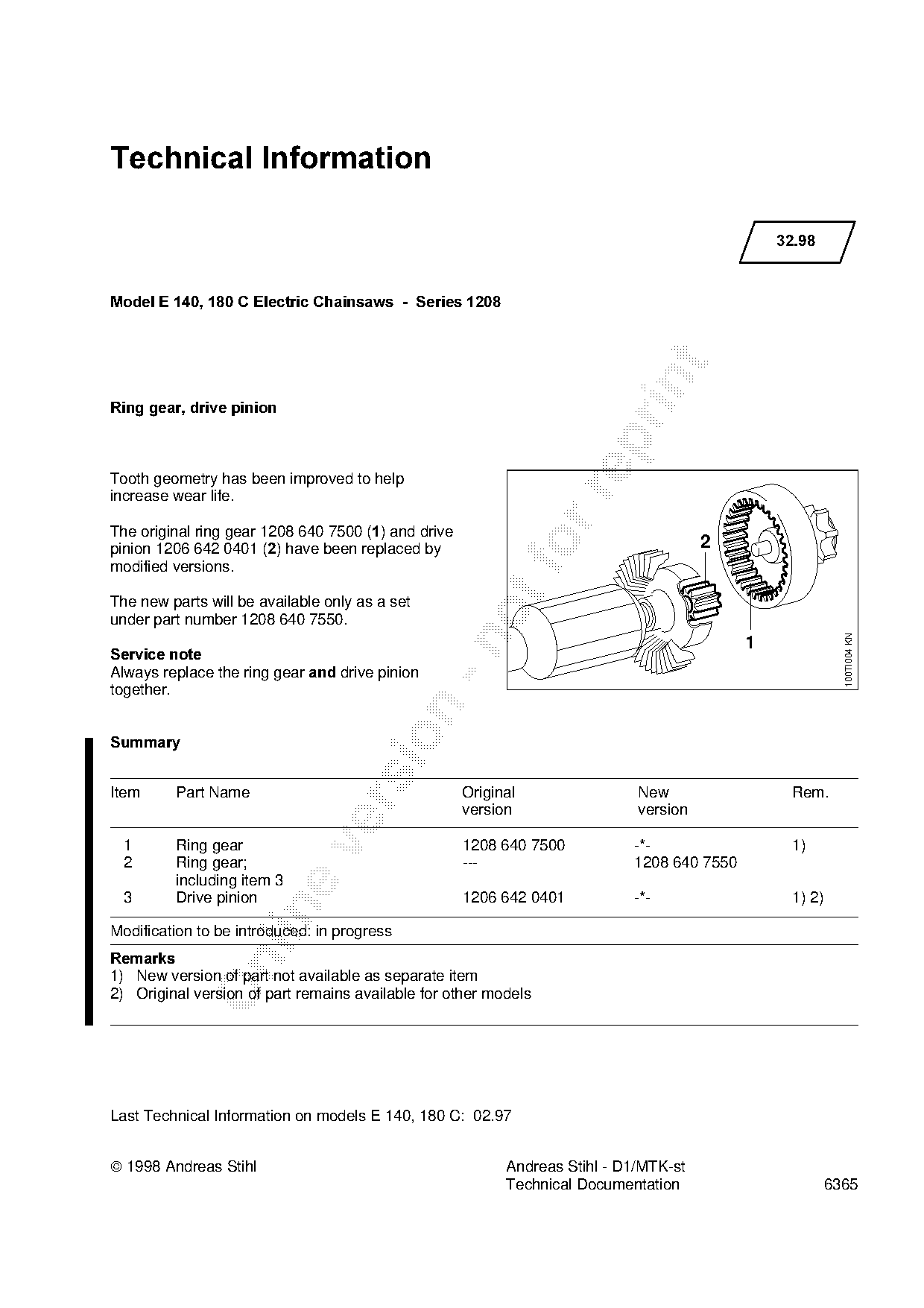

Technical Information
32.98
Model E 140, 180 C Electric Chainsaws - Series 1208
Ring gear, drive pinion
Tooth geometry has been improved to help
increase wear life.
The original ring gear NOMU=SQM=TRMM=E1F=~nd drive
pinion NOMS=SQO=MQMN=E2F=have been replaced by
modified versions.
fo 2
The new parts will be available only as a set
under part number 1208 640 7550.
100TI004 KN
1
Service note
^lw~ys=repl~ce=the=ring=ge~r and=drive=pinion
together.
6XPPDU\
Item Part Name Original New Rem.
version version
1 Ring gear 1208 640 7500 -*- 1)
2 Ring gear; --- 1208 640 7550
including item 3
3 Drive pinion 1206 642 0401 -*- 1) 2)
Modification to be introduced: in progress
5HPDUNV
1) New version of part not available as separate item
2) Original version of part remains available for other models
Last Technical Information on models E 140, 180 C: 02.97
1998 Andreas Stihl Andreas Stihl - D1/MTK-st
