Technical Information
33.98
Model FS 550 Clearing Saws - Series 4116
Contents
1. Deflector mounting (drive tube, deflector)
2. Fuel filler cap

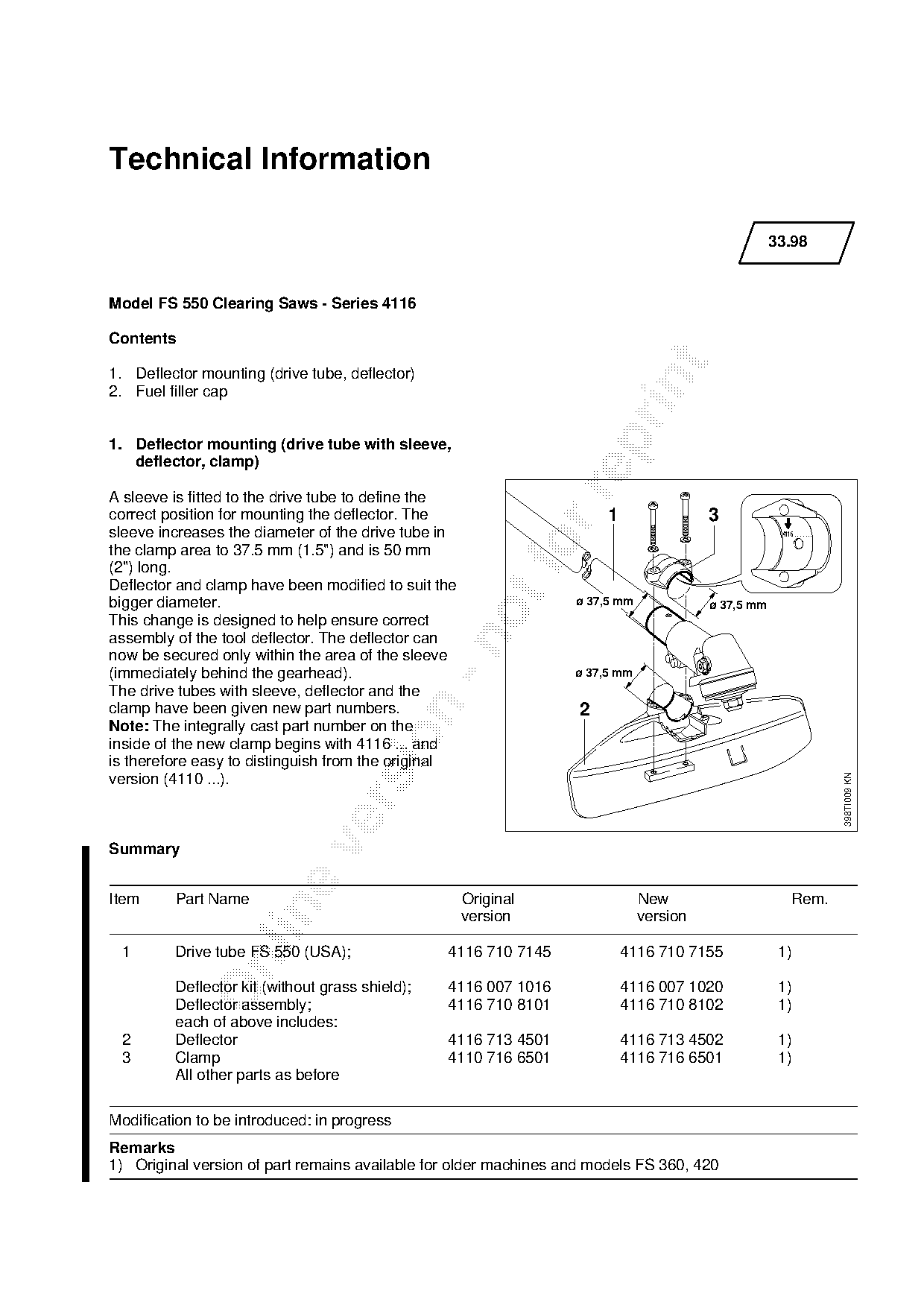

1. Deflector mounting (drive tube with sleeve,
deflector, clamp)
A sleeve is fitted to the drive tube to define the
correct position for mounting the deflector. The 1 3
sleeve increases the diameter of the drive tube in 4116 . . . . . . .
the clamp area to 37.5 mm (1.5") and is 50 mm
(2") long.
Deflector and clamp have been modified to suit the
bigger diameter. ø 37,5 mm ø 37,5 mm
This change is designed to help ensure correct
assembly of the tool deflector. The deflector can
now be secured only within the area of the sleeve
(immediately behind the gearhead). ø 37,5 mm
The drive tubes with sleeve, deflector and the
clamp have been given new part numbers. 2
Note: The integrally cast part number on the
inside of the new clamp begins with 4116 ... and
is therefore easy to distinguish from the original
398TI009 KN
version (4110 ...).
Summary
Item Part Name Original New Rem.
version version
1 Drive tube FS 550 (USA); 4116 710 7145 4116 710 7155 1)
Deflector kit (without grass shield); 4116 007 1016 4116 007 1020 1)
Deflector assembly; 4116 710 8101 4116 710 8102 1)
each of above includes:
2 Deflector 4116 713 4501 4116 713 4502 1)
3 Clamp 4110 716 6501 4116 716 6501 1)
All other parts as before
Modification to be introduced: in progress
Remarks
1) Original version of part remains available for older machines and models FS 360, 420
)PPKVU=J=O

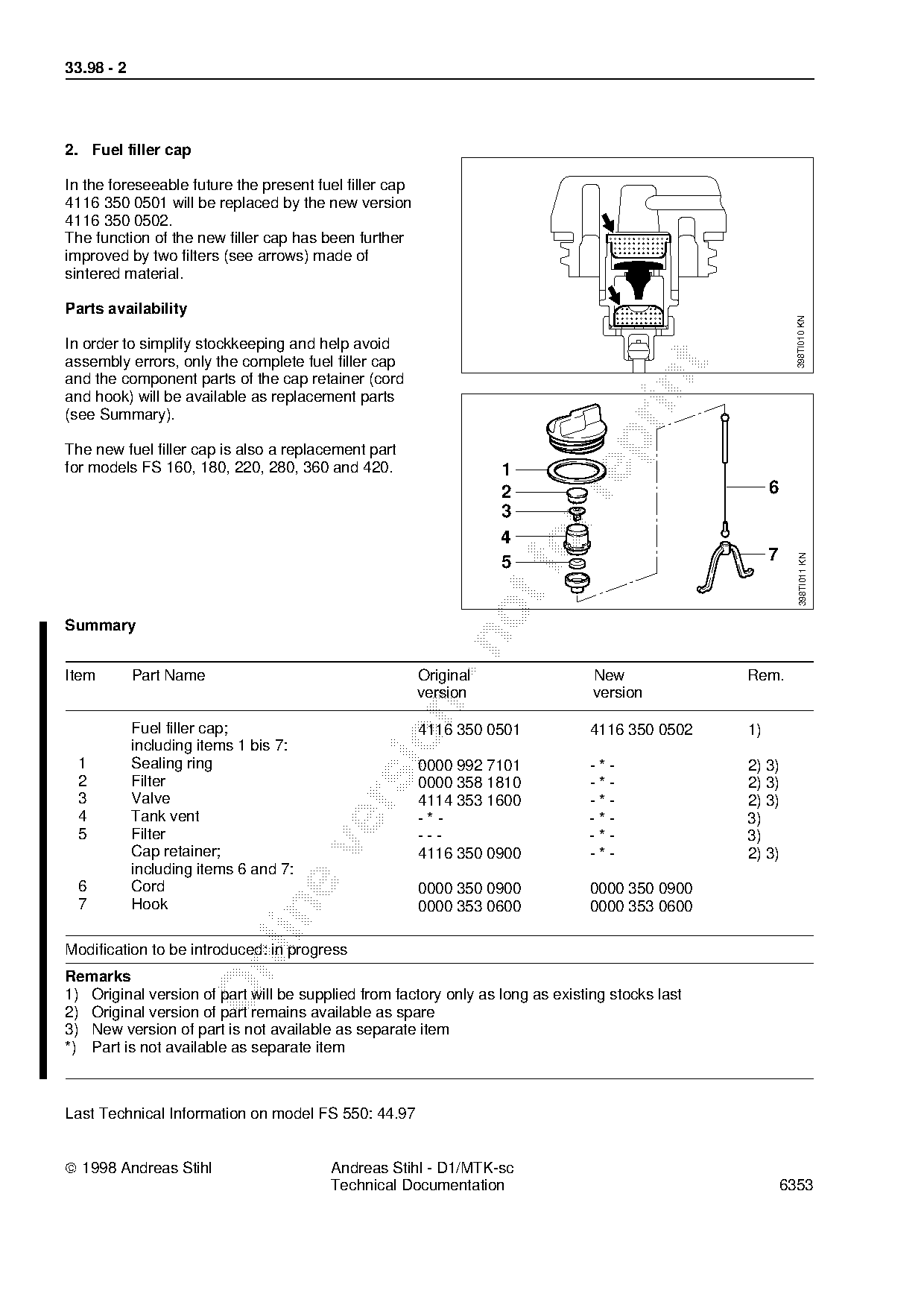

2. Fuel filler cap
In the foreseeable future the present fuel filler cap
4116 350 0501 will be replaced by the new version
4116 350 0502.
The function of the new filler cap has been further
improved by two filters (see arrows) made of
sintered material.
Parts availability
398TI010 KN
In order to simplify stockkeeping and help avoid
assembly errors, only the complete fuel filler cap
and the component parts of the cap retainer (cord
and hook) will be available as replacement parts
(see Summary).
The new fuel filler cap is also a replacement part
for models FS 160, 180, 220, 280, 360 and 420. 1
2 6
3
4
fo 7
398TI011 KN
5
Summary
Item Part Name Original New Rem.
version version
Fuel filler cap; 4116 350 0501 4116 350 0502 1)
including items 1 bis 7:
1 Sealing ring 0000 992 7101 -*- 2) 3)
2 Filter 0000 358 1810 -*- 2) 3)
3 Valve 4114 353 1600 -*- 2) 3)
4 Tank vent -*- -*- 3)
5 Filter --- -*- 3)
Cap retainer; 4116 350 0900 -*- 2) 3)
including items 6 and 7:
6 Cord 0000 350 0900 0000 350 0900
7 Hook 0000 353 0600 0000 353 0600
Modification to be introduced: in progress
Remarks
1) Original version of part will be supplied from factory only as long as existing stocks last
2) Original version of part remains available as spare
3) New version of part is not available as separate item
*) Part is not available as separate item
Last Technical Information on model FS 550: 44.97
ã 1998 Andreas Stihl Andreas Stihl - D1/MTK-sc
Technical Documentation 6353 Page 2 of 2
