Technical Information · issue 35 of 1998

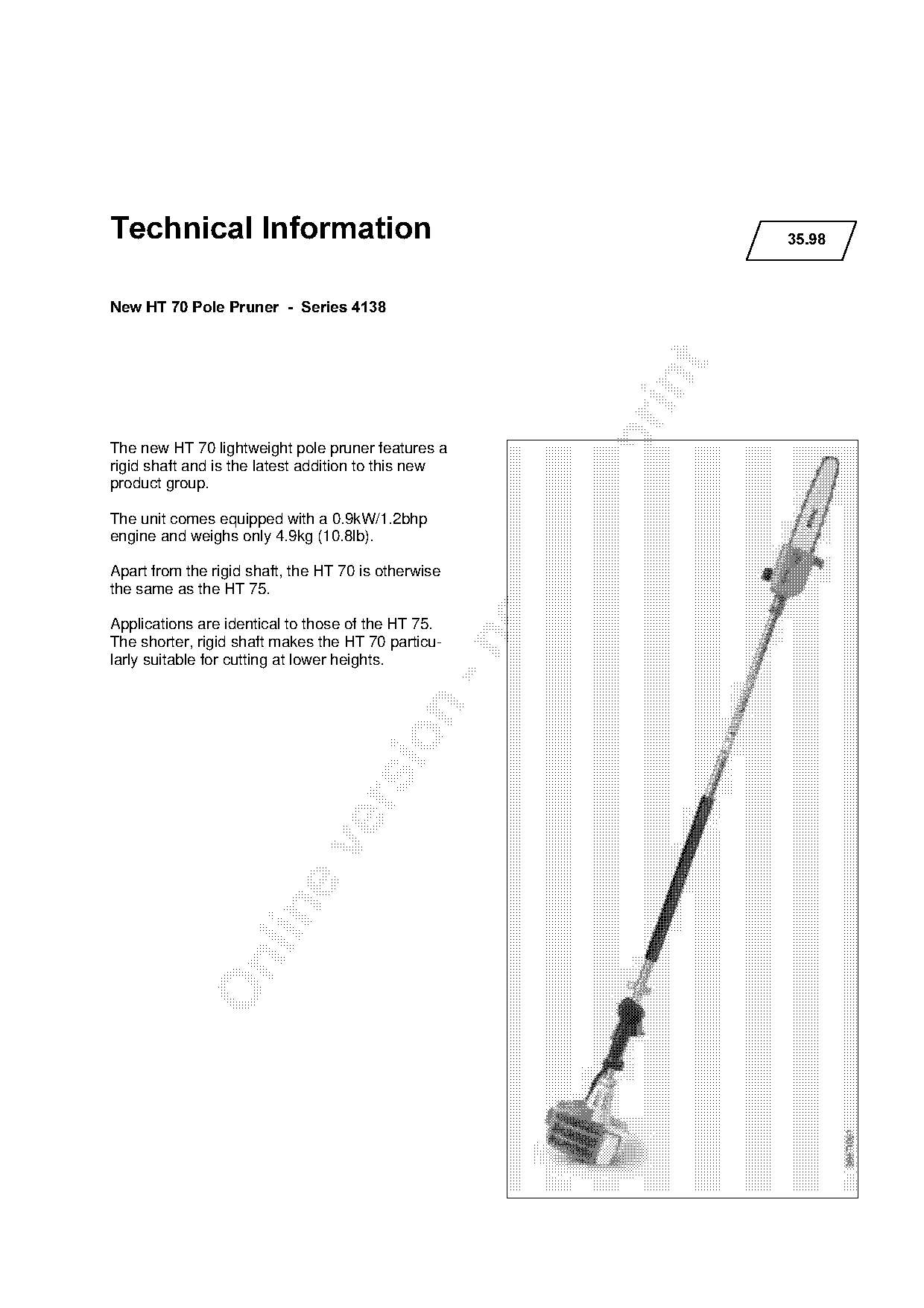

New Pole Pruner HT 70
Historical fitment & changes
Source-reviewed model notes. An exact-model IPL link is unavailable where stated; no similar model is substituted. Availability statements belong to the bulletin’s date.
Service note · HT 70
HT 70: later chain-drive troubleshooting keeps causes separate
2005 HT70 manual: chain stopping under load, moving at idle, loud noises and rapid sprocket wear have distinct cause/remedy rows.
No exact-model IPL link: Later 2005-04 manual explicitly names HT70; not a reconstruction of the exact 1998 configuration or an order-number mapping.
- Later-source comparison: the 2005-04 Series 4137 Components HT introduction explicitly names HT70 and HT75, and states shared procedures apply unless a machine is singled out. This note is HT70-only and preserves the later edition rather than claiming it is the exact 1998 source.
- Complete section 4.1: CHAIN STOPS UNDER LOAD AT FULL THROTTLE — badly worn clutch shoes: install new shoes or a new clutch; badly worn clutch drum: install new drum. These are separate possible causes, not a diagnosis of any connected machine or a chain-sprocket friction-clutch retrofit instruction.
- CHAIN ROTATES AT IDLE — engine idle speed too high: readjust with idle-speed screw COUNTERCLOCKWISE; stretched/fatigued clutch springs: replace springs; broken spring hooks: replace springs. The table supplies no numeric idle setting or permission to run a machine unattended.
- LOUD NOISES — stretched/fatigued springs: replace ALL clutch springs; broken shoe retainer: fit new retainer; worn shoes AND retainers: install new clutch. Preserve ALL and the paired wear condition, rather than reducing every noise to one spring.
- CHAIN SPROCKET WEARS RAPIDLY — improperly tensioned chain: tension as specified; wrong chain pitch: fit correct-pitch chain. The page heading includes Chain Tensioner, but it supplies no tensioning measurement, adjusting-screw overhaul, torque or part number. It therefore does not replace the missing exact E14/E20 procedure.
- The introduction says faults can have several causes and directs detailed engine work to Series 4137 Powerhead. Its safety section requires local regulations and instruction-manual precautions if an engine is started; fuel must be kept away from fire/flame/sparks/heat, fuel work is outdoors only and spills are wiped immediately. These source conditions are retained, not a performed test or a complete owner-safety manual.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — later chain-drive troubleshooting keeps causes separate.
Later manual evidence: STIHL Series 4137 Components HT (2005-04), section Introduction and safety context; complete section 4.1, all ten cause/remedy rows, PDF pages 1, 3, 4, 8
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: rigid shaft needs 17 mm projection; lubricant conflict retained
Later HT70 rigid shaft and flexible liner: blue shaft replacement, 17 mm projection, plug hook and hole alignment; conflicting grease applications remain visible.
No exact-model IPL link: Later 2005-04 manual explicitly names HT70; not a reconstruction of the exact 1998 configuration or an order-number mapping.
- Later-source comparison: Series 4137 Components HT, edition 2005-04, explicitly names HT70 and HT75 and applies shared procedures unless a machine is singled out. These are later HT70 statements, not proof of the exact 1998 configuration.
- Section 10.1 explicitly says HT70. Remove the gearbox, then withdraw the drive shaft; a shaft that has turned blue must always be replaced. The 17 mm dimension a is the shaft projection from the drive-tube end in figure 936RA265, not liner length, an insertion depth or the HT75 telescopic setting. Apply slight pressure and slowly rotate the shaft only as needed to seat it to that dimension.
- The procedure specifies uniformly coating the shaft with STIHL gear lubricant 0781 120 1109 before insertion and says NEVER pump lubricant directly into the drive tube. Retained conflict: section 12 instead assigns shaft grease 0781 120 6602 (40 g tube) to the drive shaft in a flexible liner, and lists 0781 120 1109 as hedge-trimmer gear lubricant applied to the ignition module high-voltage output. Do not silently correct or combine these applications; the later source does not resolve which lubricant is correct for an individual machine.
- Flexible liner: first remove the drive shaft. Pull the plug with hook 5910 890 2800, then withdraw the liner. On installation, the tube hole (1) must lie BETWEEN liner spokes (2), as figure 936RA208 shows. Fit the plug and then the drive shaft; remaining assembly is the reverse sequence. No liner adhesive, fill quantity or new shaft order number is supplied here.
- Gearbox removal cross-refers to 10.3.1: the bounded shared step is loosening gearbox clamp screws and taking the gearbox off the tube. The adjacent telescopic matched-pair shafts, star nut and extension sequence are explicitly HT75, not HT70. Gearbox installation is delegated to the CombiTools service manual; that later-edition installation dependency remains pending, not silently replaced with an HT75 clamp torque.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete section 10.1 with figures; bounded 10.3.1 removal reference and section12 lubricant conflict.
Later manual evidence: STIHL Series 4137 Components HT (2005-04), section Complete section 10.1 with figures; bounded 10.3.1 removal reference and section12 lubricant conflict, PDF pages 1, 3, 48, 49, 50, 56
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: drive-tube removal keeps the 2002 hardware branch
HT70 later drive-tube procedure: remove shaft first, distinguish AV fixing and clamp screws, align holes, and retain from-2002 handle and carrying-ring hardware.
No exact-model IPL link: Later 2005-04 manual explicitly names HT70; not a reconstruction of the exact 1998 configuration or an order-number mapping.
- Later-source comparison: Series 4137 Components HT, edition 2005-04, explicitly names HT70 and HT75 and applies shared procedures unless a machine is singled out. These are later HT70 statements, not proof of the exact 1998 configuration.
- Section 10.2 follows the HT70 shaft/liner section. Remove the drive shaft as in 10.1. Loosen the control-handle clamp screws; the separate drawing labelled Version from 2002 is an alternate handle, not evidence that a 1998 unit has that handle.
- Take the FIXING screw out of the AV sleeve and LOOSEN the separate CLAMP screw. Withdraw the drive tube from the powerhead and control handle at the same time. Pull off the throttle-cable retainer only WHERE FITTED. Remove the carrying-ring screw, spread the ring and take it off the tube.
- For the Version from 2002 carrying attachment, remove screw (2), bend open clamp (1) and lift it away. Reassemble in reverse sequence; push the drive tube fully home until the holes align. The final instruction points to section 3.2 for tightening the fixing and clamp screws, not to the HT75 telescopic 3 Nm clamps.
- Corresponding later section 3.2 rows distinguish AV sleeve/drive-tube LOCKING screw IS-DG5x12: 0.5 Nm (0.37 lbf.ft), from AV sleeve CLAMP screw IS-M5x20: 5.5 Nm (4.0 lbf.ft). Control-handle clamp/drive tube IS-M5x12: 5.0 Nm (3.7 lbf.ft); clamp/drive tube/harness attachment point IS-M6x14: 4.5 Nm (3.3 lbf.ft). These are component/thread-specific later values, not permission to choose a torque by screw diameter alone.
- The section ends before 10.3 Telescopic Drive Tube (HT75). No matching splined-pair replacement, telescopic adjustment, star-nut setting or extension dimension is added to HT70 from that adjacent section.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete section10.2 including pre/from2002 drawings; applicable section3.2 rows and section10.3 boundary.
Later manual evidence: STIHL Series 4137 Components HT (2005-04), section Complete section10.2 including pre/from2002 drawings; applicable section3.2 rows and section10.3 boundary, PDF pages 1, 3, 6, 7, 48, 49, 50
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: fuel specifications separate pressure from vacuum
2005 HT70 fuel data: 0.8 bar carburetor test, 2,800 rpm idle, 10,500 rpm cut-off, and separate tank-vent pressure/vacuum entries.
No exact-model IPL link: Later 2005-04 manual explicitly names HT70; not a reconstruction of the exact 1998 configuration or an order-number mapping.
- Later-source comparison: Series 4137 Components HT, edition 2005-04, explicitly names HT70 and HT75 and applies shared procedures unless a machine is singled out. These are later HT70 statements, not proof of the exact 1998 configuration.
- Complete section 3.1: diaphragm carburetor; carburetor leakage-test GAUGE pressure 80 kPa (0.8 bar). This is a specification, not a pressure-decay acceptance procedure, a crankcase test pressure or a carburetor model/suffix identification.
- Fuel mixture is regular brand-name gasoline of at least 90 RON with STIHL 50:1 two-stroke engine oil; the source expressly directs the instruction manual for further details. Do not substitute an AKI octane figure for RON or call this a complete fuel-storage/operator instruction.
- Rated idle speed is 2,800 rpm; rated CUT-OFF speed is 10,500 rpm. The latter is not a loaded cutting speed, an idle setting or a measured result. No adjustment screw turn count is supplied by this specification table.
- Tank-vent operation is listed separately: at GAUGE pressure 50 kPa (0.5 bar), UNDER VACUUM 20 kPa (0.2 bar). Preserve the vacuum direction; 0.2 bar is not an instruction to apply positive pressure. The table alone does not state a hold time, allowable loss or pass/fail procedure. Detailed vent testing remains a separate actionable section.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete section3.1 fuel specifications; pressure direction, mixture and speed-label limits.
Later manual evidence: STIHL Series 4137 Components HT (2005-04), section Complete section3.1 fuel specifications; pressure direction, mixture and speed-label limits, PDF pages 1, 3, 5
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: torque table excludes three HT75-only clamps
2005 HT70 torque table: eighteen shared rows, three excluded HT75-only clamps, washer qualification and DG/Plastoform thread-preserving installation.
No exact-model IPL link: Later 2005-04 manual explicitly names HT70; not a reconstruction of the exact 1998 configuration or an order-number mapping.
- Later-source comparison: Series 4137 Components HT, edition 2005-04, explicitly names HT70 and HT75 and applies shared procedures unless a machine is singled out. These are later HT70 statements, not proof of the exact 1998 configuration.
- Complete section 3.2 table, with paired Nm (lbf.ft) values retained. Control-handle outer/inner molding IS-P4x16: 1.0 (0.75); control-handle clamp/drive tube IS-M5x12: 5.0 (3.7); filter housing/carburetor/flange/screw M5 nut: 4.0 (3.0). Shroud/fan housing IS-M5x16 and shroud/starter cover/crankcase IS-M5x16 are two separate rows, each 3.5 (2.6).
- AV sleeve clamp screw IS-M5x20: 5.5 Nm (4.0 lbf.ft); AV sleeve/drive tube locking screw IS-DG5x12: 0.5 (0.37). EXCLUDED FROM HT70 by footnote 1: large clamp/drive tube/nut IS-M5x20, small clamp/drive tube/nut IS-M5x20, and drive-tube clamp/powerhead/nut IS-M6x25 are each 3.0 (2.2), explicitly HT75 ONLY. These three rows are not generic drive-tube torques.
- Clutch carrier/flywheel/crankshaft M8: 26.0 Nm (19.2 lbf.ft); fan housing/crankcase IS-M5x16: 8.0 (5.9); M8 carrier: 14.0 (10.3). Keep the two M8 carrier descriptions distinct. Muffler/crankcase IS-5x16: 9.5 (7.0); muffler/cylinder IS-5x16: 11.5 (8.5).
- Clamp/drive tube/harness attachment point IS-M6x14: 4.5 Nm (3.3 lbf.ft); starter cover/crankcase IS-M5x16: 5.5 (4.0). Two spacer flange/cylinder IS-M5x25 rows each specify 5.5 (4.0): one says with washer in the description and the other has footnote 2, also WITH WASHER. Neither establishes a washer-free alternative. Rope rotor/starter cover IS-P5.5x12: 2.5 (1.8); spark plug M14x1.25: 20.0 (15.0). Values remain tied to this later Components table; they do not resolve other editions or body/table conflicts.
- DG and P (Plastoform) screws form a permanent thread in polymer/light metal on first installation; a torque wrench is essential. To reuse the existing thread, rotate COUNTERCLOCKWISE until the screw drops slightly, then tighten clockwise to its specified torque. Do not form a new thread or mix screws with and without binding head.
- Power-screwdriver maximum speeds for polymer are 600 rpm for Plastoform and 500 rpm for DG screws. These tool speeds are not engine speeds and do not replace the torque-wrench requirement.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete section3.2: all21 table rows, footnotes and thread-reuse instructions; three HT75-only rows excluded.
Later manual evidence: STIHL Series 4137 Components HT (2005-04), section Complete section3.2: all21 table rows, footnotes and thread-reuse instructions; three HT75-only rows excluded, PDF pages 1, 3, 6, 7
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: service-tool list retains stand and puller discrepancies
Later HT70 tool applications and torque-wrench ranges, with unresolved assembly-stand and limiter-puller order-number conflicts.
No exact-model IPL link: Later 2005-04 manual explicitly names HT70; not a reconstruction of the exact 1998 configuration or an order-number mapping.
- Later-source comparison: Series 4137 Components HT, edition 2005-04, explicitly names HT70 and HT75 and applies shared procedures unless a machine is singled out. These are later HT70 statements, not proof of the exact 1998 configuration.
- Section 11 lists twenty tool rows. Locking strip 0000 893 5903 blocks the crankshaft; puller 5910 890 4500 removes a carburetor limiter cap; hook 5910 893 8800 removes the pickup body. Drift 1108 893 4700 removes and installs the clutch drum; separate drift 4180 893 4400 is listed for clutch-drum removal only. The table does not establish that these two drifts are interchangeable.
- Hook 5910 890 2800 detaches clutch-shoe springs and pulls the drive-tube plug; installing tool 4126 893 4900 removes the AV sleeve. Tester 1106 850 2905 is listed for crankcase/carburetor leak tests; vacuum pump 0000 850 3501 for crankcase leak and tank-vent tests. Nipple 0000 855 9200 and fuel hose 1110 141 8600 are listed for carburetor leak testing; section 9.5 also uses them for tank-vent testing. A tool application alone supplies no test pressure or pass criterion.
- Torque wrench 5910 890 0301 covers 0.5 to 18 Nm; its optical/acoustic alternative is 5910 890 0302. Torque wrench 5910 890 0311 covers 6 to 80 Nm; optical/acoustic alternative 5910 890 0312. These are TOOL RANGES, not component tightening torques. Footnote 1 requires a torque wrench for DG or P screws.
- Crimping tool 5910 890 8210 attaches connectors to electrical wires; DIN 3124 SW13 socket 5910 893 5608 is for the flywheel nut. T27x125 socket 0812 542 2104 works with electric/pneumatic screwdrivers on spline socket-head screws, but tightening still requires a torque wrench. Q-T27x150 T-handle screwdriver 5910 890 2400 is for IS screws. Circlip pliers 0816 610 1495 remove/install external circlips.
- Unresolved stand discrepancy: section 11 row 19 prints assembly stand 5910 890 3100, while introduction section 1 prints 5910 893 3100. Both pair the stand with clamp 5910 890 8800 to hold the drive tube for repairs on the workbench. Neither number is silently corrected, nor is supersession inferred.
- Unresolved puller discrepancy: section 11 prints 5910 890 4500, while section 9.4.4 specifies 5910 890 4501 for the SHORT limiter cap and suitable pliers for the LONG cap. This is a source conflict, not proof of interchangeability or a complete carburetor-adjustment procedure. The full adjustment section remains pending. Current availability and the exact 1998 tool configuration are not established.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete section11 tool table and footnotes; section1 stand conflict; bounded section9.4.4 puller comparison.
Later manual evidence: STIHL Series 4137 Components HT (2005-04), section Complete section11 tool table and footnotes; section1 stand conflict; bounded section9.4.4 puller comparison, PDF pages 1, 3, 43, 55
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: servicing aids keep blank applications and grease conflict
Later HT70 servicing aids: lubricant and sealant applications, solvent restriction, and threadlockers with no stated application in the table.
No exact-model IPL link: Later 2005-04 manual explicitly names HT70; not a reconstruction of the exact 1998 configuration or an order-number mapping.
- Later-source comparison: Series 4137 Components HT, edition 2005-04, explicitly names HT70 and HT75 and applies shared procedures unless a machine is singled out. These are later HT70 statements, not proof of the exact 1998 configuration.
- Section 12 has eleven rows. Lubricating grease 0781 120 1111 (225 g tube) is listed for oil seals, oil-pump drive and chain-sprocket bearing; special lubricating oil 0781 417 1315 (100 ml bottle) for the rope-rotor bearing bore and rewind spring. These package sizes are NOT application quantities.
- Shaft grease 0781 120 6602 (40 g tube) is assigned to the drive shaft in a flexible liner. The same table calls 0781 120 1109 gear lubricant for hedge trimmers, but assigns it to the ignition-module high-voltage output. Section 10.1 instead specifies 0781 120 1109 on the HT70 drive shaft. This internally conflicting application remains unresolved; do not silently replace either product number or treat the table as a verified lubricant selection.
- Dirko HT red sealant 0783 830 2000 (90 g tube) is listed for crankcase, oil seals OUTSIDE and angle drive. The cleaning aid is a standard commercial solvent-based degreasant containing NO chlorinated or halogenated hydrocarbons, for sealing faces. No order number is supplied for that degreasant.
- OH 723 press fluid 0781 957 9000 (100 ml bottle) is listed between internal/external splined shafts, on the drive-tube handle hose and on the AV rubber element in the fan housing. The splined-shaft entry does not establish an HT70 telescopic assembly: section 10.3 is explicitly HT75. Graphite grease is listed for the peg on the pawl, without an order number.
- Medium-strength Loctite 242: 0786 111 1101; high-strength Loctite 270: 0786 111 1109; high-strength Loctite 649: 0786 110 0126. The APPLICATION CELLS ARE BLANK for all three in section 12. No fastener, joint or interchangeable substitute is inferred. Consult the exact component procedure; inventory presence is not an instruction to apply threadlocker everywhere.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete section12 all11 servicing-aid rows; blank applications, package units and section10.1 lubricant conflict.
Later manual evidence: STIHL Series 4137 Components HT (2005-04), section Complete section12 all11 servicing-aid rows; blank applications, package units and section10.1 lubricant conflict, PDF pages 1, 3, 48, 56
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: tank-vent pressure and vacuum must dissipate
Later HT70 tank-vent test: about 0.5 bar pressure and 0.2 bar vacuum must gradually disappear; hose connections and fault outcomes remain distinct.
No exact-model IPL link: Later 2005-04 manual explicitly names HT70; not a reconstruction of the exact 1998 configuration or an order-number mapping.
- Later-source comparison: Series 4137 Components HT, edition 2005-04, explicitly names HT70 and HT75 and applies shared procedures unless a machine is singled out. These are later HT70 statements, not proof of the exact 1998 configuration.
- Section 9.5 explains that tank pressure must equal atmospheric pressure for correct carburetor operation. Outside-to-inside flow follows the filler-cap hole, sintered filter, valve and cap holes. Inside-to-outside flow follows the cap hole, valve-body holes, sintered filter and filler-cap hole. The two section drawings show direction; they do not establish identical valve paths.
- For testing, remove the shroud (section 5), detach fuel hose (1) from the fuel-pump-flange elbow and fuel hose (2) from the carburetor elbow in figure 936RA165. Plug hose (1); connect tester 1106 850 2905 to hose (2). Close the bulb vent screw and pump to ABOUT 0.5 bar positive pressure. The pressure MUST DROP GRADUALLY. If it stays constant, the tank vent is faulty or needs cleaning. This is not a sealed-tank pressure-hold test.
- Disconnect the pressure tester. Fit test fuel hose 1110 141 8600 to nipple 0000 855 9200. With vacuum pump 0000 850 3501 connected through the test hose as drawn in figure 936RA396, close its vent screw and operate the lever to 0.2 bar VACUUM. This vacuum MUST GRADUALLY DISAPPEAR. If constant, the source says the tank vent is faulty and MUST BE REPLACED; do not silently substitute the pressure-test cleaning alternative.
- The text supplies neither a numerical decay time nor an allowable residual-pressure band. Do not invent a timed pass threshold or confuse vent equalization with carburetor/crankcase leak retention. Shroud removal and detailed carburetor hose disconnection remain separately referenced procedures, not newly closed by this note.
- Source section 2 requires fuel work OUTDOORS ONLY, no fire, flame, spark or other heat source near fuel, and immediate removal of spilled fuel. Fuel and lubricants go to an approved disposal site. This is offline source guidance, not a performed test.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete section9.5 including both flow diagrams and pressure/vacuum tests; section2 fuel precautions.
Later manual evidence: STIHL Series 4137 Components HT (2005-04), section Complete section9.5 including both flow diagrams and pressure/vacuum tests; section2 fuel precautions, PDF pages 1, 3, 4, 45, 46
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: tank and pickup service preserves hose and lug details
Later HT70 pickup-body, fuel-tank and hose service: avoid stretching the pickup hose, engage tank lugs, and keep vent/fuel grommets distinct.
No exact-model IPL link: Later 2005-04 manual explicitly names HT70; not a reconstruction of the exact 1998 configuration or an order-number mapping.
- Later-source comparison: Series 4137 Components HT, edition 2005-04, explicitly names HT70 and HT75 and applies shared procedures unless a machine is singled out. These are later HT70 statements, not proof of the exact 1998 configuration.
- Section 9.6 explains that fine particles eventually clog the pickup-body filter and restrict the diaphragm-pump fuel supply. For fuel-supply trouble, inspect the tank and pickup body first; clean the tank if needed. This is a diagnostic cause to check, not proof that every fuel-starvation symptom needs a new carburetor.
- Section 9.7 preparations: drain the tank, remove the rewind starter (6.2) and pull the hoses off the carburetor elbow connectors (9.2.2). To clean the tank, unscrew its filler cap and drain, add a small amount of CLEAN gasoline, shake the unit vigorously, reopen and drain. No solvent alternative or fixed cleaning volume is specified here.
- Use hook 5910 893 8800 to retrieve the pickup body, taking care NOT TO OVERSTRETCH the fuel hose. Pull the pickup body from the hose and fit a new one; install in reverse sequence. This source provides no pickup-body replacement order number.
- For tank removal, remove the tank and, if necessary, its fuel hoses; install in reverse sequence. The tank lugs (1) MUST ENGAGE the plugs (2) as figure 936RA183 shows. For hose work, remove the filler cap together with its retainer, retrieve the pickup body with hook 5910 893 8800 and detach it from the hose.
- The continuation at the top-left of PDF48 belongs to section 9.7: pull out vent hose (1) with grommet (2), and fuel hose (3) with grommet (4), as figure 936RA186 shows. Install in reverse sequence. These are two distinct hose/grommet pairs, not drive-shaft parts from the adjacent section 10.1. No new hose order numbers, lengths or routing dimensions are supplied. Referenced starter and carburetor removal remain pending.
- Source section 2 requires fuel work OUTDOORS ONLY, no fire, flame, spark or other heat source near fuel, and immediate removal of spilled fuel. Fuel and lubricants go to an approved disposal site. This is offline source guidance, not a performed test.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete sections9.6 and9.7 through PDF48 left-column continuation; section2 fuel precautions.
Later manual evidence: STIHL Series 4137 Components HT (2005-04), section Complete sections9.6 and9.7 through PDF48 left-column continuation; section2 fuel precautions, PDF pages 1, 3, 4, 46, 47, 48
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: starter symptoms distinguish rope, spring and pawl faults
Later HT70 starter troubleshooting: eight cause/remedy rows, including spring reserve, fatigued clip and cold-weather solvent restriction.
No exact-model IPL link: Later 2005-04 manual explicitly names HT70; not a reconstruction of the exact 1998 configuration or an order-number mapping.
- Later-source comparison: Series 4137 Components HT, edition 2005-04, explicitly names HT70 and HT75 and applies shared procedures unless a machine is singled out. These are later HT70 statements, not proof of the exact 1998 configuration.
- Section 4.2: a broken rope caused by pulling vigorously to the stop, pulling over an edge rather than vertically, or normal wear calls for a new starter rope. The table does not supply rope dimensions, an order number or an installation sequence.
- A broken rewind spring with no rope return may result from overtensioning with NO RESERVE when the rope is fully extended: fit a new spring. A very dirty or corroded spring calls for cleaning or replacement. No number of pretension turns is specified in this troubleshooting table.
- If the rope pulls almost without resistance and the crankshaft does not turn, a worn pawl or pawl guide peg calls for a new pawl; a fatigued spring clip calls for a new clip. These are distinct causes, not evidence that the rope must be replaced.
- For a rope difficult to pull and very slow to rewind, a very dirty starter mechanism calls for cleaning the COMPLETE mechanism. If cold makes the rewind-spring oil viscous and the windings stick, the source says to coat the spring with a standard solvent-based degreasant containing NO chlorinated or halogenated hydrocarbons, then pull the rope carefully several times until normal action returns.
- These are diagnostic alternatives, not measured faults. Detailed spring handling, starter disassembly and tensioning in section 6 remain separately actionable; this table does not close those procedures or establish a universal lubricant substitution.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete section4.2 rewind-starter troubleshooting: all8 cause/remedy rows.
Later manual evidence: STIHL Series 4137 Components HT (2005-04), section Complete section4.2 rewind-starter troubleshooting: all8 cause/remedy rows, PDF pages 1, 3, 9
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: fuel troubleshooting retains screw stops and lever wording
Later HT70 fuel troubleshooting: twenty-five cause/remedy rows, distinct L/H/LA roles, and a suspect repeated low-lever cause retained as printed.
No exact-model IPL link: Later 2005-04 manual explicitly names HT70; not a reconstruction of the exact 1998 configuration or an order-number mapping.
- Later-source comparison: Series 4137 Components HT, edition 2005-04, explicitly names HT70 and HT75 and applies shared procedures unless a machine is singled out. These are later HT70 statements, not proof of the exact 1998 configuration.
- Section 4.3, idle stalling: blocked idle bores/ports call for cleaning and compressed air; an overly rich idle jet calls for slightly screwing in the low-speed screw with the adjustment-section reference retained; an incorrectly set idle-speed screw leaving the throttle completely closed calls for correcting that screw. No compressed-air pressure or universal screw-turn setting is supplied.
- Rapid speed loss under load/low power has nine listed causes: dirty air filter (clean or replace); faulty tank vent (clean or replace if necessary); tank-to-pump fuel-line leak (seal connections or fit new line); damaged/fatigued pump diaphragm (new diaphragm); blocked main bores/ports (clean); dirty pickup body (new pickup); dirty fuel strainer (replace); H screw too rich (set correctly); throttle not fully opening (check throttle control). Pickup body and fuel strainer are separate table entries.
- Engine will not idle / idle speed too high: the LA screw opens the throttle too far; correct LA. This is not a direction to turn H or L to control throttle opening.
- Poor acceleration: idle or main jet too lean calls for turning the respective L or H screw COUNTERCLOCKWISE (richer), NO FURTHER THAN THE STOP. An inlet control lever too low calls for setting it flush with the carburetor-body top face. A needle sticking to its seat calls for removal, cleaning and refitting; blocked atmospheric connecting bore for cleaning; leaking diaphragm gasket for a new gasket; damaged/shrunken metering diaphragm for a new diaphragm.
- Flooding / engine stalling: a leaking needle due to seat debris or cone damage calls for cleaning or replacing the needle and cleaning tank, pickup and line if necessary. A lever sticking on its spindle calls for freeing it; a helical spring not located on the lever nipple calls for removing/refitting the lever correctly. A deformed diaphragm disc pressing continually on the lever calls for a new metering diaphragm.
- The flooding group also prints inlet control lever TOO LOW and again says to set it flush with the carburetor-body top face, just as in the poor-acceleration group. Preserve that suspect source wording; do not silently change LOW to HIGH or infer a verified causal diagnosis. Exact-carburetor repair/adjustment context in sections 9.3–9.4 remains pending, including LD/two-screw/limiter-cap variants. No blanket screw adjustment or limiter removal follows from this table.
- When running or handling fuel, section 2 requires the instruction-manual warnings and local safety rules, fuel work outdoors only, no ignition/heat sources near fuel, and immediate cleanup of spills. No engine was run for this review.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete section4.3 fuel troubleshooting: all25 rows across PDF10–11; repeated low-lever wording retained.
Later manual evidence: STIHL Series 4137 Components HT (2005-04), section Complete section4.3 fuel troubleshooting: all25 rows across PDF10–11; repeated low-lever wording retained, PDF pages 1, 3, 4, 10, 11
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: engine fault table keeps powerhead-manual dependencies
Later HT70 engine troubleshooting: check air/fuel/carburetor/ignition first; eight cause/remedy rows do not replace delegated powerhead procedures.
No exact-model IPL link: Later 2005-04 manual explicitly names HT70; not a reconstruction of the exact 1998 configuration or an order-number mapping.
- Later-source comparison: Series 4137 Components HT, edition 2005-04, explicitly names HT70 and HT75 and applies shared procedures unless a machine is singled out. These are later HT70 statements, not proof of the exact 1998 configuration.
- Section 4.4 explicitly says to inspect and, if necessary, repair the air filter, fuel system, carburetor and ignition system BEFORE looking for engine faults. The ignition-system entry carries footnote 1 pointing to the Series 4137 Powerhead service manual.
- Hard starting / idle stalling but normal full-throttle operation: faulty crankcase oil seals call for new seals; leaking or cracked crankcase calls for sealing/replacement; leaking muffler calls for sealing/replacement. Oil seals and crankcase remedies have the Powerhead-manual footnote. This symptom grouping is not proof of a crankcase leak without diagnosis.
- Low power or erratic running: worn/broken rings call for new piston rings (Powerhead-manual footnote); carbonized muffler or spark-arresting screen calls for cleaning muffler inlet/exhaust openings and REPLACING the screen; dirty air-filter element calls for a new element; kinked/cracked fuel or impulse line calls for new lines or positioning without kinks. The table does not give engine disassembly steps, part numbers or a leak-test acceptance threshold.
- Overheating due to inadequate cylinder cooling, blocked fan-housing air inlets or very dirty cylinder fins calls for thoroughly cleaning ALL cooling-air passages and cooling fins. Do not substitute carburetor adjustment for that stated cause/remedy.
- All eight cause/remedy rows and the prerequisite list are dispositioned as later-source guidance. Referenced Series 4137 Powerhead procedures and the remaining Components engine service sections remain actionable, not source gaps or semantically closed procedures.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete section4.4 engine troubleshooting: prerequisites, all8 rows and Powerhead footnote.
Later manual evidence: STIHL Series 4137 Components HT (2005-04), section Complete section4.4 engine troubleshooting: prerequisites, all8 rows and Powerhead footnote, PDF pages 1, 3, 12
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: shroud guides and conditional engine wiring
Later HT 70 shroud and engine removal distinguishes one- and two-short-circuit-wire arrangements; gaskets and ignition lead must remain in their guides.
No exact-model IPL link: Later 2005-04 manual explicitly names HT 70; not a reconstruction of the exact 1998 configuration or an order-number mapping.
- Later-source comparison: Series 4137 Components HT, edition 2005-04, explicitly names HT 70 and HT 75 and applies shared procedures unless a machine is singled out. These are later HT 70 statements, not proof of the exact 1998 configuration.
- Section 5.1 removes the starter-side screw, then the fan-housing screw and shroud. Reassembly reverses removal; the gaskets on BOTH sides of the cylinder and the ignition lead must be located in the shroud guides (figure 936RA304). This is a routing requirement, not an instruction to pinch the lead under the shroud.
- Section 5.5 first removes the shroud. Pull the short-circuit-wire connector from the ignition-module terminal. On machines with TWO short-circuit wires, disconnect both terminals; on machines with ONE short-circuit wire, remove the throttle-cable lug from the LOWER screw (936RA430). These are conditional configurations, not proof every HT 70 has both arrangements or a dated changeover.
- Disconnect throttle-cable nipple (1) from slotted pin (2) on the carburetor throttle lever, take the cable out of the tensioner, remove the fan-housing screws and separate the engine. Install in reverse sequence. Section 5.2 separately requires the engine lugs to engage the fan-housing plugs. Refer to the later section 3.2 torque table; no torque is inferred from screw appearance.
- These external engine-removal steps do not disposition internal cylinder/crankcase/ignition procedures delegated to Series 4137 Powerhead, nor the remaining throttle-control and carburetor procedures. No engine run, spark test or hardware disassembly was performed.

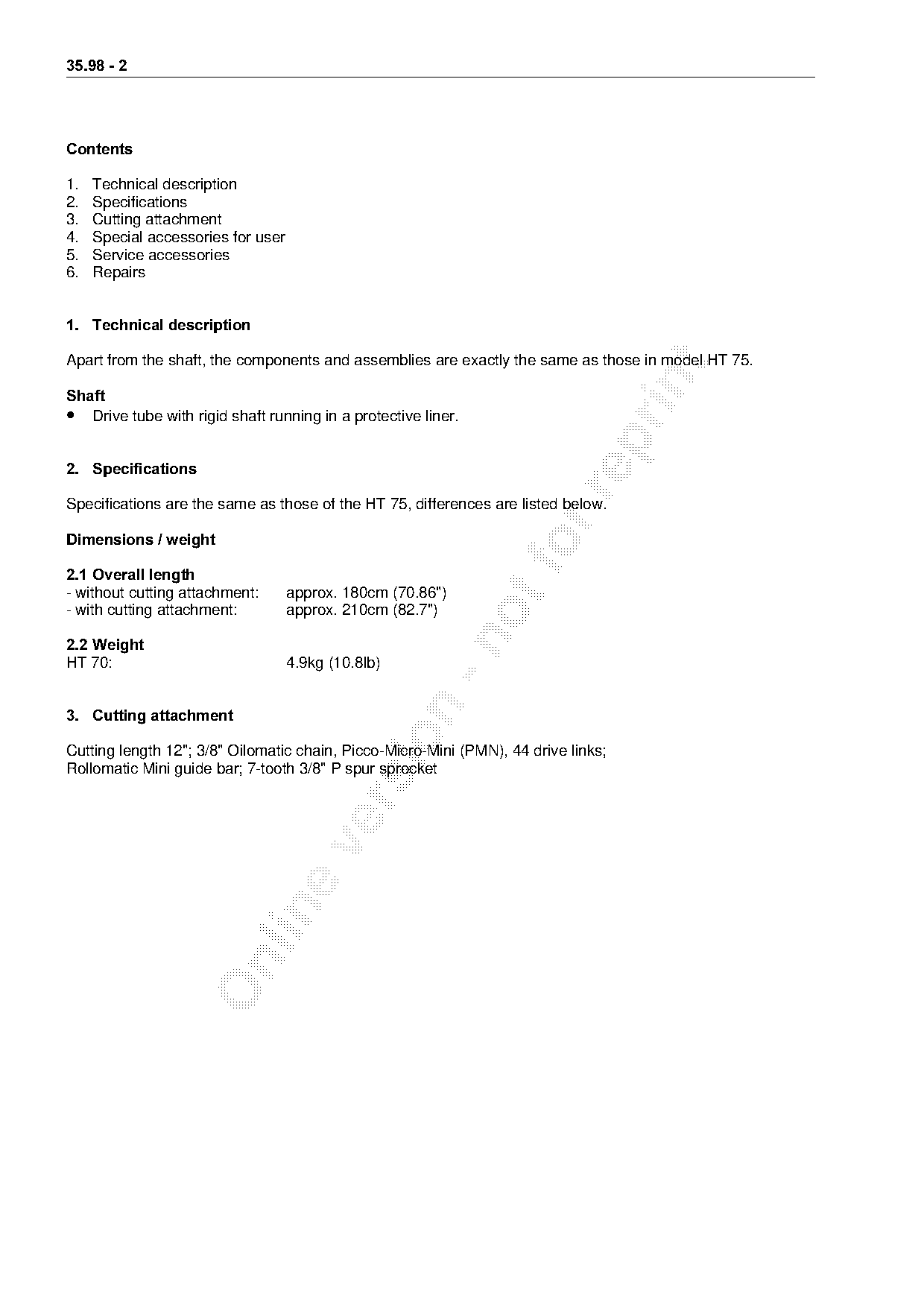

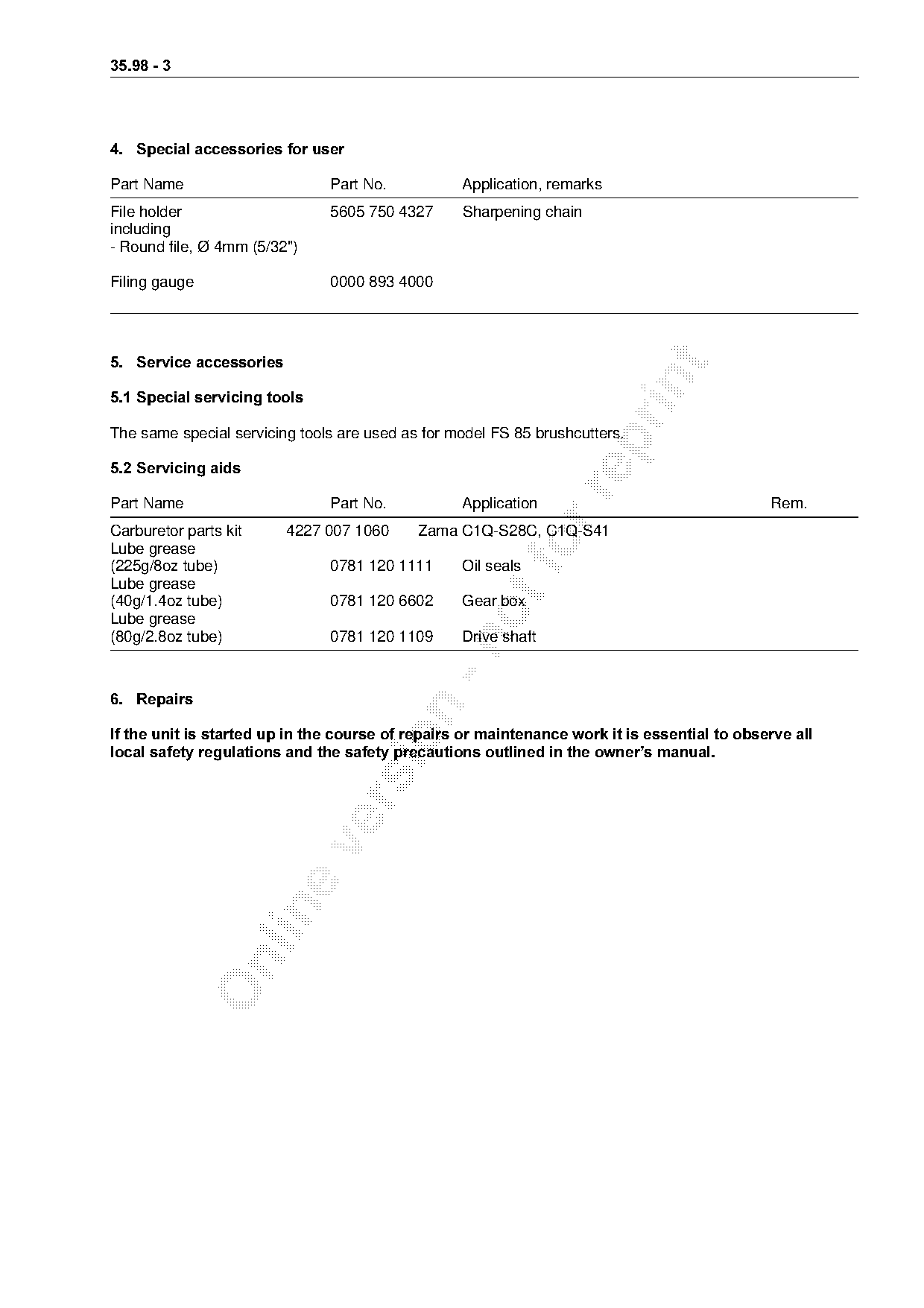

- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.

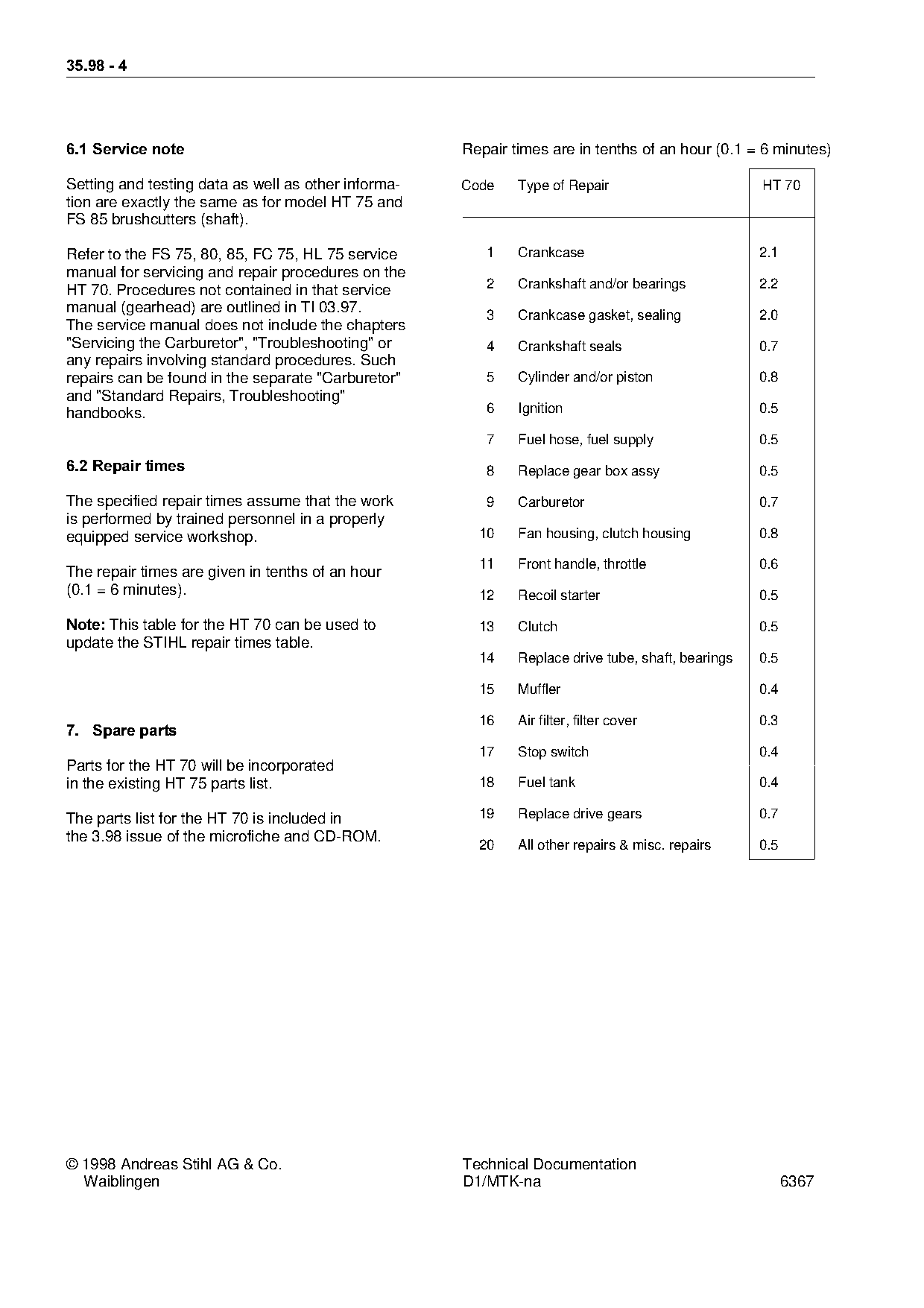

TI dependency: TI 35/1998, p. 4 — Complete sections 5.1 and5.5; section 5.2 engine-lug/plug installation context.
Later manual evidence: STIHL Series 4137 Components HT (2005-04), section Complete sections 5.1 and5.5; section 5.2 engine-lug/plug installation context, PDF pages 1, 3, 13, 15, 17
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: centrifugal clutch wear and assembly orientation
Later HT 70 centrifugal clutch: about 80% drum-wall threshold, counterclockwise removal and numbered-shoe/retainer orientation; not the HT 75-only gearhead friction clutch.
No exact-model IPL link: Later 2005-04 manual explicitly names HT 70; not a reconstruction of the exact 1998 configuration or an order-number mapping.
- Later-source comparison: Series 4137 Components HT, edition 2005-04, explicitly names HT 70 and HT 75 and applies shared procedures unless a machine is singled out. These are later HT 70 statements, not proof of the exact 1998 configuration.
- Section 5.2 removes the shroud and separates the engine from the fan housing. Inspect the drum for scores or excessive wear. If noticeable wear is present inside, check wall thickness: LESS THAN ABOUT 80% of ORIGINAL thickness calls for a new drum. This is remaining wall thickness, NOT 80% wear, an absolute diameter limit or a measured HT 70 result. No original thickness in millimeters is supplied.
- Pull off the plug boot, remove the spark plug and block the cylinder with locking strip 0000 893 5903. The text and arrow specify unscrewing the clutch COUNTERCLOCKWISE. Hook 5910 890 2800 removes the springs; pull shoes off the carrier and retainers off the shoes, clean per section 12 and replace damaged parts. The source RECOMMENDS replacing the complete clutch if possible; it does not state that individual repair is forbidden.
- On assembly, the retainer NARROW side is on the same side as the shoe NUMBER; the shoe number is on the same side as the carrier RAISED HEXAGON. Use protective vise jaws, attach each spring end, then hook the other ends in and press them firmly into the shoes. Screw on the clutch with its LOWER HEXAGON FACING OUTWARDS and tighten per section 3.2. Do not merge these separate orientation statements.
- Check the fan-housing plugs are present; position the engine so its lugs engage those plugs, tighten housing screws per section 3.2, REMOVE THE LOCKING STRIP, and reassemble in reverse sequence. The section 4.1 fault table and later torque table remain separate references. This ENGINE centrifugal clutch is not proof that HT 70 inherits the HT 75-only gearhead friction-clutch lane.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete section 5.2 centrifugal clutch, wear diagram and installation orientation.
Later manual evidence: STIHL Series 4137 Components HT (2005-04), section Complete section 5.2 centrifugal clutch, wear diagram and installation orientation, PDF pages 1, 3, 13, 14, 15
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: clutch-drum bearing and muffler service limits
Later HT 70 drum service replaces the whole fan housing for a faulty bearing; spark-screen cleaning versus replacement wording remains distinct between sections.
No exact-model IPL link: Later 2005-04 manual explicitly names HT 70; not a reconstruction of the exact 1998 configuration or an order-number mapping.
- Later-source comparison: Series 4137 Components HT, edition 2005-04, explicitly names HT 70 and HT 75 and applies shared procedures unless a machine is singled out. These are later HT 70 statements, not proof of the exact 1998 configuration.
- Section 5.3 first removes the fan-housing AV rubber element using section 7.1. Remove the output-stub circlip with pliers 0816 610 1495. Drift 4180 893 4400 presses the clutch drum OUT of the ball bearing; drift 1108 893 4700 presses it HOME AS FAR AS STOP. These are direction-specific procedure assignments, not proof the drifts are interchangeable.
- Inspect the ball bearing. If faulty, the text requires replacement of the WHOLE FAN HOUSING, not a separately supplied bearing repair. No bearing size, fan-housing order number or press force is supplied. Reassemble in reverse sequence, retaining the circlip and AV-system prerequisites.
- Section 5.4 removes the shroud, the muffler side screw and the inner screws, then the muffler with gasket. Bend the retainer tab UP to withdraw the gasket; after refitting the gasket bend the tab DOWN again and tighten muffler screws per section 3.2. No blanket gasket reuse or threadlocker prescription is inferred.
- For the spark-arresting screen remove screw (1), withdraw screen (2), and CLEAN OR REPLACE AS NECESSARY, then reverse the sequence. Preserve the different section 4.4 low-power/carbonization remedy, which says clean muffler openings and REPLACE the screen. This is differing source wording/context, not a silent correction or a universal permission to reuse every screen.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete sections 5.3 and5.4; section 4.4 screen-remedy wording comparison.
Later manual evidence: STIHL Series 4137 Components HT (2005-04), section Complete sections 5.3 and5.4; section 4.4 screen-remedy wording comparison, PDF pages 1, 3, 12, 15, 16
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: starter cleaning and guard-dependent mounting
Later HT 70 starter service preserves solvent restrictions, guard screw differences and one-wire throttle-cable-lug attachment.
No exact-model IPL link: Later 2005-04 manual explicitly names HT 70; not a reconstruction of the exact 1998 configuration or an order-number mapping.
- Later-source comparison: Series 4137 Components HT, edition 2005-04, explicitly names HT 70 and HT 75 and applies shared procedures unless a machine is singled out. These are later HT 70 statements, not proof of the exact 1998 configuration.
- Section 6.1 attributes stiff rope with slow/incomplete rewind to possible dirt or cold-thickened spring oil; that source assumption is not a proven diagnosis. For cold sticking, apply a few drops of standard solvent-based degreasant containing NO chlorinated or halogenated hydrocarbons, carefully pull/release the rope several times and check smooth action. Dirt/pitch clogging calls for disassembly of the entire mechanism including the spring, with particular care removing it.
- Clean per section 12; before installation lubricate the rewind spring and starter post with the listed STIHL special lubricant. Section 12 specifies special lubricating oil 0781 417 1315 for rope-rotor bearing bore and rewind spring. Its100ml package size is not an application quantity; do not substitute the unresolved drive-shaft grease entries.
- Section 6.2 first removes the shroud. On machines WITH A GUARD, remove its M5x30 screws and guard, then only the UPPER starter screw; otherwise remove the illustrated starter screws. On a ONE-short-circuit-wire machine remove the throttle-cable lug from the LOWER screw. The guard and wiring branches are conditional, not universal HT 70 equipment.
- On reassembly check the starter plug is correctly seated and replace it if damaged; the starter lug must engage that plug. On the one-wire configuration secure the throttle-cable lug with the LOWER screw. Reverse the remaining sequence. These external mounting steps do not claim to close Powerhead ignition work.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete sections 6.1 and6.2; section 12 starter lubricant application.
Later manual evidence: STIHL Series 4137 Components HT (2005-04), section Complete sections 6.1 and6.2; section 12 starter lubricant application, PDF pages 1, 3, 17, 18, 56
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: rewind spring direction, 2 mm loop and reserve
Later HT 70 rope rotor: clockwise detensioning, counterclockwise spring placement/tensioning, 2 mm inner loop and at least half-turn reserve at full rope extension.
No exact-model IPL link: Later 2005-04 manual explicitly names HT 70; not a reconstruction of the exact 1998 configuration or an order-number mapping.
- Later-source comparison: Series 4137 Components HT, edition 2005-04, explicitly names HT 70 and HT 75 and applies shared procedures unless a machine is singled out. These are later HT 70 statements, not proof of the exact 1998 configuration.
- Section 6.3 says a replacement rope rotor comes with a new rewind spring. Remove the starter. The source says there is no tension if the rope or spring is broken; otherwise pull out about 30 cm (12 in), hold the rotor, engage the rope in its notch and make a loop, then rotate CLOCKWISE until spring tension is relieved. Remove the screw and carefully lift the rotor. The same lift instruction is printed twice; it is not two different removal operations.
- The spring is inside the rotor and may pop out and uncoil: ALWAYS WEAR SAFETY GLASSES and remove/install very carefully. Remove broken-spring pieces; remove the rope for rotor replacement per 6.5. For spring installation engage the OUTER loop in the recess, fit COUNTERCLOCKWISE from outside inward, and set the INNER loop distance from the bore, dimension a, to 2 mm. Do not reinterpret2mm as spring thickness or general clearance.
- Lubricate the bore with the section 12 special lubricant; fit the rotor so its lug engages the inner loop. Turn a little and release: it MUST SPRING BACK. Fit/tighten the rotor screw per 3.2, then tension per 6.4 and reverse other removal steps.
- Section 6.4 puts a rope loop into the rotor notch, then turns the rotor ABOUT SIX FULL TURNS COUNTERCLOCKWISE using the rope close to the rotor. Hold the rotor, pull out/straighten the rope, hold the grip firmly, then release the rotor and SLOWLY allow the rope to rewind. Six turns alone is not the final acceptance test.
- The grip must sit firmly in its guide bushing without drooping; if not, add one turn. With the rope FULLY EXTENDED the rotor must still turn AT LEAST ANOTHER HALF TURN before maximum spring tension. If reserve is absent, pull out rope, hold rotor and take OFF one turn. Do not overtension: the source warns the spring will break. Reinstall starter per 6.2. No physical tensioning test was performed.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete sections 6.3 and6.4 including spring diagrams, duplicate line and final tension checks.
Later manual evidence: STIHL Series 4137 Components HT (2005-04), section Complete sections 6.3 and6.4 including spring diagrams, duplicate line and final tension checks, PDF pages 1, 3, 19, 20
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: starter rope, ElastoStart and pawl spring routing
Later HT 70 rope routing and carrier/pawl service: overhand knots, recessed rope end and long-versus-short torsion-spring legs.
No exact-model IPL link: Later 2005-04 manual explicitly names HT 70; not a reconstruction of the exact 1998 configuration or an order-number mapping.
- Later-source comparison: Series 4137 Components HT, edition 2005-04, explicitly names HT 70 and HT 75 and applies shared procedures unless a machine is singled out. These are later HT 70 statements, not proof of the exact 1998 configuration.
- Section 6.5 removes the starter and remaining rotor rope if necessary. Pry out the grip cap, withdraw old rope, thread new rope through the grip BOTTOM TO TOP, tie a simple overhand knot, seat it in the grip and refit the cap. Tension per 6.4 and reinstall per 6.2. The section supplies no rope diameter, cut length or replacement order number.
- Section 6.6 says the ElastoStart grip is supplied WITH ROPE. Remove starter and rotor; draw the rotor knot from its recess, untie it and withdraw rope. Thread new rope through the guide bushing FROM OUTSIDE, then the hole in the SIDE of the rotor; tie an overhand knot, pull it into the recess and press the rope end into its slot. Reinstall rotor and tension spring. This is a service description, not proof every 1998 HT 70 originally had ElastoStart.
- Section 6.7 removes the spark plug, blocks the piston with locking strip 0000 893 5903 and removes starter; unscrew the carrier from the crankshaft. Squeeze the ends of the pawl peg together to remove the pawl, take off the torsion spring and push it onto the new pawl. No new pawl order number is supplied.
- Fit the pawl in the carrier hole: the LONG spring leg bears against the CARRIER and the SHORT leg against the PAWL. Section 12 separately lists graphite grease for the pawl peg without an order number. Screw/tighten carrier per 3.2, reinstall starter, REMOVE LOCKING STRIP, install/tighten spark plug per 3.2, fit boot and shroud. These are source instructions, not performed cranking or ignition tests.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete sections 6.5–6.7 including PDF 23 carrier continuation; section 12 pawl-peg lubricant.
Later manual evidence: STIHL Series 4137 Components HT (2005-04), section Complete sections 6.5–6.7 including PDF 23 carrier continuation; section 12 pawl-peg lubricant, PDF pages 1, 3, 21, 22, 23, 56
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: AV sleeve and rubber orientation
Later HT 70 AV repair: separate fixing/clamp screws, tapered rubber installation and retaining-ring gap toward the clamp screw.
No exact-model IPL link: Later 2005-04 manual explicitly names HT 70; not a reconstruction of the exact 1998 configuration or an order-number mapping.
- Later-source comparison: Series 4137 Components HT, edition 2005-04, explicitly names HT 70 and HT 75 and applies shared procedures unless a machine is singled out. These are later HT 70 statements, not proof of the exact 1998 configuration.
- Section 7.1 describes a vibration-damping rubber element in the fan housing between engine and drive shaft. Remove shroud, loosen handle-molding clamp screws (early-machine drawing differs), REMOVE AV-sleeve FIXING screw and LOOSEN its CLAMP screw, pull out drive tube, remove housing screws and fan housing. Newer fan housings have strengthening ribs; the comparison supplies no date, serial, part number or retrofit permission.
- Pry out the retaining ring and slide it over the sleeve. Insert tool 4126 893 4900 into the AV sleeve AS FAR AS STOP; tighten clamp screw firmly and fixing screw moderately if necessary. Apply a few drops of OH 723 press fluid between housing and rubber, clamp TOOL in vise and pull housing off rubber. Loosen clamp/fixing screws as needed, remove sleeve from tool and rubber from sleeve.
- Install rubber TAPERED END FIRST on sleeve until its flange is BEHIND the sleeve. Coat with STIHL Press Fluid OH 723 (section 12 order 0781 957 9000), and push into housing with the rubber SLOT on the ROUND SIDE of the housing. This orientation is drawn explicitly; do not reverse tapered end or infer a universal AV-part interchange.
- Install retaining ring with its GAP FACING THE CLAMP SCREW, engaged in the fan-housing slots. Reverse other removal steps; push drive tube home until holes align, then tighten fixing and clamp screws per 3.2. The two fasteners remain distinct. The PDF 25 left-column continuation completes7.1; adjacent section 8.1 control-handle work remains pending.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete section 7.1 through PDF 25 left-column continuation; section 12 press-fluid application.
Later manual evidence: STIHL Series 4137 Components HT (2005-04), section Complete section 7.1 through PDF 25 left-column continuation; section 12 press-fluid application, PDF pages 1, 3, 23, 24, 25, 56
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: early control-handle springs and cable routing
Later manual section 8.1 identifies the control handle up to 1997; bent spring leg, square washers and separate short-circuit/ground wiring remain version-specific.
No exact-model IPL link: Later 2005-04 manual explicitly names HT 70; not a reconstruction of the exact 1998 configuration or an order-number mapping.
- Later-source comparison: Series 4137 Components HT, edition 2005-04, explicitly names HT 70 and HT 75 and applies shared procedures unless a machine is singled out. These are later HT 70 statements, not proof of the exact 1998 configuration.
- Section 8.1 is labeled CONTROL HANDLE UP TO 1997. The source warns: do not start the engine while the control handle is exposed, to avoid electrocution. Remove outer-molding screws and molding, carefully remove the interlock rivet, lift the interlock from its pivot and remove its torsion spring. Remove clamp screws and inner molding, disconnect cable nipple from the trigger, pull the trigger off the drive tube and remove its torsion spring.
- Install in reverse sequence. The BENT LEG of the trigger torsion spring must engage the SLOT IN THE THROTTLE TRIGGER. Fit a SQUARE WASHER ON BOTH SIDES OF THE CLAMPS; secure those screws only FINGER-TIGHT AT THIS STAGE. This intermediate instruction is not a final fastening specification. Seat the short-circuit wires, throttle cable and tube correctly in the inner molding (936RA129).
- Section 8.1.2 removes the trigger, disconnects the short-circuit wires, removes the collar screw and detent spring, and pulls connector tags out if necessary. Pull out the slide control; carefully remove the push nut from its pivot and remove the torsion spring. Reassemble in reverse sequence. No new-push-nut requirement is stated here; do not import one from another procedure.
- Section 8.1.3 removes the shroud, disconnects cable nipple (1) from slotted carburetor-lever pin (2), and takes the cable out of its tensioner. Disconnect SHORT-CIRCUIT AND GROUND WIRES from ignition-module tags, remove the trigger and disconnect the handle-end short-circuit wires. Reverse the sequence, seating wires/cable/tube correctly (936RA154). No cable length, replacement order number, serial cutoff or interchange permission is supplied.
- Applicability limit: this is an early-layout branch in a later shared HT 70 / HT 75 manual. Its UP TO 1997 heading does not establish that an HT 70 existed before 1998 or that any particular HT 70 carries this layout. Identify the actual handle configuration; no early-handle retrofit or historical HT 70 production range is established.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete sections 8.1.1–8.1.3, including PDF 27 detent-spring continuation.
Later manual evidence: STIHL Series 4137 Components HT (2005-04), section Complete sections 8.1.1–8.1.3, including PDF 27 detent-spring continuation, PDF pages 1, 3, 25, 26, 27
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: up-to-2001 control and contact-spring seating
Later manual section 8.2 retains a distinct contact-spring, insulator and slide-control arrangement; its up-to-2001 heading is not silently extended to the 2002 design.
No exact-model IPL link: Later 2005-04 manual explicitly names HT 70; not a reconstruction of the exact 1998 configuration or an order-number mapping.
- Later-source comparison: Series 4137 Components HT, edition 2005-04, explicitly names HT 70 and HT 75 and applies shared procedures unless a machine is singled out. These are later HT 70 statements, not proof of the exact 1998 configuration.
- Section 8.2 is labeled CONTROL HANDLE UP TO 2001 and repeats the warning not to start the engine with the handle exposed because of electrocution risk. Remove molding screws/molding and torsion spring, lift trigger with attached cable off its pivot and disconnect the cable. Lift the contact spring slightly to remove the cable; remove interlock with contact spring, then the contact spring from the interlock.
- On reassembly correctly position cable (1), contact spring (2), protective tube (3) and insulator (4), as shown in 250RA135/136. Tighten screws per section 3.2. These four elements are not interchangeable names for one cable sleeve; preserve the insulator and spring seating.
- Section 8.2.2 removes interlock, slide control, clamp screws, inner molding and torsion spring. On reverse assembly tighten clamp screws per 3.2; slide-control SLOT (1) must engage OVER THE OUTER EDGE (2) of the molding, and torsion spring (3) must locate in RECESS (4) in the slide control (250RA137).
- Section 8.2.3 removes the shroud and screw (1), then the EXTENDED THROTTLE CABLE (2) at the engine (936RA115). Disconnect nipple from slotted carburetor-lever pin, remove cable from tensioner and pull the short-circuit connector off the ignition module. Remove trigger, lift contact spring slightly and remove cable. Reverse assembly and check cable/contact spring/protective tube/insulator seating. The source does not supply a cable length or date the extended arrangement more narrowly than this section.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete sections 8.2.1–8.2.3 through PDF 30 left-column continuation.
Later manual evidence: STIHL Series 4137 Components HT (2005-04), section Complete sections 8.2.1–8.2.3 through PDF 30 left-column continuation, PDF pages 1, 3, 28, 29, 30
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: from-2002 automatic cable slide and stop-switch routing
Later manual section 8.3 has a slack-taking slide, relaxed-spring removal and a stop-switch wire channel; not evidence of original 1998 equipment.
No exact-model IPL link: Later 2005-04 manual explicitly names HT 70; not a reconstruction of the exact 1998 configuration or an order-number mapping.
- Later-source comparison: Series 4137 Components HT, edition 2005-04, explicitly names HT 70 and HT 75 and applies shared procedures unless a machine is singled out. These are later HT 70 statements, not proof of the exact 1998 configuration.
- Section 8.3 is labeled CONTROL HANDLE FROM 2002. Its slide automatically adjusts the throttle cable. Insert a screwdriver in its slot, press the slide DOWN and push it TOWARD THE ENGINE (936RA437). Remove molding screws/molding and torsion spring, lift trigger with attached cable off pivot and disconnect cable from trigger. Take the slide out of its guide and remove the cable.
- Lift the interlock slightly and turn it SIDEWAYS UNTIL THE TORSION SPRING IS RELAXED; then pull it off the pivot and remove the spring. Reverse assembly, correctly position cable and protective tube and tighten screws per 3.2. Open the throttle wide SEVERAL TIMES so the slide automatically takes up cable slack. This mechanical setup instruction does not call for a running engine or prove an idle-speed setting.
- Section 8.3.2 removes interlock, slide control, clamp screws, molding and torsion spring, then takes out STOP SWITCH (1). On reassembly put its WIRE IN CHANNEL (2) (936RA439) and reverse other steps. Do not substitute the earlier contact-spring/insulator layout solely because the sections share a control-handle purpose.
- Section 8.3.3 removes the shroud, disconnects nipple (1) from slotted carburetor-lever pin (2), removes cable from trigger per 8.3.1 and from tensioner, then disconnects short-circuit-wire connector (1) from tag (2) and connector (3) from tag (4) in 936RA376. Reverse sequence. The text does not separately name connector (3) as a ground wire here; no electrical test, new part number or blanket retrofit is inferred.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete sections 8.3.1–8.3.3 including PDF 32 stop-switch continuation.
Later manual evidence: STIHL Series 4137 Components HT (2005-04), section Complete sections 8.3.1–8.3.3 including PDF 32 stop-switch continuation, PDF pages 1, 3, 30, 31, 32
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: throttle stops and conflicting 2002 labels
Later section 8.4 preserves two source inconsistencies: up to 2002 versus up to 2001 headings, and the idle-stop statement versus its earlier-handle instructions.
No exact-model IPL link: Later 2005-04 manual explicitly names HT 70; not a reconstruction of the exact 1998 configuration or an order-number mapping.
- Later-source comparison: Series 4137 Components HT, edition 2005-04, explicitly names HT 70 and HT 75 and applies shared procedures unless a machine is singled out. These are later HT 70 statements, not proof of the exact 1998 configuration.
- Section 8.4 says the carburetor throttle lever must contact the carburetor-cover STOP with the trigger FULLY DEPRESSED. It also says it must contact idle-speed screw LA with the trigger released, adding ONLY WITH CONTROL HANDLE FROM 2002. Adjustments are made at the tensioner; remove the shroud first.
- The earlier-version block is printed VERSION WITH CONTROL HANDLE UP TO 2002 ONLY, although section 8.2 is titled UP TO 2001 and section 8.3 FROM 2002. Preserve this year-boundary overlap; it is not evidence of an exact serial changeover, and it is not silently corrected to 2001.
- That earlier-version block says squeeze trigger to full throttle, turn adjusting screw (1) CLOCKWISE until throttle lever (2) butts against cover stop (3), then release trigger: the lever MUST BUTT AGAINST IDLE SPEED SCREW (4). This contradicts the opening parenthetical restricting that released-trigger stop statement to FROM 2002. Both statements remain attributed to section 8.4, not reconciled by guessing which is wrong.
- The FROM 2002 ONLY block says check the idle-speed-screw adjustment range and CENTER ADJUSTING SCREW (1) BEFORE STARTING ADJUSTMENT, as drawn in 936RA377, then install the shroud. No numerical centering dimension, turn count or running-speed value is supplied by this section. Section 8.3.1 separately instructs repeated wide-throttle movement for automatic slack take-up; no physical adjustment or engine run was performed.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete section 8.4 and comparison with section 8.2/8.3 headings and 8.3.1 slack take-up.
Later manual evidence: STIHL Series 4137 Components HT (2005-04), section Complete section 8.4 and comparison with section 8.2/8.3 headings and 8.3.1 slack take-up, PDF pages 1, 3, 28, 30, 31, 33
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: foam versus felt air-filter care
Later HT 70 air filter: solvent-cleaned foam, replacement or temporary dry cleaning for felt, and INSIDE marking toward the engine.
No exact-model IPL link: Later 2005-04 manual explicitly names HT 70; not a reconstruction of the exact 1998 configuration or an order-number mapping.
- Later-source comparison: Series 4137 Components HT, edition 2005-04, explicitly names HT 70 and HT 75 and applies shared procedures unless a machine is singled out. These are later HT 70 statements, not proof of the exact 1998 configuration.
- Section 9.1 associates dirty filters with reduced power, greater fuel consumption and difficult starting; noticeable power loss calls for filter cleaning. This source diagnostic association is not proof every power-loss complaint is caused by the filter. Close the CHOKE SHUTTER and remove loose dirt around the housing before opening it.
- Push back the housing tab, pull off the cover and remove FOAM ELEMENT (1) and FELT ELEMENT (2). Wash FOAM in a standard commercial solvent-based degreasant containing NO CHLORINATED OR HALOGENATED HYDROCARBONS, then dry (section 12 reference).
- REPLACE THE FELT FILTER. As a TEMPORARY MEASURE, knock it out on the palm or blow clear with compressed air. DO NOT WASH the felt. Replace any damaged parts. This does not authorize solvent washing of both elements, permanent reuse of the felt, an unspecified air-pressure threshold or application of filter oil.
- Reassemble in reverse sequence: foam goes in the COVER; felt goes in the HOUSING with its INSIDE marking FACING THE ENGINE (also shown as Innen / FACE INTERNE). The housing lug must engage the slot in the cover (936RA158/159). No filter order numbers or fitment beyond the exact later manual/model context are supplied.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete section 9.1 through PDF 34 left column; section 12 cleaning-agent reference.
Later manual evidence: STIHL Series 4137 Components HT (2005-04), section Complete section 9.1 through PDF 34 left column; section 12 cleaning-agent reference, PDF pages 1, 3, 33, 34, 56
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: carburetor pressure test and leak causes
Later manual carburetor test uses about 0.8 bar held constant, unlike the separately documented tank-vent equalization test.
No exact-model IPL link: Later 2005-04 manual explicitly names HT 70; not a reconstruction of the exact 1998 configuration or an order-number mapping.
- Later-source comparison: Series 4137 Components HT, edition 2005-04, explicitly names HT 70 and HT 75 and applies shared procedures unless a machine is singled out. These are later HT 70 statements, not proof of the exact 1998 configuration.
- For suspected fuel-system trouble, section 9.2.1 refers to troubleshooting 4.3 and also checking, cleaning or replacing the tank vent per 9.5. Remove the shroud and disconnect the fuel hose from the carburetor elbow. Fit test hose 1110 141 8600 onto nipple 0000 855 9200, attach to the carburetor elbow and connect tester 1106 850 2905. Close its bulb vent screw and pump to APPROXIMATELY 0.8 bar.
- Pressure remaining CONSTANT means airtight in this source test. A drop is attributed to an inlet needle not sealing (foreign matter at the seat, damaged needle sealing cone or sticking inlet control lever), or a damaged metering diaphragm. Service the carburetor per 9.3 in either case. No hold duration, allowable decay, vacuum criterion or proof of healthy metering is specified.
- After the test OPEN THE VENT SCREW before pulling off the test hose; reconnect the original fuel hose to the carburetor elbow and install the shroud. Do not substitute the tank-vent procedure: that separate test expects pressure equalization rather than a constant hold. No pressure test was performed.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete section 9.2.1, PDF34–35 (printed33–34).
Later manual evidence: STIHL Series 4137 Components HT (2005-04), section Complete section 9.2.1, PDF34–35 (printed33–34), PDF pages 1, 3, 34, 35
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: carburetor heat shield and spacer-flange repair
Preserve the heat-shield position, renew gaskets and distinguish screw/bushing from push-nut/pin cable-tensioner mounting.
No exact-model IPL link: Later 2005-04 manual explicitly names HT 70; not a reconstruction of the exact 1998 configuration or an order-number mapping.
- Later-source comparison: Series 4137 Components HT, edition 2005-04, explicitly names HT 70 and HT 75 and applies shared procedures unless a machine is singled out. These are later HT 70 statements, not proof of the exact 1998 configuration.
- Section 9.2.2 removes the shroud, disconnects cable nipple from the slotted throttle-lever pin, and disconnects fuel hose (1) at the carburetor and hose (2) at the fuel-pump flange. Remove air filter, nuts and filter housing; note the HEAT SHIELD installed position (drawing 936RA167 marks TOP), then pull the carburetor off the screws and remove its gasket.
- Remove spacer flange and gasket per 9.2.3; replace a DAMAGED OR CRACKED spacer flange. ALWAYS USE NEW GASKETS. Reverse the sequence and tighten nuts per section 3.2; no new replacement order number or carburetor interchange is established.
- Section 9.2.3 removes the carburetor and cable from the tensioner, then screws WITH WASHERS and the spacer flange/gasket. Pull screws from the flange if necessary. Remove either SCREW WITH BUSHING or PUSH NUT WITH PIN, then tensioner and adjusting screw. On the push-nut version ALWAYS INSTALL A NEW PUSH NUT. Reverse assembly, use a new gasket and tighten flange screws per 3.2. This renewal requirement is specific to this mounting, not inferred for every control-handle push nut.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete sections 9.2.2–9.2.3 through PDF37 left column.
Later manual evidence: STIHL Series 4137 Components HT (2005-04), section Complete sections 9.2.2–9.2.3 through PDF37 left column, PDF pages 1, 3, 35, 36, 37
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: oval and square carburetor flange covers
Later manual recommends conversion from the oval end cover to the square version without supplying a conversion kit or universal fitment rule.
No exact-model IPL link: Later 2005-04 manual explicitly names HT 70; not a reconstruction of the exact 1998 configuration or an order-number mapping.
- Later-source comparison: Series 4137 Components HT, edition 2005-04, explicitly names HT 70 and HT 75 and applies shared procedures unless a machine is singled out. These are later HT 70 statements, not proof of the exact 1998 configuration.
- Section 9.3.1 removes the shroud and first carries out the leakage test. For the OVAL END COVER remove M3x12 cover screws and cover with cap, then M3x8 flange screws and flange. Take the cap out of the cover; inspect metering diaphragm/gasket per 9.3.3 and replace if needed.
- On reverse assembly, any additional gasket/diaphragm holes must align with the carburetor and flange. Put M3x8 screws through flange mounting holes WITHOUT INTEGRALLY CAST SPACERS and into the carburetor, then tighten. The source recommends converting the oval-cover flange mounting to the later SQUARE END COVER version (9.3.2); it does not identify a kit, order numbers or a serial changeover.
- Section 9.3.2 removes square-cover screws, cover with cap, cap from cover and flange, then inspects diaphragm/gasket per 9.3.3; install in reverse sequence. Do not carry oval-cover screw lengths over to square-cover holes without evidence. This later HT70 comparison does not prove original 1998 equipment.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete sections 9.3.1–9.3.2.
Later manual evidence: STIHL Series 4137 Components HT (2005-04), section Complete sections 9.3.1–9.3.2, PDF pages 1, 3, 37, 38
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: diaphragm order, inlet needle and removable jets
Metering gasket goes against the body; pump diaphragm follows a different stack. Fixed-jet removal is limited to C1Q-S63, C1Q-S56 and C1Q-S45.
No exact-model IPL link: Later 2005-04 manual explicitly names HT 70; not a reconstruction of the exact 1998 configuration or an order-number mapping.
- Later-source comparison: Series 4137 Components HT, edition 2005-04, explicitly names HT 70 and HT 75 and applies shared procedures unless a machine is singled out. These are later HT 70 statements, not proof of the exact 1998 configuration.
- Section 9.3.3 removes the applicable oval/square flange, metering diaphragm and gasket. Separate stuck layers VERY CAREFULLY; inspect and replace as needed. The source associates distortion/swelling with diaphragm fatigue. Install GASKET ON CARBURETOR BODY, aligning its hole with the compensating bore; place METERING DIAPHRAGM ON GASKET with the corresponding hole aligned. Reassemble per 9.2.2.
- Section 9.3.4 removes the metering diaphragm, screw and inlet control lever WITH SPINDLE. Reverse assembly: engage the clevis in the annular groove on the inlet-needle head; the spring must locate in the control-lever nipple. Check needle and spring seating. No lever-height dimension or bending adjustment is specified here.
- Section 9.3.5 first removes the metering diaphragm. The fixed jet CANNOT BE REMOVED on carburetors not listed there: clean it or replace the carburetor if needed. Only C1Q-S63 (936RA031) and C1Q-S56 / C1Q-S45 (936RA225) are illustrated for unscrewing with a suitable screwdriver; avoid jet damage and reverse for installation. This is not a statement that all three carburetors fit every HT70, nor authority to unscrew an unlisted jet.
- Section 9.3.6 removes carburetor, end-cover screw and cover, then gasket and pump diaphragm. Separate stuck layers carefully; inspect and replace if necessary. Check the fuel strainer for contamination/damage and replace if needed. Diagram 932RA259 shows PUMP DIAPHRAGM (1), GASKET (2), END COVER (3), located by cover pegs: gasket lies between pump diaphragm and cover. Do not copy the metering-side body/gasket/diaphragm order onto this pump-side stack.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete sections 9.3.3–9.3.6, including PDF39 metering continuation and both fixed-jet drawings.
Later manual evidence: STIHL Series 4137 Components HT (2005-04), section Complete sections 9.3.3–9.3.6, including PDF39 metering continuation and both fixed-jet drawings, PDF pages 1, 3, 38, 39, 40
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: two-screw and LD carburetor settings differ
The two-adjusting-screw version has L and LA but no H. The LD version seats counterclockwise and opens clockwise; identify the installed variant first.
No exact-model IPL link: Later 2005-04 manual explicitly names HT 70; not a reconstruction of the exact 1998 configuration or an order-number mapping.
- Later-source comparison: Series 4137 Components HT, edition 2005-04, explicitly names HT 70 and HT 75 and applies shared procedures unless a machine is singled out. These are later HT 70 statements, not proof of the exact 1998 configuration.
- Section 9.4.1 explicitly says NO HIGH SPEED SCREW (H). Standard setting: carefully turn L CLOCKWISE to its seat, then open ONE FULL TURN. Mount bar/chain, tension chain, check/clean/replace air filter, adjust cable if possible, then start and warm the engine. The source describes factory fuel-air tuning and reduced idle/part-load emissions through limited idle mixture; these are source descriptions, not measured performance here.
- For that L/LA version, first carry out standard setting. If the engine stops at idle, turn LA CLOCKWISE until the chain starts to run, then back HALF A TURN. If the chain runs at idle, turn LA COUNTERCLOCKWISE until it stops, then another HALF TURN counterclockwise. These are source operating steps, not authorization for unattended adjustment or proof of a numerical idle speed.
- Section 9.4.2 is a separate LD-SCREW version. Check chain tension, clean/replace filter and clean/replace spark-arresting screen. Carefully seat LD COUNTERCLOCKWISE, then open TWO FULL TURNS CLOCKWISE. This direction is intentionally opposite to L, not silently corrected. Carry out standard setting, start and warm the engine; the repeated Adjusting idle speed heading adds no second setting.
- For LD: if the engine stops at idle, turn slowly CLOCKWISE until smooth; CHAIN MUST NOT ROTATE. If chain runs at idle, turn COUNTERCLOCKWISE until stopped, then about ONE MORE TURN in that direction. For erratic idle/poor acceleration, turn LD slowly COUNTERCLOCKWISE NO MORE THAN HALF A TURN. No serial cutoff or universal conversion between L/LA and LD is supplied; identify the actual carburetor before using a branch.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete sections 9.4.1–9.4.2.
Later manual evidence: STIHL Series 4137 Components HT (2005-04), section Complete sections 9.4.1–9.4.2, PDF pages 1, 3, 40, 41
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: limiter-cap user setting and mixture correction
User adjustment keeps the H limiter cap installed; stops, lean/rich correction and chain-stationary idle remain explicit.
No exact-model IPL link: Later 2005-04 manual explicitly names HT 70; not a reconstruction of the exact 1998 configuration or an order-number mapping.
- Later-source comparison: Series 4137 Components HT, edition 2005-04, explicitly names HT 70 and HT 75 and applies shared procedures unless a machine is singled out. These are later HT 70 statements, not proof of the exact 1998 configuration.
- Section 9.4.3 says DO NOT REMOVE THE H LIMITER CAP for standard setting; H adjustment is possible only within fine limits. Check/replace air filter, check/clean/replace spark-arresting screen, check cable adjustment where fitted, mount bar/chain and check chain tension. Turn H COUNTERCLOCKWISE TO STOP, no more than THREE-QUARTERS TURN; carefully seat L CLOCKWISE then open ONE FULL TURN COUNTERCLOCKWISE.
- Start and warm the engine; use LA so the CHAIN DOES NOT ROTATE. Slight H changes noticeably affect running. The source says a minor correction may be needed at altitude or sea level; after standard setting and warm-up, open throttle wide. Its explicit high-altitude branch turns H CLOCKWISE (LEANER), NEVER PAST STOP, until no noticeable rpm increase. Standard setting may already give highest rpm. No separate sea-level screw direction or numeric maximum rpm is specified in this section.
- For idle, open L one full turn and warm the engine. If it stops, turn LA slowly CLOCKWISE until smooth. Erratic idle/poor acceleration attributed to LEAN idle calls for L COUNTERCLOCKWISE ABOUT A QUARTER TURN until smooth running/acceleration. RICH erratic idle calls for L CLOCKWISE ABOUT A QUARTER TURN. LA normally needs readjustment after each L correction. These source fault associations are not proof that mixture is the actual cause on an untested machine.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete section 9.4.3 through PDF43 left-column continuation.
Later manual evidence: STIHL Series 4137 Components HT (2005-04), section Complete section 9.4.3 through PDF43 left-column continuation, PDF pages 1, 3, 42, 43
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: limiter service setting and cap seating
Service-only basic setting keeps the 3,700-rpm abort rule, short-cap second detent and long-cap body contact distinct.
No exact-model IPL link: Later 2005-04 manual explicitly names HT 70; not a reconstruction of the exact 1998 configuration or an order-number mapping.
- Later-source comparison: Series 4137 Components HT, edition 2005-04, explicitly names HT 70 and HT 75 and applies shared procedures unless a machine is singled out. These are later HT 70 statements, not proof of the exact 1998 configuration.
- Section 9.4.4 permits H-cap removal only when necessary to replace H, clean the carburetor or adjust from scratch; removal requires BASIC SETTING. For SHORT cap, use puller 5910 890 4501 with open side toward you, between cap and body, and pry; if stuck, reverse puller with open side toward carburetor and pry. For LONG cap use suitable pliers. Section 11 instead lists puller 5910 890 4500; this existing 4501/4500 source conflict is preserved, not silently resolved.
- Carefully seat H and L CLOCKWISE. Check/replace filter, check/replace spark screen, check chain tension and cable where fitted, mount bar/chain and warm engine. PDF43 prints the warm-up instruction before PDF44 supplies the opening values. Preserve that printed ordering as a SOURCE SEQUENCE AMBIGUITY, not an instruction to start with both needles seated. The opening values are H ONE AND A HALF TURNS COUNTERCLOCKWISE and L ONE FULL TURN COUNTERCLOCKWISE; no hardware sequence was executed.
- Use a tachometer; specified adjustment speeds have tolerance ±200 rpm. Step1: LA to 3,300 rpm. Step2: turn L either way for maximum speed; if ABOVE 3,700 rpm ABORT AND RESTART AT STEP1. Step3: LA back to 3,300 rpm. Step4: L to 2,800 rpm. These are the idle-setting sequence, not a wide-open maximum-speed limit. Do not apply the ±200 tolerance to relax the separately stated 3,700-rpm abort threshold.
- ALWAYS USE NEW LIMITER CAPS: removed caps may be damaged and must not be reused. SHORT cap: align H cap at rich stop and carefully press to SECOND NOTICEABLE DETENT; range is THREE-QUARTERS TURN (270°); DO NOT PRESS AGAINST THE BODY or it will be damaged. LONG cap: align at rich stop so H can turn only THREE-QUARTERS TURN CLOCKWISE, then push UNTIL IT BUTTS AGAINST THE BODY. Finish either branch with user adjustment 9.4.3. These opposite seating instructions are cap-specific, not interchangeable.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete section 9.4.4; retained section11 puller-number comparison.
Later manual evidence: STIHL Series 4137 Components HT (2005-04), section Complete section 9.4.4; retained section11 puller-number comparison, PDF pages 1, 3, 43, 44, 54, 55
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: powerhead source, fixture and operating boundary
The later manual delegates component repairs and illustrates a powerhead fixture; its stand/plate numbers must not silently correct the separate HT drive-tube fixture.
No exact-model IPL link: Later HT70 applicability is via Components HT 2005-04 introduction; Powerhead 2004-03 is a retained later edition, not proven original 1998 equipment or a parts interchange.
- Later-source comparison: Components HT 2005-04 introduction explicitly names HT 70, identifies the Series 4137 powerhead and delegates engine repair to its manual. The retained Series 4137 Powerhead edition is 2004-03; its procedures are shared unless specified otherwise. This cross-reference supports later HT70 guidance, NOT proof that this edition or configuration was used in 1998.
- Introduction: use the relevant illustrated parts list for installed positions and latest replacement numbers, and Technical Information for later engineering changes. Its shared procedure rule allows different illustrations, not universal parts interchange. Separate Series 4137 Components and CombiTools manuals retain their own scope; the contents page itself adds no fitment claim.
- Powerhead drawing 366RA265 shows clamping plate (1) attached to the engine and assembly stand (2), allowing the engine to swivel. The PRINTED TEXT names assembly stand 5910 893 8800 and clamping plate 5910 893 3100. Components HT introduction instead illustrates holding the DRIVE TUBE with clamp 5910 890 8800 and stand 5910 893 3100; its tool table prints stand 5910 890 3100. Retain the differing fixture roles and order numbers as unresolved source discrepancies, NOT a corrected shopping list or proof that those tools interchange. Powerhead tool-table comparison remains pending.
- Section 2 requires local and country-specific regulations and owner-manual warnings if starting during service. It warns that gasoline is extremely flammable and can be explosive; fuel work outdoors only, no smoking/fire/flame/heat near fuel, and wipe spills immediately. This excerpt does not replace the missing exact historical owner-safety source or establish bench readiness.
- Introduction symbols distinguish illustrated versus unillustrated actions, pointers, movement direction and applies-from versus applies-up-to serial markers. These are legend definitions; no actual HT70 production cutoff is supplied. Copyright and dealer-distribution notices add no fitment assertion or new publication authorization.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete sections 1–2 and contents context; Components fixture comparison.
Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section Complete sections 1–2 and contents context; Components fixture comparison, PDF pages 1, 2, 3, 4 · STIHL Series 4137 Components HT (2005-04), section HT70 applicability and engine-repair delegation; comparison where explicitly described, PDF pages 1, 3, 55
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: later powerhead geometry and speed limits
25.4 cm³, 34 mm bore, 28 mm stroke; 10,500 ±800 rpm is explicitly without the cutting attachment, not a loaded cutting target.
No exact-model IPL link: Later HT70 applicability is via Components HT 2005-04 introduction; Powerhead 2004-03 is a retained later edition, not proven original 1998 equipment or a parts interchange.
- Later-source comparison: Components HT 2005-04 introduction explicitly names HT 70, identifies the Series 4137 powerhead and delegates engine repair to its manual. The retained Series 4137 Powerhead edition is 2004-03; its procedures are shared unless specified otherwise. This cross-reference supports later HT70 guidance, NOT proof that this edition or configuration was used in 1998.
- Section 3.1 gives displacement 25.4 cm³, bore 34 mm, stroke 28 mm and engine power to ISO 8893 of 0.95 kW (1.3 HP). These are source specifications, not measurements, a crankshaft interchange rule or proof of historical 1998 configuration.
- Maximum permissible engine speed WITHOUT CUTTING ATTACHMENT (cut-off speed) is 10,500 ±800 rpm. Idle is 2,800 rpm; clutch engagement is 3,700 rpm. Do not use the cut-off figure as a loaded cutting target or transfer its ±800 tolerance to idle or clutch engagement. Components HT 2005-04 lists 10,500 rpm cut-off and 2,800 rpm idle without that tolerance; preserve the Powerhead condition and edition instead of silently extending the Components table.
- Crankshaft is supported in heavy-duty deep-groove ball bearings; needle cages are on small and big ends at piston pin and crankpin. Clutch is centrifugal WITHOUT LININGS. These descriptions do not identify replacement bearing numbers or wear limits.
- Crankcase leakage-test specification is 50 kPa (0.5 bar) excess pressure and separately 50 kPa (0.5 bar) NEGATIVE PRESSURE. Vacuum is not positive pressure. This table supplies no duration or acceptable decay: section 5.4 remains pending. Do not substitute carburetor 0.8 bar or tank-vent 0.2 bar vacuum values from Components HT.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete section 3.1 engine specifications.
Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section Complete section 3.1 engine specifications, PDF pages 1, 3, 5 · STIHL Series 4137 Components HT (2005-04), section HT70 applicability and engine-repair delegation; comparison where explicitly described, PDF pages 1, 3, 5
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: later ignition gap and spark-plug specification
Keep ignition-module air gap 0.2–0.5 mm separate from the 0.5 mm spark-plug electrode gap.
No exact-model IPL link: Later HT70 applicability is via Components HT 2005-04 introduction; Powerhead 2004-03 is a retained later edition, not proven original 1998 equipment or a parts interchange.
- Later-source comparison: Components HT 2005-04 introduction explicitly names HT 70, identifies the Series 4137 powerhead and delegates engine repair to its manual. The retained Series 4137 Powerhead edition is 2004-03; its procedures are shared unless specified otherwise. This cross-reference supports later HT70 guidance, NOT proof that this edition or configuration was used in 1998.
- Section 3.2 describes electronic magneto ignition with integrated switch gear. Ignition AIR GAP is 0.2–0.5 mm; spark-plug ELECTRODE GAP is 0.5 mm. These are two different clearances, not alternative names for the same adjustment.
- Listed interference-suppressed spark plugs: Bosch WSR 6F, NGK BPMR 7 A and Champion RCJ 6Y. No vendor order numbers, current availability or a universal substitute for other engine versions is established. Installation and ignition testing remain separate procedures; do not infer torque from these specifications.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete section 3.2 ignition-system specifications.
Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section Complete section 3.2 ignition-system specifications, PDF pages 1, 3, 5 · STIHL Series 4137 Components HT (2005-04), section HT70 applicability and engine-repair delegation; comparison where explicitly described, PDF pages 1, 3
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: powerhead torque table has mismatched labels
Preserve the printed spark-plug/module mismatch; the two 9.5 Nm crankcase rows are separate from that unresolved conflict.
No exact-model IPL link: Later HT70 applicability is via Components HT 2005-04 introduction; Powerhead 2004-03 is a retained later edition, not proven original 1998 equipment or a parts interchange.
- Later-source comparison: Components HT 2005-04 introduction explicitly names HT 70, identifies the Series 4137 powerhead and delegates engine repair to its manual. The retained Series 4137 Powerhead edition is 2004-03; its procedures are shared unless specified otherwise. This cross-reference supports later HT70 guidance, NOT proof that this edition or configuration was used in 1998.
- Section 3.3 unambiguous rows: screw IS-M5x25, CRANKCASE, 9.5 Nm; screw IS-DG5x24, CYLINDER/CRANKCASE, 9.5 Nm. No lubrication qualifier or alternate torque is supplied in this table.
- SOURCE LABEL CONFLICT, visible in the original: screw IS-M4x20 is printed beside SPARK PLUG and 4.5 Nm; the next row M14x1.25 is printed beside IGNITION MODULE/CYLINDER and 20.0 Nm. Retain exactly these printed associations as suspect source data, NOT actionable spark-plug or module torque recommendations. Do not silently swap labels. Components HT 2005-04 section 3.2 separately prints spark plug M14x1.25 at 20.0 Nm (15.0 lbf.ft); that disagreement does not constitute an issued correction to the Powerhead table.
- DG/P (Plastoform) screws form permanent threads in polymer/light metal. A torque wrench is essential. For refitting DG screws, rotate COUNTERCLOCKWISE until the screw drops slightly into the existing thread, then tighten clockwise to the specified torque; forming a new thread weakens the joint. Maximum power-screwdriver speed for DG screws in polymer is 500 rpm, NOT engine speed. This page supplies no separate P-screw driver speed.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete section 3.3, all 4 rows and DG-thread reuse; unresolved two-row label conflict.
Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section Complete section 3.3, all 4 rows and DG-thread reuse; unresolved two-row label conflict, PDF pages 1, 3, 6 · STIHL Series 4137 Components HT (2005-04), section HT70 applicability and engine-repair delegation; comparison where explicitly described, PDF pages 1, 3, 6, 7
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: powerhead fault table adds an impulse-flange cause
Nine later engine cause/remedy rows include a cracked intermediate-flange impulse opening absent from the eight-row Components HT table.
No exact-model IPL link: Later HT70 applicability is via Components HT 2005-04 introduction; Powerhead 2004-03 is a retained later edition, not proven original 1998 equipment or a parts interchange.
- Later-source comparison: Components HT 2005-04 introduction explicitly names HT 70, identifies the Series 4137 powerhead and delegates engine repair to its manual. The retained Series 4137 Powerhead edition is 2004-03; its procedures are shared unless specified otherwise. This cross-reference supports later HT70 guidance, NOT proof that this edition or configuration was used in 1998.
- Section 4.1 first checks and, if necessary, repairs fuel system, carburetor, air filter and ignition before looking for engine faults. Air filter, fuel supply and carburetor work refer back to Series 4137 Components. These symptom groupings are diagnostic leads, not proof of a fault.
- Hard starting / stalling at idle but normal full throttle: defective crank-gear oil seals → replace oil seals; leaking/cracked crankcase → seal/replace crankcase; leaking muffler → seal/replace muffler (Components reference). These agree with the previously retained Components HT engine table; no new diagnosis is asserted.
- Low power / erratic running: worn/broken piston rings → replace rings; carbonized muffler/spark-arresting screen → clean muffler inlet/exhaust openings and REPLACE screen; dirty air-filter element → replace element; kinked/cracked FUEL LINE → fit new lines or route without kinks. The last three remedies refer to Components. Preserve the existing clean-versus-replace differences between troubleshooting tables and detailed service sections.
- Additional low-power row: IMPULSE OPENING IN INTERMEDIATE FLANGE CRACKED → REPLACE INTERMEDIATE FLANGE. The Powerhead table has nine rows; Components HT 4.4 has eight and describes fuel OR IMPULSE LINE in its line row. Do not collapse a cracked flange opening into a kinked hose, silently add an impulse-line phrase to this Powerhead row, or infer a replacement flange number.
- Overheating attributed to inadequate cooling, blocked fan-housing air inlets or very dirty cylinder fins → thoroughly clean ALL cooling-air passages and fins. Detailed cylinder, seals, crankcase and leakage-test procedures remain actionable; the table does not close those sections.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete section 4.1: prerequisites, all9 cause/remedy rows and footnotes; Components4.4 comparison.
Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section Complete section 4.1: prerequisites, all9 cause/remedy rows and footnotes; Components4.4 comparison, PDF pages 1, 3, 7 · STIHL Series 4137 Components HT (2005-04), section HT70 applicability and engine-repair delegation; comparison where explicitly described, PDF pages 1, 3, 12
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: rough running and misfire ignition checks
Seven ignition-table entries distinguish boot, plug, lead insulation, air gap, flywheel and stop-control checks without inventing a resistance limit.
No exact-model IPL link: Later HT70 applicability is via Components HT 2005-04 introduction; Powerhead 2004-03 is a retained later edition, not proven original 1998 equipment or a parts interchange.
- Later-source comparison: Components HT 2005-04 introduction explicitly names HT 70, identifies the Series 4137 powerhead and delegates engine repair to its manual. The retained Series 4137 Powerhead edition is 2004-03; its procedures are shared unless specified otherwise. This cross-reference supports later HT70 guidance, NOT proof that this edition or configuration was used in 1998.
- Section 4.2 warns that ignition-system high voltage can cause serious or fatal injury. The condition grouping is rough running, misfiring and temporary loss of power. This is reference-only troubleshooting; no live spark test or ignition operation was performed.
- Loose plug boot → press firmly onto plug and fit new leg spring if necessary. Soot/oil-fouled plug → clean, replace if necessary. Weak/no spark → faulty ignition-lead or short-circuit-wire insulation; use an ohmmeter to check ignition lead for a break, replace lead if broken or resistance is high. The source supplies NO NUMERIC RESISTANCE THRESHOLD or connector isolation method in this table.
- Wrong ignition-coil/flywheel air gap → reset gap. Cracked/damaged flywheel → install new flywheel. These are separate fault candidates, not instructions to replace a flywheel solely because there is no spark.
- The sixth entry calls for checking plug operation and slide control, ignition coil/wire for damaged insulation and leakage current → replace/clean plug and replace damaged ignition parts. The seventh NO SPARK entry checks slide control, ignition module and ignition leads, replacing as necessary. All seven entries are retained; detailed section 6 testing and disassembly, including stop-control isolation, remain pending.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete section 4.2 ignition troubleshooting: warning and all7 entries.
Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section Complete section 4.2 ignition troubleshooting: warning and all7 entries, PDF pages 1, 3, 8 · STIHL Series 4137 Components HT (2005-04), section HT70 applicability and engine-repair delegation; comparison where explicitly described, PDF pages 1, 3
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: cylinder replacement and piston-pin removal limits
A new cylinder requires its corresponding piston; the single-snap-ring version permits pin removal only toward that ring.
No exact-model IPL link: Later HT70 applicability is via Components HT 2005-04 introduction; Powerhead 2004-03 is a retained later edition, not proven original 1998 equipment or a parts interchange.
- Later-source comparison: Components HT 2005-04 introduction explicitly names HT 70, identifies the Series 4137 powerhead and delegates engine repair to its manual. The retained Series 4137 Powerhead edition is 2004-03; its procedures are shared unless specified otherwise. This cross-reference supports later HT70 guidance, NOT proof that this edition or configuration was used in 1998.
- Section 5.1 again requires checking fuel, carburetor, filter and ignition first. Dismantle carburetor, muffler and engine per Components. Remove cylinder screws; the TWO REAR SCREWS ARE NOT ILLUSTRATED in 935RA046. Lift cylinder off piston, inspect and replace if necessary. A NEW CYLINDER REQUIRES THE CORRESPONDING NEW PISTON; the source says cylinders are supplied with pistons, not that any same-bore piston is interchangeable.
- Before removing piston, decide whether crankshaft must also be removed. To dismantle clutch/carrier, the source blocks the crankshaft by placing piston on a wooden assembly block. This describes its service context, not permission to load an unsupported connecting rod. Remove cylinder gasket and ease hookless snap rings from their grooves.
- Push piston pin out using assembly drift 1114 893 4700; if stuck, tap drift LIGHTLY only while STEADYING PISTON so no jolts reach the connecting rod. If the piston has ONLY ONE SNAP RING, force the pin out ONLY IN THE DIRECTION OF THAT SNAP RING; do not damage the stop. Do not assume a second removable ring.
- Remove piston from connecting rod and needle cage from rod eye; inspect rings and replace if necessary per 5.3. No pin interference tolerance, wear dimension, replacement part number or universal piston variant is supplied.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete section 5.1 cylinder/piston removal.
Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section Complete section 5.1 cylinder/piston removal, PDF pages 1, 3, 9 · STIHL Series 4137 Components HT (2005-04), section HT70 applicability and engine-repair delegation; comparison where explicitly described, PDF pages 1, 3
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: piston orientation, snap-ring tool and ring alignment
Retain the illustrated piston mark/flywheel relationship, modified snap-ring sleeve dimensions and separate ring-bevel and locating-pin requirements.
No exact-model IPL link: Later HT70 applicability is via Components HT 2005-04 introduction; Powerhead 2004-03 is a retained later edition, not proven original 1998 equipment or a parts interchange.
- Later-source comparison: Components HT 2005-04 introduction explicitly names HT 70, identifies the Series 4137 powerhead and delegates engine repair to its manual. The retained Series 4137 Powerhead edition is 2004-03; its procedures are shared unless specified otherwise. This cross-reference supports later HT70 guidance, NOT proof that this edition or configuration was used in 1998.
- Section 5.2 refers removal/refitting of the intermediate flange to Components when replacing piston and cylinder. Clean sealing surface, oil needle cage and insert into rod eye. Slightly warm piston to aid installation; no temperature is specified. Preserve installed-position drawing 935RA051: item 1 is the piston MARK and item 2 the FLYWHEEL. The text does not call it an exhaust arrow; do not substitute a generic piston-arrow rule for this drawing.
- Pass assembly drift 1114 893 4700 STUB END FIRST through piston and needle-cage/rod eye to align, slide pin onto its stub and push pin into piston. For snap rings, remove sleeve from installing tool 5910 890 2208 and MODIFY SLEEVE AS DRAWING935RA055: a=35.5 mm, b=17.3 mm, c=21.0 mm. These are lettered tool dimensions tied to that drawing, NOT piston dimensions or a complete tolerance-controlled machining drawing. No tool was modified.
- Attach ring to tool face magnet with ring GAP AT FLAT SIDE OF SHANK. Push the large slotted sleeve end over magnet/ring with INNER PIN TOWARD SHANK FLAT. Stand sleeve-down on a flat wooden board and press vertically until sleeve meets shoulder. Remove sleeve and fit to other end, again inner pin toward flat. Apply tool at piston boss, hold piston steady, center shank EXACTLY and press until ring enters groove. Keep tool loading sequence and pin/flat relationship; no snap-ring reuse approval is stated.
- Fit NEW CYLINDER GASKET. Oil piston/rings and support on wooden block 1108 893 4800. Beveled ring-gap edges must locate the FIXING PIN in each ring groove. Fit collar clamp 0000 893 2600, verify ring position, oil cylinder bore and align cylinder to installed position. Wrong ring position may break rings. Slide cylinder over piston, pushing clamp down as rings enter cylinder; remove clamp/block, align cylinder and gasket, tighten with bit 0812 542 2104 per 3.3. The cylinder/crankcase row is 9.5 Nm; the unrelated ignition/plug label conflict is not a cylinder-torque correction. Refit other parts per Components.
- Section 5.3 removes piston per 5.1 and rings, cleans grooves with a PIECE OF OLD PISTON RING, and installs NEW rings with BEVELED EDGES TOWARD THE PISTON SHAFT (source wording, drawing 935RA068); then install piston per 5.2. This bevel orientation is distinct from locating the ring gaps on the fixing pins. No end-gap specification, allowable wear or abrasive-cleaning method is supplied.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete sections 5.2–5.3, including all tool-loading and cylinder-installation continuations.
Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section Complete sections 5.2–5.3, including all tool-loading and cylinder-installation continuations, PDF pages 1, 3, 10, 11, 12 · STIHL Series 4137 Components HT (2005-04), section HT70 applicability and engine-repair delegation; comparison where explicitly described, PDF pages 1, 3
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: crankcase pressure test and sealing setup
The later procedure requires about 0.5 bar to hold for at least 20 seconds; the exhaust plate must cover the full width between screws.
No exact-model IPL link: Later HT70 applicability is via Components HT 2005-04 introduction; Powerhead 2004-03 is a retained later edition, not proven original 1998 equipment or a parts interchange.
- Later-source comparison: Components HT 2005-04 introduction explicitly names HT 70, identifies the Series 4137 powerhead and delegates engine repair to its manual. The retained Series 4137 Powerhead edition is 2004-03; its procedures are shared unless specified otherwise. This cross-reference supports later HT70 guidance, NOT proof that this edition or configuration was used in 1998.
- Section 5.4.1 removes carburetor per Components, fits gasket in front of intermediate flange, moves piston to TOP DEAD CENTRE visible through inlet bore and checks spark plug is seated securely. Fit test flange 1128 850 4200 and tighten its nuts. Remove lower crankcase screw from muffler, loosen two upper muffler screws halfway, and slide sealing plate 0000 855 8106 BETWEEN GASKET AND CYLINDER EXHAUST. Lightly retighten upper screws; plate must fill FULL WIDTH between screws. This is a sealed crankcase setup, not a carburetor or tank-vent test.
- Section 5.4.2 attaches tester 1106 850 2905 pressure hose to test-flange nipple and closes bulb vent screw. Pump to APPROXIMATELY 50 kPa (0.5 bar) excess pressure. The housing is deemed airtight if this stays CONSTANT FOR AT LEAST 20 SECONDS. No allowed positive-pressure decay is stated. The separate section 3.1 specification table did not supply this duration.
- If pressure drops, locate leak and replace defective part: wet suspected area with oil and pressurize again; bubbles reveal leak position. Then test under negative pressure per 5.4.3; a pressure pass alone does not establish oil-seal integrity under vacuum.
- After testing, open vent screw, remove hose and test flange, undo muffler screws, remove sealing plate, retighten muffler screws and reinstall carburetor per Components. Pressure-test cleanup says OUTER SCREW, while preparation and vacuum cleanup say LOWER CRANKCASE SCREW on muffler. Retain this wording discrepancy, not an invented extra screw or torque. Other parts reassemble in reverse order.
- Section 7 later lists sealing plate 0000 850 8106, conflicting with procedure number 0000 855 8106 above. Preserve both, not a verified corrected tool number.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete sections 5.4.1–5.4.2, including pressure-test continuation and cleanup.
Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section Complete sections 5.4.1–5.4.2, including pressure-test continuation and cleanup, PDF pages 1, 3, 13, 14, 29 · STIHL Series 4137 Components HT (2005-04), section HT70 applicability and engine-repair delegation; comparison where explicitly described, PDF pages 1, 3
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: vacuum test has a separate decay criterion
Start at 0.5 bar vacuum; retain the source’s 0.3 bar / 20-second wording without converting it to a positive-pressure limit.
No exact-model IPL link: Later HT70 applicability is via Components HT 2005-04 introduction; Powerhead 2004-03 is a retained later edition, not proven original 1998 equipment or a parts interchange.
- Later-source comparison: Components HT 2005-04 introduction explicitly names HT 70, identifies the Series 4137 powerhead and delegates engine repair to its manual. The retained Series 4137 Powerhead edition is 2004-03; its procedures are shared unless specified otherwise. This cross-reference supports later HT70 guidance, NOT proof that this edition or configuration was used in 1998.
- Section 5.4.3 explains that oil-seal lips can lift from the crankshaft during intake without internal counterpressure; this can be missed by an excess-pressure test. Use the same sealing preparation as the pressure test, with vacuum pump 0000 850 3501 suction hose connected to the test-flange nipple.
- The printed instruction says CONNECT VENT SCREW (1) TO THE PUMP CYLINDER, followed by actuating lever (2) until gauge (3) indicates NEGATIVE PRESSURE OF 50 kPa (0.5 bar). Preserve that unusual vent wording; the text does not explicitly say close the screw here. Do not silently rewrite it as a verified pump-operation instruction.
- The acceptance sentence reads: indicated vacuum remains constant, OR pressure does not rise to more than 30 kPa (0.3 bar) within 20 seconds. The next sentence says replace oil seals if vacuum decreases further. The negative-pressure context suggests a remaining vacuum magnitude of at least 0.3 bar, but that is an INTERPRETATION of ambiguous unsigned wording, not an unambiguous signed threshold. Do not encode this as a +0.3 bar pressure allowance, a 0.3 bar permitted drop, or the constant-pressure criterion of 5.4.2.
- Cleanup: open vent screw, remove hose and flange, loosen muffler screws, remove sealing plate, retighten TWO UPPER screws, insert/tighten LOWER CRANKCASE screw on muffler and reinstall carburetor per Components. Remaining assembly is reverse order. No physical test or automatic pass/fail implementation was performed.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete section 5.4.3, setup cross-reference, ambiguous vacuum wording and cleanup.
Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section Complete section 5.4.3, setup cross-reference, ambiguous vacuum wording and cleanup, PDF pages 1, 3, 13, 14 · STIHL Series 4137 Components HT (2005-04), section HT70 applicability and engine-repair delegation; comparison where explicitly described, PDF pages 1, 3
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: oil-seal replacement uses side-specific sleeves
Keep the flywheel-side press sleeve separate from the starter-side installing and press sleeves; both seals face open-side inward.
No exact-model IPL link: Later HT70 applicability is via Components HT 2005-04 introduction; Powerhead 2004-03 is a retained later edition, not proven original 1998 equipment or a parts interchange.
- Later-source comparison: Components HT 2005-04 introduction explicitly names HT 70, identifies the Series 4137 powerhead and delegates engine repair to its manual. The retained Series 4137 Powerhead edition is 2004-03; its procedures are shared unless specified otherwise. This cross-reference supports later HT70 guidance, NOT proof that this edition or configuration was used in 1998.
- Section 5.5 says the engine need not be dismantled solely to replace oil seals. The first branch is headed CLUTCH SIDE and removes the FLYWHEEL per 6.3; the other is STARTER SIDE and removes the CARRIER per Components. Preserve those source side names and removal dependencies, not a guessed universal engine-side convention.
- For both sides, tap seal lightly with suitable tube or punch to dislodge, apply puller 5910 890 4400 with jaws 0000 893 3706 PROFILE No. 3.1, clamp arms and extract. Do not damage crankshaft stub. Clean sealing surface with STIHL degreasant per section 8 and grease new seal lips per section 8; section 8 names oil-seal grease 0781 120 1111 (370 g tube), while the degreasant part number is blank; not a universal grease substitute.
- Clutch/flywheel branch: slide oil seal over stub OPEN SIDE FACING CRANKCASE and press toward OUTSIDE OF CRANKCASE with press sleeve 4112 893 2401; refit flywheel per 6.3. Keep the source pressing direction tied to drawing 935RA007; do not confuse it with bearing REMOVAL toward the inside in 5.6.1.
- Starter branch continues onto printed page 15: grease lips, slip INSTALLING SLEEVE 4112 893 2400 over crankshaft end, slide seal over sleeve OPEN SIDE FACING CRANKCASE, press toward outside with PRESS SLEEVE 1115 893 4600, remove installing sleeve and refit carrier per Components. The installing sleeve protects passage over the stub; it is not the similarly numbered opposite-side press sleeve. Reassemble other parts in reverse order; no seal order number or insertion-depth measurement is given.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete section 5.5 including starter-side continuation.
Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section Complete section 5.5 including starter-side continuation, PDF pages 1, 3, 15, 16, 31 · STIHL Series 4137 Components HT (2005-04), section HT70 applicability and engine-repair delegation; comparison where explicitly described, PDF pages 1, 3
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: crankcase separation and complete crankshaft renewal
The crankshaft, rod and needle bearing are an inseparable service unit; replacing it also requires new ball bearings and oil seals.
No exact-model IPL link: Later HT70 applicability is via Components HT 2005-04 introduction; Powerhead 2004-03 is a retained later edition, not proven original 1998 equipment or a parts interchange.
- Later-source comparison: Components HT 2005-04 introduction explicitly names HT 70, identifies the Series 4137 powerhead and delegates engine repair to its manual. The retained Series 4137 Powerhead edition is 2004-03; its procedures are shared unless specified otherwise. This cross-reference supports later HT70 guidance, NOT proof that this edition or configuration was used in 1998.
- Section 5.6.1 removes carrier per Components, flywheel per 6.3, cylinder and piston per 5.1, unhooks guard and removes crankcase-half screws. Partly unscrew LEFT-HAND spindle of ZS installing tool 5910 007 2220. On STARTER SIDE, notch 1 is at bottom; fit starter-cover screws into holes 15 until against perforated disk. Turn spindle COUNTERCLOCKWISE to force crankshaft from bearing and separate halves.
- On CLUTCH SIDE use ONE sleeve 5910 893 1701 (30 mm) and TWO sleeves 5910 893 1702 (35 mm), in drawing 935RA019 positions. Place ZS tool over sleeves with notch 12 at bottom; insert THREE M5x72 screws through holes 14 with washers/nuts. Turn spindle counterclockwise to force crankshaft out. Do not interchange the two notch positions or the unequal sleeve lengths.
- Drawing 935RA070 shows modification of older disks lacking holes 14 and 15, explicitly VIEWED FROM BELOW. It contains multiple dimensions tied to specific construction lines and holes; the figure remains the required geometric reference, not an interchangeable hole-coordinate list or a tolerance-controlled manufacturing plan. This note admits the modification/underside-orientation instruction, not a reconstruction from OCR numbers. No tool was modified.
- Crankshaft, CONNECTING ROD AND NEEDLE BEARING form an INSEPARABLE UNIT to replace as a complete part. When replacing crankshaft, also replace DEEP-GROOVE BALL BEARINGS AND OIL SEALS; seals may be driven out with a punch if needed. Bearing removal on next page uses press arbor 4119 893 7200, forcing BOTH flywheel-side and starter-side bearings toward INSIDE of crankcase. Inspect both halves for cracks/fractures and replace as necessary. No separate rod-bearing rebuild procedure or replacement-part number is supplied.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete section 5.6.1 including underside modification drawing and bearing-removal continuation.
Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section Complete section 5.6.1 including underside modification drawing and bearing-removal continuation, PDF pages 1, 3, 16, 17, 18 · STIHL Series 4137 Components HT (2005-04), section HT70 applicability and engine-repair delegation; comparison where explicitly described, PDF pages 1, 3
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: crankcase halves and bearing installation
Individual halves may be renewed; clean sealing faces and retain centering sleeves, bearing direction and the approximately 120 °C seat-heating condition.
No exact-model IPL link: Later HT70 applicability is via Components HT 2005-04 introduction; Powerhead 2004-03 is a retained later edition, not proven original 1998 equipment or a parts interchange.
- Later-source comparison: Components HT 2005-04 introduction explicitly names HT 70, identifies the Series 4137 powerhead and delegates engine repair to its manual. The retained Series 4137 Powerhead edition is 2004-03; its procedures are shared unless specified otherwise. This cross-reference supports later HT70 guidance, NOT proof that this edition or configuration was used in 1998.
- Section 5.6.2 allows EACH damaged crankcase half to be replaced separately and says NEW HALVES INCLUDE DEEP-GROOVE BALL BEARINGS. This is the service policy for the later source, not proof that arbitrary old/new halves interchange. Reused halves require removal of old sealing remnants and absolutely clean sealing surfaces. Centering sleeves must be present; drive them into the housing half if absent.
- Heat STARTER-SIDE housing half around bearing seat to APPROXIMATELY 120 °C. Press bearing by hand as far as possible toward OUTSIDE of crankcase and work promptly because bearing heats and expands. If that half cannot be heated, the source instead uses press arbor 4119 893 7200 to seat bearing toward outside. The temperature applies to the housing seat, not a whole-engine operating temperature or a timed bake.
- Repeat seat heating and hand seating for the FLYWHEEL-SIDE half. Its following no-heat alternative calls it CLUTCH SIDE and again uses arbor 4119 893 7200 toward outside. Preserve this source naming across the page break. The removal direction in 5.6.1 was toward INSIDE; installation is toward OUTSIDE. No bearing-temperature measurement method, press-load limit or separate bearing order number is stated.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Section 5.6.2 crankcase condition, centering sleeves and both bearing-installation branches.
Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section Section 5.6.2 crankcase condition, centering sleeves and both bearing-installation branches, PDF pages 1, 3, 18, 19 · STIHL Series 4137 Components HT (2005-04), section HT70 applicability and engine-repair delegation; comparison where explicitly described, PDF pages 1, 3
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: pulling the crankshaft into its bearings
Short stub goes to starter side, rod points toward cylinder flange, and the completed crankshaft must turn freely without assembly tension.
No exact-model IPL link: Later HT70 applicability is via Components HT 2005-04 introduction; Powerhead 2004-03 is a retained later edition, not proven original 1998 equipment or a parts interchange.
- Later-source comparison: Components HT 2005-04 introduction explicitly names HT 70, identifies the Series 4137 powerhead and delegates engine repair to its manual. The retained Series 4137 Powerhead edition is 2004-03; its procedures are shared unless specified otherwise. This cross-reference supports later HT70 guidance, NOT proof that this edition or configuration was used in 1998.
- Section 5.6.2 inserts SHORTER crankshaft stub into starter-side bearing. Screw spindle of installing tool 5910 890 2202 fully into its sleeve (LEFT-HAND thread), then screw spindle CLOCKWISE onto crankshaft stub. Hold spindle while turning sleeve COUNTERCLOCKWISE until it rests against bearing; hold sleeve and turn spindle CLOCKWISE until crankshaft rests against bearing. These are distinct tool joints and directions, not one universal left-hand instruction.
- While pulling in crankshaft, CONNECTING ROD WITHOUT PISTON MUST POINT TOWARD CYLINDER FLANGE. Hold shaft and turn spindle counterclockwise to unscrew from shaft end. Apply THIN FILM of sealant to housing-half sealing surface per section 8 and follow sealant manufacturer directions; section 8 lists Dirko 0783 830 2120 for engine pan/cylinder, a different joint description; retain the crankcase-half cross-reference without silently substituting a gasket or inventing cure details.
- Guide flywheel-side housing half over crankshaft end. Hold shaft and screw tool spindle clockwise fully onto end; hold spindle and turn sleeve counterclockwise to bearing, then hold sleeve and turn spindle clockwise until halves meet. Remove tool. Insert crankcase screws and tighten with bit 0812 542 2104 per 3.3; the separate crankcase IS-M5x25 row is 9.5 Nm. Do not reuse the suspect spark-plug/module torque-label rows.
- Grease oil-seal lips per section 8, install seals per 5.5, then reverse remaining disassembly. CRANKSHAFT MUST TURN EASILY WITHOUT RESISTANCE; if not, repeat installation and ensure parts are fitted WITHOUT TENSION. This is an assembly acceptance condition, not permission to force a binding crankshaft into service. Adjacent section 6 introduction names capacitive ignition module/flywheel and high-voltage hazard; detailed ignition review remains pending.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Section 5.6.2 complete crankshaft pull-in, sealant, closing and free-rotation requirement.
Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section Section 5.6.2 complete crankshaft pull-in, sealant, closing and free-rotation requirement, PDF pages 1, 3, 6, 19, 20, 31 · STIHL Series 4137 Components HT (2005-04), section HT70 applicability and engine-repair delegation; comparison where explicitly described, PDF pages 1, 3
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: tool table preserves plate and fixture conflicts
The tool table differs from the procedure’s sealing-plate number and the introduction’s stand/plate numbers; retain both rather than inventing a correction.
No exact-model IPL link: Later HT70 applicability is via Components HT 2005-04 introduction; Powerhead 2004-03 is a retained later edition, not proven original 1998 equipment or a parts interchange.
- Later-source comparison: Components HT 2005-04 introduction explicitly names HT 70, identifies the Series 4137 powerhead and delegates engine repair to its manual. The retained Series 4137 Powerhead edition is 2004-03; its procedures are shared unless specified otherwise. This cross-reference supports later HT70 guidance, NOT proof that this edition or configuration was used in 1998.
- Section 7 rows 1–9: puller 5910 890 4400 removes oil seals; jaws 0000 893 3706 list PROFILES 3.1 + 4 (procedure 5.5 specifies 3.1, not either profile); tester 1106 850 2905 tests crankcase/carburetor leaks; vacuum pump 0000 850 3501 tests crankcase leaks/tank vent. These multi-use tool descriptions do not merge their different test pressures or acceptance limits.
- SEALING-PLATE CONFLICT: table row 5 gives 0000 850 8106 for exhaust port, while section 5.4.1 gives 0000 855 8106. Keep both as printed; neither is established as a correction, substitution or purchasing recommendation. Flange 1128 850 4200 is for leakage tests. Sleeve 4112 893 2400 protects starter-side seal; 1115 893 4600 installs starter-side seal (table calls it INSTALLING SLEEVE, procedure says PRESS SLEEVE); 4112 893 2401 installs clutch-side seal.
- Rows 10–13: gauge 4118 890 6401 adjusts ignition-module/flywheel air gap. Q–T27x150 screwdriver 5910 890 2400 is listed for all IS screws, but footnote 1 permits ONLY UNSCREWING DG AND P SCREWS. Wrench 5910 890 0301 covers 0.5–18 Nm; 5910 890 0311 covers 6–80 Nm. DG/P tightening requires torque wrench. Footnotes permit visual/acoustic 5910 890 0302 instead of 0301 and 5910 890 0312 instead of 0311. Tool working ranges are not fastener torque recommendations.
- Rows 14–15 name ASSEMBLY STAND 5910 890 3100 for FS/FR and CLAMP 5910 890 8800 for shaft tools on chainsaw assembly block 5910 890 3100. The Powerhead introduction instead names assembly stand 5910 893 8800 and clamping plate 5910 893 3100 while illustrating an engine fixture. The table does not resolve those different numbers/roles and does not establish every fixture suitable for HT70. Prior Components HT fixture discrepancies remain retained separately.
- Rows 16–20: drift 1114 893 4700 installs piston pin; wood block 1108 893 4800 supports piston; collar clamp 0000 893 2600 tensions rings; installing tool 8, 5910 890 2208, fits hookless piston snap rings; T27x125 bit 0812 542 2104 drives internal-star screws with electric/pneumatic screwdrivers and tightens with torque wrench. Preserve DG/P restrictions rather than extending the power-driver wording to unrestricted tightening.
- Rows 21–25: sleeves 5910 893 1701 and 5910 893 1702 have BLANK APPLICATION CELLS in the table; section 5.6.1 separately identifies 30/35 mm lengths and positions. Arbor 4119 893 7200 presses ball bearings in/out; installing tool 5910 890 2202 installs crankshaft; ZS set 5910 007 2220 separates crankcase halves. Tool numbers are not machine replacement parts.
- Rows 26–28: ZAT 4 ignition tester 5910 850 4503 tests ignition; ZAT 3 tester 5910 850 4520 tests SERIES SPARK GAP; puller 4133 893 0800 removes flywheel. These named capabilities do not close section 6 procedures or authorize live testing. All 28 rows and four footnotes reviewed; no availability or interchange beyond explicit wrench alternatives established.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete section 7: all28 tool rows, four footnotes and procedure/introduction conflicts.
Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section Complete section 7: all28 tool rows, four footnotes and procedure/introduction conflicts, PDF pages 1, 3, 13, 15, 16, 17, 29, 30 · STIHL Series 4137 Components HT (2005-04), section HT70 applicability and engine-repair delegation; comparison where explicitly described, PDF pages 1, 3
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: oil-seal grease, cleaning and sealant scope
Oil-seal grease and Dirko have explicit table applications; degreasant has no part number, and crankcase joint use differs from the table’s engine-pan/cylinder wording.
No exact-model IPL link: Later HT70 applicability is via Components HT 2005-04 introduction; Powerhead 2004-03 is a retained later edition, not proven original 1998 equipment or a parts interchange.
- Later-source comparison: Components HT 2005-04 introduction explicitly names HT 70, identifies the Series 4137 powerhead and delegates engine repair to its manual. The retained Series 4137 Powerhead edition is 2004-03; its procedures are shared unless specified otherwise. This cross-reference supports later HT70 guidance, NOT proof that this edition or configuration was used in 1998.
- Section 8 row 1 specifies GREASE 0781 120 1111, 370 g tube, for OIL SEALS. It does not name this as a universal gearhead or drive-shaft lubricant; prior HT grease conflicts remain unchanged. Rows 2 and 4 follow, with no row 3 shown: retain this printed numbering, not an invented missing product.
- STIHL DEGREASANT cleans CRANKSHAFT STUB and FLYWHEEL HUB; its PART NUMBER IS BLANK. No solvent chemistry, substitute number or degreasing of every assembly is stated.
- DIRKO SEALANT 0783 830 2120 is listed for ENGINE PAN/CYLINDER. Section 5.6.2 separately directs a thin film on the CRANKCASE-HALF SEALING SURFACE and references section 8. Preserve the differing joint wording; do not silently replace a cylinder gasket with sealant, infer bead thickness, invent cure time or extend to other joints. Follow manufacturer directions as specified in 5.6.2.
- Final original PDF32–33 (printed31–32) contain only running title, page numbers and watermark; no applicable technical assertion. PDF34 back cover states English and print code 0455 935 0123. M10. C4. T., Printed in Germany; it adds no model fitment or production date. These visually inspected nontechnical pages are dispositioned; section6 ignition remains open.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete section 8 all3 printed rows; final nontechnical pages32–34 disposition.
Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section Complete section 8 all3 printed rows; final nontechnical pages32–34 disposition, PDF pages 1, 3, 19, 31, 32, 33, 34 · STIHL Series 4137 Components HT (2005-04), section HT70 applicability and engine-repair delegation; comparison where explicitly described, PDF pages 1, 3
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: spark presence is not ignition timing verification
The capacitive system has nonadjustable timing; a workshop spark test is not a complete module test.
No exact-model IPL link: Later HT70 applicability is via Components HT 2005-04 introduction; Powerhead 2004-03 is a retained later edition, not proven original 1998 equipment or a parts interchange.
- Later-source comparison: Components HT 2005-04 introduction explicitly names HT 70, identifies the Series 4137 powerhead and delegates engine repair to its manual. The retained Series 4137 Powerhead edition is 2004-03; its procedures are shared unless specified otherwise. This cross-reference supports later HT70 guidance, NOT proof that this edition or configuration was used in 1998.
- Section 6 describes a CAPACITIVE (BREAKERLESS) system consisting essentially of ignition module and flywheel. High voltage can cause serious or fatal accidents; troubleshooting begins at the spark plug per 4.2. This is documentary guidance, not a request to crank or energize a machine.
- Section 6.2 lists three electrical connections on the coil body: HIGH-VOLTAGE OUTPUT with ignition lead, CONNECTOR TAB for short-circuit wire, and GROUND WIRE IF INSTALLED. The drawing has four callout numbers because output and lead are labeled separately; it does not establish four independent coil connections.
- Accurate module testing requires SPECIAL TEST EQUIPMENT. The manual limits workshop checking to a spark test and calls for a new module if no spark is obtained AFTER confirming wiring and stop switch are in good condition. A missing spark alone is not immediate proof of module failure.
- Section 6.2.1 states IGNITION TIMING IS NOT ADJUSTABLE and attributes lack of timing drift to absence of mechanical wear. Section 6.2.3 explicitly says the ignition test is ONLY A SPARK TEST, NOT IGNITION TIMING. Do not interpret nonadjustability or visible spark as proof against wrong flywheel position: section 6.4 still lists that check when the engine will not run.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Sections 6,6.2,6.2.1 and6.2.3 test-scope qualification;6.4 final branch.
Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section Sections 6,6.2,6.2.1 and6.2.3 test-scope qualification;6.4 final branch, PDF pages 1, 3, 20, 21, 22, 23, 28 · STIHL Series 4137 Components HT (2005-04), section HT70 applicability and engine-repair delegation; comparison where explicitly described, PDF pages 1, 3
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: spark-plug boot and leg-spring connection
Oil about 20 mm of lead; engage the spring in the conductor center about 5 mm from its end.
No exact-model IPL link: Later HT70 applicability is via Components HT 2005-04 introduction; Powerhead 2004-03 is a retained later edition, not proven original 1998 equipment or a parts interchange.
- Later-source comparison: Components HT 2005-04 introduction explicitly names HT 70, identifies the Series 4137 powerhead and delegates engine repair to its manual. The retained Series 4137 Powerhead edition is 2004-03; its procedures are shared unless specified otherwise. This cross-reference supports later HT70 guidance, NOT proof that this edition or configuration was used in 1998.
- Section 6.1 removes shroud per Components, disconnects plug boot, pulls leg spring from boot with suitable pliers, unhooks spring from lead and pulls boot off lead. Coat APPROXIMATELY 20 mm of lead end with oil, refit boot and use pliers to pull the lead out through the boot.
- Pinch spring hook into CENTRE OF LEAD approximately 5 mm from its end, then pull lead back until spring locates properly within boot. The 20 mm lubrication length is not the spring insertion distance and neither is a spark gap.
- If spark plug has DETACHABLE ADAPTER NUT, make sure it is properly fitted and firmly tightened. Reconnect boot and refit shroud per Components. The adjacent module chapter does not authorize cutting out a molded lead or substituting an unspecified connector.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete section6.1 and illustrated spring/adapter connection.
Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section Complete section6.1 and illustrated spring/adapter connection, PDF pages 1, 3, 21 · STIHL Series 4137 Components HT (2005-04), section HT70 applicability and engine-repair delegation; comparison where explicitly described, PDF pages 1, 3
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: module mounting, inherited washers and air-gap gauge
Preserve fitted ground/short-circuit connections and older plastic disks; use the specified gauge without treating it as a timing adjustment.
No exact-model IPL link: Later HT70 applicability is via Components HT 2005-04 introduction; Powerhead 2004-03 is a retained later edition, not proven original 1998 equipment or a parts interchange.
- Later-source comparison: Components HT 2005-04 introduction explicitly names HT 70, identifies the Series 4137 powerhead and delegates engine repair to its manual. The retained Series 4137 Powerhead edition is 2004-03; its procedures are shared unless specified otherwise. This cross-reference supports later HT70 guidance, NOT proof that this edition or configuration was used in 1998.
- Section 6.2.2 removes starter mechanism or fan housing with starter per Components; unplug short-circuit lead. On units with TWO short-circuit wires unplug BOTH at module and terminal socket. Disconnect plug boot, remove screws WITH WASHERS and remove module; dismantle boot per 6.1.
- Ignition lead is INTEGRALLY MOLDED into module. Position module and loosely fit screws. Secure GROUND WIRE and SHORT-CIRCUIT CONNECTOR TAB at UPPER SCREW IF INSTALLED. Older models may have PLASTIC DISKS on upper and lower screws BETWEEN CYLINDER AND MODULE; refit as applicable. No production cutoff or exact model subset is given.
- Place setting gauge 4118 890 6401 between module arms and FLYWHEEL MAGNETIC POLES; press module against gauge and tighten screws per 3.3, then reverse remaining disassembly. The specification is an air gap, not adjustable timing. The separately recorded suspect spark-plug/module torque labels in 3.3 remain unresolved; no torque is silently supplied here.
- Section 6.4 later calls for replacement of ignition lead if necessary despite the INTEGRALLY MOLDED construction stated here. Preserve this SERVICEABILITY CONFLICT; neither a separately replaceable lead on this exact module nor a cutting/splicing method is established.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete section6.2.2;6.4 molded-lead versus replacement conflict.
Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section Complete section6.2.2;6.4 molded-lead versus replacement conflict, PDF pages 1, 3, 22, 23, 27, 28 · STIHL Series 4137 Components HT (2005-04), section HT70 applicability and engine-repair delegation; comparison where explicitly described, PDF pages 1, 3
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: ZAT 4 spark-test connections and limits
Use a new installed plug, tester in line and at least 1,000 rpm cranking; an unclear result has a follow-up branch.
No exact-model IPL link: Later HT70 applicability is via Components HT 2005-04 introduction; Powerhead 2004-03 is a retained later edition, not proven original 1998 equipment or a parts interchange.
- Later-source comparison: Components HT 2005-04 introduction explicitly names HT 70, identifies the Series 4137 powerhead and delegates engine repair to its manual. The retained Series 4137 Powerhead edition is 2004-03; its procedures are shared unless specified otherwise. This cross-reference supports later HT70 guidance, NOT proof that this edition or configuration was used in 1998.
- Section 6.2.3 names ZAT 4 5910 850 4503 and ZAT 3 5910 850 4520. For ZAT 4 install NEW spark plug in cylinder and tighten firmly per 3.3; the separate torque-label conflict remains. Remove boot from plug and connect to tester INPUT TERMINAL (1); tester OUTPUT TERMINAL (3) connects to spark plug. Observe WINDOW (2).
- Crank quickly using rewind starter, MINIMUM 1,000 rpm. The manual classifies spark visible as ignition system OK, but explicitly excludes timing verification. If result is UNCLEAR, repeat with ZAT 3 or follow section6.4. This is a historical diagnostic criterion, not a measured result or exhaustive intermittent-fault test.
- NO SPARK: inspect cable harness and start-stop switch per Components, examine leg spring per6.1, then follow module troubleshooting6.4. Do not skip these to replace a module. High-voltage precautions in section6 apply; the engine is not physically tested here.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete ZAT4 branch of6.2.3 including no-spark continuation.
Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section Complete ZAT4 branch of6.2.3 including no-spark continuation, PDF pages 1, 3, 20, 23, 24 · STIHL Series 4137 Components HT (2005-04), section HT70 applicability and engine-repair delegation; comparison where explicitly described, PDF pages 1, 3
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: ZAT 3 series test differs from the chart’s main-gap reference
The later procedure uses about 2 mm with the plug in circuit; its chart instead cites TI32/1994 main-gap use. Keep those configurations distinct.
No exact-model IPL link: Later HT70 applicability is via Components HT 2005-04 introduction; Powerhead 2004-03 is a retained later edition, not proven original 1998 equipment or a parts interchange.
- Later-source comparison: Components HT 2005-04 introduction explicitly names HT 70, identifies the Series 4137 powerhead and delegates engine repair to its manual. The retained Series 4137 Powerhead edition is 2004-03; its procedures are shared unless specified otherwise. This cross-reference supports later HT70 guidance, NOT proof that this edition or configuration was used in 1998.
- Section6.2.3 requires ZAT 3 5910 850 4520 for SERIES SPARK GAP. Install NEW spark plug firmly in cylinder per3.3, connect removed plug boot to tester terminal(2), attach GROUND TERMINAL(1) TO SPARK PLUG, and set spark gap to ABOUT 2 mm using knob(3). This is not a connection to a cylinder fin.
- Hold ONLY HANDLE(4) or put tester in a safe place. Keep fingers/body AT LEAST 1 cm from spark window(3), high-voltage connection(2), ground connection(5), and ground terminal(1). Crank with rewind starter at MINIMUM 1,000 rpm and observe window(3). Source calls spark visible ignition in order; no spark leads to harness/slide-control inspection per Components, leg-spring check and6.4 chart. High voltage can injure or kill.
- The page labels ADJUSTING KNOB(3) in the lower-left drawing and SPARK WINDOW(3) in the upper-middle drawing. Retain the drawing-specific reused callout rather than claiming they are the same physical feature.
- Section6.4 says USE ZAT 3 AS MAIN SPARK GAP — SEE TI32.94. Existing reviewed TI32/1994 distinguishes MAIN: spark plug REMOVED, clip to ENGINE GROUND, 6 mm; AUXILIARY: clip to SPARK PLUG, 2 mm. Therefore the later manual’s series setup resembles the earlier AUXILIARY configuration, not its main configuration. Preserve the differing procedures and naming; do not combine 2 mm with main-gap engine-ground instructions or silently replace the manual procedure.
- TI32/1994 additionally warns that auxiliary-mode cranking CAN START ENGINE, forbids use near flammables or with wet hands, limits use to instructed persons, forbids turning gap knob past end, and gives bright-light visibility advice. Its complete reviewed precautions remain in the linked earlier notes. This later comparison does not establish modern-system compatibility or authorize operation.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete ZAT3 branch6.2.3 and6.4 main-gap citation; comparison to already-reviewed TI32/1994.
Referenced bulletin evidence: TI 32/1994, p. 1 · TI 32/1994, p. 2 — ZAT 3: 6 mm main-gap ignition test without running the engine.
Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section Complete ZAT3 branch6.2.3 and6.4 main-gap citation; comparison to already-reviewed TI32/1994, PDF pages 1, 3, 20, 24, 26 · STIHL Series 4137 Components HT (2005-04), section HT70 applicability and engine-repair delegation; comparison where explicitly described, PDF pages 1, 3
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: flywheel inspection and degreased seating
Remove clutch first; use the named puller only if needed, preserve groove position and reject damage.
No exact-model IPL link: Later HT70 applicability is via Components HT 2005-04 introduction; Powerhead 2004-03 is a retained later edition, not proven original 1998 equipment or a parts interchange.
- Later-source comparison: Components HT 2005-04 introduction explicitly names HT 70, identifies the Series 4137 powerhead and delegates engine repair to its manual. The retained Series 4137 Powerhead edition is 2004-03; its procedures are shared unless specified otherwise. This cross-reference supports later HT70 guidance, NOT proof that this edition or configuration was used in 1998.
- Section6.3 dismantles clutch per Components then pulls flywheel off. If it cannot be removed BY HAND, screw on puller 4133 893 0800, TAP FACE OF PULLER LIGHTLY and remove flywheel. This is not an instruction to strike the flywheel or change its magnetic poles.
- Flywheel and MAGNETIC POLES must show NO DAMAGE; otherwise replace flywheel. Degrease CRANKSHAFT STUB AND FLYWHEEL-HUB BORE with STIHL degreasant per8. That table gives no part number; no chemical substitute is invented.
- Position flywheel, NOTE POSITION OF GROOVE, reinstall clutch per Components and reverse remaining disassembly. The illustration and text supply no separate adjustable ignition-timing procedure; the no-start chart separately checks flywheel position on crankshaft.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete section6.3;6.4 final flywheel-position check.
Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section Complete section6.3;6.4 final flywheel-position check, PDF pages 1, 3, 24, 25, 28 · STIHL Series 4137 Components HT (2005-04), section HT70 applicability and engine-repair delegation; comparison where explicitly described, PDF pages 1, 3
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: ignition fault chart preserves branch order and resistance units
A strong spark bypasses the no-spark checks; after checks or module renewal, running and stop-function checks remain separate outcomes.
No exact-model IPL link: Later HT70 applicability is via Components HT 2005-04 introduction; Powerhead 2004-03 is a retained later edition, not proven original 1998 equipment or a parts interchange.
- Later-source comparison: Components HT 2005-04 introduction explicitly names HT 70, identifies the Series 4137 powerhead and delegates engine repair to its manual. The retained Series 4137 Powerhead edition is 2004-03; its procedures are shared unless specified otherwise. This cross-reference supports later HT70 guidance, NOT proof that this edition or configuration was used in 1998.
- Complete section6.4 starts with ENGINE DOES NOT RUN. Verify slide control or separate stop switch is in I. Check plug for oil/black fouling, soot, electrode gap and shorted contacts; clean, reset or replace. Check boot seating/leg spring, spring hook in lead center and boot damage; renew boot/spring if needed. Test with ZAT3 or ZAT4; chart’s MAIN-GAP TI32.94 reference differs from6.2.3 series configuration as separately retained.
- At FIRST POWERFUL-SPARK decision, YES follows connector3 DIRECTLY to ENGINE RUNS? on final page. NO checks/reset air gap, checks flywheel for BLUE POLE SHOES (renew flywheel), then DISCONNECTS SHORT-CIRCUIT WIRE from module before lead checks. The first YES branch does not pass through lead/stop-switch repair or module replacement.
- Lead checks: severe chafing; boot holes/cracks; resistance SPARK PLUG BOOT TO GROUND 1.5–12 kΩ; IGNITION LEAD resistance <10 Ω. The original displays ohms, not the text-extraction kW/W. These are DIFFERENT MEASUREMENT PATHS, not a universal module resistance or voltage rating. Chart says renew boot and/or lead if necessary, conflicting with molded-in lead construction in6.2.2; no splicing procedure inferred.
- Connector2 continues to slide control or separate stop switch: chafed short-circuit wire and CONTACT GAP (contact springs). No numerical contact gap is supplied. It says install new IGNITION LEAD and/or contact springs if necessary; retain this wording instead of silently changing it to short-circuit wire. RECONNECT SHORT-CIRCUIT WIRE before SECOND POWERFUL-SPARK decision. YES joins ENGINE RUNS?; NO installs new module then reaches ENGINE RUNS?.
- Final ENGINE RUNS? YES requires RUN/STOP FUNCTION check at slide control or separate stop switch. NO directs fuel-system/carburetor fault search, engine leakage check and FLYWHEEL POSITION ON CRANKSHAFT check. Visible spark alone neither proves timing nor eliminates these causes; these are chart branches, not observed hardware outcomes.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 4 — Complete section6.4 flowchart across printed25–27;6.2.2 serviceability contrast.
Referenced bulletin evidence: TI 32/1994, p. 1 · TI 32/1994, p. 2 — ZAT 3: 6 mm main-gap ignition test without running the engine.
Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section Complete section6.4 flowchart across printed25–27;6.2.2 serviceability contrast, PDF pages 1, 3, 23, 26, 27, 28 · STIHL Series 4137 Components HT (2005-04), section HT70 applicability and engine-repair delegation; comparison where explicitly described, PDF pages 1, 3
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: historical specification inheritance has explicit exceptions
Common engine/gearbox descriptions do not transfer telescopic dimensions, cutting length or measured noise certification.
No exact-model IPL link: TI35/1998 delegates to HT75 with explicit rigid-shaft and stated-specification exceptions. TI47/1996 is the retained historical comparison, not proof of every intervening revision or physical interchange.
- TI35/1998 sections 1–2 state components and specifications match HT75 APART FROM THE SHAFT and the listed differences. Retained TI47/1996 section 1 identifies the engine as the FS75/80/85 engine, a SPIRAL-TOOTHED 90° PINION GEAR with cutting-attachment mount, and an oil pump of the SAME MECHANICAL DESIGN as 021/023/025. A shared design is not a replacement-part number or universal interchange claim.
- TI47/1996 section 2 delegates the remaining technical specifications to FS75/80/85. Its HT75 noise row gives Lp 101 at OPERATOR EAR and Lp 69 at 50 ft, both under ANSI B175.3. These remain HISTORICAL HT75 REFERENCE VALUES behind the HT70 inheritance statement, NOT measured or independently certified HT70 noise levels. The table does not explicitly print a dB(A) unit; no weighting/unit is silently supplied.
- HT75 telescopic lengths 7.7/8.7/12.5 ft and 14.6 lb mass are NOT HT70 dimensions. TI35/1998 directly gives approximately 180 cm without attachment,210 cm with attachment and 4.9 kg (10.8 lb). Its 12-inch cutting length overrides the older HT75 14-inch claim; both retained texts give 44 links. No chain-length correction or new bar compatibility is inferred.
- The older telescopic profiled shaft/support tubing/ball-bearing construction is excluded by the explicit HT70 RIGID SHAFT IN PROTECTIVE LINER exception. Exact historical FS specification/setting edition remains a separate dependency; the later Powerhead2004-03 values do not silently fill that historical gap.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
Source: TI 35/1998, p. 2 · TI 35/1998, p. 3 · TI 35/1998, p. 4 — TI35 sections1–3/6.1 compared with TI47/1996 sections1–3.
Referenced bulletin evidence: TI 47/1996, p. 2 · TI 47/1996, p. 3 — HT75 historical description/specifications and torque/servicing tables; explicit HT70 exceptions retained.
No additional parts-table entry added.
Service note · HT 70
HT 70: inherited historical torque table is not a rigid-shaft parts map
Keep joint and fastener identity; telescopic clamps are excluded and later oil-tank values are separate.
No exact-model IPL link: TI35/1998 delegates to HT75 with explicit rigid-shaft and stated-specification exceptions. TI47/1996 is the retained historical comparison, not proof of every intervening revision or physical interchange.
- TI47/1996 section 6.1 lists OIL TANK / GEAR HOUSING socket-head IS-DG5x12 at 2.5 Nm (1.8 ft.lb); CLAMP / POWER UNIT / SHAFT IS-M6x20 at 4.5 Nm (3.3 ft.lb); CLAMPING COLLAR / CARRYING RING IS-M6x14 at 4.5 Nm (3.3 ft.lb). These are historical HT75 table entries considered through TI35/1998 section 6.1, not a claim that every fastener/configuration is present on HT70.
- The LARGE and SMALL protective-tube clamp IS-M5x20 rows each give 3.0 Nm (2.2 ft.lb). They concern the TELESCOPIC ASSEMBLY and are NOT transferred to the HT70 rigid-shaft gearbox clamp. The 4.5 Nm POWER-UNIT joint is likewise not the gearbox joint.
- M8 SET SCREW / BAR FIXTURE has its torque in FOOTNOTE 1: medium-grade adhesive, example Loctite 243, and 19.5 Nm (14.4 ft.lb). It is not a blank/zero torque or the sprocket-cover nut. No replacement part number or all-edition thread identity is established.
- Later CombiTools2007-02 expressly assigns HT70 oil-tank IS-DG5x20 at 5.5 Nm and gearbox-cover IS-M5x25 at 6.5 Nm. Preserve the oil-tank FASTENER-LENGTH AND TORQUE DIFFERENCE from historical DG5x12/2.5 Nm; neither a serial cutoff nor an authorized conversion is supplied by these two sources.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 2 · TI 35/1998, p. 3 · TI 35/1998, p. 4 — TI35 section6.1 and historical TI47/1996 complete6.1 table; later torque comparison.
Referenced bulletin evidence: TI 47/1996, p. 2 · TI 47/1996, p. 3 — HT75 historical description/specifications and torque/servicing tables; explicit HT70 exceptions retained.
Later manual evidence: STIHL CombiTools (2007-02), section 4.1 torque table and footnotes10/11, PDF pages 1, 3, 5, 6, 7
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: older HT75 carburetor kit is not the HT70 service kit
Explicit HT70 carburetor and lubricant rows override a blanket same-as-HT75 interpretation.
No exact-model IPL link: TI35/1998 delegates to HT75 with explicit rigid-shaft and stated-specification exceptions. TI47/1996 is the retained historical comparison, not proof of every intervening revision or physical interchange.
- TI47/1996 section 5.2 lists carburetor-parts set 4226 007 1060 for Zama C1Q-S28A. TI35/1998 section 5.2 instead lists 4227 007 1060 for C1Q-S28C and C1Q-S41. These are DIFFERENT PART NUMBERS AND SUFFIXES, not a demonstrated supersession or universal C1Q repair kit. The generic shared-components statement does not erase this explicit HT70 row.
- TI47/1996 assigns 0781 120 6602 (40 g tube) to PROFILED SHAFT AND GEAR. TI35/1998 assigns that number to GEARBOX,0781 120 1109 (80 g tube) to DRIVE SHAFT, and 0781 120 1111 (225 g tube) to OIL SEALS. Keep model/edition/application distinctions; package masses are not assembly fill quantities.
- TI47/1996 section 5.1 delegates tools to FS75/80/85; TI35/1998 section 5.1 specifically says FS85. Neither table itself enumerates the tools. The already-reviewed later Components/Powerhead tool lists are not proof of an exact 1998 FS85 tool inventory. Historical tool/manual inventory remains actionable.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
Source: TI 35/1998, p. 2 · TI 35/1998, p. 3 · TI 35/1998, p. 4 — TI35 sections5.1–5.2 versus TI47/1996 sections5.1–5.2.
Referenced bulletin evidence: TI 47/1996, p. 2 · TI 47/1996, p. 3 — HT75 historical description/specifications and torque/servicing tables; explicit HT70 exceptions retained.
No additional parts-table entry added.
Service note · HT 70
HT 70: later CombiTools scope and attachment precautions
HT means the named HT family unless narrowed; owner precautions remain a separate source.
No exact-model IPL link: CombiTools 2007-02 explicitly names HT70 and assigns HT angle gear; this later edition is NOT proof of original 1998 configuration or universal attachment interchange.
- Later-source comparison: CombiTools 2007-02 cover names HT70; section 3 assigns it to HT angle gear (AG). Section 1 says HT includes HT70/HT75 unless a machine is singled out. These are later HT70 statements, NOT proof of exact 1998 equipment.
- Sections 1–3 name HT70 and map HT to AG, meaning ANGLE GEAR. The manual distinguishes WG worm gear and BG blade-drive gear. Shared procedure wording does not prove every listed machine uses the same orderable gearbox or allow importing adjacent KW/FS instructions into HT.
- Section 1 directs the illustrated parts list for installed positions and latest replacement numbers, and technical-information bulletins for intervening engineering changes. It delegates engine/components work to separate manuals. This is repair-source context, not a new part-number equivalence.
- Section 2 requires applicable local/country safety rules and the instruction manual whenever an engine is started during service. Gasoline is extremely flammable and can be explosive; no smoking, fire, flame or other heat near fuel; fuel work OUTDOORS ONLY; wipe spills immediately; always wear PROTECTIVE GLOVES when working on attachments. These retained precautions do not replace the exact HT70 owner manual, which remains a dependency.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 2 · TI 35/1998, p. 3 · TI 35/1998, p. 4 — CombiTools2007-02 complete introductory/safety context and HT assignment row.
Later manual evidence: STIHL CombiTools (2007-02), section CombiTools2007-02 complete introductory/safety context and HT assignment row, PDF pages 1, 3, 4, 5, 6, 7, 18
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: gearbox seating uses two different dimensions
Maximum22 mm shaft projection and a50 mm tube mark have different purposes; alignment precedes final tightening.
No exact-model IPL link: CombiTools 2007-02 explicitly names HT70 and assigns HT angle gear; this later edition is NOT proof of original 1998 configuration or universal attachment interchange.
- Later-source comparison: CombiTools 2007-02 cover names HT70; section 3 assigns it to HT angle gear (AG). Section 1 says HT includes HT70/HT75 unless a machine is singled out. These are later HT70 statements, NOT proof of exact 1998 equipment.
- Complete 7.1.4 HT ONLY: loosen the two illustrated gearbox screws; pull gearbox OR 30° ANGLE DRIVE (special accessory) off drive tube. The left column on printed 17 continues KW instructions from the previous page and is NOT HT procedure.
- Before installation check dimension a, illustrated SHAFT PROJECTION BEYOND DRIVE TUBE: NOT MORE THAN 22 mm. If necessary rotate shaft slowly until it can be pushed in to the right length. This is not a minimum projection or a cutting/shortening instruction.
- Edition comparison: Components HT2005-04 section10.1 explicitly specifies HT70 shaft projection a=17 mm using the SAME FIGURE936RA265, then delegates gearbox installation to CombiTools. CombiTools2007-02 gives a MAXIMUM22 mm for the shared HT installation check. The specific17 mm setting is within that maximum, but the maximum is NOT a new22 mm target or permission to pull a correctly seated shaft outward. No revision cutoff or supersession of the17 mm instruction is established.
- Mark the DRIVE TUBE at distance A=50 mm from its end. Push gearbox on AS FAR AS STOP, turning back and forth until square shaft end engages. Correct seating means HOUSING END REACHES OR COVERS THE MARK;22 mm and 50 mm are not alternative settings for the same dimension.
- With engine resting on MACHINE SUPPORT, screws face UP and sprocket cover is EXACTLY VERTICAL. Moderately tighten screws ALTERNATELY first, then final specified torque per 4.1. That table lacks a clearly HT70-tagged DRIVE-TUBE CLAMP row; see the separate torque-boundary note. Do not silently use an adjacent FS/KW value or claim this later manual independently specifies the historical 6.5 Nm clamp value.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 2 · TI 35/1998, p. 3 · TI 35/1998, p. 4 — CombiTools2007-02 complete7.1.4, drawing936RA265/093/091 and torque dependency4.1.
Later manual evidence: STIHL CombiTools (2007-02), section CombiTools2007-02 complete7.1.4, drawing936RA265/093/091 and torque dependency4.1, PDF pages 1, 3, 4, 5, 6, 7, 18 · STIHL Series 4137 Components HT (2005-04), section 10.1 exact HT70 shaft projection17 mm and CombiTools installation delegation; figure936RA265, PDF pages 1, 3, 48
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: gearbox torque rows require model footnotes
Oil-tank and cover values explicitly include HT70; friction-clutch screw and clamp values cannot be merged.
No exact-model IPL link: CombiTools 2007-02 explicitly names HT70 and assigns HT angle gear; this later edition is NOT proof of original 1998 configuration or universal attachment interchange.
- Later-source comparison: CombiTools 2007-02 cover names HT70; section 3 assigns it to HT angle gear (AG). Section 1 says HT includes HT70/HT75 unless a machine is singled out. These are later HT70 statements, NOT proof of exact 1998 equipment.
- Section 4.1 footnote 10 means HT70;11 means HT75. The two rows marked 10/11 are OIL TANK / GEARBOX HOUSING IS-DG5x20 at 5.5 Nm and GEARBOX COVER / GEAR HOUSING IS-M5x25 at 6.5 Nm. They are different joints. The historical oil-tank DG5x12/2.5 Nm comparison remains unresolved by this later table.
- FRICTION CLUTCH / GEARBOX collar screw IS-M5x6LI at 8.0 Nm carries 11/13, i.e. HT75 and HIGH-STRENGTH LOCTITE 272, NOT footnote 10. This table does not by itself assign that screw/torque to HT70 or authorize a retrofit; separately retained later clutch evidence is not erased.
- No row clearly assigns a DRIVE-TUBE CLAMP torque to HT70. Other gearbox/drive-tube rows carry FC75, FH75/HL45, FC85 or FS55 footnotes. The 7.1.4 reference to 4.1 therefore leaves a MODEL-MAPPING GAP; do not turn the HT70 COVER 6.5 Nm into a clamp specification merely because historical TI03/1997 used 6.5 Nm at both locations.
- For existing DG/P threads, turn screw COUNTERCLOCKWISE until it drops slightly into the existing thread, then tighten clockwise to specified torque using a torque wrench. Adhesive-secured screws are heated with a hot-air blower before release, with special care around plastic. Power screwdriver limit is P SCREWS IN POLYMER: MAXIMUM 500 rpm, not a machine engine speed or universal screw limit. No physical work or heating was performed.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 2 · TI 35/1998, p. 3 · TI 35/1998, p. 4 — CombiTools2007-02 complete applicable4.1 rows, footnotes and general threading notes.
Later manual evidence: STIHL CombiTools (2007-02), section CombiTools2007-02 complete applicable4.1 rows, footnotes and general threading notes, PDF pages 1, 3, 4, 5, 6, 7, 18
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: chain-oil delivery is a flow rate, not a gearbox fill
The later HT pump specification gives7.5±2.5 cm³/min without a stated test speed on this page.
No exact-model IPL link: CombiTools 2007-02 explicitly names HT70 and assigns HT angle gear; this later edition is NOT proof of original 1998 configuration or universal attachment interchange.
- Later-source comparison: CombiTools 2007-02 cover names HT70; section 3 assigns it to HT angle gear (AG). Section 1 says HT includes HT70/HT75 unless a machine is singled out. These are later HT70 statements, NOT proof of exact 1998 equipment.
- Section 4.2 HT CHAIN LUBRICATION describes a FULLY AUTOMATIC SPEED-CONTROLLED OIL PUMP WITH ROTARY PISTON. OIL DELIVERY RATE is 7.5±2.5 cm³/min. This is oil FLOW PER MINUTE, not oil-tank capacity, grease quantity, pump adjustment or a measured result.
- This specification page states NO TEST SPEED or measurement duration/setup. Do not fabricate a pass/fail test from the number alone or transfer it to the gearbox grease circuit. Detailed HT pump/gearbox sections and the lubrication troubleshooting context remain separately actionable.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 2 · TI 35/1998, p. 3 · TI 35/1998, p. 4 — CombiTools2007-02 complete4.2 chain-lubrication specification.
Later manual evidence: STIHL CombiTools (2007-02), section CombiTools2007-02 complete4.2 chain-lubrication specification, PDF pages 1, 3, 4, 5, 6, 7, 18
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: gearbox grease is a lifetime initial fill
The HT row specifies 8 g initially; the neighboring 5 g relubrication limits do not apply.
No exact-model IPL link: Later CombiTools 2007-02 HT-family guidance includes HT70 unless narrowed. Configuration/date branches must be identified on the actual gearbox; no original-1998 equipment, serial cutoff, retrofit or universal interchange is proved.
- Later-source comparison: CombiTools 2007-02 cover names HT70; section 3 assigns it to HT angle gear (AG). Section 1 says HT includes HT70/HT75 unless a machine is singled out. These are later HT70 statements, NOT proof of exact 1998 equipment.
- Section 4.3 row HT, HT75: type A, 8 g INITIAL FILL; relubrication column is a DASH; footnote 4 says LUBRICATED FOR LIFE. Type A means STIHL gear lubricant for BRUSHCUTTERS. The dash is not zero initial grease or a periodic top-up instruction; adjacent max. 5 g rows belong to other gearboxes.
- Section 7.4 fills the PINION RECESS with that brushcutter gear lubricant during reassembly. Section 11 lists 0781 120 1117 (80 g tube) and 0781 120 1118 (225 g tube); package masses are not fill quantities. Hedge-trimmer lubricant 0781 120 1109/1110 is a different table entry, not an interchangeable HT gear-fill instruction.
- The earlier TI35/1998 gearbox tube 0781 120 6602 remains historical evidence. This later table supplies NO SUPERSESSION for it. The 8 g gearbox fill is separate from chain oil, its oil tank, and the 7.5±2.5 cm³/min oil-delivery specification.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 2 · TI 35/1998, p. 3 · TI 35/1998, p. 4 — CombiTools2007-02 applicable4.3 and7.4 lubricant instruction;11 rows6/7.
Later manual evidence: STIHL CombiTools (2007-02), section CombiTools2007-02 applicable4.3 and7.4 lubricant instruction;11 rows6/7, PDF pages 1, 3, 4, 8, 25, 74
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: chain-oil faults are not all pump failures
Investigate other causes before disassembling the oil pump; retain each symptom-specific remedy.
No exact-model IPL link: Later CombiTools 2007-02 HT-family guidance includes HT70 unless narrowed. Configuration/date branches must be identified on the actual gearbox; no original-1998 equipment, serial cutoff, retrofit or universal interchange is proved.
- Later-source comparison: CombiTools 2007-02 cover names HT70; section 3 assigns it to HT angle gear (AG). Section 1 says HT includes HT70/HT75 unless a machine is singled out. These are later HT70 statements, NOT proof of exact 1998 equipment.
- Complete 5.2 says ALWAYS investigate other possible faults BEFORE oil-pump disassembly. NO OIL: empty tank → fill; blocked guide-bar oil inlet → clean; blocked gear-housing strainer → clean or replace; worn flanks on pump piston and/or shaft → new oil pump and/or shaft.
- LOSING CHAIN OIL: worn pump-housing bore → new oil pump and/or shaft. TOO LITTLE OIL: worn control screw and/or piston control edge → new control screw and/or pump; worn pump-housing bore → new pump; blocked vent hole → clean vent hole. Preserve the different replacement wording for leakage versus low delivery; do not silently consolidate it.
- The control-screw row is the wording of this troubleshooting table, not a user oil-rate adjustment procedure or proof that every HT70 variant has a separately orderable control screw. No screw setting, test speed, part number or quantitative test method is supplied here.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 2 · TI 35/1998, p. 3 · TI 35/1998, p. 4 — CombiTools2007-02 complete5.2 HT chain lubrication troubleshooting.
Later manual evidence: STIHL CombiTools (2007-02), section CombiTools2007-02 complete5.2 HT chain lubrication troubleshooting, PDF pages 1, 3, 4, 13
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: gearbox opening depends on clutch and tank version
Friction-clutch and E-clip sprockets have different retainers; later tanks can stay fitted during opening.
No exact-model IPL link: Later CombiTools 2007-02 HT-family guidance includes HT70 unless narrowed. Configuration/date branches must be identified on the actual gearbox; no original-1998 equipment, serial cutoff, retrofit or universal interchange is proved.
- Later-source comparison: CombiTools 2007-02 cover names HT70; section 3 assigns it to HT angle gear (AG). Section 1 says HT includes HT70/HT75 unless a machine is singled out. These are later HT70 statements, NOT proof of exact 1998 equipment.
- Section 7.4 first removes the cutting head from the drive tube, sprocket cover, bar and chain. WITH FRICTION CLUTCH: hold the pinion square socket fully engaged with the illustrated modified T-handle; clamp gearbox in a vise; loosen and remove collar screw CLOCKWISE. Remove cup springs, washers and sprocket, preserve assembly sequence, replace damaged cup springs. WITHOUT FRICTION CLUTCH: remove E-clip, washers and sprocket instead. No clutch retrofit or all-HT70 fitment is inferred.
- Drawing 227RA111 shows a 100 mm (4 inch) shortened tool and a 25 mm (1 inch) end segment; the cross-section illustration marks 5 mm (0.196 inch). Text permits a standard 5 mm square-section T-handle or modified 5910 890 2410 5 mm hex Allen key. Use the actual illustrated profile, not an unmodified hex bit forced into a square socket. No tool was modified.
- Text says machines UP TO DECEMBER 2002 require tank removal; heading HT FROM 12/2002 and following text say the newer tank can remain fitted. These overlapping month labels are retained, NOT converted to an invented serial cutoff. Identify the physical version. Pry the shaft ring off, remove all cover screws and cover, then lift out pinion.
- Use circlip pliers 0811 611 8200 to remove the illustrated pinion circlip and bearings. Lift output shaft out and pull off its two bearings. Adjacent section 7.5 BC heating instructions are NOT HT gearbox instructions.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 2 · TI 35/1998, p. 3 · TI 35/1998, p. 4 — CombiTools2007-02 complete7.4 disassembly and version boundaries;227RA111.
Later manual evidence: STIHL CombiTools (2007-02), section CombiTools2007-02 complete7.4 disassembly and version boundaries;227RA111, PDF pages 1, 3, 4, 24, 25, 27
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: gearbox bearings and sealing faces have distinct locations
609 goes on the output shaft pinion end; cover screws and drive-tube clamp screws are not one tightening step.
No exact-model IPL link: Later CombiTools 2007-02 HT-family guidance includes HT70 unless narrowed. Configuration/date branches must be identified on the actual gearbox; no original-1998 equipment, serial cutoff, retrofit or universal interchange is proved.
- Later-source comparison: CombiTools 2007-02 cover names HT70; section 3 assigns it to HT angle gear (AG). Section 1 says HT includes HT70/HT75 unless a machine is singled out. These are later HT70 statements, NOT proof of exact 1998 equipment.
- Section 7.4 presses bearing 609 onto the PINION END of the output shaft, then bearing 6001 onto that shaft as illustrated in 227RA021; place shaft in housing. Press the pinion bearings on and fit their circlip (227RA023). Bearing designations are retained, not expanded into unsupported seal/clearance suffixes or STIHL replacement numbers.
- Fill the housing pinion recess with STIHL brushcutter gear lubricant and install pinion. Apply a THIN COATING of Dirko to the illustrated BLACK-MARKED mating surface, then fit cover. Tighten cover screws per 4.1 EXCEPT THE CLAMP SCREWS indicated in 936RA195. The HT70 cover value is 6.5 Nm; it does not resolve the separate drive-tube clamp mapping gap.
- Press ring onto output shaft; on machines up to December 2002 reinstall tank. WITHOUT friction clutch fit washers, sprocket and E-clip. WITH friction clutch fit washers, sprocket and cup springs in the illustrated sequence (936RA196), then collar screw with Loctite 272. Tighten COUNTERCLOCKWISE with pinion held by the modified T-handle, then perform 7.4.1 slip check. Do not replace the illustrated spring-stack orientation with a guessed stack.
- The procedure references 4.1 for collar-screw torque; that table gives 8.0 Nm with HT75 footnote 11, NOT HT70 footnote 10. Preserve this MODEL-MAPPING GAP for an HT70 friction-clutch variant. The 8.0 Nm fastener value is not the 5–14 Nm slip-test range. Refit bar, chain and cover; mount gearbox using 7.1.4.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 2 · TI 35/1998, p. 3 · TI 35/1998, p. 4 — CombiTools2007-02 complete7.4 assembly;4.1 model-footnote boundary.
Later manual evidence: STIHL CombiTools (2007-02), section CombiTools2007-02 complete7.4 assembly;4.1 model-footnote boundary, PDF pages 1, 3, 4, 5, 6, 7, 25, 26
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: friction-clutch slip torque has a defined locking fixture
The 5–14 Nm check measures slip at the pinion; it is not a screw-tightening specification.
No exact-model IPL link: Later CombiTools 2007-02 HT-family guidance includes HT70 unless narrowed. Configuration/date branches must be identified on the actual gearbox; no original-1998 equipment, serial cutoff, retrofit or universal interchange is proved.
- Later-source comparison: CombiTools 2007-02 cover names HT70; section 3 assigns it to HT angle gear (AG). Section 1 says HT includes HT70/HT75 unless a machine is singled out. These are later HT70 statements, NOT proof of exact 1998 equipment.
- Section 7.4.1 is for a gearbox WITH FRICTION CLUTCH. Remove gearbox from drive tube, clamp its HOOK in a vise and remove the COMPLETE CHAIN TENSIONER. Slide the guide-bar tail toward the sprocket so the TOP PART OF ITS TAIL engages between two teeth (227RA107). Fit washers with 8.4 mm inside diameter and TOTAL 6 mm thickness, OR the sprocket-cover ring, over bar stud; tighten nut firmly to lock sprocket.
- Use a standard 5 mm SQUARE-SECTION torque-wrench bit or modify STIHL 5910 890 0102 5 mm hex bit to the illustrated profile. Check clutch slip torque is BETWEEN 5 AND 14 Nm. The drawing shows rotation in both directions; no test speed is specified. This is not an engine clutch engagement-speed test or permission to substitute a hex profile unchanged.
- If outside the range, replace WASHERS, CHAIN SPROCKET AND CUP SPRINGS; reassemble in reverse sequence. The source does not prescribe compensating with collar-screw preload or increasing its tightening torque. Tool modification, fixture loading and hardware testing were not performed.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 2 · TI 35/1998, p. 3 · TI 35/1998, p. 4 — CombiTools2007-02 complete7.4.1 including continuation on printed26.
Later manual evidence: STIHL CombiTools (2007-02), section CombiTools2007-02 complete7.4.1 including continuation on printed26, PDF pages 1, 3, 4, 26, 27
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: oil-tank removal follows the installed tank version
Older tanks swing away; the later tank has a separately inspected gasket.
No exact-model IPL link: Later CombiTools 2007-02 HT-family guidance includes HT70 unless narrowed. Configuration/date branches must be identified on the actual gearbox; no original-1998 equipment, serial cutoff, retrofit or universal interchange is proved.
- Later-source comparison: CombiTools 2007-02 cover names HT70; section 3 assigns it to HT angle gear (AG). Section 1 says HT includes HT70/HT75 unless a machine is singled out. These are later HT70 statements, NOT proof of exact 1998 equipment.
- Section 9.6.1 UP TO 2002 removes filler cap with retainer, collects oil in a clean container or disposes of it properly, removes tank screws, then swings tank COUNTERCLOCKWISE and lifts it away. Reassembly reverses removal. Adjacent 9.5.5 gearbox-sleeve instructions are not HT oil-tank work.
- Section 9.6.2 FROM 2002 first cleans cutting head thoroughly, opens cap and collects/disposes of oil, removes screws and tank, inspects gasket and renews if necessary. Disconnect cap if necessary; reverse sequence for assembly. The headings use YEAR-ONLY wording whereas 7.4 says December 2002. Keep that difference and identify physical version; no precise serial change or universal tank interchange is established.
- For gearbox disassembly, 7.4 permits the newer tank to remain fitted, but 9.6.4 oil-pump removal still requires its tank removed. Do not turn the former permission into a pump-removal shortcut. Historical DG5x12/2.5 Nm versus later DG5x20/5.5 Nm oil-tank fastener/torque evidence remains separate.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 2 · TI 35/1998, p. 3 · TI 35/1998, p. 4 — CombiTools2007-02 complete9.6.1/9.6.2 with7.4 and9.6.4 dependencies.
Referenced bulletin evidence: TI 47/1996, p. 2 · TI 47/1996, p. 3 — HT75 historical description/specifications and torque/servicing tables; explicit HT70 exceptions retained.
Later manual evidence: STIHL CombiTools (2007-02), section CombiTools2007-02 complete9.6.1/9.6.2 with7.4 and9.6.4 dependencies, PDF pages 1, 3, 4, 5, 6, 7, 24, 70, 71
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: early oil-pump extraction uses a screw, not the later puller stack
The up-to-2002 branch retains its rubber buffer, strainer and groove orientation.
No exact-model IPL link: Later CombiTools 2007-02 HT-family guidance includes HT70 unless narrowed. Configuration/date branches must be identified on the actual gearbox; no original-1998 equipment, serial cutoff, retrofit or universal interchange is proved.
- Later-source comparison: CombiTools 2007-02 cover names HT70; section 3 assigns it to HT angle gear (AG). Section 1 says HT includes HT70/HT75 unless a machine is singled out. These are later HT70 statements, NOT proof of exact 1998 equipment.
- Section 9.6.3 UP TO 2002: remove oil tank under 9.6.1, pry rubber buffer out of gearbox housing, remove strainer. Screw an M5 screw AT LEAST 25 mm LONG into pump and pull pump out using the screw. Clean oil ports.
- Fit pump according to the symbol beside bore: its GROOVE POINTS TOWARD DRIVE-TUBE MOUNTING. Screw M5 screw into pump, press pump home, then remove screw and reverse remaining assembly. This branch supplies NO 4 mm DEPTH specification; do not import that dimension from 9.6.4 without matching the later housing.
- This is a later manual describing an earlier configuration, not proof of original 1998 installed components. The tank/pump date headings do not supply exact serial applicability or replacement-part interchange.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 2 · TI 35/1998, p. 3 · TI 35/1998, p. 4 — CombiTools2007-02 complete9.6.3 earlier HT oil-pump branch.
Later manual evidence: STIHL CombiTools (2007-02), section CombiTools2007-02 complete9.6.3 earlier HT oil-pump branch, PDF pages 1, 3, 4, 70, 71
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: later oil pump uses a guided puller and illustrated 4 mm seating
The stub must both retain the strainer correctly and seal tank to gearbox.
No exact-model IPL link: Later CombiTools 2007-02 HT-family guidance includes HT70 unless narrowed. Configuration/date branches must be identified on the actual gearbox; no original-1998 equipment, serial cutoff, retrofit or universal interchange is proved.
- Later-source comparison: CombiTools 2007-02 cover names HT70; section 3 assigns it to HT angle gear (AG). Section 1 says HT includes HT70/HT75 unless a machine is singled out. These are later HT70 statements, NOT proof of exact 1998 equipment.
- Section 9.6.4 FROM 2002: remove tank under 9.6.2, pull strainer from stub and pry stub from gearbox housing. Screw an M5 threaded rod into pump AS FAR AS STOP. Slip guide 1123 893 7700 and washer over rod; fit M5 nut and turn it CLOCKWISE to pull pump out. Unscrew rod afterwards. This is not the earlier bare-screw pull procedure.
- Clean oil ports. Screw M5 screw into pump, position it with GROOVE TOWARD DRIVE-TUBE MOUNTING and press home until illustrated distance a=4 mm (936RA138). The dimension is the pump seating distance shown in that cross-section, not screw engagement, pump stroke or a chain-oil adjustment. Remove M5 screw.
- Fit stub and strainer; verify strainer is properly seated IN THE STUB and stub SEALS OIL TANK AGAINST GEARBOX HOUSING. Reverse remaining assembly. No tolerance, serial boundary or pump part number is provided by this section; year-only branch wording remains distinct from 7.4 December wording.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 2 · TI 35/1998, p. 3 · TI 35/1998, p. 4 — CombiTools2007-02 complete9.6.4 including printed71 continuation.
Later manual evidence: STIHL CombiTools (2007-02), section CombiTools2007-02 complete9.6.4 including printed71 continuation, PDF pages 1, 3, 4, 70, 71, 72
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: chain-tensioner removal precedes the clutch-slip fixture
Keep thrust pad, spur gear, slide and cover distinct during the documented strip-down.
No exact-model IPL link: Later CombiTools 2007-02 HT-family guidance includes HT70 unless narrowed. Configuration/date branches must be identified on the actual gearbox; no original-1998 equipment, serial cutoff, retrofit or universal interchange is proved.
- Later-source comparison: CombiTools 2007-02 cover names HT70; section 3 assigns it to HT angle gear (AG). Section 1 says HT includes HT70/HT75 unless a machine is singled out. These are later HT70 statements, NOT proof of exact 1998 equipment.
- Complete 9.6.5 removes chain and bar, then COMPLETE CHAIN TENSIONER from gearbox. Remove THRUST PAD from tensioning screw, pull SPUR GEAR out of cover, unwind tensioning screw from TENSIONER SLIDE and remove slide, then pull screw from COVER. Reassemble in reverse sequence.
- The complete-unit removal is also explicitly required for the 7.4.1 guide-bar locking fixture. Neither section supplies a replacement tensioner part number, interchange statement or a new screw torque. Do not infer chain-tension adjustment values from this disassembly sequence.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 2 · TI 35/1998, p. 3 · TI 35/1998, p. 4 — CombiTools2007-02 complete9.6.5 and7.4.1 dependency.
Later manual evidence: STIHL CombiTools (2007-02), section CombiTools2007-02 complete9.6.5 and7.4.1 dependency, PDF pages 1, 3, 4, 26, 72
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: later tool table is not a complete HT-specific kit
Model-specific procedure tools are absent from the general table, and one remark has no row marker.
No exact-model IPL link: Later CombiTools 2007-02 HT-family guidance includes HT70 unless narrowed. Configuration/date branches must be identified on the actual gearbox; no original-1998 equipment, serial cutoff, retrofit or universal interchange is proved.
- Later-source comparison: CombiTools 2007-02 cover names HT70; section 3 assigns it to HT angle gear (AG). Section 1 says HT includes HT70/HT75 unless a machine is singled out. These are later HT70 statements, NOT proof of exact 1998 equipment.
- Section 10 lists puller 5910 890 4400 with jaws 0000 893 3700 for gearbox oil seals; press arbor 4119 893 7200 for ball bearings; assembly drift 1111 893 4700 for needle sleeves. These are MULTI-MODEL MANUAL applications, not proof that each operation/component exists in every HT70 gearbox.
- Torque wrenches 5910 890 0301 and 5910 890 0302 cover 0.5–18 Nm; 5910 890 0311 and 5910 890 0312 cover 6–80 Nm. The latter range does NOT cover the 5 Nm lower slip-test bound. Table also lists T27x125 socket 0812 542 2104 for IS screws and QI-T27x150 T-handle 5910 890 2400 for all IS screws.
- Remark 1 requires a torque wrench when tightening DG/P screws; remark 2 says optical/acoustic signal. Remark 3 says DG/P screws: FOR RELEASING ONLY, but no visible row carries marker 3. Retain this UNBOUND FOOTNOTE rather than silently assigning it to a particular tool.
- The table omits the 7.4 modified T-handle 5910 890 2410, pliers 0811 611 8200, slip-test bit 5910 890 0102 and 9.6.4 guide 1123 893 7700. Their procedure citations still apply conditionally. This later list does not establish the historical FS85 tool inventory delegated by TI35/1998.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 2 · TI 35/1998, p. 3 · TI 35/1998, p. 4 — CombiTools2007-02 complete10 table/remarks compared with7.4/7.4.1/9.6.4.
Later manual evidence: STIHL CombiTools (2007-02), section CombiTools2007-02 complete10 table/remarks compared with7.4/7.4.1/9.6.4, PDF pages 1, 3, 4, 24, 25, 27, 71, 73
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: servicing aids retain application and edition limits
Neither generic lubricant rows nor the split-boom section override specific HT gearbox instructions.
No exact-model IPL link: Later CombiTools 2007-02 HT-family guidance includes HT70 unless narrowed. Configuration/date branches must be identified on the actual gearbox; no original-1998 equipment, serial cutoff, retrofit or universal interchange is proved.
- Later-source comparison: CombiTools 2007-02 cover names HT70; section 3 assigns it to HT angle gear (AG). Section 1 says HT includes HT70/HT75 unless a machine is singled out. These are later HT70 statements, NOT proof of exact 1998 equipment.
- Section 11: lubricating grease 0781 120 1111 (225 g) is listed for oil seals, oil-pump drive and sprocket bearing. Dirko RED 0783 830 2000 (90 g) is for gearbox mating faces, temperature-resistant −50°C to +250°C; this range is MATERIAL RATING, not an assembly heating instruction. Cleaning faces uses commercial solvent-based degreasant WITHOUT CHLORINATED OR HALOGENATED HYDROCARBONS; its part-number cell is blank.
- Gear-lubricant rows list hedge-trimmer 0781 120 1109 (80 g)/0781 120 1110 (225 g) and brushcutter 0781 120 1117 (80 g)/0781 120 1118 (225 g), both with generic gearbox/drive-shaft application text. HT-specific 4.3 and 7.4 select BRUSHCUTTER lubricant for the gearbox; generic application labels do not prove interchange.
- Press Fluid OH723 0781 957 9000 is for handle hose; special lubricant 0781 417 1315 is for rope-rotor bearing bore and rewind springs; resin solvent 0782 420 1002 (300 ml) is for cutting blades. These multi-model rows are not proof all uses apply to the HT70 gearbox. Section 7.4 specifies LOCTITE 272 and refers to 11, but section 11 DOES NOT LIST IT; preserve the missing entry without inventing a vendor order number.
- Section 6 explicitly concerns SPLIT DRIVE TUBES/COMBITOOLS and references gearbox sections 7.1.1/7.1.3, NOT HT 7.1.4. Its 20±0.5 mm liner recess, approximately 50°C sleeve heating, handle-hose treatment and blue-shaft replacement context are NOT transferred to historical HT70 rigid-shaft geometry. Reviewed as outside this model-specific scope, not silently imported.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 2 · TI 35/1998, p. 3 · TI 35/1998, p. 4 — CombiTools2007-02 complete11,6 scope exclusion and7.4 adhesive-reference omission.
Later manual evidence: STIHL CombiTools (2007-02), section CombiTools2007-02 complete11,6 scope exclusion and7.4 adhesive-reference omission, PDF pages 1, 3, 4, 8, 15, 16, 25, 26, 74
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: the available FS manual is a later, differently scoped edition
The June 2004 manual does not establish the FS manual delegated in 1998.
No exact-model IPL link: Exact historical 1998 manual/tool editions are not established. Later explicitly named HT70 rows are comparison evidence only; no original-1998 equipment, serial cutoff, retrofit, supersession or universal interchange is proved.
- TI35/1998 section6.1 delegates HT70 servicing to the FS75/80/85/FC75/HL75 manual and explicitly says that edition lacks carburetor-servicing and troubleshooting chapters. Available Components4137, edition2004-06, DOES include those chapters. Its cover and introduction cover FC75/85, FH75, FS75/80/85, HL75, KM85 and KW85 (cover also SP81), NOT HT70. Its common-procedure rule applies within its named model set, not every Series4137 machine.
- The retained archive PDF/header inventory and STIHL service documentation document index identify the later RA_394 manual, not an established exact historical FS75/80/85/FC75/HL75 edition. This is a BOUNDED SOURCE GAP, not universal absence. Do not copy later FS shaft geometry, handles or torque rows into HT70 merely because the 1998 TI referred to an older FS manual.
- Later FS section11 lists assembly stand 5910 890 3100, while its introduction prints 5910 893 3100; both cite clamp 5910 890 8800. The 2012 tool handbook instead lists 5910 890 3101. These are distinct source readings, NOT a documented supersession chain. The later FS table also lists service tool 4126 893 4900 for INSTALLING AV rubber, while the 2012 HT/FS lists describe REMOVING it; retain the application wording difference.
- FS2004-06 section11 footnote4 restricts T-handle 5910 890 2400 to releasing/removing DG/P screws. The T27 socket row requires a torque wrench for tightening; wrench alternatives 5910 890 0302/0312 are explicitly optical/acoustic versions. A generic later tool-list description does not cancel these procedure restrictions.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 2 · TI 35/1998, p. 3 · TI 35/1998, p. 4 — TI35/1998 sections5.1/6.1 dependency comparison: cover, contents, introduction and complete section11.
Later manual evidence: STIHL Components4137 FC/FH/FS/HL/KM/KW (2004-06), section cover, contents, introduction and complete section11, PDF pages 1, 2, 3, 67 · STIHL Special Tools Manual (2012-01), section HT70/75 and FS75/80/85 complete model tool lists, PDF pages 1, 78, 79, 89, 90
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: 2011 carburetor settings require the exact carburetor
HT70/75 rows distinguish two-screw, LD and limiter-cap carburetors; FS-only rows are not inherited.
No exact-model IPL link: Exact historical 1998 manual/tool editions are not established. Later explicitly named HT70 rows are comparison evidence only; no original-1998 equipment, serial cutoff, retrofit, supersession or universal interchange is proved.
- Testing and Setting Data, 2011-07 USA, PDF30 explicitly groups HT70/75. For C1Q-S28/S41 the no-limiter H cell is a DASH, L is 1 turn (16/16); for C1Q-S45/S56 the merged setting is LD=2. Dashes are not zero turns and LD is not a second H/L pair. The table omits the S28C suffix present in the historical TI carburetor-kit row; do not silently equate every suffix.
- For C1Q-S63/S69 the H limiter-cap column has a cap symbol and L has a dash. In the crossed-cap/no-limiter H/L columns the settings are 1½ and 1 turns (24/16,16/16); the adjacent capped H/L settings are ¾ and 1 turns (12/16,16/16). Keep the two pairs separate; the pictograms are part of the evidence. This compact table is not the full limiter-removal, tuning or cap-seating procedure.
- PDF14 groups FS75/80/85, FC75/85 and KW85, not HT70. It additionally lists WT-447, C1Q-S69A, S78 and S80. Their presence there does NOT prove HT70 fitment or permit importing those settings. The explicit HT70 row takes precedence over a blanket extrapolation from the 1998 FS reference; no carburetor interchange or serial range is supplied.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 2 · TI 35/1998, p. 3 · TI 35/1998, p. 4 — TI35/1998 sections5.1/6.1 dependency comparison: complete HT70/75 carburetor branches and FS comparison boundary.
Later manual evidence: STIHL Testing and Setting Data USA (2011-07), section complete HT70/75 carburetor branches and FS comparison boundary, PDF pages 14, 30
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: 2011 setting data is not an original-1998 specification
The HT row retains its own speed, ignition and torque cells, with source-label limits.
No exact-model IPL link: Exact historical 1998 manual/tool editions are not established. Later explicitly named HT70 rows are comparison evidence only; no original-1998 equipment, serial cutoff, retrofit, supersession or universal interchange is proved.
- PDF30 HT70/75 gives 25.4 cm³ (1.55 cu.in.), ignition module/flywheel gap 0.30 mm (+0.15/−0.15), equivalent printed 0.012 inch (+0.006/−0.006), plugs Bosch WSR6F or NGK BPMR7A, electrode gap 0.5 mm (0.02 inch), nL=2800/min and nR=10500/min. These are later reference values, not measured machine condition or proof of original1998 configuration.
- The FS/FC/KW comparison on PDF14 has a 9700–11300/min nR range, with a separately printed 10500/min C1Q-S69A line. Do not substitute the FS range for the explicit HT10500/min cell. The table alone supplies no complete running-test setup or adjustment sequence.
- The HT row has three populated torque cells: 9 Nm/6.5 lbf.ft., 26 Nm/19 lbf.ft. and 14 Nm/10 lbf.ft.; the corresponding FS row prints 14 Nm/10.5 lbf.ft. for the last pair. Preserve the differing printed imperial values, not an invented correction. These columns use pictograms, not textual fastener names; this note retains their source positions without using them to resolve the earlier powerhead torque-label conflict or assigning them to an unspecified screw. Blank torque/valve-clearance cells are NOT zero values.
- This setting sheet prints series4137 beside HT70/75, whereas TI35/1998 and the 2012 tools index print4138. Preserve document-specific identities; neither label establishes a new physical variant or merges catalog identities.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 2 · TI 35/1998, p. 3 · TI 35/1998, p. 4 — TI35/1998 sections5.1/6.1 dependency comparison: HT70/75 non-carburetor cells, FS comparison and pictogram limitations.
Later manual evidence: STIHL Testing and Setting Data USA (2011-07), section HT70/75 non-carburetor cells, FS comparison and pictogram limitations, PDF pages 14, 30 · STIHL Special Tools Manual (2012-01), section HT70/75 series4138 identity, PDF pages 1, 6, 78, 79
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: 2012 HT tools separate testing from repair procedures
The explicitly named HT70/75 tool list supplies references, not test pressures or hardware authorization.
No exact-model IPL link: Exact historical 1998 manual/tool editions are not established. Later explicitly named HT70 rows are comparison evidence only; no original-1998 equipment, serial cutoff, retrofit, supersession or universal interchange is proved.
- Special Tools2012-01 pages78–79 lists HT70/75 (4138): pump 0000 850 1300 for engine/carburetor leakage checks; exhaust sealing plate 0000 855 8106; carburetor-test nipples 0000 855 9200 and 0000 855 9201; testing tool kit 0000 890 1701. Hose 1110 141 8600 is 135 mm (5 5/16 inch); flange 1128 850 4200 and clamping plate 5910 850 2100 have no application text in these rows. Blank descriptions do not establish a complete fixture.
- Tachometers EDT7 5910 850 1008 and EDT8 5910 850 1009, ignition testers ZAT4 5910 850 4503 and ZAT3 5910 850 4520 are listed. Setting gauge 4118 890 6400 explicitly sets module/flywheel air gap; 4118 890 6401 is also listed simply as a setting gauge. Do not infer a different numeric gap, shared gauge thickness or test connection from an unlabeled application.
- This later list does not establish replacements for older vacuum pump 0000 850 3501 or tester 1106 850 2905 in the FS2004-06 table. It does not supply pressure/vacuum limits, kit contents, tester wiring, ignition timing or proof a test was performed; use the separately cited exact-model procedures.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 2 · TI 35/1998, p. 3 · TI 35/1998, p. 4 — TI35/1998 sections5.1/6.1 dependency comparison: complete HT70/75 testing and setting tool subset.
Later manual evidence: STIHL Special Tools Manual (2012-01), section complete HT70/75 testing and setting tool subset, PDF pages 1, 78, 79 · STIHL Components4137 FC/FH/FS/HL/KM/KW (2004-06), section older testing-tool comparison only, PDF pages 1, 3, 67
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: 2012 engine-tool rows retain side and operation
The named tools do not make every generic operation interchangeable.
No exact-model IPL link: Exact historical 1998 manual/tool editions are not established. Later explicitly named HT70 rows are comparison evidence only; no original-1998 equipment, serial cutoff, retrofit, supersession or universal interchange is proved.
- HT70/75 list pages78–79: piston-ring strap 0000 893 2600; crankshaft locking strip 0000 893 5903; oil-seal jaws 0000 893 3706 (profiles3.1 and4) with oil-seal puller 5910 890 4400; piston assembly block 1108 893 4800; piston-pin drift 1114 893 4700; hookless piston snap-ring tool size8 5910 890 2208. Sleeve 5910 893 1708 has no operation in this model list; its presence alone does not complete a snap-ring-tool setup.
- Starter-side seal press sleeve 1115 893 4600 and protective installing sleeve 4112 893 2400 are distinct from clutch-side seal press sleeve 4112 893 2401. Ball-bearing press arbor 4119 893 7200 is distinct from clutch-housing bearing arbor 1118 893 7200. Sleeves 5910 893 1701 and 5910 893 1702 are listed for removing ball bearings. The list does not provide insertion depth, heating temperature, seal orientation or bearing suffix.
- Flywheel puller 4133 893 0800, crankshaft-removal service tool ZS 5910 007 2201, and crankshaft installing tool 5910 890 2202 retain different jobs. Clutch-drum drift 1108 893 4700 is not the piston-pin drift. AV tool 4126 893 4900 is described as REMOVING rubber from the AV sleeve, unlike the later FS manual table’s INSTALLING wording; no undocumented reversible-use assumption replaces that discrepancy.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 2 · TI 35/1998, p. 3 · TI 35/1998, p. 4 — TI35/1998 sections5.1/6.1 dependency comparison: complete HT70/75 engine, seal and bearing tool subset.
Later manual evidence: STIHL Special Tools Manual (2012-01), section complete HT70/75 engine, seal and bearing tool subset, PDF pages 1, 78, 79 · STIHL Components4137 FC/FH/FS/HL/KM/KW (2004-06), section section11 AV-tool wording comparison, PDF pages 1, 67
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: 2012 HT and FS tool inventories are not identical
Shared historical tooling does not make later model lists a universal kit.
No exact-model IPL link: Exact historical 1998 manual/tool editions are not established. Later explicitly named HT70 rows are comparison evidence only; no original-1998 equipment, serial cutoff, retrofit, supersession or universal interchange is proved.
- HT70/75 pages78–79 lists T27x125 socket 0812 542 2104 with torque-wrench tightening instruction, external-circlip pliers A10-flat 0816 610 1495, T20 handle-molding screwdriver 5910 890 2301, and T27x150 screwdriver 5910 890 2400 for IS screws. Torque wrenches 5910 890 0301 and optical/acoustic 5910 890 0302 cover0.5–18 Nm; 5910 890 0311 covers6–80 Nm. This HT list DOES NOT list 5910 890 0312, although the FS list does; omission is not a prohibition or proof of incompatibility.
- HT rows also list powerhead clamping plate 5910 890 2100 and assembly stand 5910 890 3101, M8 stud puller 5910 893 0501, 13 mm clutch/carrier socket 5910 893 5608, drive-tube-plug hook 5910 890 2800 and pickup-body hook 5910 893 8800. Distinguish plate 5910 890 2100 from the separately listed 5910 850 2100. Hook2800’s drive-tube-plug application differs from the FS2004-06 table’s clutch-spring application; use procedure-specific instructions.
- Full FS75/80/80R/85/85R/85T/85RX list spans pages89–90. Compared by printed part number, FS adds wrench 5910 890 0312 and drilled washer 5910 893 2102; HT adds oil-pump guide 1123 894 7700 and M8 stud puller 5910 893 0501. Remaining listed part numbers coincide. These are 2012 inventory differences, not new1998 applicability, substitute approval or a required complete purchase list. The first six lines on page89 belong to the PRECEDING model and are excluded; the six lines atop page90 continue this FS list and are included.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 2 · TI 35/1998, p. 3 · TI 35/1998, p. 4 — TI35/1998 sections5.1/6.1 dependency comparison: complete HT and FS model lists and exact part-number set comparison.
Later manual evidence: STIHL Special Tools Manual (2012-01), section complete HT and FS model lists and exact part-number set comparison, PDF pages 1, 6, 78, 79, 89, 90 · STIHL Components4137 FC/FH/FS/HL/KM/KW (2004-06), section fixture, hook and DG/P restriction comparisons, PDF pages 1, 3, 67
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HT 70
HT 70: oil-pump guide numbers differ between sources
1123 894 7700 and 1123 893 7700 remain separate printed claims.
No exact-model IPL link: Exact historical 1998 manual/tool editions are not established. Later explicitly named HT70 rows are comparison evidence only; no original-1998 equipment, serial cutoff, retrofit, supersession or universal interchange is proved.
- Special Tools2012-01 HT70/75 list page79 prints guide 1123 894 7700 for removing the oil pump. Part3 page185 repeats EXACTLY 1123 894 7700, shows the cylindrical guide (901SW069 GM) and includes series4138 among1123,1130,4138,4182,4810. This independently corroborates that handbook reading, not universal machine fitment.
- CombiTools2007-02 section9.6.4 instead prints 1123 893 7700 in the later HT pump-extraction stack. Keep both source numbers. Neither reviewed entry supplies a supersession, correction notice or interchange statement; do not silently repair the middle digits or claim either guide was physically verified. The later tank/pump configuration and procedural limits still apply.
- Historical HT 70 only: TI35/1998 provides the repair-source context, not blanket inheritance of later HT 75 revisions. Printed series 4138 and catalog 4137 remain separate identities. No hardware operation was performed.
TI dependency: TI 35/1998, p. 2 · TI 35/1998, p. 3 · TI 35/1998, p. 4 — TI35/1998 sections5.1/6.1 dependency comparison: HT guide row and numerical guide detail901SW069.
Later manual evidence: STIHL Special Tools Manual (2012-01), section HT guide row and numerical guide detail901SW069, PDF pages 1, 78, 79, 185 · STIHL CombiTools (2007-02), section section9.6.4 printed pump guide number, PDF pages 1, 71
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Full text
Page 1 of 4
Text of page 1 — search, copy, screen readers
Technical Information==============================================35.98 New HT 70 Pole Pruner - Series 4138 The new HT 70 lightweight pole pruner features a rigid shaft and is the latest addition to this new product group. The unit comes equipped with a 0.9kW/1.2bhp engine and weighs only 4.9kg (10.8lb). Apart from the rigid shaft, the HT 70 is otherwise the same as the HT 75. Applications are identical to those of the HT 75. The shorter, rigid shaft makes the HT 70 particu- larly suitable for cutting at lower heights.
Page 2 of 4
Text of page 2 — search, copy, screen readers
35.98 - 2 &RQWHQWV 1. Technical description 2. Specifications 3. Cutting attachment 4. Special accessories for user 5. Service accessories 6. Repairs 1.=Technical description Apart from the shaft, the components and assemblies are exactly the same as those in model HT 75. 6KDIW • Drive tube with rigid shaft running in a protective liner. 2.=Specifications Specifications are the same as those of the HT 75, differences are listed below. Dimensions / weight 2.1=Overall length - without cutting attachment: approx. 180cm (70.86") - with cutting attachment: approx. 210cm (82.7") 2.2=Weight HT 70: 4.9kg (10.8lb) 3.=Cutting attachment Cutting length 12"; 3/8" Oilomatic chain, Picco-Micro-Mini (PMN), 44 drive links; Rollomatic Mini guide bar; 7-tooth 3/8" P spur sprocket
Page 3 of 4
Text of page 3 — search, copy, screen readers
35.98 - 3
4.=Special accessories for user
Part Name Part No. Application, remarks
File holder 5605 750 4327 Sharpening chain
including
- Round file, Ø 4mm (5/32")
Filing gauge 0000 893 4000
5.=Service accessories
5.1=Special servicing tools
The same special servicing tools are used as for model FS 85 brushcutters.
5.2=Servicing aids
Part Name Part No. Application Rem.
Carburetor parts kit 4227 007 1060 Zama C1Q-S28C, C1Q-S41
Lube grease
(225g/8oz tube) 0781 120 1111
Oil seals
Lube grease
(40g/1.4oz tube) 0781 120 6602 Gear box
Lube grease
(80g/2.8oz tube) 0781 120 1109 Drive shaft
6.=Repairs
If the unit is started up in the course of repairs or maintenance work it is essential to observe all
local safety regulations and the safety precautions outlined in the owner¶s manual. Page 4 of 4
Text of page 4 — search, copy, screen readers
35.98 - 4
6.1=Service note=========================================oepair times are in tenths of an hour (0.1 = 6 minutes)
Setting and testing data as well as other informa- Code Type of Repair HT 70
tion are exactly the same as for model HT 75 and
FS 85 brushcutters (shaft).
Refer to the FS 75, 80, 85, FC 75, HL 75 service 1 Crankcase 2.1
manual for servicing and repair procedures on the
HT 70. Procedures not contained in that service 2 Crankshaft and/or bearings 2.2
manual (gearhead) are outlined in TI 03.97. 3 Crankcase gasket, sealing 2.0
The service manual does not include the chapters
"Servicing the Carburetor", "Troubleshooting" or 4 Crankshaft seals 0.7
any repairs involving standard procedures. Such
repairs can be found in the separate "Carburetor" 5 Cylinder and/or piston 0.8
and "Standard Repairs, Troubleshooting"
handbooks. 6 Ignition 0.5
7 Fuel hose, fuel supply 0.5
6.2=Repair times============================================U====oeplace gear box assy 0.5
The specified repair times assume that the work 9 Carburetor 0.7
is performed by trained personnel in a properly
equipped service workshop. 10 Fan housing, clutch housing 0.8
The repair times are given in tenths of an hour
11
Front handle, throttle 0.6
(0.1 = 6 minutes). 12 Recoil starter 0.5
Note:=qhis table for the HT 70 can be used to 13 Clutch 0.5
update the STIHL repair times table.
14 Replace drive tube, shaft, bearings 0.5
15 Muffler 0.4
16 Air filter, filter cover 0.3
7.=Spare parts
17 Stop switch 0.4
Parts for the HT 70 will be incorporated
in the existing HT 75 parts list. 18 Fuel tank 0.4
The parts list for the HT 70 is included in 19 Replace drive gears 0.7
the 3.98 issue of the microfiche and CD-ROM.
20 All other repairs & misc. repairs 0.5
© 1998 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-na 6367 Most of these PDFs embed fonts with a shifted character map, so the text above was recovered rather than copied — read it as a faithful but imperfect transcription, and treat the page image above each block as the authority where the two disagree — the figures exist only there, because they are vector drawings that text extraction cannot keep.
