BT 120 C: New Earth Auger

IssueTI 37/1998

Historical fitment & changes

Source-reviewed model notes. An exact-model IPL link is unavailable where stated; no similar model is substituted. Availability statements belong to the bulletin’s date.

Service note · BT 120 C

BT 120 C: 1998 design and predecessor boundaries

BT106 development and FS120 engine similarity do not establish wholesale parts interchange.

No exact-model IPL link: Model-wide or historical configuration evidence; no exact assembly binding established for this assertion. The current S36G/S51C or S82/S161 sheets do not establish the original C1Q-S36D configuration. No invented drawing row.

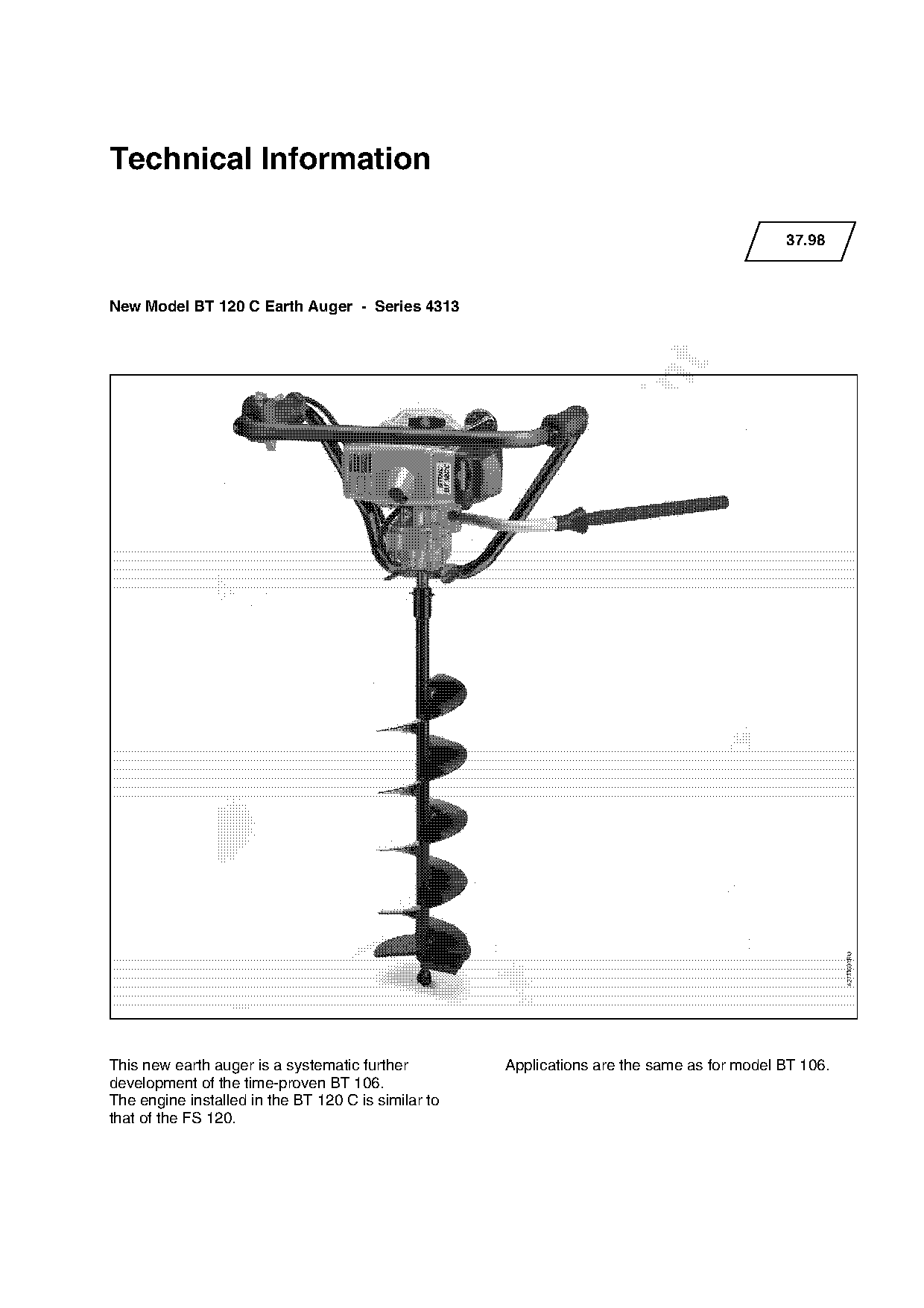

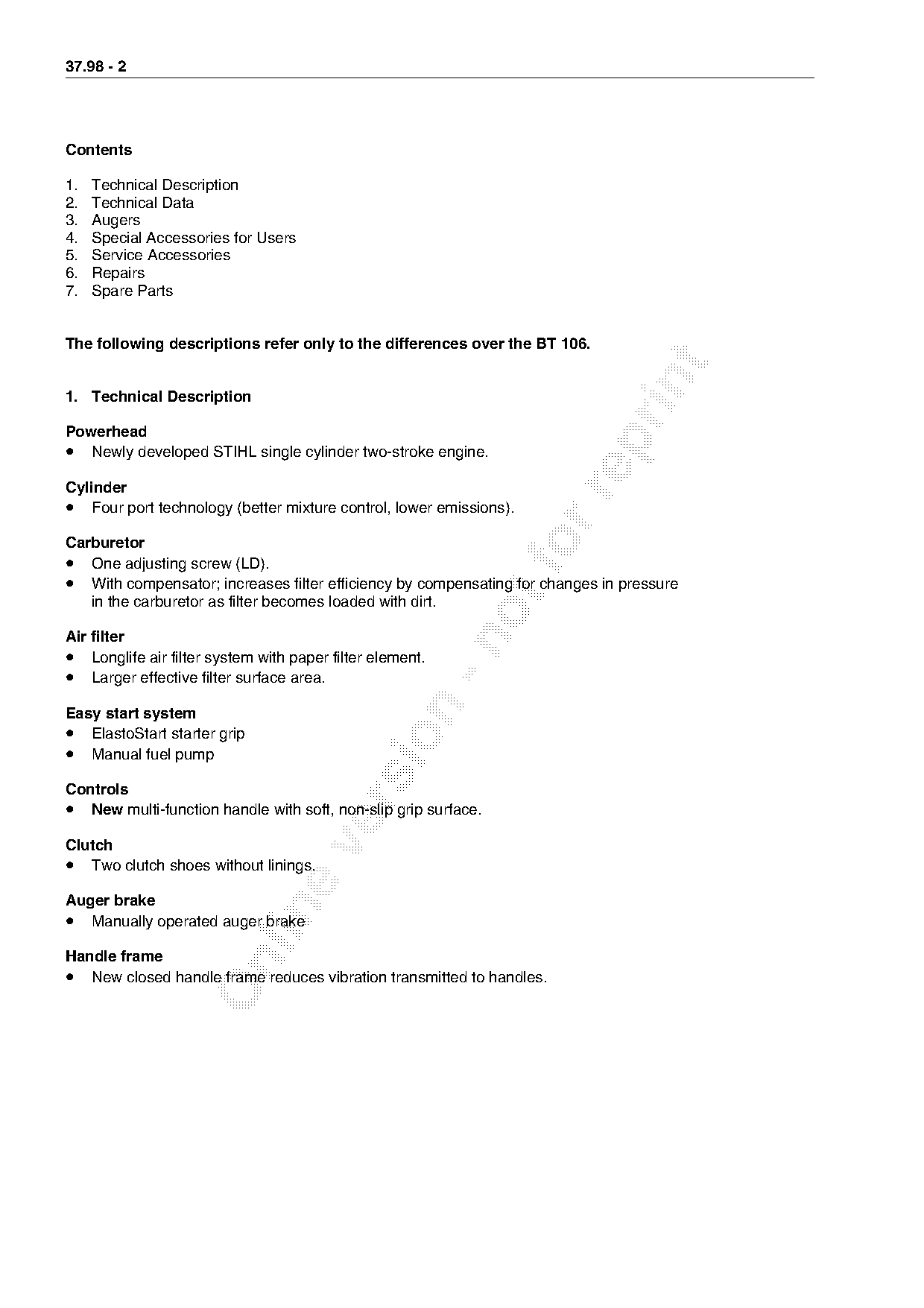

  • The cover identifies New Model BT120C Earth Auger, series4313, as a systematic further development of BT106, with the same applications and an engine SIMILAR to FS120. The cover photograph is configuration context, not dimensional or parts-identification evidence. Section1 explicitly describes only DIFFERENCES over BT106.
  • New single-cylinder two-stroke engine; four-port cylinder technology, described as improving mixture control and emissions; one LD adjusting screw and compensator responding to pressure changes as the filter loads with dirt. Paper-element longlife air filter has a larger effective surface area. These are historical design claims, not measured emissions or a stated filter-service interval.
  • ElastoStart grip and manual fuel pump; new multifunction handle with soft non-slip grip; two clutch shoes WITHOUT LININGS; manually operated auger brake; new closed handle frame described as reducing handle vibration. No vibration magnitude, automatic brake function, safety certification or retrofit kit is specified.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

Source: TI 37/1998, p. 1 · TI 37/1998, p. 2 — Cover/photo and complete section1; contents is navigation only.

No additional parts-table entry added.

Service note · BT 120 C

BT 120 C: C1Q-S36D kit, gaskets and sealing aids

The historical carburetor kit is explicitly C1Q-S36D, not later S36G or S51C.

No exact-model IPL link: Model-wide or historical configuration evidence; no exact assembly binding established for this assertion. The current S36G/S51C or S82/S161 sheets do not establish the original C1Q-S36D configuration. No invented drawing row.

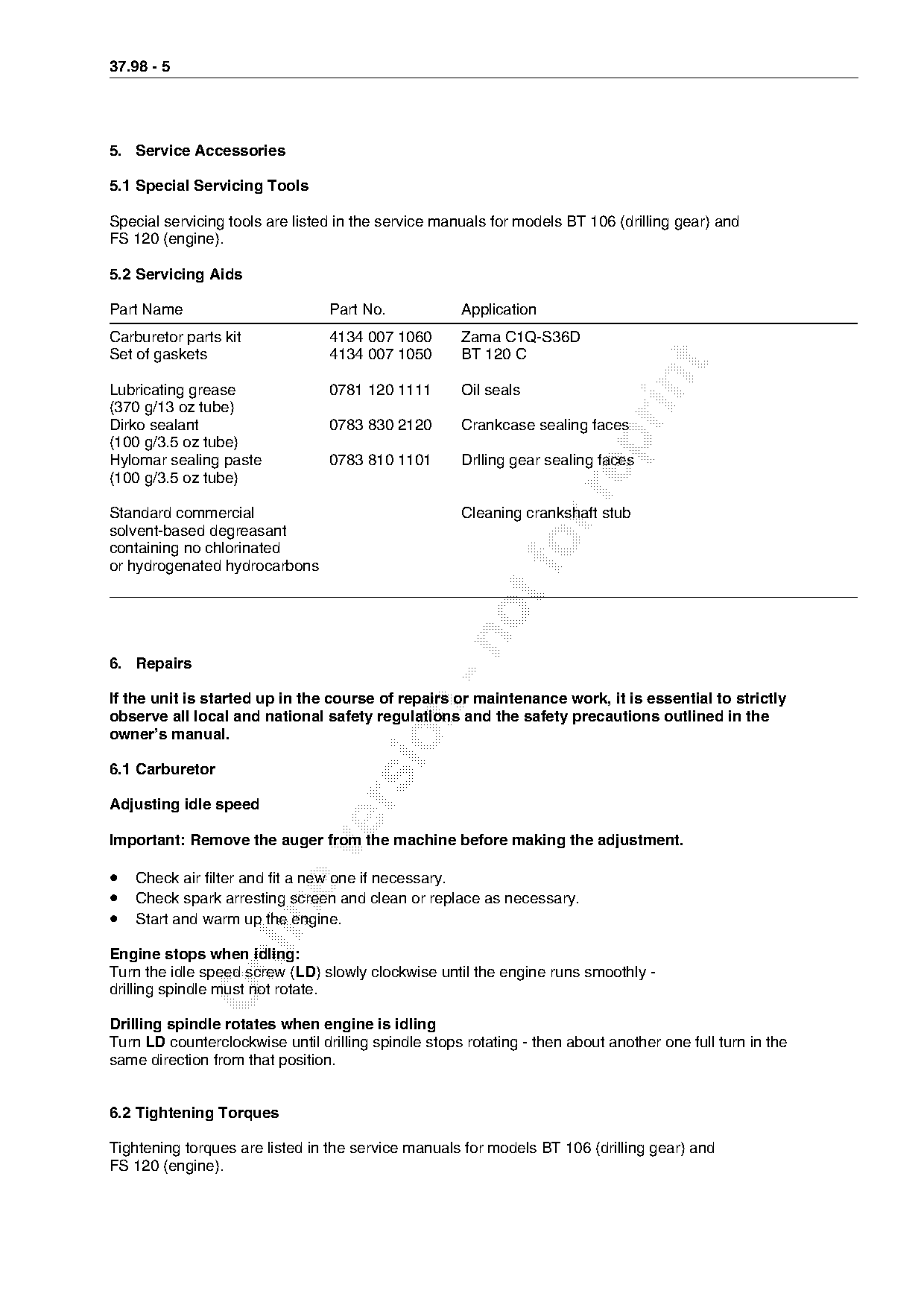

  • Section5.2 assigns carburetor parts kit4134 007 1060 to Zama C1Q-S36D and gasket set4134 007 1050 to BT120C. No itemized kit contents, supersession or extension to later carburetors is given.
  • Lubricating grease0781 120 1111 (370g/13oz tube) is for OIL SEALS; Dirko0783 830 2120 (100g/3.5oz tube) for CRANKCASE SEALING FACES; Hylomar0783 810 1101 (100g/3.5oz tube) for DRILLING GEAR SEALING FACES. These distinct applications do not establish interchangeable sealants, quantities to apply or curing instructions.
  • Cleaning crankshaft stub: standard commercial solvent-based degreasant containing no CHLORINATED OR HYDROGENATED hydrocarbons, exactly as printed. Retain HYDROGENATED; do not silently normalize to HALOGENATED from another source. No numbered cleaning product or substitute chemical recommendation is supplied.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

Source: TI 37/1998, p. 5 — Complete section5.2.

Part numbers (5)
  • 4134 007 1060 — Carburetor parts kit for Zama C1Q-S36DHistorical specified item · BT 120 C; TI37/1998 configuration only
  • 4134 007 1050 — BT120C gasket setHistorical specified item · BT 120 C; TI37/1998 configuration only
  • 0781 120 1111 — Oil-seal lubricating grease370g/13ozHistorical specified item · BT 120 C; TI37/1998 configuration only
  • 0783 830 2120 — Dirko crankcase sealant100g/3.5ozHistorical specified item · BT 120 C; TI37/1998 configuration only
  • 0783 810 1101 — Hylomar drilling-gear sealing paste100g/3.5ozHistorical specified item · BT 120 C; TI37/1998 configuration only

Service note · BT 120 C

BT 120 C: single-LD idle adjustment and stationary spindle

Remove the auger first; the drilling spindle must not rotate at idle.

No exact-model IPL link: Model-wide or historical configuration evidence; no exact assembly binding established for this assertion. The current S36G/S51C or S82/S161 sheets do not establish the original C1Q-S36D configuration. No invented drawing row.

  • Section6 requires strict observance of local/national safety regulations and owner-manual precautions if started during service. Section6.1 IMPORTANT: REMOVE THE AUGER BEFORE ADJUSTING. Check air filter and replace if needed; check spark-arresting screen and clean or replace if needed; start and warm engine. This historical procedure is not permission for unattended operation; exact owner-manual safety source remains a documented retained-corpus gap, not bench readiness.
  • If engine stops when idling, turn LD slowly CLOCKWISE until engine runs smoothly; drilling spindle MUST NOT ROTATE. If spindle rotates at idle, turn LD COUNTERCLOCKWISE until it stops, then ABOUT ONE ADDITIONAL FULL TURN in the SAME direction. That extra turn is conditional on the rotation branch, not an initial mixture setting from a seated screw.

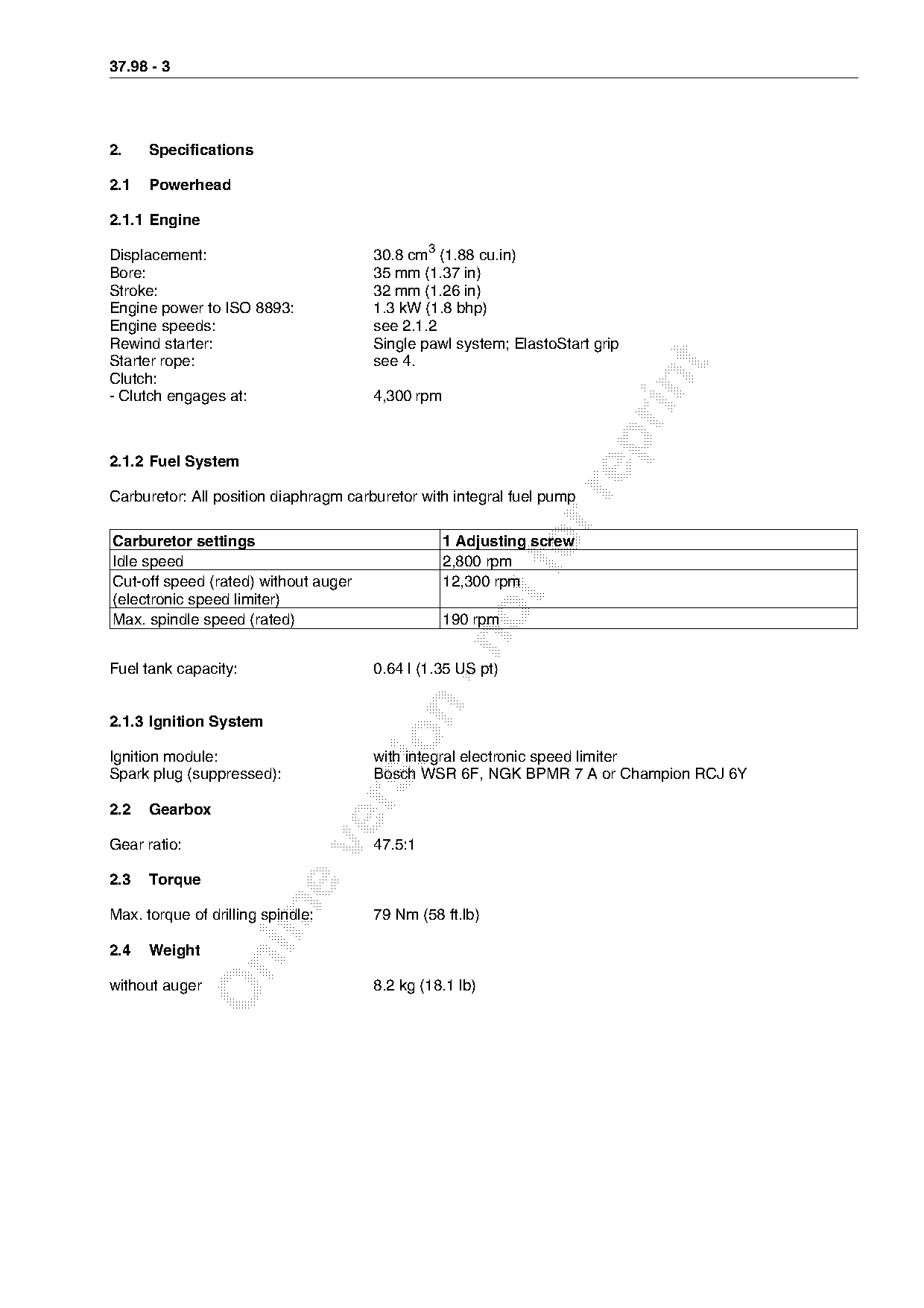

  • Page3 gives2800rpm idle. This procedure supplies no H/L settings, limiter-cap removal, fixed initial LD opening or fallback permitting spindle rotation. Current catalog S36G/S51C and S82/S161 sheets cannot silently replace the historical one-screw configuration.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

Source: TI 37/1998, p. 3 · TI 37/1998, p. 5 — 2.1.2 idle specification and complete6/6.1.

No additional parts-table entry added.

Service note · BT 120 C

BT 120 C: repair manuals, handbooks and IPL boundaries

Available later repair references reviewed; exact historical manuals, handbooks, owner safety, labor and IPL remain documented source gaps.

No exact-model IPL link: Model-wide or historical configuration evidence; no exact assembly binding established for this assertion. The current S36G/S51C or S82/S161 sheets do not establish the original C1Q-S36D configuration. No invented drawing row.

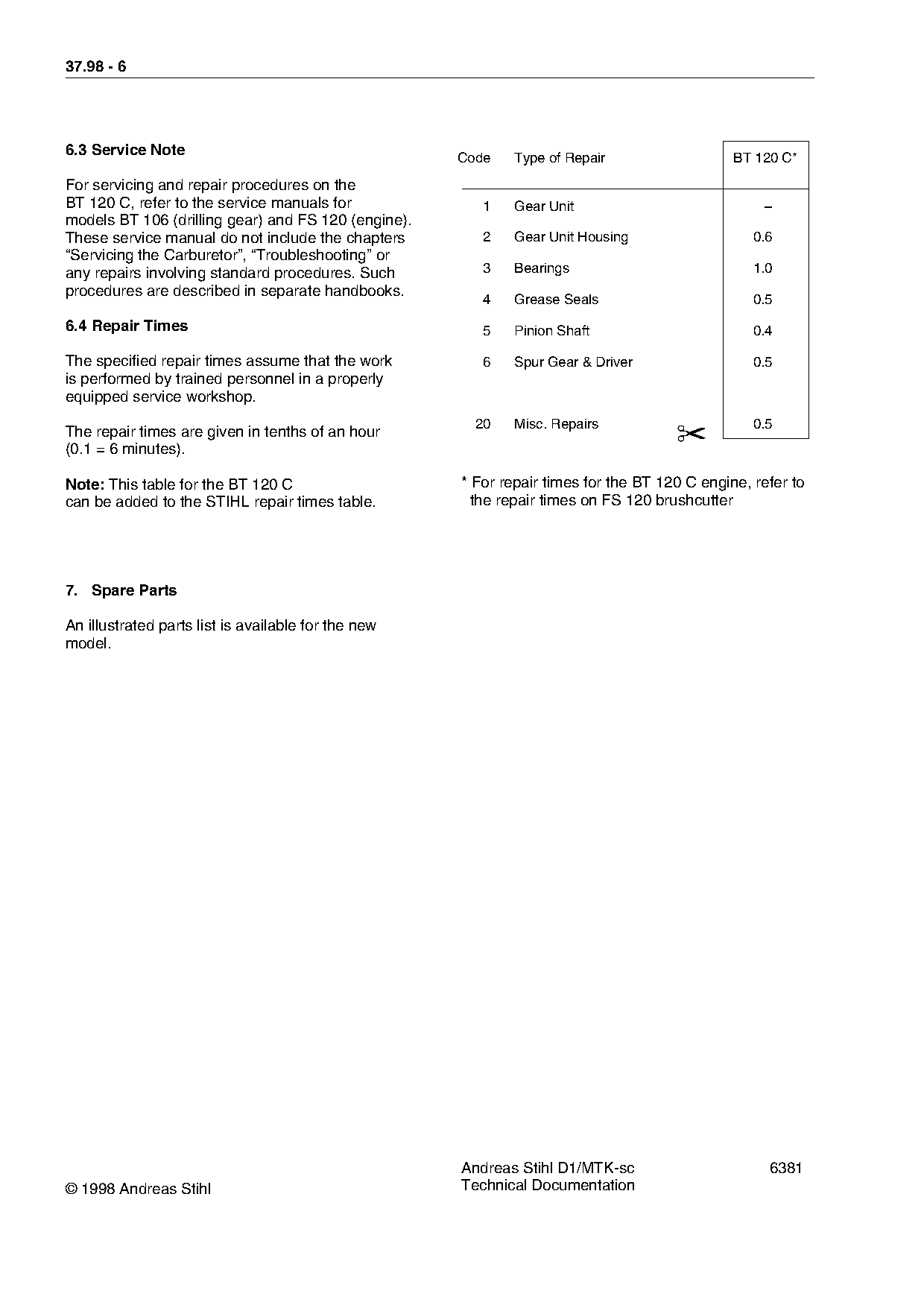

  • Sections5.1,6.2 and6.3 direct special tools, tightening torques and repair procedures to BT106 service manual for DRILLING GEAR and FS120 service manual for ENGINE. This is a component-specific delegation, not blanket FS120 or BT106 parts interchange; no numeric fastener torque is printed here. Later1999 BT120 and FS cover2003-04/contents2011 references are fully dispositioned within this scope; original editions remain unestablished. All previously recorded torque/tool/edition conflicts remain unresolved.
  • Separate Servicing the Carburetor, Troubleshooting and standard-procedure handbooks delegated by TI37 section6.3 not established in retained808-PDF/header inventory and79-row reference index. Model-manual references and separate Special Tools/Chain and Bar works are not the requested handbooks.
  • Section7 announces an IPL without edition or part number. Historical BT120C IPL announced by section7 not established as an exact1998 edition. Retained2012 product53 links include later carburetors and09.2003 control-handle sheet; those remain navigation, not proof of original S36D configuration or historical interchange.
  • Exact historical1998 BT106 drilling-gear and FS120 engine manual editions not established in retained808-PDF inventory and79-row reference index. Available later1999 BT120 and FS cover2003-04/contents2011 manuals fully reviewed within delegated scope. Unmatched01269-fs250 is byte-identical to RA_250, not another edition.
  • Exact BT120C owner-manual safety source required by section6 not established in retained archive inventory or product53 links. Repair-manual precautions do not replace owner instructions or applicable local/national regulations. No live operation or bench readiness established.
  • Exact historical1998 FS120 engine repair-times table delegated by section6.4 not established. Available2012-01 FS120 and BT120/121 columns reviewed with units, inclusion rules and contradictions preserved; they do not reconstruct1998 allowances.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

Source: TI 37/1998, p. 5 · TI 37/1998, p. 6 — Complete5.1,6.2,6.3,7 and section6 safety dependency; retained-source review complete with bounded gaps.

No additional parts-table entry added.

Service note · BT 120 C

BT 120 C: later manual scope and safety boundaries

BT1201999-01 covers auger drive and handle frame; FS120 powerhead remains a separate source.

No exact-model IPL link: Later BT1201999-01 comparison only, indexed as BT120C; exact historical edition/configuration not established. No assembly row, serial cutoff or interchange inferred.

  • Later-source comparison: BT120 manual cover1999-01 (RA_427_00_01_01.pdf), indexed as BT120C. It is NOT the BT106 manual named in TI37/1998 and does not establish original1998 equipment or universal interchange.
  • The1999-01 manual covers AUGER DRIVE servicing and HANDLE FRAME replacement only. It directs POWERHEAD and CONTROL HANDLE repair to FS120 manual, troubleshooting to Standard Repairs, Troubleshooting, and tools to STIHL Special Tools. It requires the relevant IPL for installed positions/replacement numbers and later TIs for engineering changes. These references do not complete the delegated reviews.
  • Available FS120-family manual RA_250_00_01_01.pdf is cover2003-04, naming FS120/200/300/350/400/450 and FR350/450. Its introduction describes common design with model-specific differences and separate standardized-assembly handbooks. BT120 is NOT in that model list: use the explicit component delegation, not wholesale FS-family inheritance. Exact1998 BT106/FS120 editions remain unestablished; no missing-source conclusion is made here.
  • DATE CONFLICT retained: FS-family PDF cover says2003-04, but contents/printed1 carries ©2011. The byte-pinned file is a later retained source with mixed date signals, NOT proven unchanged2003 text or the1998 edition. Scope-only introduction review does not admit its stand fixtures or other repair procedures.
  • BT120 section1 requires local/country safety rules and owner-manual precautions whenever started during repair. Gasoline is highly flammable and can explode; no smoking/fire/flame, all fuel work outdoors, wipe spills immediately. Owner-manual review is still separate; this source summary is not operating authorization.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — BT1201999-01 cover, complete1 and2; FS cover/contents and introduction scope only.

Later manual evidence: STIHL BT120 (1999-01), section BT1201999-01 cover, complete1 and2; FS2003-04 cover and1, PDF pages 1, 2, 3 · STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section Cover2003-04 versus contents ©2011; introduction scope only, not whole section1 fixture procedures, PDF pages 1, 2, 3

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: later engine, starter and leakage-test specifications

Keep crankcase, carburetor and tank-vent pressures distinct; specifications are not test procedures.

No exact-model IPL link: Later BT1201999-01 comparison only, indexed as BT120C; exact historical edition/configuration not established. No assembly row, serial cutoff or interchange inferred.

  • Later-source comparison: BT120 manual cover1999-01 (RA_427_00_01_01.pdf), indexed as BT120C. It is NOT the BT106 manual named in TI37/1998 and does not establish original1998 equipment or universal interchange.
  • Single-cylinder two-stroke with special impregnated bore:30.8cm³,35mm bore,32mm stroke,1.3kW (1.8bhp) at9000rpm. Cut-off speed WITHOUT AUGER, electronic governor:12300rpm; idle2800rpm. Heavy-duty crankshaft ball bearings, small/big-end needle cages, piston pin10mm.
  • ElastoStart SINGLE PAWL, reserve rotor travel at least HALF TURN; starter rope3.0mm diameter ×800mm. Unlined centrifugal clutch engages4300rpm. No later multi-pawl or different-rope substitution is established.
  • Crankcase leakage specification:0.5bar gauge PRESSURE and0.5bar VACUUM magnitude (7.25psi). Diaphragm-carburetor leakage test:0.8bar gauge pressure (11.6psi). Tank vent function:PRESSURE ≤0.3bar (4.35psi), VACUUM magnitude ≤0.05bar (0.725psi). These are three different systems; this table supplies no hold time, fixture sequence or acceptable pressure decay.
  • Fuel tank0.64L (1.35USpt); minimum90RON, US/CAN pump octane87. Historical mix table:50:1 with STIHL two-stroke oil;25:1 with other-brand two-stroke AIR-COOLED engine oil. Paper filter. Preserve edition-specific wording, not a universal current fuel recommendation or proof of a particular carburetor version.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — BT1201999-01 complete3.1–3.2.

Later manual evidence: STIHL BT120 (1999-01), section BT1201999-01 complete3.1–3.2, PDF pages 1, 3, 4

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: later ignition, gear and accessory specifications

Approximate20g gearbox lubrication and source torque-unit discrepancy retained.

No exact-model IPL link: Later BT1201999-01 comparison only, indexed as BT120C; exact historical edition/configuration not established. No assembly row, serial cutoff or interchange inferred.

  • Later-source comparison: BT120 manual cover1999-01 (RA_427_00_01_01.pdf), indexed as BT120C. It is NOT the BT106 manual named in TI37/1998 and does not establish original1998 equipment or universal interchange.
  • Electronic breakerless magneto with integral trigger and electronic speed governor; air gap0.2–0.5mm. Suppressed plugs Bosch WSR6F, NGK BPMR7A or Champion RCJ6Y; electrode gap0.5mm, M14×1.25 thread,9.5mm thread length. This is a source specification, not approval for an unidentified ignition revision.
  • Two-stage straight spur gear,47.5:1 ratio; maximum ON-LOAD spindle190rpm and maximum spindle torque printed79Nm (53lb.ft). The printed imperial pair is inconsistent (79Nm is about58.3lb.ft); retain both as SOURCE CONFLICT, not silently corrected. This is OUTPUT torque, NOT a fastener tightening torque. Deep-groove ball bearings; gear lubricant1117/1118, approximately20g (0.7oz).

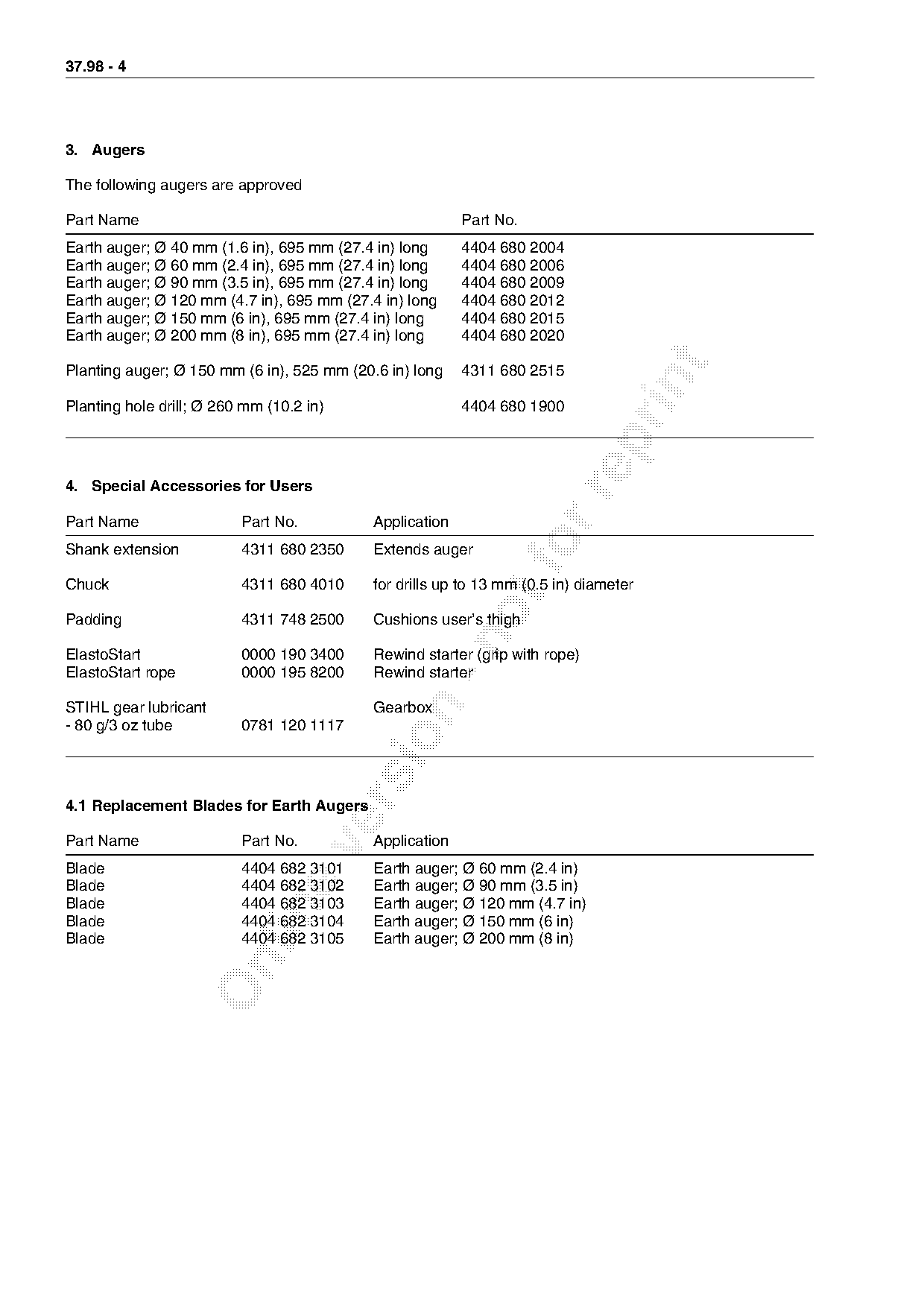

  • Complete3.5 accessory roster below is edition-specific. The manual lists ElastoStart0000 190 3400 in addition to its rope. Carburetor parts kit4134 007 1060 and gasket set4134 007 1050 are historical service references, not proof they fit later S36G/S51C/S82/S161 carburetors.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — BT1201999-01 complete3.3–3.5.2.

Later manual evidence: STIHL BT120 (1999-01), section BT1201999-01 complete3.3–3.5.2, PDF pages 1, 3, 5

Part numbers (9)
  • 4311 680 2350 — Shank extensionreference · Later BT1201999-01 stated application only; original1998 configuration and later carburetor fitment unestablished.
  • 4311 680 4010 — Chuckreference · Later BT1201999-01 stated application only; original1998 configuration and later carburetor fitment unestablished.
  • 0000 190 3400 — ElastoStartreference · Later BT1201999-01 stated application only; original1998 configuration and later carburetor fitment unestablished.
  • 0000 195 8200 — ElastoStart ropereference · Later BT1201999-01 stated application only; original1998 configuration and later carburetor fitment unestablished.
  • 0781 120 1117 — Gear lubricant80greference · Later BT1201999-01 stated application only; original1998 configuration and later carburetor fitment unestablished.
  • 0781 120 1118 — Gear lubricant225greference · Later BT1201999-01 stated application only; original1998 configuration and later carburetor fitment unestablished.
  • 0781 417 1315 — Special oil100mlreference · Later BT1201999-01 stated application only; original1998 configuration and later carburetor fitment unestablished.
  • 4134 007 1060 — Carburetor parts kitreference · Later BT1201999-01 stated application only; original1998 configuration and later carburetor fitment unestablished.
  • 4134 007 1050 — Gasket setreference · Later BT1201999-01 stated application only; original1998 configuration and later carburetor fitment unestablished.

Service note · BT 120 C

BT 120 C: later drive and brake fastener torques

Seven exact joint/thread rows; output torque is not a tightening value.

No exact-model IPL link: Later BT1201999-01 comparison only, indexed as BT120C; exact historical edition/configuration not established. No assembly row, serial cutoff or interchange inferred.

  • Later-source comparison: BT120 manual cover1999-01 (RA_427_00_01_01.pdf), indexed as BT120C. It is NOT the BT106 manual named in TI37/1998 and does not establish original1998 equipment or universal interchange.
  • M5 collar nut, CLUTCH HOUSING:8.5Nm (6.3lbf.ft). IS-M5×30 and IS-M5×52 spline screws, GEAR HOUSING/CLUTCH HOUSING:8Nm (5.9lbf.ft) each. IS-M5×30 spline screw, COVER/GEAR HOUSING:8Nm (5.9lbf.ft).
  • M11×10 screw plug, GEAR HOUSING:8.5Nm (6.3lbf.ft). IS-M5×12 spline screw, BRAKE BAND:4Nm (3lbf.ft). IS-M5×10 spline screw, FLAT SPRING:8Nm (5.9lbf.ft). Identical thread sizes elsewhere do not imply identical torques; no hardware tightening was performed.
  • SOURCE CONFLICT: section5.1 printed9–10 specifies10Nm (7.5lbf.ft) for gear-housing/clutch-housing and cover screws, but section3.6 printed5 lists8Nm (5.9lbf.ft) for those joints (IS-M5×30/M5×52 housing and IS-M5×30 cover). Do not silently choose one or apply the separate handlebar/gearbox10Nm row to resolve it.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — BT1201999-01 complete3.6 drive/brake rows.

Later manual evidence: STIHL BT120 (1999-01), section BT1201999-01 complete3.6 drive/brake rows, PDF pages 1, 3, 6, 10, 11

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: later handle, shroud and lever torques

Keep the1Nm handle molding,2Nm clamp,4Nm handlebar and10Nm gearbox joints separate.

No exact-model IPL link: Later BT1201999-01 comparison only, indexed as BT120C; exact historical edition/configuration not established. No assembly row, serial cutoff or interchange inferred.

  • Later-source comparison: BT120 manual cover1999-01 (RA_427_00_01_01.pdf), indexed as BT120C. It is NOT the BT106 manual named in TI37/1998 and does not establish original1998 equipment or universal interchange.
  • IS-DG5×14 spline screw, CLAMP:4Nm (3lbf.ft). IS-M6×18, HANDLEBAR/GEARBOX:10Nm (7.5lbf.ft). IS-M5×30, HANDLEBAR/HANDLEBAR:4Nm (3lbf.ft). IS-P4×16 Plastoform, CONTROL HANDLE/HANDLE MOLDINGS:1Nm (0.75lbf.ft). IS-M5×12, CONTROL-HANDLE CLAMP/HANDLEBAR:2Nm (1.5lbf.ft). IS-DG5×20, SHROUD:6Nm (4.4lbf.ft). M8×10 pivot pin, ACTIVATING LEVER:18Nm (13.3lbf.ft).
  • DG/P screws form permanent threads in polymer/lightmetal. For an EXISTING thread rotate counterclockwise until the screw drops slightly, then tighten clockwise to the specified torque; do not cut another thread. Torque wrench essential. Power screwdriver maxima for POLYMER:Plastoform600rpm;DG500rpm. Tool-table remark restricts the listed T-handle driver to RELEASING DG/P screws only.
  • SOURCE CONFLICT: section5.3.3 printed13 pairs bearing-pin18Nm with5.9lbf.ft, while section3.6 printed5 pairs activating-lever pivot-pin18Nm with13.3lbf.ft. The imperial values are inconsistent; both retained, not silently corrected or treated as equivalent.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — BT1201999-01 remaining3.6 rows and complete thread reuse notes.

Later manual evidence: STIHL BT120 (1999-01), section BT1201999-01 remaining3.6 rows and complete thread reuse notes, PDF pages 1, 3, 6, 14

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: later handle-frame removal and alignment

Left grip orientation about80° and55mm spacing are source-specific, not inferred from a trimmer.

No exact-model IPL link: Later BT1201999-01 comparison only, indexed as BT120C; exact historical edition/configuration not established. No assembly row, serial cutoff or interchange inferred.

  • Later-source comparison: BT120 manual cover1999-01 (RA_427_00_01_01.pdf), indexed as BT120C. It is NOT the BT106 manual named in TI37/1998 and does not establish original1998 equipment or universal interchange.
  • Remove nuts/screws and pull out handlebar; cut cable ties, release screws and pull off control handle; remove mounting screws and take handlebar off gearbox. Hold handlebar in vise with jaws5910 893 2700. To replace LEFT handle, carefully cut it open and ease off. Reassemble in reverse sequence.
  • Coat grip interior with a LITTLE lubricant (example washing-up liquid); too much allows twisting, so allow to dry after fitting. Long grip ends point toward mounting plate at ABOUT80°. Illustrated distance(a), handlebar to handle:ABOUT55mm (2in). Do not reinterpret these as a cable free-play setting.
  • Control-handle screws2Nm (1.5lbf.ft), handlebar screws4Nm (3lbf.ft), mounting screws at gearbox10Nm (7.5lbf.ft). The separate molding screws in3.6 are1Nm, not2Nm; preserve joint context.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — BT1201999-01 complete4.1.

Later manual evidence: STIHL BT120 (1999-01), section BT1201999-01 complete4.1, PDF pages 1, 3, 7

Part numbers (1)
  • 5910 893 2700 — Vise jaws for handlebarreference · Later BT1201999-01 stated application only; original1998 configuration and later carburetor fitment unestablished.

Service note · BT 120 C

BT 120 C: later service-tool roster and restrictions

Fifteen numbered tool variants with application-specific arbors and torque-wrench ranges.

No exact-model IPL link: Later BT1201999-01 comparison only, indexed as BT120C; exact historical edition/configuration not established. No assembly row, serial cutoff or interchange inferred.

  • Later-source comparison: BT120 manual cover1999-01 (RA_427_00_01_01.pdf), indexed as BT120C. It is NOT the BT106 manual named in TI37/1998 and does not establish original1998 equipment or universal interchange.
  • Complete tool roster below is not a repair procedure or original1998 kit. Press sleeve1115 893 4600 removes gear-housing bearing and installs clutch-housing bearing. Arbor1117 893 7200 installs gear-housing/cover bearings and oil seal;4116 893 7205 installs cover bearing. Preserve overlapping printed applications; no silent choice between tools.
  • T-handle Q-T27×1505910 890 2400 is for all IS screws but DG/P RELEASING ONLY. Always use torque wrench for tightening DG/P. Wrenches0301/0302 range0.5–18Nm (0.4–13.5lbf.ft);0311/0312 range6–80Nm (4.4–60lbf.ft). The0302/0312 variants have optical/acoustic signal. Wrench range is not a fastener specification.
  • SOURCE CONFLICT: section5.1 printed8 specifies sleeve1113 893 4600 to install the clutch-housing bearing, while section6.1 printed16 lists1115 893 4600 for that application. Both source numbers retained; no substitution or preferred tool established.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — BT1201999-01 complete6.1 and remarks.

Later manual evidence: STIHL BT120 (1999-01), section BT1201999-01 complete6.1 and remarks, PDF pages 1, 3, 9, 17

Part numbers (15)
  • 5910 893 2700 — Holding handlebar in visereference · Later BT1201999-01 stated application only; original1998 configuration and later carburetor fitment unestablished.
  • 1115 893 4600 — Press sleeve: gear/clutch housing bearing applicationsreference · Later BT1201999-01 stated application only; original1998 configuration and later carburetor fitment unestablished.
  • 1117 893 7200 — Press arbor: gear housing/cover bearings and oil sealreference · Later BT1201999-01 stated application only; original1998 configuration and later carburetor fitment unestablished.
  • 4116 893 7205 — Press arbor: installing cover bearingreference · Later BT1201999-01 stated application only; original1998 configuration and later carburetor fitment unestablished.
  • 0811 611 8200 — A10 pliers: external clutch-drum circlipreference · Later BT1201999-01 stated application only; original1998 configuration and later carburetor fitment unestablished.
  • 0811 641 8380 — C19 pliers: internal clutch-housing circlipreference · Later BT1201999-01 stated application only; original1998 configuration and later carburetor fitment unestablished.
  • 1119 893 7200 — Press arbor: removing clutch-housing bearingreference · Later BT1201999-01 stated application only; original1998 configuration and later carburetor fitment unestablished.
  • 1118 893 7200 — Press arbor: installing clutch-housing bearingreference · Later BT1201999-01 stated application only; original1998 configuration and later carburetor fitment unestablished.
  • 1117 890 0900 — Assembly tool: attaching brake springreference · Later BT1201999-01 stated application only; original1998 configuration and later carburetor fitment unestablished.
  • 5910 890 2400 — Q-T27×150 T-handle driver; DG/P release onlyreference · Later BT1201999-01 stated application only; original1998 configuration and later carburetor fitment unestablished.
  • 5910 890 0301 — Torque wrench0.5–18Nmreference · Later BT1201999-01 stated application only; original1998 configuration and later carburetor fitment unestablished.
  • 5910 890 0302 — Torque wrench0.5–18Nm optical/acoustic signalreference · Later BT1201999-01 stated application only; original1998 configuration and later carburetor fitment unestablished.
  • 5910 890 0311 — Torque wrench6–80Nmreference · Later BT1201999-01 stated application only; original1998 configuration and later carburetor fitment unestablished.
  • 5910 890 0312 — Torque wrench6–80Nm optical/acoustic signalreference · Later BT1201999-01 stated application only; original1998 configuration and later carburetor fitment unestablished.
  • 0812 542 2104 — T27×125 socket for IS screwsreference · Later BT1201999-01 stated application only; original1998 configuration and later carburetor fitment unestablished.

Service note · BT 120 C

BT 120 C: later sealing and lubrication aids

Oil-seal grease, gearbox lubricant and housing sealing paste have distinct applications.

No exact-model IPL link: Later BT1201999-01 comparison only, indexed as BT120C; exact historical edition/configuration not established. No assembly row, serial cutoff or interchange inferred.

  • Later-source comparison: BT120 manual cover1999-01 (RA_427_00_01_01.pdf), indexed as BT120C. It is NOT the BT106 manual named in TI37/1998 and does not establish original1998 equipment or universal interchange.
  • Lubricating grease0781 120 1111 (225g/8oz) is listed for OIL SEALS; gear lubricants0781 120 1117 (80g/3oz) and1118 (225g/8oz) for GEARBOX AND BALL BEARINGS; sealing paste0783 810 1101 (100g/3½oz) for sealing faces on GEAR AND CLUTCH HOUSINGS. Container sizes are not application quantities. Gearbox fill approximately20g is separately printed in3.4.
  • No generic grease substitution, sealant bead thickness, curing time or full gearbox assembly sequence is supplied by this list.
  • Section5 gearbox/Quickstop comparison reviewed in batch285: initial/conditional fill and assembly limits now recorded separately; unresolved torque/tool conflicts remain. This list alone is still not a complete procedure.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — BT1201999-01 complete6.2.

Later manual evidence: STIHL BT120 (1999-01), section BT1201999-01 complete6.2, PDF pages 1, 3, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17

Part numbers (4)
  • 0781 120 1111 — Oil-seal lubricating grease225greference · Later BT1201999-01 stated application only; original1998 configuration and later carburetor fitment unestablished.
  • 0781 120 1117 — Gear/ball-bearing lubricant80greference · Later BT1201999-01 stated application only; original1998 configuration and later carburetor fitment unestablished.
  • 0781 120 1118 — Gear/ball-bearing lubricant225greference · Later BT1201999-01 stated application only; original1998 configuration and later carburetor fitment unestablished.
  • 0783 810 1101 — Sealing paste for gear/clutch housing faces100greference · Later BT1201999-01 stated application only; original1998 configuration and later carburetor fitment unestablished.

Service note · BT 120 C

BT 120 C: later gearbox disassembly and bearing removal

Cover heating, housing separation and bearing tools are component-specific.

No exact-model IPL link: Later BT1201999-01 comparison only, indexed as BT120C; exact historical edition/configuration not established. No assembly row, serial cutoff or interchange inferred.

  • Later-source comparison: BT120 manual cover1999-01 (RA_427_00_01_01.pdf), indexed as BT120C. It is NOT the BT106 manual named in TI37/1998 and does not establish original1998 equipment or universal interchange.
  • Remove handlebar per4.1, shroud mounting screws and nuts; pull away clutch housing with gearbox. Inspect clutch drum and replace if needed per5.2. Remove cover screws/cover. Heat COVER to approximately80°C (175°F), then knock cover against a WOODEN base to remove both ball bearings; carefully knock oil seal out with screwdriver. This is not a temperature specification for the whole powerhead.
  • Remove shaft with drive gear from gear housing, then gear from shaft. Remove housing screws and separate gear from clutch housing. Sleeve1115 893 4600 removes gear-housing bearing. Remove shaft/gear from clutch housing, press shaft out of gear and use puller for clutch-housing bearing. If replacing clutch housing, remove clutch drum and auger brake per5.2/5.3.2. Clean and inspect all parts for serviceability; no universal bearing fit inferred.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — BT1201999-01 section5.1 disassembly; printed7–8.

Later manual evidence: STIHL BT120 (1999-01), section BT1201999-01 section5.1 disassembly; printed7–8, PDF pages 1, 3, 8, 9

Part numbers (1)
  • 1115 893 4600 — Press sleeve removing gear-housing bearingreference · Later BT1201999-01 stated application only; original1998 configuration and interchange unestablished.

Service note · BT 120 C

BT 120 C: later gearbox shaft orientation and bearing-tool conflict

High-shoulder assembly direction is explicit;1113/1115 sleeve numbers conflict.

No exact-model IPL link: Later BT1201999-01 comparison only, indexed as BT120C; exact historical edition/configuration not established. No assembly row, serial cutoff or interchange inferred.

  • Later-source comparison: BT120 manual cover1999-01 (RA_427_00_01_01.pdf), indexed as BT120C. It is NOT the BT106 manual named in TI37/1998 and does not establish original1998 equipment or universal interchange.
  • Check locating sleeve in clutch housing and fit if necessary. Install ball bearing with the printed sleeve and lubricate per6.2. Press shaft into drive gear AS FAR AS STOP, from the side with the HIGH SHOULDER shown in427RA019 VA. Place shaft/gear in clutch-housing bearing and lubricate gear teeth. Check/fix locating sleeve in gear housing. These drawing-based orientations are not interchangeable-shaft evidence.
  • SOURCE CONFLICT: section5.1 printed8 specifies sleeve1113 893 4600 to install the clutch-housing bearing, while section6.1 printed16 lists1115 893 4600 for that application. Both source numbers retained; no substitution or preferred tool established.
  • Install gear-housing bearing with arbor1117 893 7200 and lubricate. After joining housings, fit drive gear on its shaft, position shaft/gear in gear-housing bearing and lubricate gear teeth per6.2. Gearbox/ball-bearing lubricants are separately listed in6.2; no bearing preload, clearance or unprinted pressing-force target inferred.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — BT1201999-01 section5.1 shaft/bearing assembly; printed8–9;6.1 comparison.

Later manual evidence: STIHL BT120 (1999-01), section BT1201999-01 section5.1 shaft/bearing assembly; printed8–9;6.1 comparison, PDF pages 1, 3, 9, 10, 17

Part numbers (3)
  • 1113 893 4600 — Procedure: clutch-housing bearing installation sleeve; conflicts with rosterreference · Later BT1201999-01 stated application only; original1998 configuration and interchange unestablished.
  • 1115 893 4600 — Tool roster: clutch-housing bearing installation sleeve; conflicts with procedurereference · Later BT1201999-01 stated application only; original1998 configuration and interchange unestablished.
  • 1117 893 7200 — Gear-housing bearing installation arborreference · Later BT1201999-01 stated application only; original1998 configuration and interchange unestablished.

Service note · BT 120 C

BT 120 C: later gearbox sealing, cover and torque conflict

Sealing-lip direction and separate arbors retained; housing/cover8 versus10Nm unresolved.

No exact-model IPL link: Later BT1201999-01 comparison only, indexed as BT120C; exact historical edition/configuration not established. No assembly row, serial cutoff or interchange inferred.

  • Later-source comparison: BT120 manual cover1999-01 (RA_427_00_01_01.pdf), indexed as BT120C. It is NOT the BT106 manual named in TI37/1998 and does not establish original1998 equipment or universal interchange.
  • Apply a THIN coating of sealing paste to clutch-housing mating face before placing gear housing; apply a thin coating to cover mating face before fitting cover. Section6.2 names0783 810 1101 for gear/clutch-housing sealing faces. No bead thickness or curing time supplied.
  • SOURCE CONFLICT: section5.1 printed9–10 specifies10Nm (7.5lbf.ft) for gear-housing/clutch-housing and cover screws, but section3.6 printed5 lists8Nm (5.9lbf.ft) for those joints (IS-M5×30/M5×52 housing and IS-M5×30 cover). Do not silently choose one or apply the separate handlebar/gearbox10Nm row to resolve it.
  • Fit oil seal in cover with SEALING LIP FACING UP as illustrated427RA024 VA. Arbor1117 893 7200 presses it home to stop, then presses the illustrated cover ball bearing; arbor4116 893 7205 installs the other illustrated cover bearing. Lubricate each bearing per6.2. Do not collapse the two bearing locations into one tool application.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — BT1201999-01 section5.1 joining housings and cover;3.6/6.2 comparisons.

Later manual evidence: STIHL BT120 (1999-01), section BT1201999-01 section5.1 joining housings and cover;3.6/6.2 comparisons, PDF pages 1, 3, 6, 10, 11, 17

Part numbers (3)
  • 0783 810 1101 — Gear/clutch-housing sealing pastereference · Later BT1201999-01 stated application only; original1998 configuration and interchange unestablished.
  • 1117 893 7200 — Cover oil seal and illustrated bearing installation arborreference · Later BT1201999-01 stated application only; original1998 configuration and interchange unestablished.
  • 4116 893 7205 — Other cover bearing installation arborreference · Later BT1201999-01 stated application only; original1998 configuration and interchange unestablished.

Service note · BT 120 C

BT 120 C: later initial fill versus conditional grease top-up

Approximately20g initial fill is not the conditional maintenance top-up.

No exact-model IPL link: Later BT1201999-01 comparison only, indexed as BT120C; exact historical edition/configuration not established. No assembly row, serial cutoff or interchange inferred.

  • Later-source comparison: BT120 manual cover1999-01 (RA_427_00_01_01.pdf), indexed as BT120C. It is NOT the BT106 manual named in TI37/1998 and does not establish original1998 equipment or universal interchange.
  • After cover installation, remove screw plug and fill housing with approximately20g (3/4oz) gear lubricant. Section6.2 lists0781 120 1117 (80g container) and0781 120 1118 (225g container) for gearbox/ball bearings; container sizes are not fill amounts.
  • Maintenance top-up ONLY IF NO GREASE IS VISIBLE INSIDE THE SCREW PLUG. Source prints “max.5–10g/1/4oz”; retain its ranged maximum and approximate imperial wording, not an unconditional refill or precisely equivalent limits.
  • Insert screw plug and tighten8.5Nm (6.3lbf.ft). Put gearbox in position, fit nuts and tighten8.5Nm (6.3lbf.ft); shroud screws6.0Nm (4.4lbf.ft). These values remain separate from the disputed8/10Nm housing and cover screws.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — BT1201999-01 section5.1 final assembly/service note; printed10;6.2.

Later manual evidence: STIHL BT120 (1999-01), section BT1201999-01 section5.1 final assembly/service note; printed10;6.2, PDF pages 1, 3, 11, 17

Part numbers (2)
  • 0781 120 1117 — Gear lubricant80g containerreference · Later BT1201999-01 stated application only; original1998 configuration and interchange unestablished.
  • 0781 120 1118 — Gear lubricant225g containerreference · Later BT1201999-01 stated application only; original1998 configuration and interchange unestablished.

Service note · BT 120 C

BT 120 C: later clutch drum and sealed/open bearing order

External and internal circlips use different pliers; sealed bearing precedes open bearing.

No exact-model IPL link: Later BT1201999-01 comparison only, indexed as BT120C; exact historical edition/configuration not established. No assembly row, serial cutoff or interchange inferred.

  • Later-source comparison: BT120 manual cover1999-01 (RA_427_00_01_01.pdf), indexed as BT120C. It is NOT the BT106 manual named in TI37/1998 and does not establish original1998 equipment or universal interchange.
  • Disassemble gearbox per5.1, remove screws and gear housing from clutch housing; remove shaft/drive gear if necessary. Pliers0811 611 8200 remove circlip from clutch-drum stub; pull drum out of bearings. Pliers0811 641 8380 remove clutch-housing circlip; arbor1119 893 7200 removes ball bearing. Clean all parts and inspect for serviceability.
  • Install bearings in the SHOWN SEQUENCE: SEALED ball bearing(1), then OPEN ball bearing(2) in427RA031 VA. Use arbor1118 893 7200 to press home bearing as far as stop. Assemble remaining parts in reverse sequence. Distinct numbered bearing types/order are not a claim that two identical bearings fit.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — BT1201999-01 complete5.2; printed10–11.

Later manual evidence: STIHL BT120 (1999-01), section BT1201999-01 complete5.2; printed10–11, PDF pages 1, 3, 11, 12

Part numbers (4)
  • 0811 611 8200 — External clutch-drum circlip pliersreference · Later BT1201999-01 stated application only; original1998 configuration and interchange unestablished.
  • 0811 641 8380 — Internal clutch-housing circlip pliersreference · Later BT1201999-01 stated application only; original1998 configuration and interchange unestablished.
  • 1119 893 7200 — Clutch-housing bearing removal arborreference · Later BT1201999-01 stated application only; original1998 configuration and interchange unestablished.
  • 1118 893 7200 — Clutch-housing bearing installation arborreference · Later BT1201999-01 stated application only; original1998 configuration and interchange unestablished.

Service note · BT 120 C

BT 120 C: later Quickstop functional-test limits

Brake locked; maximum three seconds at wide throttle; spindle must not rotate.

No exact-model IPL link: Later BT1201999-01 comparison only, indexed as BT120C; exact historical edition/configuration not established. No assembly row, serial cutoff or interchange inferred.

  • Later-source comparison: BT120 manual cover1999-01 (RA_427_00_01_01.pdf), indexed as BT120C. It is NOT the BT106 manual named in TI37/1998 and does not establish original1998 equipment or universal interchange.
  • Source functional check starts engine, activates (LOCKS) auger brake, then opens throttle wide for NO MORE THAN3SECONDS; DRILLING SPINDLE MUST NOT ROTATE. If brake does not operate properly it must be serviced IMMEDIATELY. This is a documented pass/fail criterion, not a successful test or authorization to run an unattended machine.
  • Section1 requires local/country safety rules and owner-manual warnings when starting during repairs. Fuel work OUTDOORS ONLY; no smoking, fire or flame near fuel, and wipe spilled fuel away immediately. Gasoline is highly flammable and can be explosive. Applicable owner safety remains pending in this TI review. No bench readiness, safe fixture or actual braking performance has been established.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — BT1201999-01 complete5.3.1 and section1 safety reference.

Later manual evidence: STIHL BT120 (1999-01), section BT1201999-01 complete5.3.1 and section1 safety reference, PDF pages 1, 2, 3, 12

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: later Quickstop disassembly and wear inspection

Activate brake to relax spring before stripping; inspect pin grooves and housing recess.

No exact-model IPL link: Later BT1201999-01 comparison only, indexed as BT120C; exact historical edition/configuration not established. No assembly row, serial cutoff or interchange inferred.

  • Later-source comparison: BT120 manual cover1999-01 (RA_427_00_01_01.pdf), indexed as BT120C. It is NOT the BT106 manual named in TI37/1998 and does not establish original1998 equipment or universal interchange.
  • Remove clutch drum per5.2. ACTIVATE auger brake so BRAKE SPRING IS RELAXED. Remove screws, clamp, activating lever from retainer, and cover. Unhook spring from anchor pin and bell crank; unscrew bearing pin and remove retainer. Remove E-clip; slide bell crank off pin while disconnecting brake band.
  • Remove screw and ease stiffener and brake band out of clutch housing; remove band. If necessary remove screw and flat springs. Inspect and replace damaged parts; clean ENTIRE housing recess occupied by brake. Worn grooves of brake-spring or bell-crank pins require new pins per5.3.4/5.3.5. No numeric wear limit supplied.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — BT1201999-01 complete5.3.2; printed11–12.

Later manual evidence: STIHL BT120 (1999-01), section BT1201999-01 complete5.3.2; printed11–12, PDF pages 1, 3, 12, 13

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: later Quickstop assembly and bearing-pin unit conflict

Spring, band, retainer and free-drum check retained;18Nm/5.9lbf.ft conflicts with table.

No exact-model IPL link: Later BT1201999-01 comparison only, indexed as BT120C; exact historical edition/configuration not established. No assembly row, serial cutoff or interchange inferred.

  • Later-source comparison: BT120 manual cover1999-01 (RA_427_00_01_01.pdf), indexed as BT120C. It is NOT the BT106 manual named in TI37/1998 and does not establish original1998 equipment or universal interchange.
  • Fit square nut and flat springs; tighten their screw8Nm (5.9lbf.ft). Lubricate sliding/bearing points AND brake band as stated by this manual; section5.3.3 does not identify a lubricant product. Do not transfer this instruction to chainsaw chain brakes or invent a grease specification. Fit band in clutch housing, push stiffener and band together into slot, tighten screw4Nm (3lbf.ft).
  • Position bell crank on pin and engage in band; push down and secure with E-clip. Insert bell crank in retainer and push retainer into position. Screw home bearing pin to the printed torque, with source conflict below. Attach brake spring to bell crank then anchor pin.
  • SOURCE CONFLICT: section5.3.3 printed13 pairs bearing-pin18Nm with5.9lbf.ft, while section3.6 printed5 pairs activating-lever pivot-pin18Nm with13.3lbf.ft. The imperial values are inconsistent; both retained, not silently corrected or treated as equivalent.
  • Fit cover lug into one hole, push on until opposite lug engages other hole. Install activating lever and clutch drum per5.2. Rotate drum and confirm it MOVES FREELY WITHOUT RUBBING BRAKE BAND. This mechanical check is distinct from the engine-running brake function check in5.3.1; neither was performed.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — BT1201999-01 complete5.3.3; printed13–14;3.6 comparison.

Later manual evidence: STIHL BT120 (1999-01), section BT1201999-01 complete5.3.3; printed13–14;3.6 comparison, PDF pages 1, 3, 6, 14, 15

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: later brake-spring anchor pin and removal direction

Wrong extraction direction damages the bore bead; preserve illustrated arrow and knurling.

No exact-model IPL link: Later BT1201999-01 comparison only, indexed as BT120C; exact historical edition/configuration not established. No assembly row, serial cutoff or interchange inferred.

  • Later-source comparison: BT120 manual cover1999-01 (RA_427_00_01_01.pdf), indexed as BT120C. It is NOT the BT106 manual named in TI37/1998 and does not establish original1998 equipment or universal interchange.
  • Remove gearbox per5.1; activate brake (spring RELAXED), remove cover and carefully ease spring off anchor pin and bell crank. Use suitable punch ONLY IN THE DIRECTION SHOWN by arrow427RA050 VA (printed14). Opposite direction damages annular bead formed in bore, prevents correct anchor-pin/spring seating and may damage housing and impair brake function. No left/right convention inferred independently of drawing.
  • Align new pin knurling with existing bore knurling by turning pin back/forth; tap home SQUARELY until FLUSH WITH OUTER FACE. Attach spring to bell crank, then use assembly tool1117 890 0900 to attach spring to anchor pin. Engage both cover lugs and reinstall gearbox per5.1. No hammer force or replacement-pin part number specified.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — BT1201999-01 complete5.3.4; printed14–15.

Later manual evidence: STIHL BT120 (1999-01), section BT1201999-01 complete5.3.4; printed14–15, PDF pages 1, 3, 15, 16

Part numbers (1)
  • 1117 890 0900 — Assembly tool attaching brake spring to anchor pinreference · Later BT1201999-01 stated application only; original1998 configuration and interchange unestablished.

Service note · BT 120 C

BT 120 C: later bell-crank pin replacement and retained source wording

Clutch drum and band may remain fitted; removal direction remains drawing-specific.

No exact-model IPL link: Later BT1201999-01 comparison only, indexed as BT120C; exact historical edition/configuration not established. No assembly row, serial cutoff or interchange inferred.

  • Later-source comparison: BT120 manual cover1999-01 (RA_427_00_01_01.pdf), indexed as BT120C. It is NOT the BT106 manual named in TI37/1998 and does not establish original1998 equipment or universal interchange.
  • Remove bell crank per5.3.2; clutch drum and brake band CAN REMAIN IN POSITION. Suitable punch removes pin in direction of arrow427RA058 VA. Do not reverse direction: bore annular bead/housing damage can impair brake. Align knurling with existing bore by turning pin back/forth, tap SQUARELY until FLUSH WITH OUTER FACE, and reinstall bell crank per5.3.3.
  • SOURCE WORDING retained: section title is “Pin for Bell Crank”, but body calls it “anchor pin” and repeats brake-spring seating warning. This is not proof that spring anchor and bell-crank pins are the same part, nor an interchangeable-pin instruction. No numeric force, size or pin part number given.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — BT1201999-01 complete5.3.5; printed15.

Later manual evidence: STIHL BT120 (1999-01), section BT1201999-01 complete5.3.5; printed15, PDF pages 1, 3, 16

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: FS-reference powerhead fixture versus whole-machine clamp

Powerhead plate and FS drive-tube clamp are separate applications.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • Source powerhead fixture: assembly stand5910 890 3100 with clamping plate5910 890 2101. Remove clutch housing first; secure powerhead using two M6×20 and two M10×25 hex-head screws. Illustrated250RA227 VA; no fastening torque or compatible BT casting revision specified.
  • Separate WHOLE FS MACHINE arrangement uses stand5910 890 3100 with clamp5910 890 8800, secured to stand by two washers and two M8 nuts (250RA228 VA). This is a drive-tube clamp, NOT an auger-frame mounting claim. Do not substitute it for the powerhead plate or infer BT fixture fit.
  • Introduction requires relevant IPL for installed positions/replacement numbers, later TIs for changes, separate standardized-part handbooks and Standard Repairs, Troubleshooting. Dealer-only/non-transfer notice and original-parts identification remain in the source; this private comparison does not establish redistribution rights. Fixtures documented, not physically tried.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS-family section1, printed2; complete introduction.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS-family section1, printed2; complete introduction; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 3 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

Part numbers (3)
  • 5910 890 3100 — Assembly stand, powerhead/FS machine arrangementsreference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.
  • 5910 890 2101 — Powerhead clamping platereference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.
  • 5910 890 8800 — FS whole-machine clamp; NOT BT frame fitmentreference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.

Service note · BT 120 C

BT 120 C: FS-reference engine and starter values; speed differs from BT

FS cut-off12500±1000rpm must not replace BT12300rpm.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • FS120/300 column: single-cylinder two-stroke, impregnated bore,30.8cm³,35mm bore,32mm stroke,1.3kW (1.8bhp) at9000rpm; idle2800rpm. Crankshaft heavy-duty ball bearings, small/big-end needle cages, piston pin10mm. These shared nominal dimensions do not prove identical cylinder, piston or crankshaft parts.
  • CONFIGURATION DIFFERENCE: FS120 table specifies cut-off12500±1000rpm WITHOUT CUTTING TOOL; BT1201999-01 section3.1 specifies12300rpm WITHOUT AUGER. Do not use the FS value/tolerance as the auger governor setting, and do not import the FS400/450±800rpm column.
  • FS120 ElastoStart single-pawl starter, reserve rotor travel minimum HALF TURN, rope3.0mm×800mm; unlined centrifugal clutch engages4300rpm. Crankcase test specification0.5bar gauge pressure and0.5bar vacuum magnitude (7.25psi), not a test sequence or decay criterion. Exact hardware remains unverified.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS section2.1, printed3; BT section3.1 comparison.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS section2.1, printed3; BT section3.1 comparison; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 4 · STIHL BT120 (1999-01), section Section2 component delegation; section3.1 comparison, PDF pages 1, 3, 4

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: FS-reference fuel and adjustment branches

H/L one-turn baseline applies only to three-adjusting-screw carburetors.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • Diaphragm carburetor: H and L each open approximately ONE TURN only for the THREE ADJUSTING SCREWS branch. This is not the single-screw LD procedure in TI37/1998, and does not identify a carburetor on a particular BT120C. Later-reference procedures8.2.4/8.2.5 are now reviewed as separate three-screw and LD-only notes; exact historical component matching remains unestablished.
  • Carburetor leak test0.8bar gauge pressure (11.6psi); tank vent pressure≤0.3bar (4.35psi), vacuum magnitude≤0.05bar (0.725psi). These are separate systems and distinct from crankcase0.5bar; table gives no hold time or permitted decay.
  • FS120 fuel tank0.64L (1.35USpt); not the0.68L larger-model column. Minimum90RON or US/CAN pump87. Historical mix wording50:1 STIHL two-stroke oil,25:1 other-brand two-stroke AIR-COOLED engine oil; paper filter. Not a universal current fuel recommendation.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS section2.2, printed3.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS section2.2, printed3; cover2003-04/contents©2011 conflict;8.2.4/8.2.5 later procedure comparison, PDF pages 1, 2, 4, 43, 44 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: FS-reference ignition limits and service-kit scope

305mm lead is FS400/450-only; FS120 gasket kit is not the larger-engine kit.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • Electronic magneto with integral trigger and speed governor; air gap0.2–0.5mm (0.008–0.020in). Suppressed plugs Bosch WSR6F, NGK BPMR7A or Champion RCJ6Y; electrode gap0.5mm, M14×1.25 thread,9.5mm reach. The printed305mm ignition-lead length has footnote FS400/450 ONLY; no FS120/BT lead length inferred.
  • Service accessories: carburetor parts kit4134 007 1060; gasket set4134 007 1050 explicitly FS120/200/300/350 and FR350. The separate4128 007 1050 gasket set is for FS400/450 and FR450, NOT an FS120 replacement. Neither roster establishes kit contents, historical BT fitment or present availability.
  • Section2.4 FS bevel gearhead ratios,7g lubricant fill and section2.5.1 harness/transport guard/cutting-tool accessories are outside BT POWERHEAD/CONTROL HANDLE delegation. Do not transfer that gearhead fill to the BT auger gearbox or treat this exclusion as a missing source.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS sections2.3 and2.5.2, printed4;2.4/2.5.1 exclusions.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS sections2.3 and2.5.2, printed4;2.4/2.5.1 exclusions; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 5 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

Part numbers (3)
  • 4134 007 1060 — FS-family carburetor parts kit; carburetor version not specifiedreference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.
  • 4134 007 1050 — FS120-group gasket setreference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.
  • 4128 007 1050 — FS400/450/FR450 gasket set; NOT FS120 substitutionreference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.

Service note · BT 120 C

BT 120 C: FS-reference powerhead torques and model footnotes

FS120 ignition: 4.5 Nm; clutch housing: 6 Nm. Keep the model-specific footnotes.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • FS120-applicable rows: IS-B3.5×6.5 rewind spring/fan housing1.5Nm (1.1lbf.ft); IS-DG4×20 ignition module/crankcase4.5Nm (3.3), footnotes3/4/5. IS-DG5×24 ignition6Nm belongs to FS400/450 and FR450, NOT the FS120 row.
  • IS-DG5×20: fan housing/crankcase6Nm, fan housing/shroud/crankcase6Nm, carburetor housing/crankcase/cylinder6Nm, filter housing/ground wire/crankcase6Nm, shroud/clutch housing6Nm (each4.4lbf.ft). IS-DG5×26 fuel tank/crankcase6Nm (4.4). IS-DG5×28 cylinder/crankcase printed10.5Nm (7.5lbf.ft); retain printed pair without silently improving conversion.
  • IS-DG5×24: muffler/crankcase8.5Nm, muffler/cylinder8.5Nm, crankcase8.5Nm (each6.3lbf.ft). Clutch housing/crankcase has TWO MODEL ROWS: FS120/200: 6 Nm (4.4 lbf.ft); other listed FS/FR groups: 8.5 Nm (6.3 lbf.ft). No automatic transfer of either to BT gearbox joints.
  • M5 collar nut filter housing/carburetor housing3.5Nm (2.6lbf.ft); M5/P6 collar screw carburetor housing4Nm (3.0). M8 clutch carrier24Nm (17.7); IS-M6×18 clutch shoe/carrier12Nm (8.8); M8 flywheel32Nm (23.6); M14×1.25 spark plug20Nm (15.0).
  • Footnotes preserved:1 FS400/450;2 FR450;3 FS120/200;4 FS300/350;5 FR350;6 WITH WASHER. Larger-model screen, ground-wire, bracket, guard-plate, decompression and filter-cover rows do not become FS120 instructions. FS shaft/gearhead/AV-tube/support-frame fasteners are outside this BT delegation. These table values are not complete procedures.
  • UNRESOLVED CYLINDER TORQUE CONFLICT found in4.5.2: printed16/PDF17 says cylinder-base screws8.5Nm (6.3lbf.ft), versus2.6 printed5/PDF6 IS-DG5×28 cylinder/crankcase10.5Nm (7.5lbf.ft). Neither silently overrides the other; exact configuration/correction not established. See FS-reference ring/cylinder installation comparison.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS section2.6 powerhead rows, printed5–6.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS section2.6 powerhead rows, printed5–6; cover2003-04/contents©2011 conflict;4.5.2 cylinder-base torque conflict, PDF pages 1, 2, 6, 7, 17 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: FS-reference handle fasteners and existing-thread procedure

Polymer speed limits and drop-into-existing-thread method remain distinct from torque.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • Control-handle/handle-molding IS-P4×16 screw1Nm (0.75lbf.ft). Bike-handle detent spring/slide-control IS-P3.5×10.6 collar screw1.1Nm (0.80), footnotes1/3/4. Bike control-handle IS-M5×30 screw2Nm (1.5) with WASHER (footnote6). Applicable handle configuration must be matched; this is not a BT handle-frame joint table.
  • Loop-handle clamp/control-handle/drive-tube IS-M5×12 row2Nm (1.5), footnotes3/4, is an FS tube-clamp arrangement, not evidence of a BT mounting. Other shaft supports, harness clamps and FR support-frame joints excluded from BT component delegation.
  • DG/P screws form permanent threads in polymer/lightmetal. Use torque wrench and specified torque. In EXISTING thread, place screw in hole and rotate COUNTERCLOCKWISE until it DROPS DOWN SLIGHTLY, then tighten CLOCKWISE to specified torque; this avoids cutting a new thread.
  • POWER SCREWDRIVER SPEED FOR POLYMER: Plastoform maximum600rpm; DG maximum500rpm. These are tool-speed limits, NOT engine speeds or tightening torques, and do not authorize chasing a damaged thread.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS section2.6 control rows and DG/P instructions, printed5–6.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS section2.6 control rows and DG/P instructions, printed5–6; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 6, 7 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: FS-reference clutch inspection, locking strip and paired replacement

FS120 uses0000 893 5903; shoes and springs must be replaced in pairs.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • Source removal begins with clutch housing9.1/11.2; inspect drum for scores/excessive wear, replace if inside diameter shows serious wear. Its11.2 is the FS cutting-tool-drive drum: BT drum procedure remains BT1205.2, not a universal FS drum substitution. No numeric wear limit supplied.
  • Remove shroud4.1, unplug boot and remove spark plug. FS120–350/FR350 locking strip0000 893 5903; FS400/450/FR450 instead4221 893 5900. Keep both labels; NOT interchangeable locks. Remove screws/cover, lift clutch shoes with bushings, remove bushings, twist shoes and detach springs.
  • Clutch shoes AND springs MUST ALWAYS BE REPLACED IN PAIRS. No individual-shoe renewal inferred. Troubleshooting chart delegated to Standard Repairs, Troubleshooting; engine/shroud procedures and exact component matching remain separate pending dependencies.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS complete3.1 removal, printed7; installation context printed8.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS complete3.1 removal, printed7; installation context printed8; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 8, 9 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

Part numbers (2)
  • 0000 893 5903 — FS120–350/FR350 locking stripreference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.
  • 4221 893 5900 — FS400/450/FR450 locking strip; NOT FS120 substitutereference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.

Service note · BT 120 C

BT 120 C: FS-reference clutch arrow orientation, carrier and plug terminal

Shoe arrows counterclockwise; shoe screws12Nm, carrier24Nm.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • Install shoes with springs and bushings so ARROWS POINT COUNTERCLOCKWISE as illustrated250RA231 VA. Fit cover and tighten screws12Nm (8.8lbf.ft). Arrow direction is an assembly orientation, not evidence of a left-hand carrier thread.
  • Remove locking strip from cylinder; fit spark plug20Nm (15lbf.ft). If plug has SEPARATE TERMINAL NUT, always fit it on thread and tighten securely; no numeric terminal-nut torque given. Fit boot, shroud4.1 and clutch housing9.1/11.2, subject to FS-versus-BT housing boundary.
  • Carrier3.2: remove clutch3.1, unscrew carrier from crankshaft end; reinstall carrier24Nm (17.7lbf.ft), then clutch3.1. Source does not label carrier thread handedness here. Engine/shroud and BT drum/housing procedures must not be silently replaced by FS cutting-tool-drive references. No actual function test or physical interchange verified.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS complete3.1 installation and3.2 carrier, printed7–8.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS complete3.1 installation and3.2 carrier, printed7–8; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 8, 9 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: FS-reference exhaust gasket and screen variants

FS120 pull-out screen; larger-model screw retention is a different branch.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • FS120–350/FR350: pull spark-arresting screen out of muffler; clean or replace as necessary. FS400/450/FR450 uses a retaining screw, tightened2.5Nm (1.8lbf.ft); that screw instruction is NOT an FS120 screen fastener.
  • Muffler access: larger-model branch first removes air-filter cover8.1. Common instructions remove clutch-housing screws and shroud screws, depress decompression valve where fitted, remove shroud and muffler screws, lift muffler and discard gasket. Reassemble with NEW gasket; muffler screws8.5Nm (6.3lbf.ft). This does not establish a decompression valve on FS120 or BT120C.
  • FS clutch-housing/drive-tube geometry does not replace BT auger-drive housing procedures. Troubleshooting remains delegated to Standard Repairs, Troubleshooting; no exhaust or cylinder replacement part number is supplied here.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS4.1 complete, printed9.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS4.1 complete, printed9; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 10 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: FS-reference crankcase test sealing and piston position

Engine test flange and exhaust sealing plate; not the BT gearbox pressure test.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • Leaking crankshaft seals, gaskets, cracked castings or carburetor-housing/cylinder sealing ring admit air and disturb fuel-air mixture, idle adjustment and throttle transition. Test the ENGINE CRANKCASE, not the BT auger-drive housing; a shared tester is not a shared pressure specification.
  • Remove carburetor using applicable8.2.1/8.2.2 branch. Set piston to TOP DEAD CENTER, checked through inlet port; spark plug must be properly tightened. Fit NEW gasket on carburetor studs, then test flange1128 850 4200; tighten nuts firmly (no numeric test-flange torque stated).
  • Back muffler mounting screws off halfway. Insert sealing plate0000 855 8106 BETWEEN GASKET AND CYLINDER EXHAUST PORT; plate must completely fill the space between the two screws. Retighten screws moderately; do not confuse this temporary clamping instruction with final8.5Nm muffler assembly torque.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS4.2 and4.2.1 complete, printed10.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS4.2 and4.2.1 complete, printed10; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 11 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

Part numbers (2)
  • 1128 850 4200 — Engine crankcase test flangereference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.
  • 0000 855 8106 — Exhaust-port sealing platereference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.

Service note · BT 120 C

BT 120 C: FS-reference crankcase pressure retention and leak localization

Engine pressure: 0.5bar held at least20seconds; vacuum test still required.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • After4.2.1 preparation, connect tester1106 850 2905 pressure hose to flange nipple, close bulb vent screw and pump to0.5bar (7.25psi). Source acceptance: pressure remains CONSTANT FOR AT LEAST20SECONDS; crankcase and decompression valve IF FITTED are then considered airtight under this pressure test. No measured test result or proof of a fitted BT valve is claimed.
  • If pressure drops, locate leak and replace faulty part: oil suspect area, repressurize, look for bubbles. A leaking decompression valve is replaced under4.8, only where fitted. Repeat pressure test and carry out the separate VACUUM TEST4.2.3; pressure retention alone does not clear vacuum-side seal leakage.
  • At test completion OPEN VENT before disconnecting hose; remove flange, slacken muffler screws, withdraw sealing plate, tighten muffler screws8.5Nm (6.3lbf.ft), then reinstall applicable carburetor branch8.2.1/8.2.2. ENGINE procedure only, not the BT gearbox0.2bar test.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS4.2.1–4.2.2 complete, printed10–11.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS4.2.1–4.2.2 complete, printed10–11; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 11, 12 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

Part numbers (1)
  • 1106 850 2905 — Carburetor/crankcase tester, engine pressure applicationreference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.

Service note · BT 120 C

BT 120 C: FS-reference crankcase vacuum threshold and seal diagnosis

Start at0.5bar vacuum; preserve source0.3bar/20second wording.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • Seal lips can lift away from crankshaft during induction because there is no internal counterpressure; this is why the pressure test alone is insufficient. Complete4.2.1 preparation, connect vacuum pump0000 850 3501 to test flange, close vent and operate lever to0.5bar (7.25psi) VACUUM, not positive pressure.
  • Source wording: vacuum remains constant, or rises to no more than0.3bar (4.25psi) within20seconds; then seals can be assumed good. It explicitly describes a continued pressure rise as REDUCED VACUUM and requires replacement. Retain the source wording and printed unit pair; interpreted vacuum magnitude must remain at least0.3bar after starting at0.5bar over that20second observation, not a positive0.3bar pressure target.
  • Finish by opening vent, disconnecting hose, removing test flange and exhaust sealing plate, restoring muffler screws8.5Nm (6.3lbf.ft), and reinstalling carburetor by correct8.2.1/8.2.2 branch. These are source criteria, not hardware acceptance results.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS4.2.1 and4.2.3 complete, printed10–12.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS4.2.1 and4.2.3 complete, printed10–12; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 11, 12, 13 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

Part numbers (1)
  • 0000 850 3501 — Vacuum pump for engine seal testreference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.

Service note · BT 120 C

BT 120 C: FS-reference crankshaft seal puller and side-specific sleeves

Seal open sides face crankcase; starter and clutch sleeves differ.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • Complete engine dismantling is not necessary to replace seals. Illustrations explicitly show FS200, not proof of identical BT castings. Starter side first removes flywheel5.4; clutch side removes carrier3.2. Tap seal with suitable tube/punch to release seat, then use puller5910 890 4400 with No.3.1 jaws0000 893 3706; tension arms and pull seal without damaging crankshaft stub.
  • Clean sealing surface with solvent-based degreasant containing NO CHLORINATED OR HALOGENATED HYDROCARBONS (13.2). Grease sealing lips. Both seals install OPEN SIDE FACING CRANKCASE. Starter-side seal slides over shaft and presses fully home with4112 893 2401, then flywheel5.4 is refitted.
  • Clutch side protects shaft with INSTALLING SLEEVE4112 893 2400, slides seal over it and presses home with PRESS SLEEVE1118 893 2401; remove installing sleeve, refit carrier3.2. Do not substitute starter press sleeve4112 893 2401 for clutch press sleeve1118 893 2401. Neither is automatically a BT auger-shaft seal tool.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS4.3 complete, printed12–13.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS4.3 complete, printed12–13; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 13, 14 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

Part numbers (5)
  • 5910 890 4400 — Oil-seal pullerreference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.
  • 0000 893 3706 — No.3.1 jawsreference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.
  • 4112 893 2401 — Starter-side seal press sleevereference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.
  • 4112 893 2400 — Clutch-side seal installing sleevereference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.
  • 1118 893 2401 — Clutch-side seal press sleevereference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.

Service note · BT 120 C

BT 120 C: FS-reference cylinder access and intake sealing ring

Check fuel, carburetor, filter and ignition before engine teardown.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • Before looking for engine faults, check and if necessary repair fuel system, carburetor, air filter and ignition. Troubleshooting chart remains in Standard Repairs, Troubleshooting. Remove muffler4.1 and carburetor using appropriate8.2.1/8.2.2 branch, remove housing screws and pull carburetor housing away.
  • Normal illustrated reassembly seats housing stub in sealing ring and throttle cable in retainer (250RA027 VA); tighten housing screws6Nm (4.4lbf.ft). The sealing ring must not be omitted; this is not the paper cylinder-base gasket.
  • FS400/450/FR450-only fuel-pump hose, extended throttle cable/grommet, and cable-lug between raised marks are separately labeled. Their6Nm housing instruction does not establish that cable system or fuel pump on FS120 or BT120C. Retained as exclusions, not universal control-handle geometry.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS4.4 complete, printed13–14.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS4.4 complete, printed13–14; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 14, 15 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: FS-reference matched cylinder/piston and supported pin removal

A replacement cylinder requires its matching piston; protect connecting rod.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • After4.4, remove clutch housing per FS9.1/11.2 ONLY where that FS configuration applies; BT housing remains component-specific. Remove plug boot, take ignition lead out of throttle-cable-holder retainers on FS120–350/FR350, remove plug and any fitted decompression valve. FS400/450/FR450 cable-retainer removal is a separate excluded branch.
  • Pull sealing ring, release four cylinder-base screws and lift cylinder from piston. Inspect cylinder. If replacement is required, ALWAYS FIT THE MATCHING PISTON; source says new cylinders are supplied only with piston. No exact part number, cross-model swap or historical BT serial applicability supplied.
  • Before removing piston, decide whether crankshaft also needs removal. Source places wooden assembly block between piston and crankcase to block crankshaft for clutch/carrier removal. Remove cylinder gasket; ease HOOKLESS SNAP RINGS out of piston-boss grooves. Use drift1110 893 4700 to push piston pin out. If stuck, tap drift lightly while HOLDING PISTON STEADY so no jolts reach connecting rod. Remove piston and needle cage, inspect rings; do not apply crankshaft force through an unsupported piston.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS4.5.1 complete, printed14–15.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS4.5.1 complete, printed14–15; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 15, 16 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

Part numbers (1)
  • 1110 893 4700 — Piston-pin assembly driftreference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.

Service note · BT 120 C

BT 120 C: FS-reference piston orientation and conflicting snap-ring tool numbers

Source says modify2210 sleeve but fit rings with2208; neither supersedes the other.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • Clean gasket seating face thoroughly, verify adapter sleeves in place, oil needle cage and install in connecting rod. Heat piston to simplify assembly; no numeric temperature stated here. Drawing250RA037 VA identifies piston marking(1) on the side AWAY FROM FLYWHEEL(2); preserve diagram-specific orientation, not a guessed inlet/exhaust arrow.
  • Insert assembly drift SMALL DIAMETER FIRST through piston and needle cage to align piston; place pin on drift and slide home (source notes easier insertion with hot piston). Do not transmit jolts to connecting rod.
  • UNRESOLVED TOOL-NUMBER DISCREPANCY: printed15/PDF16 instructs modifying sleeve of5910 890 2210 per250RA057 VA, a=30degrees and b=Ø10mm. Printed16/PDF17 then instructs fitting snap rings with5910 890 2208 per250RA036 VA. Preserve both numbers and distinct statements; not evidence of interchange, supersession or an authorized modification to an unidentified tool. Detailed installing-tool method remains delegated to Standard Repairs, Troubleshooting.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS4.5.2 piston installation and tool discrepancy, printed15–16.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS4.5.2 piston installation and tool discrepancy, printed15–16; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 16, 17 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

Part numbers (2)
  • 5910 890 2210 — Sleeve-modification instruction; discrepancy with2208 retainedreference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.
  • 5910 890 2208 — Snap-ring installation instruction; discrepancy with2210 retainedreference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.

Service note · BT 120 C

BT 120 C: FS-reference ring fixing pins and cylinder torque conflict

Ring-gap radii meet fixing pins; cylinder8.5Nm procedure conflicts with10.5Nm table.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • Ring renewal4.6 requires piston REMOVED so cleaning residue cannot enter crankcase. Illustrations show FS200. Remove rings, scrape grooves with a piece of old piston ring and install new rings with gap RADII FACING FIXING PIN. No ring end-gap wear limit or exact ring part number is supplied.
  • Install NEW cylinder gasket. Oil piston/rings; rest piston on wooden assembly block1108 893 4800. Align ring-gap radii with fixing pins and compress with strap0000 893 2600, checking correct seating. Oil cylinder bore and align cylinder in installed orientation BEFORE sliding it over piston; wrong orientation can break rings. Strap moves downward as rings enter cylinder. Remove strap/block and align cylinder and gasket.
  • UNRESOLVED TORQUE CONFLICT:4.5.2 printed16/PDF17 uses socket0812 542 2104 and says cylinder-base screws8.5Nm (6.3lbf.ft), while2.6 printed5/PDF6 lists IS-DG5×28 cylinder/crankcase10.5Nm (7.5lbf.ft). No source correction or exact configuration resolution established. Retain both; do not select a BT torque by similar-engine inference. Reassemble remaining parts in reverse order subject to their applicable procedures.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS4.5.2 completion and4.6 complete; section2.6 comparison, printed5/16–17.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS4.5.2 completion and4.6 complete; section2.6 comparison, printed5/16–17; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 6, 17, 18 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

Part numbers (3)
  • 1108 893 4800 — Wooden piston assembly blockreference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.
  • 0000 893 2600 — Piston-ring clamping strapreference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.
  • 0812 542 2104 — Cylinder-base screw socketreference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.

Service note · BT 120 C

BT 120 C: FS-reference crankcase teardown and cable-guide branches

Separate FS120 cable routing from the larger-model grommet branch.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • Remove ignition module under applicable5.3.2/5.3.3, fuel tank8.5 and cylinder4.5.1. Remove cable-guide screw and top. FS120–350/FR350: take throttle cable out of guide base, then short-circuit wire out of base and retainers. Pull guide base off housing and remove carrier3.2, flywheel5.4, piston4.5.1 and crankcase screws before separating halves.
  • FS400/450/FR450 has a different short-circuit-wire retainer/grommet path, explicitly excluded from FS120 delegation. These are crankcase disassembly prerequisites, not permission to replace BT auger-drive geometry with FS drive-tube parts. Fan-housing, tank and throttle-cable dependency procedures remain separately pending; ignition is reviewed separately in this batch.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS4.7.1 access, printed17–18.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS4.7.1 access, printed17–18; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 18, 19 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: FS-reference clutch-side crankcase separation tools

ZS spindle turns counterclockwise; alternative puller thrust bolt turns clockwise.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • Place extension4116 894 1000 on clutch-side crankshaft stub. Back off LEFT-HAND-THREADED spindle of ZS tool5910 890 2220 a little; hold plate against clutch side with NOTCH16 AT BOTTOM. Fit M6×20 screws in HOLES17 and tighten against drilled plate. Rotate spindle COUNTERCLOCKWISE until shaft leaves ball bearing; this separates crankcase halves.
  • Alternative explicitly allowed here: puller4119 890 4600 mounted on CLUTCH SIDE with M6×20 screws. Turn its THRUST BOLT CLOCKWISE until shaft releases from ball bearing. Opposite turning directions belong to different tools; do not merge them. This alternative is not stated for starter-side removal.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS4.7.1 clutch-side separation, printed18–19.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS4.7.1 clutch-side separation, printed18–19; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 19, 20 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

Part numbers (3)
  • 4116 894 1000 — Crankshaft-stub extensionreference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.
  • 5910 890 2220 — ZS crankcase separating toolreference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.
  • 4119 890 4600 — Alternative clutch-side pullerreference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.

Service note · BT 120 C

BT 120 C: FS-reference ZS plate underside and numbered hole patterns

Retain drawing250RA219 VA: holes16/18 Ø5.5, holes17 Ø6.5.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • Source allows ZS tools lacking HOLES16/17/18 and NOTCHES16/17 to be modified to drawing250RA219 VA. Drawing is the UNDERSIDE of the drilled plate, not a top view; holes16 and18 serve starter-side configurations. Hole labels are pattern identifiers, NOT16/17/18mm diameters. Legend:16+18=Ø5.5;17=Ø6.5.
  • Retain the original centerlines and dimension leaders rather than inventing a replacement drilling template. Horizontal labels above center:33.3,32.25,20.6,15.5,38.0,33.6,17.3; below:2.5,25.5,33.7,19.9,22.5. Left vertical labels:41.6,20.1,12.6,17.65,24.75; right:33.85,2.25,9.7,26.85,41.25. These are drawing annotations, not serial limits; their leader associations and underside orientation remain in the pinned original. No dimensional tolerance, drawing unit legend, physical tool fit or modification acceptance is established by this review.
  • FS120 starter setup uses NOTCH16 down/HOLES16, while clutch setup uses NOTCH16 down/HOLES17. FS400/450/FR450 starter uses NOTCH17 down/HOLES18 with M5×60 screws, washers and nuts; that larger-model branch is excluded from FS120 use. Shared plate does not establish shared crankcase geometry.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS4.7.1 ZS modification drawing250RA219 VA, printed18–19.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS4.7.1 ZS modification drawing250RA219 VA, printed18–19; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 19, 20 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

Part numbers (1)
  • 5910 890 2220 — ZS tool whose drilled-plate drawing is retainedreference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.

Service note · BT 120 C

BT 120 C: FS-reference starter-side crankshaft extraction

FS120 uses extension, support sleeves and holes16; not the larger-model pattern.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • FS120–350/FR350: back off LEFT-HAND-THREADED ZS spindle a little. Put extension4116 894 1000 on crankshaft stub and sleeve1123 851 8300 on the starter-side bores as illustrated250RA058 VA. Hold ZS5910 890 2220 against starter side with NOTCH16 AT BOTTOM; insert kit screws9022 341 1190 in HOLES16, then washers and nuts on opposite side.
  • Rotate spindle COUNTERCLOCKWISE until shaft comes out of ball bearing. Do not substitute FS400/450/FR450 notch17/holes18/M5×60 pattern or assume the clutch-side alternative puller was approved for this side. Tool numbers are source applications, not BT historical part-fitment proof.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS4.7.1 starter-side separation, printed19.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS4.7.1 starter-side separation, printed19; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 20 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

Part numbers (4)
  • 4116 894 1000 — Starter-side crankshaft extensionreference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.
  • 1123 851 8300 — Starter-side bore support sleevereference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.
  • 5910 890 2220 — ZS tool, starter-side applicationreference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.
  • 9022 341 1190 — ZS kit screws for holes16reference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.

Service note · BT 120 C

BT 120 C: FS-reference complete crankshaft unit and bearing renewal

Crankshaft/rod/needle bearing are inseparable; new seals and bearings with new shaft.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • Crankshaft, connecting rod and needle bearing form an INSEPARABLE UNIT; always replace complete. When fitting replacement crankshaft, ALWAYS fit NEW OIL SEALS AND BALL BEARINGS. Carefully knock seals out; remove bearings with press arbor4119 893 7200. Inspect both crankcase halves for cracks and replace if needed. This does not authorize pressing apart a connecting-rod assembly.
  • Each crankcase half may be replaced separately; new crankcases come with factory-installed ball bearings. Reused halves require gasket residue removed and mating faces thoroughly cleaned. Check bushings are present; drive into crankcase where necessary.
  • For each side, heat BEARING-SEAT AREA of crankcase to approximately120°C (250°F), fit bearing by hand to stop QUICKLY because bearing absorbs heat and expands. If heating is not possible, press bearing to stop with4119 893 7200; starter and clutch sides are both illustrated. Temperature is for crankcase bearing seats, not piston heating or a blanket temperature for every component.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS4.7.1 completion and4.7.2 bearing seats, printed19–21.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS4.7.1 completion and4.7.2 bearing seats, printed19–21; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 20, 21, 22 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

Part numbers (1)
  • 4119 893 7200 — Crankcase ball-bearing removal/installation press arborreference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.

Service note · BT 120 C

BT 120 C: FS-reference crankshaft installation and case joint sealing

Straight stub on clutch side; connecting rod points toward cylinder flange.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • Place STRAIGHT crankshaft stub in CLUTCH-SIDE bearing. Screw spindle of5910 890 2202 fully into sleeve (LEFT-HAND THREAD). Hold crankshaft steady and screw spindle CLOCKWISE onto stub to stop. Hold spindle steady and rotate sleeve COUNTERCLOCKWISE until it contacts bearing; then hold sleeve and rotate spindle CLOCKWISE to draw crankshaft against bearing.
  • During drawing-in, connecting rod WITHOUT PISTON must point TOWARD CYLINDER FLANGE. Hold shaft steady to unscrew spindle. Apply THIN sealant coating to case mating face per13.2 and follow manufacturer instructions; no sealant product or cure time inferred here.
  • Fit starter-side half over stub; repeat spindle clockwise onto shaft, sleeve counterclockwise against bearing, then spindle clockwise while holding sleeve until halves meet. Remove installer. Fit screws and tighten8.5Nm (6.3lbf.ft) with socket0812 542 2104. This CRANKCASE-JOINT value does not resolve the separate cylinder10.5/8.5Nm conflict or replace BT gearbox-joint guidance.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS4.7.2 shaft installation and case closure, printed21–22.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS4.7.2 shaft installation and case closure, printed21–22; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 22, 23 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

Part numbers (2)
  • 5910 890 2202 — Crankshaft drawing-in tool with left-hand-threaded sleevereference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.
  • 0812 542 2104 — Crankcase-joint screw socketreference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.

Service note · BT 120 C

BT 120 C: FS-reference final crankcase seals and throttle adjustment

Open seal sides face crankcase; reinstall controls using their own procedures.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • Grease oil-seal lips per13.2. CLUTCH SIDE: install sleeve4112 893 2400 over shaft; slide seal OPEN SIDE TOWARD CRANKCASE over sleeve, press home with1118 893 2401, then remove installing sleeve. STARTER SIDE: slide seal OPEN SIDE TOWARD CRANKCASE over starter end and press home with4112 893 2401.
  • Reassemble remaining parts in reverse sequence and ADJUST THROTTLE CABLE under7.5.2. Side-specific press sleeves remain distinct; the finishing cross-reference is not proof that throttle adjustment has been reviewed or that BT control dimensions equal FS drive-tube dimensions. Tools/aids13.2 and control procedure remain actionable dependencies.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS4.7.2 completion, printed22.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS4.7.2 completion, printed22; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 23 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

Part numbers (3)
  • 4112 893 2400 — Clutch-end seal installing sleevereference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.
  • 1118 893 2401 — Clutch-side oil-seal press sleevereference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.
  • 4112 893 2401 — Starter-side oil-seal press sleevereference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.

Service note · BT 120 C

BT 120 C: FS-reference decompression-valve replacement only where fitted

Long-reach13mm socket; replacement valve14Nm—not evidence FS120 has a valve.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • Only for an exact configuration with a decompression valve: remove shroud under4.1, unscrew valve with a commercial LONG-REACH13mm socket, install NEW valve and tighten14Nm (10.3lbf.ft), then refit shroud. No exact replacement part number or repair of the old valve is specified.
  • This family-manual section alone does NOT establish a decompression valve on FS120 or historical BT120C. Earlier pressure-test wording likewise says IF FITTED. Keep as conditional family-reference guidance, not a verified BT feature or added component. Section5 ignition begins on the same PDF page; its complete procedures are reviewed separately in this batch, not inferred from valve review.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS4.8 complete, printed23.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS4.8 complete, printed23; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 24 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: FS-reference spark-plug boot spring and terminal nut

Spring hook enters lead center about10mm from end; separate terminal nut must be secure.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • Ignition-system HIGH VOLTAGES can cause serious or fatal accidents; source says exercise extreme caution. Troubleshooting starts at spark plug and is delegated to Standard Repairs, Troubleshooting. Electronic ignition comprises module and flywheel; introductory illustration is FS200, not proof of BT geometry. No live test or ignition actuation performed.
  • Remove shroud4.1 and plug boot. Use pliers to grip leg spring and pull from boot, unhook from lead, then pull boot from lead. Oil approximately20mm (3/4inch) of lead end, fit boot over lead and use pliers to pull lead end through. Pinch spring hook into CENTER OF LEAD about10mm (3/8inch) from end, then pull lead back until spring locates correctly in boot.
  • If spark plug has separate terminal nut, ALWAYS FIT AND TIGHTEN IT SECURELY. Refit boot to plug and shroud. Removing/refitting the cylinder cable holder is FS400/450/FR450-only, not an FS120 requirement. No exact plug/boot replacement part number is given in this procedure.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS5 safety and5.1 complete, printed23–24.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS5 safety and5.1 complete, printed23–24; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 24, 25 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: FS-reference molded ignition lead versus larger-model screw-in lead

FS120 lead is molded to module; section5.2 is not an FS120 replacement-lead procedure.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • 5.2 is explicitly headed FS400/450, FR450 and describes a lead UNSCREWED from module contact pin, replacement cut to parts-list/old length, pierced center, rubber boot, multipurpose grease and reassembly. It prohibits graphite grease (Molykote) and silicone insulating paste for that high-voltage output. That entire replaceable screw-in-lead operation is OUTSIDE FS120 delegation; no FS120 lead length or detachable lead inferred.
  • By contrast5.3.2 explicitly says the FS120–350/FR350 ignition lead is MOLDED TO THE IGNITION MODULE. Both families have high-voltage output and short-circuit connector tag, but connector count does not establish lead interchange. FS120-family module also has bonded vibration-damping pad. Retain this component boundary instead of applying the larger-model repair to FS120/BT by similarity.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS5.2 excluded model branch;5.3/5.3.2 comparison, printed24–26.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS5.2 excluded model branch;5.3/5.3.2 comparison, printed24–26; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 25, 26, 27 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: FS-reference spark-test limits and nonadjustable ignition timing

A visible spark does not establish correct timing.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • Accurate module testing requires sophisticated test equipment. Source workshop guidance uses a spark test, and says to replace module if NO SPARK only AFTER checking wiring and stop switch are in good condition. This is a source diagnostic sequence, not a measured result, permission for unattended ignition or an exact replacement-module identity.
  • IGNITION TIMING IS NOT ADJUSTABLE. Lack of mechanical wear does not rule out an internal electronic switching-point fault: a spark test can appear normal while timing is outside permissible tolerance and starting/running deteriorate. No numeric timing tolerance or safe test setup is supplied in this section; a spark alone must not be recorded as complete ignition acceptance.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS5.3 diagnostic limits and5.3.1 complete, printed25–26.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS5.3 diagnostic limits and5.3.1 complete, printed25–26; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 26, 27 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: FS-reference ignition-module pad, gauge and4.5Nm screws

FS120 mounting4.5Nm differs from larger-model6Nm.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • FS120–350/FR350: remove shroud, plug boot, fan housing6.2 and applicable clutch housing9.1. Release lead from retainers, disconnect short-circuit wire tag, remove screws/module and plug boot5.1. Lead is MOLDED to module. Before bonding new vibration-damping pad, its seating area must be FREE OF GREASE, DIRT AND MOISTURE; peel backing and apply firm UNIFORM PRESSURE.
  • Position module with screws initially loose. Ensure lead is correctly seated in grommet. Insert gauge1127 890 6400 BETWEEN MODULE ARMS AND FLYWHEEL MAGNET POLES, press module toward flywheel and tighten screws4.5Nm (3.3lbf.ft). Reassemble remaining parts in reverse order. Do not treat gauge number as a numeric gap measurement.
  • 5.3.3 FS400/450/FR450 instead removes cylinder cable retainer, uses detachable lead5.2 and secures cable retainer with outer screw; same gauge but mounting screws6.0Nm (4.4lbf.ft). That whole larger-model module branch is excluded from FS120 use. Neither shared gauge nor similar module establishes BT configuration or authority to select6Nm for FS120.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS5.3.2 complete;5.3.3 excluded larger-model comparison, printed26–28.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS5.3.2 complete;5.3.3 excluded larger-model comparison, printed26–28; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 27, 28, 29 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

Part numbers (1)
  • 1127 890 6400 — Ignition-module setting gaugereference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.

Service note · BT 120 C

BT 120 C: FS-reference flywheel removal, clean hub and FS12024Nm nut

FS120 nut24Nm; other listed models32Nm and different larger-model locking strip.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • Remove fan housing6.2, pull plug boot and unscrew spark plug. FS120–350/FR350 uses locking strip0000 893 5903; FS400/450/FR450 uses4221 893 5900, not an automatic FS120 substitution. Unscrew flywheel nut and pull flywheel off. If not removable by hand, screw on puller4133 893 0800 and TAP ITS END to release flywheel, then unscrew puller; not an instruction to hammer crankshaft directly.
  • Inspect flywheel and magnet poles; damage requires a new flywheel. Clean crankshaft stub and hub bore with commercial solvent degreasant containing NO CHLORINATED OR HALOGENATED HYDROCARBONS (13.2). Fit flywheel, CHECK SLOT POSITION, reassemble and tighten flywheel nut: FS12024Nm (17.7lbf.ft), ALL OTHER LISTED MODELS32Nm (23.6lbf.ft). No flywheel part interchange or torque for an unverified BT configuration inferred.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS5.4 complete, printed28.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS5.4 complete, printed28; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 29 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

Part numbers (3)
  • 0000 893 5903 — FS120-family piston locking stripreference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.
  • 4221 893 5900 — Excluded larger-model locking-strip comparisonreference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.
  • 4133 893 0800 — Flywheel pullerreference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.

Service note · BT 120 C

BT 120 C: FS-reference short-circuit wire and throttle-cable guide

FS120 grommet/retainer routing differs from larger-model double-grommet path.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • Remove module by correct5.3.2/5.3.3 branch and applicable clutch housing9.1/11.2; FS housing cross-references do not replace BT auger housing geometry. FS120–350/FR350: pull short-circuit wire out of grommet and remove from retainers. Separate FS400/450/FR450 branch removes fuel tank and muffler, outer grommet and further housing grommet; excluded from FS120 use.
  • Common cable-guide step: remove screw and guide top, lift throttle cable slightly and remove short-circuit-wire connector from guide BASE. Reassemble in reverse sequence; CHECK AND ADJUST THROTTLE CABLE under7.5.2. No wiring pinout, resistance criterion or permission to bypass stop switch is established here; control adjustment remains separately actionable.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS5.5 complete, printed29.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS5.5 complete, printed29; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 30 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: FS-reference sluggish starter and cleaning

Cold-thickened lubricant and dirt require different source treatments.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • Source says a stiff rope with slow/incomplete rewind can indicate a mechanism plugged with dirt, not necessarily failed parts. At very low temperatures spring oil may thicken and stick coils together: source treatment is a few drops of paraffin (kerosine), then carefully pull and rewind several times until smooth. This is source diagnostic guidance, not proof of the cause on any actual unit.
  • If clogged with dirt or pitch, remove and disassemble the entire starter including rewind spring; take special care removing the spring. Wash parts in paraffin or white spirit; before assembly lubricate rewind spring AND starter post with STIHL special lubricant, section13.2. These are distinct cleaning/lubrication roles; do not infer an arbitrary substitute or a lubricant part number from this page. Standard Repairs, Troubleshooting remains a separate dependency.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS6.1 complete, printed30.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS6.1 complete, printed30; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 31 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: FS-reference rewind spring orientation and inner-loop clearance

Counterclockwise outside-in refit,2mm inner-loop clearance and1.5Nm screw.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • Remove fan-housing screws and housing with starter; remove rope rotor using Standard Repairs, Troubleshooting. Remove spring screw and remaining spring pieces. Replacement spring is supplied ready to install, held by a washer; lubricate with a few drops of STIHL special lubricant13.2. Washer slips off as spring is pushed into housing; engage OUTER LOOP in housing recess at the same time.
  • CAUTION: spring can pop out and uncoil during installation. If it does, engage outer loop in recess and refit COUNTERCLOCKWISE, starting OUTSIDE and working INWARDS (250RA120 VA). Inner spring loop must be2mm (0.08in) from hub as dimension A in250RA121 VA. Fit screw1.5Nm (1.1lbf.ft), install rope rotor per separate handbook, then tension by6.2.2. No spring part number or demonstrated BT fit is supplied here.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS6.2.1 complete, printed30–31.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS6.2.1 complete, printed30–31; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 31, 32 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: FS-reference six-turn rewind preload and reserve-travel check

Grip seating and at least half-turn reserve both govern spring tension.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • Make rope loop, grip rope close to rotor and turn rotor SIX FULL TURNS COUNTERCLOCKWISE. Hold rotor steady, pull rope out with grip and straighten; hold grip firmly to keep rope tensioned, release rotor and SLOWLY release rope so it rewinds properly. Arrows in250RA122–124 VA retain winding and holding context.
  • Grip must sit firmly in rope-guide bush without drooping to one side; if not, tension spring ONE ADDITIONAL TURN. With rope FULLY EXTENDED rotor must still turn AT LEAST ANOTHER HALF TURN before maximum spring tension. If not, pull rope out, hold rotor steady and REMOVE ONE TURN of rope. Do NOT overtension: source says this causes spring to break. Both checks apply; six turns is not unconditional final acceptance.
  • Refit fan housing and tighten screws6.0Nm (4.4lbf.ft). This is the later FS-reference housing procedure, not a verified torque for an unidentified BT starter or permission to operate hardware.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS6.2.2 complete, printed31.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS6.2.2 complete, printed31; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 32 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: FS-reference ElastoStart rope routing and knots

Reference rope0000 195 8200; FR-only75mm sleeve is not an FS120 requirement.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • Remove fan housing and rotor by6.2/separate Standard Repairs handbook. For rope renewal remove old rope from rotor, pry cap from grip and pull rope out. Thread new rope through UNDERSIDE of grip, secure SIMPLE OVERHAND KNOT, pull knot into grip and push cap in. Grip replacement is supplied WITH ROPE; undo rotor knot and withdraw old rope from rotor/housing.
  • Thread starter rope0000 195 8200 through guide bush FROM OUTSIDE fan housing, then through hole in SIDE of rotor. Secure with simple overhand knot and pull knot into ROTOR RECESS (250RA127–128 VA). Install rotor using handbook, tension spring6.2.2 and fit housing. Source gives no cut length here; no exact BT historical rope/grip interchange inferred.
  • Both rope and grip branches specify a75mm (2.95in) tube over rope ONLY ON FR350/450. This backpack-model sleeve is excluded from FS120 delegation; ElastoStart heading is not evidence every historical BT configuration has this grip.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS6.3 complete, printed32.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS6.3 complete, printed32; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 33 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

Part numbers (1)
  • 0000 195 8200 — Later FS-family starter rope referencereference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.

Service note · BT 120 C

BT 120 C: FS-reference bike-handle trigger and interlock

Long spring arm in slot; interlock behind trigger; no starting with handle open.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • BIKE-HANDLE branch only, contingent on actual control configuration. Remove screw/washer and control handle. WARNING: do NOT START unit with control handle OPEN, due to electric-shock risk. Use screwdriver5910 890 2301 to remove handle screws and separate halves. Lift interlock slightly and turn aside until torsion spring relaxes; pull interlock from peg and remove spring. Lift trigger with torsion spring/cable off peg and disconnect cable.
  • Assemble in reverse: attach cable, position torsion spring as329RA038 VA and push LONG ARM INTO SLOT. INTERLOCK MUST BE BEHIND THROTTLE TRIGGER (329RA039 VA). Check cable1/contact spring2/protective tube3/insulator4 locations in329RA040 VA. Do not transpose loop-handle geometry or infer BT bike-handle attachment, exact replacement parts or an unstated screw torque.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS7.1 complete, printed33.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS7.1 complete, printed33; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 34 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

Part numbers (1)
  • 5910 890 2301 — Control-handle screwdriverreference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.

Service note · BT 120 C

BT 120 C: FS-reference bike-handle contact and detent springs

Contact spring must engage collar-screw groove.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • BIKE-HANDLE branch: after trigger removal7.1, slightly lift contact spring and remove throttle cable. Remove spring from seats and peg; detach contact spring from peg and collar screw. Remove slide-control collar screw and detent spring, then pull slide control out of handle molding. Keep the7.1 open-handle electric-shock warning: do not start with handle open.
  • Reverse sequence for assembly; engage CONTACT SPRING CORRECTLY IN COLLAR-SCREW GROOVE. Drawings329RA045/041/037 and250RA103/104 VA distinguish seats, peg and collar screw. This is conditional component-reference guidance, not proof of which control variant the historical BT uses; no contact/detent spring part numbers are stated.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS7.2 complete, printed34.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS7.2 complete, printed34; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 35 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: FS-reference loop-handle trigger and1Nm handle screws

Retain protective tube/insulator routing and FR-only guard step.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • LOOP-HANDLE branch only: FR350/450 first removes guard screw with5910 890 2301 and pushes guard forward; this FR-only step is NOT an FS120 requirement. All models in this branch: do NOT START unit with control handle OPEN (electric-shock risk); remove handle screws with screwdriver5910 890 2301, remove molding and torsion spring.
  • Lift trigger with throttle cable off peg and disconnect cable. Slightly lift contact spring to remove cable; lift interlock WITH CONTACT SPRING from peg, then remove spring from interlock. Reverse sequence to assemble; check cable1/contact spring2/protective tube3/insulator4 positions in250RA136 VA. Tighten handle screws1.0Nm (0.75lbf.ft). This is not the2Nm drive-tube clamp torque from7.4 or an established BT handle variant.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS7.3 complete, printed34–35.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS7.3 complete, printed34–35; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 35, 36 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

Part numbers (1)
  • 5910 890 2301 — Loop-handle screwdriverreference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.

Service note · BT 120 C

BT 120 C: FS-reference loop-handle slide engagement and clamp boundary

Slide groove over molding edge; spring in recess;20mm spacing FR-only.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • LOOP-HANDLE component reference: remove interlock7.3, pull slide control from molding, remove clamp screws, take molding off drive tube and remove torsion spring from peg. Reverse sequence for assembly. Source clamp screws2Nm (1.5lbf.ft) apply to this FS/FR drive-tube arrangement; NOT a BT auger support-frame or handle-mount torque.
  • GROOVE1 in slide control must engage OVER OUTER EDGE2 of molding; TORSION SPRING3 must engage RECESS4 (250RA140 VA). FR350/450 distance a between handle and housing is20mm (0.8in), drawing250RA237 VA. FR-only20mm setting and drive-tube geometry are excluded from FS120/BT application. Do not flatten7.3 handle screw1Nm and7.4 clamp2Nm into one fastener setting.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS7.4 complete, printed35–36.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS7.4 complete, printed35–36; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 36, 37 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: FS-reference throttle-cable replacement and housing branches

FS120 lug sits in filter-housing corner; extended-cable screw6Nm.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • Remove shroud4.1, applicable clutch housing9.1/11.2, air filter8.1 and cable from contact spring7.2/7.3. FS drive-tube housing references do not replace BT auger geometry. FS120–350/FR350 also removes plug boot and ignition lead from cable-guide top/base retainers. Remove screw and guide top; remove extended-cable screw, disconnect nipple from slotted throttle-lever pin, remove cable from guide base and carburetor-housing retainer.
  • FS400/450/FR450 instead removes air-filter housing, then extended-cable screw/nipple, pulls grommet from carburetor housing and cable through housing opening. This larger-model grommet branch is EXCLUDED from FS120 application, including its reassembly instruction to locate grommet and secure lug BETWEEN RAISED MARKS.
  • Assemble in reverse. FS120–350/FR350 places LUG AND EXTENDED THROTTLE CABLE IN CORNER OF FILTER HOUSING; screw6.0Nm (4.4lbf.ft), then adjust7.5.2. Neither this routing nor shared torque establishes cable length, replacement part identity or BT historical configuration.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS7.5.1 complete, printed36–37.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS7.5.1 complete, printed36–37; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 37, 38 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: FS-reference full-throttle and idle cable endpoints

Adjust holder at full throttle; retain idle-stop check and conditional screw.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • At FULL THROTTLE, lever1 must butt against stop on carburetor cover2 (250RA148 VA). At IDLE, lever must butt against IDLE-SPEED SCREW IF FITTED (250RA149 VA). Filter housing omitted in illustration. Adjustment moves cable in holder, not an inferred change to carburetor mixture settings. Remove shroud and check correct idle-screw setting IF FITTED, observing its ADJUSTMENT RANGE.
  • Loosen holder screw and pull cable out slightly; lever moves toward carburetor cover. Squeeze trigger FULLY, HOLD steady, tighten screw6.0Nm (4.4lbf.ft), then RELEASE trigger and verify lever meets idle-speed screw IF FITTED. Refit shroud. FS300–450 AV-housing cover removal/refit is a separate model-only step, NOT FS120/BT requirement. Both endpoints remain required; source gives no generic free-play measurement.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS7.5.2 complete, printed37–38.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS7.5.2 complete, printed37–38; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 38, 39 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: FS-reference air-filter service and cover variants

FS120 tab-release cover differs from larger-model3Nm screw cover.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • Dirty/clogged filter reduces power, increases fuel consumption and makes starting harder. Source calls for cleaning when power loss is noticeable. CLOSE CHOKE SHUTTER and clear loose dirt around filter/cover. FS120–350/FR350: press tab DOWN, push cover DOWNWARD and remove from lower housing lugs (250RA151 VA).
  • FS400/450/FR450 instead removes screw and swings cover FORWARD; its reassembly screw3Nm (2.2lbf.ft) is EXCLUDED from FS120 tab-cover application. All listed models remove filter; if HEAVILY DIRTY OR DAMAGED, FIT NEW FILTER. Fit filter and locate cover properly in LOWER LUGS. Page gives no cleaning medium or exact filter part number; do not invent either or establish BT filter interchange.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS8.1 complete, printed38.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS8.1 complete, printed38; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 39 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: FS-reference carburetor removal and gasket renewal

FS120 branch: housing nuts3.5Nm; extended-cable screw6Nm.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • FS120–350/FR350 branch. For carburetor or fuel-system trouble ALWAYS CHECK AND CLEAN TANK VENT8.3; troubleshooting chart remains in separate Standard Repairs, Troubleshooting handbook. Remove shroud4.1 and air filter8.1. Remove extended-cable screw, pry choke knob out of filter housing and off choke shaft. Release fuel hose from housing retainer and disconnect pump hoses. Unscrew housing nuts; remove housing while pulling its stub out of grommet. Inspect heat shield; if necessary push out grommet and remove shield.
  • Disconnect cable nipple from SLOTTED PIN on throttle lever and fuel hose from carburetor ELBOW CONNECTOR. Pull carburetor off studs; remove remaining fuel hose if necessary and remove gasket. Reverse assembly USING A NEW GASKET. Filter-housing nuts3.5Nm (2.6lbf.ft); extended-throttle-cable screw6.0Nm (4.4lbf.ft). Drawings250RA154–161/013 VA identify retainer, stub/grommet and cable connection; no exact gasket or carburetor part number is supplied.
  • Adjacent8.2.2 applies ONLY FS400/450/FR450: separate housing screw and its6Nm setting, housing/connector/choke steps and illustrations250RA163–169 VA are reviewed but EXCLUDED from FS120 delegation. Shared3.5Nm nuts do not establish housing or carburetor interchange.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS8.2.1 complete;8.2.2 excluded, printed39–41.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS8.2.1 complete;8.2.2 excluded, printed39–41; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 40, 41, 42 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: FS-reference carburetor0.8bar leak test

Constant-pressure criterion; needle/control-lever versus diaphragm causes.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • Carburetor test, NOT engine crankcase or BT gearbox test. Source uses tester1106 850 2905. FS120–350/FR350 removes carburetor8.2.1; FS400/450/FR450 instead removes shroud and disconnects hose from elbow while installed (larger-model access branch not for FS120). Fit hose1110 141 8600 on nipple0000 855 9200; connect hose to carburetor elbow, nipple into tester pressure hose. Close bulb vent screw and pump to APPROXIMATELY0.8bar (11.5psi).
  • If pressure REMAINS CONSTANT source calls carburetor airtight. A DROP has two listed possible causes: inlet needle not sealing (dirt in seat, damaged needle sealing cone OR sticking inlet control lever), or damaged metering diaphragm. Remove/service carburetor using separate Carburetor handbook in either case; pressure loss alone does NOT identify which cause. Page states NO HOLD DURATION or allowable drop, so none is invented.
  • After test OPEN VENT SCREW before pulling test hose off elbow. Reinstall FS120 branch carburetor8.2.1; larger-model branch reconnects fuel hose and fits shroud. These are documentary criteria only; no test or airtightness of an actual device demonstrated.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS8.2.3 complete, printed41–42.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS8.2.3 complete, printed41–42; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 42, 43 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

Part numbers (3)
  • 1106 850 2905 — Carburetor and crankcase tester used here on carburetorreference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.
  • 1110 141 8600 — Test fuel hosereference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.
  • 0000 855 9200 — Test connection nipplereference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.

Service note · BT 120 C

BT 120 C: FS-reference three-screw carburetor settings

H/L one-turn baseline; LA and LD idle branches remain distinct.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • Only for the THREE-SCREW configuration actually present; no historical BT carburetor version inferred. Source standard setting from scratch: carefully turn H and L clockwise to their seats (source wording: hard against their seats), then open EACH ONE FULL TURN. No seating torque is specified. For slight altitude correction, source requires approved CUTTING TOOL, checked/replaced air filter, checked/cleaned/replaced spark screen and warmed engine. H CLOCKWISE is LEANER at high altitude; COUNTERCLOCKWISE is RICHER near sea level; move slowly/carefully because small changes affect running.
  • If engine stops at idle, first standard setting: LA branch turns clockwise until tool STARTS ROTATING, then BACK ONE HALF TURN; LD branch turns clockwise until smooth, with tool NOT ROTATING. If tool rotates at idle, first standard setting: LA or LD turns counterclockwise until rotation STOPS, then ABOUT ONE MORE FULL TURN counterclockwise. The half-turn LA stall correction and full-turn rotating-tool correction are different cases, not interchangeable instructions.
  • Continued note on printed43: if engine does not reach6,000rpm in STARTING THROTTLE position, readjust throttle cable7.5. This is not maximum speed or idle-speed specification. Source cutting-tool setup and live running steps are NOT transposed to BT auger operation or authorization; exact carburetor, historical edition and BT-specific setup remain unestablished.
  • TI37/1998 section2.1.3 page3 explicitly specifies ONE adjusting screw for the historical BT120C. The later FS manual listing multiple configurations does NOT override that evidence or establish three-screw original equipment.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 3 · TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS8.2.4 complete, printed42–43.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS8.2.4 complete, printed42–43; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 43, 44 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: FS-reference single-screw carburetor idle limits

LD-only version has NO H or L mixture-adjusting screws.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • ONE-SCREW configuration has NO maximum-speed H screw and NO idle-mixture L screw; source describes factory-tuned mixture for operating conditions. Do NOT import8.2.4 H/L one-turn baseline into this configuration. For slight idle correction source specifies approved cutting tool, checked/replaced air filter, checked/cleaned/replaced spark screen and warmed engine. Adjust LD so CUTTING TOOL DOES NOT ROTATE.
  • Engine stops at idle: LD CLOCKWISE until smooth, with cutting tool NOT rotating. Tool rotates at idle: LD COUNTERCLOCKWISE until stopped, then ABOUT ONE MORE FULL TURN in same direction. If engine does not reach6,000rpm in STARTING THROTTLE position, readjust cable7.5; not an idle or maximum-speed target. Exact carburetor version on historical BT is unestablished; source cutting-tool/run setup is not an auger operating procedure and was not performed.
  • TI37/1998 section2.1.3 page3 explicitly specifies ONE adjusting screw for the historical BT120C. The later FS manual listing multiple configurations does NOT override that evidence or establish three-screw original equipment.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 3 · TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS8.2.5 complete, printed43.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS8.2.5 complete, printed43; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 44 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: FS-reference cap vent flow and cleaning

Two flow directions and two sintered filters; no test pressure invented.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • For carburetor/fuel-supply trouble always check/clean vent; source checks tank by PRESSURE AND VACUUM tests VIA FUEL HOSE. No test pressure, time or pass/fail numeric limit is stated here: carburetor0.8bar must NOT be reused as tank-vent test pressure. Outside-to-inside flow: filler-cap hole → sintered filter → VALVE → holes in cap (250RA223 VA). Inside-to-outside flow: cap holes → VALVE-BODY HOLES → sintered filter → filler-cap hole (250RA224 VA). Diagrams distinguish paths, not a generic bidirectional valve claim.
  • Unscrew filler cap; ease cap1 off valve body2, remove sintered filter3, pry valve body from filler cap4 and remove sintered filter5. Wash VALVE BODY in clean gasoline; renew diaphragm6 IF DAMAGED. Fit NEW filter5 in filler cap, sealing ring7 OVER VALVE BODY; press body into filler cap until snapped home. Fit NEW sintered filter in cap, then snap cap onto body and refit filler cap. Exploded250RA225 VA fixes numbering/order. No individual vent part numbers, interchange or observed tank behavior inferred.
  • Separate FS2.2 specification table (PDF4) gives tank-vent pressure≤0.3bar (4.35psi), vacuum magnitude≤0.05bar (0.725psi). These bounds do not supply the omitted8.3 fixture procedure, duration or decay limit, and are NOT the0.8bar carburetor test.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS8.3 complete, printed44.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS8.3 complete, printed44; cover2003-04/contents©2011 conflict;2.2 tank-vent specification context, PDF pages 1, 2, 4, 45 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: FS-reference fuel starvation and pickup renewal

Check tank/pickup; hook retrieval must not stretch fuel hose.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • Carburetor diaphragm pump draws fuel through hose/pickup filter. Fine dirt can clog filter pores and cause fuel starvation; source says check tank and pickup FIRST for fuel-system trouble, alongside8.3 mandatory vent check. This is diagnostic guidance, not proof that a real engine has a clogged filter.
  • Source cleaning: unscrew cap/drain tank, add SMALL AMOUNT of clean gasoline, close tank and shake vigorously, then reopen/drain; dispose of fuel properly. To renew pickup, remove filler cap WITH RETAINER; hook5910 893 8800 pulls pickup from tank. DO NOT STRETCH FUEL HOSE. Pull pickup off hose, fit NEW pickup, reverse installation. No exact pickup part number stated; no BT filter interchange claimed.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS8.4 complete, printed44–45.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS8.4 complete, printed44–45; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 45, 46 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

Part numbers (1)
  • 5910 893 8800 — Fuel pickup retrieval hookreference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.

Service note · BT 120 C

BT 120 C: FS-reference tank mounting and model branches

FS120 tank screws6Nm; FR frame and larger-model guard steps excluded.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • All listed source models drain tank, remove shroud4.1 and fan housing6.2.1. FS120–350/FR350 removes filter housing8.2.1, pulls fuel hose off carburetor elbow, removes tank screws/tank; renew sleeves/grommets if needed, remove hoses if needed. Reverse assembly; screws6.0Nm (4.4lbf.ft). FR350 additionally removes powerhead from backpack support frame9.3; that FR-only step is EXCLUDED from FS120/BT mounting guidance.
  • FS400/450/FR450 branch instead removes carburetor8.2.2 and disconnects LOWER manual-pump connector hose from its guide; FR450 removes powerhead from support frame; FS400/450 ONLY removes guard plate. After tank screws/removal, take sleeves out of grommets and ease grommets from tank, removing hoses as necessary; reverse assembly6Nm. These larger-model operations/illustrations250RA178–180/226 VA are reviewed but EXCLUDED from FS120 delegation. Shared torque is not evidence of shared tank, grommets or BT support geometry.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS8.5 tank removal complete, printed45–46.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS8.5 tank removal complete, printed45–46; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 46, 47 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: FS-reference fuel-hose routing and return dimension

Dimension A190mm for FS120–350;200mm only FS400/450.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • Remove filler cap WITH RETAINER; hook5910 893 8800 retrieves pickup, pull pickup from fuel hose. Pull fuel hose1 out; pull RETURN HOSE2 TOGETHER WITH GROMMET3 (250RA183 VA). Reverse installation. Keep8.4 no-stretch hose caution. FS400/450/FR450 fuel hose goes NEXT TO FILLER NECK2 (250RA184 VA); that explicit larger-model routing is NOT silently assigned to FS120.
  • Drawing250RA185 VA dimension A runs along the exposed return-hose segment ABOVE THE TANK GROMMET, from grommet level to free end. Source calls A190mm (7.5in) on FS120–350 and200mm (7.9in) on FS400/450. NOT established as total hose cut length, and the sentence specifies NO FR length. No historical BT return-hose dimension, part identity or interchange established.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS8.5 fuel hoses complete, printed46.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS8.5 fuel hoses complete, printed46; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 47 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

Part numbers (1)
  • 5910 893 8800 — Fuel pickup retrieval hookreference · Later FS120 source application only; historical BT120C fitment/configuration unestablished.

Service note · BT 120 C

BT 120 C: FS-reference manual fuel-pump retaining tabs

Release tabs carefully; pump in filter/carburetor housing.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • Remove shroud4.1. FS120–350/FR350 ALSO removes air filter8.1. Disconnect hoses from connectors, carefully push retaining tabs BACK (250RA187 VA), then pull pump out of seat in filter/carburetor housing (250RA189 VA). Reverse installation. No pump part number or connector-to-hose assignment is provided here; do not infer them from this isolated illustration or establish historical BT pump fit.
  • Adjacent9.1 describes rubber AV element between FS engine and DRIVE TUBE. Sections9–12 are now reviewed and explicitly excluded from the BT powerhead/control delegation. This pump note does not admit FS clutch-housing/AV procedures as BT auger support-frame repair.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS8.6 complete, printed47.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS8.6 complete, printed47; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 48 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: FS/FR drive and support sections are not BT repair instructions

Sections9–12 concern trimmer drive tubes, cutting-tool drive and backpack frame.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • AV9.1 uses a rubber element between FS120/200 ENGINE AND DRIVE TUBE;9.2 uses four buffers on FS300–450;9.3 uses three springs between FR engine and backpack support frame. These are NOT the BT auger frame or Quickstop gearbox. The FS120/200 AV clutch-housing6Nm instruction is not authority for a BT gearbox joint; larger-model7mm gap and FR10Nm fasteners are also excluded.
  • 10.1–10.3 bike/loop HANDLEBAR AND SHAFT MOUNTING is distinct from delegated CONTROL-HANDLE INTERNALS in7. Bike-grip7–15degree orientation and loop-handle20cm spacing refer to cutting-tool shaft geometry, not a BT handle setup.10.4–10.7 drive shaft/liner, FR flexible shaft, tube and housing procedures,20/30mm protrusions, clamp torques and lubrication are outside the BT delegation.
  • 11.1 is CUTTING TOOL DRIVE gearhead, not an auger gearbox.11.2 removes clutch DRUM/BEARING from FS/FR clutch housing, distinct from engine clutch shoes/carrier3.1/3.2.12 concerns FR350/450 SUPPORT FRAME with bearing housing10Nm and frame screw20Nm; neither is BT support-frame guidance. Shared engine names, tool numbers or similar drawings do not establish physical interchange.
  • Tools13.1 items33–35,38–41 serve those excluded assemblies: AV-sleeve tool4126 893 4900, clutch-drum circlip pliers0816 610 1495 and0811 641 8380, drift1108 893 4700, tube/handle vice jaws5910 893 2700, arbors1120 893 7200 and1118 893 7200. Their listed applications are NOT admitted as BT tool-fit claims. Stand/clamp/plate items42–44 remain subject to the already reviewed FS fixture limitations.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS9–12, printed47–58: complete nondelegated scope disposition.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS9–12, printed47–58: complete nondelegated scope disposition; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: FS-reference tool-table model footnotes and snap-ring conflict

Footnote-qualified applications do not make all listed tools universal.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • Remarks1=FS120–350;2=FR350/450;3=FS400/450. Locking strip0000 893 5903 has1/2;4221 893 5900 has2/3. The table therefore includes FR450 in both groups; it does not override the detailed clutch/flywheel procedures that distinguish FR350 from FR450. FS120 remains in the0000 893 5903 branch only.
  • Assembly drift1110 893 4700 lists piston-pin removal/fitting without a model remark, then CLUTCH-DRUM removal/installation with2/3. Drift1108 893 4700 lists clutch-drum removal/installation with1/2. The drum-specific footnotes do not exclude the separately described FS120 piston-pin use of1110 893 4700; neither drum application is BT auger gearbox evidence.
  • ZS5910 890 2220 accessories are FOUR sleeves1123 851 8300, extension4116 894 1000 and spline screw9022 341 1190, each marked1/2. Retain model limits and the previously reviewed hole/notch/spindle instructions; table alone does not provide a new drilling template.
  • Item25 repeats snap-ring installer5910 890 2210. This corroborates the number in the printed15 sleeve-modification drawing but DOES NOT RESOLVE printed16 use of5910 890 2208. No supersession/interchange or correction established. Existing10.5/8.5Nm cylinder conflict and historical-edition uncertainty also remain unresolved.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS13.1 items1–2,10,25,27–30,38 and remarks1–3; comparison4.5.2.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS13.1 items1–2,10,25,27–30,38 and remarks1–3; comparison4.5.2; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 16, 17, 60, 61 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: FS-reference seal puller and longer-spindle qualification

Table equates pullers only with the longer-spindle distinction retained.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • Puller5910 890 4400 removes oil seals; table lists jaws No.3.1 +4 as0000 893 3706. Remark4 states equivalent to puller0000 890 4400, BUT WITH LONGER SPINDLE5910 890 8400. Preserve that qualification, not an assertion the complete tools are identical or universally interchangeable.
  • Procedure4.4 specifically selects No.3.1 jaws for the crankshaft seals; listing No.4 in the index is not an instruction to use it on that seal. Side-specific press/install sleeves and protection of crankshaft stub remain as reviewed. No compatibility with BT auger-shaft seals is established.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS13.1 items6–7 and remark4, printed59–60.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS13.1 items6–7 and remark4, printed59–60; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 60, 61 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

Part numbers (4)
  • 5910 890 4400 — Oil-seal pullerreference · Later FS reference only; exact historical BT application unestablished.
  • 0000 893 3706 — Table jaws No.3.1 +4; procedure selects3.1reference · Later FS reference only; exact historical BT application unestablished.
  • 0000 890 4400 — Comparison puller, longer-spindle qualification appliesreference · Later FS reference only; exact historical BT application unestablished.
  • 5910 890 8400 — Longer spindle specified in equivalence remarkreference · Later FS reference only; exact historical BT application unestablished.

Service note · BT 120 C

BT 120 C: FS-reference torque ranges and DG/P driver limits

DG/P screws require a torque wrench; T-handle is for releasing only.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • Torque wrench5910 890 0301 covers0.5–18Nm (0.4–13.5lbf.ft);5910 890 0311 covers6–80Nm (4.4–60lbf.ft). Corresponding alternatives5910 890 0302 and5910 890 0312 are marked6: OPTICAL/ACOUSTIC SIGNAL. These are tool measurement ranges, not joint torque specifications.
  • Remark5: ALWAYS USE TORQUE WRENCH TO TIGHTEN DG/P SCREWS. T-handle QI-T27×1505910 890 2400 is listed for IS screws, but remark7 says on DG/P screws use FOR RELEASING ONLY. Socket T27×1250812 542 2104 is for IS screws; T20×1005910 890 2301 separates handle moldings.
  • 13mm socket5910 893 5608 lists clutch and flywheel nut and decompression valve. This does not establish a decompression valve on FS120/BT120C. Crimping tool5910 890 8210 attaches connectors to electrical wires; no wire size, terminal series or crimp setting is specified here.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS13.1 items9,20–23,36–37 and remarks5–7, printed59–60.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS13.1 items9,20–23,36–37 and remarks5–7, printed59–60; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 60, 61 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

Part numbers (9)
  • 5910 890 0301 — Torque wrench0.5–18Nmreference · Later FS reference only; exact historical BT application unestablished.
  • 5910 890 0302 — Signalling torque wrench0.5–18Nmreference · Later FS reference only; exact historical BT application unestablished.
  • 5910 890 0311 — Torque wrench6–80Nmreference · Later FS reference only; exact historical BT application unestablished.
  • 5910 890 0312 — Signalling torque wrench6–80Nmreference · Later FS reference only; exact historical BT application unestablished.
  • 5910 890 2400 — QI-T27×150 T-handle; DG/P release onlyreference · Later FS reference only; exact historical BT application unestablished.
  • 0812 542 2104 — T27×125 IS screw socketreference · Later FS reference only; exact historical BT application unestablished.
  • 5910 890 2301 — T20×100 handle-molding screwdriverreference · Later FS reference only; exact historical BT application unestablished.
  • 5910 893 5608 — 13mm socket; component availability conditionalreference · Later FS reference only; exact historical BT application unestablished.
  • 5910 890 8210 — Electrical-connector crimping toolreference · Later FS reference only; exact historical BT application unestablished.

Service note · BT 120 C

BT 120 C: FS-reference lubricants, sealant and bulk-lead restrictions

Oil-seal grease, starter lubricant and case sealant have different applications.

No exact-model IPL link: Later FS120 component-reference comparison only via BT1201999-01 delegation. Historical1998 edition and exact component configuration unestablished; no assembly row, serial cutoff or interchange inferred.

  • Later FS120 reference ONLY for the POWERHEAD and CONTROL HANDLE delegated by BT1201999-01 section2. RA_250_00_01_01.pdf cover2003-04 conflicts with contents ©2011; not proven unchanged2003 text or the historical1998 FS120 edition. BT120 is not named in this FS/FR manual; verify exact component/configuration before use. NOT blanket FS-family interchange or replacement for the BT106 source.
  • Oil-seal lubricating grease0781 120 1111 is printed as225g/0.79oz tube: this mass pair is internally inconsistent and is RETAINED AS A SOURCE ERROR, not silently converted or a usable packaging equivalence. Crankshaft-stub degreasant is commercial solvent-based with NO CHLORINATED OR HALOGENATED HYDROCARBONS; no product number supplied.
  • Special lubricant0781 417 1315 is for bearing bore and rewind spring in rope rotor. Dirko0783 830 2120 (100g/3½oz tube) is for CRANKCASE SEALING FACES. This identifies the13.2 product referenced by the case procedure; no cure time or current substitute is specified. Neither is general BT gearbox grease.
  • Ignition lead HTR0000 930 2251 is listed in10m/33ft stock length. That is NOT a cut length and does not override5.3.2: FS120–350/FR350 lead is MOLDED TO MODULE. The replaceable screw-in-lead operation5.2 is FS400/450/FR450 only; no detachable FS120 lead or historical BT replacement is inferred.
  • Gear lubricant0781 120 1109 (80g/3oz) or0781 120 1110 (225g/8oz) is listed for DRIVE SHAFT AND BIKE-HANDLE CLAMP SCREW. Different gear lubricant0781 120 1117 (80g/3oz) or0781 120 1118 (225g/8oz) is listed for CUTTING-TOOL GEARHEAD. Both applications are outside the BT delegation; do not merge product families or substitute either for BT auger-gearbox lubrication.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — FS13.2 complete, printed61;5.2/5.3.2 lead comparison.

Later manual evidence: STIHL FS120,200,300,350,400,450; FR350,450 (2003-04), section FS13.2 complete, printed61;5.2/5.3.2 lead comparison; cover2003-04/contents©2011 conflict, PDF pages 1, 2, 25, 26, 27, 62 · STIHL BT120 (1999-01), section Section2 component delegation, PDF pages 1, 3

Part numbers (4)
  • 0781 120 1111 — Oil-seal grease; printed mass pair inconsistentreference · Later FS reference only; exact historical BT application unestablished.
  • 0781 417 1315 — Rope-rotor bore and spring lubricantreference · Later FS reference only; exact historical BT application unestablished.
  • 0783 830 2120 — Dirko crankcase-face sealantreference · Later FS reference only; exact historical BT application unestablished.
  • 0000 930 2251 — HTR stock lead; not a detachable FS120 leadreference · Later FS reference only; exact historical BT application unestablished.

Service note · BT 120 C

BT 120 C: 2012 later labor allowance scope and overlapping work

2012 dealer flat rates include applicable diagnosis, cleaning and test running; they are not additive owner estimates.

No exact-model IPL link: Later labor-reference comparison only. Exact1998 FS120 table and original BT120C configuration unestablished; no new assembly or serial binding.

  • Later 2012-01 US Repair Timetables Manual ONLY; not the historical1998 FS120 engine table delegated by TI37/1998. Values are MINUTES, unlike the TI gearbox table in TENTHS OF AN HOUR. No current warranty entitlement, guaranteed owner repair duration, parts interchange or hardware procedure is inferred.
  • Cover identifies2012-01, copyright2012 STIHL Incorporated and printed-in-USA notice. Printed2 (PDF3) defines flat rates for WARRANTY LABOR REIMBURSEMENT to authorized STIHL dealers, after claim approval at the assigned hourly rate. Trained technicians, proper tools and workshop procedures are assumed.
  • Diagnostic time, cleaning, completion and test running are INCLUDED whenever applicable. Only ONE labor code is entered; the highest allotted repair generally covers overlapping work. Cylinder/piston allowance includes air-leak testing and repair of causative components; ignition-module time generally includes stop-switch/wiring tests; carburetor work includes checking/replacing fuel lines and vents. Do not sum the individual allowances into a repair quote.
  • For separate diagnoses/access where the highest allowance is insufficient, the historical instructions require distribution-center service authorization for increased claim time. This records2012 claim context, not a request to contact anyone or evidence of present coverage. Printed2–3 submission, retention and return administration has no mechanical-fitment assertion and is outside this repair-reference admission.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — Cover, contents and complete dealer instructions printed2–3; mechanical allowance preconditions.

Later manual evidence: STIHL Repair Timetables Manual (2012-01), section Cover, contents and complete dealer instructions printed2–3; mechanical allowance preconditions, PDF pages 1, 2, 3, 4

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: 2012 later FS120 engine labor column

The FS120/120R/200/200R/250/250R column supplies later engine allowances; blank cells are not zero.

No exact-model IPL link: Later labor-reference comparison only. Exact1998 FS120 table and original BT120C configuration unestablished; no new assembly or serial binding.

  • Later 2012-01 US Repair Timetables Manual ONLY; not the historical1998 FS120 engine table delegated by TI37/1998. Values are MINUTES, unlike the TI gearbox table in TENTHS OF AN HOUR. No current warranty entitlement, guaranteed owner repair duration, parts interchange or hardware procedure is inferred.
  • Printed10 (PDF11) labels one column FS120,FS120R,FS200,FS200R,FS250,FS250R. TI37 delegates ENGINE times only: this shared labor column is not an interchange list. Record all following values as MINUTES.
  • Code2 crankcase/gasket/reseal100;3 main bearing(s)100;4 crankshaft seal(s)60; each includes AIR LEAK TEST. Code5 filler cap3. Code6 cylinder/piston55 includes air-leak test AND repair of components causing failure. Code7 ignition module/flywheel25 includes STOP CIRCUIT TEST.
  • Code8 fuel line/vent/pickup20;9 intake manifold/flange20;10 carburetor30 including FUEL SYSTEM TESTING;11 throttle control25;12 rewind starter15;13 clutch/shoes/springs20;14 muffler15;15 air filter/housing15;16 stop switch25 including CIRCUIT TESTING;22 fuel tank20.
  • Code35 engine diagnosis ONLY to determine failures requiring unit replacement25;40 miscellaneous/unlisted repairs15;45 HANDLING ONLY—NO LABOR5;50 NO LABOR0 explicitly printed. Code1 short block and23–25 valve work are BLANK for this FS120 column; neighboring FS90-family values MUST NOT fill these gaps. Blank is not zero or an authorization for a repair.
  • Full column reviewed:17 clutch housing20;18 drive shaft/tube25;19 drive-tube bearing liner20;20 limit stop/deflector15;21 gearbox assembly15;26 gearbox gears/bearings30 belong to brushcutter drive/cutting hardware, OUTSIDE the BT ENGINE delegation. They are explicitly excluded, not substituted for auger gearbox labor.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — Brushcutter repair times, printed10 complete FS120-family column; printed2 preconditions.

Later manual evidence: STIHL Repair Timetables Manual (2012-01), section Brushcutter repair times, printed10 complete FS120-family column; printed2 preconditions, PDF pages 1, 3, 11

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · BT 120 C

BT 120 C: 2012 later BT labor table and changed repair codes

2012 BT120/121 allowances are a comparison, not replacement of the 1998 BT120C gearbox table.

No exact-model IPL link: Later labor-reference comparison only. Exact1998 FS120 table and original BT120C configuration unestablished; no new assembly or serial binding.

  • Later 2012-01 US Repair Timetables Manual ONLY; not the historical1998 FS120 engine table delegated by TI37/1998. Values are MINUTES, unlike the TI gearbox table in TENTHS OF AN HOUR. No current warranty entitlement, guaranteed owner repair duration, parts interchange or hardware procedure is inferred.
  • Printed9 (PDF10) groups BT120 with BT121; it does NOT print the C suffix. This is later BT-family comparison only, not proof every historical BT120C configuration is covered. Other BT45,BT106 and BT308/309/360 columns are excluded. The Includes08S Engine heading belongs to BT308/309/360, not BT120.
  • In MINUTES:2 crankcase/gasket/reseal100;3 main bearing(s)100;4 crankshaft seals60 (all with air-leak test);5 filler cap3;6 cylinder/piston55 with air-leak test and causative-component repair;7 ignition module/flywheel25 with stop-circuit test;8 fuel line/vent/pickup20;9 intake manifold/flange20;10 carburetor30 with fuel-system testing;11 throttle control25;12 rewind starter15;13 clutch/shoes/springs20;14 muffler15;15 air filter/housing15;16 stop switch20 with circuit testing.
  • Code17 gearbox gears/shafts50;18 gearbox bearings70;19 gearbox output seal40;20 gearbox housing40;21 brake assembly30;22 auger bit/adapter/drill chuck15;23 fuel tank20;35 engine diagnosis ONLY for failures requiring unit replacement25;40 miscellaneous/unlisted15;45 handling ONLY—NO LABOR5;50 NO LABOR0 explicitly printed. All26 printed code rows reviewed; omitted code numbers are not fabricated.
  • DO NOT align codes across editions: TI37 code2 means Gear Unit Housing0.6h (36min), whereas2012 code2 means engine crankcase100min and gearbox housing is code20=40min. TI bearings1.0h=60min versus later gearbox bearings70min; TI miscellaneous0.5h=30min versus later15min. Changed wording/edition prevents treating these as identical work or correcting either source.
  • The FS120 engine column has stop-switch code16=25min while BT120/121 has20min; retain BOTH. Other matching engine allowances do not establish wholesale table equivalence. 2012 provides no total repair duration and does not authorize running or warranty claims.
  • Historical BT 120 C only. TI37/1998 calls the machine series4313; the catalog groups its exact-model sheets under4134. Those identifiers are retained, not declared equivalent. Later carburetor/control revisions and BT121 are not included. No hardware operation was performed.

TI dependency: TI 37/1998, p. 5 · TI 37/1998, p. 6 — Boring Gear repair times printed9 complete BT120/BT121 column, compared with FS printed10 and TI37/1998 section6.4.

Later manual evidence: STIHL Repair Timetables Manual (2012-01), section Boring Gear repair times printed9 complete BT120/BT121 column, compared with FS printed10 and TI37/1998 section6.4, PDF pages 1, 3, 10, 11

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Full text

Page 1 of 6

TI 37/1998 page 1
Text of page 1 — search, copy, screen readers
Technical Information

                                                                                            37.98

New Model BT 120 C Earth Auger - Series 4313

This new earth auger is a systematic further         Applications are the same as for model BT 106.
development of the time-proven BT 106.
The engine installed in the BT 120 C is similar to
that of the FS 120.

Page 2 of 6

TI 37/1998 page 2
Text of page 2 — search, copy, screen readers
37.98 - 2

Contents

1.   Technical Description
2.   Technical Data
3.   Augers
4.   Special Accessories for Users
5.   Service Accessories
6.   Repairs
7.   Spare Parts

The following descriptions refer only to the differences over the BT 106.

1. Technical Description

Powerhead

• Newly developed STIHL single cylinder two-stroke engine.
Cylinder

• Four port technology (better mixture control, lower emissions).
Carburetor
• One adjusting screw (LD).
• With compensator; increases filter efficiency by compensating for changes in pressure
   in the carburetor as filter becomes loaded with dirt.

Air filter

• Longlife air filter system with paper filter element.
• Larger effective filter surface area.

Easy start system
• ElastoStart starter grip

• Manual fuel pump
Controls

• New multi-function handle with soft, non-slip grip surface.
Clutch

• Two clutch shoes without linings.
Auger brake

• Manually operated auger brake
Handle frame

• New closed handle frame reduces vibration transmitted to handles.

Page 3 of 6

TI 37/1998 page 3
Text of page 3 — search, copy, screen readers
37.98 - 3

2.    Specifications

2.1   Powerhead

2.1.1 Engine

Displacement:                          30.8 cm3 (1.88 cu.in)
Bore:                                  35 mm (1.37 in)
Stroke:                                32 mm (1.26 in)
Engine power to ISO 8893:              1.3 kW (1.8 bhp)
Engine speeds:                         see 2.1.2
Rewind starter:                        Single pawl system; ElastoStart grip
Starter rope:                          see 4.

Clutch:

- Clutch engages at:                   4,300 rpm

2.1.2 Fuel System

Carburetor: All position diaphragm carburetor with integral fuel pump

Carburetor settings
Idle speed
                                                   1 Adjusting screw
                                                   2,800 rpm
Cut-off speed (rated) without auger                12,300 rpm
(electronic speed limiter)
Max. spindle speed (rated)                         190 rpm

Fuel tank capacity:                    0.64 l (1.35 US pt)

2.1.3 Ignition System

Ignition module:                       with integral electronic speed limiter
Spark plug (suppressed):               Bosch WSR 6F, NGK BPMR 7 A or Champion RCJ 6Y

2.2   Gearbox

Gear ratio:                            47.5:1

2.3   Torque

Max. torque of drilling spindle:       79 Nm (58 ft.lb)

2.4   Weight

without auger                          8.2 kg (18.1 lb)

Page 4 of 6

TI 37/1998 page 4
Text of page 4 — search, copy, screen readers
37.98 - 4

3. Augers

The following augers are approved

Part Name                                                 Part No.
Earth auger; Ø 40 mm (1.6 in), 695 mm (27.4 in) long      4404 680 2004
Earth auger; Ø 60 mm (2.4 in), 695 mm (27.4 in) long      4404 680 2006
Earth auger; Ø 90 mm (3.5 in), 695 mm (27.4 in) long      4404 680 2009
Earth auger; Ø 120 mm (4.7 in), 695 mm (27.4 in) long     4404 680 2012
Earth auger; Ø 150 mm (6 in), 695 mm (27.4 in) long       4404 680 2015
Earth auger; Ø 200 mm (8 in), 695 mm (27.4 in) long       4404 680 2020

Planting auger; Ø 150 mm (6 in), 525 mm (20.6 in) long    4311 680 2515

Planting hole drill; Ø 260 mm (10.2 in)                   4404 680 1900

4. Special Accessories for Users

Part Name                 Part No.          Application
Shank extension           4311 680 2350     Extends auger        fo
Chuck                     4311 680 4010     for drills up to 13 mm (0.5 in) diameter
Padding                   4311 748 2500     Cushions user’s thigh

ElastoStart               0000 190 3400     Rewind starter (grip with rope)
ElastoStart rope          0000 195 8200     Rewind starter

STIHL gear lubricant                        Gearbox

- 80 g/3 oz tube          0781 120 1117

4.1 Replacement Blades for Earth Augers

Part Name                 Part No.          Application

Blade                     4404 682 3101     Earth auger; Ø 60 mm (2.4 in)
Blade                     4404 682 3102     Earth auger; Ø 90 mm (3.5 in)
Blade                     4404 682 3103     Earth auger; Ø 120 mm (4.7 in)

Blade                     4404 682 3104     Earth auger; Ø 150 mm (6 in)
Blade                     4404 682 3105     Earth auger; Ø 200 mm (8 in)

Page 5 of 6

TI 37/1998 page 5
Text of page 5 — search, copy, screen readers
37.98 - 5

5. Service Accessories

5.1 Special Servicing Tools

Special servicing tools are listed in the service manuals for models BT 106 (drilling gear) and
FS 120 (engine).

5.2 Servicing Aids

Part Name                        Part No.            Application
Carburetor parts kit             4134 007 1060       Zama C1Q-S36D
Set of gaskets                   4134 007 1050       BT 120 C

Lubricating grease               0781 120 1111       Oil seals
(370 g/13 oz tube)
Dirko sealant                    0783 830 2120       Crankcase sealing faces

(100 g/3.5 oz tube)
Hylomar sealing paste            0783 810 1101       Drlling gear sealing faces
(100 g/3.5 oz tube)

Standard commercial                                  Cleaning crankshaft stub
solvent-based degreasant
containing no chlorinated
or hydrogenated hydrocarbons

6. Repairs

If the unit is started up in the course of repairs or maintenance work, it is essential to strictly

observe all local and national safety regulations and the safety precautions outlined in the
owner’s manual.

6.1 Carburetor

Adjusting idle speed

Important: Remove the auger from the machine before making the adjustment.

• Check air filter and fit a new one if necessary.
• Check spark arresting screen and clean or replace as necessary.

• Start and warm up the engine.
Engine stops when idling:

Turn the idle speed screw (LD) slowly clockwise until the engine runs smoothly -
drilling spindle must not rotate.

Drilling spindle rotates when engine is idling
Turn LD counterclockwise until drilling spindle stops rotating - then about another one full turn in the
same direction from that position.

6.2 Tightening Torques

Tightening torques are listed in the service manuals for models BT 106 (drilling gear) and
FS 120 (engine).

Page 6 of 6

TI 37/1998 page 6
Text of page 6 — search, copy, screen readers
37.98 - 6

6.3 Service Note
                                                     Code        Type of Repair                   BT 120 C*
For servicing and repair procedures on the
BT 120 C, refer to the service manuals for                  1    Gear Unit                            –
models BT 106 (drilling gear) and FS 120 (engine).
These service manual do not include the chapters            2    Gear Unit Housing                   0.6
“Servicing the Carburetor”, “Troubleshooting” or
any repairs involving standard procedures. Such             3    Bearings                            1.0
procedures are described in separate handbooks.
                                                            4    Grease Seals                        0.5
6.4 Repair Times                                            5    Pinion Shaft                        0.4

The specified repair times assume that the work             6    Spur Gear & Driver                  0.5

is performed by trained personnel in a properly

equipped service workshop.

The repair times are given in tenths of an hour
                                                           20    Misc. Repairs
                                                                                         ✂           0.5

(0.1 = 6 minutes).

Note: This table for the BT 120 C                        * For repair times for the BT 120 C engine, refer to

can be added to the STIHL repair times table.              the repair times on FS 120 brushcutter

7. Spare Parts

An illustrated parts list is available for the new

model.

                                                         Andreas Stihl D1/MTK-sc                       6381
© 1998 Andreas Stihl                                     Technical Documentation

Most of these PDFs embed fonts with a shifted character map, so the text above was recovered rather than copied — read it as a faithful but imperfect transcription, and treat the page image above each block as the authority where the two disagree — the figures exist only there, because they are vector drawings that text extraction cannot keep.

Report a transcription error →
