Technical Information
40.98
Model BR/SR 320, 320 L, 400 Blowers and Sprayers - Series 4203

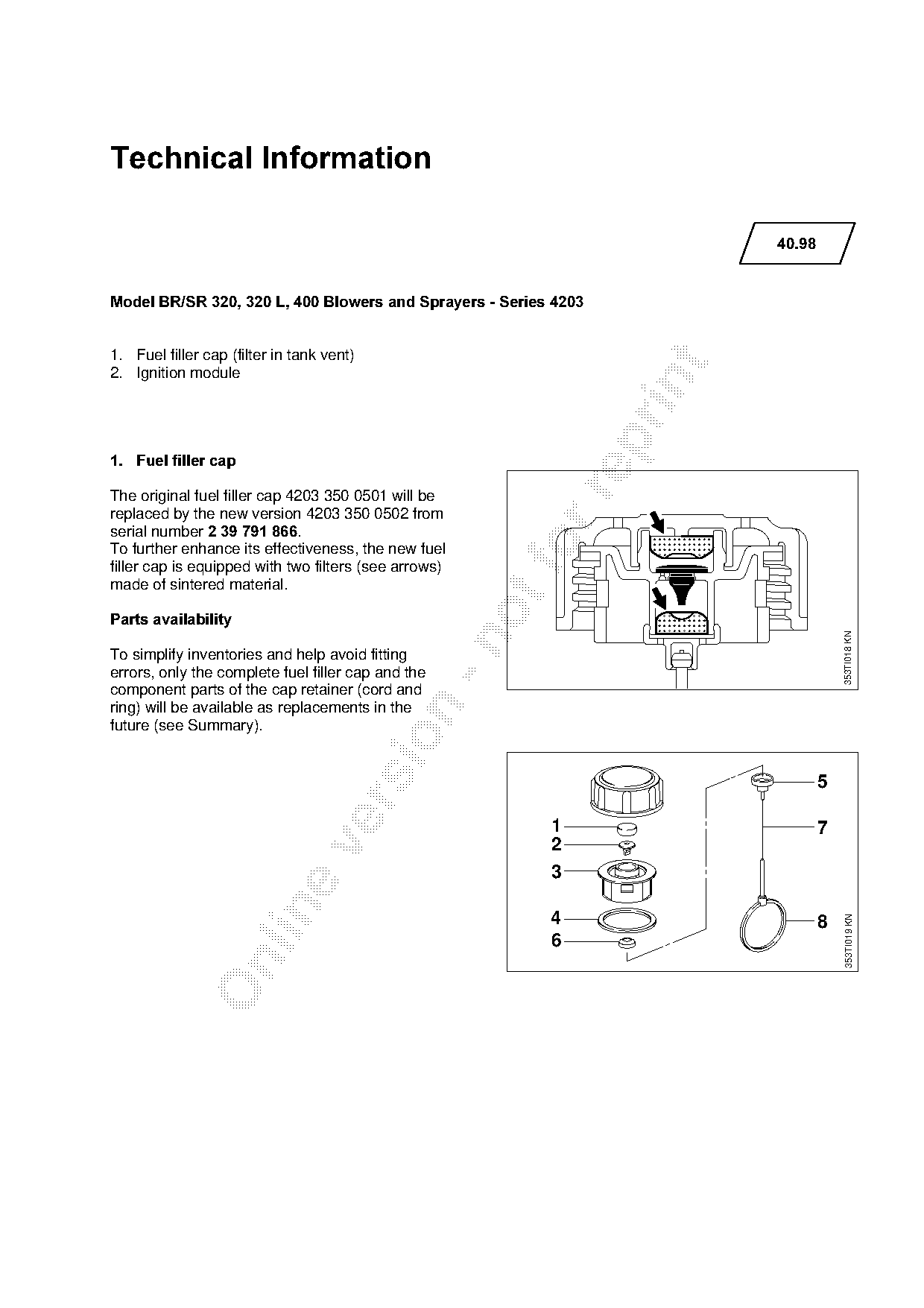

1. Fuel filler cap (filter in tank vent)
2. Ignition module
1.=Fuel filler cap
The original fuel filler cap 4203 350 0501 will be
replaced by the new version 4203 350 0502 from
serial number 2 39 791 866.
To further enhance its effectiveness, the new fuel
filler cap is equipped with two filters (see arrows)
made of sintered material.
Parts availability
353TI018 KN
To simplify inventories and help avoid fitting
errors, only the complete fuel filler cap and the
component parts of the cap retainer (cord and
ring) will be available as replacements in the
future (see Summary).
1 7
2
4
353TI019 KN
8
6
)40.98 - 2
6XPPDU\
Item Part Name Original New Rem.
version version
Fuel filler cap; 4203 350 0501 4203 350 0502 1)
including items 1 to 8:
1 Filter 0000 358 1810 -*- 2)3)
2 Valve 4114 353 1600 -*- 2)3)
3 Tank vent -*- -*- 3)
4 Sealing ring 0000 992 2701 -*- 2)3)
5 Cap; 4133 350 2500 -*- 3)
including item 6:
6 Filter 0000 358 1810 -*- 2)3)
7 Cord 0000 350 0900 0000 350 0900
8 Ring 0000 353 0701 0000 353 0701
Modification to be introduced from serial number 2 39 791 866
5HPDUNV
1) Original version of part is no longer available from factory
2) Original version of part remains available as spare
3) New version of part is not available as separate item

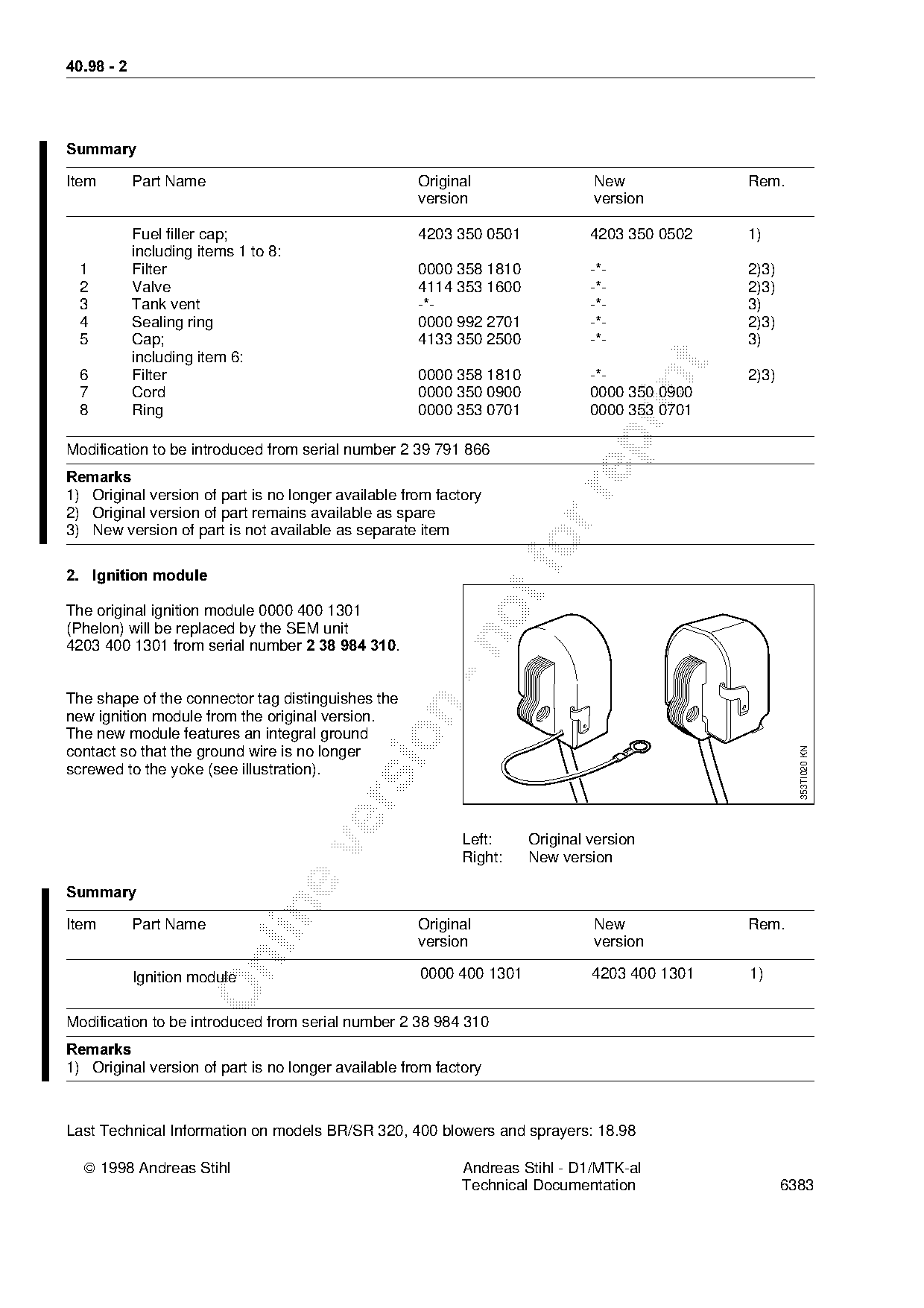

2.=Ignition module
The original ignition module 0000 400 1301
(Phelon) will be replaced by the SEM unit
4203 400 1301 from serial number 2 38 984 310.
The shape of the connector tag distinguishes the
new ignition module from the original version.
The new module features an integral ground
contact so that the ground wire is no longer
353TI020 KN
screwed to the yoke (see illustration).
Left: Original version
Right: New version
6XPPDU\
Item Part Name Original New Rem.
version version
Ignition module 0000 400 1301 4203 400 1301 1)
Modification to be introduced from serial number 2 38 984 310
5HPDUNV
1) Original version of part is no longer available from factory
Last Technical Information on models BR/SR 320, 400 blowers and sprayers: 18.98
1998 Andreas Stihl Andreas Stihl - D1/MTK-al
Technical Documentation 6383 Page 2 of 2
