Technical Information · issue 43 of 1998

020, 020 T: Chain Sprocket Cover; Flywheel

Model 020 T Chainsaws - Series 1129

Part changes (2)

Full text

Page 1 of 2

Technical Information

                                                                          43.98

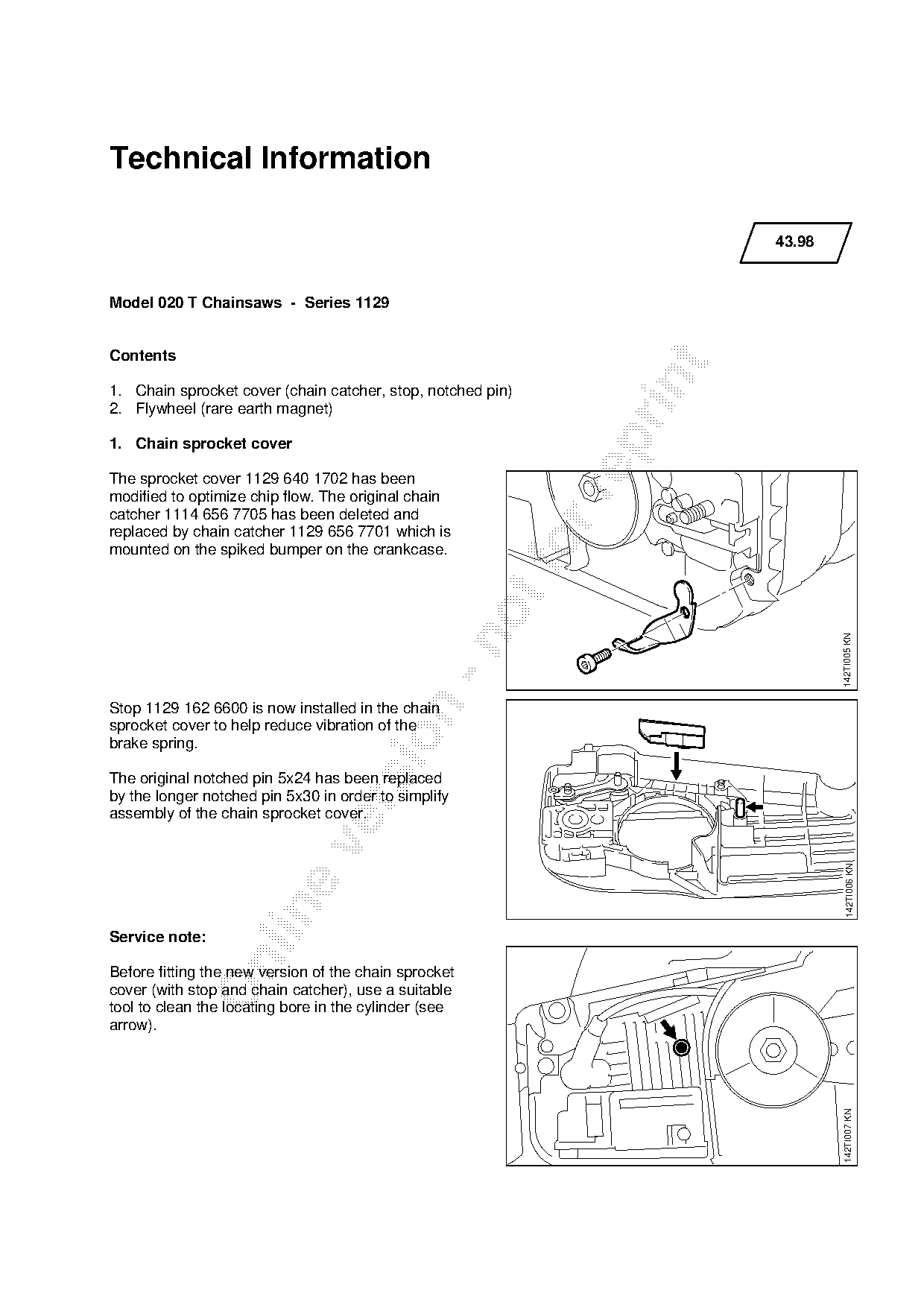

Model 020 T Chainsaws - Series 1129

Contents

1. Chain sprocket cover (chain catcher, stop, notched pin)
2. Flywheel (rare earth magnet)

1. Chain sprocket cover

The sprocket cover 1129 640 1702 has been

modified to optimize chip flow. The original chain
catcher 1114 656 7705 has been deleted and
replaced by chain catcher 1129 656 7701 which is
mounted on the spiked bumper on the crankcase.               fo

                                                                                  142TI005 KN

Stop 1129 162 6600 is now installed in the chain

sprocket cover to help reduce vibration of the

brake spring.

The original notched pin 5x24 has been replaced
by the longer notched pin 5x30 in order to simplify

assembly of the chain sprocket cover.

                                                                                     142TI006 KN

Service note:

Before fitting the new version of the chain sprocket
cover (with stop and chain catcher), use a suitable
tool to clean the locating bore in the cylinder (see
arrow).
                                                                                  142TI007 KN
)QPKVU=J=O

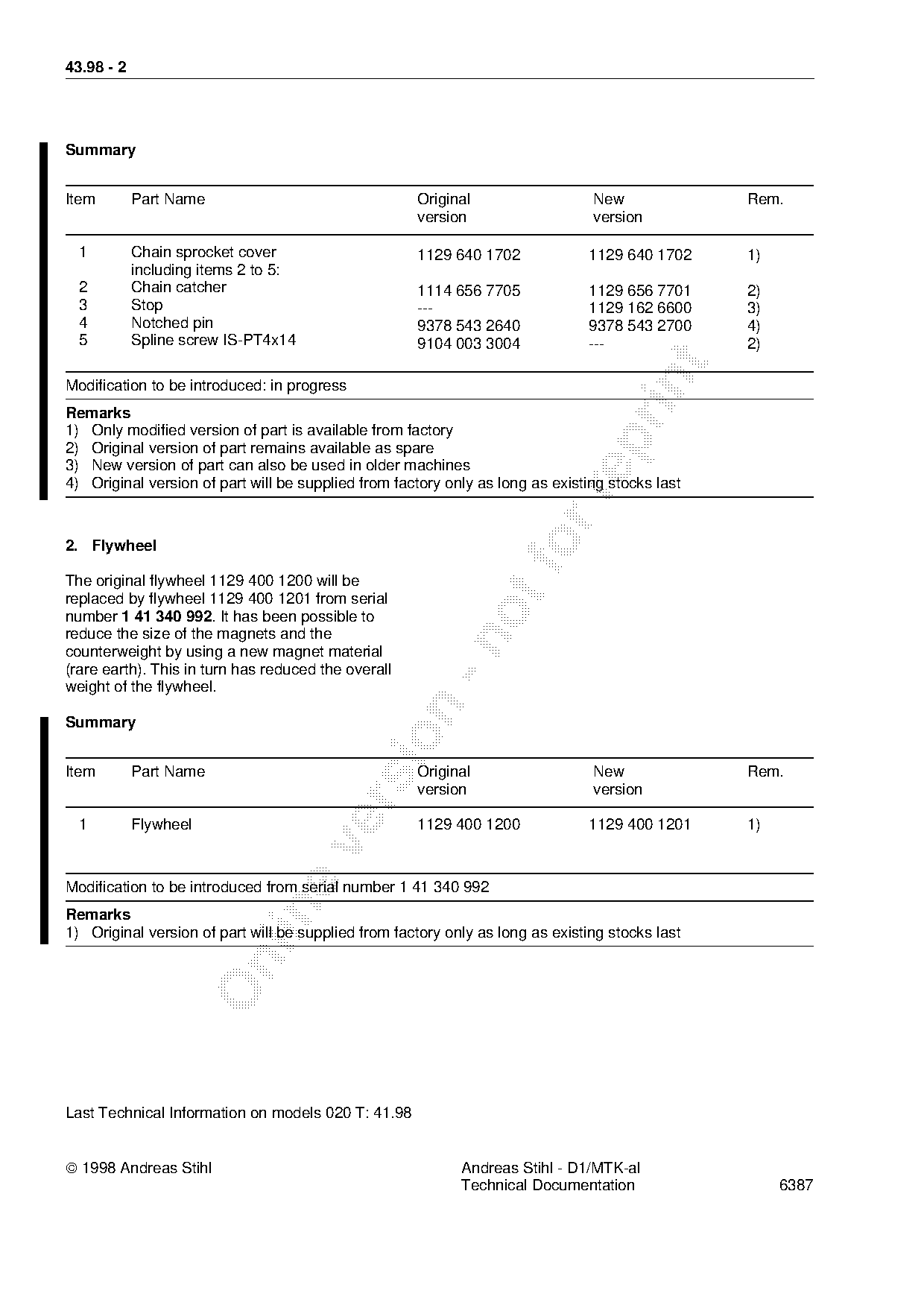

Summary

Item        Part Name                                Original                   New              Rem.
                                                     version                    version

  1         Chain sprocket cover                     1129 640 1702              1129 640 1702    1)
            including items 2 to 5:
  2         Chain catcher                            1114 656 7705              1129 656 7701    2)
  3         Stop                                     ---                        1129 162 6600    3)
  4         Notched pin                              9378 543 2640              9378 543 2700    4)
  5         Spline screw IS-PT4x14                   9104 003 3004              ---              2)

Modification to be introduced: in progress
Remarks
1) Only modified version of part is available from factory

2) Original version of part remains available as spare
3) New version of part can also be used in older machines
4) Original version of part will be supplied from factory only as long as existing stocks last

2. Flywheel                                                         fo
The original flywheel 1129 400 1200 will be
replaced by flywheel 1129 400 1201 from serial
number 1 41 340 992. It has been possible to
reduce the size of the magnets and the

counterweight by using a new magnet material
(rare earth). This in turn has reduced the overall
weight of the flywheel.

Summary

Item        Part Name                                Original                   New              Rem.
                                                     version                    version

  1         Flywheel                                 1129 400 1200              1129 400 1201    1)

Modification to be introduced from serial number 1 41 340 992

Remarks
1) Original version of part will be supplied from factory only as long as existing stocks last

Last Technical Information on models 020 T: 41.98

 1998 Andreas Stihl                                        Andreas Stihl - D1/MTK-al
                                                            Technical Documentation                   6387
