Technical Information · issue 44 of 1998
New Version with Adjustable Cutter Bar; Blade Driv
Model HL 75 Hedge Trimmer - Series 4230
IssueTI 44/1998
Part changes (1)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 4130 710 6700 | 4230 790 8800 | The original steel clamp 4130 710 6700 has been deleted and replaced by carrying eye 4230 790 8800. |
Full text
Page 1 of 4
Text of page 1 — search, copy, screen readers

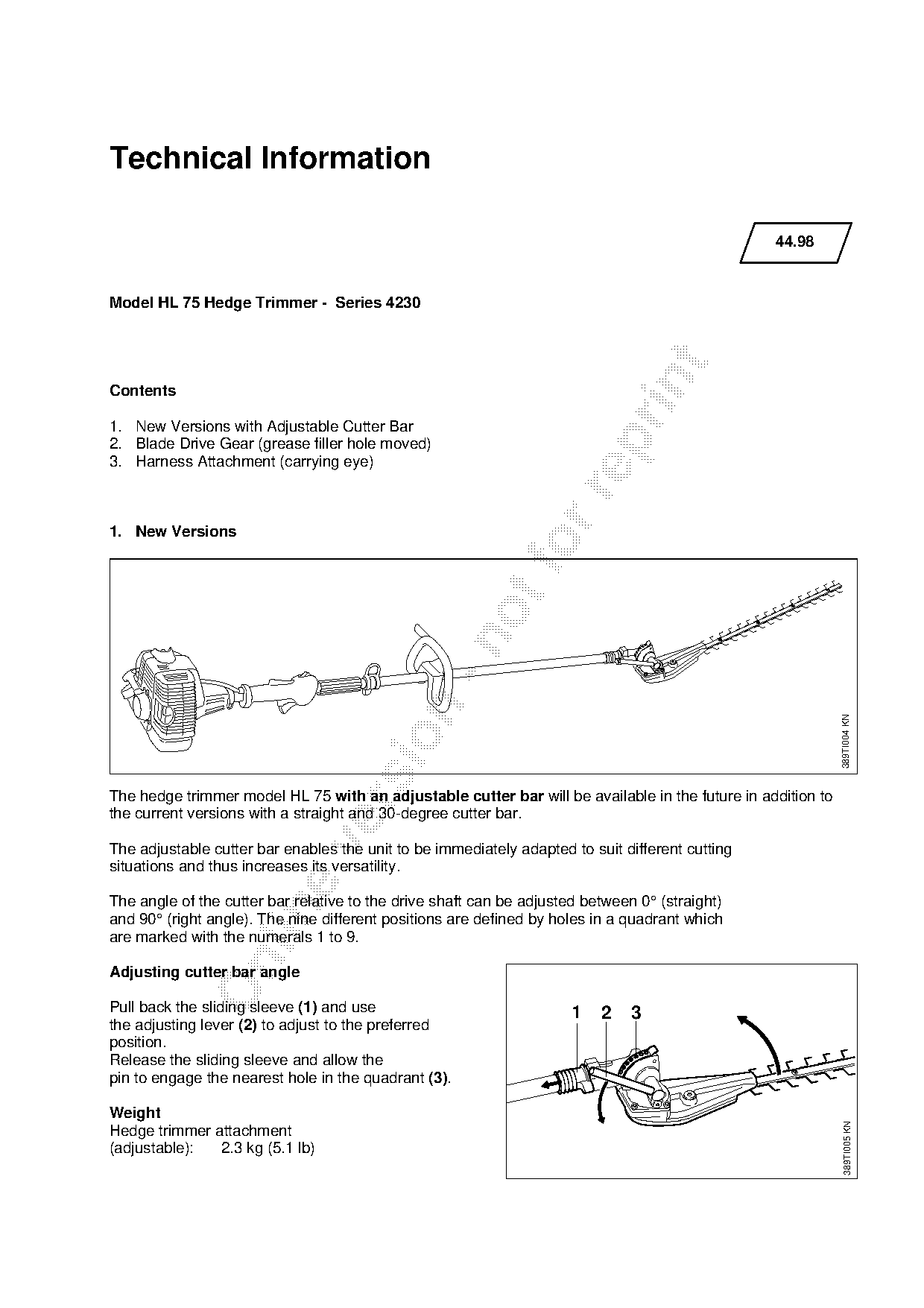

Technical Information
44.98
Model HL 75 Hedge Trimmer - Series 4230
Contents
1. New Versions with Adjustable Cutter Bar
2. Blade Drive Gear (grease filler hole moved)
3. Harness Attachment (carrying eye)
1. New Versions
389TI004 KN
The hedge trimmer model HL 75 with an adjustable cutter bar will be available in the future in addition to
the current versions with a straight and 30-degree cutter bar.
The adjustable cutter bar enables the unit to be immediately adapted to suit different cutting
situations and thus increases its versatility.
The angle of the cutter bar relative to the drive shaft can be adjusted between 0° (straight)
and 90° (right angle). The nine different positions are defined by holes in a quadrant which
are marked with the numerals 1 to 9.
Adjusting cutter bar angle
Pull back the sliding sleeve (1) and use 1 2 3
the adjusting lever (2) to adjust to the preferred
position.
Release the sliding sleeve and allow the
pin to engage the nearest hole in the quadrant (3).
Weight
389TI005 KN
Hedge trimmer attachment
(adjustable): 2.3 kg (5.1 lb) Page 2 of 4
Text of page 2 — search, copy, screen readers

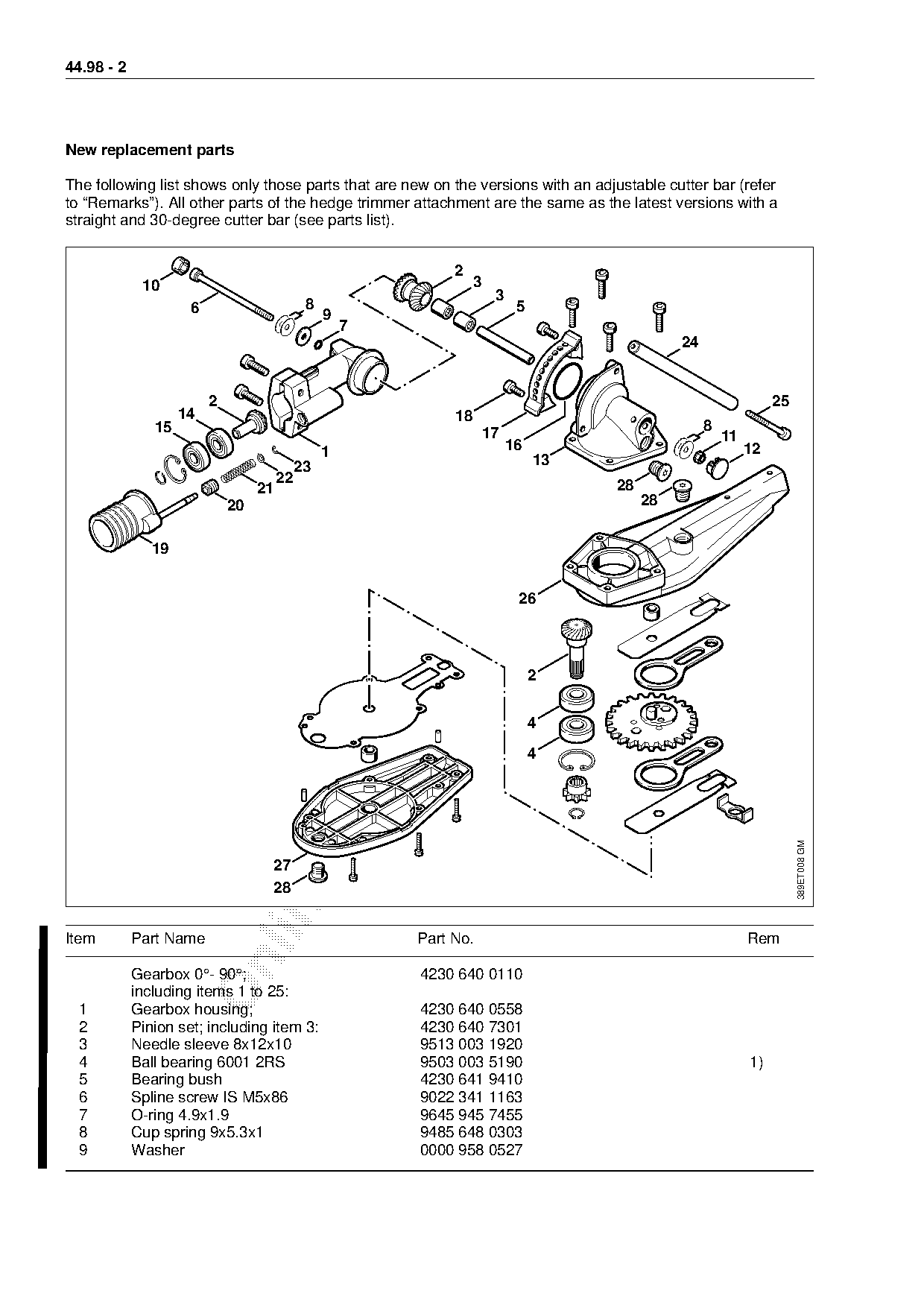

44.98 - 2
New replacement parts
The following list shows only those parts that are new on the versions with an adjustable cutter bar (refer
to “Remarks”). All other parts of the hedge trimmer attachment are the same as the latest versions with a
straight and 30-degree cutter bar (see parts list).
2
10 3
3
6 8 5
9
7
24
2 25
14 18
15 17 8
11
1 16 12
23 13
22
21 28
20 28
19 fo
26
389ET008 GM
27
28
Item Part Name Part No. Rem
Gearbox 0°- 90°; 4230 640 0110
including items 1 to 25:
1 Gearbox housing; 4230 640 0558
2 Pinion set; including item 3: 4230 640 7301
3 Needle sleeve 8x12x10 9513 003 1920
4 Ball bearing 6001 2RS 9503 003 5190 1)
5 Bearing bush 4230 641 9410
6 Spline screw IS M5x86 9022 341 1163
7 O-ring 4.9x1.9 9645 945 7455
8 Cup spring 9x5.3x1 9485 648 0303
9 Washer 0000 958 0527 Page 3 of 4
Text of page 3 — search, copy, screen readers

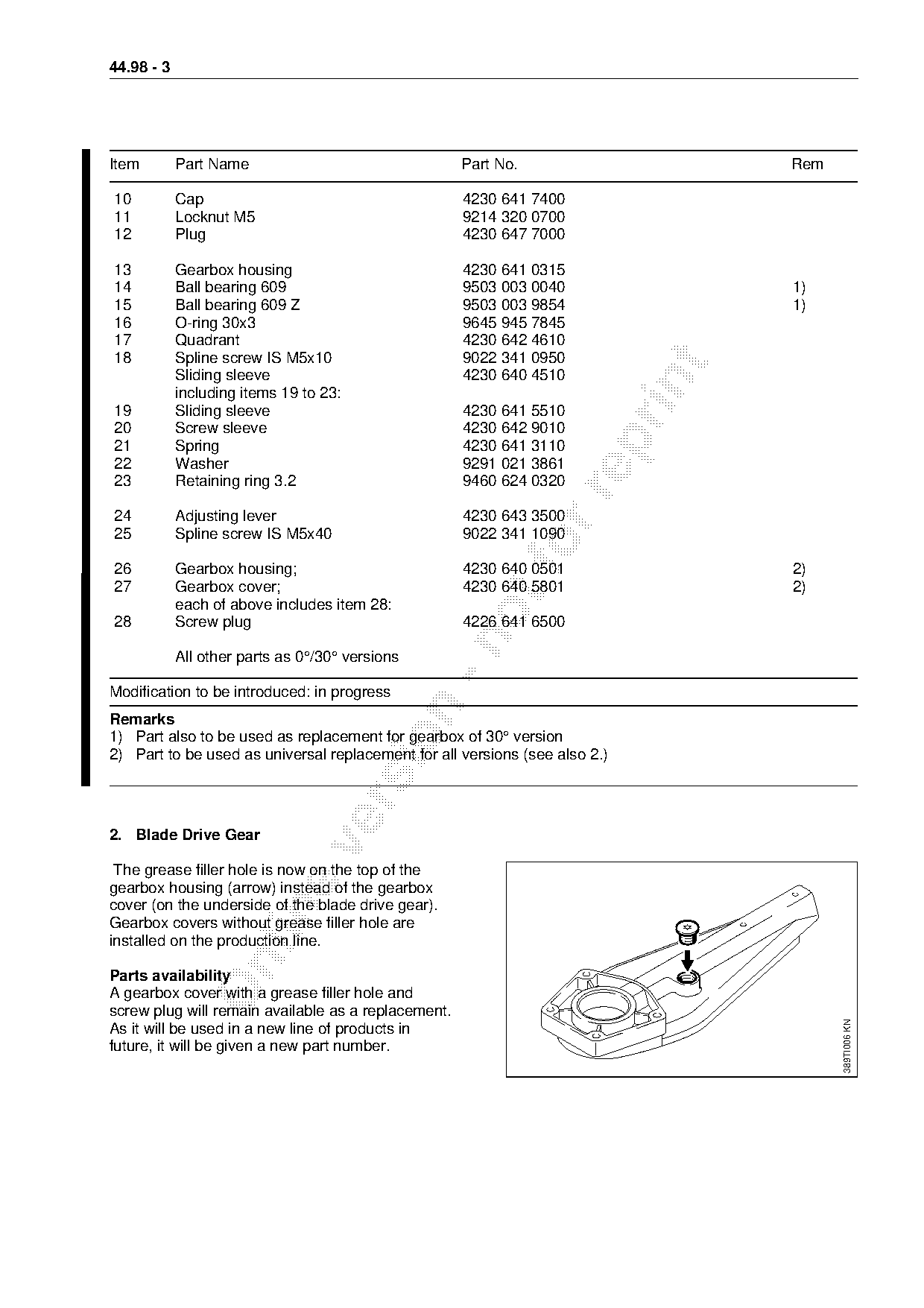

44.98 - 3
Item Part Name Part No. Rem
10 Cap 4230 641 7400
11 Locknut M5 9214 320 0700
12 Plug 4230 647 7000
13 Gearbox housing 4230 641 0315
14 Ball bearing 609 9503 003 0040 1)
15 Ball bearing 609 Z 9503 003 9854 1)
16 O-ring 30x3 9645 945 7845
17 Quadrant 4230 642 4610
18 Spline screw IS M5x10 9022 341 0950
Sliding sleeve 4230 640 4510
including items 19 to 23:
19 Sliding sleeve 4230 641 5510
20 Screw sleeve 4230 642 9010
21 Spring 4230 641 3110
22 Washer 9291 021 3861
23 Retaining ring 3.2 9460 624 0320
24 Adjusting lever 4230 643 3500
25 Spline screw IS M5x40 9022 341 1090
26 Gearbox housing;
4230 640 0501 2)
27 Gearbox cover; 4230 640 5801 2)
each of above includes item 28:
28 Screw plug 4226 641 6500
All other parts as 0°/30° versions
Modification to be introduced: in progress
Remarks
1) Part also to be used as replacement for gearbox of 30° version
2) Part to be used as universal replacement for all versions (see also 2.)
2. Blade Drive Gear
The grease filler hole is now on the top of the
gearbox housing (arrow) instead of the gearbox
cover (on the underside of the blade drive gear).
Gearbox covers without grease filler hole are
installed on the production line.
Parts availability
A gearbox cover with a grease filler hole and
screw plug will remain available as a replacement.
389TI006 KN
As it will be used in a new line of products in
future, it will be given a new part number. Page 4 of 4
Text of page 4 — search, copy, screen readers

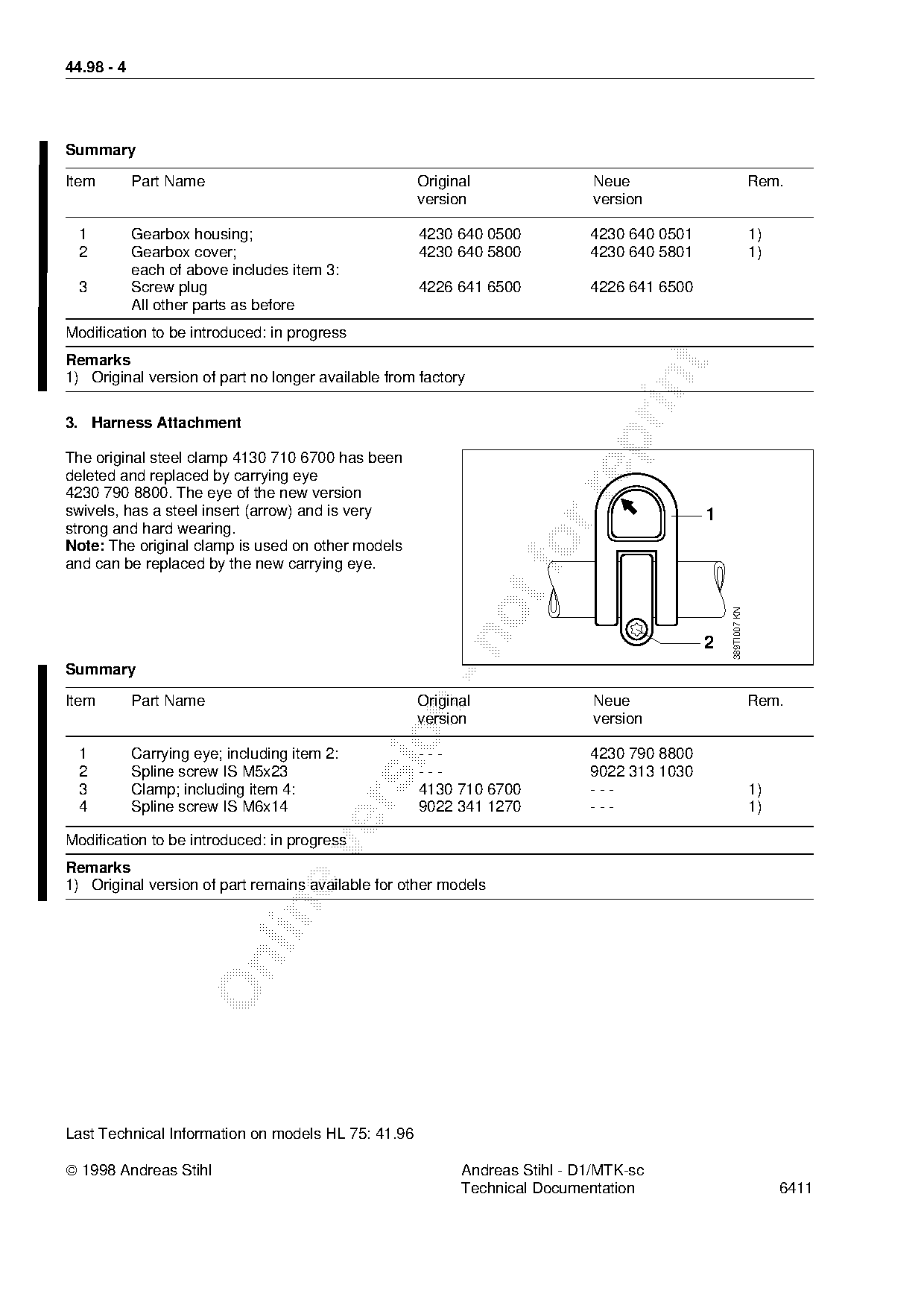

44.98 - 4
Summary
Item Part Name Original Neue Rem.
version version
1 Gearbox housing; 4230 640 0500 4230 640 0501 1)
2 Gearbox cover; 4230 640 5800 4230 640 5801 1)
each of above includes item 3:
3 Screw plug 4226 641 6500 4226 641 6500
All other parts as before
Modification to be introduced: in progress
Remarks
1) Original version of part no longer available from factory
3. Harness Attachment
The original steel clamp 4130 710 6700 has been
deleted and replaced by carrying eye
4230 790 8800. The eye of the new version
swivels, has a steel insert (arrow) and is very 1
strong and hard wearing.
Note: The original clamp is used on other models
and can be replaced by the new carrying eye.
389TI007 KN
2
Summary
Item Part Name Original Neue Rem.
version version
1 Carrying eye; including item 2: --- 4230 790 8800
2 Spline screw IS M5x23 --- 9022 313 1030
3 Clamp; including item 4: 4130 710 6700 --- 1)
4 Spline screw IS M6x14 9022 341 1270 --- 1)
Modification to be introduced: in progress
Remarks
1) Original version of part remains available for other models
Last Technical Information on models HL 75: 41.96
