Technical Information · issue 46 of 1998
017: Filter Housing/Shroud (sleeve); Air Filter Ho
Model 017 Chainsaws - Series 1130
IssueTI 46/1998
Engine family 1130
Full text
Page 1 of 2
Technical Information
46.98
Model 017 Chainsaws - Series 1130
&RQWHQWV
1. Filter housing/shroud (sleeve)
2. Fan housing (nameplate)
1.=Filter housing / shroud

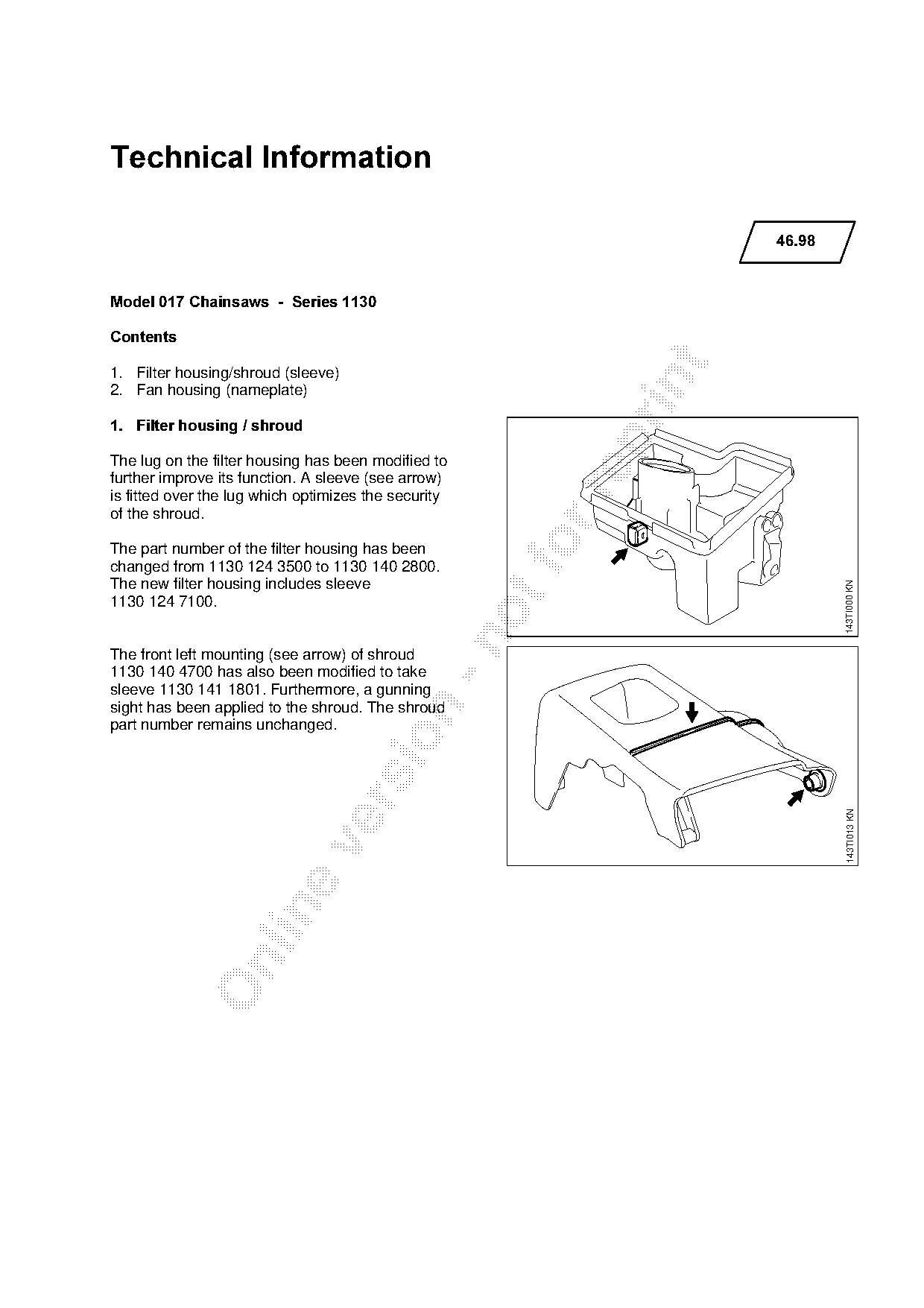

The lug on the filter housing has been modified to
further improve its function. A sleeve (see arrow)
is fitted over the lug which optimizes the security
of the shroud.
The part number of the filter housing has been
changed from 1130 124 3500 to 1130 140 2800.
The new filter housing includes sleeve
143TI000 KN
1130 124 7100.
The front left mounting (see arrow) of shroud
1130 140 4700 has also been modified to take
sleeve 1130 141 1801. Furthermore, a gunning
sight has been applied to the shroud. The shroud
part number remains unchanged.
143TI013 KN
)46.98 - 2
6XPPDU\
Item Part Name Original New Rem.
version version
1 Filter housing; 1130 124 3500 1130 140 2800 1)
including item 2:
2 Sleeve --- 1130 124 7100
3 Shroud; 1130 140 4700 1130 140 4700 2)
including item 4:
4 Sleeve --- 1130 141 1801
All other parts as before
Modification to be introduced: in progress
5HPDUNV
1) Original version of part will be supplied from factory only until existing stocks are exhausted
2) Only modified version of part is available from factory

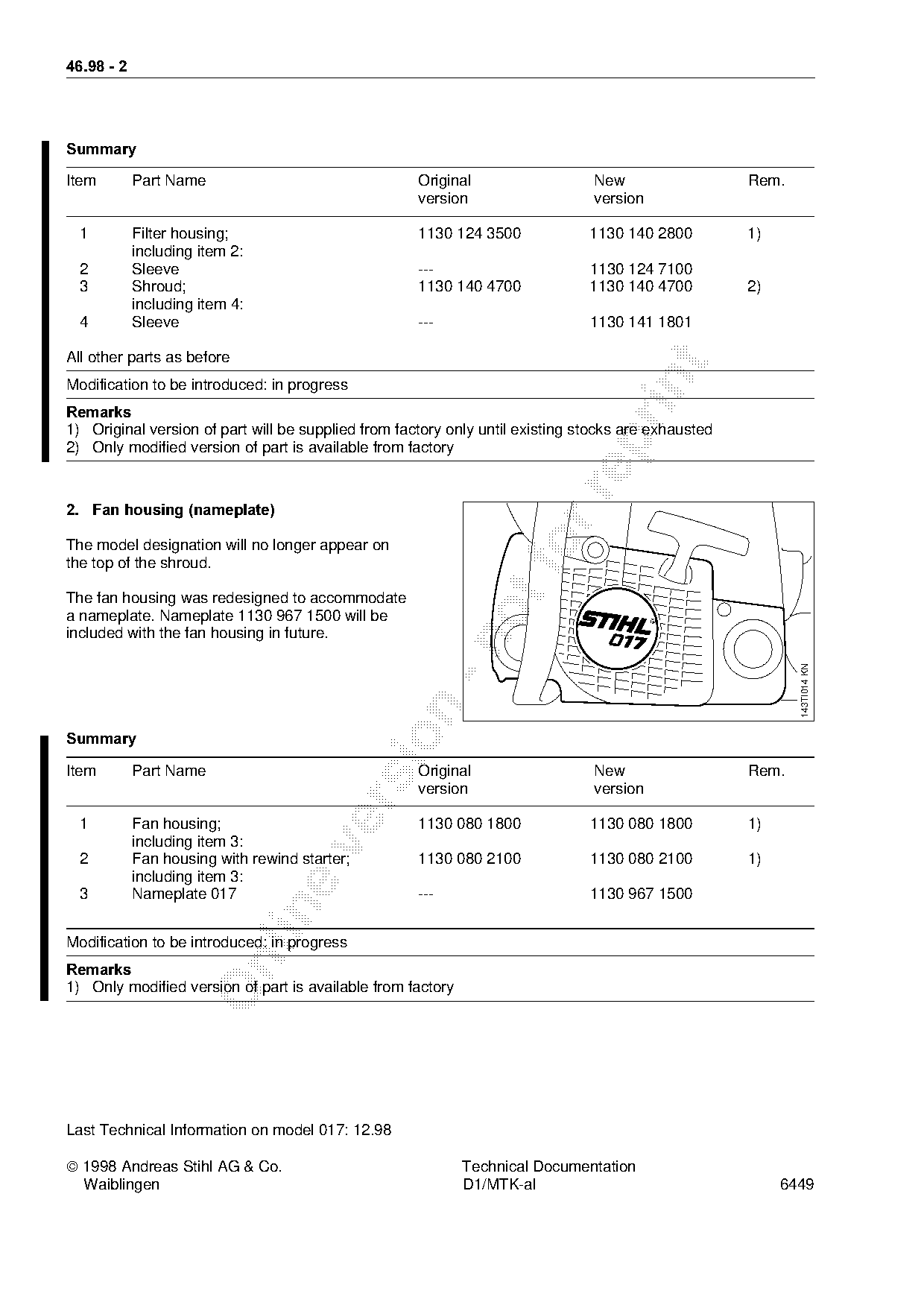

2.=Fan housing =nameplate
The model designation will no longer appear on
the top of the shroud.
The fan housing was redesigned to accommodate
a nameplate. Nameplate 1130 967 1500 will be
included with the fan housing in future.
143TI014 KN
6XPPDU\
Item Part Name Original New Rem.
version version
1 Fan housing; 1130 080 1800 1130 080 1800 1)
including item 3:
2 Fan housing with rewind starter; 1130 080 2100 1130 080 2100 1)
including item 3:
3 Nameplate 017 --- 1130 967 1500
Modification to be introduced: in progress
5HPDUNV
1) Only modified version of part is available from factory
Last Technical Information on model 017: 12.98
1998 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-al 6449 Page 2 of 2
