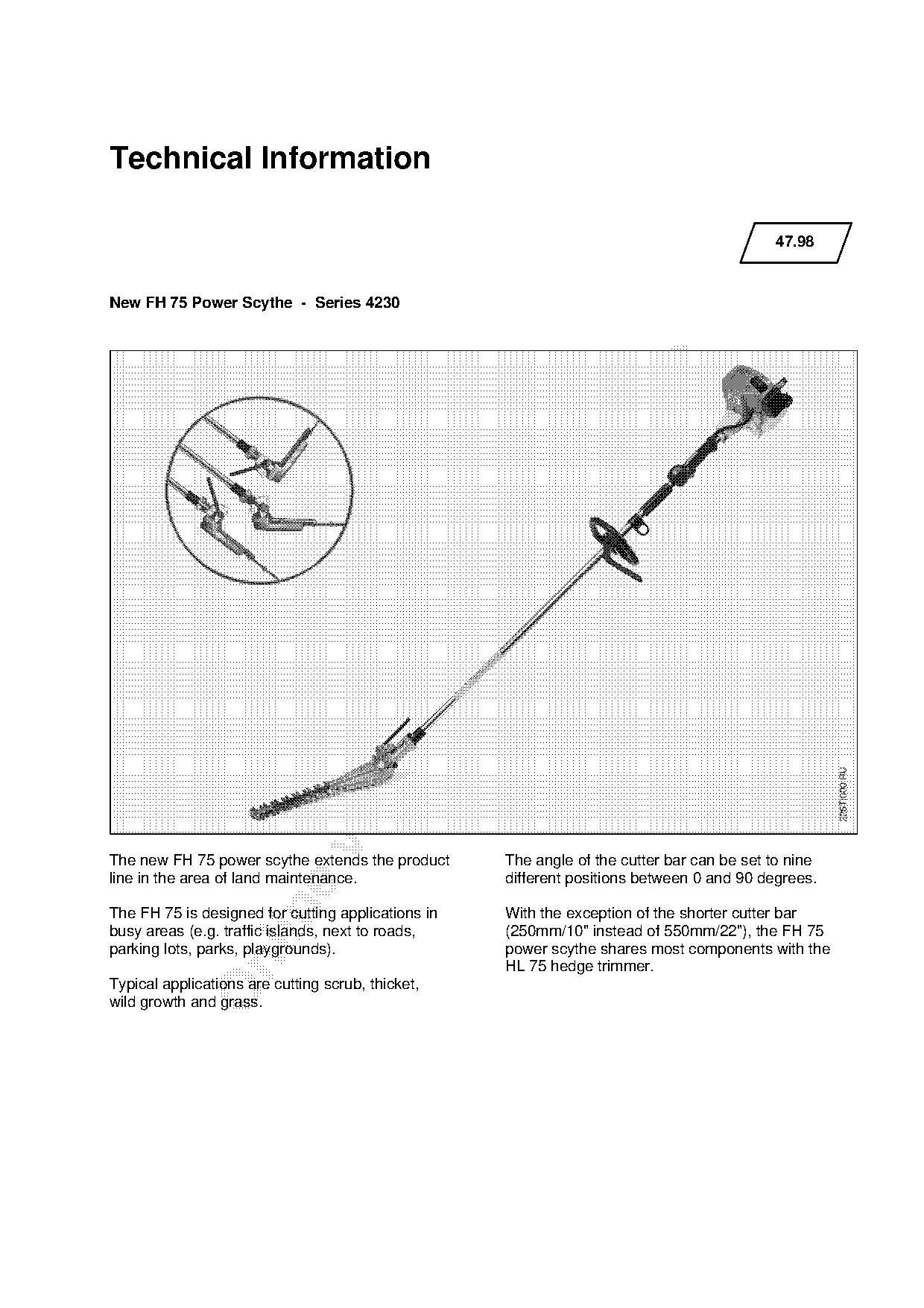

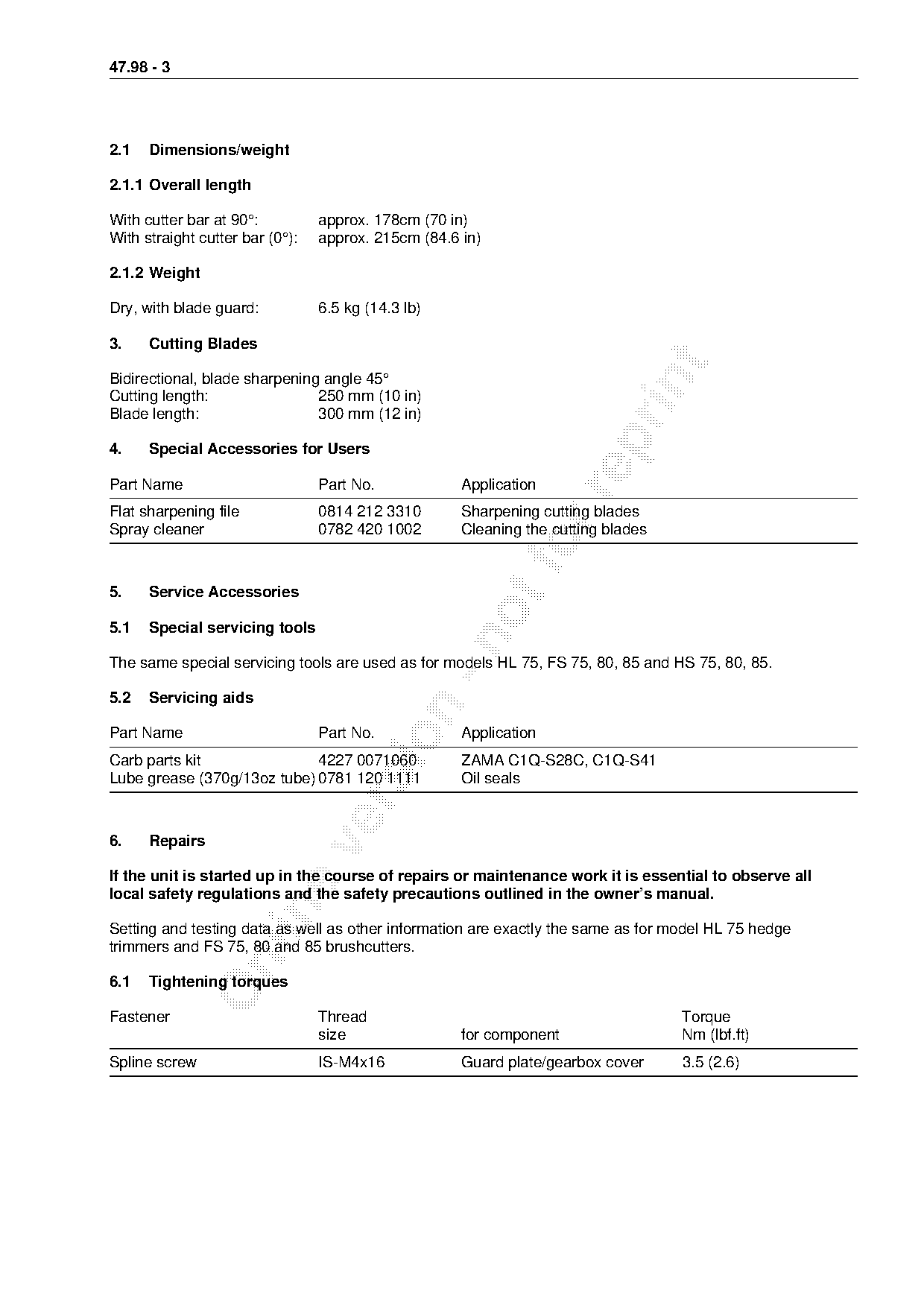

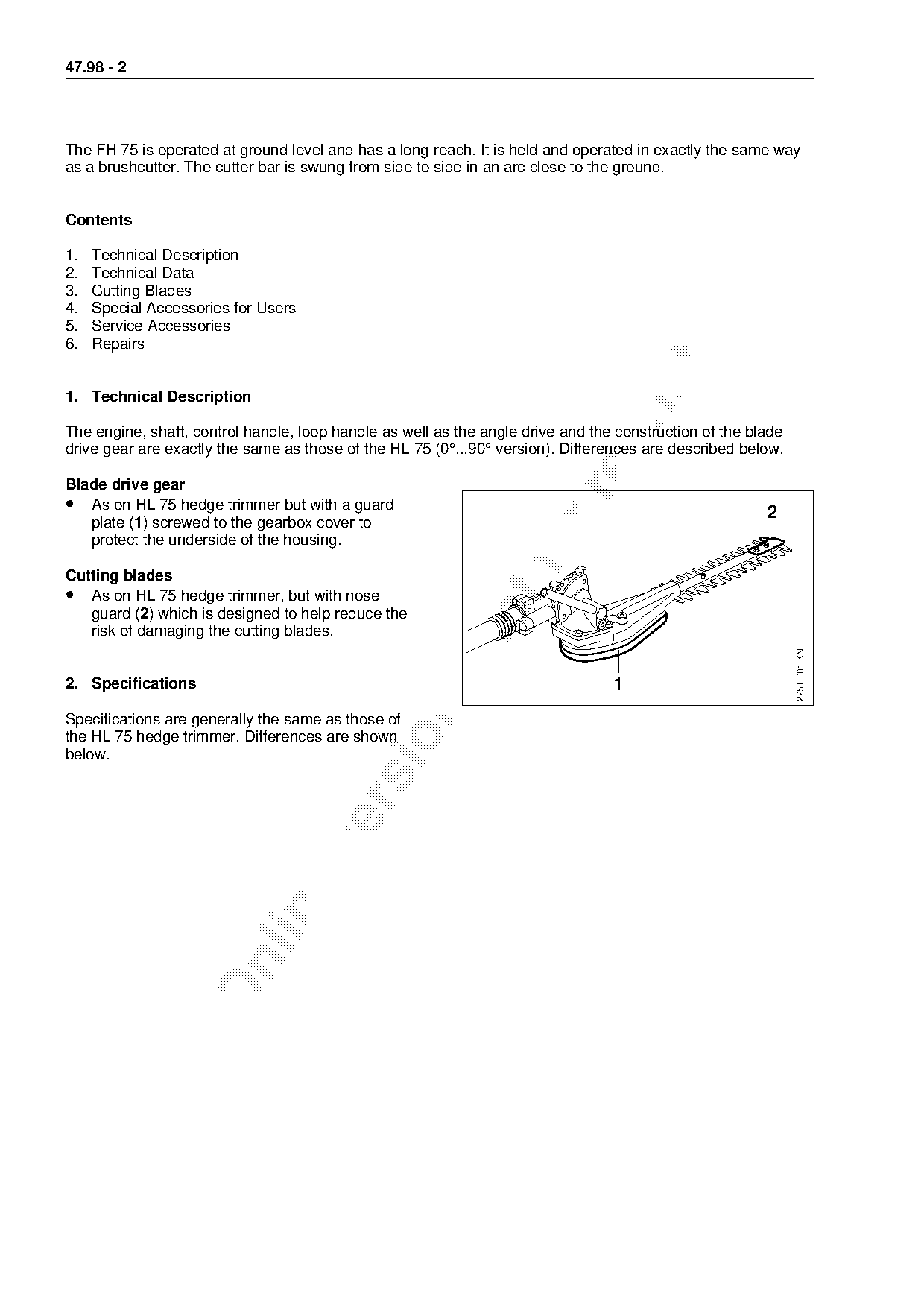

New Power Scythe FH 75

IssueTI 47/1998

Historical fitment & changes

Source-reviewed model notes. An exact-model IPL link is unavailable where stated; no similar model is substituted. Availability statements belong to the bulletin’s date.

Service note · FH 75

FH 75: twenty repair allowances transferred by TI47/1998

TI47 explicitly adopts TI41/1996 HL75 repair times: twenty allowances in tenths of an hour.

No exact-model IPL link: Historical FH75 labor reference only: no physical assembly, parts interchange, serial cutoff or extension to FH/FH-KM attachments is inferred.

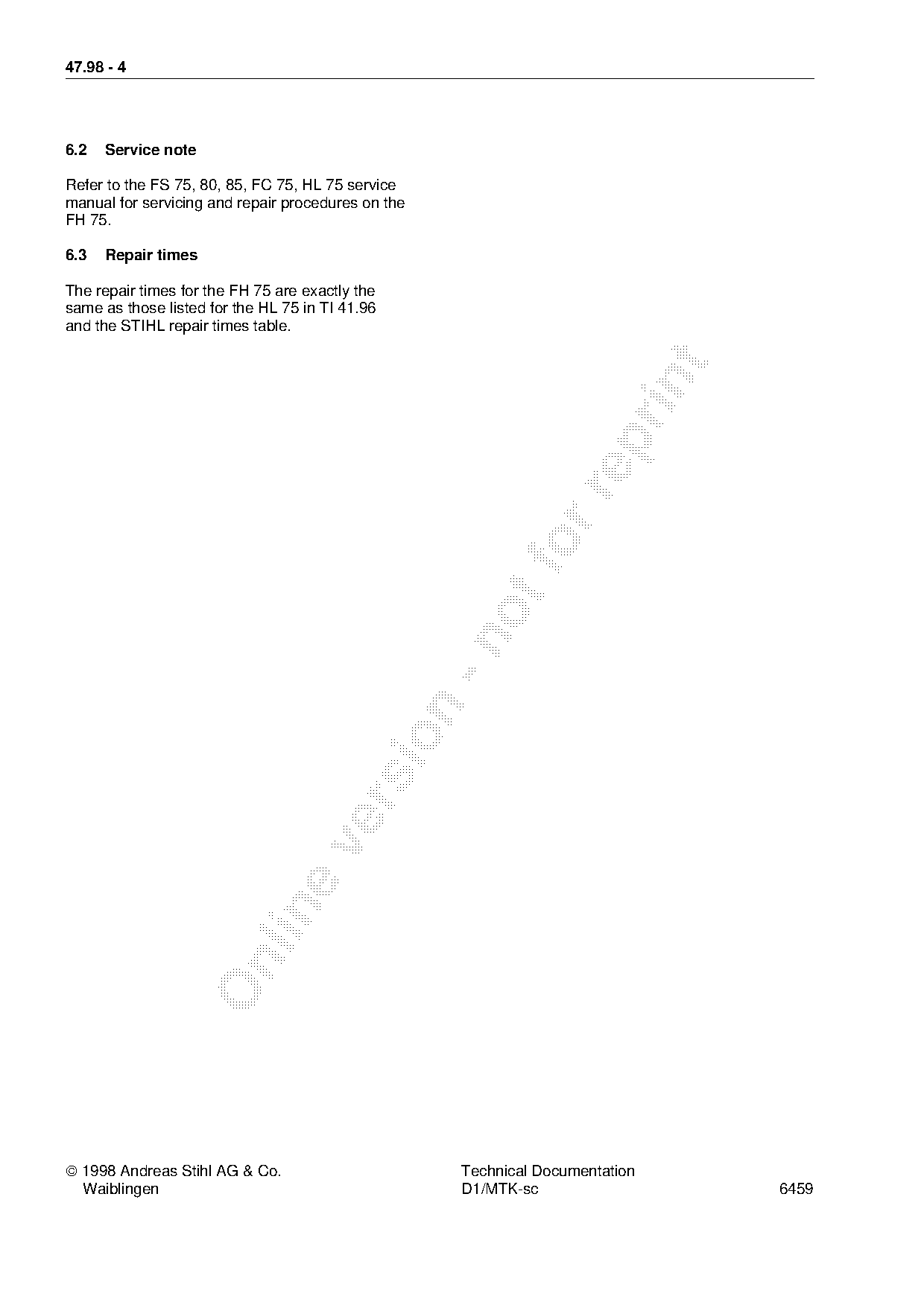

  • TI47/1998 section6.3 says FH75 repair times are exactly the same as those listed for HL75 in TI41/1996 and the STIHL repair-times table. This explicit transfer, not model resemblance, supports the following FH75 reference. The original TI41 column still reads HL75; it has not been relabeled or changed.
  • Section6.3 assumes TRAINED personnel in a PROPERLY EQUIPPED service workshop. Times are HOURS expressed in tenths:0.1hour=6minutes. ALL repairs include diagnostic time. Values are historical labor allowances, not elapsed-time guarantees for an owner or present warranty policy.
  • Codes1–10: 1 Crankcase, Short Block: 2.1h; 2 Crankcase and/or Bearings: 2.2h; 3 Crankcase Gasket, Sealing: 2.0h; 4 Crankshaft Seals: 0.7h; 5 Cylinder and/or Piston: 0.8h; 6 Ignition: 0.5h; 7 Fuel Hose, Fuel Supply: 0.5h; 8 Replace Gear Box Assy: 0.5h; 9 Carburetor: 0.7h; 10 Fan Housing, Clutch Housing: 0.8h.
  • Codes11–20: 11 Front Handle, Throttle: 0.6h; 12 Recoil Starter: 0.5h; 13 Clutch: 0.5h; 14 Drive Tube, Drive Shaft: 0.5h; 15 Muffler: 0.4h; 16 Air Filter, Filter Cover: 0.3h; 17 Stop Switch: 0.4h; 18 Fuel Tank: 0.4h; 19 Replace Arbor Gears: 0.8h; 20 All Other Repairs & Misc. Repairs: 0.5h.
  • The referenced original parent repair-times manual remains unidentified in the bounded retained inventory (766 resource PDFs and 41 owner PDFs). The accepted TI41 dependency reconciliation and separate 2012 table are reused; the later edition is not the original 1998 parent source. This is a specific original-edition gap, not universal absence.
  • TI47 identifies the FH75 power scythe, printed series 4230. Later exact-model catalog series 4137 is not equated with 4230. No FH/FH-KM attachment or later 135-degree-head extension, physical interchange, present warranty policy or hardware execution is established.

Source: TI 47/1998, p. 4 — TI47/1998 section6.3 FH75 labor transfer; FH 75: twenty repair allowances transferred by TI47/1998.

Referenced bulletin evidence: TI 41/1996, p. 4 — TI41/1996 section6.3 complete 20-row table, units and inclusive diagnostic note.

No additional parts-table entry added.

Service note · FH 75

FH 75: 2012 timetable scope and inclusive labor rules

The 2012-01 manual uses minutes and inclusive dealer flat rates; repair codes are not additive owner estimates.

No exact-model IPL link: Historical FH75 labor reference only: no physical assembly, parts interchange, serial cutoff or extension to FH/FH-KM attachments is inferred.

  • Cover PDF 1 establishes Repair Timetables Manual 2012-01, copyright 2012 STIHL Incorporated, printed in U.S.A., publication 0457 081 0100. Contents PDF 2 identifies dealer instructions on printed 2–3 and extended-reach hedge trimmers on printed 27/PDF 28.
  • PDF 28 explicitly says Repair times are in minutes. Its first model column groups FH75, HL75 and HL75K; this note binds only FH 75. Other columns for HL45/HL45C, HL73, HL90/HL90K and HL100/HL100K are not transferred. Adjacent PDF 27 is HS hedge trimmers and PDF 29 is Kombi Tool attachments, not continuations of this column.
  • Dealer instructions PDF 3: flat rates concern warranty labor reimbursement by Authorized STIHL Dealers. Diagnostic time, cleaning, completing the repair and test running are included whenever applicable. Technicians are assumed to have STIHL service training and to use proper tools and workshop procedures.
  • Only one labor code is entered per claim. The highest allowance usually covers overlapping work: cylinder/piston work considers air-leak testing, seals or carburetor work; ignition module replacement generally includes stop-switch/wire tests; carburetor work includes checking/replacing fuel lines and tank vents. Separate diagnoses/access may require an authorized increase if the highest time is insufficient. Do not sum rows as an automatic quote.
  • Historical claims submission, parts-retention/return and scrapping paragraphs on PDF 3–4 are reviewed as dealer administration, outside this owner repair-reference scope. No present reimbursement entitlement, current policy or instruction to contact anyone is inferred. The visible formatting annotation on PDF 3 is not service guidance.
  • Later 2012-01 U.S. dealer timetable, not the original parent manual referenced in 1998, present warranty policy or an owner elapsed-time guarantee. No hardware operation was performed.

TI dependency: TI 47/1998, p. 4 — TI47/1998 section6.3 FH75 labor transfer; FH 75: 2012 timetable scope and inclusive labor rules.

Referenced bulletin evidence: TI 41/1996, p. 4 — TI41/1996 section6.3 complete 20-row table, units and inclusive diagnostic note.

Later manual evidence: STIHL Repair Timetables Manual (2012-01), section 2012 cover, contents, complete dealer-instruction boundary and exact table scope, PDF pages 1, 2, 3, 4, 27, 28, 29

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FH 75

FH 75: 2012 powerhead repair allowances

The exact later column includes 16 powerhead/control allowances and a blank short-block cell.

No exact-model IPL link: Historical FH75 labor reference only: no physical assembly, parts interchange, serial cutoff or extension to FH/FH-KM attachments is inferred.

  • code 1: Replace short block, blank (no allowance printed); code 2: Replace crankcase, crankcase gasket or re-seal crankcase. Includes air leak test, 50 minutes; code 3: Replace crankshaft main bearing(s). Includes air leak test, 50 minutes; code 4: Replace crankshaft seal(s). Includes air leak test, 50 minutes; code 5: Replace tank filler cap, 3 minutes; code 6: Replace cylinder and/or piston. Includes air leak test and repair of components causing failure, 50 minutes; code 7: Replace ignition module or flywheel. Includes stop circuit test, 25 minutes; code 8: Replace fuel tank line, tank vent, or fuel pick-up body, 20 minutes; code 9: Replace intake manifold or intake flange, 20 minutes.
  • code 10: Repair or replace carburetor. Includes fuel system testing, 30 minutes; code 11: Repair throttle control, 30 minutes; code 12: Repair or replace rewind starter, 15 minutes; code 13: Repair or replace clutch, clutch shoes or clutch springs, 20 minutes; code 14: Replace muffler, 15 minutes; code 15: Replace air filter or filter housing, 15 minutes; code 16: Repair or replace stop switch. Includes circuit testing, 25 minutes; code 17: Replace fuel tank, 20 minutes.
  • The blank code 1 cell is not zero, not the neighboring HL90/HL100 allowance, and not evidence that replacement is prohibited. Code 6 includes repair of components causing failure, not merely cylinder/piston replacement. Use the inclusive labor rules in the companion timetable scope note.
  • Later 2012-01 U.S. dealer timetable, not the original parent manual referenced in 1998, present warranty policy or an owner elapsed-time guarantee. No hardware operation was performed.

TI dependency: TI 47/1998, p. 4 — TI47/1998 section6.3 FH75 labor transfer; FH 75: 2012 powerhead repair allowances.

Referenced bulletin evidence: TI 41/1996, p. 4 — TI41/1996 section6.3 complete 20-row table, units and inclusive diagnostic note.

Later manual evidence: STIHL Repair Timetables Manual (2012-01), section 2012 extended-reach table, codes1–17; all cells of the FH75/HL75/HL75K column, PDF pages 28

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FH 75

FH 75: 2012 attachment and special labor rows

Drive, blade and gearbox allowances remain separate from blank valve rows and the explicitly printed no-labor zero.

No exact-model IPL link: Historical FH75 labor reference only: no physical assembly, parts interchange, serial cutoff or extension to FH/FH-KM attachments is inferred.

  • code 18: Adjust valve clearance, blank (no allowance printed); code 19: Clean exhaust valve with STIHL de-carbonizing liquid. Includes leak-down test, blank (no allowance printed); code 20: Replace intake or exhaust valve. Includes leak-down test, blank (no allowance printed); code 21: Replace clutch housing, 20 minutes; code 22: Replace outer drive tube, 25 minutes; code 23: Replace drive shaft, 20 minutes; code 24: Replace gear box assembly, 15 minutes; code 25: Replace gear box cover, 15 minutes; code 26: Replace internal gear(s), 30 minutes.
  • code 27: Replace connecting rod, 15 minutes; code 28: Replace blade guide screw(s), 15 minutes; code 29: Replace blade(s), 20 minutes; code 30: Replace blade guide piece, 20 minutes; code 31: Replace blade spring, 20 minutes; code 32: Replace gear box bearing(s), 30 minutes; code 35: Engine diagnosis only to determine failures requiring unit replacement, 25 minutes; code 40: Miscellaneous repairs, 15 minutes; code 45: Handling allowance only-no labor, 5 minutes; code 50: No Labor, 0 minutes.
  • Codes 18–20 are blank for FH75/HL75/HL75K; the printed valve allowances belong to HL90/HL90K and HL100/HL100K. These blanks do not establish a valve mechanism, a zero-minute repair or permission to adopt another model column. Code 50, by contrast, explicitly prints 0. Code 45 is a handling allowance only, no labor; code 35 is diagnosis only for failures requiring unit replacement.
  • The 36 printed rows are codes 1–32,35,40,45,50: codes 33–34,36–39,41–44 and46–49 are not rows on this page. No missing codes or implied zero cells are synthesized.
  • Later 2012-01 U.S. dealer timetable, not the original parent manual referenced in 1998, present warranty policy or an owner elapsed-time guarantee. No hardware operation was performed.

TI dependency: TI 47/1998, p. 4 — TI47/1998 section6.3 FH75 labor transfer; FH 75: 2012 attachment and special labor rows.

Referenced bulletin evidence: TI 41/1996, p. 4 — TI41/1996 section6.3 complete 20-row table, units and inclusive diagnostic note.

Later manual evidence: STIHL Repair Timetables Manual (2012-01), section 2012 extended-reach table, codes18–32,35,40,45,50; blanks versus printed zero, PDF pages 28

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FH 75

FH 75: transferred TI allowances and 2012 codes differ

Keep the transferred 20-row hour table separate from the later 36-row minute table; codes and inclusions differ.

No exact-model IPL link: Historical FH75 labor reference only: no physical assembly, parts interchange, serial cutoff or extension to FH/FH-KM attachments is inferred.

  • TI47/1998 transfers TI41/1996 HL75 times to FH75 explicitly. That 20-row table uses tenths of an hour (0.1hour=6minutes), with diagnosis included. The 2012 shared FH75/HL75/HL75K column uses minutes; it is directly named FH75 evidence, not a transfer inferred from HL75 similarity.
  • Directly comparable descriptions still carry edition-specific values: TI code 4 crankshaft seals 0.7 h = 42 minutes versus 2012 code 4 seal(s) including air leak test 50 minutes; TI code 8 gearbox assembly 0.5 h = 30 minutes versus 2012 code 24 gearbox assembly 15 minutes; TI code 9 carburetor 0.7 h = 42 minutes versus 2012 code 10 carburetor including fuel-system testing 30 minutes.
  • TI code 1 crankcase/short block 2.1 h = 126 minutes cannot be mapped to later code 1 as a numeric allowance: that cell is blank. TI code 2 crankcase and/or bearings and code 3 crankcase gasket/sealing differ from later codes 2 crankcase/gasket/reseal and 3 main bearings. TI code 14 combines drive tube and shaft at 0.5 h = 30 minutes; later codes 22 and23 split outer tube25 and shaft20. They are not additive or proof of a model changeover.
  • The original parent timetable referenced in 1998 has not been established by the bounded retained inventory. Neither the 2012 edition nor arithmetic conversion resolves the source gap, supplies a universal code crosswalk, proves a supersession date or changes the original TI allowance.
  • Historical allowances are not additive quotations, current warranty policy or owner elapsed-time guarantees. No parts interchange or hardware operation is established.

TI dependency: TI 47/1998, p. 4 — TI47/1998 section6.3 FH75 labor transfer; FH 75: transferred TI allowances and 2012 codes differ.

Referenced bulletin evidence: TI 41/1996, p. 4 — TI41/1996 section6.3 complete 20-row table, units and inclusive diagnostic note.

Later manual evidence: STIHL Repair Timetables Manual (2012-01), section TI41 section6.3 compared with later dealer instructions and exact2012 model column, PDF pages 3, 28

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FH 75

FH 75: three later service manuals have different jobs

The 2004 components and 2007 CombiTools manuals explicitly name FH 75; they do not identify the original combined 1998 manual.

No exact-model IPL link: Exact FH 75 later-manual scope established; original 1998 edition and configuration not established.

  • The 2004-06 Components 4137 cover and introduction explicitly include FH 75. The introduction says these listed machines are based on the 4137 powerhead and that procedures are shared unless an individual machine is specified. This is direct later-manual scope, stronger than a database title link, but not original 1998 configuration proof.
  • Series 4137 Powerhead 2004-03 covers the powerhead and points to separate Components and CombiTools manuals. The 2004-06 components introduction points to Series 4137 Powerhead for engine components and associated CombiTools; retain that wording rather than treating one PDF as a complete combined manual.
  • The 2007-02 CombiTools cover explicitly lists FH 75 alongside FH and FH-KM. Its introduction assigns engine repair to separate basic-engine/components manuals, uses series labels for common procedures and names individual machines or assemblies for exceptions. A cover listing does not erase section-specific restrictions.
  • TI 47 section 6.2 instead names a FS 75/80/85, FC 75, HL 75 combined service manual. These later split editions have not been established as that original manual. They are service manuals, not the applicable FH 75 operator instructions required by the TI safety preamble.
  • Enumerated later scope, specification, head, torque, tool, aid, diagnostic-test and carburetor-adjustment sections are admitted. The TI 32/1994 chart reference is reconciled; original combined/operator editions remain bounded source gaps. No whole manual is closed or imported.
  • Later reference edition, not proof of the original 1998 configuration. Printed TI series 4230 and later catalog/manual 4137 are not equated. No serial cutoff, retrofit, current availability or tested interchange is established.

TI dependency: TI 47/1998, p. 3 · TI 47/1998, p. 4 — TI 47/1998 page 3 setting/testing reference andpage 4 section 6.2; separately dated manual sections specified below.

Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Cover and printed 2 introduction: explicit FH 75 scope and 4137 powerhead reference, PDF pages 1, 3 · Series 4137 Powerhead (2004-03), section Verified cover/scope reused; printed 4 complete engine and ignition specification table, PDF pages 1, 3, 5 · CombiTools (2007-02), section Cover, printed 2 scope andprinted 4 complete gearbox assignment table and legend, PDF pages 1, 3, 5

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FH 75

FH 75 reference: later engine and ignition specifications

The 2004 powerhead table separates cut-off conditions, clutch engagement, pressure direction and the two ignition gaps.

No exact-model IPL link: Exact FH 75 later-manual scope established; original 1998 edition and configuration not established.

  • The 2004-03 powerhead table gives 25.4 cm³ displacement,34 mm bore,28 mm stroke and 0.95 kW (1.3HP) to ISO 8893. FH 75 binding is through the 2004-06 components introduction, not a new numeric statement in TI 47/1998.
  • Maximum permissible engine speed WITHOUT CUTTING ATTACHMENT (cut-off speed) is 10,500 ± 800 rpm; idle 2,800 rpm. The unlined centrifugal clutch engages at 3,700 rpm. These are distinct values and conditions, not a maximum blade speed or an instruction to perform a no-attachment running test.
  • The crankshaft uses heavy-duty deep-groove ball bearings with needle cages on the small and big ends at piston pin and crankpin. Crankcase leakage-test magnitudes are 50 kPa (0.5 bar) excess pressure and 50 kPa (0.5 bar) negative pressure. Preserve direction: not two positive-pressure tests. This table alone supplies no hold time or allowable decay.
  • Electronic magneto ignition with integrated switch gear; ignition air gap 0.2–0.5 mm. Listed suppressed spark plugs: Bosch WSR6F, NGK BPMR7A and Champion RCJ6Y; electrode gap 0.5 mm. The electrode gap is not the ignition air gap. No ordering number, original carburetor suffix or universal plug substitution is inferred.
  • Later reference edition, not proof of the original 1998 configuration. Printed TI series 4230 and later catalog/manual 4137 are not equated. No serial cutoff, retrofit, current availability or tested interchange is established.

TI dependency: TI 47/1998, p. 3 · TI 47/1998, p. 4 — TI 47/1998 page 3 setting/testing reference andpage 4 section 6.2; separately dated manual sections specified below.

Later manual evidence: Series 4137 Powerhead (2004-03), section Verified cover/scope reused; printed 4 complete engine and ignition specification table, PDF pages 1, 3, 5 · Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Cover and printed 2 introduction: explicit FH 75 scope and 4137 powerhead reference, PDF pages 1, 3

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FH 75

FH 75 reference: carburetor and tank-vent test values differ

The 2004 fuel table gives 0.8 bar carburetor pressure and separate 0.5 bar pressure/0.2 bar vacuum tank-vent figures.

No exact-model IPL link: Exact FH 75 later-manual scope established; original 1998 edition and configuration not established.

  • Components 4137 2004-06 printed 4 identifies a diaphragm carburetor and carburetor leakage-test gauge pressure 80 kPa (0.8 bar). This is not the tank-vent pressure, a crankcase test value or a complete leakage-test procedure.
  • Tank-vent operation is listed at 50 kPa (0.5 bar) gauge pressure and 20 kPa (0.2 bar) under vacuum. Keep the test target and direction distinct. No hold time, pressure-decay criterion or apparatus setup is supplied by this specification table.
  • Rated idle is 2,800 rpm and rated cut-off 10,500 rpm. The separate 2004-03 powerhead table explicitly adds ± 800 rpm and the WITHOUT CUTTING ATTACHMENT condition; those qualifications are not printed in the components table and are not silently merged into one source.
  • The fuel row specifies regular brand-name gasoline with minimum 90 RON and STIHL 50:1 two-stroke engine oil, referring to the instruction manual for further details. RON is not AKI; the manual dependency remains. The general diaphragm designation does not resolve TI 47’s C1Q-S28C/unsuffixedS41 versus later catalog suffixes.
  • Later reference edition, not proof of the original 1998 configuration. Printed TI series 4230 and later catalog/manual 4137 are not equated. No serial cutoff, retrofit, current availability or tested interchange is established.

TI dependency: TI 47/1998, p. 3 · TI 47/1998, p. 4 — TI 47/1998 page 3 setting/testing reference andpage 4 section 6.2; separately dated manual sections specified below.

Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Cover/scope andprinted 4 complete fuel-system specification table, PDF pages 1, 3, 5 · Series 4137 Powerhead (2004-03), section Verified cover/scope reused; printed 4 complete engine and ignition specification table, PDF pages 1, 3, 5

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FH 75

FH 75: later gearbox table separates 0–90° from 135°

The 2007 table names both FH 75 configurations; it does not make the 1998 head a 135-degree model.

No exact-model IPL link: Exact FH 75 later-manual scope established; original 1998 edition and configuration not established.

  • CombiTools 2007-02 printed 4 lists FH 75 0–90° and FH 75 135° in the common FH row, whose type is printed MG. The same page defines WG as worm gear, AG as angle gear and BG as blade drive gear; it does not define MG. Preserve MG as printed, not silently corrected to BG.
  • The FH 0–90° angle-drive row, type AG, lists FH 0–90°, FH-KM 0–90° andFH75 0–90°. A separate FH 135° angle-drive row, alsoAG, lists FH 135°, FH-KM 135° andFH75 135°. Shared row membership is not a parts-interchange or retrofit statement.
  • TI 47/1998 describes nine positions from 0 to 90 degrees and explicitly compares the HL 75 0–90° construction. The later 135° listing does not establish a changeover date, serial range or applicability of 135° procedures to that original unit.
  • Other BC/FC/FS/HL/HT/KW table rows and their footnotes remain context, not FH 75 assignments. Exact cutting-head configuration must be kept when following the later manual sections.
  • Later reference edition, not proof of the original 1998 configuration. Printed TI series 4230 and later catalog/manual 4137 are not equated. No serial cutoff, retrofit, current availability or tested interchange is established.

TI dependency: TI 47/1998, p. 3 · TI 47/1998, p. 4 — TI 47/1998 page 3 setting/testing reference andpage 4 section 6.2; separately dated manual sections specified below.

Later manual evidence: CombiTools (2007-02), section Cover, printed 2 scope andprinted 4 complete gearbox assignment table and legend, PDF pages 1, 3, 5

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FH 75

FH 75 reference: initial gearbox fill is not re-lubrication

The 2007 table separates 27 g and new-version 21 g blade-drive fills; both have maximum 5 g re-lubrication.

No exact-model IPL link: Exact FH 75 later-manual scope established; original 1998 edition and configuration not established.

  • CombiTools 2007-02 section 4.3 prints two HL/FH blade-drive rows. Both use grease type B, defined as STIHL gear lubricant for hedge trimmers. Initial filling is 27 g in the unqualified row and 21 g in the row marked footnote 3, New version. Each re-lubrication entry is max. 5 g.
  • Do not add the two initial-fill amounts, use 27 g or 21 g as a top-up amount, or equate the unqualified row automatically to every 1998 unit. The table supplies no serial cutoff or detailed definition of New version.
  • Angle-drive entries are labeled HL 0°, HL 30°, HL 0–90° andHL135°, not FH. They use type A (STIHL gear lubricant for brushcutters):11 g,11 g,20 g and 11 g initial fill respectively, each max. 5 g re-lubrication; the 135° row carries New version. These headings are preserved as comparison context, not converted into a direct FH 75 angle-drive assignment.
  • The gearbox grease types are not TI 47’s 0781 120 1111 oil-seal assembly grease. This capacity table supplies no replacement ordering number or complete lubrication procedure; the specific head and procedure still require reconciliation.
  • Later reference edition, not proof of the original 1998 configuration. Printed TI series 4230 and later catalog/manual 4137 are not equated. No serial cutoff, retrofit, current availability or tested interchange is established.

TI dependency: TI 47/1998, p. 3 · TI 47/1998, p. 4 — TI 47/1998 page 3 setting/testing reference andpage 4 section 6.2; separately dated manual sections specified below.

Later manual evidence: CombiTools (2007-02), section Cover, printed 4 configuration table andprinted 7 section 4.3 complete grease-capacity table/legend, PDF pages 1, 5, 8

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FH 75

FH 75 reference: gearbox torque rows require their model footnotes

The 2007 table has eleven rows marked FH75; adjacent HL75-only rows are not transferred.

No exact-model IPL link: Later FH75 reference with section-specific restrictions retained; original 1998 edition and configuration not established.

  • Section4.1 printed pages5–6 defines footnote3 as FH75, footnote8 as HL45 and footnote9 as HL75. The eleven FH75-marked rows are retained below; shared footnotes do not prove interchangeable fasteners or assemblies.
  • Gearbox housing/drive tube, IS-M6x20: 10.0 Nm; gearbox cover/gearbox housing, IS-M4x16: 3.5 Nm; FS gearbox housing/HS gearbox housing, IS-M5x20: 7.0 Nm. Preserve the printed FS/HS component wording instead of inventing an FH-specific housing designation.
  • M5 nut, DS550 mm blade/screw: 9.5 Nm; IS-M11x8 screw plug/gearbox cover: 5.5 Nm; IS-M11x8 screw plug/gear housing: 5.5 Nm. The separate M5 nut, DS270 mm blade/screw row is also 9.5 Nm and carries FH75 alone. Printed DS270 is not silently corrected to TI47’s 250 mm cutting length, nor does the DS550 row establish a blade retrofit.
  • IS-M5x84 screw, gearbox housing left/right: 1.5 Nm; M5 locknut for that housing: 6.0 Nm. These are separate screw and locknut values, not one torque. IS-M5x10 quadrant/gear housing: 8.0 Nm; IS-M4x16 guard plate/gearbox cover: 3.5 Nm. Both latter rows carry FH75 alone.
  • The nearby 9.5 Nm IS-M5x20 guide/blade/gearbox-housing row is marked FS45/HL45/HL75, not FH75. Likewise the M5x12 quadrant and adjusting-lever rows, M4x10 guard-plate row and M6x8 grub-screw row on printed6 carry HL75 only. Do not borrow their dimensions or torques merely because the assemblies look similar.
  • The manual requires a torque wrench. For existing DG/P threads it says turn counterclockwise until the screw drops into the existing thread, then tighten clockwise to specification; P screws in polymer have max. 500 rpm power-driver speed. Adhesive-secured screws require heating before release with special care around plastic. The high-strength Loctite272 footnote belongs to the HT friction-clutch row, not every FH75 screw.
  • Later 2007-02 reference, not proof of the original 1998 configuration, a serial changeover or physical interchange. These are source-linked service distinctions, not a complete stand-alone repair procedure. Original combined and operator manuals remain unestablished.

TI dependency: TI 47/1998, p. 3 · TI 47/1998, p. 4 — TI47/1998 page3 tool/data references and page4 section6.2; separately dated CombiTools sections below.

Later manual evidence: CombiTools (2007-02), section Complete section4.1 table, model/adhesive footnotes and refitting notes; only footnote3 rows assigned FH75, PDF pages 1, 3, 6, 7

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FH 75

FH 75 comparison: the later 0–90° head uses a matched pinion set

The HL 0–90° section distinguishes a three-pinion set, bearing orientation and an optional washer.

No exact-model IPL link: Later FH75 reference with section-specific restrictions retained; original 1998 edition and configuration not established.

  • Section7.6.3 is headed HL 0–90°, not FH75. It is retained as the later configuration-specific comparison for TI47’s common-construction reference; the original heading is not relabeled. The neighboring HL30° strengthened-bearing modification and the later chapter8 135° design are not imported into this 0–90° record.
  • The drive pinion, double pinion and output pinion are available only as a matching set in this edition. The double-pinion needle sleeves are pressed out with press sleeve 4119 893 2400 and drift 1111 893 4700; circlip removal uses pliers 0811 611 8200. These are service-tool identifiers, not replacement pinion numbers.
  • Disassembly specifies heating the gearbox housing to about 110–140°C for removal at input and output ends. Assembly separately heats the ball bearings to about 50°C and the gearbox housing to about 140°C. These are component-specific workshop instructions, not running temperatures; retain the manual’s fuel/fire precautions.
  • Output-end bearings have their open sides facing each other. At the input end the open bearing is against the pinion, and the closed bearing is at the circlip-groove end. Double-pinion needle sleeves are recessed about 1 mm at both ends; the large pinion goes onto the bearing bushing first.
  • The input-pinion washer is retained if fitted, but the text says it is not required on a new set of pinions. This is a set-specific instruction, not permission to discard every washer: separate housing washers and circlips remain shown. The bearing bushing seats fully, the pinions must mesh, and the housing O-ring is renewed. No part number or serial boundary identifies the new set.
  • Later 2007-02 reference, not proof of the original 1998 configuration, a serial changeover or physical interchange. These are source-linked service distinctions, not a complete stand-alone repair procedure. Original combined and operator manuals remain unestablished.

TI dependency: TI 47/1998, p. 3 · TI 47/1998, p. 4 — TI47/1998 page3 tool/data references and page4 section6.2; separately dated CombiTools sections below.

Later manual evidence: CombiTools (2007-02), section Section7.6.3 printed30–34: original heading, disassembly and matched-pinion/bearing assembly; neighboring HL30 modification excluded, PDF pages 1, 3, 4, 31, 32, 33, 34, 35

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FH 75

FH 75 comparison: two 0–90° lock and adjusting-lever versions

The later manual keeps DIN6799 and DIN7993 retainers separate, and pairs each lever with its screw.

No exact-model IPL link: Later FH75 reference with section-specific restrictions retained; original 1998 edition and configuration not established.

  • Within the HL 0–90° section7.6.3, the original locking pin takes a 3.2 snap ring (DIN6799); the new locking pin takes a 5x0.8 snap ring (DIN7993). Keep both sizes and standards, without converting them into STIHL ordering numbers or a universal substitution.
  • The screw sleeve, spring and washer assemble on the locking pin and are secured with the version-specific snap ring. The lock housing is pulled back while the gearbox housing is pushed fully home. Cup springs go convex side toward the screw head, followed by washer and new O-ring as illustrated.
  • After tightening the housing screw, the text requires checking that the gearbox housing is still adjustable; the nut is then tightened while counterholding the screw. The later FH75 torque table distinguishes 1.5 Nm for the housing screw from 6.0 Nm for its locknut; retain both and verify the actual assembly rather than applying the locknut value to the screw.
  • The original adjusting lever is installed with an M5x40 screw; the new adjusting lever uses M6x50. The new lever and new gearbox housing have a flat mating surface. No serial cutoff, individual replacement-part number or mixed-version compatibility is stated.
  • The section specifies brushcutter gear lubricant for this bevel/angle drive and topping up during maintenance only if no grease is visible inside the screw plug. The separate capacity table labels its angle-drive rows HL, not FH; no numerical FH fill is invented. Blade-drive lubrication below uses the separately named hedge-trimmer lubricant.
  • Later 2007-02 reference, not proof of the original 1998 configuration, a serial changeover or physical interchange. These are source-linked service distinctions, not a complete stand-alone repair procedure. Original combined and operator manuals remain unestablished.

TI dependency: TI 47/1998, p. 3 · TI 47/1998, p. 4 — TI47/1998 page3 tool/data references and page4 section6.2; separately dated CombiTools sections below.

Later manual evidence: CombiTools (2007-02), section Section7.6.3 printed34–35 locking components, version pairs, adjustment check and lubrication; torque/capacity table restrictions, PDF pages 1, 3, 6, 7, 8, 35, 36

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FH 75

FH 75 reference: cutting-blade stack and engagement checks

The later blade section explicitly includes FH machines and preserves the older-stack exception.

No exact-model IPL link: Later FH75 reference with section-specific restrictions retained; original 1998 edition and configuration not established.

  • Section7.6.4 removes the gearbox first, then the screws, the wear guard (FH only), cover, gasket, shaft thrust plate and seal before disengaging the connecting rod and removing the attachment. FH wear-guard removal is not a claim that every HL attachment uses that guard.
  • For assembly the lower guide rests with screw heads down; the flat spring pockets face up. Both blades have their cutting edges facing each other and locate on the pockets; sliders fit in the pockets, then the second guide and new locknuts are fitted. The manual explicitly says to assemble FH cutting blades in the same way.
  • The additional guide, flat spring and screws identified as items8,9,10 in the older stack are only fitted to older cutting attachments. Preserve that exception and the separate FH illustration, without adding those pieces to every later FH assembly or inventing a serial date.
  • The pin must engage the connecting-rod bore and the peg must engage the matching hole. These are separate engagement checks, not just a blade-length match. Refer to the exact illustrated stack and model-specific torque row; shared assembly method does not establish blade interchange.
  • The general gearbox-removal section7.1.1 excludes FCS, HT and KW. Refitting requires a degreased clamp area, engaged square shaft/socket, full seating and alignment before tightening; FC/FCB-only deflector and wheel steps are not FH instructions. The manual also requires protective gloves for attachment work and the applicable operator precautions.
  • Later 2007-02 reference, not proof of the original 1998 configuration, a serial changeover or physical interchange. These are source-linked service distinctions, not a complete stand-alone repair procedure. Original combined and operator manuals remain unestablished.

TI dependency: TI 47/1998, p. 3 · TI 47/1998, p. 4 — TI47/1998 page3 tool/data references and page4 section6.2; separately dated CombiTools sections below.

Later manual evidence: CombiTools (2007-02), section Sections7.1.1 and7.6.4, printed16 and35–37; explicit FH stack and older-type exception; safety context, PDF pages 1, 3, 4, 17, 36, 37, 38

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FH 75

FH 75 reference: two thrust plates have different orientation instructions

Cover-side and housing-side plate instructions are preserved separately; they are not contradictory replacements.

No exact-model IPL link: Later FH75 reference with section-specific restrictions retained; original 1998 edition and configuration not established.

  • Section7.6.4 printed37 places the connecting rod with its marking facing the spur gear. The cover-side thrust plate has bent corners facing the connecting rod; a new gasket is used. The replacement gearbox cover already includes its needle sleeve; an independently replaced sleeve is pushed fully home.
  • Section7.6.5 is explicitly headed HL/FH. It removes the spur gear, connecting rod and housing-side thrust plate, then the needle sleeve from the housing. A replacement housing already includes that sleeve; an independently replaced sleeve is pushed fully home.
  • In section7.6.5 assembly, the housing-side thrust plate’s bent corners face the gearbox housing, the connecting-rod marking faces up, and the chamfered side of the spur-gear teeth faces the connecting rod. These instructions concern different positions and views from the preceding cover-side plate, not a blanket reversal of every thrust plate.
  • The cutting-blade section calls for STIHL gear lubricant for hedge trimmers through the cover screw-plug opening, with maintenance top-up only when no grease is visible inside the plug. It calls this the bevel gear drive in its prose; preserve the source wording while distinguishing the brushcutter lubricant in section7.6.3. The capacity table and exact head version still govern quantities.
  • The next section7.6.6 concerns a separate angle-drive assembly and matching pinion pair. Its two-pinion replacement rule and drive-tube installation dimensions are not substituted for the three-pinion 0–90° set.
  • Later 2007-02 reference, not proof of the original 1998 configuration, a serial changeover or physical interchange. These are source-linked service distinctions, not a complete stand-alone repair procedure. Original combined and operator manuals remain unestablished.

TI dependency: TI 47/1998, p. 3 · TI 47/1998, p. 4 — TI47/1998 page3 tool/data references and page4 section6.2; separately dated CombiTools sections below.

Later manual evidence: CombiTools (2007-02), section Complete section7.6.5 and end of7.6.4, printed37–38; adjacent separate-angle-drive boundary retained, PDF pages 1, 3, 8, 38, 39

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FH 75

FH 75 reference: powerhead torque labels conflict with the components table

The printed 2004 powerhead table pairs IS-M4x20 with spark plug and M14x1.25 with ignition module; the components table gives the opposite component assignments.

No exact-model IPL link: Later FH75 reference with section-specific restrictions retained; original 1998 edition and configuration not established.

  • Powerhead 2004-03 section3.3, printed5, has four rows: IS-M5x25 crankcase 9.5 Nm; IS-DG5x24 cylinder/crankcase 9.5 Nm; IS-M4x20 spark plug 4.5 Nm; M14x1.25 ignition module/cylinder 20.0 Nm. The last two component labels are printed this way in the original page, not merely an OCR artifact.
  • Components 2004-06 section3.2, printed6, separately gives M14x1.25 spark plug 20.0 Nm and IS-M4x20 ignition module/cylinder (with washer) 4.5 Nm. These contradict the powerhead component labels. Preserve both transcriptions; do not silently correct the powerhead source or treat its printed assignments as verified repair instructions.
  • The common cylinder/crankcase row remains 9.5 Nm. Powerhead instructions require a torque wrench, engagement with the existing DG thread by turning counterclockwise until the screw drops slightly, then clockwise tightening; polymer DG power-driver speed is max. 500 rpm.
  • Components instructions cover DG and P screws, with max. 500 rpm for DG and max. 600 rpm for Plastoform screws in polymer. They explicitly say not to mix screws with and without binding head. The later 2007 head manual has a separate max. 500 rpm P-screw statement; edition and material/assembly context are not collapsed.
  • Later 2004 reference, not proof of the original 1998 configuration, a serial changeover, current availability or physical interchange. Source-linked distinctions are not a complete stand-alone repair procedure; original combined and operator manuals remain unestablished.

TI dependency: TI 47/1998, p. 3 · TI 47/1998, p. 4 — TI47/1998 page3 tool/data references and page4 section6.2; separately dated 2004 tables below.

Later manual evidence: Series 4137 Powerhead (2004-03), section Complete section3.3 table and thread-refitting notes, PDF pages 3, 6 · Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Section3.2 conflicting ignition/spark-plug rows, complete footnote legend and refitting notes, PDF pages 3, 7, 8

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FH 75

FH 75 reference: component torques retain FH75 footnotes and common rows

Ten FH75-marked rows and eighteen unqualified rows remain distinct from other-model fasteners, including one repeated spacer-flange row.

No exact-model IPL link: Later FH75 reference with section-specific restrictions retained; original 1998 edition and configuration not established.

  • Components 2004-06 printed5–7 defines footnote6 as FH75. The other labels are 1 FS75, 2 FS80/85, 3 FC75, 4 HL75, 5 KW85, 7 KM85 and 8 FC85. Only ten rows carrying6 and eighteen unqualified rows are retained here; the latter count includes the repeated spacer-flange entry. Unqualified scope follows the introduction, subject to the actual installed component and procedure.
  • FH75-marked rows on printed5: IS-P4x16 control handle/handle molding (outer/inner), 1.0 Nm; IS-M5x12 control handle/clamp/drive tube, 5.0 Nm; IS-M5x84 gearbox housing left/right, 1.5 Nm; M5 housing locknut, 6.0 Nm; IS-M6x20 gearbox housing/drive tube, 10.0 Nm; IS-M5x10 quadrant/gear housing, 8.0 Nm; IS-M4x16 guard plate/gearbox cover, 3.5 Nm.
  • FH75-marked rows on printed6: IS-M6x25 clamp/loop handle (loop-handled machine), 4.5 Nm; M5 nut DS270 mm blade/screw, 9.5 Nm; IS-M5x22 carrying ring/clamp, 3.0 Nm. These make ten FH75-marked rows across both pages. Printed DS270 remains distinct from TI47’s 250 mm cutting length.
  • Unqualified printed5 rows: M5 filter housing/carburetor/flange/screw, 4.0 Nm; IS-B4.2x9.5 spark-arresting screen/muffler, 1.0 Nm; IS-M5x16 shroud/fan housing, 3.5 Nm; IS-M5x16 shroud/starter cover/crankcase, 3.5 Nm; IS-M5x20 AV sleeve clamp screw, 5.5 Nm.
  • Unqualified printed6 rows: IS-DG5x12 AV sleeve/drive-tube location, 0.5 Nm; M8 clutch carrier/flywheel/crankshaft, 26.0 Nm; IS-M5x16 fan housing/crankcase, 8.0 Nm; M8 carrier, 14.0 Nm; IS-P5.5x12 rope rotor/starter cover, 3.5 Nm; IS-5x16 muffler/crankcase, 9.5 Nm; IS-5x16 muffler/cylinder, 11.5 Nm; IS-M5x16 starter cover/crankcase, 5.5 Nm.
  • Remaining unqualified printed6 rows: IS-M5x25 spacer flange/cylinder (with washer), 5.5 Nm; IS-DG5x24 cylinder/crankcase, 9.5 Nm; M14x1.25 spark plug, 20.0 Nm; IS-M4x20 ignition module/cylinder (with washer), 4.5 Nm; and the repeated IS-M5x25 spacer-flange row, 5.5 Nm. The repetition is preserved rather than counted as a second physical joint.
  • Rows marked only for other machines are excluded, including split-boom couplings, bike-handle clamps, FS75 bearing housing and the 9.5 Nm fan-side/starter-side housing row whose footnotes omit FH75. The separate 1.1 Nm detent-spring row is marked FS80/85 and KM85, not FH75; its printed lbf.ft/Nm inconsistency is not transferred.
  • Torque values above retain the printed Nm column, not recalculated lbf.ft conversions. The powerhead table’s conflicting spark-plug/ignition component labels are separately documented. No shared number or torque establishes a retrofit.
  • Later 2004 reference, not proof of the original 1998 configuration, a serial changeover, current availability or physical interchange. Source-linked distinctions are not a complete stand-alone repair procedure; original combined and operator manuals remain unestablished.

TI dependency: TI 47/1998, p. 3 · TI 47/1998, p. 4 — TI47/1998 page3 tool/data references and page4 section6.2; separately dated 2004 tables below.

Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Complete section3.2 table, all model footnotes and refitting notes, PDF pages 3, 6, 7, 8

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FH 75

FH 75 reference: powerhead tools keep their separate applications

The 2004 powerhead list has 28 tools, two torque-wrench alternatives and two sleeves with no application printed.

No exact-model IPL link: Later FH75 reference with section-specific restrictions retained; original 1998 edition and configuration not established.

  • Powerhead printed28–29 lists: puller 5910 890 4400 for oil seals; jaws 0000 893 3706 with profile3.1+4 for oil seals; tester 1106 850 2905 for crankcase/carburetor leaks; vacuum pump 0000 850 3501 for crankcase leaks and tank vent; sealing plate 0000 850 8106 for exhaust port; flange 1128 850 4200 for leakage testing.
  • Starter-side oil-seal protection sleeve 4112 893 2400, starter-side installation sleeve 1115 893 4600 and clutch-side press sleeve 4112 893 2401 have different jobs. Setting gauge 4118 890 6401 sets ignition-module/flywheel air gap.
  • Q-T27x150 screwdriver 5910 890 2400 is for IS screws but may only unscrew DG/P screws. Torque wrench 5910 890 0301 covers 0.5–18 Nm; 5910 890 0311 covers 6–80 Nm. Alternatives 5910 890 0302 and 5910 890 0312 have visual/acoustic signalling. DG/P tightening requires a torque wrench; these ranges are tool capacities, not universal joint settings.
  • Assembly stand 5910 890 3100 is labeled for mounting FS/FR models; clamp 5910 890 8800 is for shaft-equipped tools on that assembly block. The powerhead introduction instead prints stand 5910 893 8800 and clamping plate 5910 893 3100. Preserve the differing numbers and descriptions rather than substituting them; components printed66 separately calls 5910 893 8800 a hook.
  • Assembly drift 1114 893 4700 installs the piston pin; wooden block 1108 893 4800 supports the piston; collar clamp 0000 893 2600 tensions piston rings; installing tool8 5910 890 2208 fits hookless piston snap rings. T27x125 bit 0812 542 2104 is for internal-star screws with electric/pneumatic drivers and torque-wrench tightening. Sleeves 5910 893 1701 and 5910 893 1702 have blank application cells; no task is invented for those blanks.
  • Press arbor 4119 893 7200 presses deep-groove ball bearings in/out; installing tool 5910 890 2202 installs the crankshaft; ZS set 5910 007 2220 separates crankcase halves. ZAT4 5910 850 4503 tests the ignition system; ZAT3 5910 850 4520 tests the series spark gap; puller 4133 893 0800 removes the flywheel. The two ignition testers are not interchangeable labels.
  • Later 2004 reference, not proof of the original 1998 configuration, a serial changeover, current availability or physical interchange. Source-linked distinctions are not a complete stand-alone repair procedure; original combined and operator manuals remain unestablished.

TI dependency: TI 47/1998, p. 3 · TI 47/1998, p. 4 — TI47/1998 page3 tool/data references and page4 section6.2; separately dated 2004 tables below.

Later manual evidence: Series 4137 Powerhead (2004-03), section Complete section7 tools1–28 and all four footnotes; introduction fixture-number comparison, PDF pages 3, 29, 30 · Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Introduction and section11 fixture/hook numbering comparison, PDF pages 3, 67

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FH 75

FH 75 reference: component tools retain task and tightening limits

The components manual lists 21 tools plus two alternatives; list membership alone does not assign every tool to every FH75 repair.

No exact-model IPL link: Later FH75 reference with section-specific restrictions retained; original 1998 edition and configuration not established.

  • Components 2004-06 printed66 lists locking strip 0000 893 5903 to block the crankshaft; puller 5910 890 4500 for carburetor limiter cap; torque wrenches 5910 890 0301 (0.5–18 Nm) and 5910 890 0311 (6–80 Nm), with optical/acoustic alternatives 5910 890 0302 and 5910 890 0312.
  • Socket DIN3124 SW13 5910 893 5608 is for the flywheel nut; socket DIN3124-S19x12.5L 5910 893 5613 is for the clutch. T27x125 socket 0812 542 2104 installs/removes spline-socket screws with electric/pneumatic drivers, but tightening uses a torque wrench.
  • Fuel hose 1110 141 8600 and nipple 0000 855 9200 are carburetor-leak-test tools. Drift 4180 893 4400 removes the clutch drum, while drift 1108 893 4700 removes and installs it. Hook 5910 890 2800 detaches clutch-shoe springs; hook 5910 893 8800 removes the pickup body or pulls the drive-tube plug.
  • Assembly stand 5910 890 3100 mounts the machine to a workbench; clamp 5910 890 8800 holds FS units by the drive tube with that stand. The introduction prints 5910 893 3100 for the stand instead. These differing printed fixture identities are retained; the FS wording is not rewritten as a new FH-specific fitment proof.
  • T27x150 T-handle screwdriver 5910 890 2400 may only release/remove DG/P screws; all DG/P tightening requires a torque wrench. Vacuum pump 0000 850 3501 tests crankcase leaks and tank vent; tester 1106 850 2905 tests crankcase/carburetor leaks.
  • Pliers DIN5254-A10 0816 610 1495 remove/install external circlips. Press arbor 4119 893 7200 installs plain or needle bearings in the bearing housing; this list does not override the separate FS75-only bearing-housing section. Service tool 4126 893 4900 installs the AV-sleeve rubber element. The same arbor number has a deep-groove-bearing application in the powerhead manual; application context is retained.
  • Later 2004 reference, not proof of the original 1998 configuration, a serial changeover, current availability or physical interchange. Source-linked distinctions are not a complete stand-alone repair procedure; original combined and operator manuals remain unestablished.

TI dependency: TI 47/1998, p. 3 · TI 47/1998, p. 4 — TI47/1998 page3 tool/data references and page4 section6.2; separately dated 2004 tables below.

Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Complete section11 tools1–21, all four footnotes and fixture introduction, PDF pages 3, 67 · Series 4137 Powerhead (2004-03), section Section7 press-arbor application comparison, PDF pages 30

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FH 75

FH 75 reference: service aids keep package and application differences

Oil-seal grease, two sealants, shaft lubricants and threadlockers remain separate source rows rather than inferred substitutes.

No exact-model IPL link: Later FH75 reference with section-specific restrictions retained; original 1998 edition and configuration not established.

  • Powerhead printed30 lists grease 0781 120 1111 as a 370 g tube for oil seals; components printed67 lists the same number as a 225 g tube. Retain the package discrepancy without inferring reformulation, supersession or equivalence to the original TI grease number.
  • Powerhead lists STIHL degreasant with no number for crankshaft stub and flywheel hub, and Dirko sealant 0783 830 2120 for engine pan/cylinder. Its printed sequence is1,2,4. Components instead lists Dirko HT rot 0783 830 2000, 90 g, for crankcase and outside of oil seals. The different sealants and applications are not merged.
  • Components special oil 0781 417 1315, 100 ml, is for rope-rotor bearing bore and rewind spring. Hedge-trimmer gear lubricant 0781 120 1109 is printed for ignition module and drive shaft in flexible liner; preserve that unusual ignition-module wording, not an invented electrical-safe grease claim. Brushcutter gear lubricant 0781 120 1117 is explicitly for the FS75 drive shaft in flexible liner, not a general FH75 substitute.
  • Components lists non-chlorinated/non-halogenated solvent degreasant for sealing faces; OH723 press fluid 0781 957 9000, 100 ml, for drive-tube handle hose and fan-housing AV rubber; graphite grease for the pawl peg. The unnumbered solvent and graphite rows stay unnumbered.
  • Threadlockers are medium-strength Loctite242, 0786 111 1101; high-strength Loctite270, 0786 111 1109; and high-strength Loctite649, 0786 110 0126. Their application cells are blank in this table. Do not prescribe them on every fastener or substitute one for another; joint-specific instructions remain necessary.
  • Later 2004 reference, not proof of the original 1998 configuration, a serial changeover, current availability or physical interchange. Source-linked distinctions are not a complete stand-alone repair procedure; original combined and operator manuals remain unestablished.

TI dependency: TI 47/1998, p. 3 · TI 47/1998, p. 4 — TI47/1998 page3 tool/data references and page4 section6.2; separately dated 2004 tables below.

Later manual evidence: Series 4137 Powerhead (2004-03), section Complete section8 accessories, including missing item3 and unnumbered degreasant, PDF pages 31 · Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Complete section12 eleven servicing-aid rows and blank application cells, PDF pages 68

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FH 75

FH 75 reference: crankcase pressure and vacuum tests have different criteria

The powerhead manual requires both tests; it also prints a sealing-plate number that conflicts with its tool table.

No exact-model IPL link: Later FH75 reference with section-specific restrictions retained; original 1998 edition and configuration not established.

  • Powerhead 2004-03 sections5.4.1–5.4.3, printed12–13, remove the carburetor, position the gasket before the intermediate flange, put the piston at top dead center and check the spark plug is securely seated. Test flange 1128 850 4200 is secured with both nuts. The lower muffler/crankcase screw is removed and the two upper screws loosened halfway before fitting the exhaust sealing plate across the full width between those screws and lightly retightening them.
  • The procedure prints sealing plate 0000 855 8106, whereas the same manual section7 tool table prints 0000 850 8106. Both source readings are retained; the conflict is not resolved by silently changing a digit or assuming equivalence.
  • With tester 1106 850 2905 attached to the flange and its vent screw closed, the positive-pressure test is approximately 50 kPa (0.5 bar) and must remain constant for at least 20 seconds. If pressure falls, the source locates leakage by oil and bubbles before replacing the defective part; it then calls for the negative-pressure test.
  • The vacuum test uses the same sealed preparation and pump 0000 850 3501. The initial indicated negative pressure is 50 kPa (0.5 bar). The source accepts a constant vacuum or its printed condition that pressure does not rise to more than 30 kPa (0.3 bar) within 20 seconds; a further decrease in vacuum calls for oil-seal replacement. This is retained as the manual’s vacuum-gauge wording, not silently recast as absolute pressure or a positive-pressure criterion.
  • The explanation is that an oil-seal lip may lift off the crankshaft on the intake stroke when internal counterpressure is absent. A successful positive-pressure test alone therefore does not establish a successful vacuum test.
  • Both endings release the vent, remove hose/flange and sealing plate, restore the muffler fasteners and carburetor, then reassemble. The pressure-test ending says outer screw; the vacuum ending says lower crankcase screw. Their different wording is retained, and the components manual remains the referenced removal/refitting source.
  • Later 2004 reference, not proof of the original 1998 configuration, a serial changeover or physical interchange. These source-linked distinctions are not a complete stand-alone repair procedure or evidence of a hardware test. Original combined and operator manuals remain unestablished.

TI dependency: TI 47/1998, p. 3 · TI 47/1998, p. 4 — TI47/1998 page3 tool/data references and page4 section6.2; separately dated 2004 diagnostic sections below.

Later manual evidence: Series 4137 Powerhead (2004-03), section Complete sections5.4.1–5.4.3 and section7 sealing-plate number comparison, PDF pages 13, 14, 29

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FH 75

FH 75 reference: spark testing does not verify ignition timing

ZAT4 and ZAT3 connections, molded ignition lead, older plastic disks and torque conflicts remain explicit.

No exact-model IPL link: Later FH75 reference with section-specific restrictions retained; original 1998 edition and configuration not established.

  • Powerhead printed20–23 sections6.1–6.2.3 distinguish the high-voltage lead, short-circuit connector and ground wire if installed. The lead is integrally molded into the ignition module. Units with two short-circuit wires require both to be disconnected in removal; the ground wire and short-circuit tab, if present, attach at the upper mounting screw on installation.
  • Older models may have plastic disks between cylinder and module at both mounting screws; the manual says refit them if necessary. Gauge 4118 890 6401 goes between module arms and flywheel magnetic poles. These configuration details do not establish a serial cutoff or a retrofit. The procedure refers to section3.3 for tightening, whose spark-plug/ignition-module torque labels conflict with the components table; the companion torque-conflict note remains applicable.
  • For the boot, the source oils about 20 mm of the lead end during refitting, places the leg-spring hook centrally about 5 mm from the end and seats the spring inside the boot. A detachable spark-plug adapter nut, if present, must be firmly fitted. The module workshop check follows confirmation that wiring and stop switch are sound; accurate module testing needs special equipment.
  • Ignition timing is not adjustable in this manual. Section6.2.3 explicitly calls its test a spark test, not an ignition-timing test. Both tester procedures specify a new spark plug firmly installed in the cylinder and cranking with the rewind starter at a minimum of 1,000 rpm.
  • ZAT4 5910 850 4503 connects the removed plug boot to its input and its output onto the installed plug; observe its spark window. An unclear result proceeds to ZAT3 or the troubleshooting chart. ZAT3 5910 850 4520 is required for the series spark gap: connect the boot to terminal2, its ground terminal1 to the spark plug and set approximately 2 mm gap.
  • The printed ZAT3 instructions call the adjusting knob3, while the adjacent labeled diagram and warning use3 for the spark window and4 for the handle. Preserve those source-specific labels, not an invented corrected control number. The warning requires holding only the handle or positioning the tester safely, keeping body parts at least 1 cm from spark window, high-voltage connection, ground connection and ground terminal because of electric-shock risk.
  • No spark leads to harness/start-stop or slide-control inspection, leg-spring examination and the section6.4 chart, not automatic replacement without those checks. These are historical source observations; no engine was cranked or energized for this review.
  • Later 2004 reference, not proof of the original 1998 configuration, a serial changeover or physical interchange. These source-linked distinctions are not a complete stand-alone repair procedure or evidence of a hardware test. Original combined and operator manuals remain unestablished.

TI dependency: TI 47/1998, p. 3 · TI 47/1998, p. 4 — TI47/1998 page3 tool/data references and page4 section6.2; separately dated 2004 diagnostic sections below.

Later manual evidence: Series 4137 Powerhead (2004-03), section Complete sections6.1–6.2.3, stopping at the section6.3 flywheel boundary, PDF pages 21, 22, 23, 24

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FH 75

FH 75 reference: ignition troubleshooting keeps its branch order

The three-page chart distinguishes electrical checks from fuel, leakage and flywheel-position checks after a spark is obtained.

No exact-model IPL link: Later FH75 reference with section-specific restrictions retained; original 1998 edition and configuration not established.

  • Powerhead section 6.4 printed25–27 begins with control/stop switch in I, then plug condition, electrode gap and shorted contacts; boot seating, central spring hook and damage follow. The tester box names ZAT3 or ZAT4 and calls ZAT3 the main spark gap with a reference to TI32.94. That terminology differs from section 6.2.3’s series spark gap; the companion reference notes now preserve the TI’s distinct 6 mm main-gap and 2 mm auxiliary-gap arrangements without merging them.
  • On the first no-powerful-spark branch, check/reset module air gap, check flywheel pole shoes for blue discoloration and replace the flywheel if indicated, then disconnect the short-circuit wire before the ignition-lead checks. The original image prints resistance from spark-plug boot to ground as 1.5–12 kΩ and ignition-lead resistance as less than 10 Ω; extracted text renders the ohm symbols as W. Values retain their distinct measurement points and units.
  • The next chart box checks control/stop-switch operation, chafed short-circuit wire and contact-spring gap. Its remedy says new ignition lead and/or contact springs, then reconnect the short-circuit wire. The second powerful-spark decision installs a new ignition module only on its no branch.
  • Both powerful-spark yes branches and the module-replacement path reach Engine runs? If yes, check RUN/STOP function. If no, look for fuel-system/carburetor faults, engine leakage and flywheel position on the crankshaft. A visible spark is not proof of correct timing, correct flywheel position, a running engine or a successful stop-function test.
  • The chart’s possible ignition-lead replacement wording is retained alongside section 6.2.2’s integrally molded lead; it does not establish a separately replaceable lead for every module. TI 32/1994 is now reconciled in the companion notes; its different connection modes and source labels do not resolve the molded-lead wording conflict.
  • Later 2004 reference, not proof of the original 1998 configuration, a serial changeover or physical interchange. These source-linked distinctions are not a complete stand-alone repair procedure or evidence of a hardware test. Original combined and operator manuals remain unestablished.

TI dependency: TI 47/1998, p. 3 · TI 47/1998, p. 4 — TI47/1998 page3 tool/data references and page4 section6.2; separately dated 2004 diagnostic sections below.

Referenced bulletin evidence: TI 32/1994, p. 1 · TI 32/1994, p. 2 — Complete sections1–1.3 and section2 summary; diagram labels and June15,1994 imprint.

Later manual evidence: Series 4137 Powerhead (2004-03), section Full section6.4 flowchart with both yes/no branches and section6.2 molded-lead comparison, PDF pages 23, 26, 27, 28

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FH 75

FH 75 reference: carburetor pressure must hold, without an invented duration

The components procedure tests at about 0.8 bar and distinguishes inlet-needle faults from a damaged metering diaphragm.

No exact-model IPL link: Later FH75 reference with section-specific restrictions retained; original 1998 edition and configuration not established.

  • Components 2004-06 section9.2.1, printed43–44, directs suspected fuel-system faults to section4.3 and also checks/cleans or replaces the tank vent under9.5. Remove the shroud and disconnect the fuel hose from the carburetor elbow for the test.
  • Fuel hose 1110 141 8600 and nipple 0000 855 9200 connect tester 1106 850 2905 to the carburetor elbow. With the bulb vent screw closed, the printed test pressure is approximately 0.8 bar. Constant pressure indicates an airtight carburetor; this section does not specify a hold time, so the powerhead’s 20-second criterion is not imported.
  • If pressure drops, the source identifies two fault groups: inlet needle not sealing (foreign matter at the valve seat, a damaged needle sealing cone or a sticking inlet-control lever), or a damaged metering diaphragm. These call for carburetor service under9.3; the test alone does not distinguish those causes.
  • After the test, open the vent screw, remove the test hose, reconnect the normal fuel hose at the carburetor elbow and refit the shroud. The adjacent9.2.2 removal procedure is a separate section, not an additional leak-test prerequisite.
  • This is distinct from the tank-vent test at about0.8 bar, which should gradually lose pressure. A shared pressure value does not make the two pass criteria interchangeable or establish a particular carburetor suffix.
  • Later 2004 reference, not proof of the original 1998 configuration, a serial changeover or physical interchange. These source-linked distinctions are not a complete stand-alone repair procedure or evidence of a hardware test. Original combined and operator manuals remain unestablished.

TI dependency: TI 47/1998, p. 3 · TI 47/1998, p. 4 — TI47/1998 page3 tool/data references and page4 section6.2; separately dated 2004 diagnostic sections below.

Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Full section9.2.1 with the9.2.2 boundary, PDF pages 44, 45

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FH 75

FH 75 reference: tank-vent pressure and vacuum must dissipate

Unlike carburetor and crankcase sealing checks, a constant tank-vent reading is the failure condition.

No exact-model IPL link: Later FH75 reference with section-specific restrictions retained; original 1998 edition and configuration not established.

  • Components section9.5, printed54–55, explains equalization in both directions through the filler-cap holes, sintered filter and valve. Both pressure and vacuum testing use the tank’s fuel hoses; the two illustrated flow directions are not a single one-way sealing requirement.
  • After shroud removal, disconnect hose1 from the fuel-pump-flange elbow and hose2 from the carburetor elbow. Plug hose1 with a suitable plug, and connect tester 1106 850 2905 to hose2. The connection parts are hose 1110 141 8600 and nipple 0000 855 9200.
  • With the bulb vent closed, pump to about0.8 bar. This pressure must drop gradually. A constant reading means the vent is faulty or needs cleaning; the pressure tester is then disconnected.
  • Vacuum pump 0000 850 3501 is connected to the fuel hose, its vent closed and the pump operated to0.4 bar vacuum. This vacuum must gradually disappear. A constant vacuum means the vent is faulty and must be replaced. The vacuum verdict is not silently rewritten as the pressure-side clean-or-replace wording.
  • Section9.5 supplies no numerical decay rate, deadline or intermediate threshold. Do not import the crankcase20-second or0.3-bar criterion. Tank-vent0.4-bar vacuum also remains distinct from the powerhead0.5-bar initial vacuum and from the carburetor hold-pressure check.
  • Later 2004 reference, not proof of the original 1998 configuration, a serial changeover or physical interchange. These source-linked distinctions are not a complete stand-alone repair procedure or evidence of a hardware test. Original combined and operator manuals remain unestablished.

TI dependency: TI 47/1998, p. 3 · TI 47/1998, p. 4 — TI47/1998 page3 tool/data references and page4 section6.2; separately dated 2004 diagnostic sections below.

Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Complete section9.5 including both cross-section diagrams and continuation before9.6, PDF pages 55, 56

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FH 75

FH 75 reference: L/LA and LD adjustments are different carburetor variants

The two-screw version has no H screw; LD seats counterclockwise and uses a different standard setting.

No exact-model IPL link: Later FH75 reference with section-specific restrictions retained; original 1998 edition and configuration not established.

  • Components 2004-06 sections9.4.1–9.4.2, printed49–50, describe variants rather than assigning a carburetor suffix or serial range. The two-adjusting-screw carburetor has no high-speed H screw. Its L screw seats carefully clockwise, then opens one full turn; the cutting tool/attachment must be properly mounted, air filter checked, adjustable throttle cable set and engine warmed before idle adjustment.
  • For that L/LA variant, an engine stopping at idle is adjusted with LA clockwise until the tool begins to run, then backed off half a turn. If the tool runs at idle, turn LA counterclockwise until it stops, then another half turn in the same direction. Those historical instructions do not authorize operating a connected machine here.
  • The LD variant’s printed standard setting carefully seats LD counterclockwise, then opens it two full turns. Do not silently replace this with the L screw’s clockwise seating and one-turn opening. Its preparation includes correctly mounted cutting tool/attachment and checking air filter and spark-arresting screen.
  • For LD after standard setting and warm-up: if the engine stops at idle, turn LD slowly clockwise until smooth, with the cutting tool not running. If the tool runs at idle, turn LD counterclockwise until it stops, then about one further turn counterclockwise. For erratic idle/poor acceleration, the source says slowly counterclockwise no more than half a turn.
  • The source describes factory optimum mixture and reduced idle/part-load emissions for the L/LA version. These claims do not establish that the original TI47 carburetor, any replacement suffix or every FH75 has either adjustment layout.
  • Later 2004 reference, not proof of the original 1998 configuration, a serial changeover or physical interchange. These source-linked distinctions are not a complete stand-alone repair procedure or evidence of a hardware test. Original combined and operator manuals remain unestablished.

TI dependency: TI 47/1998, p. 3 · TI 47/1998, p. 4 — TI47/1998 page3 tool/data references and page4 section6.2; separately dated 2004 diagnostic sections below.

Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Full sections9.4.1–9.4.2, excluding adjacent9.3.6 pump-diaphragm repair, PDF pages 50, 51

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FH 75

FH 75 reference: user adjustment retains the high-speed limiter cap

The later manual separates capped user corrections from uncapped service settings.

No exact-model IPL link: Later FH75 reference with section-specific restrictions retained; original 1998 edition and configuration not established.

  • Components section9.4.3, printed51–52, explicitly forbids removing the H limiter cap for the standard user setting. It allows only fine H corrections. Check the air filter, spark-arresting screen and throttle cable if fitted, and correctly mount the tool/attachment before adjustment.
  • For this capped variant, H goes counterclockwise to its stop, no more than 3/4 turn; L seats carefully clockwise and opens one full turn counterclockwise. Warm the engine and set LA so the cutting tool does not run. The 3/4-turn cap range is not the uncapped H basic-setting opening.
  • After standard setting and warm-up, the altitude correction uses wide-open throttle; in mountains, H turns clockwise (leaner), never beyond its stop, until no noticeable further engine-speed increase. The text warns even small H corrections matter and that the standard setting may already yield the highest rpm. Its mention of sea-level correction does not supply a separate sea-level numeric setting.
  • Idle adjustment begins with L one full turn open and a warm engine. If the engine stops at idle, turn LA slowly clockwise until smooth. For too-lean idle/poor acceleration, turn L counterclockwise about a quarter turn; for too-rich erratic idle, turn L clockwise about a quarter turn. LA usually needs readjusting after each L correction.
  • No high-speed maximum rpm or exact carburetor suffix is assigned by this section. Do not substitute the service-adjustment sequence or infer that limiter removal is a normal user adjustment.
  • Later 2004 reference, not proof of the original 1998 configuration, a serial changeover or physical interchange. These source-linked distinctions are not a complete stand-alone repair procedure or evidence of a hardware test. Original combined and operator manuals remain unestablished.

TI dependency: TI 47/1998, p. 3 · TI 47/1998, p. 4 — TI47/1998 page3 tool/data references and page4 section6.2; separately dated 2004 diagnostic sections below.

Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Complete section9.4.3 including rich-idle continuation before9.4.4, PDF pages 52, 53

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FH 75

FH 75 reference: service limiter settings preserve cap geometry and abort threshold

Uncapped basic settings, tachometer steps and new-cap installation differ from user adjustment.

No exact-model IPL link: Later FH75 reference with section-specific restrictions retained; original 1998 edition and configuration not established.

  • Components section9.4.4, printed52–53, removes the H limiter cap only for high-speed-screw replacement, carburetor cleaning or adjustment from scratch, and requires basic setting afterward. Short caps use puller 5910 890 4501 open side toward the operator; if stuck, turn the puller toward the body. Long caps use suitable pliers.
  • With H and L carefully seated clockwise, basic opening is H 1 1/2 turns counterclockwise and L one full turn counterclockwise. These are uncapped basic settings, not permission to force the installed cap past its stop.
  • Using a tachometer, the specified sequence has ±200 rpm tolerance: LA to 3,300 rpm; adjust L either way for maximum speed; if this exceeds 3,700 rpm, abort and restart at step1. Then LA again to 3,300 rpm and L to 2,800 rpm. The 3,700-rpm value is a restart threshold in this sequence, not a rated maximum operating speed.
  • Always install new limiter caps; removed caps may be damaged and must not be reused. A short cap lines up against the rich stop and presses only to the second noticeable detent, not against the carburetor body, to retain the 3/4-turn H range without damage.
  • A long cap also lines up against the rich stop for only 3/4 turn clockwise, but it is pushed until it butts against the carburetor body. These opposing seating-depth instructions are configuration-specific, not a contradiction to erase. Both installations finish with user adjustment under9.4.3.
  • The text and diagrams show 270°/3/4-turn limits. Neither this section nor the shared model footer maps short/long caps or this service sequence to a specific FH75 carburetor suffix, serial changeover or original 1998 configuration.
  • Later 2004 reference, not proof of the original 1998 configuration, a serial changeover or physical interchange. These source-linked distinctions are not a complete stand-alone repair procedure or evidence of a hardware test. Original combined and operator manuals remain unestablished.

TI dependency: TI 47/1998, p. 3 · TI 47/1998, p. 4 — TI47/1998 page3 tool/data references and page4 section6.2; separately dated 2004 diagnostic sections below.

Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Full section9.4.4, basic-setting sequence and both270-degree cap diagrams, PDF pages 53, 54

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FH 75

FH 75 reference: ZAT3 main gap means 6 mm in TI32/1994

The referenced 1994 tester instructions remove the spark plug and ground the clip to the engine; this is not the later 2 mm series-gap arrangement.

No exact-model IPL link: Later FH75 reference with section-specific restrictions retained; original 1998 edition and configuration not established.

  • The 2004-03 powerhead section 6.4 chart cites TI 32/1994 for ZAT3 as a main spark gap. That TI distinguishes a main gap between ignition module or coil and ground for testing without the engine running, from an auxiliary gap between module or coil and spark plug while the engine runs. This is a referenced generic tester instruction, not a new FH 75 configuration claim.
  • TI 32 sections 1 and 1.1 connect the engine spark-plug terminal 1 to ZAT high-tension terminal 2 and the connecting lead 4 plug cap 3 to tester ground terminal 5. For the main-gap arrangement the source says unscrew the spark plug, attach alligator clip 6 to a cylinder fin or another suitable engine ground, use knob 7 for a 6 mm gap and give the starter rope a quick pull; inspect window 8.
  • The printed main-gap verdict is no spark: ignition system faulty; spark: ignition system in order. Preserve that historical wording without treating a spark as proof of correct timing or complete engine health. The later powerhead chart separately checks fuel supply, engine leakage and flywheel position if the engine does not run.
  • This 6 mm, plug-removed, engine-ground arrangement is not silently substituted for the 2004 section 6.2.3 procedure with a new plug firmly installed and approximately 2 mm gap. The later chart’s main-gap wording and the later procedure’s series-gap wording remain distinct; the cross-reference does not authorize combining their settings or correcting either source.
  • TI 32 section 1.3 prohibits use near flammable fuel or gas and with wet hands. It permits holding only knurled handle 9 and requires at least 1 cm clearance from window 8, high-tension terminal 2, ground terminal 5 and alligator clip 6. Children or anyone not properly instructed must not operate the tester; never turn knob 7 beyond its end position because electrodes can be damaged.
  • Bright conditions can obscure the spark; the TI recommends blackening the window on one side or using a dark background. Those visibility precautions are not an electrical pass criterion. The 1994 figure uses knob 7/window 8/handle 9, not the later manual’s conflicting 3/4 labels.
  • Section 2 identifies ZAT3 as 5910 850 4520, original-version cell shown as dashes, MOQ 1 and blank key/remark cells; it is not a supersession from a named earlier tester. The June 15, 1994 imprint and prior Workshop Service TI 06/1993 line are chronology, not additional FH 75 fitment. The warranty-diagnosis instruction is historical, not a claim of current warranty policy. Offline reference review only; no engine or tester was operated.

TI dependency: TI 47/1998, p. 3 · TI 47/1998, p. 4 — TI47/1998 page3 service/data references and page4 section6.2; bounded reference reconciliation.

Referenced bulletin evidence: TI 32/1994, p. 1 · TI 32/1994, p. 2 — Complete sections1–1.3 and section2 summary; diagram labels and June15,1994 imprint.

Later manual evidence: Series 4137 Powerhead (2004-03), section Full section6.4 flowchart with both yes/no branches and section6.2 molded-lead comparison, PDF pages 23, 26, 27, 28

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FH 75

FH 75 reference: ZAT3 auxiliary gap has running and non-starting verdicts

TI32/1994 uses a 2 mm gap connected to the spark plug and warns that the engine can start; it does not replace the missing FH75 operator instructions.

No exact-model IPL link: Later FH75 reference with section-specific restrictions retained; original 1998 edition and configuration not established.

  • TI 32/1994 section 1.2 retains the section 1 high-tension and connecting-lead connections, but attaches alligator clip 6 to the spark plug rather than to a cylinder fin. Knob 7 sets a 2 mm gap. Hold handle 9 or position the tester securely, then crank only as described in the applicable owner’s manual.
  • When the engine starts, the printed auxiliary-gap verdict is a steady, uniform spark: ignition system in order; intermittent spark: ignition system faulty. If the engine does not start, no spark indicates an ignition-system fault; a spark leads the source to look elsewhere, for example fuel supply. These running and non-starting branches are not one undifferentiated spark pass.
  • The auxiliary-gap warning states that the engine will start when the starter is actuated and requires general safety precautions and the power tool owner’s manual. The retained FH 75 operator edition has not been identified; this tester TI is not a substitute for those start-up instructions or bench readiness.
  • All section 1.3 precautions apply to this arrangement: no nearby flammables or wet hands; only the knurled handle 9 may be held; keep at least 1 cm from window 8, high-tension terminal 2, ground terminal 5 and clip 6; no children or uninstructed operation; no knob travel beyond its end; account for poor spark visibility in bright conditions.
  • The 2 mm setting agrees numerically with the later 2004 test, but the 1994 running-engine auxiliary mode and later cranking spark test are not declared identical. A spark still does not verify ignition timing. The companion main-gap note preserves the distinct 6 mm, removed-plug arrangement and tester 5910 850 4520 identity. No hardware execution or original 1998 configuration is established.

TI dependency: TI 47/1998, p. 3 · TI 47/1998, p. 4 — TI47/1998 page3 service/data references and page4 section6.2; bounded reference reconciliation.

Referenced bulletin evidence: TI 32/1994, p. 1 · TI 32/1994, p. 2 — Complete sections1–1.3 and section2 summary; diagram labels and June15,1994 imprint.

Later manual evidence: Series 4137 Powerhead (2004-03), section Full section6.4 flowchart with both yes/no branches and section6.2 molded-lead comparison, PDF pages 23, 26, 27, 28

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FH 75

FH 75: original service and operator editions remain source gaps

The available 2004/2007 split service manuals are later references, not the combined manual or operator instructions named by TI47/1998.

No exact-model IPL link: Later FH75 reference with section-specific restrictions retained; original 1998 edition and configuration not established.

  • A bounded read-only reconciliation checked the retained document metadata, 766 resource-PDF filenames and 41 owner-collection PDF paths. Both filename inventories and the database hash match the accepted inventory. This is not a whole-archive body search or proof that an original manual does not exist elsewhere.
  • The three exact FH 75 document links identify the later Series 4137 Powerhead 2004-03, Components 4137 FC/FH/FS/HL/KM/KW 2004-06 and CombiTools 2007-02 manuals. Their verified covers and introductions establish later FH 75 scope, not identity with the combined FS 75/80/85,FC 75,HL 75 manual referenced in TI 47 section 6.2.
  • No exact original combined manual, original tool/setting/test reference edition or applicable FH 75 operator manual was identified in that bounded inventory. There was no operator-title metadata hit or newly matching filename lead; anonymous owner-file identities already reviewed belong to chainsaw or later HT service manuals. Later split service manuals cannot supply the missing operator start-up precautions.
  • The original parent repair-times table also remains unidentified. The explicit TI41/1996 transfer and separately dated 2012 FH 75/HL 75/HL 75K column remain admitted with their original units, changed values and blank-versus-zero distinctions; later data are not substituted for the missing original table.
  • The retained TI assertions and enumerated later-reference sections are dispositioned with these source gaps. This does not close or import whole service manuals: eligible full-manual inventory and imports remain phase 2 work after all retained TIs. Printed series 4230 versus later 4137, carburetor suffixes, torque labels, fixture/tool numbers, ZAT3 labels and thrust-plate orientation conflicts remain explicit.
  • Missing exact editions limit original 1998 configuration and complete repair/start-up guidance. No serial cutoff, universal physical interchange, resolved source contradiction, current warranty eligibility, hardware proof or publication is claimed.

TI dependency: TI 47/1998, p. 3 · TI 47/1998, p. 4 — TI47/1998 page3 service/data references and page4 section6.2; bounded reference reconciliation.

Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Cover and printed 2 introduction: explicit FH 75 scope and 4137 powerhead reference, PDF pages 1, 3 · Series 4137 Powerhead (2004-03), section Verified cover/scope reused; printed 4 complete engine and ignition specification table, PDF pages 1, 3, 5 · CombiTools (2007-02), section Cover, printed 2 scope andprinted 4 complete gearbox assignment table and legend, PDF pages 1, 3, 5

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Full text

Page 1 of 4

TI 47/1998 page 1
Text of page 1 — search, copy, screen readers
Technical Information

                                                                                           47.98

New FH 75 Power Scythe - Series 4230

The new FH 75 power scythe extends the product      The angle of the cutter bar can be set to nine
line in the area of land maintenance.               different positions between 0 and 90 degrees.

The FH 75 is designed for cutting applications in   With the exception of the shorter cutter bar
busy areas (e.g. traffic islands, next to roads,    (250mm/10" instead of 550mm/22"), the FH 75
parking lots, parks, playgrounds).                  power scythe shares most components with the

                                                    HL 75 hedge trimmer.
Typical applications are cutting scrub, thicket,
wild growth and grass.

Page 2 of 4

TI 47/1998 page 2
Text of page 2 — search, copy, screen readers
47.98 - 2

The FH 75 is operated at ground level and has a long reach. It is held and operated in exactly the same way
as a brushcutter. The cutter bar is swung from side to side in an arc close to the ground.

Contents

1.   Technical Description
2.   Technical Data
3.   Cutting Blades
4.   Special Accessories for Users
5.   Service Accessories
6.   Repairs

1. Technical Description

The engine, shaft, control handle, loop handle as well as the angle drive and the construction of the blade

drive gear are exactly the same as those of the HL 75 (0°...90° version). Differences are described below.

Blade drive gear

• As on HL 75 hedge trimmer but with a guard                                                            2
   plate (1) screwed to the gearbox cover to
   protect the underside of the housing.

Cutting blades
• As on HL 75 hedge trimmer, but with nose
   guard (2) which is designed to help reduce the
   risk of damaging the cutting blades.

                                                                                                              225TI001 KN
2. Specifications                                                                1

Specifications are generally the same as those of

the HL 75 hedge trimmer. Differences are shown
below.

Page 3 of 4

TI 47/1998 page 3
Text of page 3 — search, copy, screen readers
47.98 - 3

2.1   Dimensions/weight

2.1.1 Overall length

With cutter bar at 90°:          approx. 178cm (70 in)
With straight cutter bar (0°):   approx. 215cm (84.6 in)

2.1.2 Weight

Dry, with blade guard:           6.5 kg (14.3 lb)

3.    Cutting Blades

Bidirectional, blade sharpening angle 45°

Cutting length:                250 mm (10 in)
Blade length:                  300 mm (12 in)

4.    Special Accessories for Users

Part Name                        Part No.            Application

Flat sharpening file             0814 212 3310       Sharpening cutting blades
Spray cleaner                    0782 420 1002       Cleaning the cutting blades
5.    Service Accessories

5.1   Special servicing tools

The same special servicing tools are used as for models HL 75, FS 75, 80, 85 and HS 75, 80, 85.

5.2   Servicing aids

Part Name                        Part No.            Application

Carb parts kit               4227 0071060            ZAMA C1Q-S28C, C1Q-S41
Lube grease (370g/13oz tube) 0781 120 1111           Oil seals

6.    Repairs

If the unit is started up in the course of repairs or maintenance work it is essential to observe all
local safety regulations and the safety precautions outlined in the owner’s manual.

Setting and testing data as well as other information are exactly the same as for model HL 75 hedge
trimmers and FS 75, 80 and 85 brushcutters.

6.1   Tightening torques

Fastener                         Thread                                            Torque
                                 size                for component                 Nm (lbf.ft)
Spline screw                     IS-M4x16            Guard plate/gearbox cover     3.5 (2.6)

Page 4 of 4

TI 47/1998 page 4
Text of page 4 — search, copy, screen readers
47.98 - 4

6.2   Service note

Refer to the FS 75, 80, 85, FC 75, HL 75 service
manual for servicing and repair procedures on the
FH 75.

6.3   Repair times

The repair times for the FH 75 are exactly the
same as those listed for the HL 75 in TI 41.96
and the STIHL repair times table.

 1998 Andreas Stihl AG & Co.                           Technical Documentation
  Waiblingen                                            D1/MTK-sc                  6459

Most of these PDFs embed fonts with a shifted character map, so the text above was recovered rather than copied — read it as a faithful but imperfect transcription, and treat the page image above each block as the authority where the two disagree — the figures exist only there, because they are vector drawings that text extraction cannot keep.

Report a transcription error →
