Technical Information · issue 48 of 1998
088: Carburetor HT-12B
Model 088 Chainsaws - Series 1124
Historical fitment & changes
Source-reviewed model notes. An exact-model IPL link is unavailable where stated; no similar model is substituted. Availability statements belong to the bulletin’s date.
Service note · 088
088 HT-12B: unchanged carburetor number, revised L basic setting
Both screws open 1 turn from lightly seated; the earlier HT-12A L setting was 7/8.
No exact-model IPL link: The retained 088 IPL identifies HT-12E / 1124 120 0609, not HT-12B / 1124 120 0650. HT-12A also used 1124 120 0650. Number equality does not identify the suffix or justify applying these settings to HT-12A, HT-12E, 084 or MS 880.
- The heading identifies Model 088, Series 1124 and HT-12B. Carburetor 1124 120 0650 was modified to simplify service adjustments and limiter-cap installation, but the part number remains unchanged. The earlier TI40/1997 identifies HT-12A under that same number; neither number equality nor the later HT-12E IPL establishes identical versions.
- Section 1 is adjustment after repair and servicing. First check the air filter and spark-arresting screen, cleaning or replacing either as necessary, and check chain tension. These preparations are not replaced by the screw settings.
- Section 1.2 explicitly gives the basic setting WITHOUT limiter caps. Start with the screws LIGHTLY against their seats. Open L 1 full turn (previously 7/8) and H 1 full turn (as before). Do not combine this base setting with the later L quarter-turn into an invented single preset.
- For construction and function, TI48 explicitly refers to TI40/1997. Its already-admitted cap retention, single-use removal and package/grommet context remain separate historical evidence. TI48 does not print new screw, cap or grommet order numbers; the earlier package is not a newly verified HT-12B bill of materials.
- TI48/1998 documents differences over the original version, not a complete overhaul or operator manual. Historical source reference only; no numeric serial cutoff, current stock claim or hardware verification.
Source: TI 48/1998, p. 1 · TI 48/1998, p. 2 — Heading, introduction and complete sections1.1–1.2; unchanged-number statement on page2.
Referenced bulletin evidence: TI 40/1997, p. 1 · TI 40/1997, p. 2 · TI 40/1997, p. 3 · TI 40/1997, p. 5 — Previously admitted TI40/1997 context; exact HT-12A comparison only.
Part numbers (1)
- 1124 120 0650 — HT-12B carburetor; unchanged assembly numberVersion-specific service reference · 088 HT-12B described by TI48/1998; not identified by number alone
Service note · 088
088 HT-12B: L cap slot horizontal, H cap slot vertical
Fit new caps with each stop between the marks, then push flush with the stop.
No exact-model IPL link: The retained 088 IPL identifies HT-12E / 1124 120 0609, not HT-12B / 1124 120 0650. HT-12A also used 1124 120 0650. Number equality does not identify the suffix or justify applying these settings to HT-12A, HT-12E, 084 or MS 880.
- Section 1.3 requires NEW limiter caps. For the low-speed screw L, the slot is HORIZONTAL and the stop must lie BETWEEN THE MARKS. For high-speed screw H, the slot is VERTICAL and the stop must lie BETWEEN THE MARKS. Push the caps onto the adjusting screws until flush with the stop.
- Drawing 171TI017 KN labels H on the left and L on the right in this view. The arrows and paired marks show the stop positions; the two slot orientations must not be transposed. No cap cutting, reuse, tightening torque or alternate clock-face orientation is supplied.
- The TI states that the caps and adjusting screws at this point are in exactly the standard-setting position described in the owner manual chapter Carburetor Adjustment. This is the TI's stated equivalence, not proof that a separately identified owner-manual edition was reviewed.
- TI40/1997 described HT-12A cap installation as H against the rich stop and L against the lean stop. Preserve that earlier wording alongside the explicit HT-12B slot-and-mark directions; do not silently turn the two descriptions into a universal orientation rule.
- TI48/1998 documents differences over the original version, not a complete overhaul or operator manual. Historical source reference only; no numeric serial cutoff, current stock claim or hardware verification.
Source: TI 48/1998, p. 2 — Complete section1.3 and drawing171TI017 KN.
Referenced bulletin evidence: TI 40/1997, p. 2 · TI 40/1997, p. 3 — Previously admitted TI40/1997 context; exact HT-12A comparison only.
Part numbers (1)
- 1124 120 0650 — HT-12B carburetor; unchanged assembly numberVersion-specific service reference · 088 HT-12B described by TI48/1998; not identified by number alone
Service note · 088
088 HT-12B: LA 2,700 rpm precedes the L quarter-turn
A tachometer check is required; the earlier HT-12A sequence and 2,500 rpm remain distinct.
No exact-model IPL link: The retained 088 IPL identifies HT-12E / 1124 120 0609, not HT-12B / 1124 120 0650. HT-12A also used 1124 120 0650. Number equality does not identify the suffix or justify applying these settings to HT-12A, HT-12E, 084 or MS 880.
- After fitting the new caps, section 1.4 first says to use idle-speed screw LA to set engine speed to 2,700 rpm. It then says to open low-speed screw L ONE QUARTER TURN COUNTERCLOCKWISE FROM THE CAP'S STOP. This adjustment MUST be checked with a tachometer.
- Drawing 171TI018 KN separately labels LA and L and illustrates the L 1/4-turn movement. LA is not L; the stated idle target is not a full-throttle maximum speed. Preserve the printed order and the stop-relative quarter-turn instead of inventing an additional final target or reversing the steps.
- The earlier HT-12A TI40/1997 instead puts the L quarter-turn before setting LA to 2,500 rpm, then calls for smooth acceleration and idle checks. The 2,700 versus 2,500 values and different printed order are version-specific differences, not a typographical correction or permission to overwrite the older record.
- No maximum-speed figure or complete operating-safety procedure is supplied here. This source note records a historical service sequence; it is not a live operating command.
- TI48/1998 documents differences over the original version, not a complete overhaul or operator manual. Historical source reference only; no numeric serial cutoff, current stock claim or hardware verification.
Source: TI 48/1998, p. 2 — Complete section1.4 and drawing171TI018 KN.
Referenced bulletin evidence: TI 40/1997, p. 3 — Previously admitted TI40/1997 context; exact HT-12A comparison only.
Part numbers (1)
- 1124 120 0650 — HT-12B carburetor; unchanged assembly numberVersion-specific service reference · 088 HT-12B described by TI48/1998; not identified by number alone
Service note · 088
088 HT-12B: user adjustment is 180 degrees, not the earlier 210
Bounded high-altitude leaning remains separate from cap-free service setup.
No exact-model IPL link: The retained 088 IPL identifies HT-12E / 1124 120 0609, not HT-12B / 1124 120 0650. HT-12A also used 1124 120 0650. Number equality does not identify the suffix or justify applying these settings to HT-12A, HT-12E, 084 or MS 880.
- Section 2 permits adjustment within a range of 180 degrees so that the mixture can be made leaner, IF NECESSARY, at high altitudes. Drawing 171TI012 KN explicitly shows 180°. This is bounded angular travel, not a basic screw-opening preset or permission to remove the caps.
- The text says carburetor screw in the singular and does not specify a separate numeric H and L altitude preset. Do not invent one, extend the stop travel, or substitute the service-shop cap-free base setting as ordinary user adjustment.
- TI40/1997 gave the original HT-12A a 210-degree range. TI48/1998 gives HT-12B 180 degrees despite the unchanged 1124 120 0650 assembly number. The earlier construction/function cross-reference does not override this explicit revised range.
- The bulletin says these user instructions are exactly those in the owner manual chapter Carburetor Adjustment. Only that reproduced guidance and equivalence statement are admitted here, not an unidentified full owner manual. The final TI40.97 citation is also the last-TI reference; the 1998 imprint is a publication date, not a machine serial boundary.
- TI40/1997 retains its own named TI27/1997 emissions-source gap. TI48 does not delegate new EPA or federal-warranty details to that missing source; this review does not claim to close that earlier gap or infer new emissions facts.
- TI48/1998 documents differences over the original version, not a complete overhaul or operator manual. Historical source reference only; no numeric serial cutoff, current stock claim or hardware verification.
Source: TI 48/1998, p. 2 — Complete section2, drawing171TI012 KN, unchanged-number statement and footer.
Referenced bulletin evidence: TI 40/1997, p. 2 · TI 40/1997, p. 4 · TI 40/1997, p. 5 — Previously admitted TI40/1997 context; exact HT-12A comparison only.
Part numbers (1)
- 1124 120 0650 — HT-12B carburetor; unchanged assembly numberVersion-specific service reference · 088 HT-12B described by TI48/1998; not identified by number alone
Full text

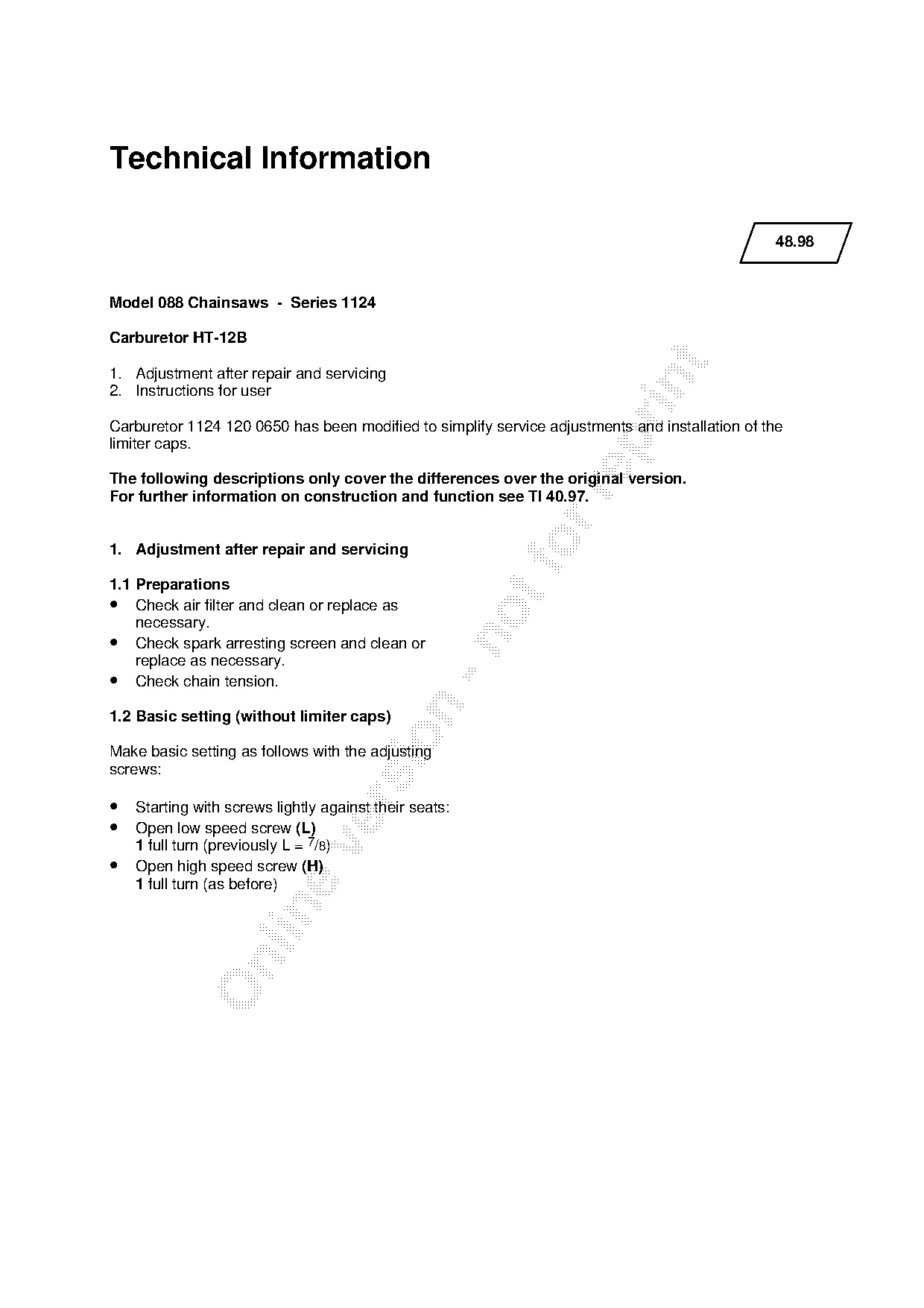

Page 1 of 2
Text of page 1 — search, copy, screen readers
Technical Information
48.98
Model 088 Chainsaws - Series 1124
Carburetor HT-12B
1. Adjustment after repair and servicing
2. Instructions for user
Carburetor 1124 120 0650 has been modified to simplify service adjustments and installation of the
limiter caps.
The following descriptions only cover the differences over the original version.
For further information on construction and function see TI 40.97.
1. Adjustment after repair and servicing fo
1.1 Preparations
• Check air filter and clean or replace as
necessary.
• Check spark arresting screen and clean or
replace as necessary.
• Check chain tension.
1.2 Basic setting (without limiter caps)
Make basic setting as follows with the adjusting
screws:
• Starting with screws lightly against their seats:
• Open low speed screw (L)
1 full turn (previously L = 7/8)
• Open high speed screw (H)

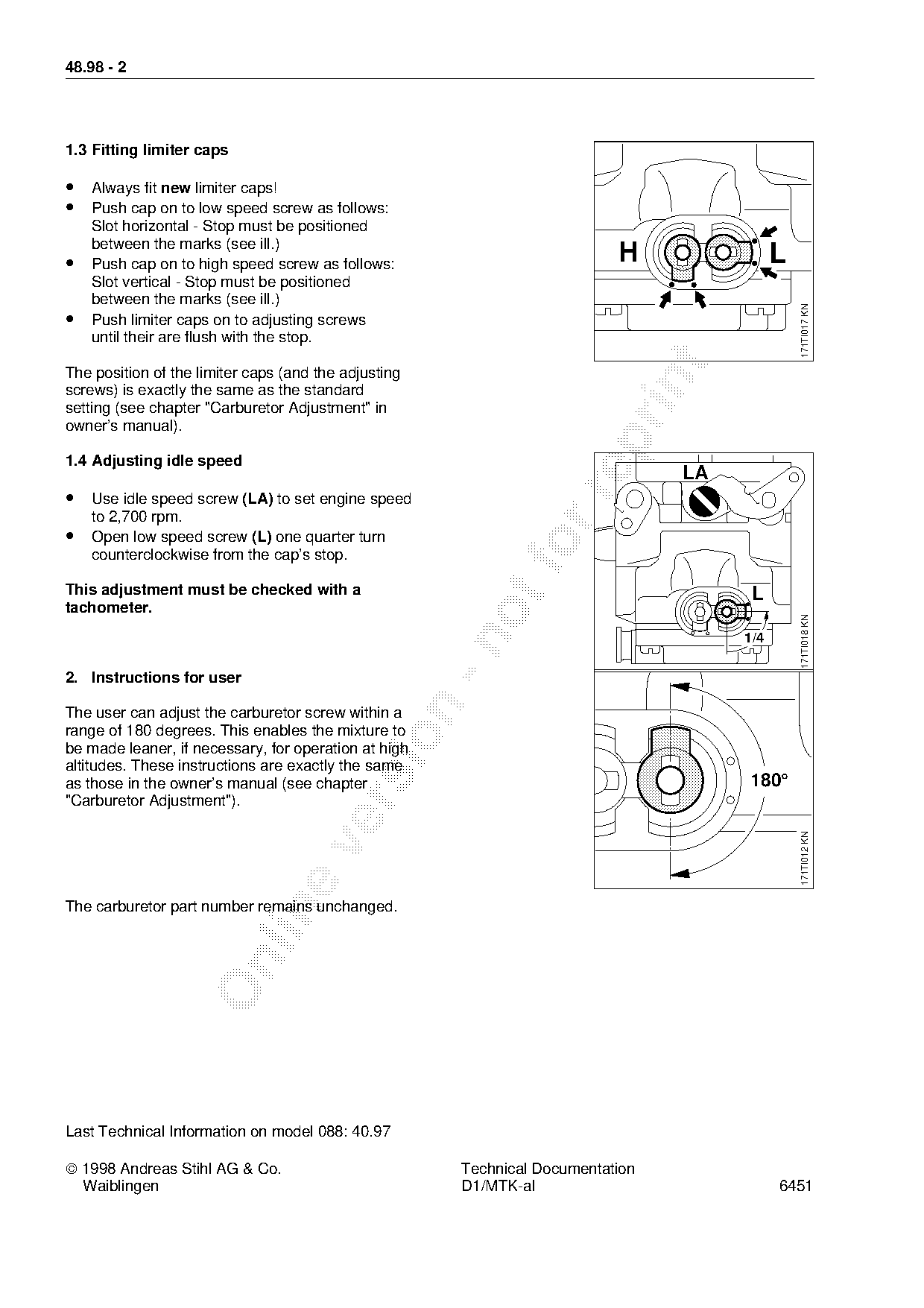

1 full turn (as before) Page 2 of 2
Text of page 2 — search, copy, screen readers
48.98 - 2
1.3 Fitting limiter caps
• Always fit new limiter caps!
• Push cap on to low speed screw as follows:
Slot horizontal - Stop must be positioned
between the marks (see ill.)
• Push cap on to high speed screw as follows: H L
Slot vertical - Stop must be positioned
between the marks (see ill.)
171TI017 KN
• Push limiter caps on to adjusting screws
until their are flush with the stop.
The position of the limiter caps (and the adjusting
screws) is exactly the same as the standard
setting (see chapter "Carburetor Adjustment" in
owner’s manual).
1.4 Adjusting idle speed
LA
• Use idle speed screw (LA) to set engine speed
to 2,700 rpm.
• Open low speed screw (L) one quarter turn
counterclockwise from the cap’s stop. fo
This adjustment must be checked with a L
tachometer.
171TI018 KN
1/4
2. Instructions for user
The user can adjust the carburetor screw within a
range of 180 degrees. This enables the mixture to
be made leaner, if necessary, for operation at high
altitudes. These instructions are exactly the same
as those in the owner’s manual (see chapter 180°
"Carburetor Adjustment").
171TI012 KN
The carburetor part number remains unchanged.
Last Technical Information on model 088: 40.97
1998 Andreas Stihl AG & Co. Technical Documentation
