Throttle Control (throttle cable; guide; control h

Model FS 550 Clearing Saw - Series 4116

IssueTI 49/1998

Part changes (1)

WasBecomesWhat the bulletin says
4116 791 2711 4128 790 1715 Once handlebars 4116 791 2711 (for sawing models) and 4116 791 2701 (tube for control handle) have been used up, they will be replaced by versions 4128 790 1715 and 4128 791 2710 respectively to bring them into line with model FS 550.

Historical fitment & changes

Source-reviewed model notes. An exact-model IPL link is unavailable where stated; no similar model is substituted. Availability statements belong to the bulletin’s date.

Service note · FS 550

FS 550: throttle guide cutoff has early exceptions

Cover marking 4116/02A identifies the revised guide; serial alone is not conclusive before the cutoff.

No exact-model IPL link: The later 01-2012 FS 500/550/550 L control-handle sheet is explicitly marked 1 57 307 792 (29.2002) and the handlebar sheet lists 4128 790 1309 / 4116 790 1351. Neither is the TI49 complete handle 4116 790 1306. Shared cable/guide numbers do not identify the complete 1998 handle or extend this cutoff to those later sheets.

1 41 662 644 — FS 550 throttle cable/guide introduction; a small quantity of earlier machines already have the revised parts. Not an exclusive old/new partition.

  • Section 1 introduces the modified throttle cable and guide from serial 1 41 662 644, but explicitly says a small quantity of earlier machines already shipped with the new parts. This is a model-conditioned production change, not a model-identification range or proof that every earlier machine has the original guide.
  • Drawing 398TI000 KN identifies guide (1) and cover (2), original on the LEFT and new on the RIGHT. The new guide has a larger radius at the arrow; contact-plate and tag shape/position and the cover inner contour change. Marking >4116/02A< on top of the cover identifies the new guide while installed.
  • Cable insulation is shortened to suit the changed contact plate. New cable 4116 180 1105 comes with the guide already fitted. The table says cable includes items 5 and 6; guide includes cover item 6. Original cable 4116 180 1104 and guide 4116 180 7200 are no longer factory-available according to remark 2.
  • Historical TI49/1998 only, not current stock or physical interchange verification. Shared catalog sheets do not extend these instructions to FS 500, FS 550 L, FS 420 L or other models. The throttle cutoff is not a clutch, fuel-hose or handlebar cutoff.

Source: TI 49/1998, p. 1 · TI 49/1998, p. 2 — FS 550: throttle guide cutoff has early exceptions.

Part numbers (4)
  • 4116 180 7200 — Original guideOriginal version · FS 550; exact TI49/1998 version and conditions only
  • 4116 180 7201 — Revised guide including coverReplacement · FS 550; exact TI49/1998 version and conditions only
  • 4116 180 1104 — Original throttle cableOriginal version · FS 550; exact TI49/1998 version and conditions only
  • 4116 180 1105 — Replacement throttle cable including guide and coverReplacement · FS 550; exact TI49/1998 version and conditions only

Service note · FS 550

FS 550: complete control handle and untouched factory setting

Use 4116 790 1306, not 4128 790 1300; leave the new guide cover fitted during installation.

No exact-model IPL link: The later 01-2012 FS 500/550/550 L control-handle sheet is explicitly marked 1 57 307 792 (29.2002) and the handlebar sheet lists 4128 790 1309 / 4116 790 1351. Neither is the TI49 complete handle 4116 790 1306. Shared cable/guide numbers do not identify the complete 1998 handle or extend this cutoff to those later sheets.

  • With immediate effect, the TI calls for complete replacement handle 4116 790 1306 with throttle cable and guide and expressly says DO NOT USE 4128 790 1300. Table item 1 includes items 2 through 6; the internal handle parts remain unchanged. This is not permission to substitute an incomplete assembly.
  • The position of the cable in the guide for STARTING THROTTLE / FULL THROTTLE is set at the factory on new replacement cable and handle-with-cable assemblies. DO NOT REMOVE THE GUIDE COVER FOR INSTALLATION: doing so changes that setting.
  • Remark 1 keeps original handle 4128 790 1300 available as a spare FOR OTHER MODELS; that availability does not cancel the FS 550 prohibition. Original cover 4116 182 6801 carries remarks 2 and 3: the original is no longer factory-available, and the new cover is not supplied separately. The new-column -*- is not a part number or proof that the old cover fits.
  • The 1 41 662 644 cutoff describes production introduction of cable/guide; immediate-effect service replacement is a separate instruction. Other parts remain as before.
  • Historical TI49/1998 only, not current stock or physical interchange verification. Shared catalog sheets do not extend these instructions to FS 500, FS 550 L, FS 420 L or other models. The throttle cutoff is not a clutch, fuel-hose or handlebar cutoff.

Source: TI 49/1998, p. 1 · TI 49/1998, p. 2 — FS 550: complete control handle and untouched factory setting.

Part numbers (3)
  • 4116 790 1306 — Complete control handle with throttle cable and guideRequired replacement · FS 550; exact TI49/1998 version and conditions only
  • 4128 790 1300 — Original control handle assemblyDo not use for this FS 550 replacement · FS 550; exact TI49/1998 version and conditions only
  • 4116 182 6801 — Original guide coverOriginal version only · FS 550; exact TI49/1998 version and conditions only

Service note · FS 550

FS 550: intact cable reuse needs the illustrated strip lengths

The repair drawing specifies 83 mm, 10 mm and 23 mm; these are not three interchangeable cable-length settings.

No exact-model IPL link: The later 01-2012 FS 500/550/550 L control-handle sheet is explicitly marked 1 57 307 792 (29.2002) and the handlebar sheet lists 4128 790 1309 / 4116 790 1351. Neither is the TI49 complete handle 4116 790 1306. Shared cable/guide numbers do not identify the complete 1998 handle or extend this cutoff to those later sheets.

  • When changing an original guide to new guide 4116 180 7201 during repair, the EXISTING INTACT cable may be reused only if stripped and installed as illustrated. This conditional repair allowance is distinct from removing the cover of a factory-set new replacement assembly during ordinary installation.
  • Original drawing 398TI012 KN shows an 83 mm (3.3 in) stripping extent and separate 10 mm (0.4 in) and 23 mm (0.9 in) dimensions at the stripped end, plus the installed routing/contact view. Preserve those three dimension locations in the cited drawing; they are not overall cable length, throttle travel, or a numeric calibration procedure.
  • The extracted text scrambles the drawing dimensions. The original scan reads 23 mm, not 20 mm. The complete drawing and intact-cable restriction control this reference; do not infer an unprinted adjustment method or apply the repair dimensions to other cables.
  • Historical TI49/1998 only, not current stock or physical interchange verification. Shared catalog sheets do not extend these instructions to FS 500, FS 550 L, FS 420 L or other models. The throttle cutoff is not a clutch, fuel-hose or handlebar cutoff.

Source: TI 49/1998, p. 1 · TI 49/1998, p. 2 — FS 550: intact cable reuse needs the illustrated strip lengths.

Part numbers (2)
  • 4116 180 7201 — Revised guideRepair destination · FS 550; exact TI49/1998 version and conditions only
  • 4116 180 1104 — Existing original throttle cableReuse only if intact · FS 550; exact TI49/1998 version and conditions only

Service note · FS 550

FS 550: molded hose replaces three separate pieces

4116 358 7701 replaces two hoses plus a grommet; the old pieces remained available as spares.

No exact-model IPL link: The retained later FS 500/550/550 L tank sheet does not establish the TI49 4116 358 7701 configuration. Keep this model-level historical reference separate from its 7602/7702 parts and from FS 360/420 tanks.

  • Section 3 and drawing 398TI014 SC identify old hose (1), hose (2), grommet (3) and new hose (4). One new molded hose replaces the three separate pieces to improve function and installation. This is a grouped replacement, not three independent one-for-one substitutions or an instruction to add the old grommet to the new hose.
  • The table gives old hose lengths as 82 mm (3.23 in) and 100 mm (3.94 in). It supplies no cut length for new 4116 358 7701. The introduction is IN PROGRESS / in the near future, with no numeric serial. All three old components remain available as spares per remark 1.
  • The extracted paragraph has shifted-font corruption; the original scan and clear summary agree on 4116 358 7701, 4116 358 0700, 4116 358 7601 and 4133 353 9201. The later tank sheet instead lists 4116 358 7602 and 4116 358 7702. Similar numbering does not establish a 7701-to-7702 supersession or identity.
  • Historical TI49/1998 only, not current stock or physical interchange verification. Shared catalog sheets do not extend these instructions to FS 500, FS 550 L, FS 420 L or other models. The throttle cutoff is not a clutch, fuel-hose or handlebar cutoff.

Source: TI 49/1998, p. 3 — FS 550: molded hose replaces three separate pieces.

Part numbers (4)
  • 4116 358 0700 — Original hose 82 mm / 3.23 inReplaced component · FS 550; exact TI49/1998 version and conditions only
  • 4116 358 7601 — Original hose 100 mm / 3.94 inReplaced component · FS 550; exact TI49/1998 version and conditions only
  • 4133 353 9201 — Original grommetReplaced component · FS 550; exact TI49/1998 version and conditions only
  • 4116 358 7701 — New molded hoseCombined replacement · FS 550; exact TI49/1998 version and conditions only

Service note · FS 360 / FS 420

FS 360 / FS 420: special-mowing replacement handlebar

4116 791 2705 is replaced by 4116 790 1700 after old factory stocks are exhausted.

No exact-model IPL link: Neither old 4116 791 2705 nor new 4116 790 1700 is established by the later retained FS 360/420 handlebar sheet; 4128 790 1701 is a distinct number, not an assumed correction.

  • Section 4 applies to FS 360 and FS 420. All listed original replacement handlebars are supplied only until existing factory stocks are exhausted. For SPECIAL MOWING models, 4116 790 1700 replaces 4116 791 2705. This row must not be merged with the sawing handlebar or control-handle tube replacement.
  • The TI expressly calls the new and original replacement handlebars fully interchangeable and exactly the same shape. This is the source claim for the listed pairs, not measured physical verification, an extension to all handlebars or proof that later 4128 790 1701 is identical to 4116 790 1700.
  • The referred FS 550 illustration has been reconciled against available SCS 01-2012 doc6774, drawing 398ET054 SC. Its position 1 is 4128 790 1701, NOT the TI’s 4116 790 1700. The contemporaneous illustration for 4116 790 1700 is unavailable in the retained inventory. Keep the TI number unchanged: later drawing shape is not proof of identity, correction or supersession. Last TI33.98 and the 1998 imprint are bibliographic context, not production boundaries.
  • Historical TI49/1998 only, not current stock or physical interchange verification. Shared catalog sheets do not extend these instructions to FS 500, FS 550 L, FS 420 L or other models. The throttle cutoff is not a clutch, fuel-hose or handlebar cutoff.

Source: TI 49/1998, p. 4 — FS 360 / FS 420: special-mowing replacement handlebar.

Part numbers (2)
  • 4116 791 2705 — Original special-mowing handlebarOriginal version · FS 360/FS 420; exact TI49/1998 version and conditions only
  • 4116 790 1700 — New special-mowing handlebarReplacement · FS 360/FS 420; exact TI49/1998 version and conditions only

Full text

Page 1 of 4

TI 49/1998 page 1
Text of page 1 — search, copy, screen readers

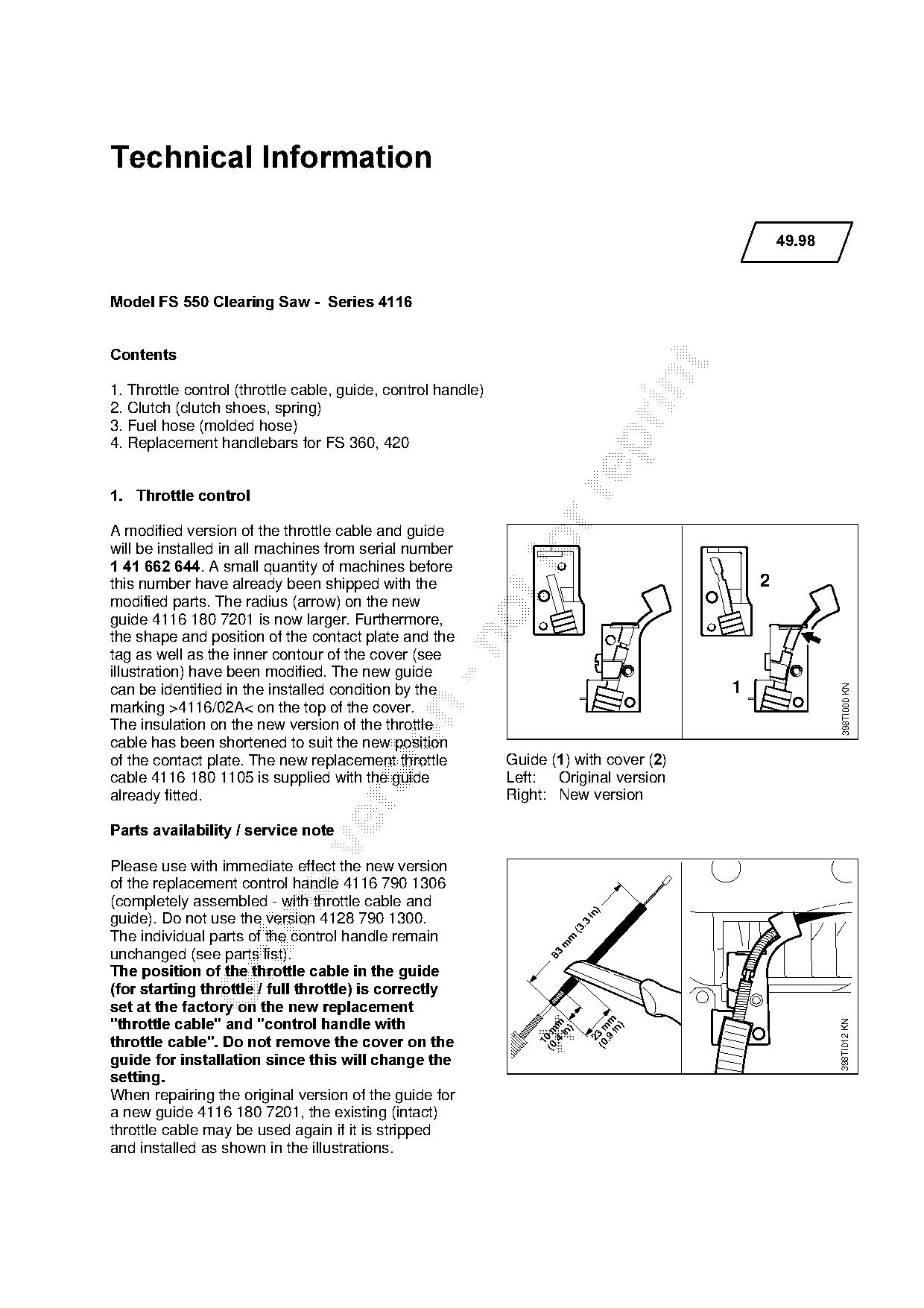

Technical Information

                                                                                                     49.98

Model FS 550 Clearing Saw -  Series 4116

&RQWHQWV

1. Throttle control (throttle cable, guide, control handle)
2. Clutch (clutch shoes, spring)
3. Fuel hose (molded hose)

4. Replacement handlebars for FS 360, 420

1.=Throttle control

A modified version of the throttle cable and guide
will be installed in all machines from serial number
1 41 662 644K=^=small quantity of machines before
this number have already been shipped with the                                                   2
modified parts. The radius (arrow) on the new
guide 4116 180 7201 is now larger. Furthermore,
the shape and position of the contact plate and the

tag as well as the inner contour of the cover (see
illustration) have been modified. The new guide
                                                                                             1

                                                                                                             398TI000 KN
can be identified in the installed condition by the
marking >4116/02A< on the top of the cover.

The insulation on the new version of the throttle

cable has been shortened to suit the new position
of the contact plate. The new replacement throttle            Guide E1F=with cover E2F
cable 4116 180 1105 is supplied with the guide                Left: Original version
already fitted.                                               Right: New version

Parts availability / service note

Please use with immediate effect the new version
of the replacement control handle 4116 790 1306
(completely assembled - with throttle cable and

                                                                                  )

guide). Do not use the version 4128 790 1300.
                                                                             .3
                                                                          (3

The individual parts of the control handle remain
                                                                         m
                                                                      m

unchanged (see parts list).
                                                                    83

The position of the throttle cable in the guide
=for starting throttle / full throttle= is correctly
set at the factory on the new replacement
"throttle cable" and "control handle with
                                                                                                             398TI012 KN
                                                                                 .9 m
                                                                    .4 m

                                                                               (0 3 m
                                                                                      )
                                                                         )

                                                                  (0 0 m

throttle cable". Do not remove the cover on the
                                                                                 2
                                                                    1

guide for installation since this will change the
setting.
When repairing the original version of the guide for
a new guide 4116 180 7201, the existing (intact)
throttle cable may be used again if it is stripped
and installed as shown in the illustrations.

Page 2 of 4

TI 49/1998 page 2
Text of page 2 — search, copy, screen readers
49.98 - 2

6XPPDU\

Item        Part Name                                 Original                 New             Rem.
                                                      version                  version

  1         Control handle assembly (with throttle
            cable and guide);                         ---                     4116 790 1306
            including items 2 to 6:
  2         Control handle assembly;                  4128 790 1300           ---              1)
  3         Throttle cable                            4116 180 1104           ---              2)
  4         Throttle cable;                           ---                     4116 180 1105
            including items 5 and 6:
  5         Guide;                                    4116 180 7200           4116 180 7201    2)

            including item 6:

  6         Cover                                     4116 182 6801           -*-              2)3)

            All other parts as before

Modification to be introduced from serial number 1 41 662 644
5HPDUNV

1) Original version of part remains available as spare for other models
2) Original version of part no longer available from factory
3) New version of part not available as separate item

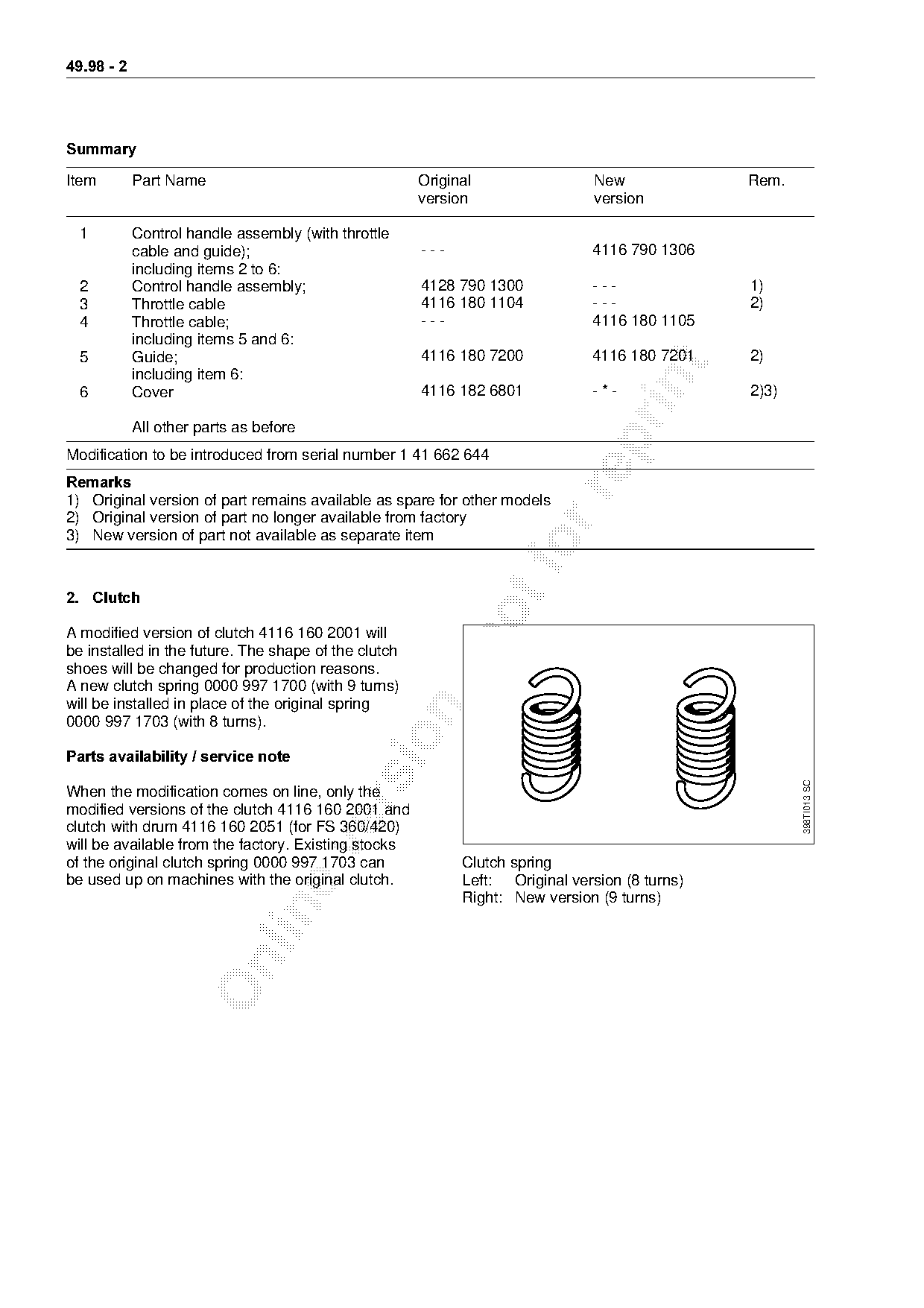

2.=Clutch

A modified version of clutch 4116 160 2001 will

be installed in the future. The shape of the clutch
shoes will be changed for production reasons.
A new clutch spring 0000 997 1700 (with 9 turns)
will be installed in place of the original spring

0000 997 1703 (with 8 turns).

Parts availability / service note

                                                                                                      398TI013 SC
When the modification comes on line, only the

modified versions of the clutch 4116 160 2001 and
clutch with drum 4116 160 2051 (for FS 360/420)
will be available from the factory. Existing stocks

of the original clutch spring 0000 997 1703 can             Clutch spring
be used up on machines with the original clutch.            Left: Original version (8 turns)
                                                            Right: New version (9 turns)

Page 3 of 4

TI 49/1998 page 3
Text of page 3 — search, copy, screen readers
49.98 - 3

6XPPDU\

Item        Part Name                                Original                    New             Rem.
                                                     version                     version

  1         Clutch;                                   4116 160 2001              4116 160 2001   1)
  2         Clutch with drum; (for FS 360/420)        4116 160 2051              4116 160 2051   1)
            each of above includes:
  3         Clutch spring                             0000 997 1703              0000 997 1700   2)
  4         Clutch shoe                               -*-                        -*-             3)
            All other parts as before
Modification to be introduced: in progress

5HPDUNV

1) Unmodified version of part will be supplied from factory for a temporary period
2) Original version of part will be supplied from factory only as long as existing stocks last
3) Part not available as separate item

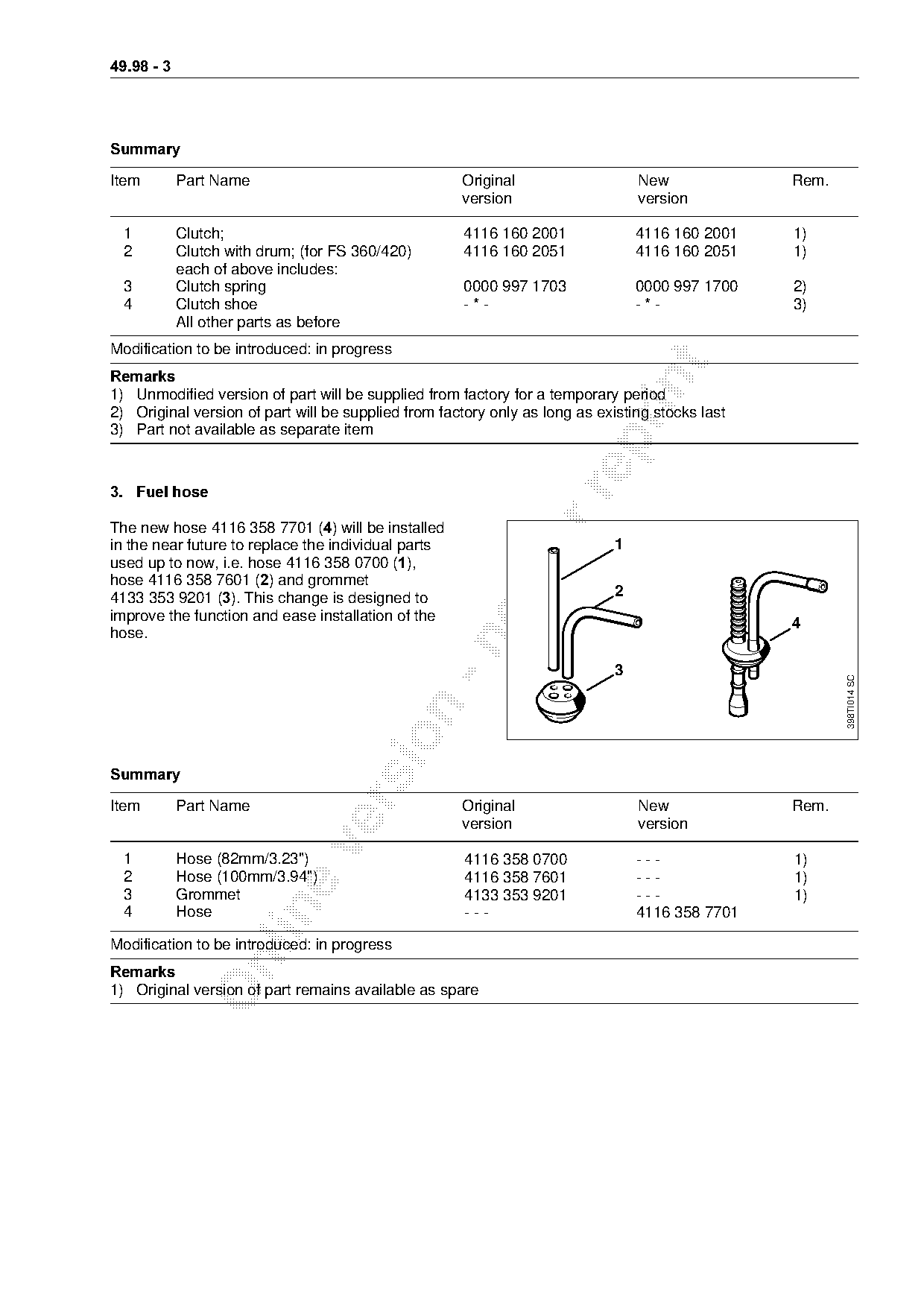

3.=Fuel hose

The new hose QNNS=PRU=TTMN=E4F=will be installed
in the near future to replace the individual parts
used up to now, i.e. hose QNNS=PRU=MTMM=E1F,
                                                             fo              1

hose QNNS=PRU=TSMN=E2F=~nd grommet
                                                                             2
QNPP=PRP=VOMN=E3FK=qhis change is designed to
improve the function and ease installation of the                                                4
hose.


                                                                                                        398TI014 SC

6XPPDU\

Item        Part Name                                Original                    New             Rem.
                                                     version                     version

  1         Hose (82mm/3.23")                         4116 358 0700              ---             1)
  2         Hose (100mm/3.94")                        4116 358 7601              ---             1)
  3         Grommet                                   4133 353 9201              ---             1)

  4         Hose                                      ---                        4116 358 7701

Modification to be introduced: in progress

5HPDUNV
1) Original version of part remains available as spare

Page 4 of 4

TI 49/1998 page 4
Text of page 4 — search, copy, screen readers
49.98 - 4

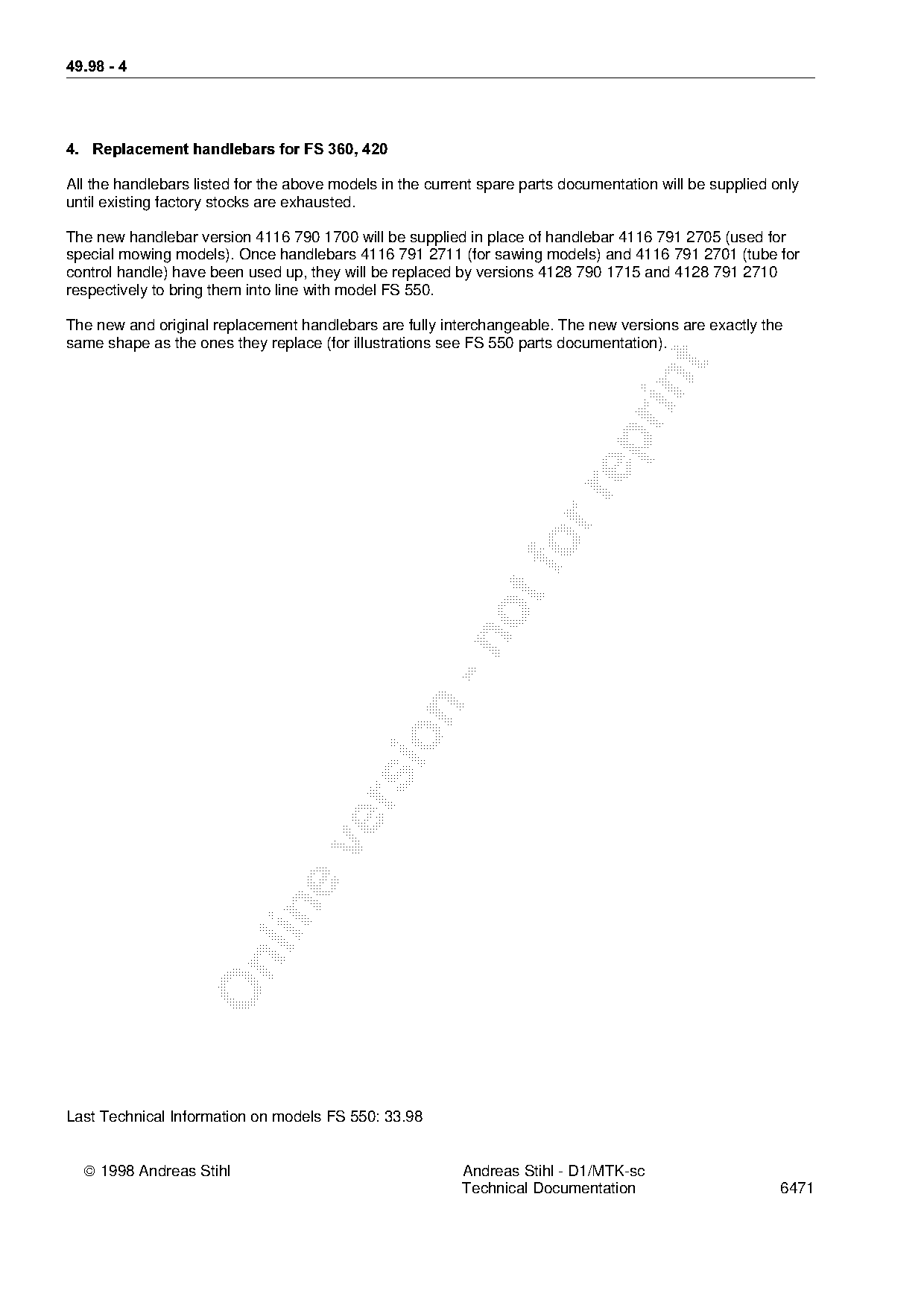

4.=Replacement handlebars for FS 360, 420

All the handlebars listed for the above models in the current spare parts documentation will be supplied only
until existing factory stocks are exhausted.

The new handlebar version 4116 790 1700 will be supplied in place of handlebar 4116 791 2705 (used for
special mowing models). Once handlebars 4116 791 2711 (for sawing models) and 4116 791 2701 (tube for
control handle) have been used up, they will be replaced by versions 4128 790 1715 and 4128 791 2710
respectively to bring them into line with model FS 550.

The new and original replacement handlebars are fully interchangeable. The new versions are exactly the
same shape as the ones they replace (for illustrations see FS 550 parts documentation).

Last Technical Information on models FS 550: 33.98

   1998 Andreas Stihl                                    Andreas Stihl - D1/MTK-sc
                                                          Technical Documentation                         6471
