Technical Information · issue 1 of 1999
Assignment of Replacement Ignition Systems
Model Series Ignition module Ignition lead length Flywheel Remarks
IssueTI 1/1999
Full text
Page 1 of 4

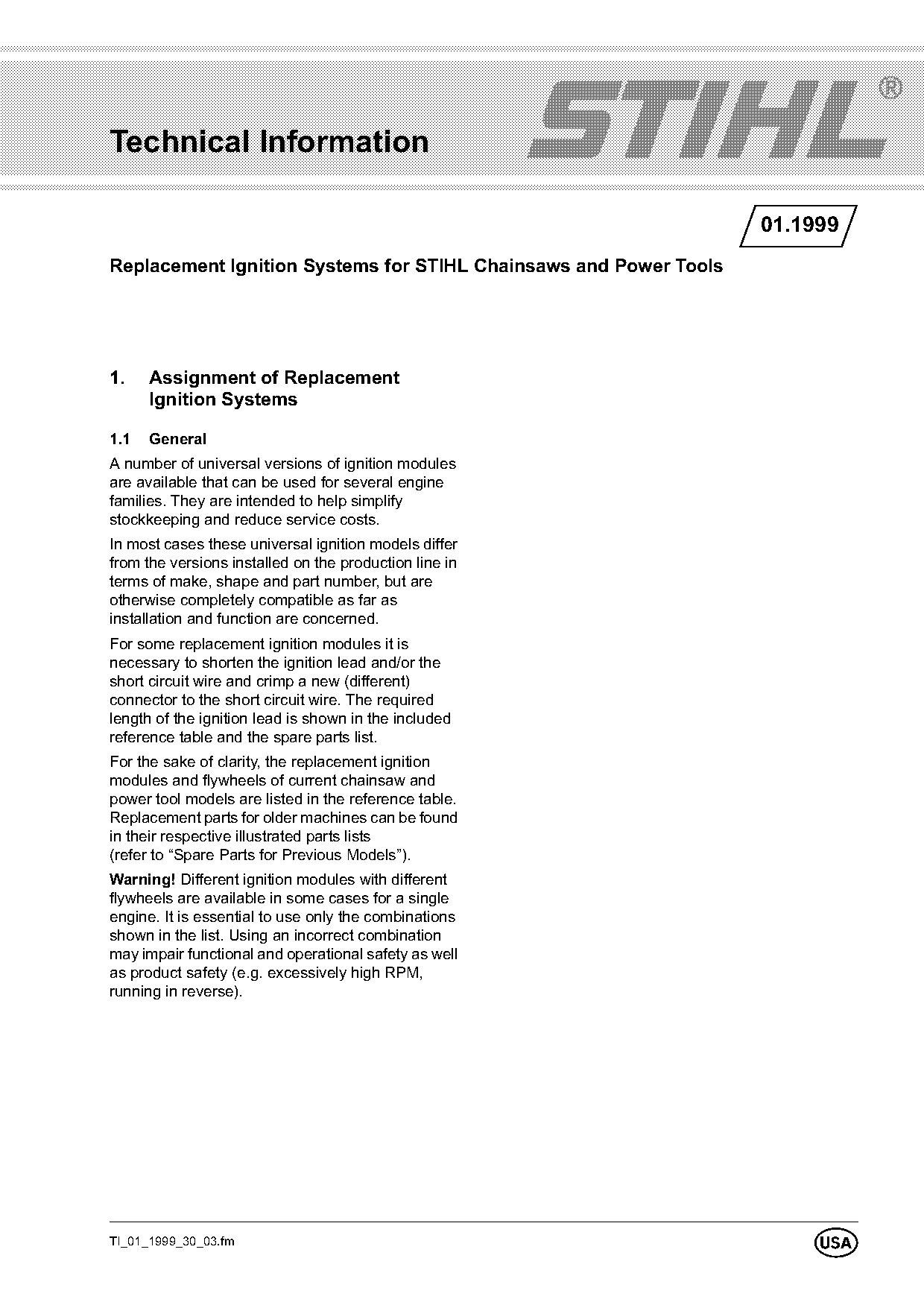

Technical Information
01.1999
Replacement Ignition Systems for STIHL Chainsaws and Power Tools
1. Assignment of Replacement
Ignition Systems
1.1 General
A number of universal versions of ignition modules
are available that can be used for several engine
families. They are intended to help simplify
stockkeeping and reduce service costs.
In most cases these universal ignition models differ
from the versions installed on the production line in
terms of make, shape and part number, but are
otherwise completely compatible as far as
installation and function are concerned.
For some replacement ignition modules it is
necessary to shorten the ignition lead and/or the
short circuit wire and crimp a new (different)
connector to the short circuit wire. The required
length of the ignition lead is shown in the included
reference table and the spare parts list.
For the sake of clarity, the replacement ignition
modules and flywheels of current chainsaw and
power tool models are listed in the reference table.
Replacement parts for older machines can be found
in their respective illustrated parts lists
(refer to “Spare Parts for Previous Models”).
Warning! Different ignition modules with different
flywheels are available in some cases for a single
engine. It is essential to use only the combinations
shown in the list. Using an incorrect combination
may impair functional and operational safety as well
as product safety (e.g. excessively high RPM,
running in reverse).
TI_01_1999_30_03.fm
U

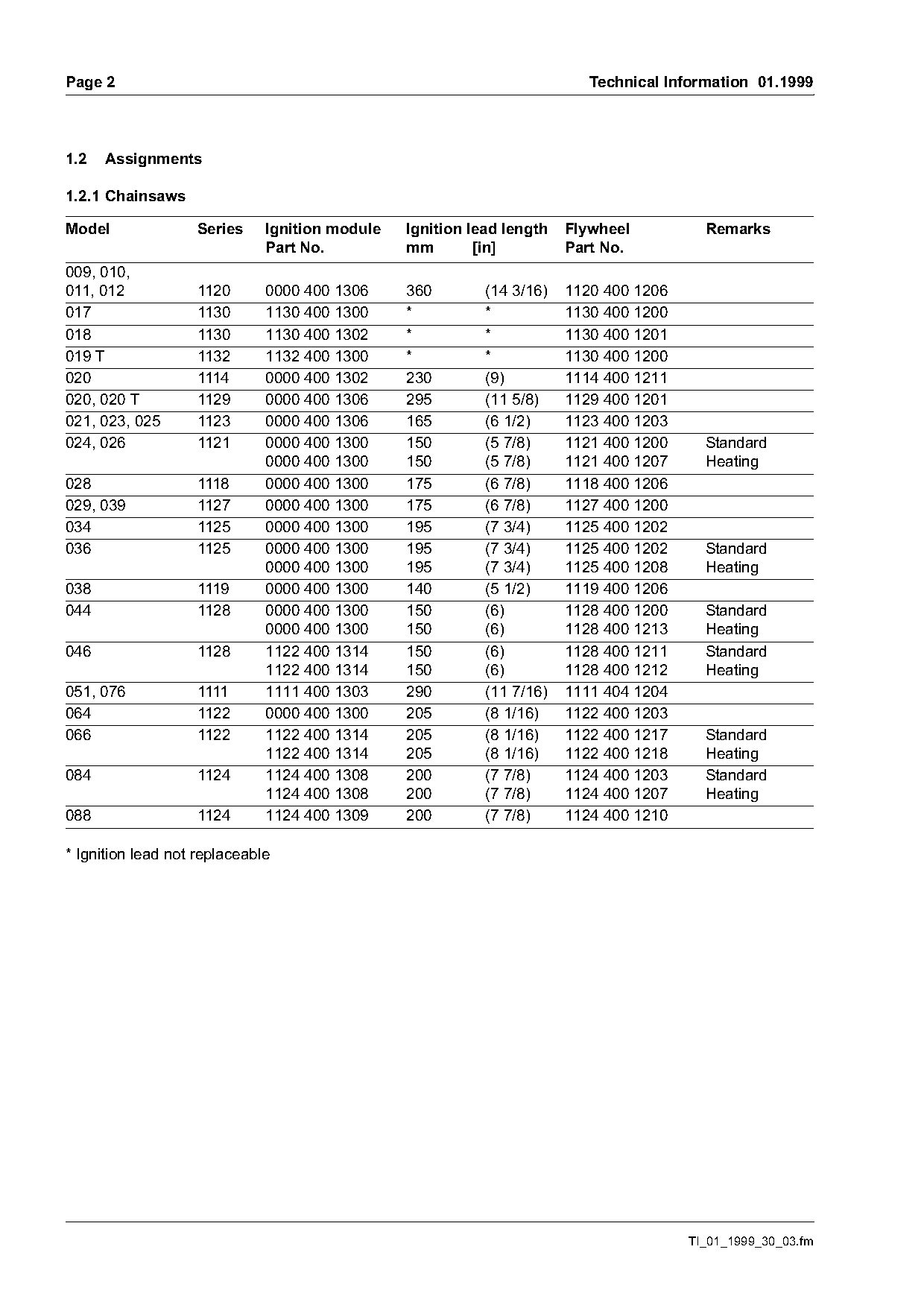

)m~ge 2 Technical Information 01.1999
1.2 Assignments
1.2.1 Chainsaws
Model Series Ignition module Ignition lead length Flywheel Remarks
Part No. mm [in] Part No.
009, 010,
011, 012 1120 0000 400 1306 360 (14 3/16) 1120 400 1206
017 1130 1130 400 1300 * * 1130 400 1200
018 1130 1130 400 1302 * * 1130 400 1201
019 T 1132 1132 400 1300 * * 1130 400 1200
020 1114 0000 400 1302 230 (9) 1114 400 1211
020, 020 T 1129 0000 400 1306 295 (11 5/8) 1129 400 1201
021, 023, 025 1123 0000 400 1306 165 (6 1/2) 1123 400 1203
024, 026 1121 0000 400 1300 150 (5 7/8) 1121 400 1200 Standard
0000 400 1300 150 (5 7/8) 1121 400 1207 Heating
028 1118 0000 400 1300 175 (6 7/8) 1118 400 1206
029, 039 1127 0000 400 1300 175 (6 7/8) 1127 400 1200
034 1125 0000 400 1300 195 (7 3/4) 1125 400 1202
036 1125 0000 400 1300 195 (7 3/4) 1125 400 1202 Standard
0000 400 1300 195 (7 3/4) 1125 400 1208 Heating
038 1119 0000 400 1300 140 (5 1/2) 1119 400 1206
044 1128 0000 400 1300 150 (6) 1128 400 1200 Standard
0000 400 1300 150 (6) 1128 400 1213 Heating
046 1128 1122 400 1314 150 (6) 1128 400 1211 Standard
1122 400 1314 150 (6) 1128 400 1212 Heating
051, 076 1111 1111 400 1303 290 (11 7/16) 1111 404 1204
064 1122 0000 400 1300 205 (8 1/16) 1122 400 1203
066 1122 1122 400 1314 205 (8 1/16) 1122 400 1217 Standard
1122 400 1314 205 (8 1/16) 1122 400 1218 Heating
084 1124 1124 400 1308 200 (7 7/8) 1124 400 1203 Standard
1124 400 1308 200 (7 7/8) 1124 400 1207 Heating
088 1124 1124 400 1309 200 (7 7/8) 1124 400 1210
* Ignition lead not replaceable
TI_01_1999_30_03.fm Page 2 of 4

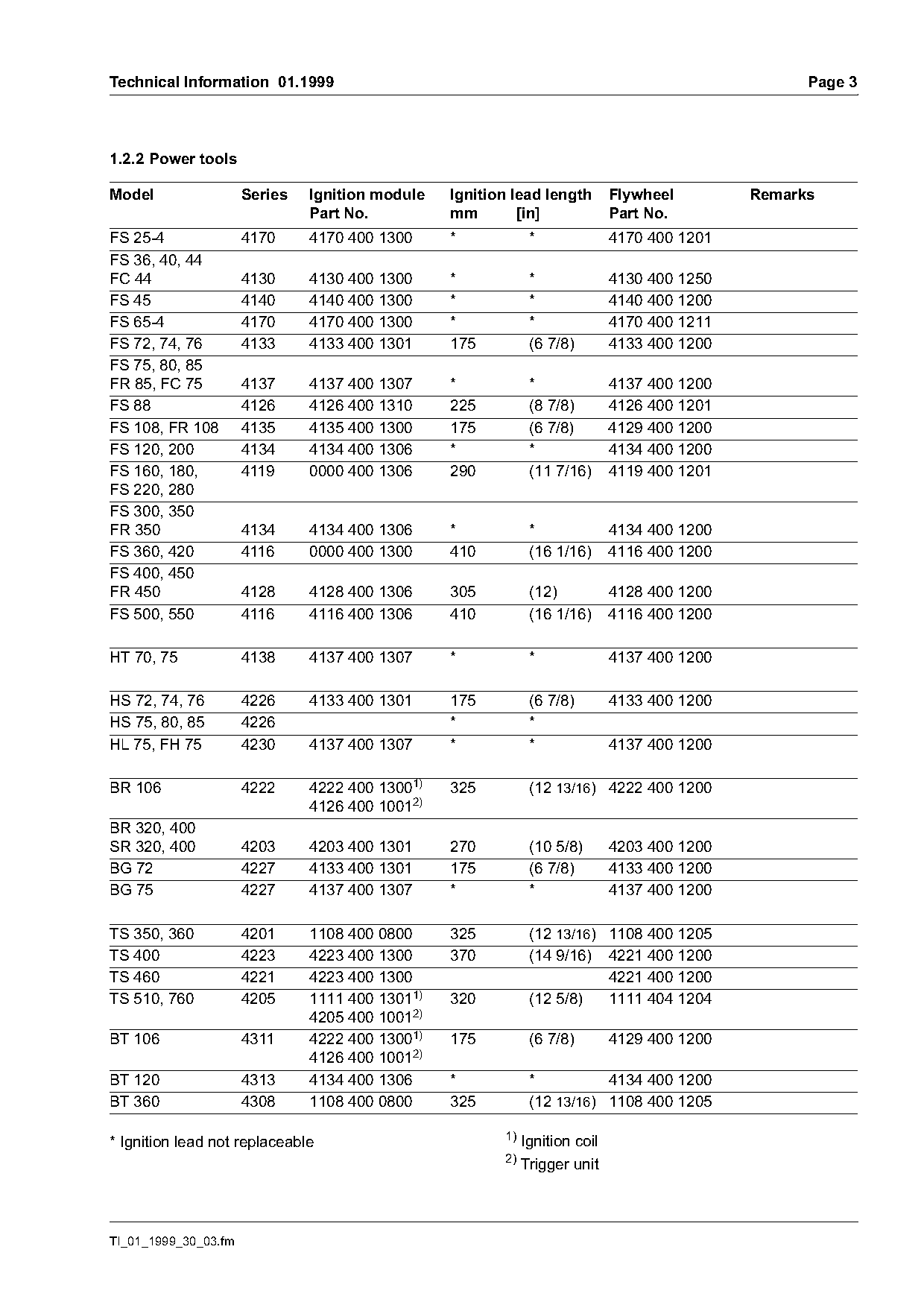

Technical Information 01.1999 Page 3
1.2.2 Power tools
Model Series Ignition module Ignition lead length Flywheel Remarks
Part No. mm [in] Part No.
FS 25-4 4170 4170 400 1300 * * 4170 400 1201
FS 36, 40, 44
FC 44 4130 4130 400 1300 * * 4130 400 1250
FS 45 4140 4140 400 1300 * * 4140 400 1200
FS 65-4 4170 4170 400 1300 * * 4170 400 1211
FS 72, 74, 76 4133 4133 400 1301 175 (6 7/8) 4133 400 1200
FS 75, 80, 85
FR 85, FC 75 4137 4137 400 1307 * * 4137 400 1200
FS 88 4126 4126 400 1310 225 (8 7/8) 4126 400 1201
FS 108, FR 108 4135 4135 400 1300 175 (6 7/8) 4129 400 1200
FS 120, 200 4134 4134 400 1306 * * 4134 400 1200
FS 160, 180, 4119 0000 400 1306 290 (11 7/16) 4119 400 1201
FS 220, 280
FS 300, 350
FR 350 4134 4134 400 1306 * * 4134 400 1200
FS 360, 420 4116 0000 400 1300 410 (16 1/16) 4116 400 1200
FS 400, 450
FR 450 4128 4128 400 1306 305 (12) 4128 400 1200
FS 500, 550 4116 4116 400 1306 410 (16 1/16) 4116 400 1200
HT 70, 75 4138 4137 400 1307 * * 4137 400 1200
HS 72, 74, 76 4226 4133 400 1301 175 (6 7/8) 4133 400 1200
HS 75, 80, 85 4226 * *
HL 75, FH 75 4230 4137 400 1307 * * 4137 400 1200
BR 106 4222 4222 400 13001) 325 (12 13/16) 4222 400 1200
4126 400 10012)
BR 320, 400
SR 320, 400 4203 4203 400 1301 270 (10 5/8) 4203 400 1200
BG 72 4227 4133 400 1301 175 (6 7/8) 4133 400 1200
BG 75 4227 4137 400 1307 * * 4137 400 1200
TS 350, 360 4201 1108 400 0800 325 (12 13/16) 1108 400 1205
TS 400 4223 4223 400 1300 370 (14 9/16) 4221 400 1200
TS 460 4221 4223 400 1300 4221 400 1200
TS 510, 760 4205 1111 400 13011) 320 (12 5/8) 1111 404 1204
4205 400 10012)
BT 106 4311 4222 400 13001) 175 (6 7/8) 4129 400 1200
4126 400 10012)
BT 120 4313 4134 400 1306 * * 4134 400 1200
BT 360 4308 1108 400 0800 325 (12 13/16) 1108 400 1205
1)
* Ignition lead not replaceable Ignition coil
2) Trigger unit
TI_01_1999_30_03.fm

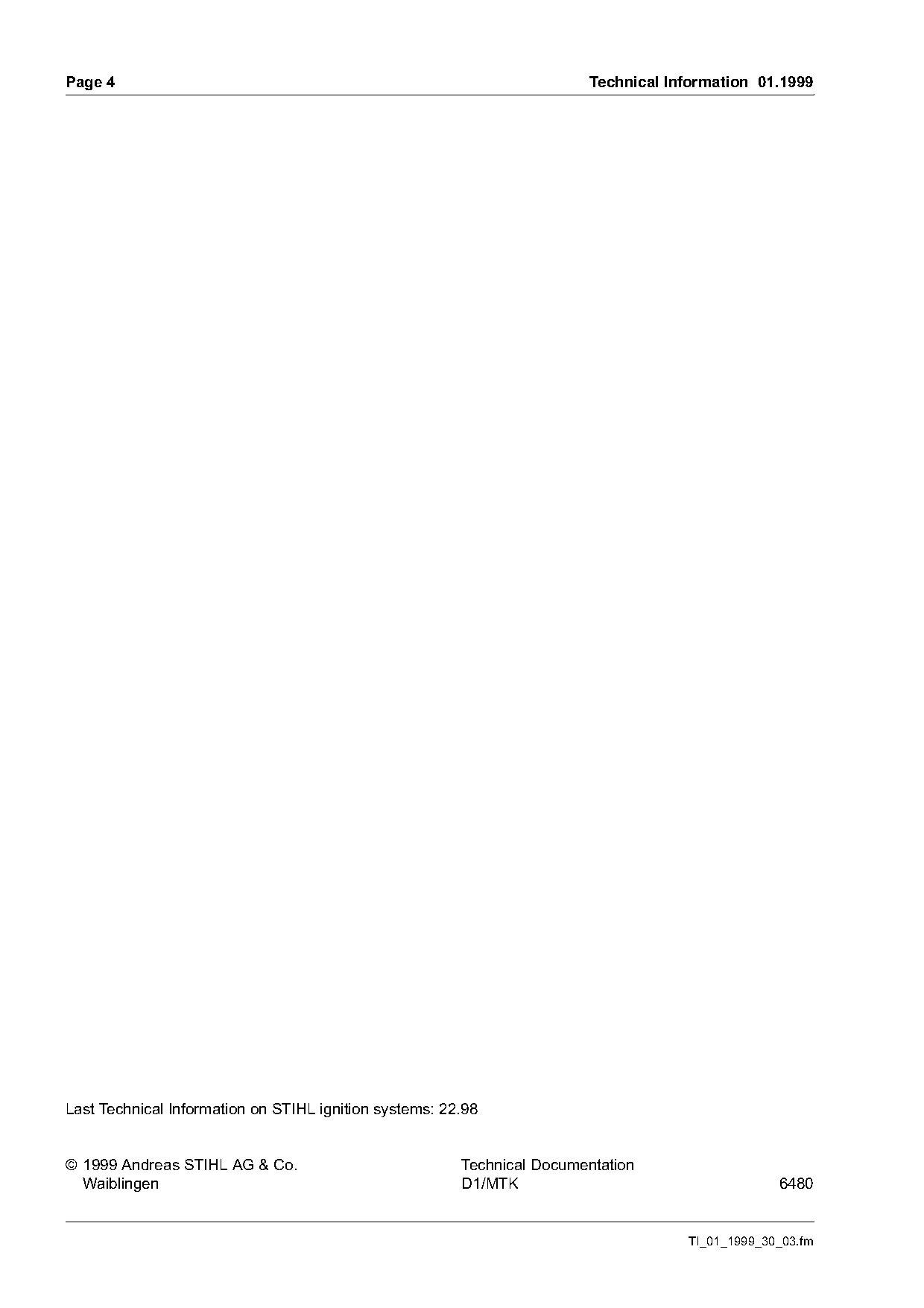

)m~ge 4 Technical Information 01.1999
Last Technical Information on STIHL ignition systems: 22.98
© 1999 Andreas STIHL AG & Co. Technical Documentation
Waiblingen D1/MTK 6480
TI_01_1999_30_03.fm Page 3 of 4
