Technical Information · issue 3 of 1999
044, 046: AV System; Engine; Summary
Model 044, 046 Chainsaws - Series 1128
IssueTI 3/1999
Engine family 1128
Part changes (2)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1128 020 2116 | 1128 020 2118 | The original crankcase 1128 020 2116 was replaced by crankcase 1128 020 2118 from serial number 1 41 354 621. |
| 9022 371 1350 | 9022 341 1370 | The original M6 x 25 screws 9022 371 1350 have been replaced by the longer M6 x 30 screws 9022 341 1370. |
Full text

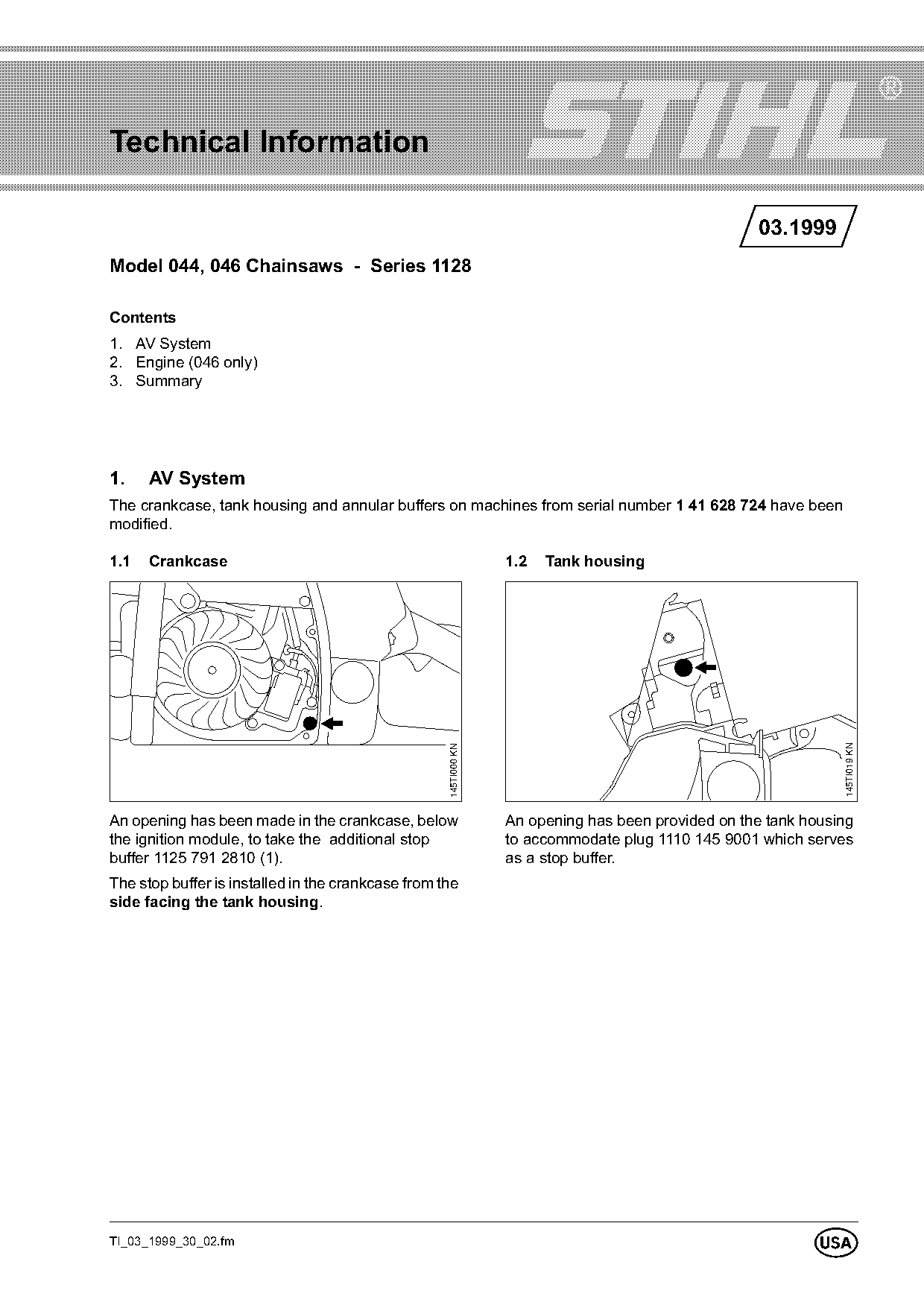

Page 1 of 3
Technical Information
03.1999
Model 044, 046 Chainsaws - Series 1128
Contents
1. AV System
2. Engine (046 only)
3. Summary
1. AV System
The crankcase, tank housing and annular buffers on machines from serial number 1 41 628 724 have been
modified.
1.1 Crankcase 1.2 Tank housing
145TI019 KN
145TI000 KN
An opening has been made in the crankcase, below An opening has been provided on the tank housing
the ignition module, to take the additional stop to accommodate plug 1110 145 9001 which serves
buffer 1125 791 2810 (1). as a stop buffer.
The stop buffer is installed in the crankcase from the
side facing the tank housing.
TI_03_1999_30_02.fm
U

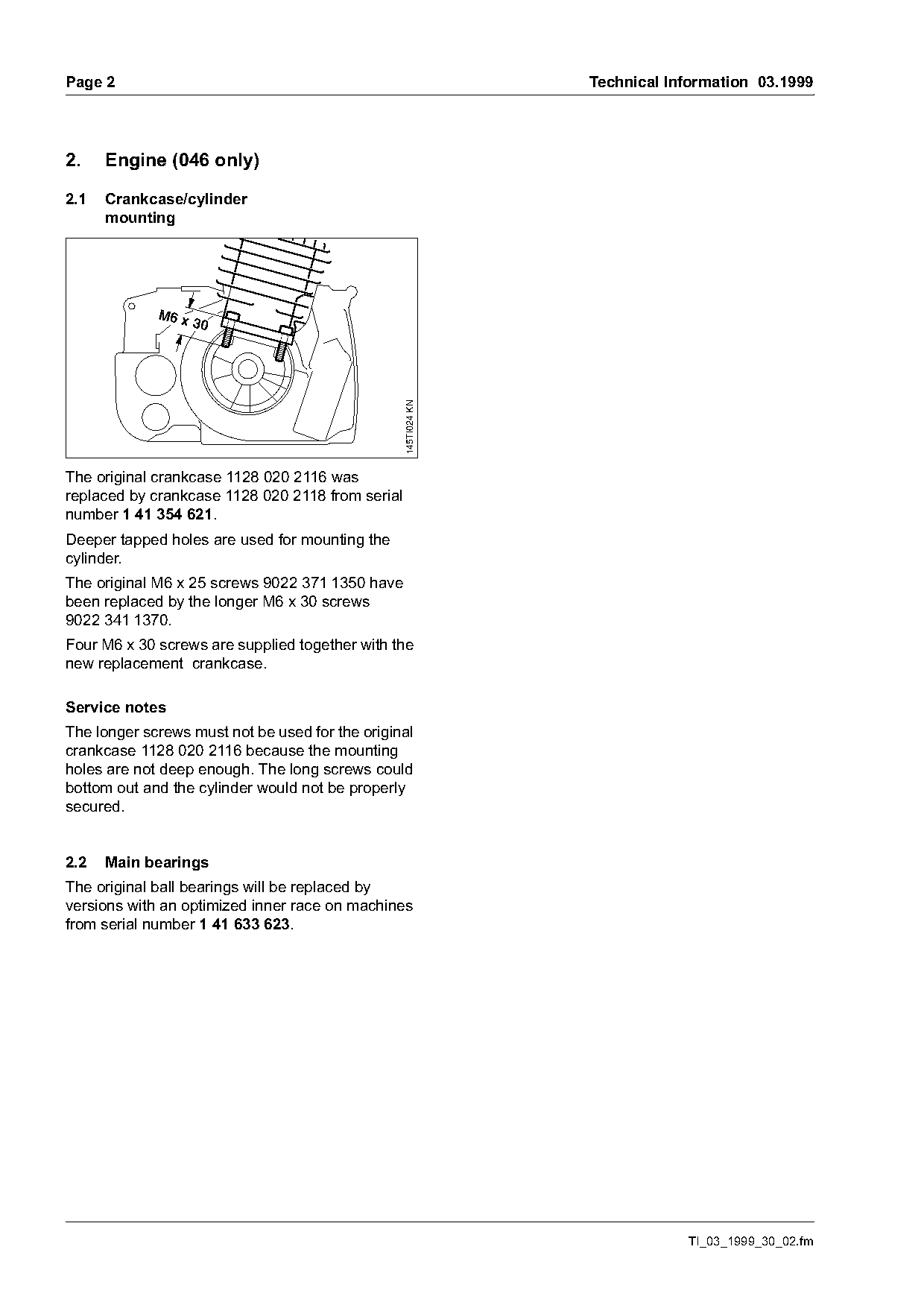

)m~ge 2 Technical Information 03.1999
2. Engine (046 only)
2.1 Crankcase/cylinder
mounting
M6 x
30
145TI024 KN
The original crankcase 1128 020 2116 was
replaced by crankcase 1128 020 2118 from serial
number 1 41 354 621.
Deeper tapped holes are used for mounting the
cylinder.
The original M6 x 25 screws 9022 371 1350 have
been replaced by the longer M6 x 30 screws
9022 341 1370.
Four M6 x 30 screws are supplied together with the
new replacement crankcase.
Service notes
The longer screws must not be used for the original
crankcase 1128 020 2116 because the mounting
holes are not deep enough. The long screws could
bottom out and the cylinder would not be properly
secured.
2.2 Main bearings
The original ball bearings will be replaced by
versions with an optimized inner race on machines
from serial number 1 41 633 623.
TI_03_1999_30_02.fm Page 2 of 3

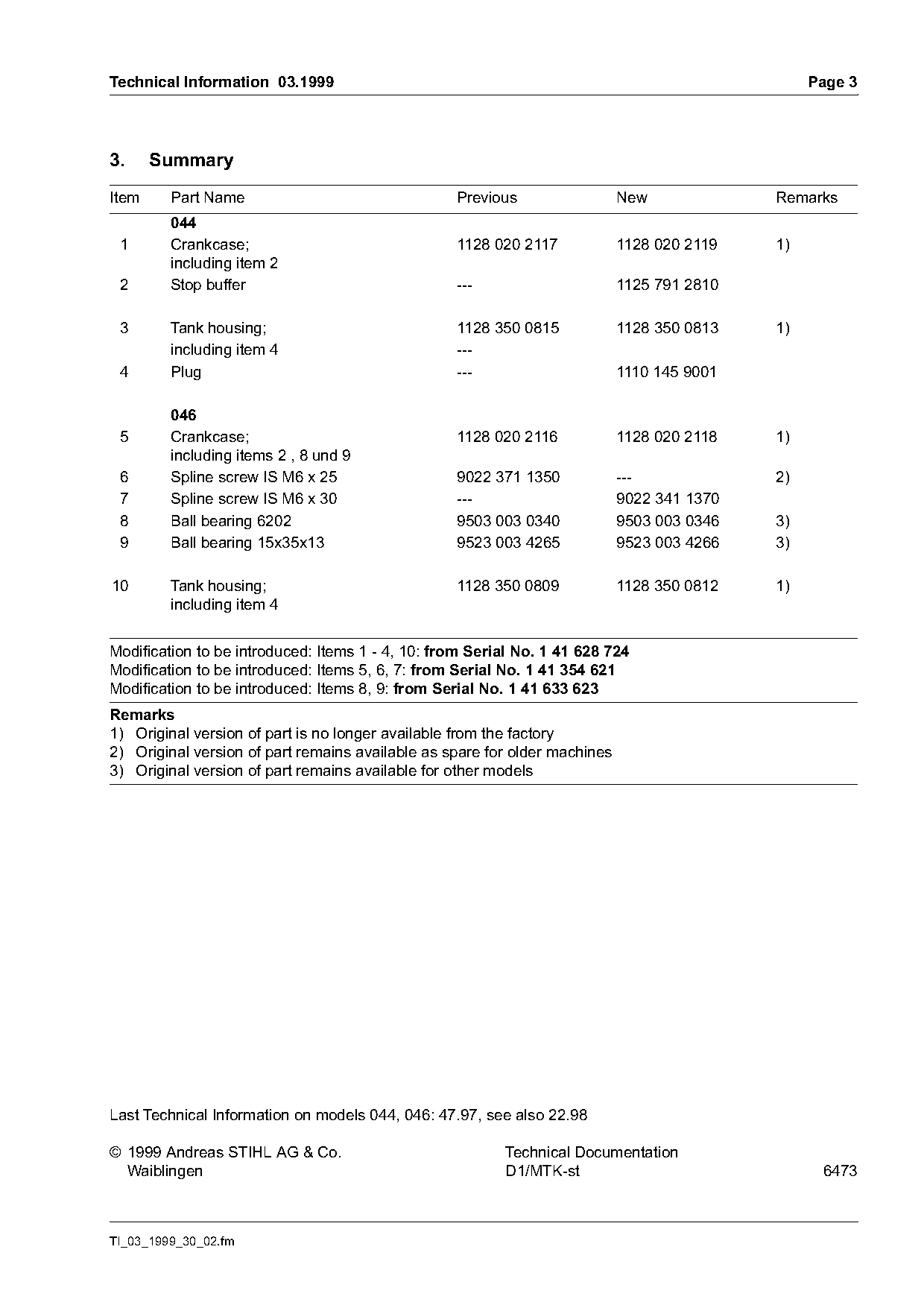

Technical Information 03.1999 Page 3
3. Summary
Item Part Name Previous New Remarks
044
1 Crankcase; 1128 020 2117 1128 020 2119 1)
including item 2
2 Stop buffer --- 1125 791 2810
3 Tank housing; 1128 350 0815 1128 350 0813 1)
including item 4 ---
4 Plug --- 1110 145 9001
046
5 Crankcase; 1128 020 2116 1128 020 2118 1)
including items 2 , 8 und 9
6 Spline screw IS M6 x 25 9022 371 1350 --- 2)
7 Spline screw IS M6 x 30 --- 9022 341 1370
8 Ball bearing 6202 9503 003 0340 9503 003 0346 3)
9 Ball bearing 15x35x13 9523 003 4265 9523 003 4266 3)
10 Tank housing; 1128 350 0809 1128 350 0812 1)
including item 4
Modification to be introduced: Items 1 - 4, 10: from Serial No. 1 41 628 724
Modification to be introduced: Items 5, 6, 7: from Serial No. 1 41 354 621
Modification to be introduced: Items 8, 9: from Serial No. 1 41 633 623
Remarks
1) Original version of part is no longer available from the factory
2) Original version of part remains available as spare for older machines
3) Original version of part remains available for other models
Last Technical Information on models 044, 046: 47.97, see also 22.98
© 1999 Andreas STIHL AG & Co. Technical Documentation
Waiblingen D1/MTK-st 6473
TI_03_1999_30_02.fm Page 3 of 3
