Technical Information · issue 4 of 1999

020, 020 T: Air filter; Chain sprocket/worm; Muffl

Model 020 T Chainsaws - Series 112

IssueTI 4/1999

Part changes (1)

WasBecomesWhat the bulletin says
1129 120 1606 1129 120 1607 Air filter 1129 120 1606 will be replaced by the version 1129 120 1607.

Historical fitment & changes

Source-reviewed model notes. An exact-model IPL link is unavailable where stated; no similar model is substituted. Availability statements belong to the bulletin’s date.

Historical fitment · 020 T

020 T: 0.325-inch sprocket and worm must stay paired

The 7-tooth option uses set 1129 640 2052; a pitch conversion requires the matching worm.

No exact-model IPL link: No exact 020 T oil-pump/clutch sheet is retained in this catalog. The MS 200 T/MS 200 sheet with these numbers is not substituted as an 020 T binding.

  • Section2 introduces a 0.325-inch, 7-tooth chain sprocket so cutting attachments of that pitch can be used on Model 020 T. No gauge, drive-link count or approved bar/chain combination table is supplied; this is not unrestricted approval of all 0.325-inch attachments.
  • Summary item1 is chain sprocket/worm set 1129 640 2052, including item2 chain sprocket 1129 640 2004 and item3 worm 1129 640 7105. All three previous-number cells are dashes: these are additions, not three old-to-new supersessions.
  • Remark1 attached to the sprocket row says: when converting to a different pitch, always replace the chain sprocket together with the matching worm. The bulletin says set 1129 640 2052 will be supplied as a replacement in future. Do not treat the individually listed sprocket as a stand-alone pitch conversion.
  • The modification is in progress, with no numeric serial cutoff. A separately reviewed 020 T manual carrying copyright 1999 lists 3/8 Picco and optional 1/4, but not this 0.325 option. Its copyright year does not date it relative to TI04; the different option coverage is retained, not harmonized into a universal configuration.
  • TI 04/1999 USA names Model 020 T, series 1129. The broader extracted title and shared catalog labels do not extend these assertions to rear-handle 020, earlier series 1114, MC 200 or MS 200 successors. Factory availability is historical, not current stock; physical interchange has not been tested. No hardware operation was performed.

TI dependency: TI 4/1999, p. 2 — Complete section2,all three summary rows,inclusion range,in-progress line and remark1.

Manual evidence: Service Manual 020 T Chain Saws (publication revision unestablished; ©1999), section 1.4 Cutting Attachment / 1.5 Special Accessories, PDF pages 1, 4

Part numbers (3)
  • 1129 640 2052 — 0.325-inch 7-tooth sprocket/worm set; item1New set; includes items2 and3 · 020 T; TI 04/1999 only
  • 1129 640 2004 — 0.325-inch 7-tooth chain sprocket; item2Paired conversion component · 020 T; TI 04/1999 only
  • 1129 640 7105 — Matching 0.325-inch 7-tooth worm; item3Required matching conversion component · 020 T; TI 04/1999 only

Full text

Page 1 of 2

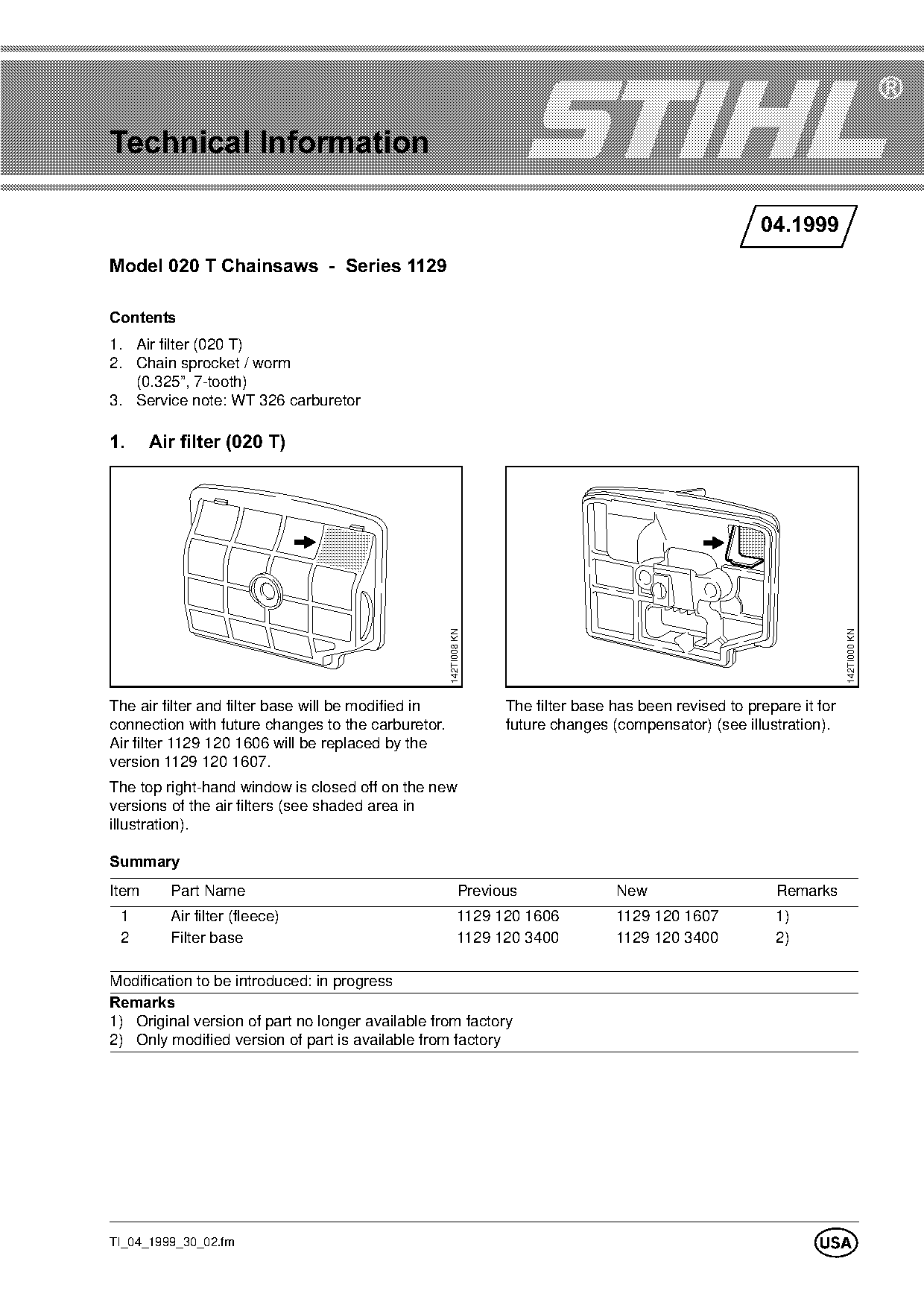

TI 4/1999 page 1
Text of page 1 — search, copy, screen readers
Technical Information

                                                                                                         04.1
Model 020 T Chainsaws  -  Series 112

&RQWHQWV
1. Air filter (020 T)
2. Chain sprocket / worm
   (0.325”, 7-tooth)
3. Service note: WT 326 carburetor

1.=====Air filter =020 T
                                                     142TI008 KN

                                                                                                                        142TI000 KN
The air filter and filter base will be modified in                 The filter base has been revised to prepare it for
connection with future changes to the carburetor.                  future changes (compensator) (see illustration).
Air filter 1129 120 1606 will be replaced by the
version 1129 120 1607.
The top right-hand window is closed off on the new
versions of the air filters (see shaded area in
illustration).

6XPPDU\
Item     Part Name                                           Previous              New                     Remarks
 1       Air filter (fleece)                                 1129 120 1606         1129 120 1607           1)
 2       Filter base                                         1129 120 3400         1129 120 3400           2)

Modification to be introduced: in progress
5HPDUNV
1) Original version of part no longer available from factory
2) Only modified version of part is available from factory

TI_04_1999_30_02.fm
                                                                                                                 8

Page 2 of 2

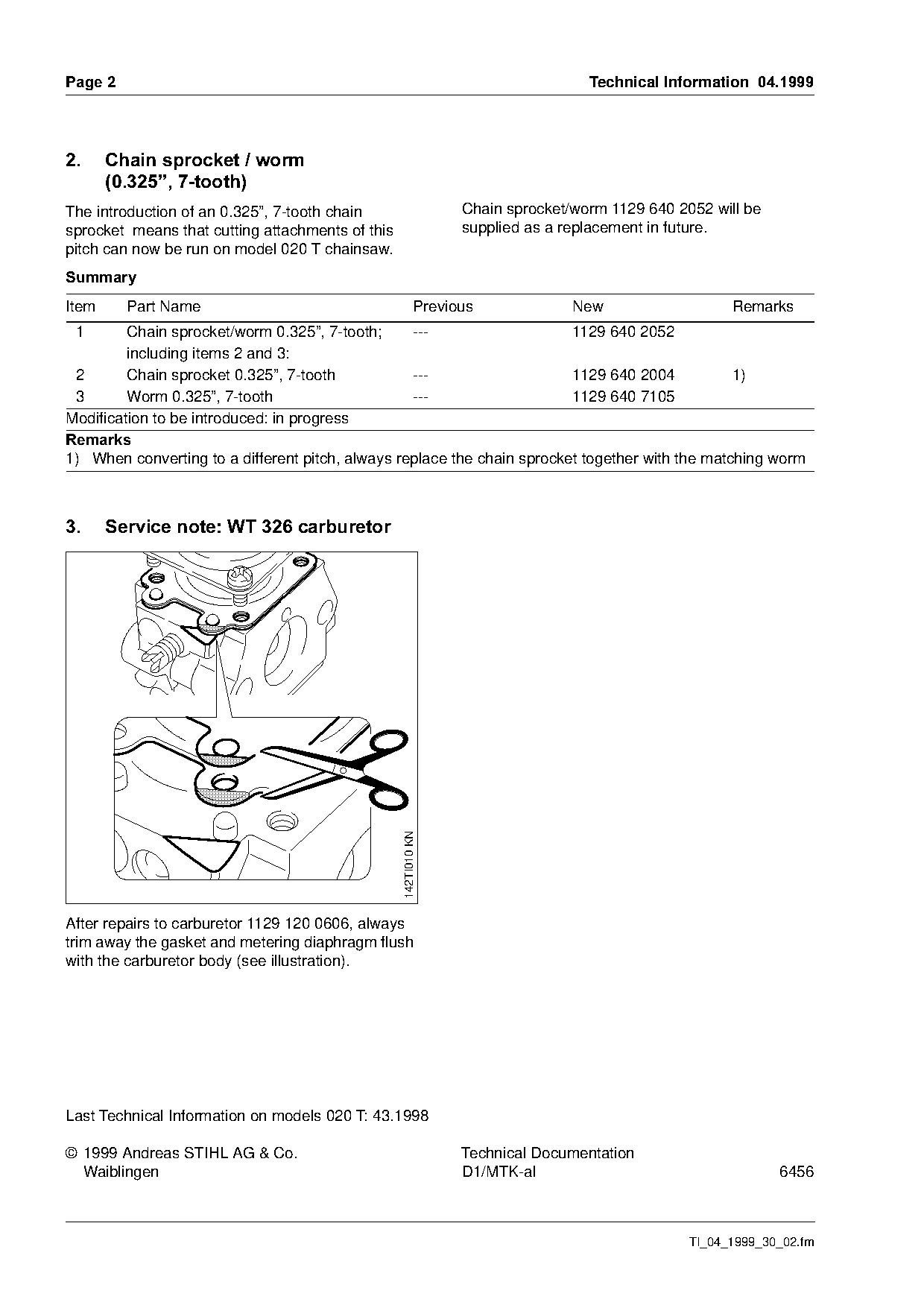

TI 4/1999 page 2
Text of page 2 — search, copy, screen readers
Page 2===========================================================================qechnical Information  04.1

2.=====Chain sprocket / worm
       0.325´, 7-tooth
The introduction of an 0.325”, 7-tooth chain                    Chain sprocket/worm 1129 640 2052 will be
sprocket means that cutting attachments of this                 supplied as a replacement in future.
pitch can now be run on model 020 T chainsaw.
6XPPDU\
Item     Part Name                                        Previous             New                   Remarks
 1       Chain sprocket/worm 0.325”, 7-tooth;     ---                    1129 640 2052
         including items 2 and 3:
 2       Chain sprocket 0.325”, 7-tooth           ---                    1129 640 2004           1)
 3       Worm 0.325”, 7-tooth                     ---                    1129 640 7105
Modification to be introduced: in progress
5HPDUNV
1) When converting to a different pitch, always replace the chain sprocket together with the matching worm

3.=====Service note: WT 326 carburetor
                                                  142TI010 KN

After repairs to carburetor 1129 120 0606, always
trim away the gasket and metering diaphragm flush
with the carburetor body (see illustration).

Last Technical Information on models 020 T: 43.1998

© 1999 Andreas STIHL AG & Co.                                   Technical Documentation
  Waiblingen                                                    D1/MTK-al                                   6456

                                                                                               TI_04_1999_30_02.fm
